Page 2225 of 3342

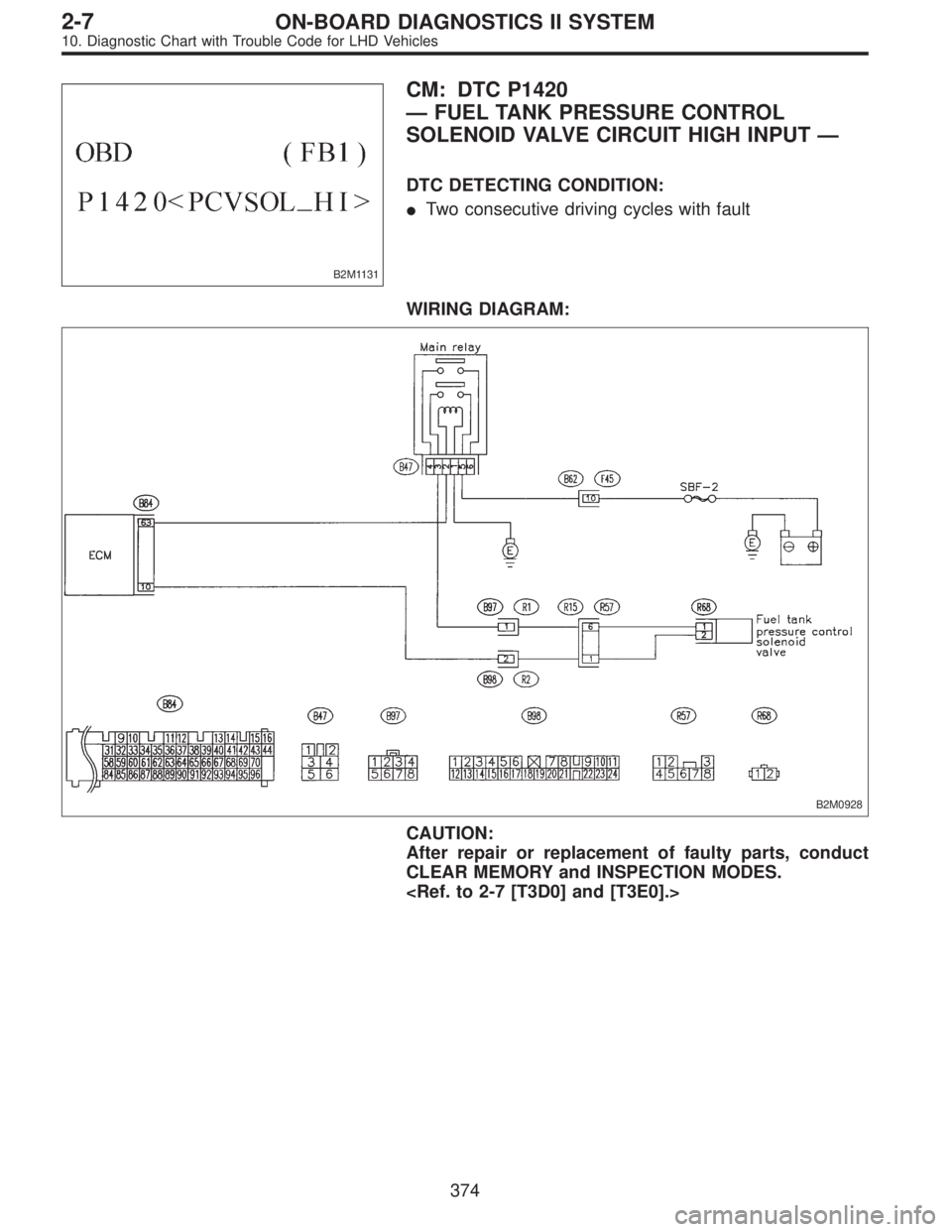

SUBARU LEGACY 1997 Service Repair Manual B2M1131 CM: DTC P1420 —FUEL TANK PRESSURE CONTROL SOLENOID VALVE CIRCUIT HIGH INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault WIRING DIAGRAM: B2M0928 CAUTION: After repa

Page 2226 of 3342

SUBARU LEGACY 1997 Service Repair Manual H2M1408B 10CM1 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 10 (+)—Chassis ground (�): Is the volt

Page 2227 of 3342

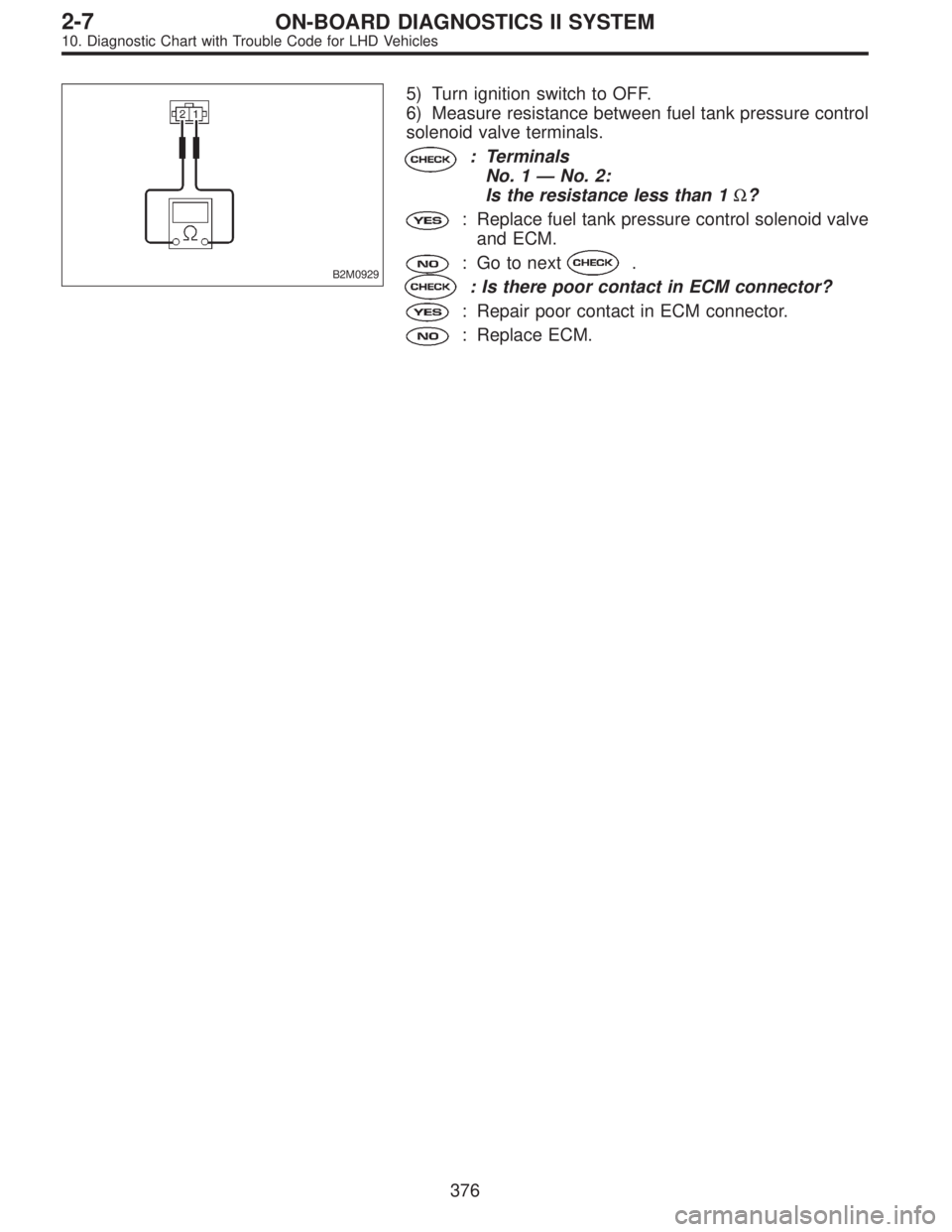

SUBARU LEGACY 1997 Service Repair Manual B2M0929 5) Turn ignition switch to OFF. 6) Measure resistance between fuel tank pressure control solenoid valve terminals. : Terminals No. 1—No. 2: Is the resistance less than 1Ω? : Replace fuel t

Page 2228 of 3342

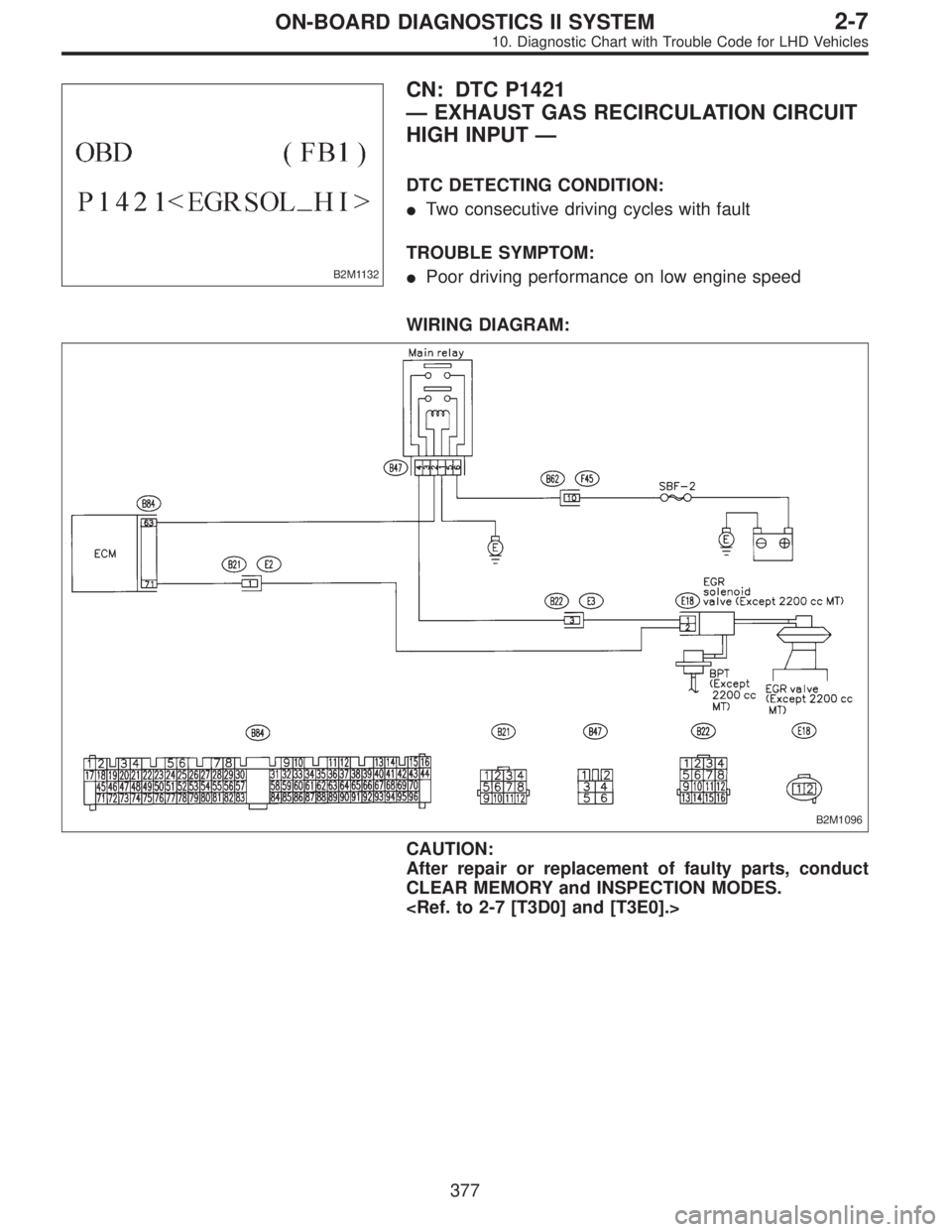

SUBARU LEGACY 1997 Service Repair Manual B2M1132 CN: DTC P1421 —EXHAUST GAS RECIRCULATION CIRCUIT HIGH INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Poor driving performance on low engine sp

Page 2229 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10CN1 CHECK ENGINE/TRANSMISSION TYPE. : Is engine/transmission type 2200 cc/MT? : Check AT/MT identification circuit. <Ref. to 2-7 [T10DD0].> : Go to step10CN2. B2M0566A 10CN2 CHECK OUTPUT SIGNAL FROM

Page 2230 of 3342

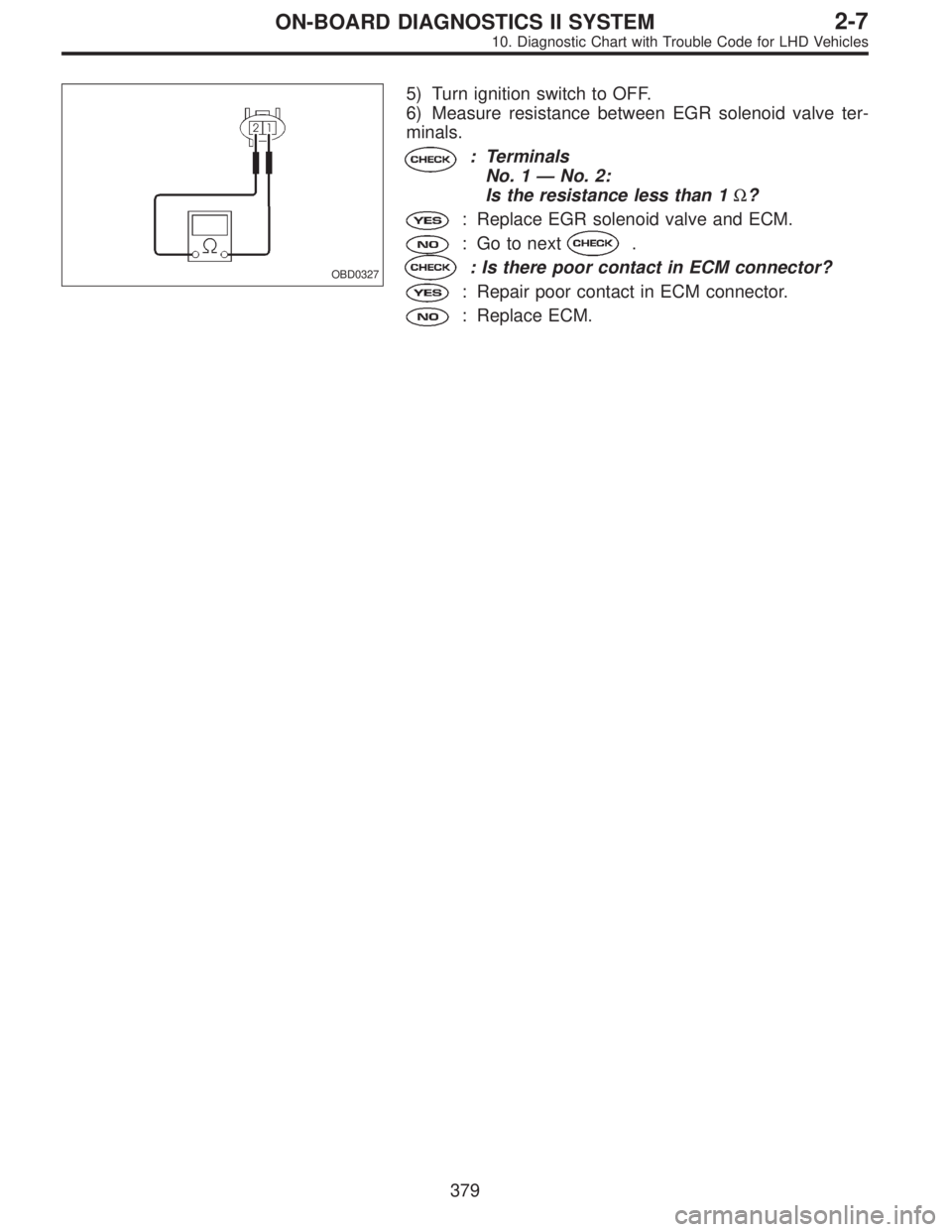

SUBARU LEGACY 1997 Service Repair Manual OBD0327 5) Turn ignition switch to OFF. 6) Measure resistance between EGR solenoid valve ter- minals. : Terminals No. 1—No. 2: Is the resistance less than 1Ω? : Replace EGR solenoid valve and ECM.

Page 2231 of 3342

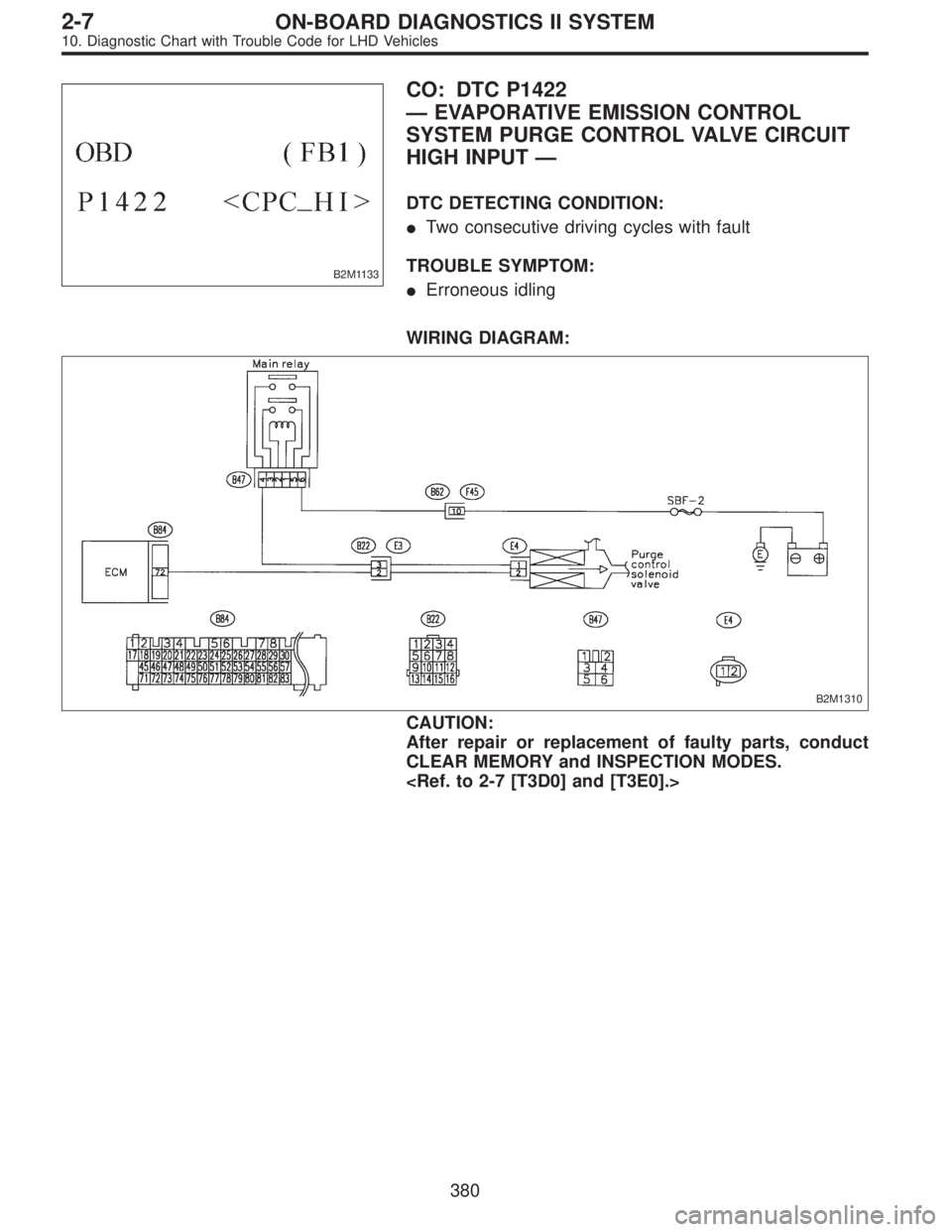

SUBARU LEGACY 1997 Service Repair Manual B2M1133 CO: DTC P1422 —EVAPORATIVE EMISSION CONTROL SYSTEM PURGE CONTROL VALVE CIRCUIT HIGH INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Erroneous i

Page 2232 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0570A 10CO1 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 72 (+)—Chassis ground (�): Is the volt
