Page 2241 of 3342

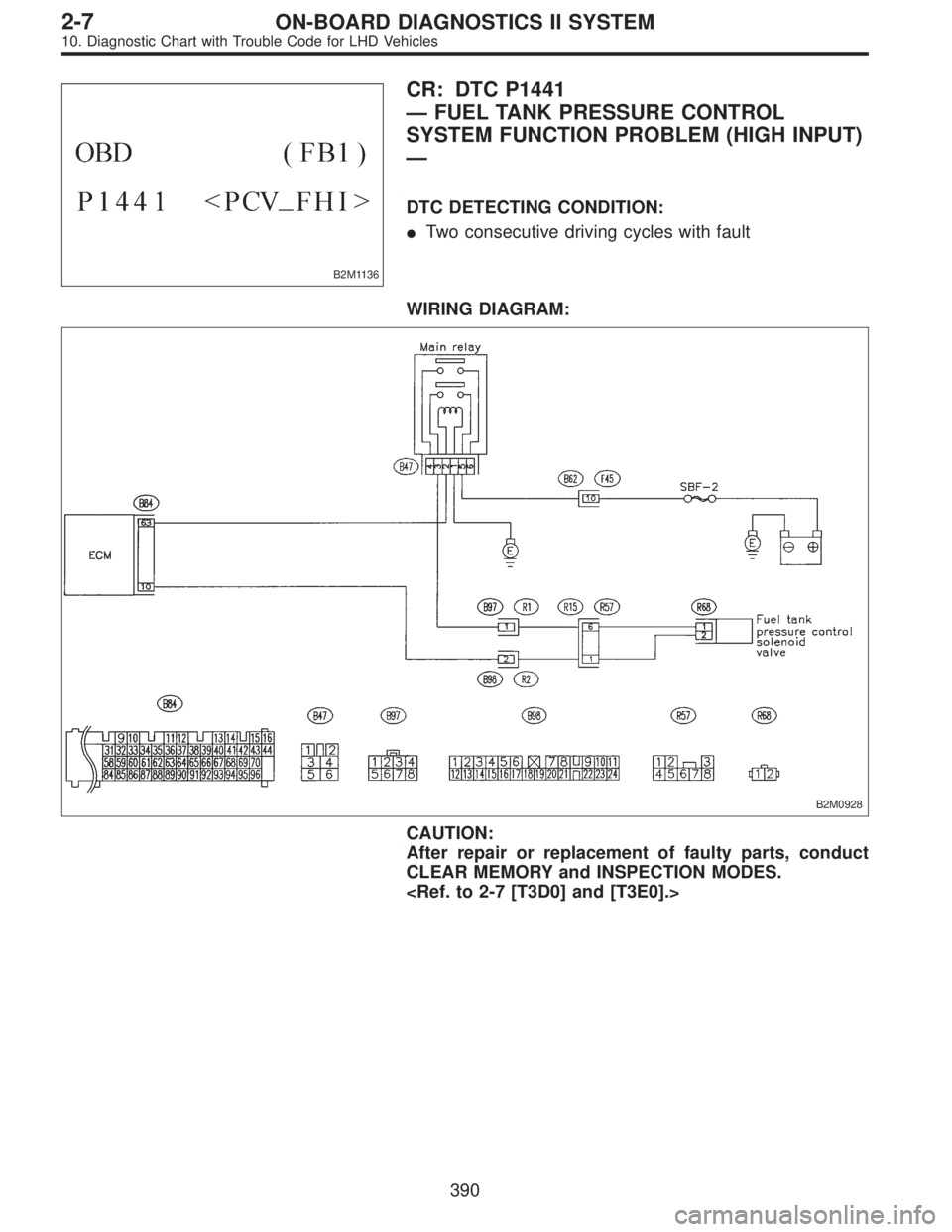

SUBARU LEGACY 1997 Service Repair Manual B2M1136 CR: DTC P1441 —FUEL TANK PRESSURE CONTROL SYSTEM FUNCTION PROBLEM (HIGH INPUT) — DTC DETECTING CONDITION: Two consecutive driving cycles with fault WIRING DIAGRAM: B2M0928 CAUTION: After

Page 2242 of 3342

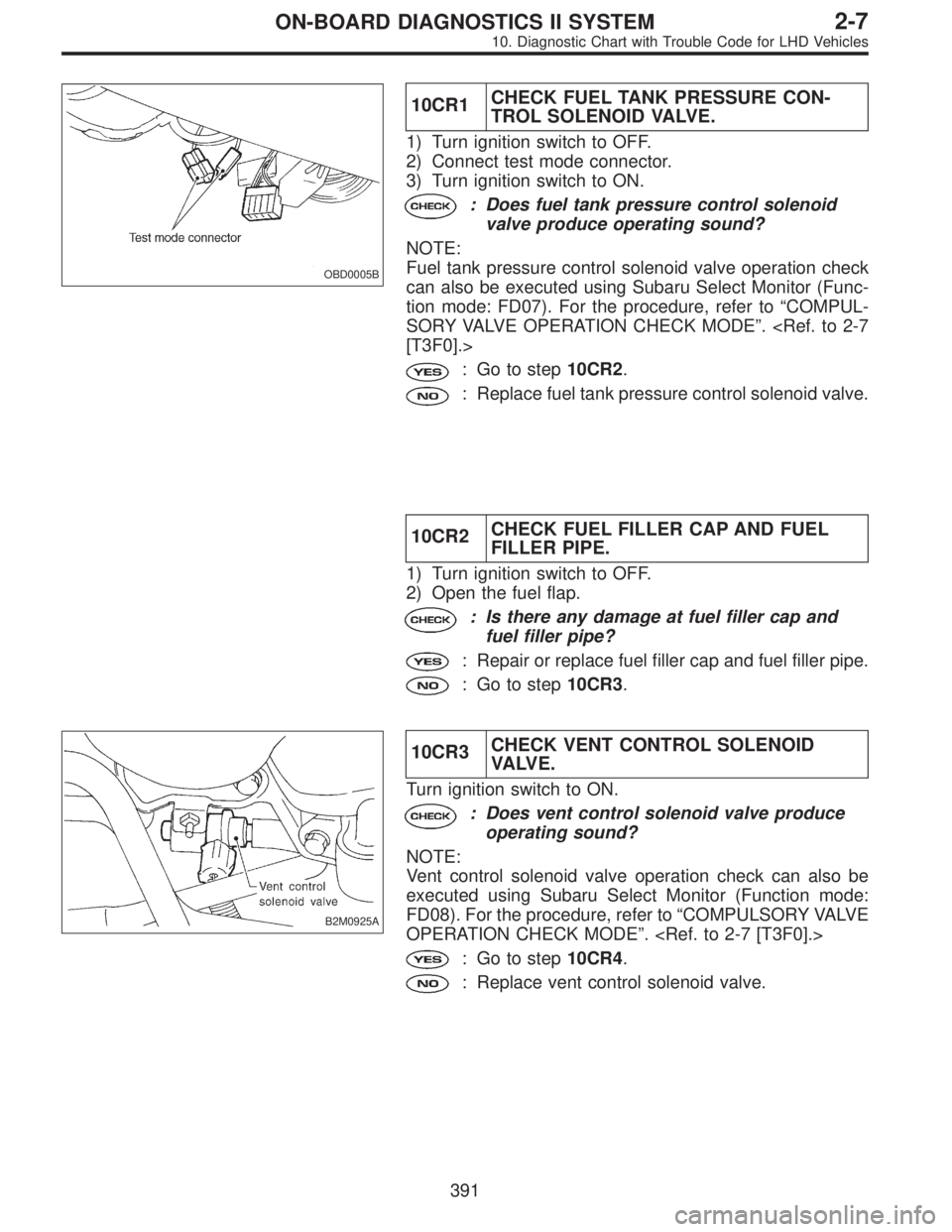

SUBARU LEGACY 1997 Service Repair Manual OBD0005B 10CR1CHECK FUEL TANK PRESSURE CON- TROL SOLENOID VALVE. 1) Turn ignition switch to OFF. 2) Connect test mode connector. 3) Turn ignition switch to ON. : Does fuel tank pressure control soleno

Page 2243 of 3342

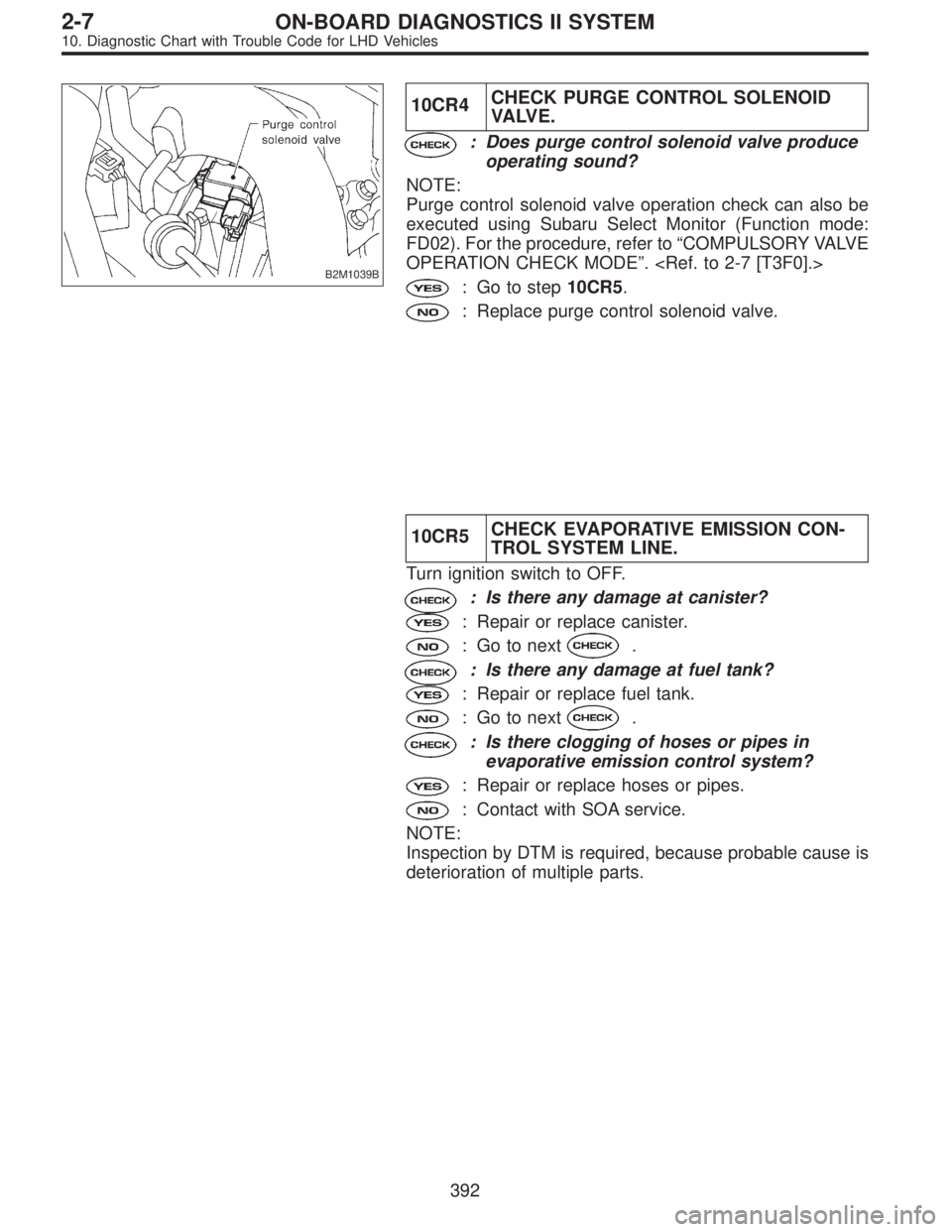

SUBARU LEGACY 1997 Service Repair Manual B2M1039B 10CR4CHECK PURGE CONTROL SOLENOID VA LV E . : Does purge control solenoid valve produce operating sound? NOTE: Purge control solenoid valve operation check can also be executed using Subaru S

Page 2244 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1137 CS: DTC P1442 —FUEL LEVEL SENSOR CIRCUIT RANGE/ PERFORMANCE PROBLEM 2— DTC DETECTING CONDITION: Two consecutive driving cycles with fault WIRING DIAGRAM: B2M0933 CAUTION: After repair or

Page 2245 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10CS1CHECK DTC P0461, P0462 OR P0463 ON DISPLAY. : Does the Subaru select monitor or OBD-II general scan tool indicate DTC P0461, P0462 or P0463? : Inspect DTC P0461, P0462 or P0463 using“10. Diagno

Page 2246 of 3342

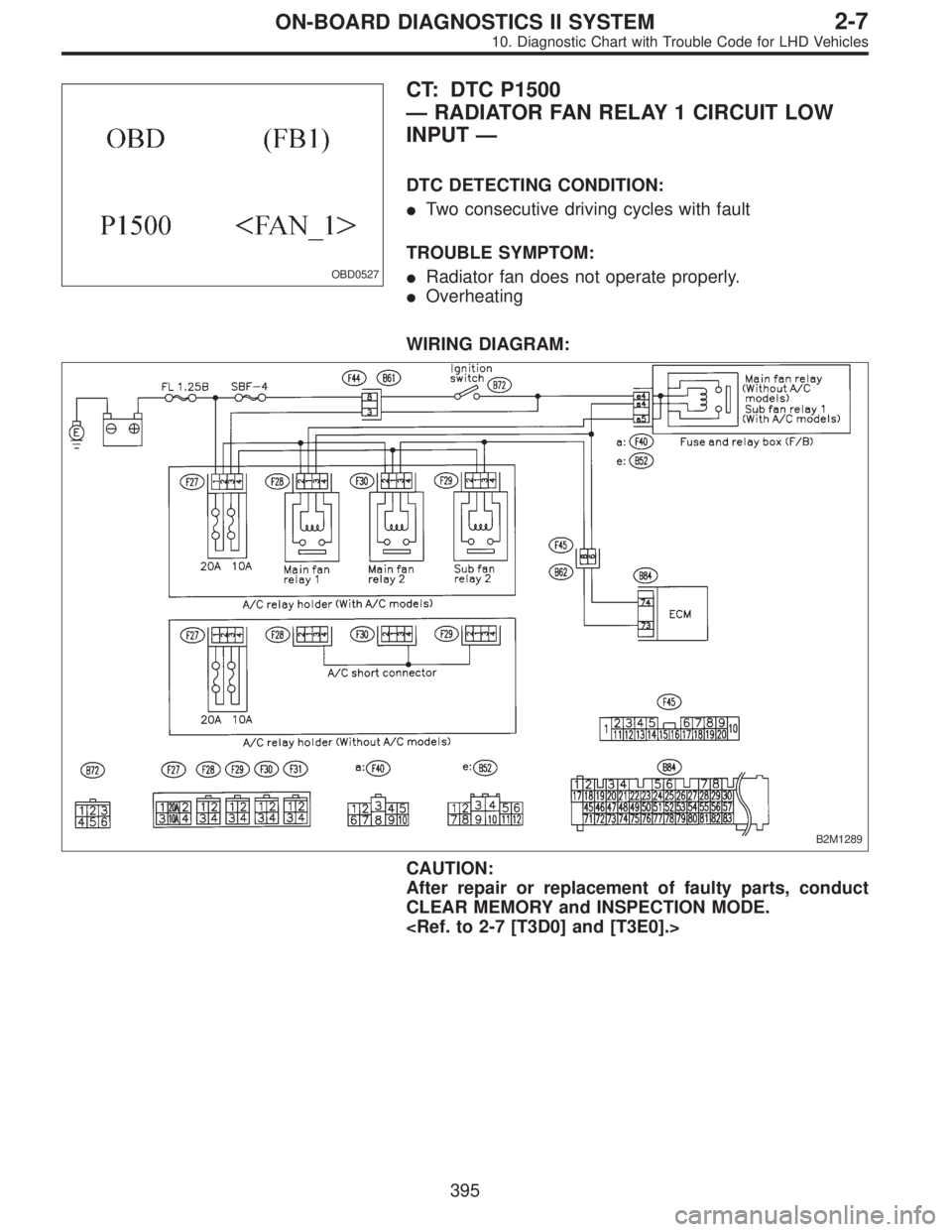

SUBARU LEGACY 1997 Service Repair Manual OBD0527 CT: DTC P1500 —RADIATOR FAN RELAY 1 CIRCUIT LOW INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Radiator fan does not operate properly. Overhe

Page 2247 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0736A 10CT1 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to OFF. 2) Connect test mode connector at the lower portion of instrument panel (on the driver’s side), to the side of the center

Page 2248 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1298A 10CT3 CHECK POWER SUPPLY FOR RELAY. 1) Disconnect connector (B52) from fuse and relay box (F/B). 2) Turn ignition switch to ON. 3) Measure voltage between fuse and relay box (F/B) con- nector
