1997 SUBARU LEGACY tire size

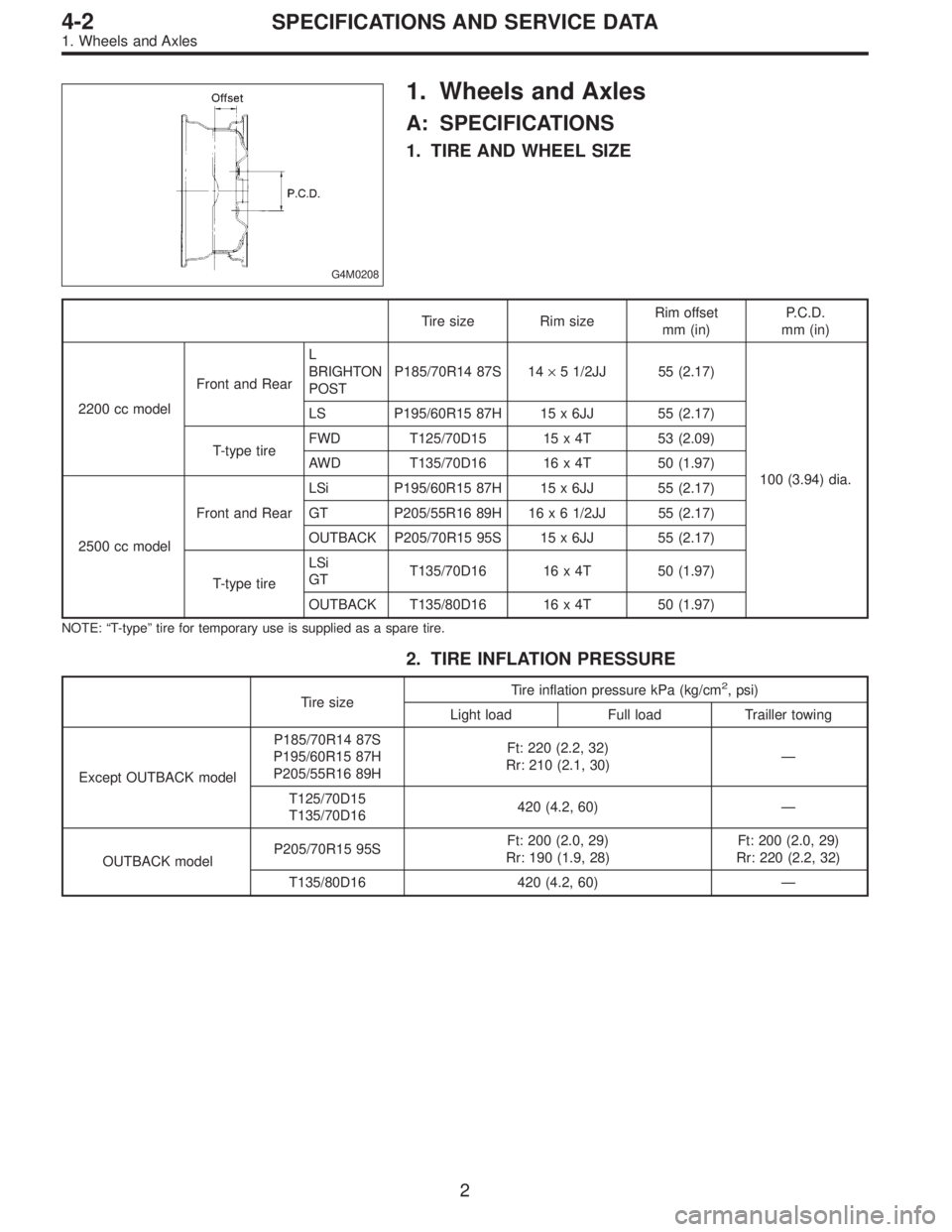

G4M0208
1. Wheels and Axles
A: SPECIFICATIONS
1. TIRE AND WHEEL SIZE
Tire size Rim sizeRim offset
mm (in)P.C.D.
mm (in)
2200 cc modelFront and RearL
BRIGHTON
POSTP185/70R14 87S 14×5 1/2JJ 55 (2.17)
100 (3.94) dia. LS P195/60R15 87H 15 x 6JJ 55 (2.17)
T-type tireFWD T125/70D15 15 x 4T 53 (2.09)
AWD T135/70D16 16 x 4T 50 (1.97)
2500 cc modelFront and RearLSi P195/60R15 87H 15 x 6JJ 55 (2.17)
GT P205/55R16 89H 16 x 6 1/2JJ 55 (2.17)
OUTBACK P205/70R15 95S 15 x 6JJ 55 (2.17)
T-type tireLSi
GTT135/70D16 16 x 4T 50 (1.97)
OUTBACK T135/80D16 16 x 4T 50 (1.97)
NOTE:“T-type”tire for temporary use is supplied as a spare tire.
2. TIRE INFLATION PRESSURE
Tire sizeTire inflation pressure kPa (kg/cm
2, psi)
Light load Full load Trailler towing
Except OUTBACK modelP185/70R14 87S
P195/60R15 87H
P205/55R16 89HFt: 220 (2.2, 32)
Rr: 210 (2.1, 30)—
T125/70D15
T135/70D16420 (4.2, 60)—
OUTBACK modelP205/70R15 95SFt: 200 (2.0, 29)
Rr: 190 (1.9, 28)Ft: 200 (2.0, 29)
Rr: 220 (2.2, 32)
T135/80D16 420 (4.2, 60)—
2
4-2SPECIFICATIONS AND SERVICE DATA
1. Wheels and Axles

B4M0051
7. Full Wheel Cap
A: REMOVAL
Pry off the full wheel cap with a wheel cap remover inserted
between openings in the cap.
B: INSTALLATION
Align the valve hole in the wheel cap with the valve on the
wheel and secure the wheel cap by tapping four points by
hand.
8. Steel Wheel and Tire
1) Deformation or damage on the rim can cause air leak-
age. Check the rim flange for deformation, crack, or
damage, and repair or replace as necessary.
2) Take stone, glass, nail etc. off the tread groove.
G4M0297
3) Replace tire:
when large crack on side wall, damage or crack on
tread is found.
when the“tread wear indicator”appears as a solid
band across the tread.
CAUTION:
When replacing a tire, make sure to use only the
same size, construction and load range as originally
installed.
Avoid mixing radial, belted bias or bias tires on the
vehicle.
49
4-2SERVICE PROCEDURE
7. Full Wheel Cap - 8. Steel Wheel and Tire

B4M0051
7. Full Wheel Cap
A: REMOVAL
Pry off the full wheel cap with a wheel cap remover inserted
between openings in the cap.
B: INSTALLATION
Align the valve hole in the wheel cap with the valve on the
wheel and secure the wheel cap by tapping four points by
hand.
8. Steel Wheel and Tire
1) Deformation or damage on the rim can cause air leak-
age. Check the rim flange for deformation, crack, or
damage, and repair or replace as necessary.
2) Take stone, glass, nail etc. off the tread groove.
G4M0297
3) Replace tire:
when large crack on side wall, damage or crack on
tread is found.
when the“tread wear indicator”appears as a solid
band across the tread.
CAUTION:
When replacing a tire, make sure to use only the
same size, construction and load range as originally
installed.
Avoid mixing radial, belted bias or bias tires on the
vehicle.
49
4-2SERVICE PROCEDURE
7. Full Wheel Cap - 8. Steel Wheel and Tire

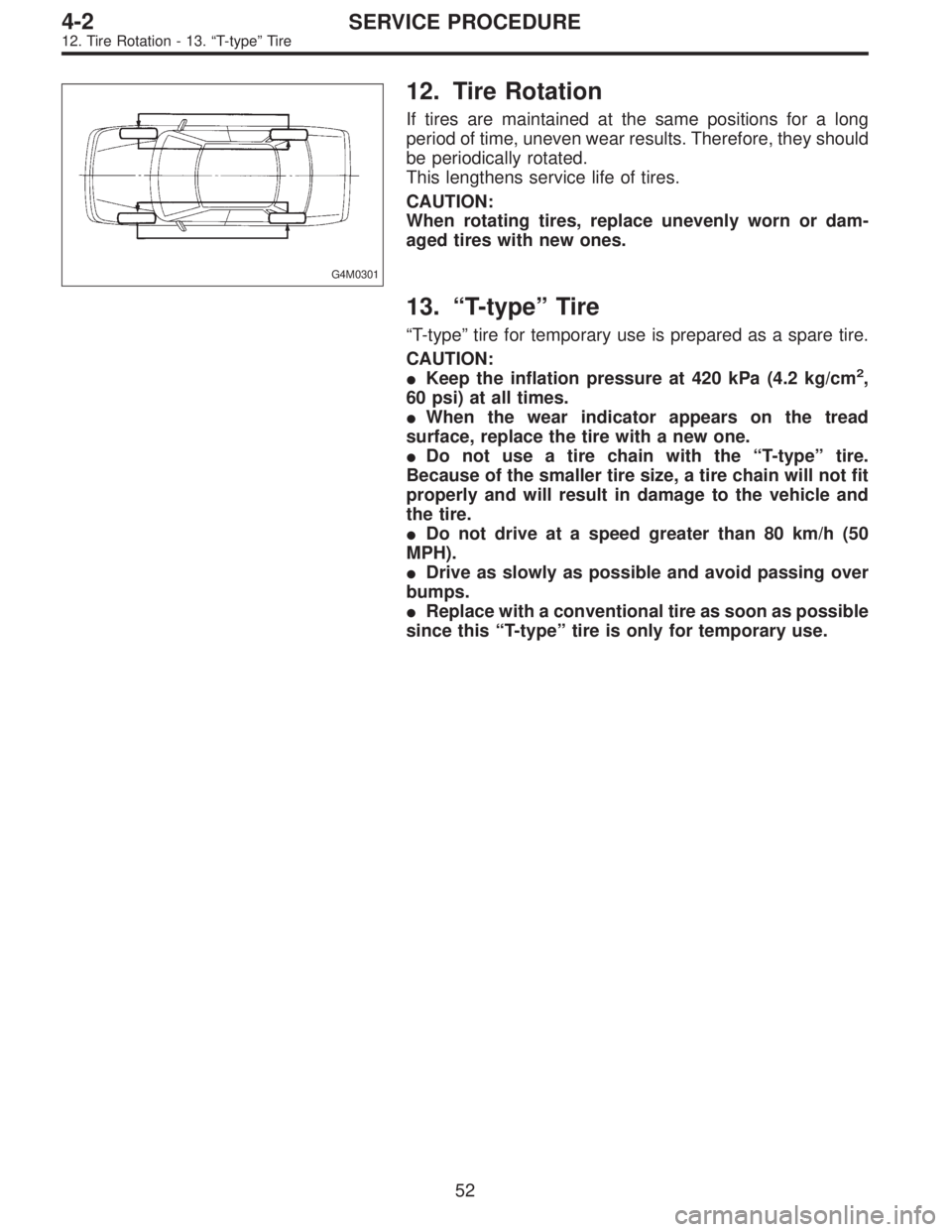

G4M0301
12. Tire Rotation
If tires are maintained at the same positions for a long
period of time, uneven wear results. Therefore, they should
be periodically rotated.
This lengthens service life of tires.
CAUTION:
When rotating tires, replace unevenly worn or dam-
aged tires with new ones.
13.“T-type”Tire
“T-type”tire for temporary use is prepared as a spare tire.
CAUTION:
Keep the inflation pressure at 420 kPa (4.2 kg/cm
2,
60 psi) at all times.
When the wear indicator appears on the tread
surface, replace the tire with a new one.
Do not use a tire chain with the“T-type”tire.
Because of the smaller tire size, a tire chain will not fit
properly and will result in damage to the vehicle and
the tire.
Do not drive at a speed greater than 80 km/h (50
MPH).
Drive as slowly as possible and avoid passing over
bumps.
Replace with a conventional tire as soon as possible
since this“T-type”tire is only for temporary use.
52
4-2SERVICE PROCEDURE
12. Tire Rotation - 13.“T-type”Tire

G4M0301
12. Tire Rotation
If tires are maintained at the same positions for a long
period of time, uneven wear results. Therefore, they should
be periodically rotated.
This lengthens service life of tires.
CAUTION:
When rotating tires, replace unevenly worn or dam-
aged tires with new ones.
13.“T-type”Tire
“T-type”tire for temporary use is prepared as a spare tire.
CAUTION:
Keep the inflation pressure at 420 kPa (4.2 kg/cm
2,
60 psi) at all times.
When the wear indicator appears on the tread
surface, replace the tire with a new one.
Do not use a tire chain with the“T-type”tire.
Because of the smaller tire size, a tire chain will not fit
properly and will result in damage to the vehicle and
the tire.
Do not drive at a speed greater than 80 km/h (50
MPH).
Drive as slowly as possible and avoid passing over
bumps.
Replace with a conventional tire as soon as possible
since this“T-type”tire is only for temporary use.
52
4-2SERVICE PROCEDURE
12. Tire Rotation - 13.“T-type”Tire
