1997 SUBARU LEGACY Service Repair Manual

Page 2881 of 3342

SUBARU LEGACY 1997  Service Repair Manual B4M1226AB4M0230DB4M0786C
B4M0646DB4M0231DB4M0645D
5
4-4dBRAKES [ABS 5.3i TYPE]

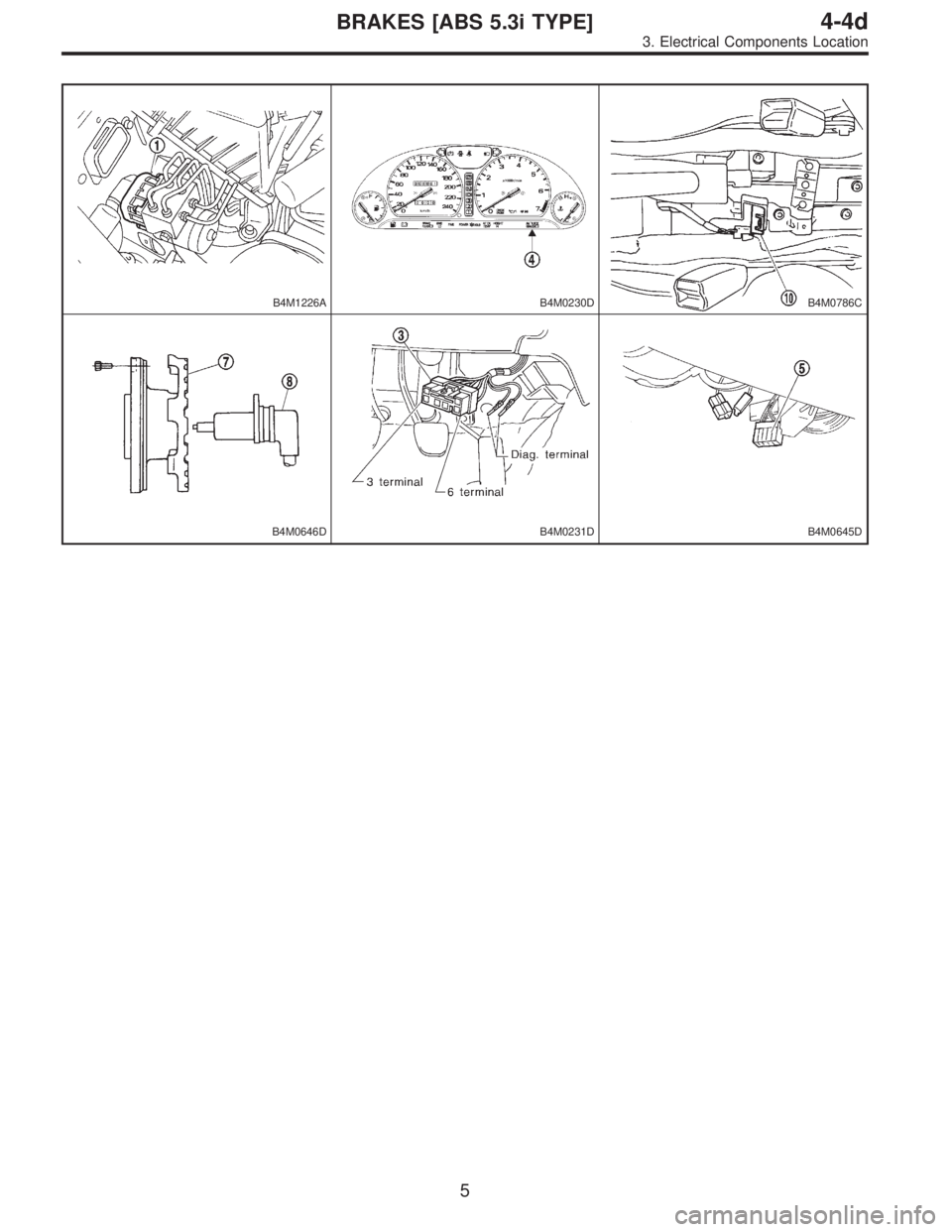

3. Electrical Components Location

Page 2882 of 3342

SUBARU LEGACY 1997  Service Repair Manual 4. Schematic
B4M1227A
1ABS control module and hydraulic control unit
(ABSCM&H/U)

2ABS control module area

3Valve relay

4Motor relay

5Motor

6Front left inlet solenoid valve

7Front left out

Page 2883 of 3342

SUBARU LEGACY 1997  Service Repair Manual 5. Control Module I/O Signal
1. I/O SIGNAL VOLTAGE
B4M1228A
NOTE:
The terminal numbers in the ABS control module and
hydraulic control unit connector are as shown in the figure.
When the connector i

Page 2884 of 3342

SUBARU LEGACY 1997  Service Repair Manual ContentsTerminal No.
(+)—(�)Input/Output signal
Measured value and measuring conditions
ABS
sensor*2
(Wheel
speed
sensor)Front left wheel 9—10
0.12 — 1 V
(When it is 20 Hz.) Front right wheel 11

Page 2885 of 3342

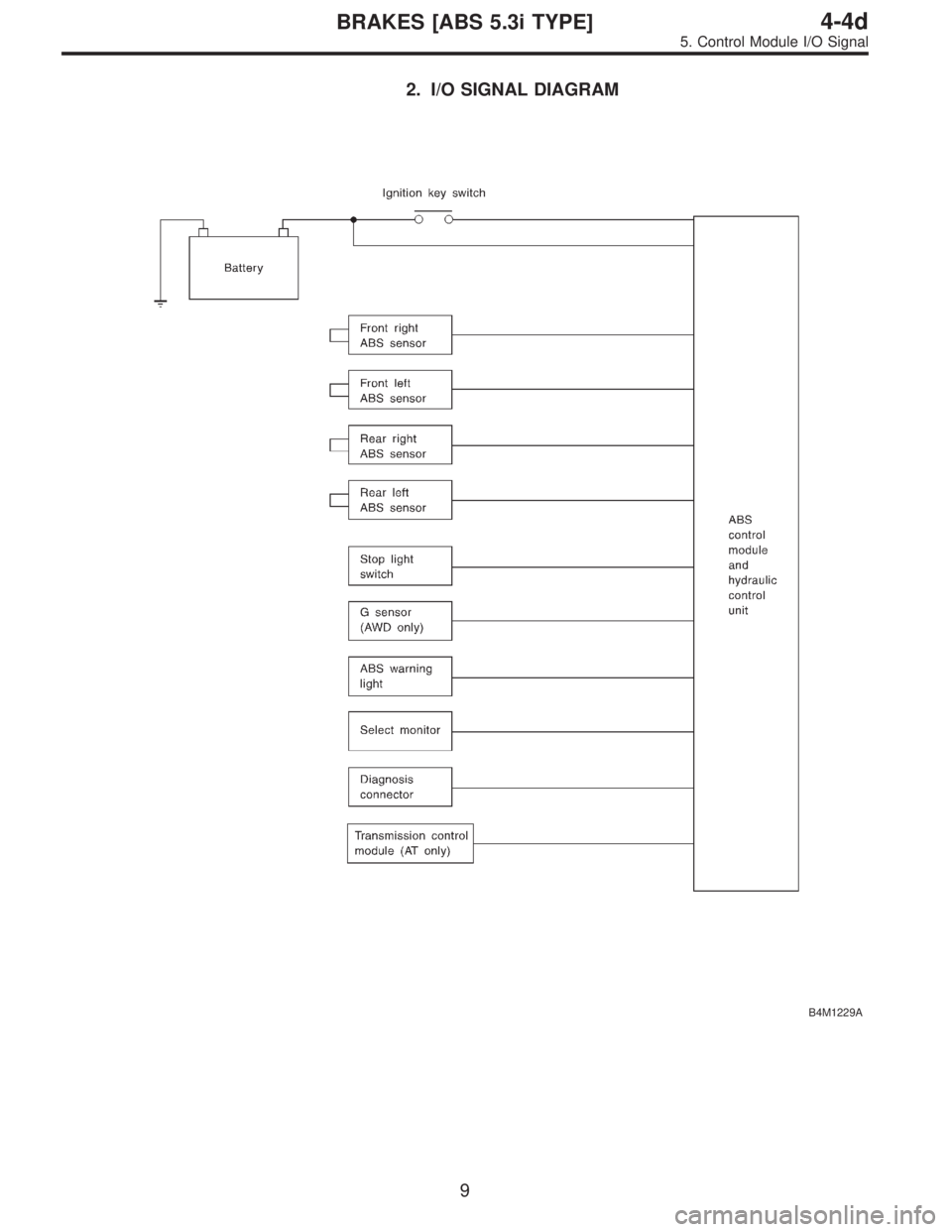

SUBARU LEGACY 1997  Service Repair Manual 2. I/O SIGNAL DIAGRAM
B4M1229A
9
4-4dBRAKES [ABS 5.3i TYPE]
5. Control Module I/O Signal

Page 2886 of 3342

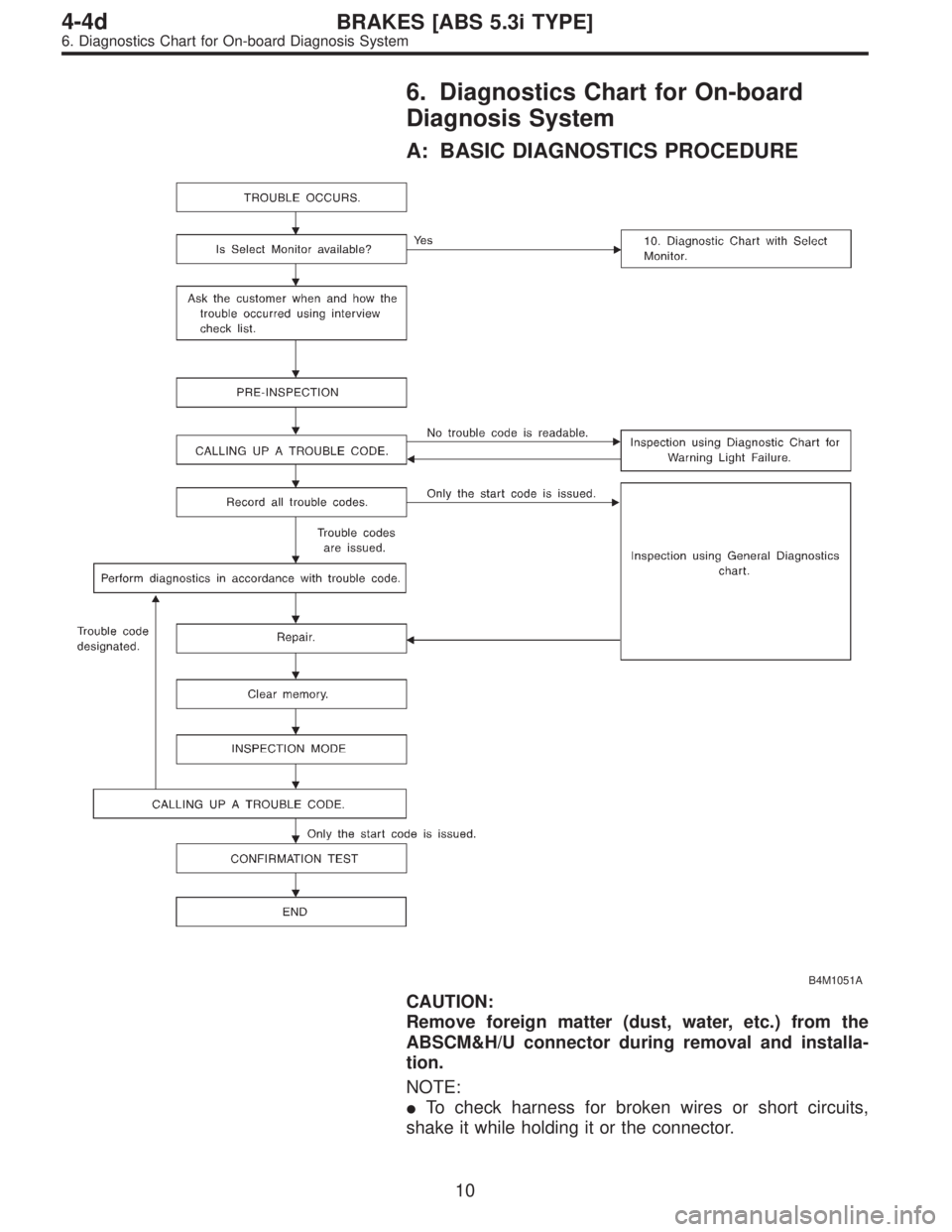

SUBARU LEGACY 1997  Service Repair Manual 6. Diagnostics Chart for On-board
Diagnosis System
A: BASIC DIAGNOSTICS PROCEDURE
B4M1051A
CAUTION:
Remove foreign matter (dust, water, etc.) from the
ABSCM&H/U connector during removal and installa-

Page 2887 of 3342

SUBARU LEGACY 1997  Service Repair Manual When ABS warning light illuminates, read and record
trouble code indicated by ABS warning light.
B: CHECK LIST FOR INTERVIEW
Check the following items about the vehicle’s state.
1. THE STATE OF THE

Page 2888 of 3342

SUBARU LEGACY 1997  Service Repair Manual Behavior of vehicle a) Directional stability cannot be obtained or steering arm refuses to work when applying brakes :
Ye s /No
When :Vehicle turns to right
Vehicle turns to left
Spins
Others :
