Page 2657 of 3342

B4M0829A
8E6CHECK HARNESS CONNECTOR
BETWEEN ABSCM AND HYDRAULIC
UNIT.
1) Connect connector to hydraulic unit.
2) Measure resistance between ABSCM connector termi-
nals.
: Trouble code/Connector & terminal
31/(F49) No. 30—No. 1
33/(F49) No. 24—No. 1
35/(F49) No. 23—No. 1
37/(F49) No. 31—No. 1
Is resistance 9.0±0.7Ω?
: Go to step8E7.
: Repair harness connector between ABSCM and
hydraulic unit.
8E7CHECK POOR CONTACT IN CONNEC-
TOR BETWEEN ABSCM AND HYDRAU-
LIC UNIT.
: Is there poor contact in connectors between
ABSCM and hydraulic unit?
: Repair connector.
: Go to step8E8.
8E8
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
52
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code
Page 2658 of 3342

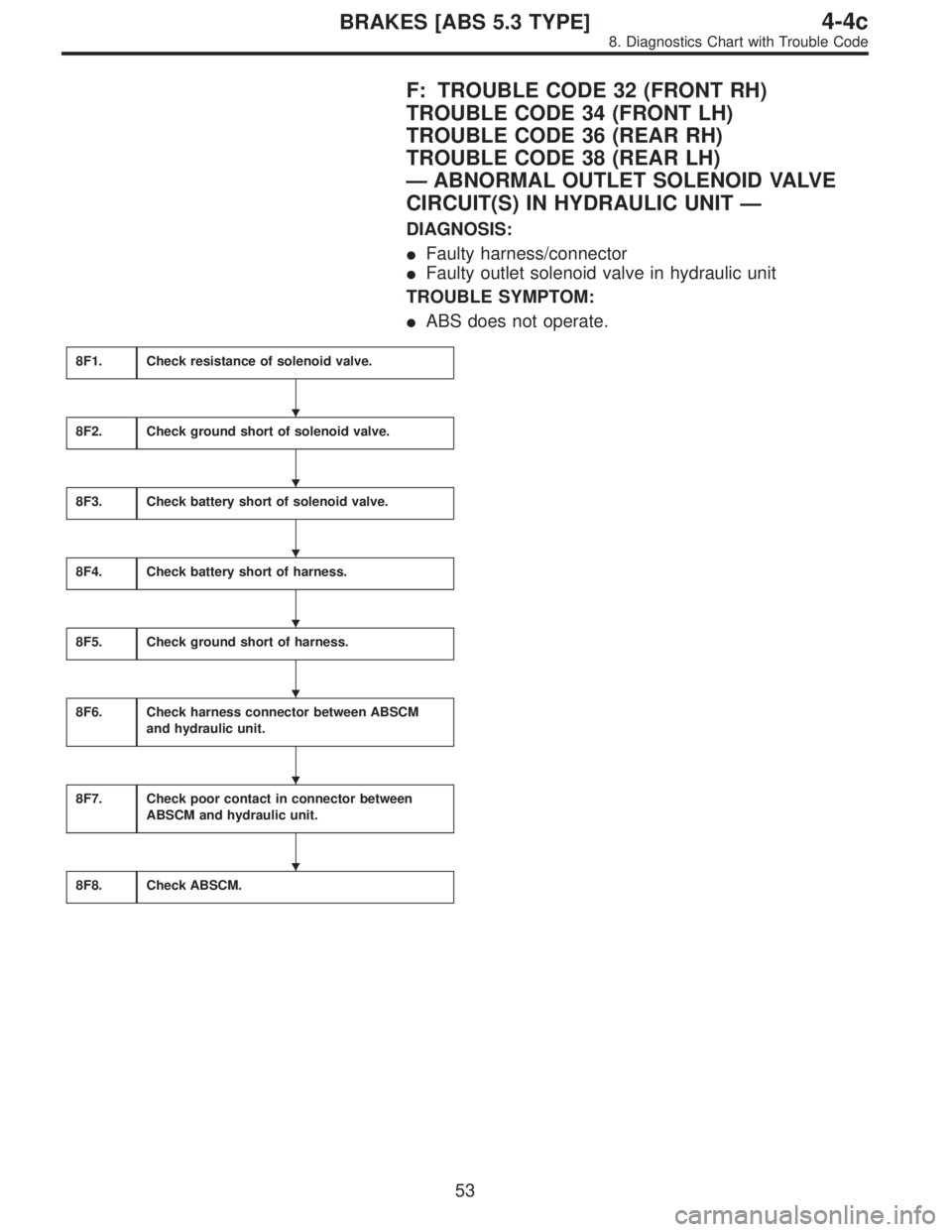

F: TROUBLE CODE 32 (FRONT RH)
TROUBLE CODE 34 (FRONT LH)
TROUBLE CODE 36 (REAR RH)
TROUBLE CODE 38 (REAR LH)
—ABNORMAL OUTLET SOLENOID VALVE
CIRCUIT(S) IN HYDRAULIC UNIT—
DIAGNOSIS:
Faulty harness/connector
Faulty outlet solenoid valve in hydraulic unit
TROUBLE SYMPTOM:
ABS does not operate.
8F1.Check resistance of solenoid valve.
8F2.Check ground short of solenoid valve.
8F3.Check battery short of solenoid valve.
8F4.Check battery short of harness.
8F5.Check ground short of harness.
8F6.Check harness connector between ABSCM
and hydraulic unit.
8F7.Check poor contact in connector between
ABSCM and hydraulic unit.
8F8.Check ABSCM.
53
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code
Page 2659 of 3342

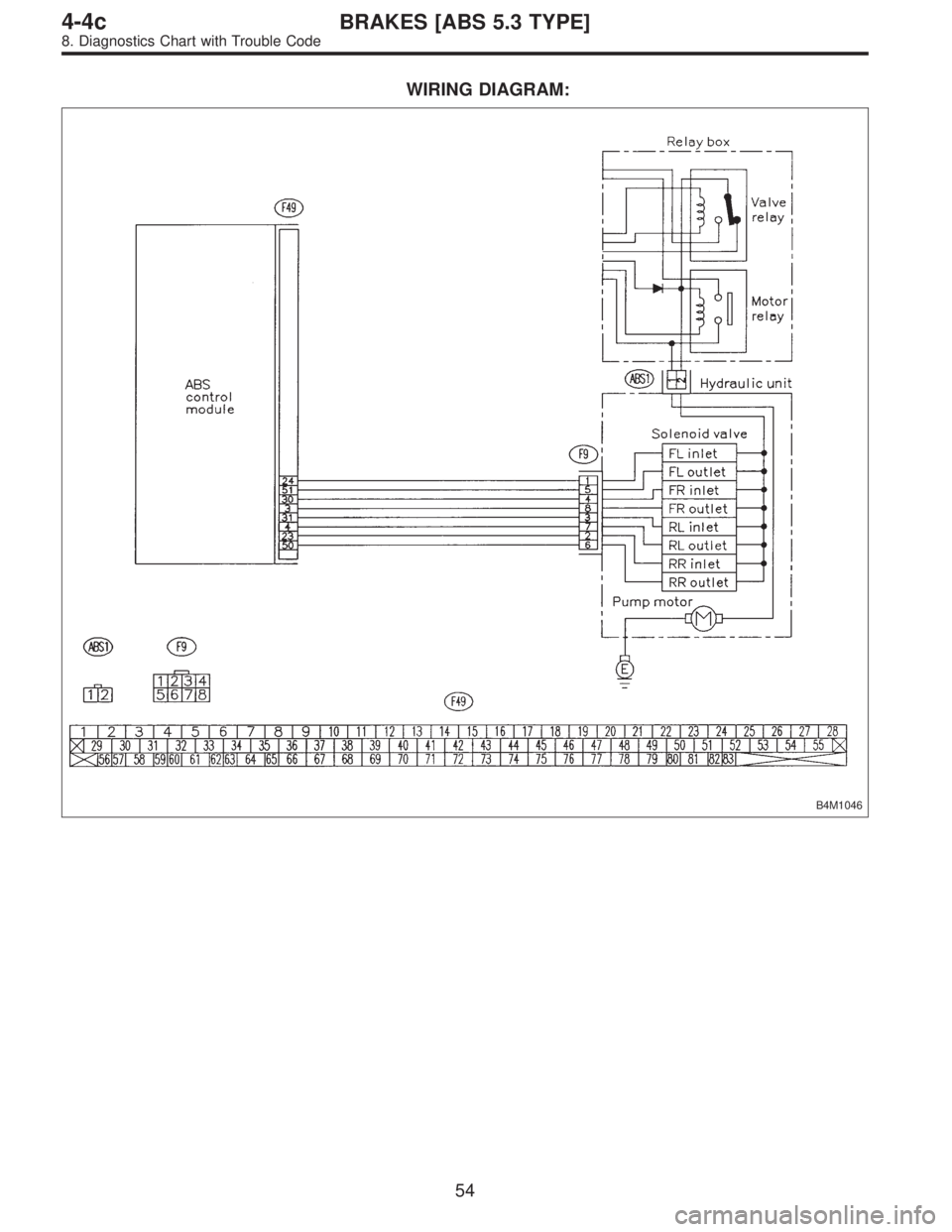

WIRING DIAGRAM:
B4M1046
54
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code
Page 2660 of 3342

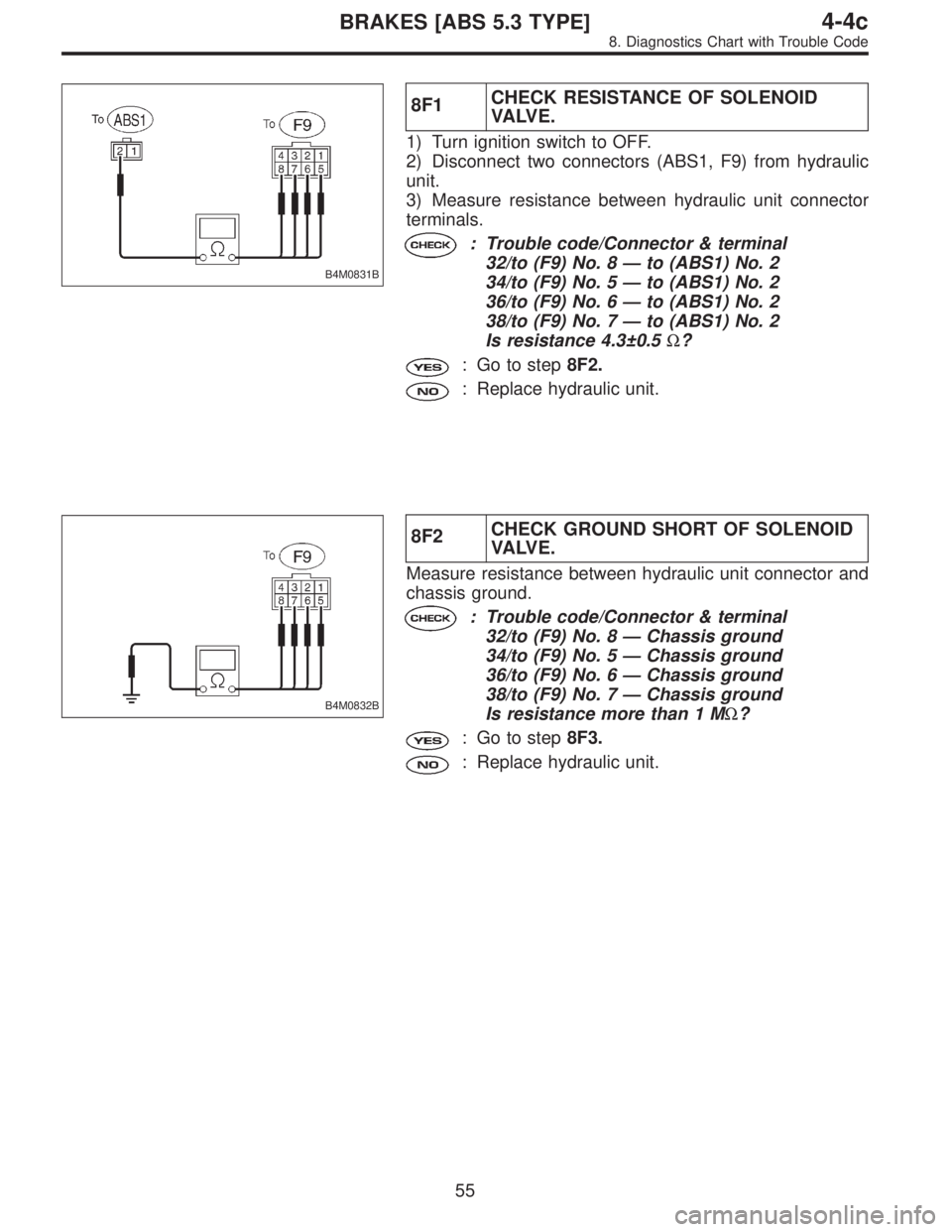

B4M0831B
8F1CHECK RESISTANCE OF SOLENOID
VA LV E .
1) Turn ignition switch to OFF.
2) Disconnect two connectors (ABS1, F9) from hydraulic
unit.
3) Measure resistance between hydraulic unit connector
terminals.
: Trouble code/Connector & terminal
32/to (F9) No. 8—to (ABS1) No. 2
34/to (F9) No. 5—to (ABS1) No. 2
36/to (F9) No. 6—to (ABS1) No. 2
38/to (F9) No. 7—to (ABS1) No. 2
Is resistance 4.3±0.5Ω?
: Go to step8F2.
: Replace hydraulic unit.
B4M0832B
8F2CHECK GROUND SHORT OF SOLENOID
VA LV E .
Measure resistance between hydraulic unit connector and
chassis ground.
: Trouble code/Connector & terminal
32/to (F9) No. 8—Chassis ground
34/to (F9) No. 5—Chassis ground
36/to (F9) No. 6—Chassis ground
38/to (F9) No. 7—Chassis ground
Is resistance more than 1 MΩ?
: Go to step8F3.
: Replace hydraulic unit.
55
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code
Page 2661 of 3342

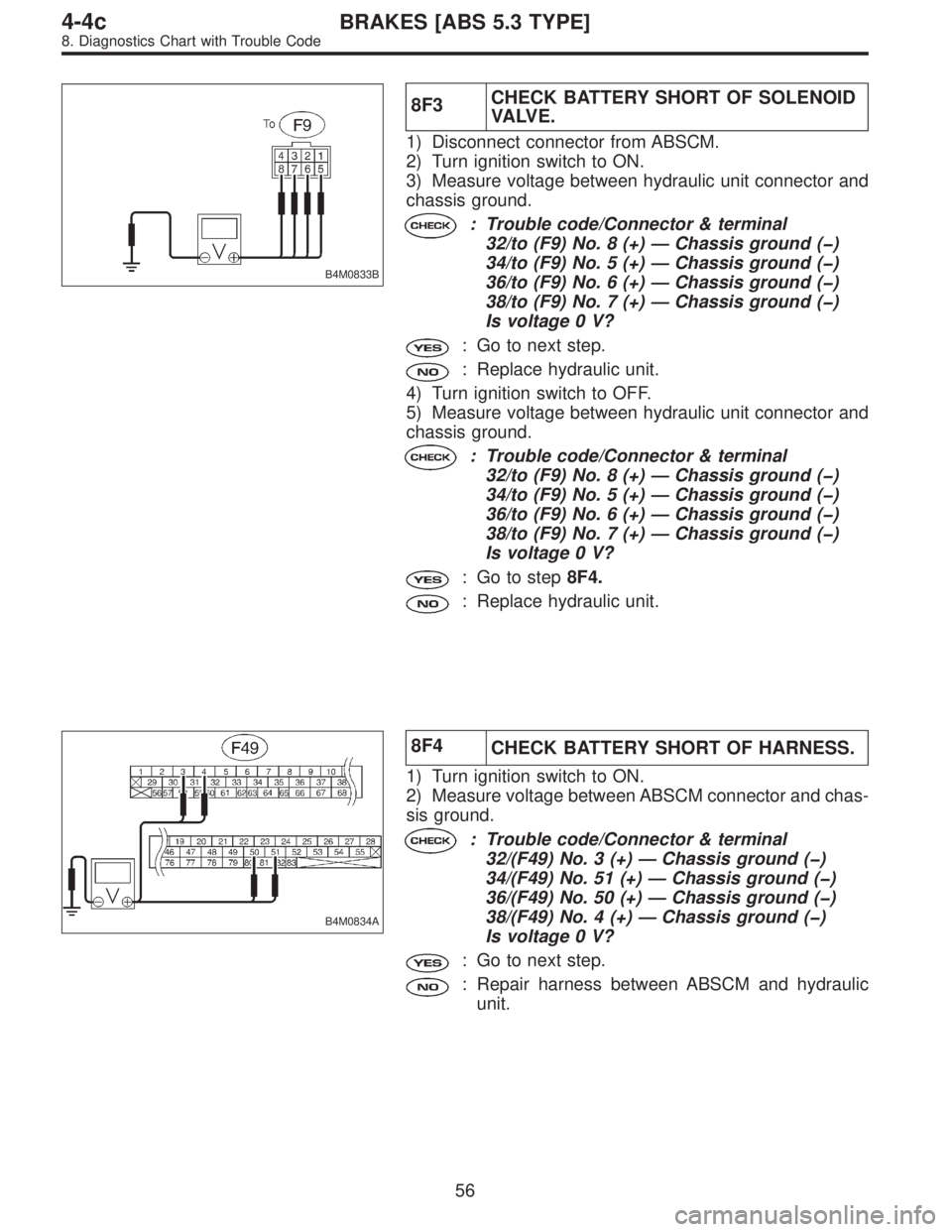

B4M0833B
8F3CHECK BATTERY SHORT OF SOLENOID
VA LV E .
1) Disconnect connector from ABSCM.
2) Turn ignition switch to ON.
3) Measure voltage between hydraulic unit connector and
chassis ground.
: Trouble code/Connector & terminal
32/to (F9) No. 8 (+)—Chassis ground ( )
34/to (F9) No. 5 (+)—Chassis ground ( )
36/to (F9) No. 6 (+)—Chassis ground ( )
38/to (F9) No. 7 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to next step.
: Replace hydraulic unit.
4) Turn ignition switch to OFF.
5) Measure voltage between hydraulic unit connector and
chassis ground.
: Trouble code/Connector & terminal
32/to (F9) No. 8 (+)—Chassis ground ( )
34/to (F9) No. 5 (+)—Chassis ground ( )
36/to (F9) No. 6 (+)—Chassis ground ( )
38/to (F9) No. 7 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to step8F4.
: Replace hydraulic unit.
B4M0834A

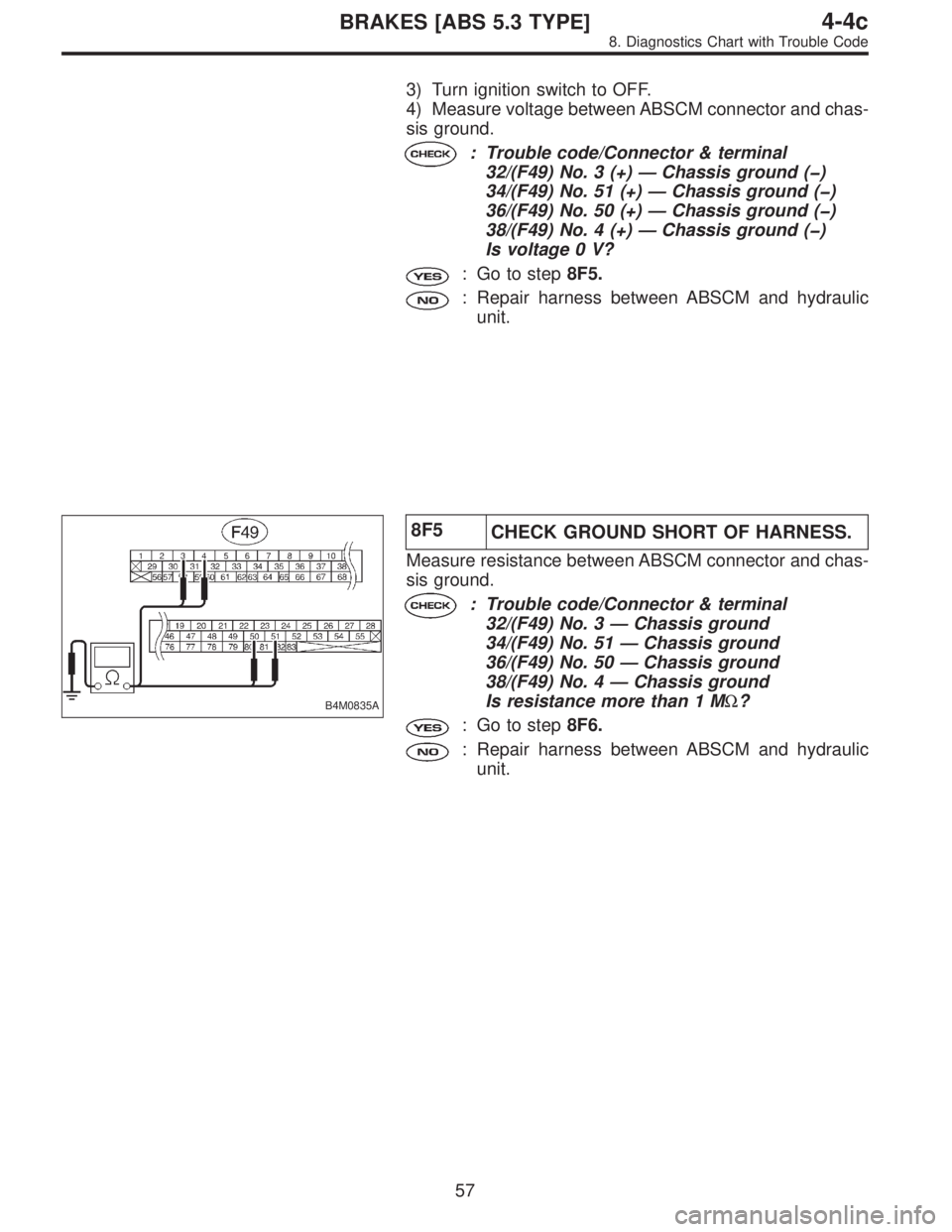

8F4
CHECK BATTERY SHORT OF HARNESS.
1) Turn ignition switch to ON.
2) Measure voltage between ABSCM connector and chas-
sis ground.
: Trouble code/Connector & terminal
32/(F49) No. 3 (+)—Chassis ground ( )
34/(F49) No. 51 (+)—Chassis ground ( )
36/(F49) No. 50 (+)—Chassis ground ( )
38/(F49) No. 4 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to next step.
: Repair harness between ABSCM and hydraulic
unit.
56
