1997 SUBARU LEGACY Service Repair Manual

tire typewiper sizechild restraintECO modenight visionTPMS
Popular search:
warning lightswindowseat memoryclutchengine oilignition wirestrailer
Previous
Next
Load previous 8 pages

Page 529 of 3342

SUBARU LEGACY 1997 Service Repair Manual 1Clamp  2Fuel delivery hose A  3Fuel filter bracket  4Fuel filter holder  5Fuel filter cup  6Fuel filter  7Evaporation hose  8Clip  9Fuel delivery hose B  10Fuel return hose  11Roll over va

Page 530 of 3342

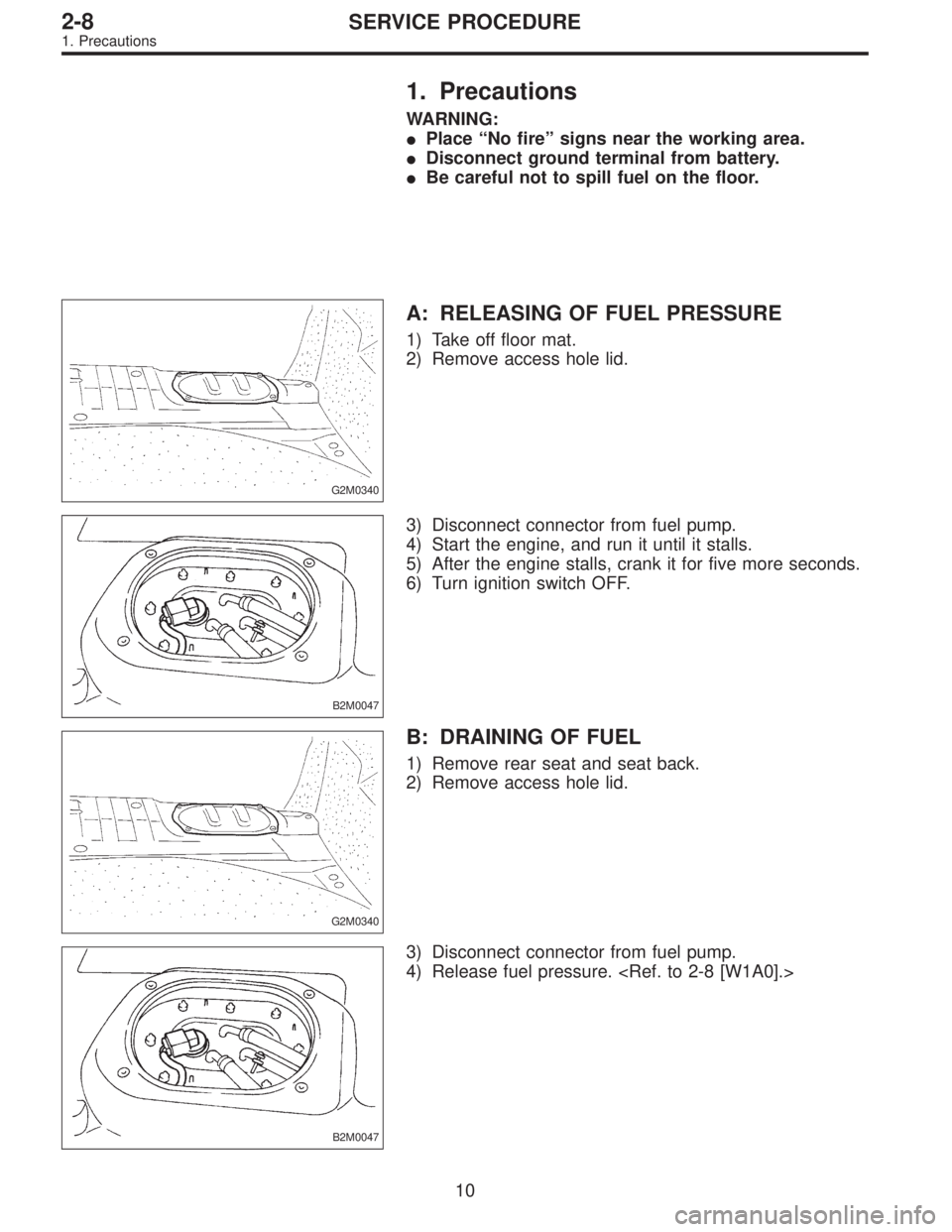

SUBARU LEGACY 1997 Service Repair Manual 1. Precautions WARNING: Place “No fire” signs near the working area. Disconnect ground terminal from battery. Be careful not to spill fuel on the floor. G2M0340 A: RELEASING OF FUEL PRESSURE 1)

Page 531 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0048A 5) Disconnect fuel delivery hose1and return hose2. 6) Disconnect jet pump hose 3. (AWD model) G2M0343 7) Remove nuts which install fuel pump assembly onto fuel tank. G2M0344 8) Take off fu

Page 532 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0049 11) On AWD model, after removing fuel sub meter unit, drain fuel from there. WARNING: Do not use a motor pump when draining fuel. 2. On-Car Services A: MEASUREMENT OF FUEL PRESSURE 1) Release

Page 533 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0049 11) On AWD model, after removing fuel sub meter unit, drain fuel from there. WARNING: Do not use a motor pump when draining fuel. 2. On-Car Services A: MEASUREMENT OF FUEL PRESSURE 1) Release

Page 534 of 3342

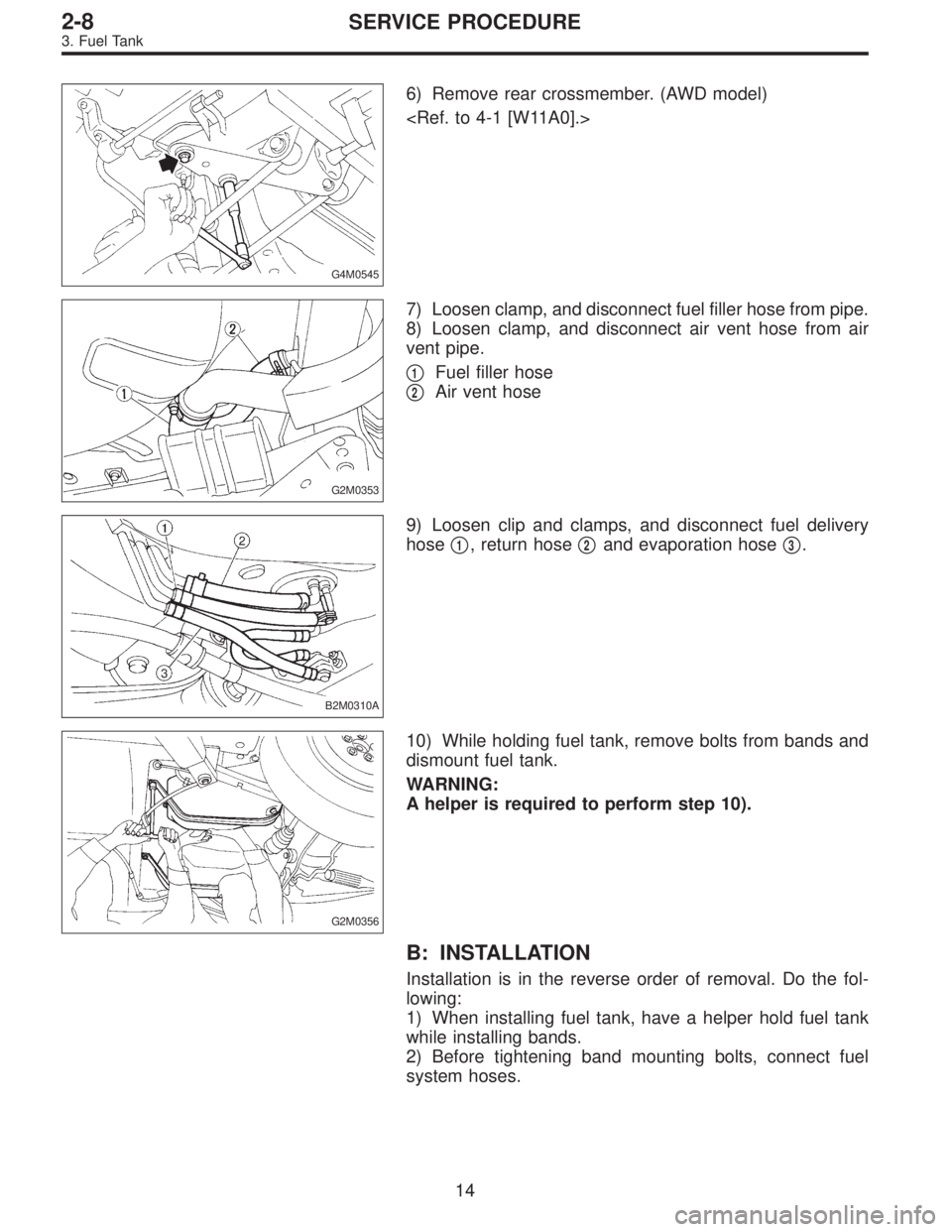

SUBARU LEGACY 1997 Service Repair Manual G2M0345 3. Fuel Tank A: REMOVAL 1) Release fuel pressure. <Ref. to 2-8 [W1A0].> 2) Drain fuel from fuel tank. <Ref. to 2-8 [W1B0].> G2M0382 3) Remove rear exhaust pipe. (1) Lift-up the vehicle. (2) Se

Page 535 of 3342

SUBARU LEGACY 1997 Service Repair Manual G4M0545 6) Remove rear crossmember. (AWD model) <Ref. to 4-1 [W11A0].> G2M0353 7) Loosen clamp, and disconnect fuel filler hose from pipe. 8) Loosen clamp, and disconnect air vent hose from air vent p

Page 536 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0357 3) Install hose and hold down clips at positions indicated in Figure. Tightening torque: 1.0 +0.5 �0N⋅m (0.1+0.05 �0kg-m, 0.7+0.4 �0ft-lb) Type A: When fitting length is specified. Type B: W
