Page 1153 of 3342
G4M0276
2) Remove back plate from rear spindle.
G4M0277
3) Using ST, press hub bolts out.
CAUTION:
Do not hammer hub bolt since this may deform hub.
ST 927080000 HUB STAND
C: INSPECTION
Clean the removed parts and check them for wear, dam-
age and corrosion. If faulty, replace.
CAUTION:
Hub unit cannot be disassembled. If faulty, replace it
as a unit.
G4M0278
D: ASSEMBLY
1) Using ST, press new hub bolts into place.
NOTE:
Use a 12 mm (0.47 in) hole in ST to prevent hub bolt
from tilting during installation.
Ensure hub bolt closely contacts hub.
ST 927080000 HUB STAND
2) Completely clean dust or dirt from the mating/polished
surface of rear spindle back plate.
3) Install back plate to rear spindle.
Tightening torque:
52±6 N⋅m (5.3±0.6 kg-m, 38.3±4.3 ft-lb)
4) Charge oil seal located on the rear of hub with grease.
Specified grease:
SHELL 6459N
26
4-2SERVICE PROCEDURE
3. Rear Axle (FWD Model)

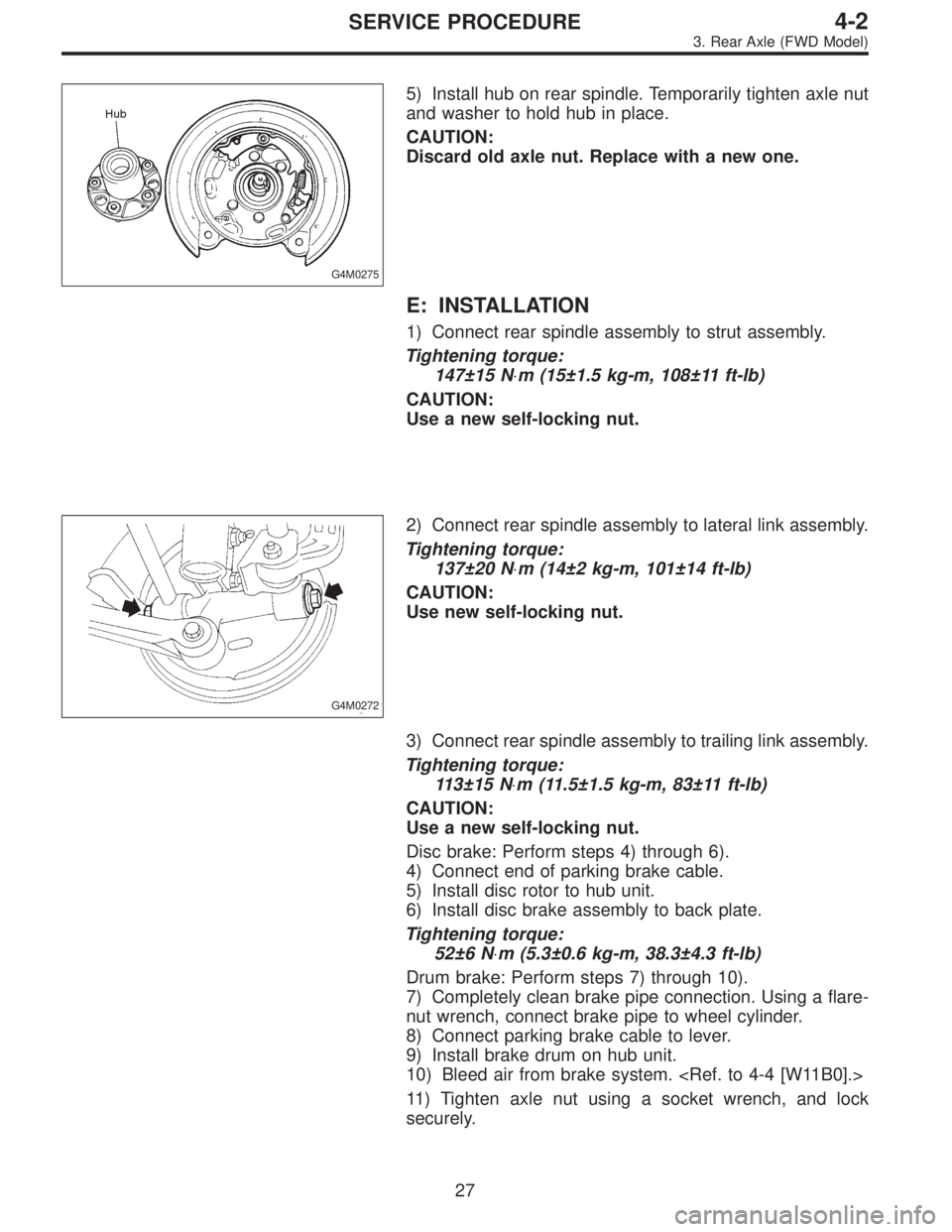

Page 1154 of 3342

G4M0275
5) Install hub on rear spindle. Temporarily tighten axle nut
and washer to hold hub in place.
CAUTION:
Discard old axle nut. Replace with a new one.
E: INSTALLATION
1) Connect rear spindle assembly to strut assembly.
Tightening torque:
147±15 N⋅m (15±1.5 kg-m, 108±11 ft-lb)
CAUTION:
Use a new self-locking nut.
G4M0272
2) Connect rear spindle assembly to lateral link assembly.
Tightening torque:
137±20 N⋅m (14±2 kg-m, 101±14 ft-lb)
CAUTION:
Use new self-locking nut.
3) Connect rear spindle assembly to trailing link assembly.
Tightening torque:
113±15 N⋅m (11.5±1.5 kg-m, 83±11 ft-lb)
CAUTION:
Use a new self-locking nut.
Disc brake: Perform steps 4) through 6).
4) Connect end of parking brake cable.
5) Install disc rotor to hub unit.
6) Install disc brake assembly to back plate.
Tightening torque:
52±6 N⋅m (5.3±0.6 kg-m, 38.3±4.3 ft-lb)
Drum brake: Perform steps 7) through 10).
7) Completely clean brake pipe connection. Using a flare-
nut wrench, connect brake pipe to wheel cylinder.
8) Connect parking brake cable to lever.
9) Install brake drum on hub unit.
10) Bleed air from brake system.
11) Tighten axle nut using a socket wrench, and lock
securely.
27
4-2SERVICE PROCEDURE
3. Rear Axle (FWD Model)
Page 1155 of 3342

Tightening torque:
186±20 N⋅m (19±2 kg-m, 137±14 ft-lb)
CAUTION:
Use a new axle nut.
Always tighten axle nut before installing wheel on
vehicle. If wheel is installed and comes in contact with
ground when axle nut is loose, wheel bearings may be
damaged.
Be sure to tighten axle nut to specified torque. Do
not overtighten it as this may damage wheel bearing.
12) Install O-ring to hub cap flange, and install hub cap by
lightly tapping it with a plastic-faced hammer.
13) Install wheel and tighten wheel nuts to specified
torque.
Tightening torque (Wheel nut):
88±10 N⋅m (9±1 kg-m, 65±7 ft-lb)
4. Front and Rear Drive Shafts
A: REMOVAL
1. FRONT DRIVE SHAFT
1) Disconnect ground cable from battery.
2) Jack-up vehicle, support it with safety stands (rigid
racks), and remove front wheel cap and wheels.
3) Unlock axle nut.
4) While depressing brake pedal, remove axle nut using a
socket wrench.
CAUTION:
Be sure to loosen and retighten axle nut after remov-
ing wheel from vehicle. Failure to follow this rule may
damage wheel bearings.
5) Disconnect stabilizer link from transverse link.
6) Disconnect transverse link from housing.
G4M0279
7) Remove spring pin which secures transmission spindle
to DOJ.
CAUTION:
Use a new spring pin.
28
4-2SERVICE PROCEDURE
3. Rear Axle (FWD) - 4. Front and Rear Drive Shafts
Page 1156 of 3342

G4M0216
8) Remove front drive shaft assembly. If it is hard to
remove, use ST1 and ST2.
ST1 926470000 AXLE SHAFT PULLER
ST2 927140000 PLATE
CAUTION:
Be careful not to damage oil seal lip when removing
front drive shaft.
When front drive shaft is to be replaced, also replace
inner oil seal.
2. REAR DRIVE SHAFT
1) Disconnect ground cable from battery.
2) Lift-up vehicle, and remove rear wheel cap and wheels.
CAUTION:
Be sure to loosen and retighten axle nut after remov-
ing wheel from vehicle. Failure to follow this rule may
damage wheel bearings.
3) Unlock axle nut.
4) Loosen axle nut using a socket wrench.
CAUTION:
Do not remove axle nut.
5) Remove A.B.S. sensor clamps and parking brake cable
bracket.
6) Remove bolts which secure lateral link assembly to rear
housing.
CAUTION:
Discard old self-locking nut. Replace with a new one.
7) Remove bolts which secure trailing link assembly to
rear housing.
CAUTION:
Discard old self-locking nut. Replace with a new one.
8) Remove crossmember reinforcement lower from cross-
member (4 door model only).
G4M0994
9) Remove DOJ from rear differential using ST.
ST 28099PA100 DRIVE SHAFT REMOVER
CAUTION:
Do not remove circlip attached to inside of differential.
29
4-2SERVICE PROCEDURE
4. Front and Rear Drive Shafts
Page 1157 of 3342

G4M0995
CAUTION:
Be careful not to damage side bearing retainer. Always
use bolt as shown in figure, as supporting point for ST
during removal.
ST 28099PA100 DRIVE SHAFT REMOVER
G4M0247
10) Remove axle nut and drive shaft. If it is hard to
remove, use ST1 and ST2.
ST1 926470000 AXLE SHAFT PULLER
ST2 927140000 PLATE
CAUTION:
Be careful not to damage oil seal lip when removing
rear drive shaft.
When rear drive shaft is to be replaced, also replace
inner oil seal with a new one.
G4M0281
B: DISASSEMBLY
1. AWD MODEL
1) Straighten bent claw of larger end of DOJ boot.
2) Loosen band by means of screwdriver or pliers with
care of not damaging boot.
3) Remove boot band on the small end of DOJ boot in the
same manner.
4) Remove the larger end of DOJ boot from DOJ outer
race.
G4M0282
5) Pry and remove round circlip located at the neck of DOJ
outer race with a screwdriver.
B4M0227A
6) Take out DOJ outer race from shaft assembly.
7) Wipe off grease and take out balls.
CAUTION:
The grease is a special grease (grease for constant
velocity joint). Do not confuse with other greases.
NOTE:
Disassemble exercising care not to lose balls (6 pcs).
1Outer race
2Grease
30
4-2SERVICE PROCEDURE
4. Front and Rear Drive Shafts
Page 1158 of 3342

8) To remove the cage from the inner race, turn the cage
by a half pitch to the track groove of the inner race and shift
the cage.
9) Remove snap ring, which fixes inner race to shaft, by
using pliers.
10) Take out DOJ inner race.
11) Take off DOJ cage from shaft and remove DOJ boot.
CAUTION:
Be sure to wrap shaft splines with vinyl tape to prevent
boot from scratches.
12) Remove UFJ/BJ boot in the same procedure as steps
1) to 3).
13) Thus, disassembly of axle is completed, but UFJ/BJ is
unable to be disassembled.
G4M0281
2. FWD MODEL
1) Remove both DOJ boot bands.
2) Loosen band by means of screwdriver or pliers taking
care to not damage the boot.
3) Remove the larger end of DOJ boot from DOJ outer
race.
G4M0282
4) Pry and remove round circlip located at the neck of DOJ
outer race with a screwdriver.
B4M0227A
5) Take out DOJ outer race from shaft assembly.
6) Wipe off grease and take out balls.
CAUTION:
The grease is a special grease (grease for constant
velocity joint). Do not confuse with other greases.
NOTE:
Disassemble exercising care not to lose balls (6 pcs).
1Outer race
2Grease
NOTE:
Clean all parts as necessary.
31
4-2SERVICE PROCEDURE
4. Front and Rear Drive Shafts
Page 1159 of 3342
7) To remove the cage from the inner race, turn the cage
by a half pitch to the track groove of the inner race and shift
the cage.
8) Remove snap ring, which holds the inner race to shaft,
by using pliers.
9) Take out DOJ inner race.
10) Take off DOJ cage from shaft and remove DOJ boot.
CAUTION:
Be sure to wrap shaft splines with vinyl tape to protect
the boot from scratches.
11) Place drive shaft in a vise between wooden blocks.
CAUTION:
Do not place drive shaft directly in the vise; use
wooden block.
B4M0689A
12) Raise boot band claws by means of screwdriver and
hammer.
B4M0690
13) Cut and remove the boot.
CAUTION:
The boot must be replaced with a new one whenever
it is removed.
14) Thus, disassembly of axle is completed, but UFJ can-
not be disassembled.
32
4-2SERVICE PROCEDURE
4. Front and Rear Drive Shafts
Page 1160 of 3342
B4M0774
3. FTJ (Free-ring Tripod Joint)
1) Place alignment marks on shaft and outer race.
B4M0775A
2) Remove FTJ boot band and boot.
CAUTION:
Be careful not to damage boot.
B4M0776
3) Remove circlip from FTJ outer race using screwdriver.
4) Remove FTJ outer race from shaft assembly.
5) Wipe off grease.
CAUTION:
The grease is a special grease. Do not confuse with
other greases.
B4M0777
6) Place alignment mark on free ring and trunnion.
7) Remove free ring from trunnion.
33
4-2SERVICE PROCEDURE
4. Front and Rear Drive Shafts
