Page 817 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0501 3) Install the driven plates, drive plates, and pressure plate, and secure with a snap ring with ST1, ST2 and a press. ST1 398673600 COMPRESSOR ST2 498627000 SEAT G3M0502 4) Apply compressed a

Page 818 of 3342

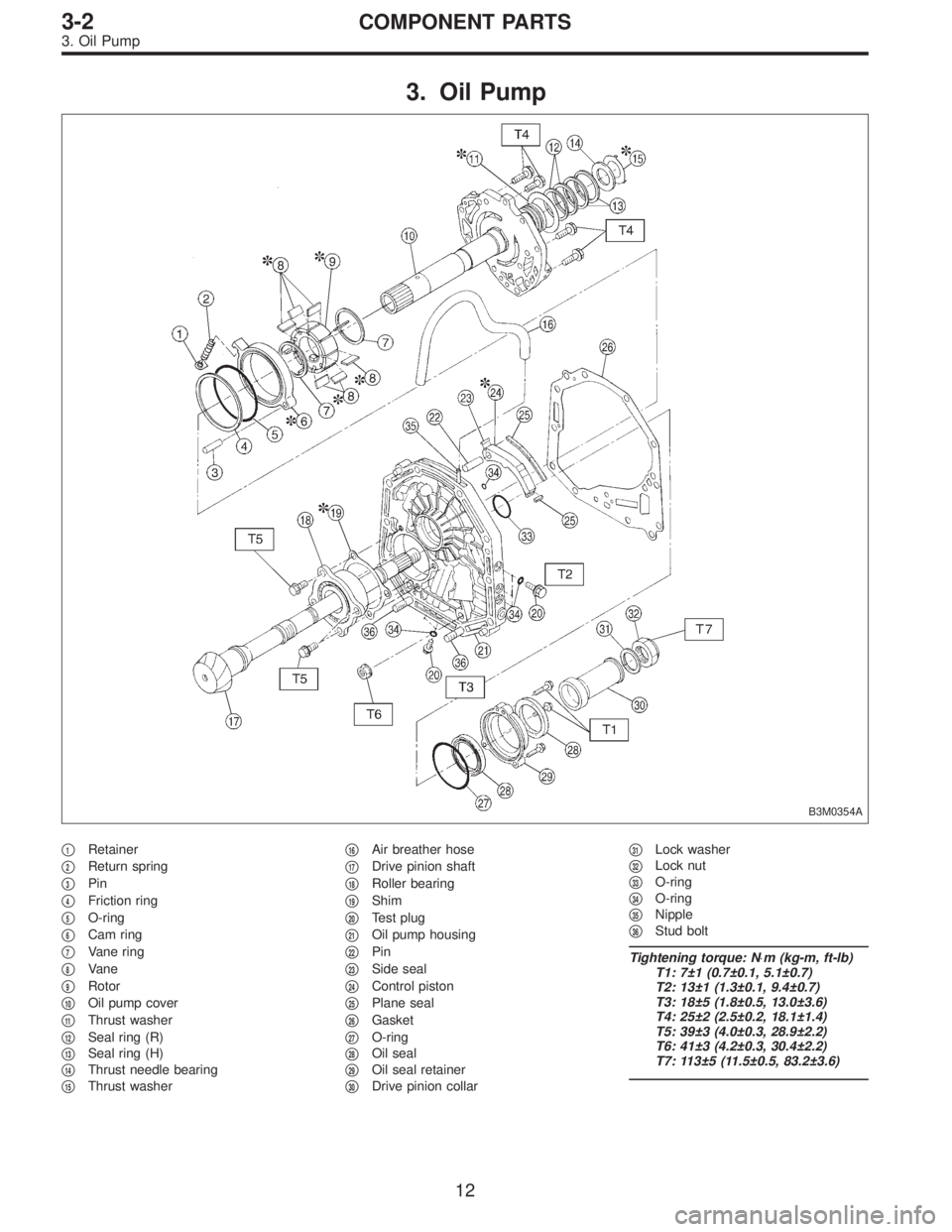

SUBARU LEGACY 1997 Service Repair Manual 3. Oil Pump B3M0354A 1Retainer  2Return spring  3Pin  4Friction ring  5O-ring  6Cam ring  7Vane ring  8Vane  9Rotor  10Oil pump cover  11Thrust washer  12Seal ring (R)  13Seal ring (H)

Page 819 of 3342

SUBARU LEGACY 1997 Service Repair Manual 4. Control Valve and Harness Routing B3M0106A 1Stay  2Oil strainer  3Transmission harness  4O-ring  5Duty sol. A (Line pressure)  6Sol. ASSY  7Upper valve body  8Ball  9Upper separator gasket

Page 820 of 3342

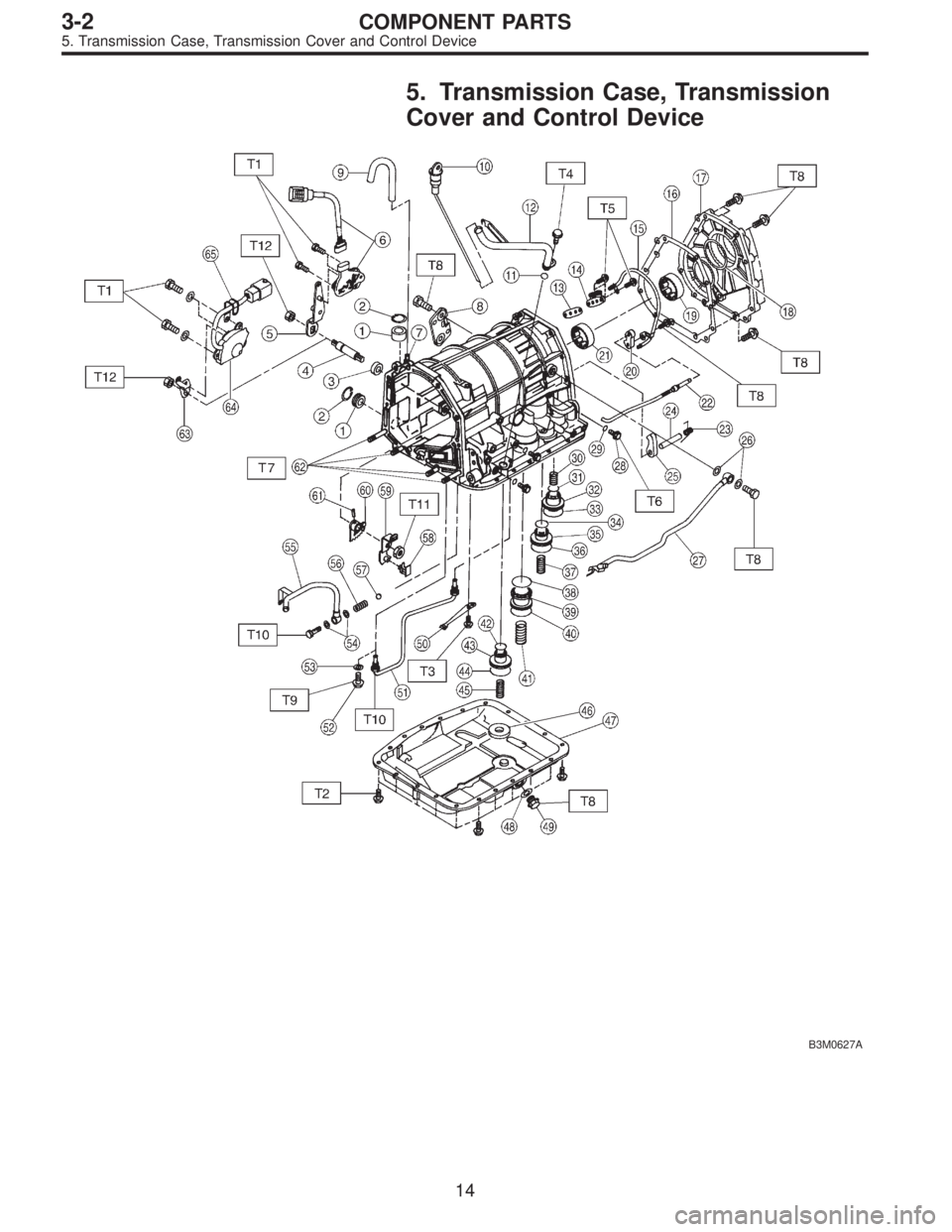

SUBARU LEGACY 1997 Service Repair Manual 5. Transmission Case, Transmission Cover and Control Device B3M0627A 14 3-2COMPONENT PARTS 5. Transmission Case, Transmission Cover and Control Device

Page 821 of 3342

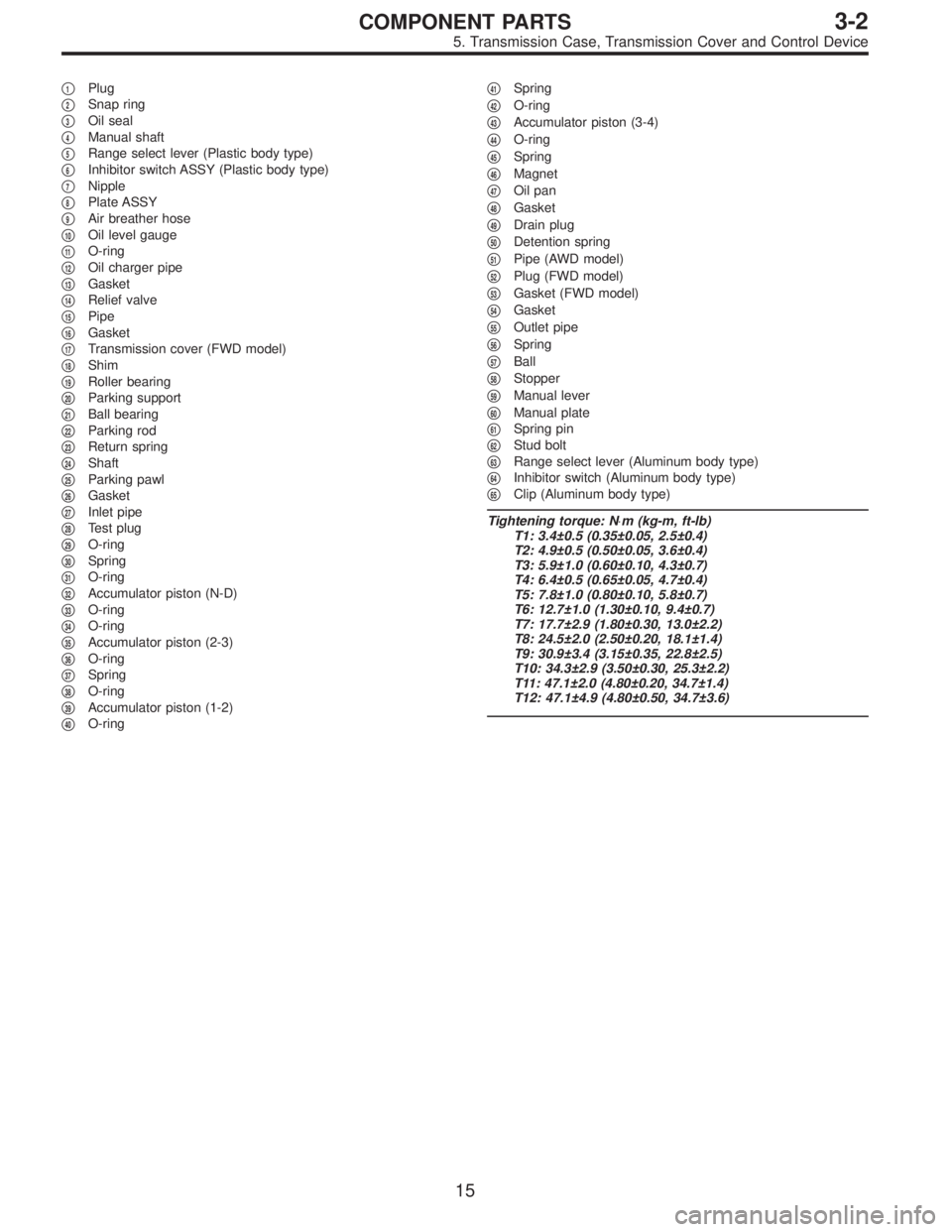

SUBARU LEGACY 1997 Service Repair Manual 1Plug  2Snap ring  3Oil seal  4Manual shaft  5Range select lever (Plastic body type)  6Inhibitor switch ASSY (Plastic body type)  7Nipple  8Plate ASSY  9Air breather hose  10Oil level gauge

Page 822 of 3342

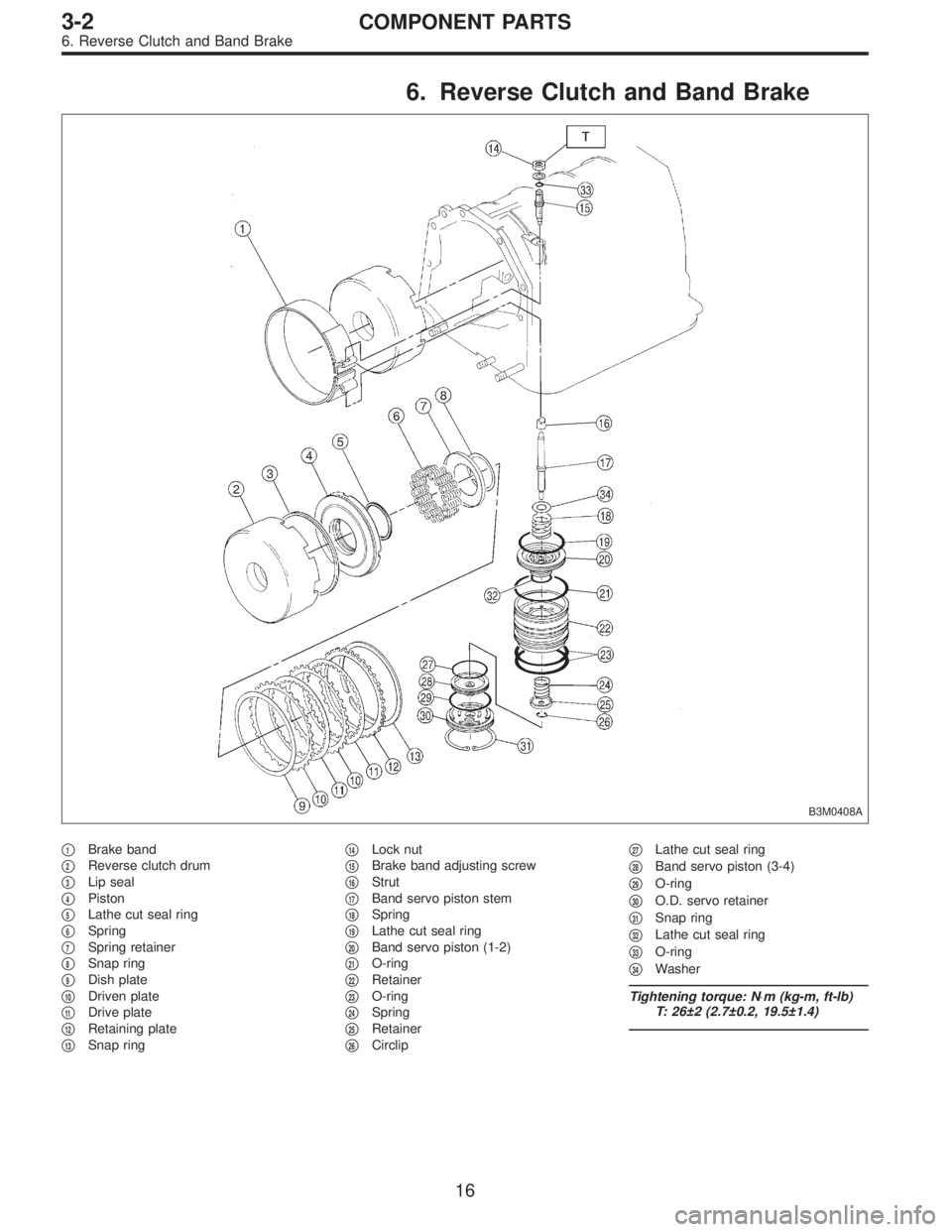

SUBARU LEGACY 1997 Service Repair Manual 6. Reverse Clutch and Band Brake B3M0408A 1Brake band  2Reverse clutch drum  3Lip seal  4Piston  5Lathe cut seal ring  6Spring  7Spring retainer  8Snap ring  9Dish plate  10Driven plate  11

Page 823 of 3342

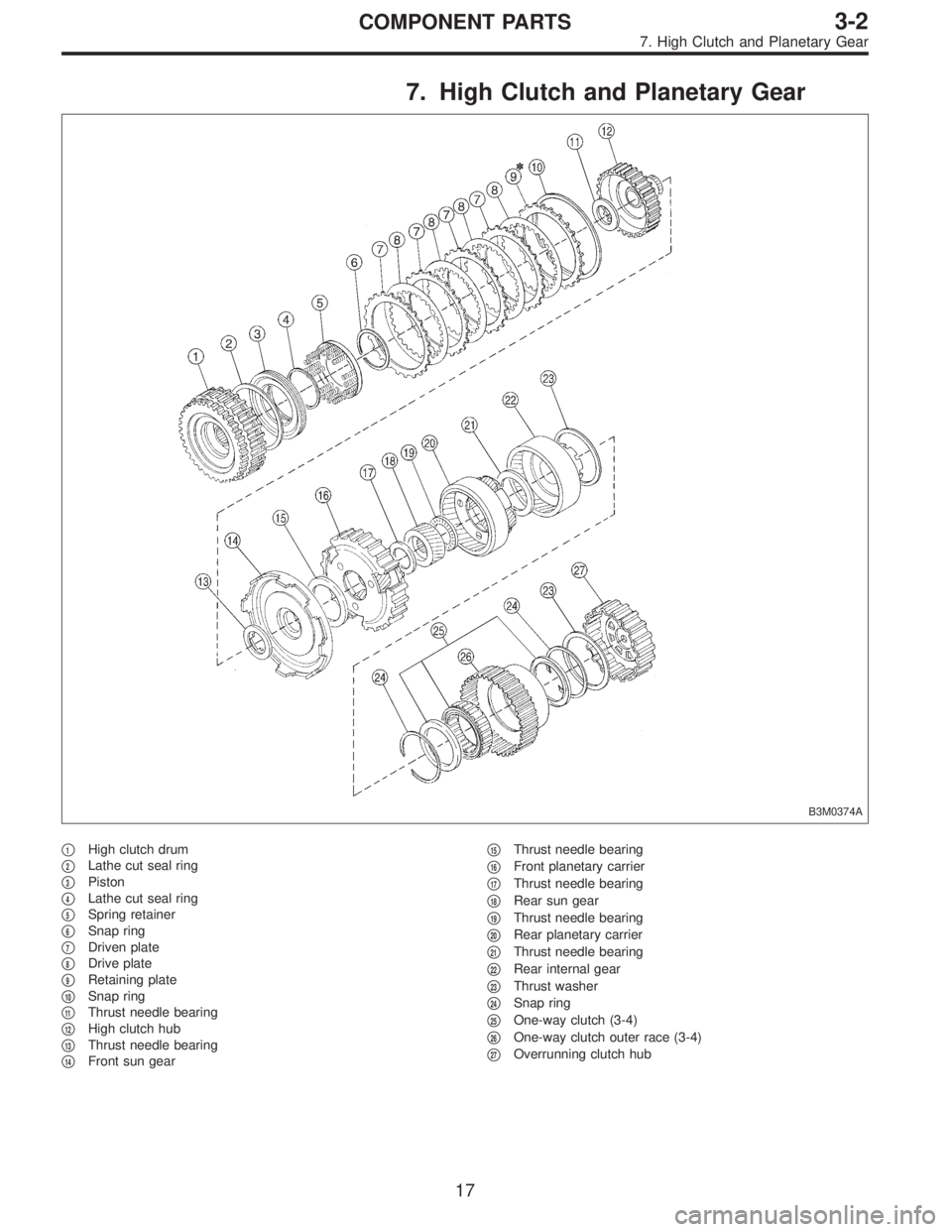

SUBARU LEGACY 1997 Service Repair Manual 7. High Clutch and Planetary Gear B3M0374A 1High clutch drum  2Lathe cut seal ring  3Piston  4Lathe cut seal ring  5Spring retainer  6Snap ring  7Driven plate  8Drive plate  9Retaining plate

Page 824 of 3342

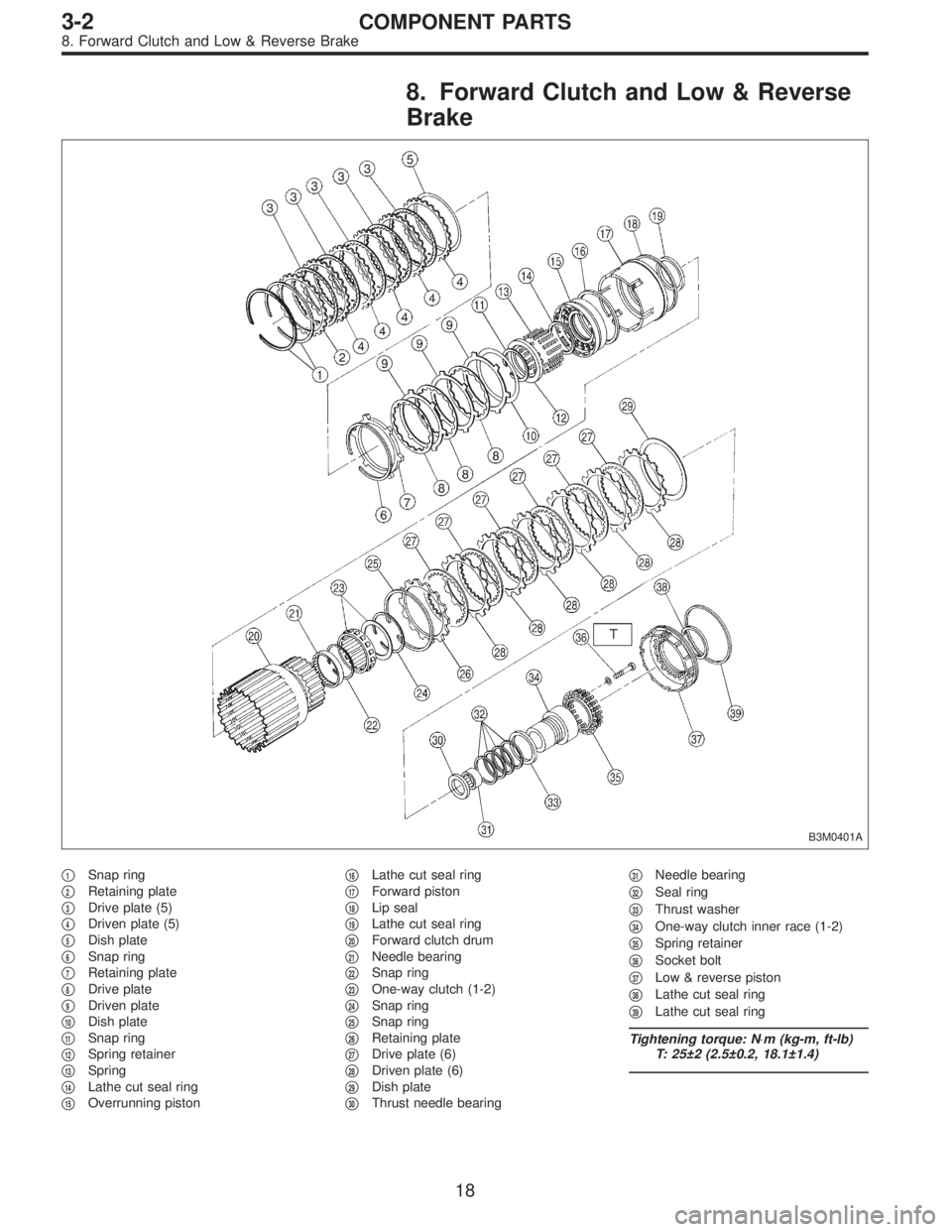

SUBARU LEGACY 1997 Service Repair Manual 8. Forward Clutch and Low & Reverse Brake B3M0401A 1Snap ring  2Retaining plate  3Drive plate (5)  4Driven plate (5)  5Dish plate  6Snap ring  7Retaining plate  8Drive plate  9Driven plate
