Page 2185 of 3342

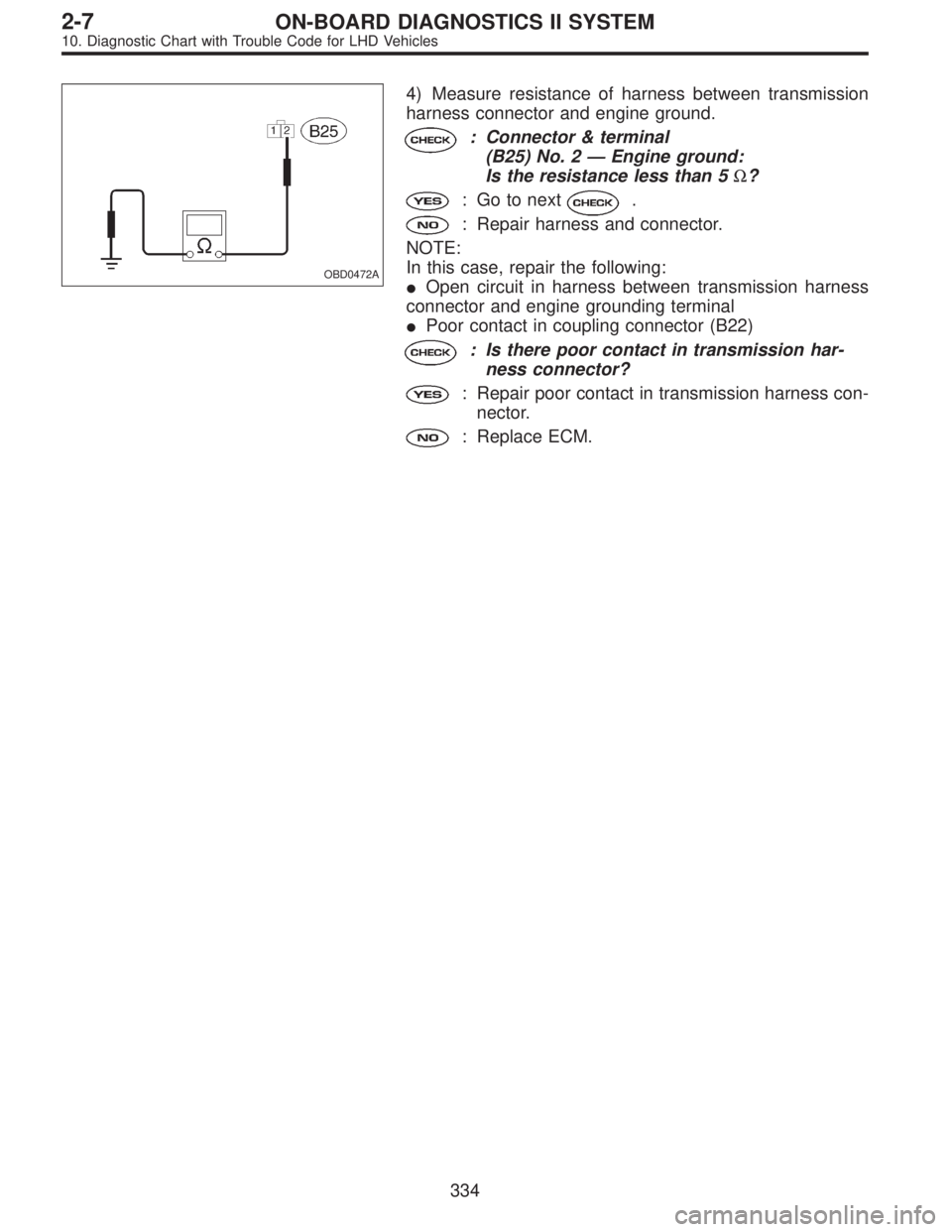

SUBARU LEGACY 1997 Service Repair Manual OBD0472A 4) Measure resistance of harness between transmission harness connector and engine ground. : Connector & terminal (B25) No. 2—Engine ground: Is the resistance less than 5Ω? : Go to next.

Page 2186 of 3342

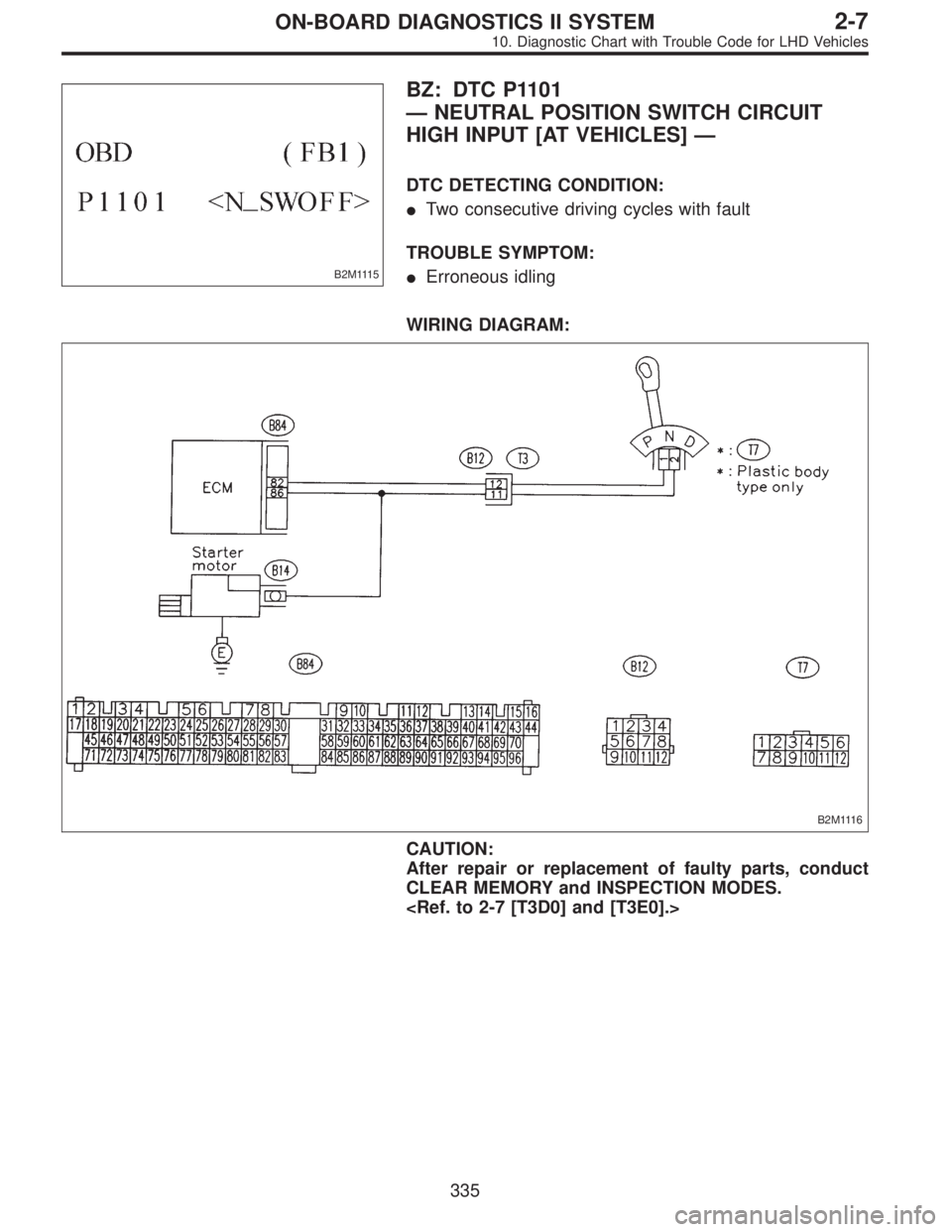

SUBARU LEGACY 1997 Service Repair Manual B2M1115 BZ: DTC P1101 —NEUTRAL POSITION SWITCH CIRCUIT HIGH INPUT [AT VEHICLES]— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Erroneous idling WIRING DIAGR

Page 2187 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10BZ1 CHECK DTC P0705 ON DISPLAY. : Does the Subaru select monitor or OBD-II general scan tool indicate DTC P0705? : Inspect DTC P0705 using“10. Diagnostics Chart with Trouble Code”. <Ref. to 2-7

Page 2188 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1117A 10BZ5CHECK HARNESS BETWEEN ECM AND INHIBITOR SWITCH. 1) Turn ignition switch to OFF. 2) Disconnect connectors from ECM and inhibitor switch. 3) Measure resistance of harness between ECM and i

Page 2189 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1119 10BZ6 CHECK INHIBITOR SWITCH. Measure resistance between inhibitor switch connector receptacle’s terminals. : Terminals No. 1—No. 2: Is the resistance less than 1Ωin“N”and “P”pos

Page 2190 of 3342

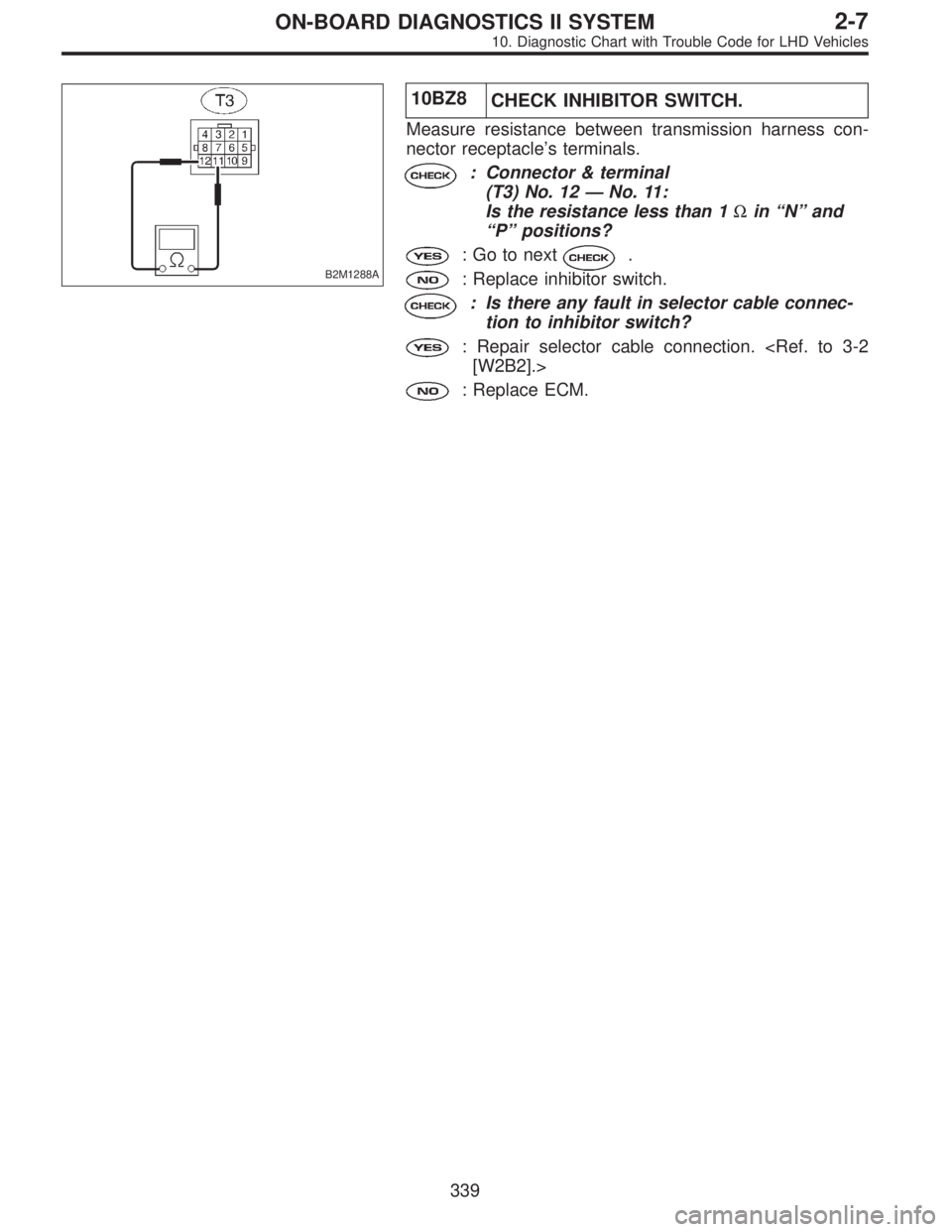

SUBARU LEGACY 1997 Service Repair Manual B2M1288A 10BZ8 CHECK INHIBITOR SWITCH. Measure resistance between transmission harness con- nector receptacle’s terminals. : Connector & terminal (T3) No. 12—No. 11: Is the resistance less than 1

Page 2191 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0481 CA: DTC P1102 —PRESSURE SOURCES SWITCHING SOLENOID VALVE CIRCUIT LOW INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Erroneous idling Failure

Page 2192 of 3342

SUBARU LEGACY 1997 Service Repair Manual : Repair poor contact in ECM connector. : Contact with SOA service. NOTE: Inspection by DTM is required, because probable cause is deterioration of multiple parts. OBD0488A 10CA2CHECK HARNESS BETWEEN
