Page 2097 of 3342

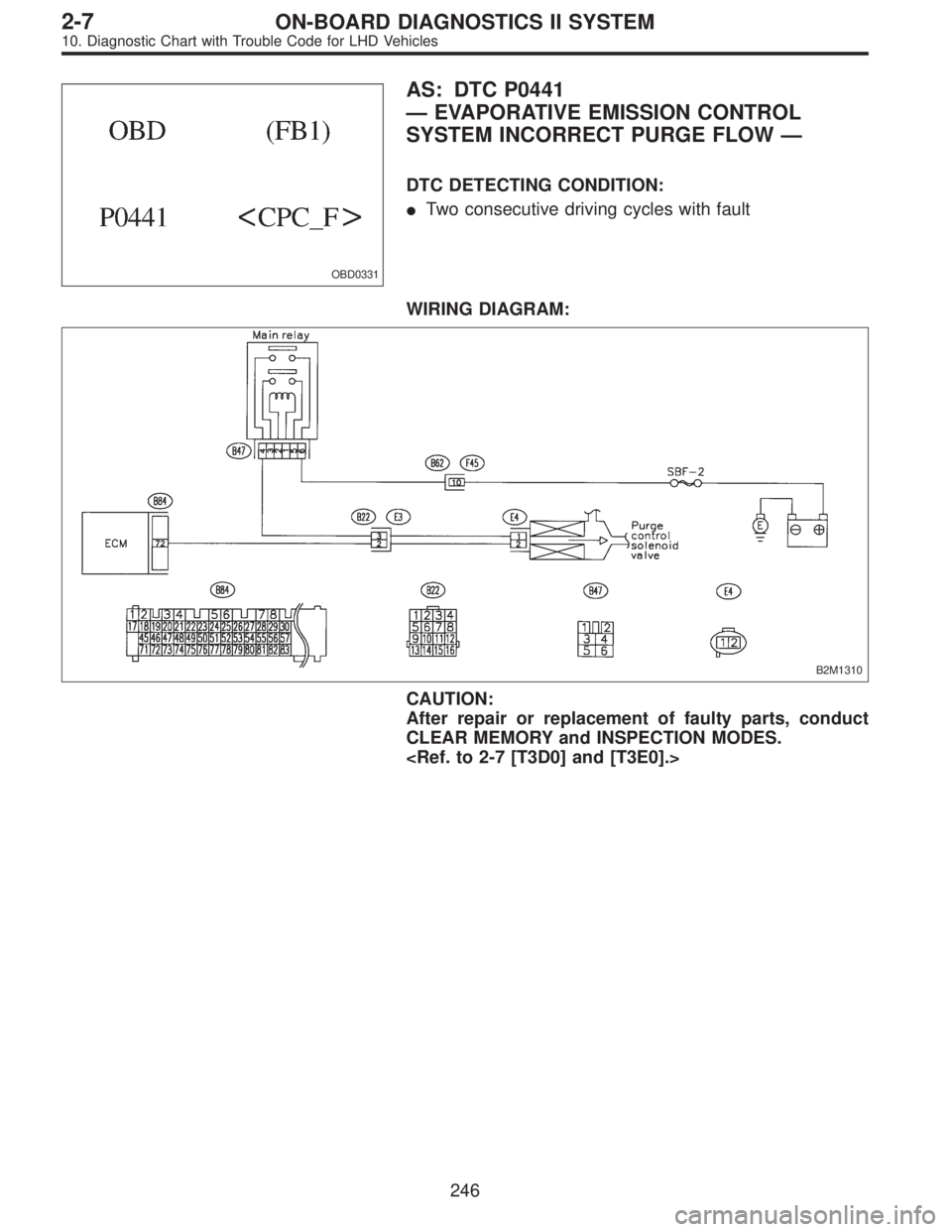

SUBARU LEGACY 1997 Service Repair Manual OBD0331 AS: DTC P0441 —EVAPORATIVE EMISSION CONTROL SYSTEM INCORRECT PURGE FLOW— DTC DETECTING CONDITION: Two consecutive driving cycles with fault WIRING DIAGRAM: B2M1310 CAUTION: After repair o

Page 2098 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10AS1CHECK DTC P0106, P0107, P0108, P0443, P1102, P1122 OR P1422 ON DISPLAY. : Does the Subaru select monitor or OBD-II general scan tool indicate DTC P0106, P0107, P0108, P0443, P1102, P1122 or P1422

Page 2099 of 3342

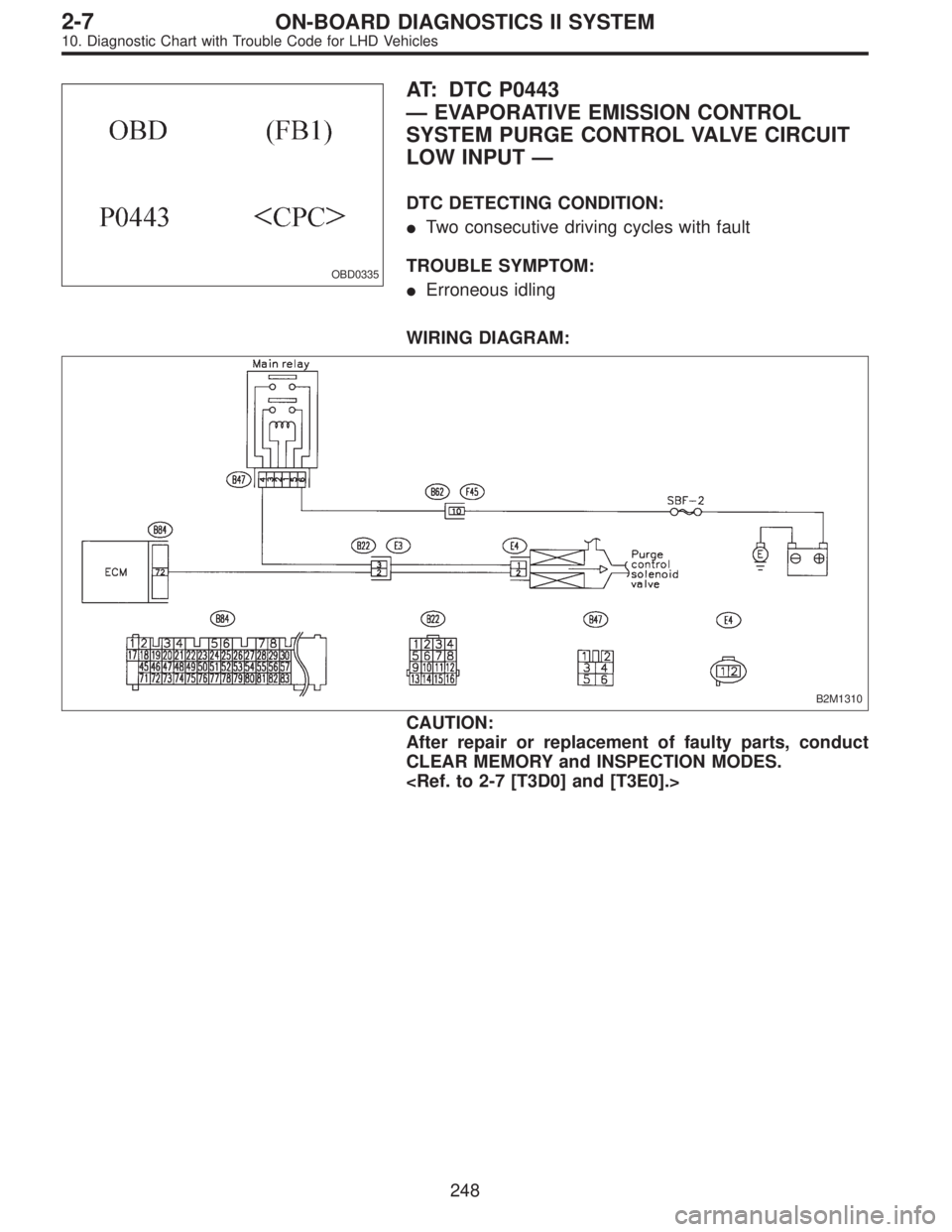

SUBARU LEGACY 1997 Service Repair Manual OBD0335 AT: DTC P0443 —EVAPORATIVE EMISSION CONTROL SYSTEM PURGE CONTROL VALVE CIRCUIT LOW INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Erroneous id

Page 2100 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0570A 10AT1 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 72 (+)—Chassis ground (�): Is the volt

Page 2101 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0338 10AT3CHECK PURGE CONTROL SOLENOID VA LV E . 1) Remove purge control solenoid valve. 2) Measure resistance between purge control solenoid valve terminals. : Terminals No. 1—No. 2: Is the resi

Page 2102 of 3342

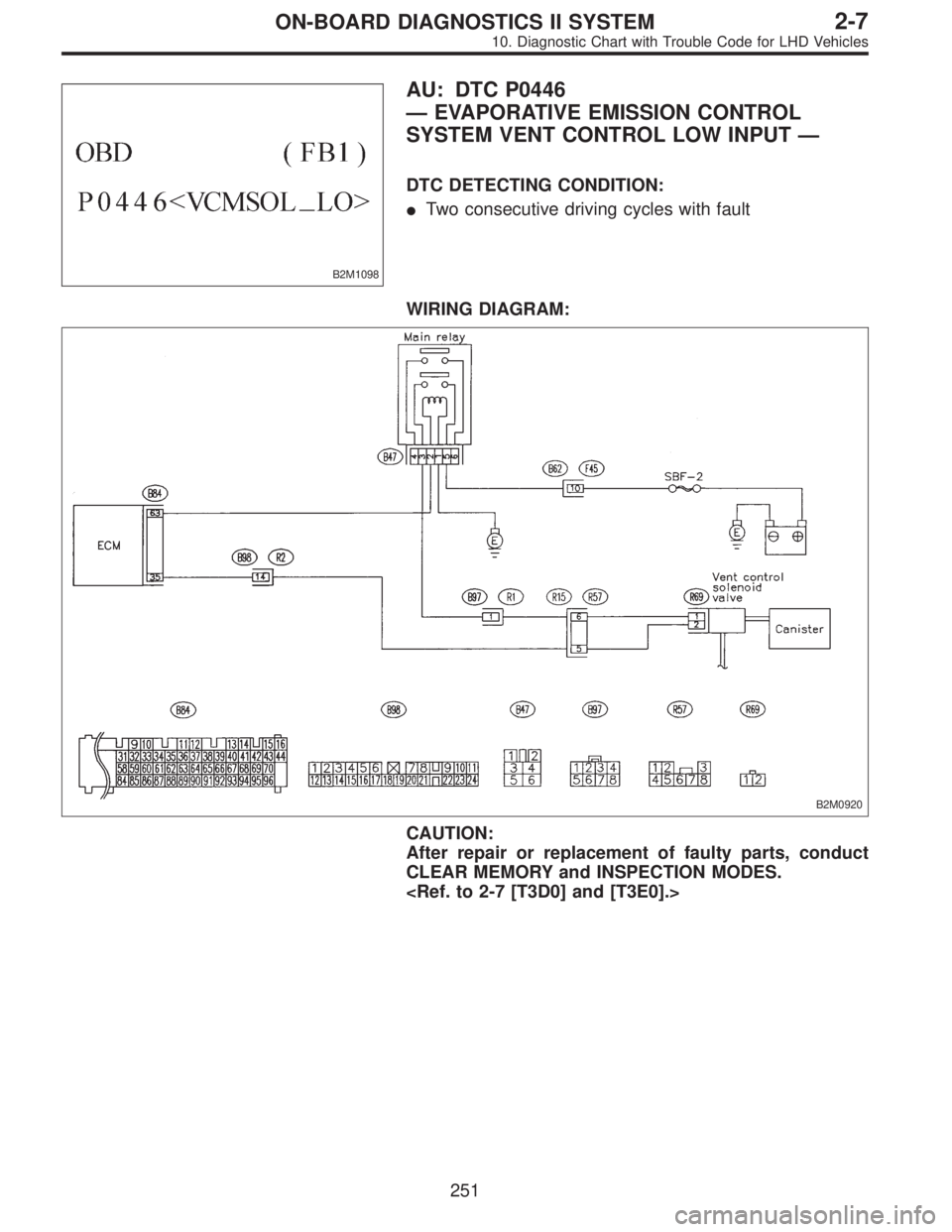

SUBARU LEGACY 1997 Service Repair Manual B2M1098 AU: DTC P0446 —EVAPORATIVE EMISSION CONTROL SYSTEM VENT CONTROL LOW INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault WIRING DIAGRAM: B2M0920 CAUTION: After repair

Page 2103 of 3342

SUBARU LEGACY 1997 Service Repair Manual H2M1370B 10AU1 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 35 (+)—Chassis ground (�): Is the volt

Page 2104 of 3342

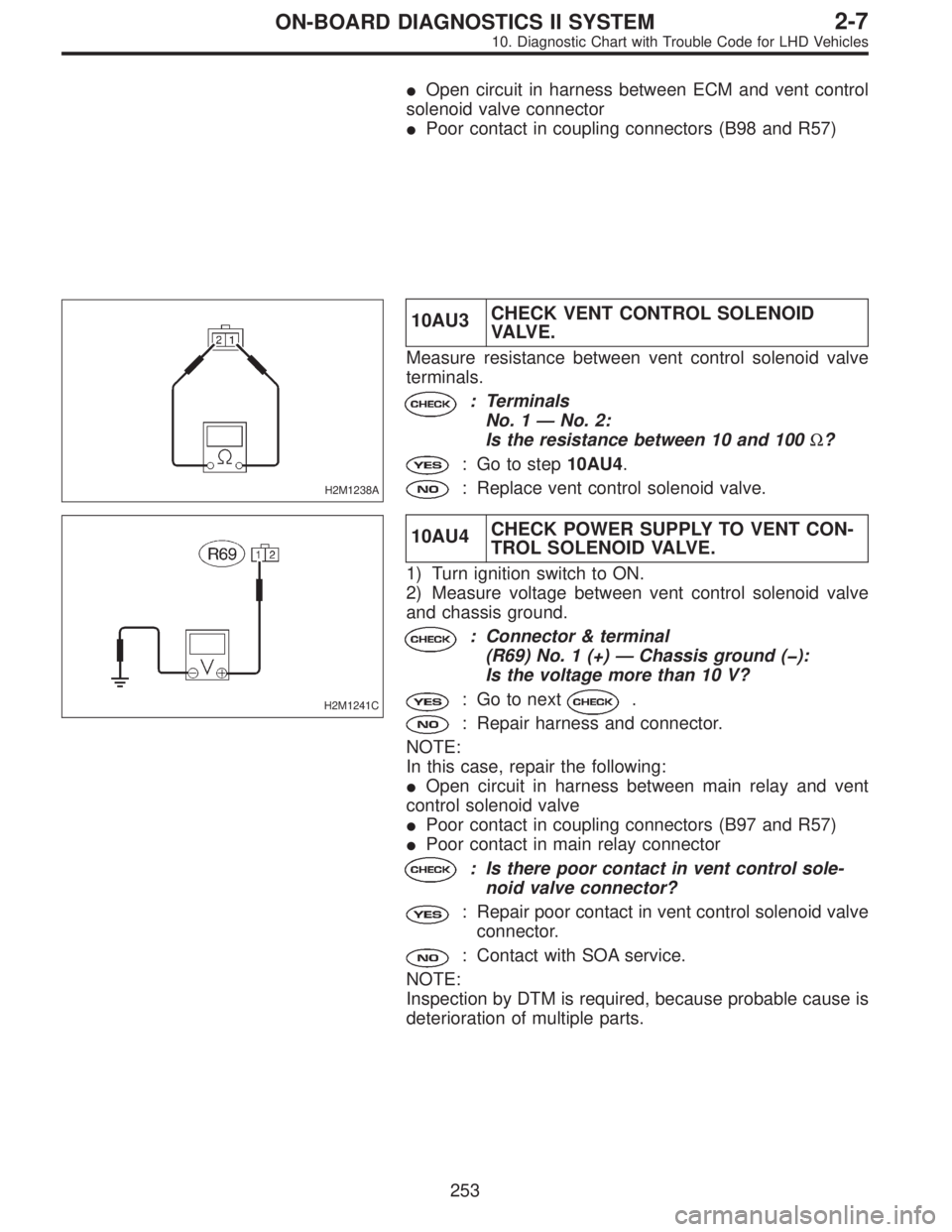

SUBARU LEGACY 1997 Service Repair Manual Open circuit in harness between ECM and vent control solenoid valve connector Poor contact in coupling connectors (B98 and R57) H2M1238A 10AU3CHECK VENT CONTROL SOLENOID VA LV E . Measure resistance
