Page 2385 of 3342

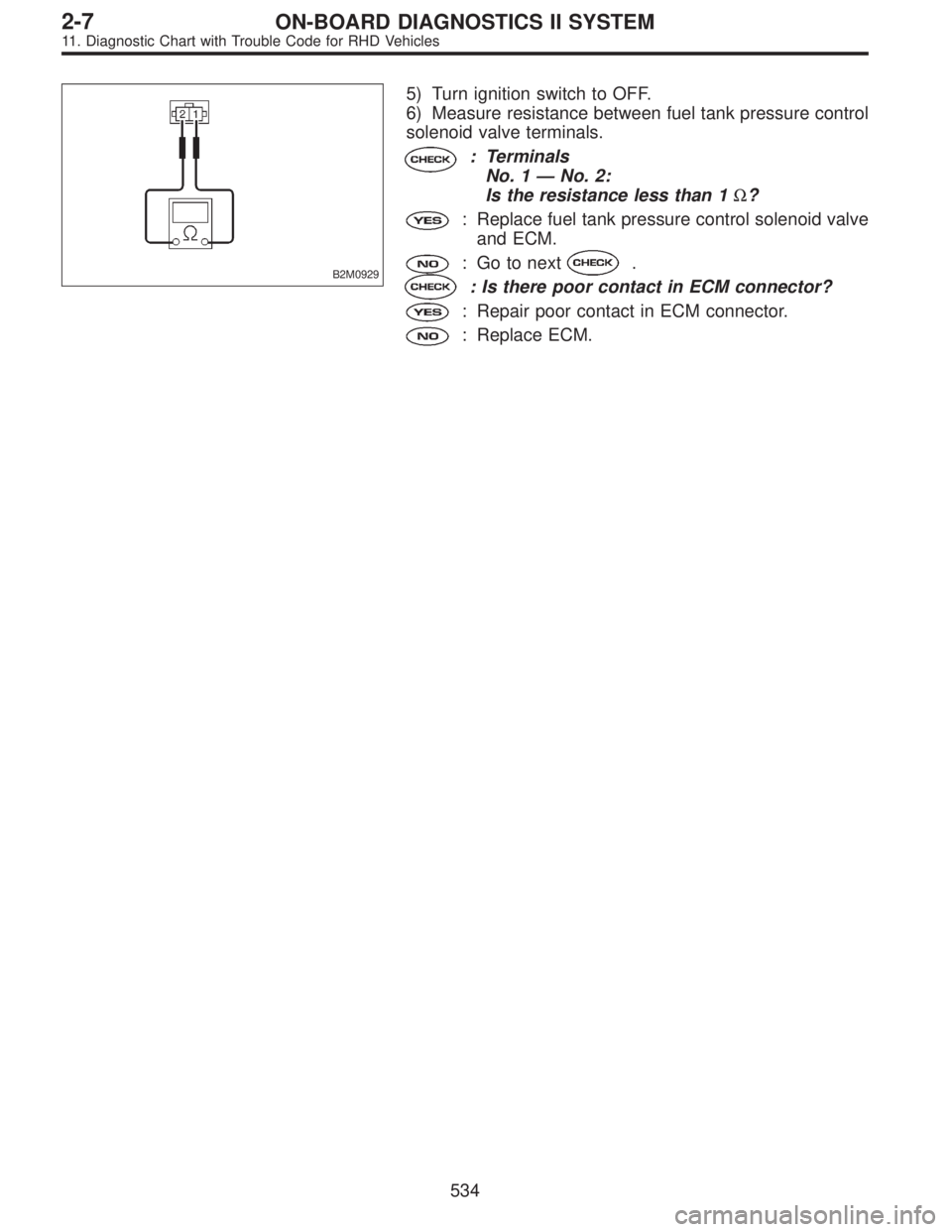

SUBARU LEGACY 1997 Service Repair Manual B2M0929 5) Turn ignition switch to OFF. 6) Measure resistance between fuel tank pressure control solenoid valve terminals. : Terminals No. 1—No. 2: Is the resistance less than 1Ω? : Replace fuel t

Page 2386 of 3342

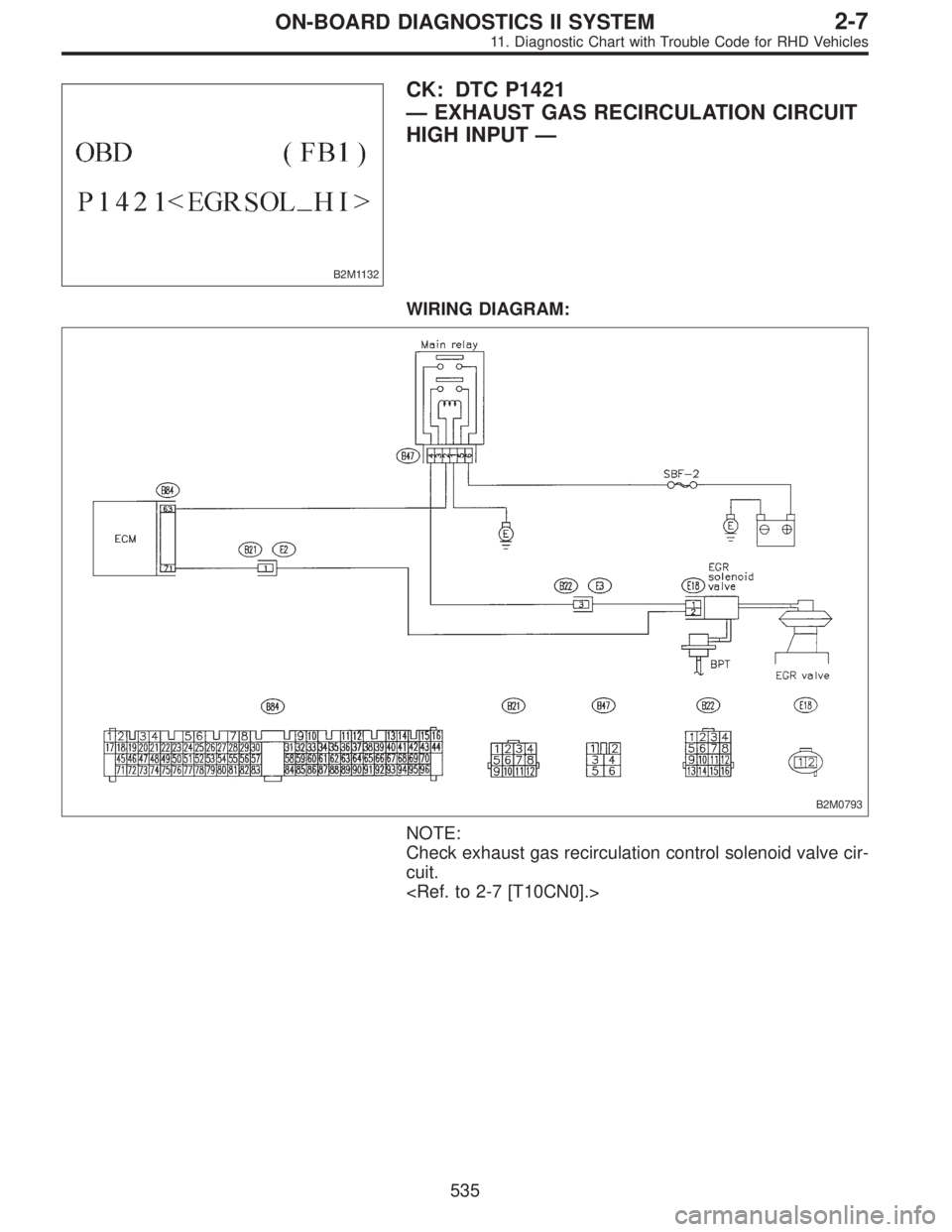

SUBARU LEGACY 1997 Service Repair Manual B2M1132 CK: DTC P1421 —EXHAUST GAS RECIRCULATION CIRCUIT HIGH INPUT— WIRING DIAGRAM: B2M0793 NOTE: Check exhaust gas recirculation control solenoid valve cir- cuit. <Ref. to 2-7 [T10CN0].> 535 2-7

Page 2387 of 3342

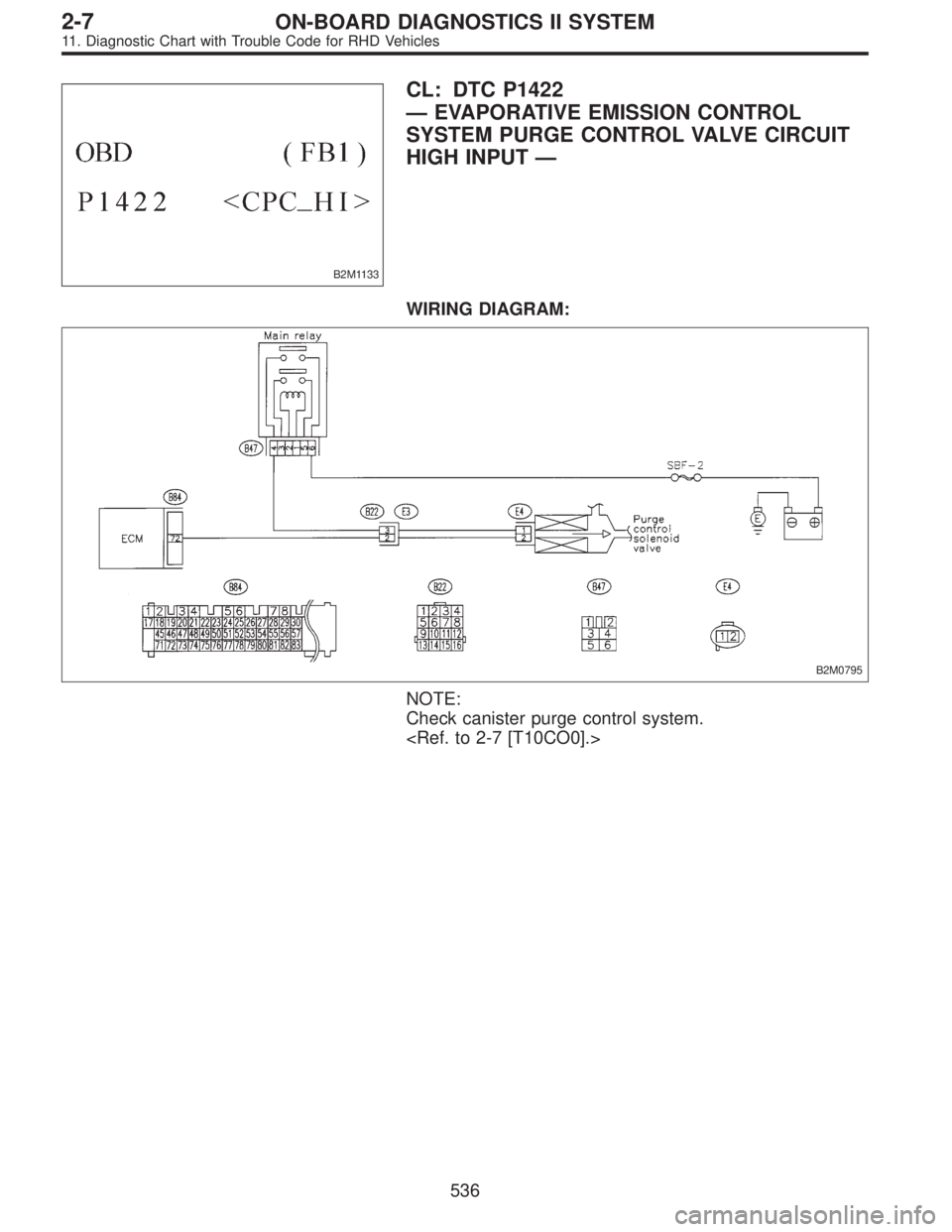

SUBARU LEGACY 1997 Service Repair Manual B2M1133 CL: DTC P1422 —EVAPORATIVE EMISSION CONTROL SYSTEM PURGE CONTROL VALVE CIRCUIT HIGH INPUT— WIRING DIAGRAM: B2M0795 NOTE: Check canister purge control system. <Ref. to 2-7 [T10CO0].> 536 2-

Page 2388 of 3342

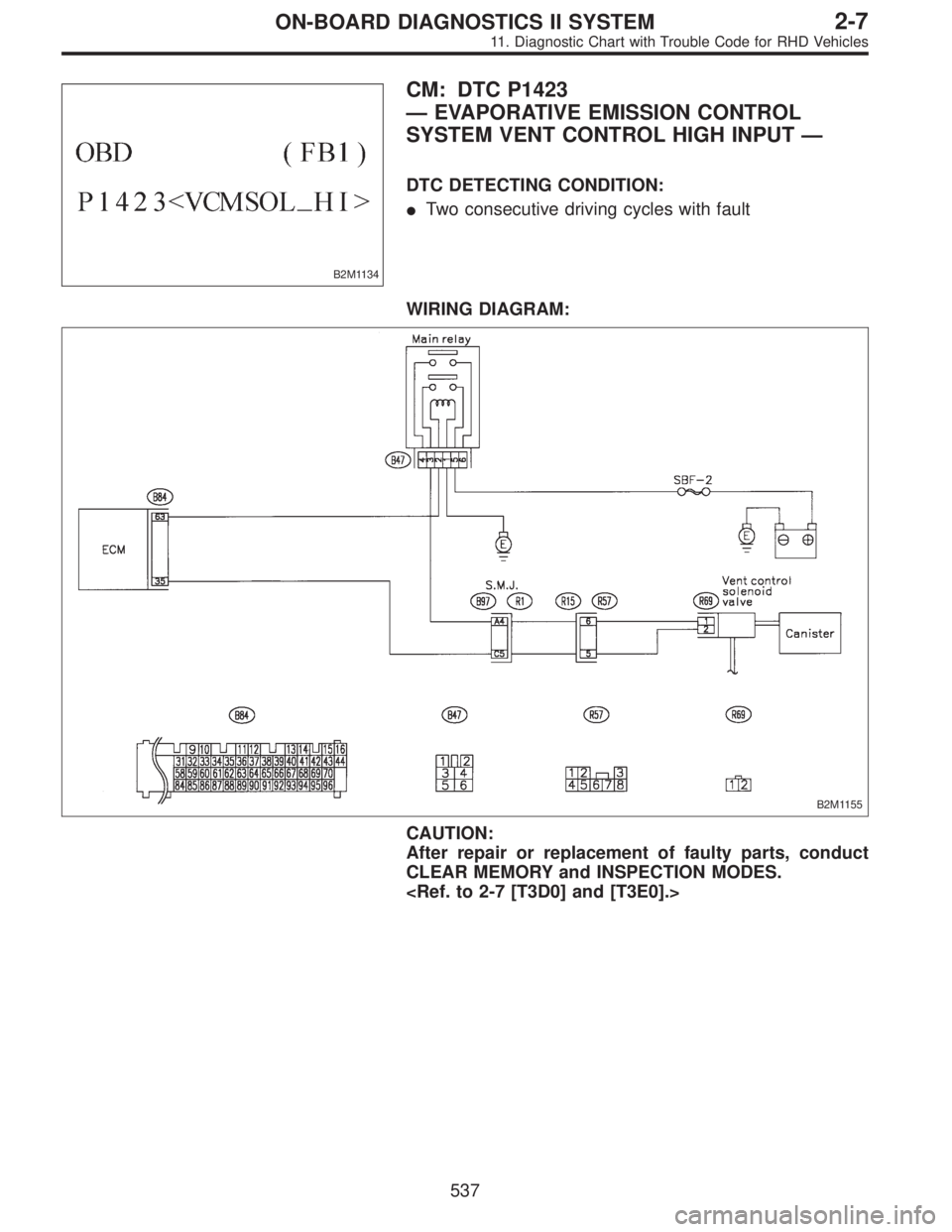

SUBARU LEGACY 1997 Service Repair Manual B2M1134 CM: DTC P1423 —EVAPORATIVE EMISSION CONTROL SYSTEM VENT CONTROL HIGH INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault WIRING DIAGRAM: B2M1155 CAUTION: After repai

Page 2389 of 3342

SUBARU LEGACY 1997 Service Repair Manual H2M1370B 11CM1 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 35 (+)—Chassis ground (�): Is the volt

Page 2390 of 3342

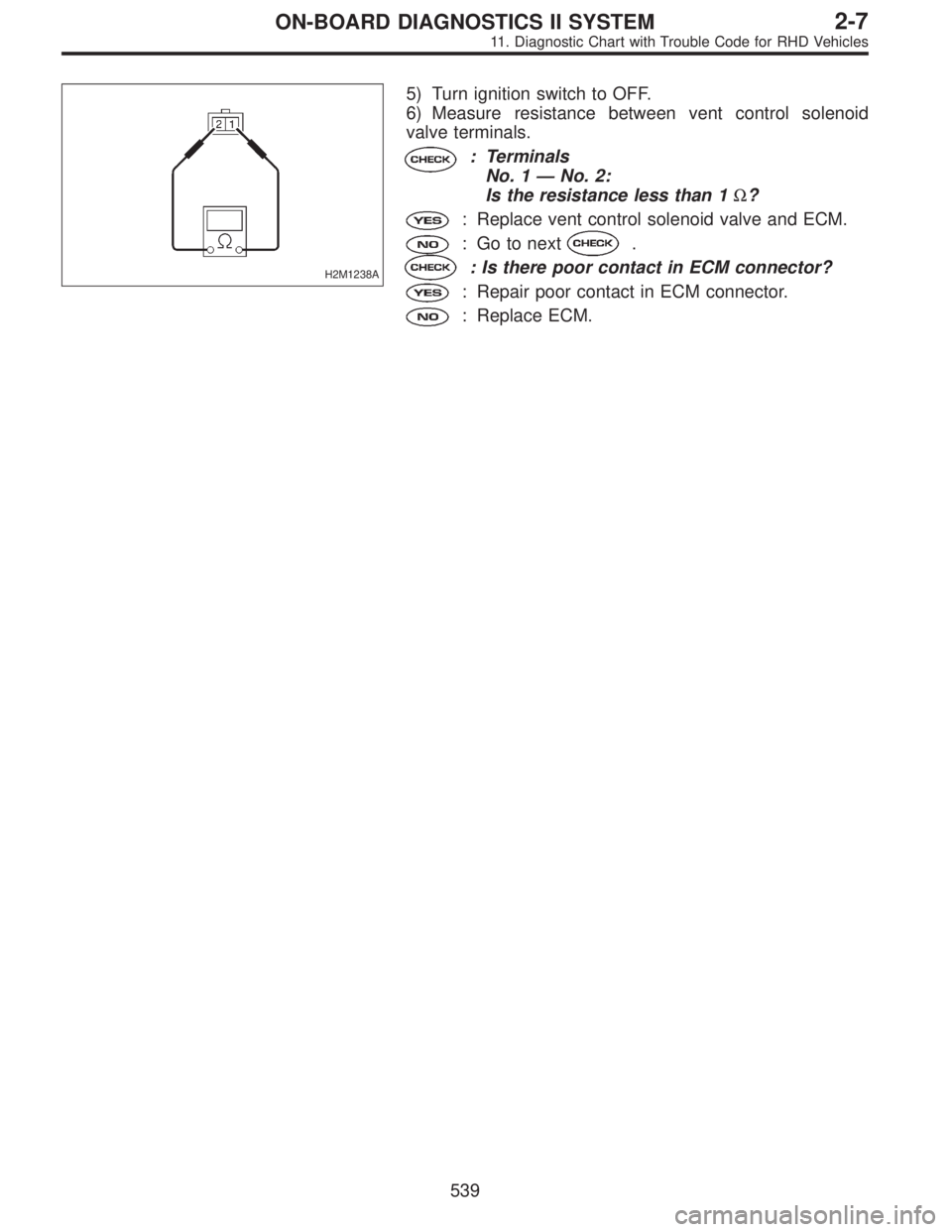

SUBARU LEGACY 1997 Service Repair Manual H2M1238A 5) Turn ignition switch to OFF. 6) Measure resistance between vent control solenoid valve terminals. : Terminals No. 1—No. 2: Is the resistance less than 1Ω? : Replace vent control soleno

Page 2391 of 3342

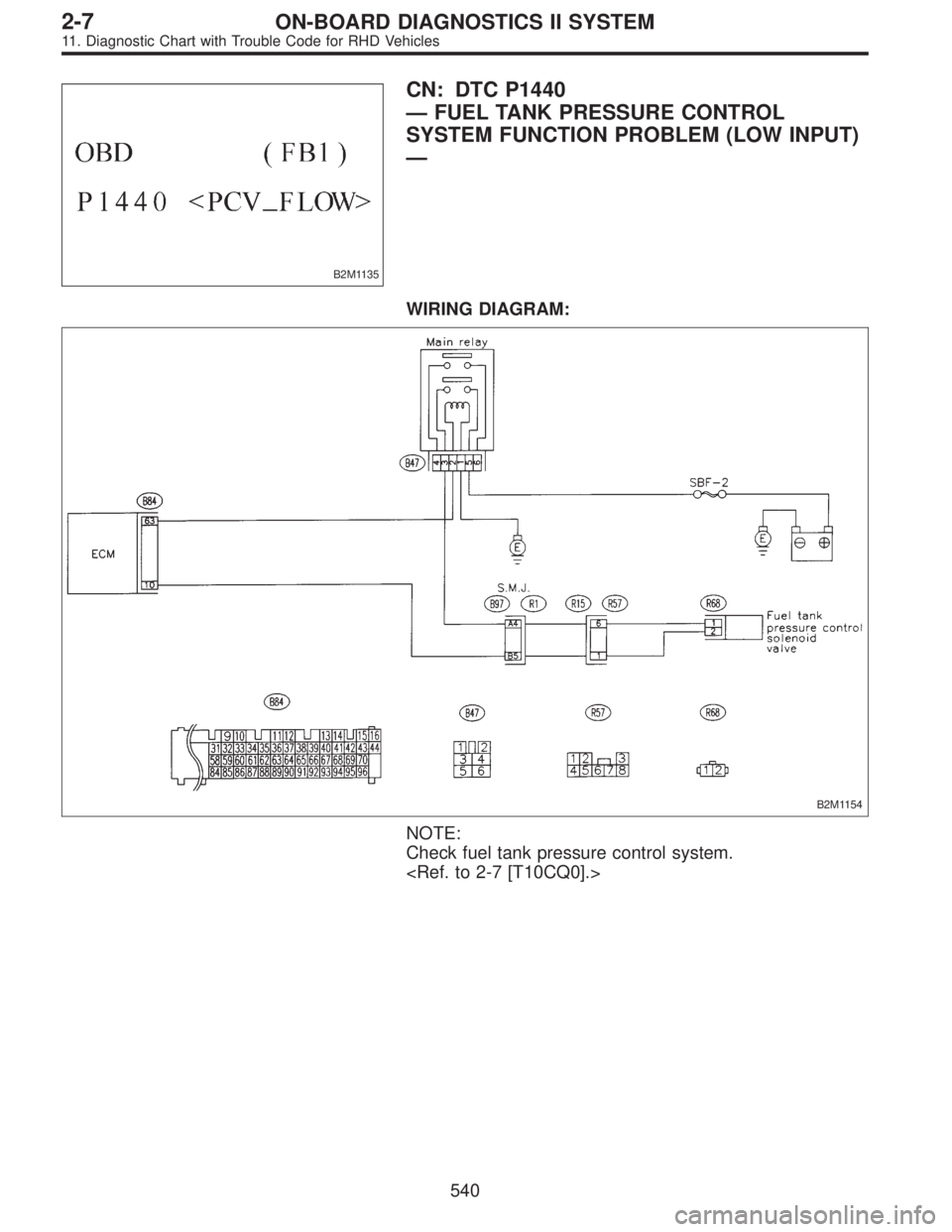

SUBARU LEGACY 1997 Service Repair Manual B2M1135 CN: DTC P1440 —FUEL TANK PRESSURE CONTROL SYSTEM FUNCTION PROBLEM (LOW INPUT) — WIRING DIAGRAM: B2M1154 NOTE: Check fuel tank pressure control system. <Ref. to 2-7 [T10CQ0].> 540 2-7ON-BOA

Page 2392 of 3342

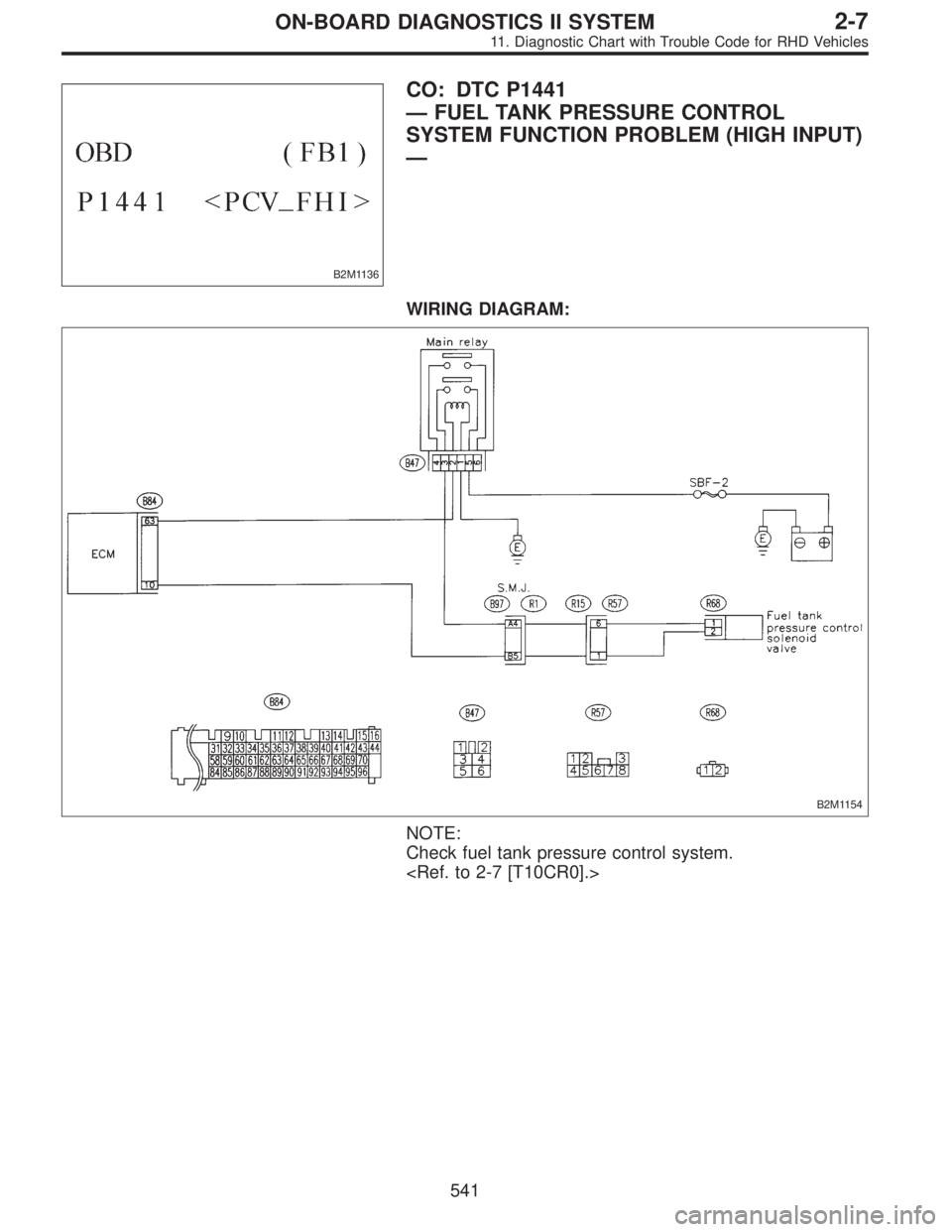

SUBARU LEGACY 1997 Service Repair Manual B2M1136 CO: DTC P1441 —FUEL TANK PRESSURE CONTROL SYSTEM FUNCTION PROBLEM (HIGH INPUT) — WIRING DIAGRAM: B2M1154 NOTE: Check fuel tank pressure control system. <Ref. to 2-7 [T10CR0].> 541 2-7ON-BO
