Page 2177 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10BV2 CHECK INHIBITOR SWITCH CIRCUIT. Check inhibitor switch circuit. <Ref. to 2-7 [T10BI0].> : Is there any trouble in inhibitor switch cir- cuit? : Repair or replace inhibitor switch circuit. : Go t

Page 2178 of 3342

SUBARU LEGACY 1997 Service Repair Manual : Is there any mechanical trouble in automatic transmission? : Repair or replace automatic transmission. : Replace TCM. 10BV4 CHECK SHIFT SOLENOID 1 CIRCUIT. Check shift solenoid 1 circuit. <Ref. to 3

Page 2179 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0667 BW: DTC P0763 —SHIFT SOLENOID C (SHIFT SOLENOID 3) ELECTRICAL— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Ineffective engine brake with selector

Page 2180 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1113 BX: DTC P1100 —STARTER SWITCH CIRCUIT LOW INPUT — DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Failure of engine to start WIRING DIAGRAM: B2M1047 C

Page 2181 of 3342

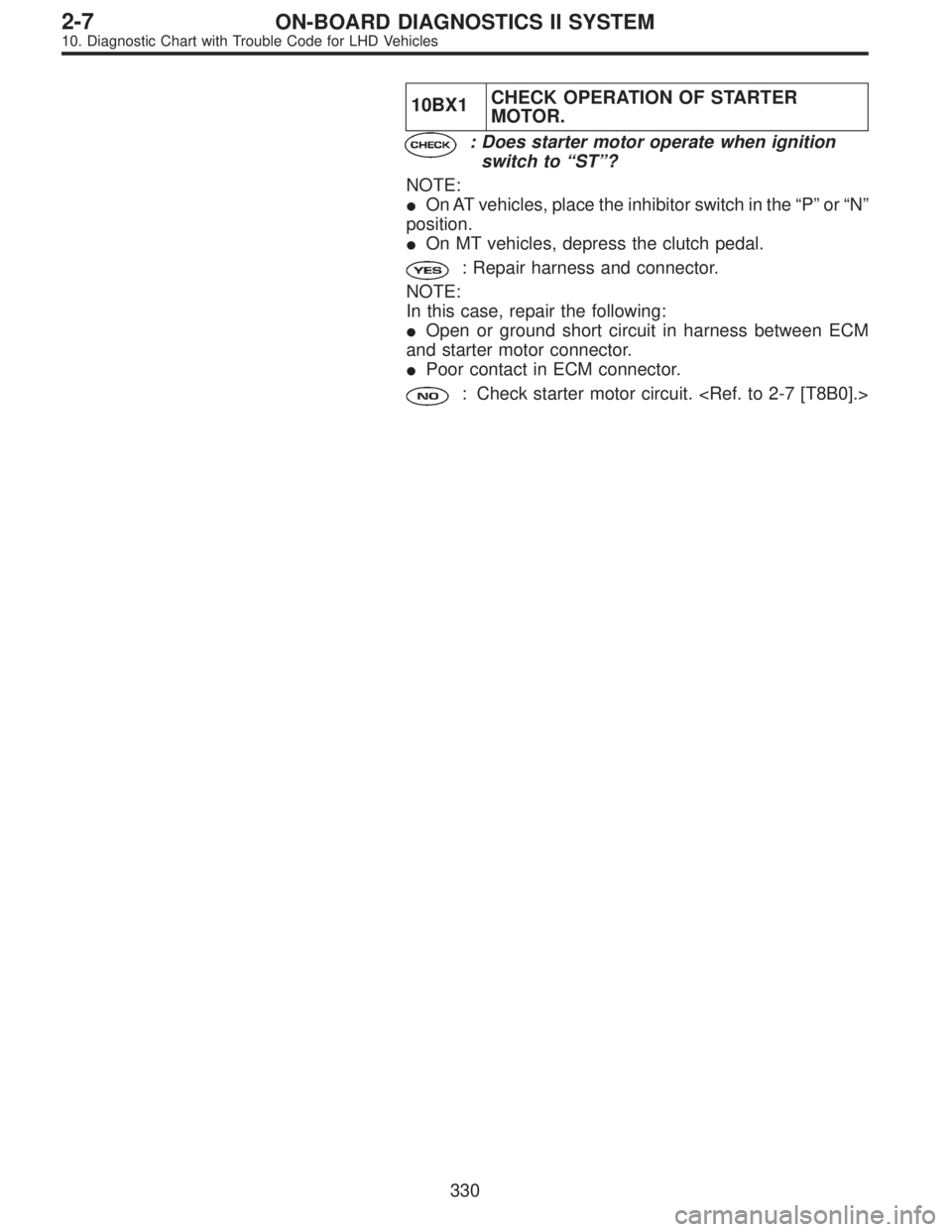

SUBARU LEGACY 1997 Service Repair Manual 10BX1CHECK OPERATION OF STARTER MOTOR. : Does starter motor operate when ignition switch to“ST”? NOTE: On AT vehicles, place the inhibitor switch in the“P”or“N” position. On MT vehicles,

Page 2182 of 3342

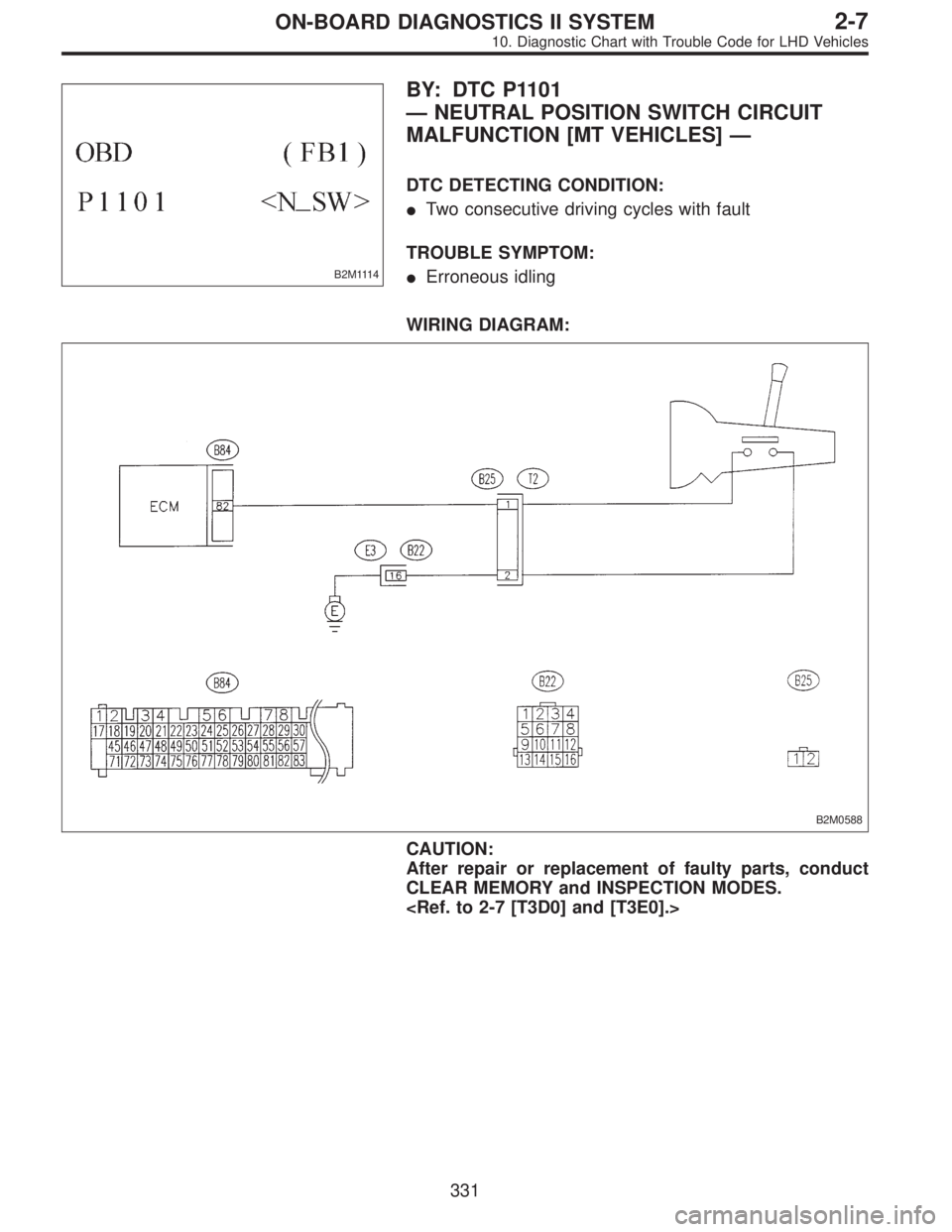

SUBARU LEGACY 1997 Service Repair Manual B2M1114 BY: DTC P1101 —NEUTRAL POSITION SWITCH CIRCUIT MALFUNCTION [MT VEHICLES]— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Erroneous idling WIRING DIAG

Page 2183 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0589A 10BY1 CHECK INPUT SIGNAL FOR ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 82 (+)—Chassis ground (�): Is the voltag

Page 2184 of 3342

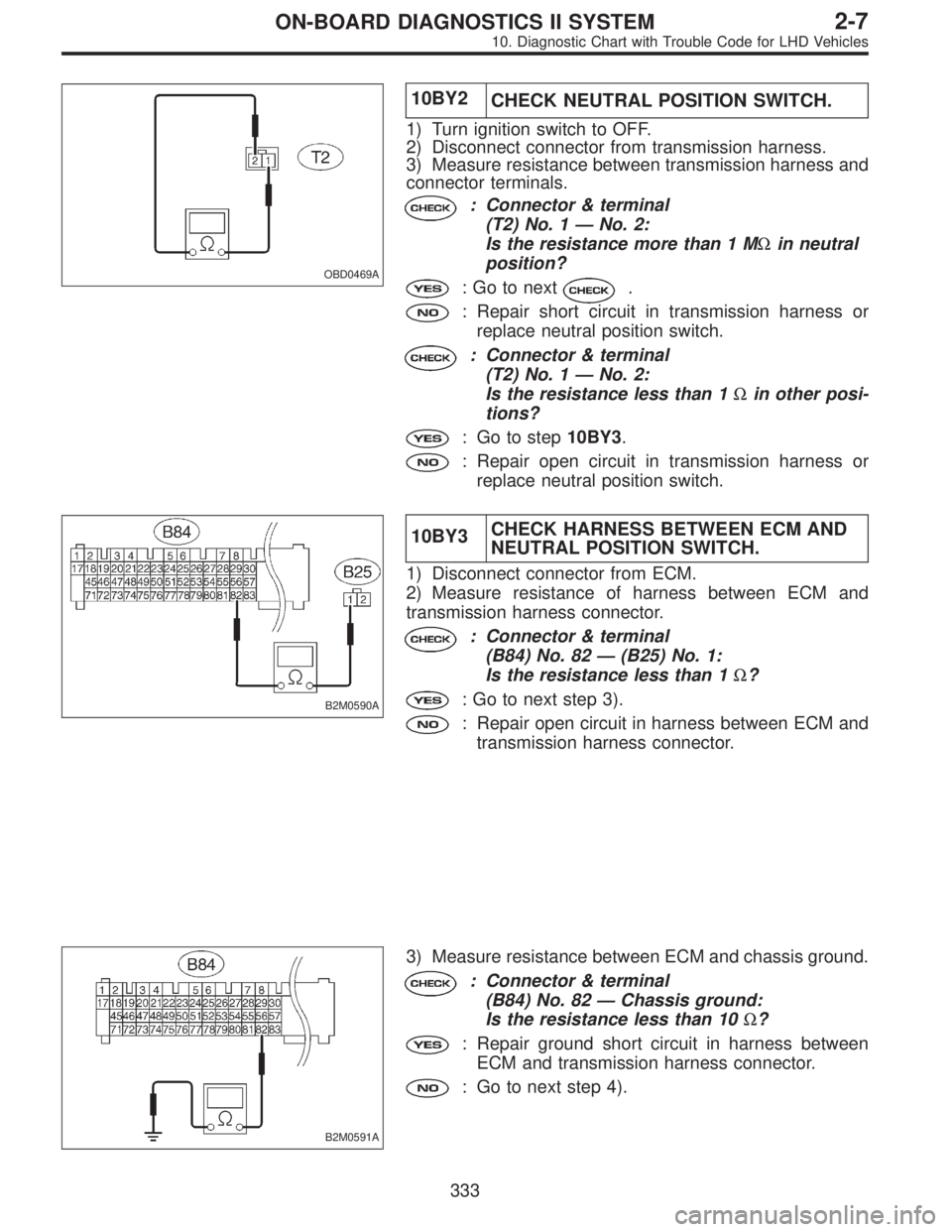

SUBARU LEGACY 1997 Service Repair Manual OBD0469A 10BY2 CHECK NEUTRAL POSITION SWITCH. 1) Turn ignition switch to OFF. 2) Disconnect connector from transmission harness. 3) Measure resistance between transmission harness and connector termin
