Page 1017 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0489 2) Install the washer and differential bevel gear to the dif- ferential case (LH). Then put the case over the differential case (RH), and connect both cases. 3) Install the crown gear and secu

Page 1018 of 3342

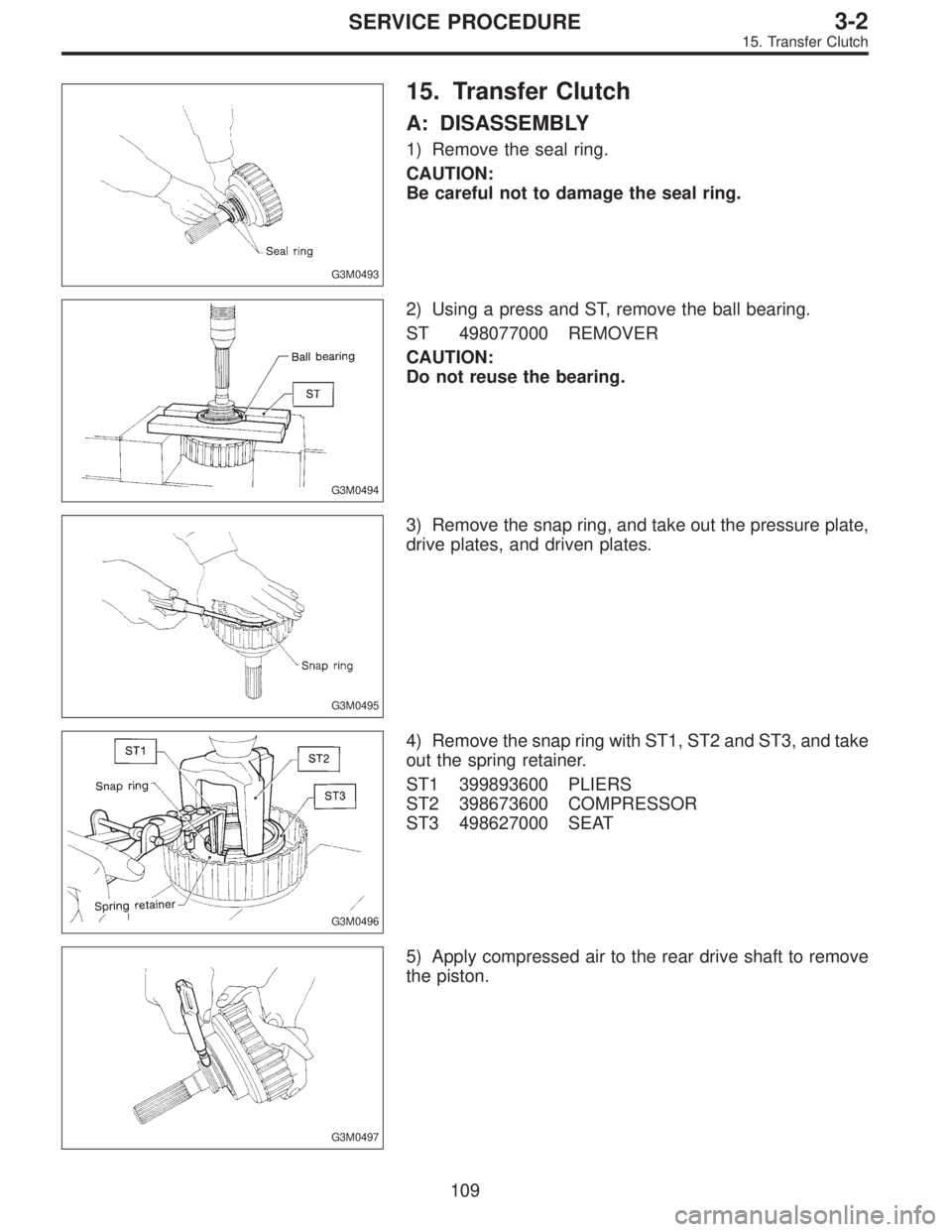

SUBARU LEGACY 1997 Service Repair Manual G3M0493 15. Transfer Clutch A: DISASSEMBLY 1) Remove the seal ring. CAUTION: Be careful not to damage the seal ring. G3M0494 2) Using a press and ST, remove the ball bearing. ST 498077000 REMOVER CAUT

Page 1019 of 3342

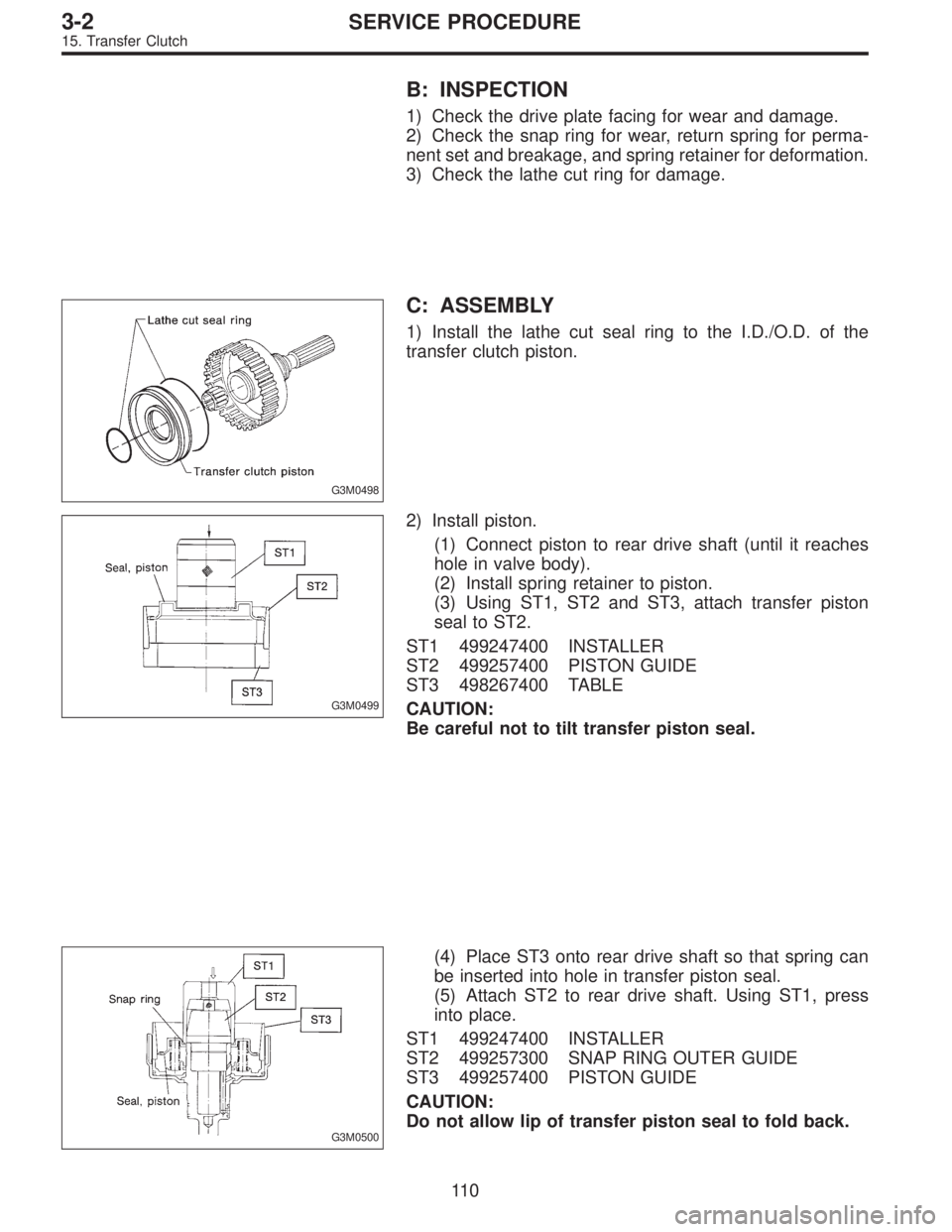

SUBARU LEGACY 1997 Service Repair Manual B: INSPECTION 1) Check the drive plate facing for wear and damage. 2) Check the snap ring for wear, return spring for perma- nent set and breakage, and spring retainer for deformation. 3) Check the la

Page 1020 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0501 3) Install the driven plates, drive plates, and pressure plate, and secure with a snap ring with ST1, ST2 and a press. ST1 398673600 COMPRESSOR ST2 498627000 SEAT G3M0502 4) Apply compressed a

Page 1021 of 3342

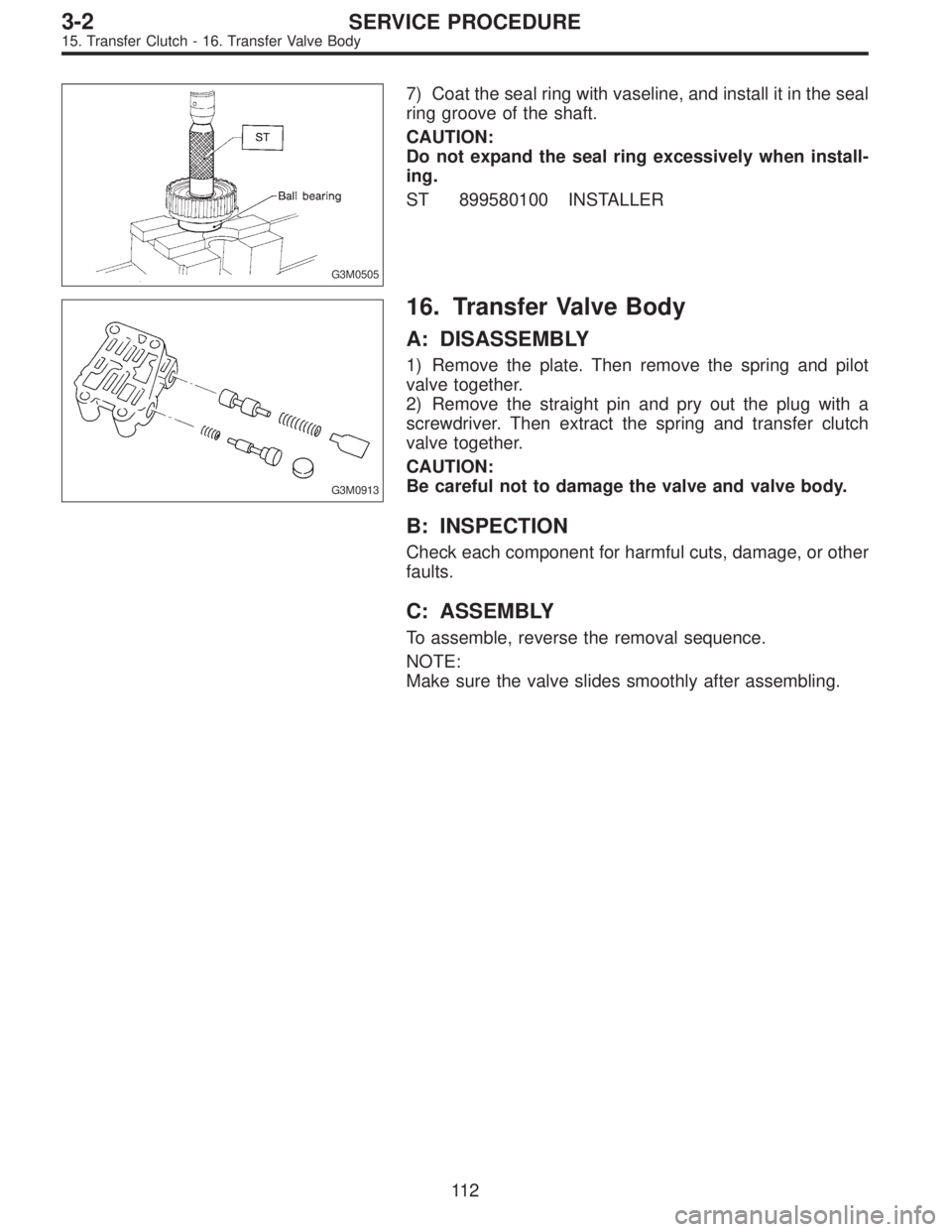

SUBARU LEGACY 1997 Service Repair Manual G3M0505 7) Coat the seal ring with vaseline, and install it in the seal ring groove of the shaft. CAUTION: Do not expand the seal ring excessively when install- ing. ST 899580100 INSTALLER G3M0913 16.

Page 1022 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0505 7) Coat the seal ring with vaseline, and install it in the seal ring groove of the shaft. CAUTION: Do not expand the seal ring excessively when install- ing. ST 899580100 INSTALLER G3M0913 16.

Page 1023 of 3342

SUBARU LEGACY 1997 Service Repair Manual G6M0095 17. Transmission Control Module A: REMOVAL 1. LHD MODEL 1) Disconnect battery ground cable. B3M0377A 2) Remove lower cover and then disconnect connector. B3M0443A 3) Remove transmission contro

Page 1024 of 3342

SUBARU LEGACY 1997 Service Repair Manual B3M0443A B: INSTALLATION 1. LHD MODEL 1) Connect connectors to transmission control module.  1Transmission control module  2Cruise control module  3Pedal bracket 2) Install transmission control mod
