Page 1569 of 3342

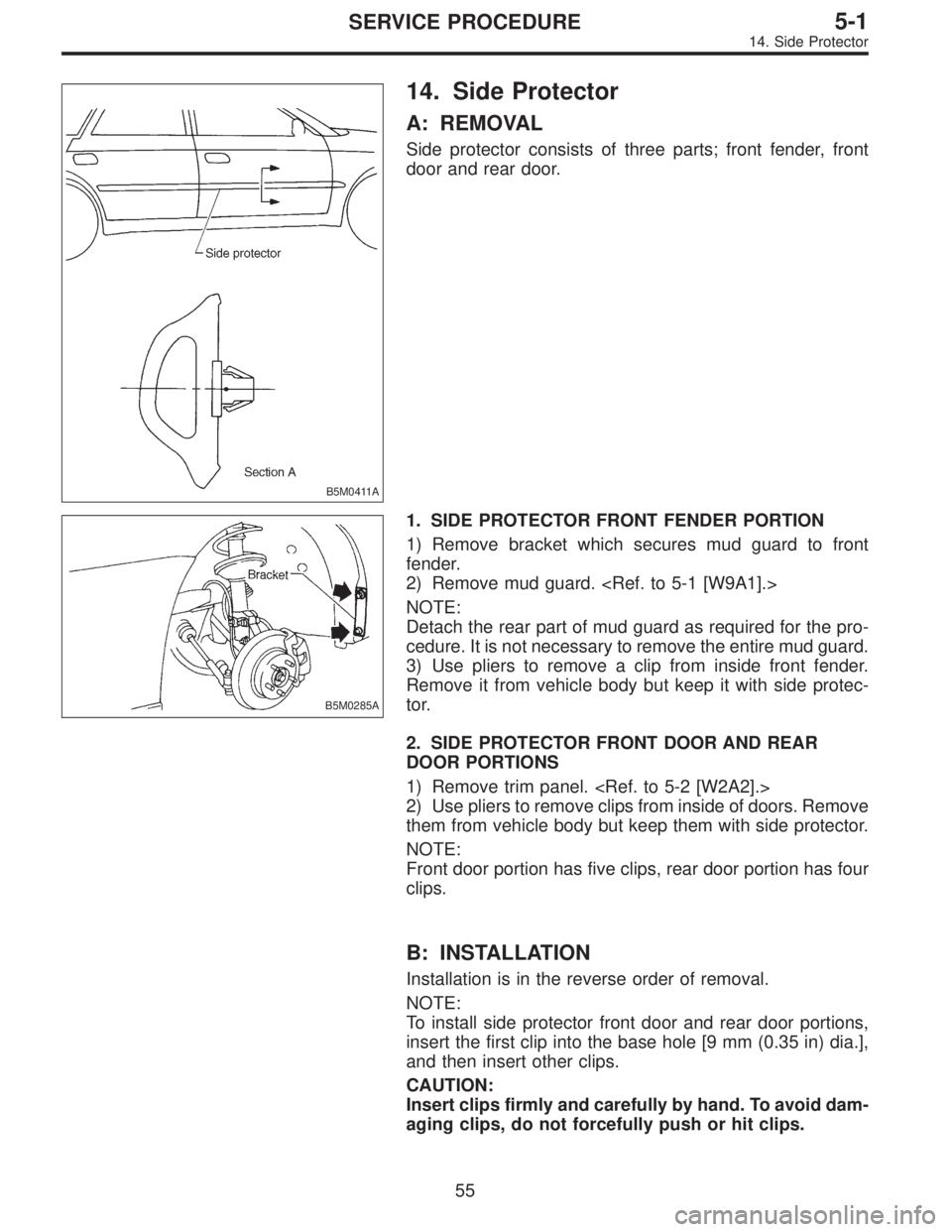

SUBARU LEGACY 1997 Service Repair Manual B5M0411A 14. Side Protector A: REMOVAL Side protector consists of three parts; front fender, front door and rear door. B5M0285A 1. SIDE PROTECTOR FRONT FENDER PORTION 1) Remove bracket which secures m

Page 1570 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0304 15. Roof Rack (Wagon only, if equipped) A: REMOVAL 1) Remove roof trim, rear quarter trim, pillar trim, etc. <Ref. to 5-3 [W5A0].> 2) Remove flange bolts. 3) Remove flange nuts. 4) Remove roof

Page 1571 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0304 15. Roof Rack (Wagon only, if equipped) A: REMOVAL 1) Remove roof trim, rear quarter trim, pillar trim, etc. <Ref. to 5-3 [W5A0].> 2) Remove flange bolts. 3) Remove flange nuts. 4) Remove roof

Page 1572 of 3342

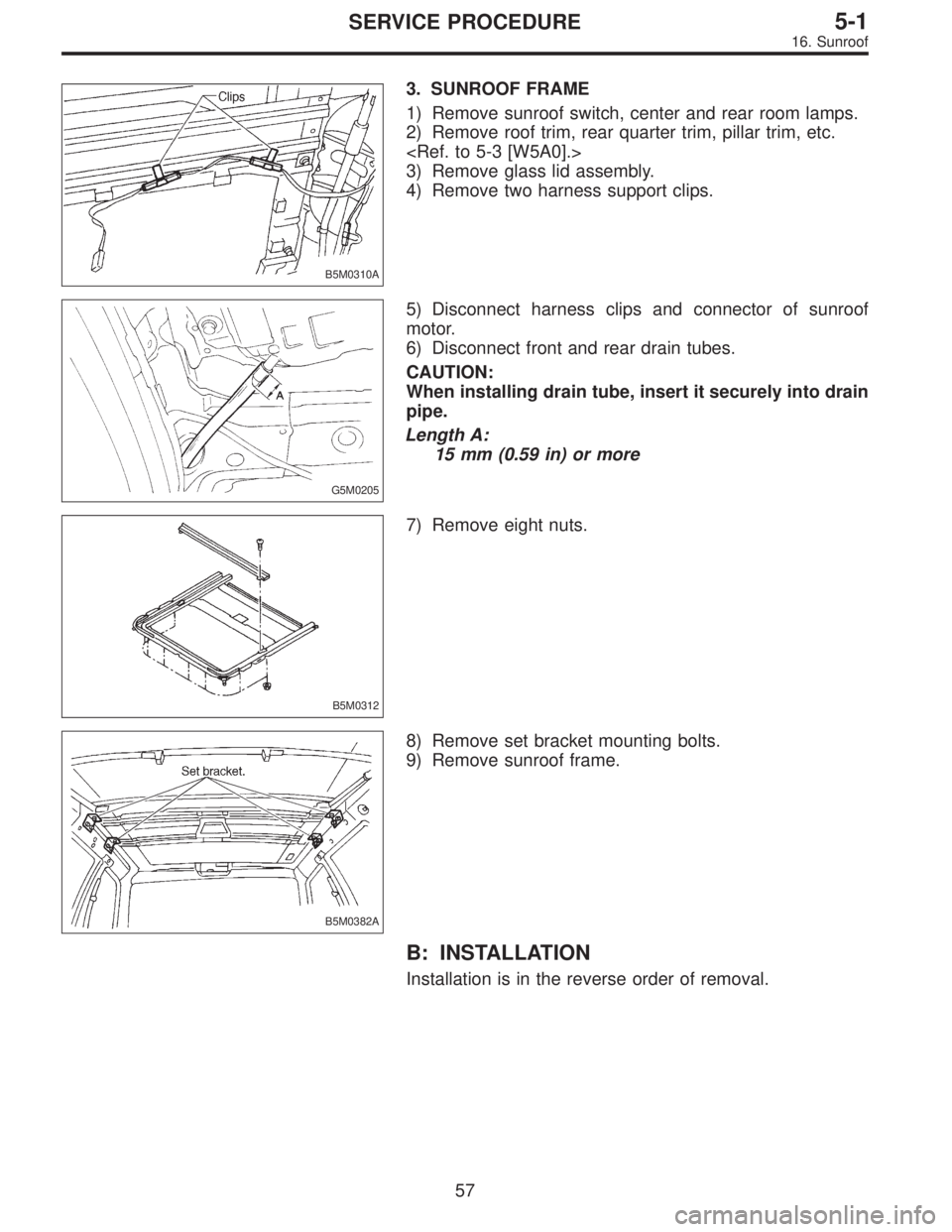

SUBARU LEGACY 1997 Service Repair Manual B5M0310A 3. SUNROOF FRAME 1) Remove sunroof switch, center and rear room lamps. 2) Remove roof trim, rear quarter trim, pillar trim, etc. <Ref. to 5-3 [W5A0].> 3) Remove glass lid assembly. 4) Remove

Page 1573 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0314B B5M0315B C: ADJUSTMENTS 1. ALIGNMENT OF HEIGHT BETWEEN GLASS LID ASSEMBLY AND ROOF PANEL 1) Remove guide rail cover. 2) Loosen nuts and adjust height by adding (Max: two pieces) and extractin

Page 1574 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0304 17. Roof Rail (Outback with step roof) A: REMOVAL 1) Remove roof trim, rear quarter trim, pillar trim, etc. <Ref. to 5-3 [W5A0].> 2) Remove flange bolts. 3) Remove flange nuts. 4) Remove roof

Page 1575 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0304 17. Roof Rail (Outback with step roof) A: REMOVAL 1) Remove roof trim, rear quarter trim, pillar trim, etc. <Ref. to 5-3 [W5A0].> 2) Remove flange bolts. 3) Remove flange nuts. 4) Remove roof

Page 1576 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0304 17. Roof Rail (Outback with step roof) A: REMOVAL 1) Remove roof trim, rear quarter trim, pillar trim, etc. <Ref. to 5-3 [W5A0].> 2) Remove flange bolts. 3) Remove flange nuts. 4) Remove roof
