Page 2297 of 3342

SUBARU LEGACY 1997 Service Repair Manual 11U1CHECK DTC P0182 OR P0183 ON DIS- PLAY. : Does the Subaru select monitor or OBD-II general scan tool indicate DTC P0182 or P0183? : Inspect DTC P0182 or P0183 using“11. Diagnos- tics Chart with T

Page 2298 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1079 V: DTC P0182 —FUEL TEMPERATURE SENSOR A CIRCUIT LOW INPUT— DTC DETECTING CONDITION: Immediately at fault recognition WIRING DIAGRAM: B2M1015 CAUTION: After repair or replacement of faulty

Page 2299 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1016A 11V1CONNECT SUBARU SELECT MONITOR OR THE OBD-II GENERAL SCAN TOOL, AND READ DATA. 1) Turn ignition switch to OFF. 2) Connect Subaru Select Monitor or the OBD-II general scan tool to data link

Page 2300 of 3342

SUBARU LEGACY 1997 Service Repair Manual H2M1308 6) Read data on Subaru Select Monitor or the OBD-II gen- eral scan tool. Subaru Select Monitor Designate mode using function key. Function mode: F44 F44: Fuel temperature is indicated in“

Page 2301 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1080 W: DTC P0183 —FUEL TEMPERATURE SENSOR A CIRCUIT HIGH INPUT— DTC DETECTING CONDITION: Immediately at fault recognition WIRING DIAGRAM: B2M1015 CAUTION: After repair or replacement of fault

Page 2302 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1016A 11W1CONNECT SUBARU SELECT MONITOR OR THE OBD-II GENERAL SCAN TOOL, AND READ DATA. 1) Turn ignition switch to OFF. 2) Connect Subaru Select Monitor or the OBD-II general scan tool to data link

Page 2303 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0917A 5) Turn ignition switch to ON. 6) Measure voltage between fuel pump connector and chassis ground. : Connector & terminal (R58) No. 6 (+)—Chassis ground (�): Is the voltage more than 10 V? :

Page 2304 of 3342

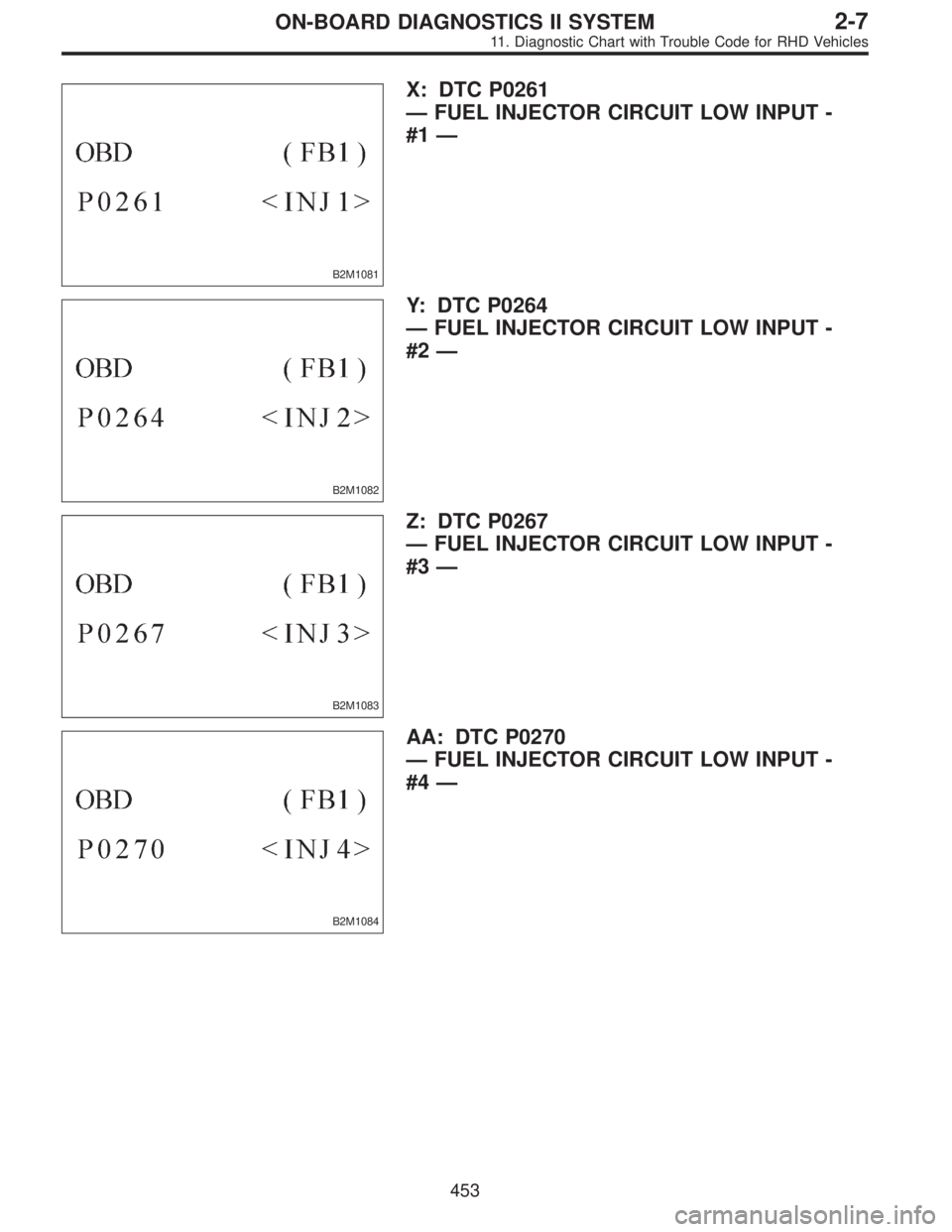

SUBARU LEGACY 1997 Service Repair Manual B2M1081 X: DTC P0261 —FUEL INJECTOR CIRCUIT LOW INPUT - #1— B2M1082 Y: DTC P0264 —FUEL INJECTOR CIRCUIT LOW INPUT - #2— B2M1083 Z: DTC P0267 —FUEL INJECTOR CIRCUIT LOW INPUT - #3— B2M1084
