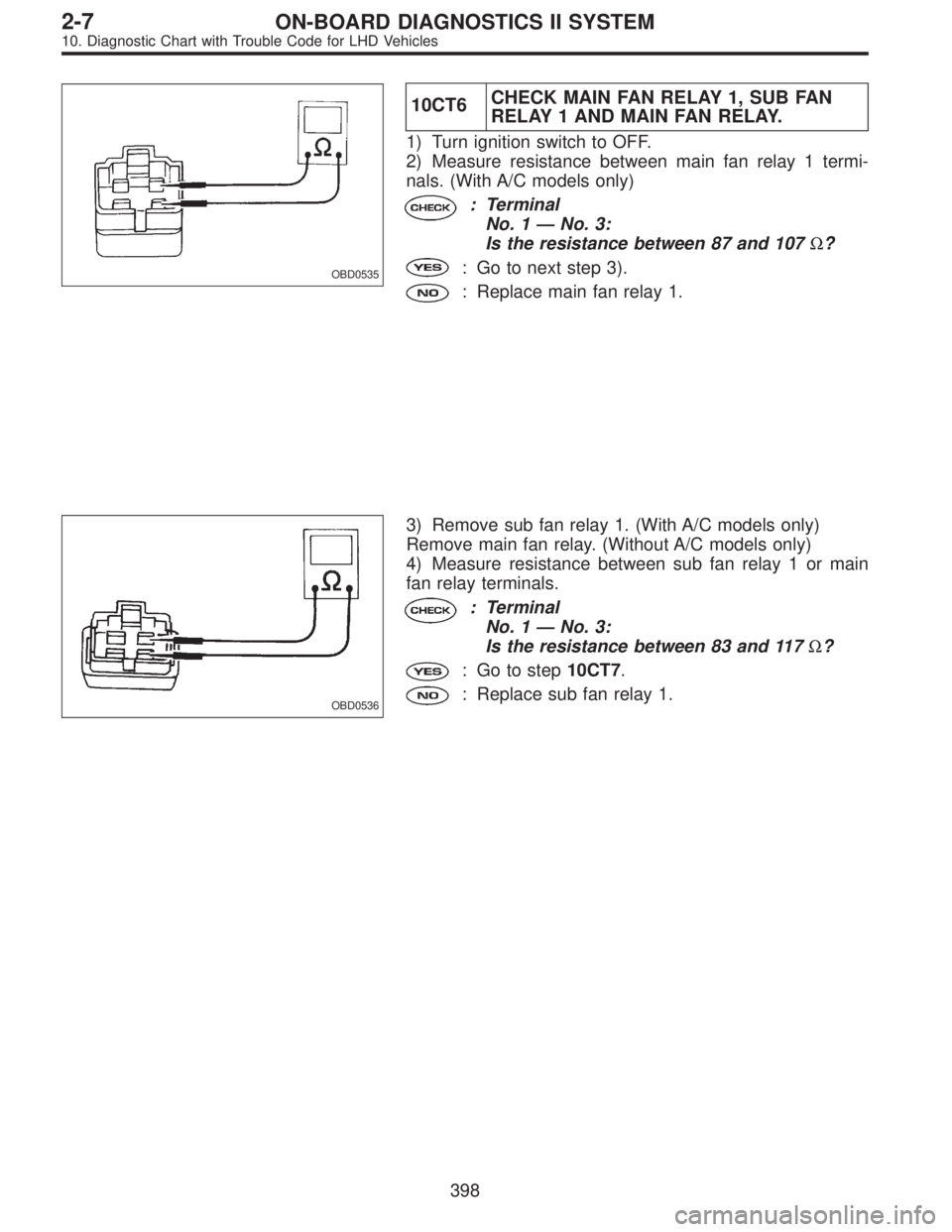

SUBARU LEGACY 1997 Service Repair Manual OBD0535 10CT6CHECK MAIN FAN RELAY 1, SUB FAN RELAY 1 AND MAIN FAN RELAY. 1) Turn ignition switch to OFF. 2) Measure resistance between main fan relay 1 termi- nals. (With A/C models only) : Terminal N

Page 2250 of 3342

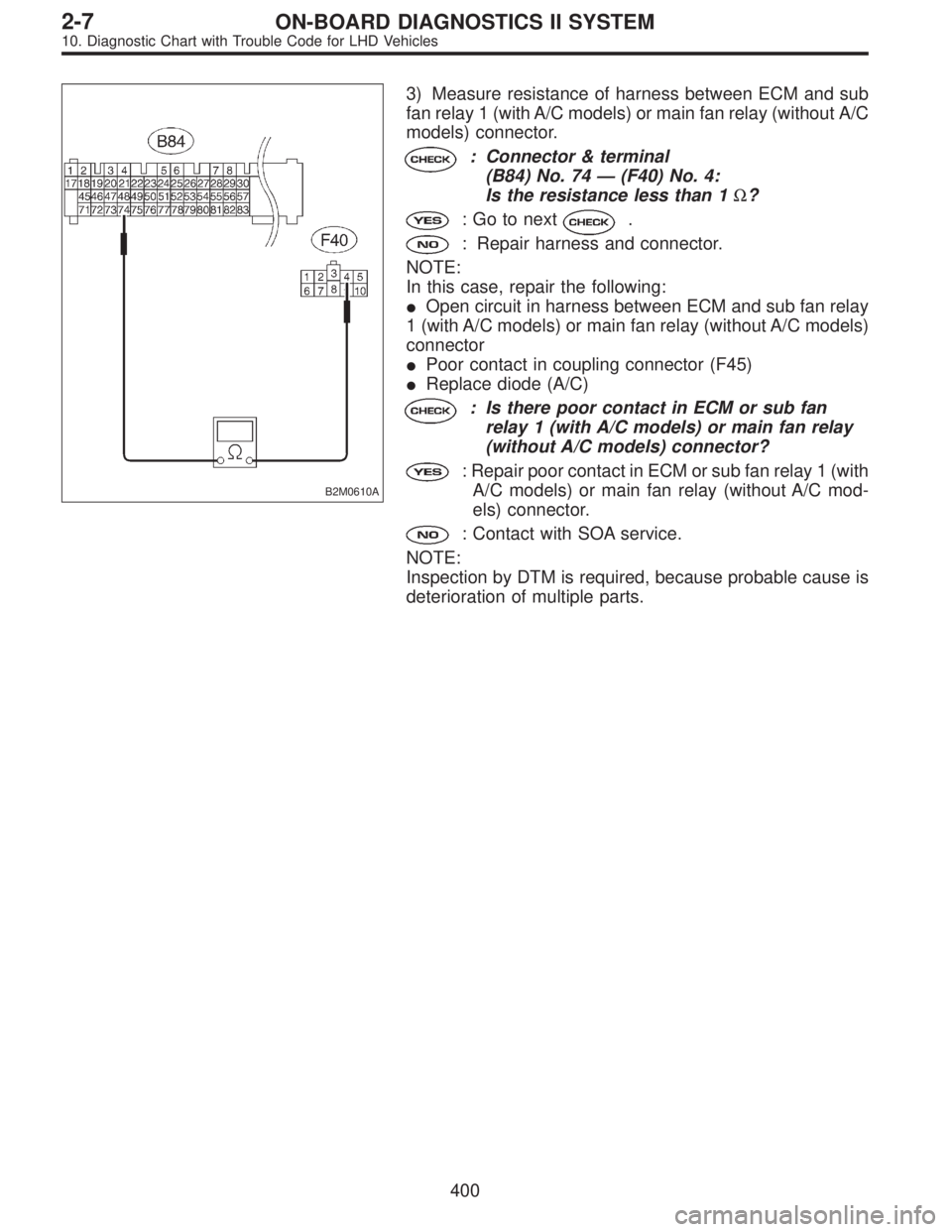

SUBARU LEGACY 1997 Service Repair Manual B2M0609A 10CT7CHECK OPEN CIRCUIT IN RADIATOR FAN RELAY 1 CONTROL CIRCUIT. 1) Disconnect connector (F40) from fuse and relay box (F/B). 2) Measure resistance of harness between ECM and main fan relay 1

Page 2251 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0610A 3) Measure resistance of harness between ECM and sub fan relay 1 (with A/C models) or main fan relay (without A/C models) connector. : Connector & terminal (B84) No. 74—(F40) No. 4: Is the

Page 2252 of 3342

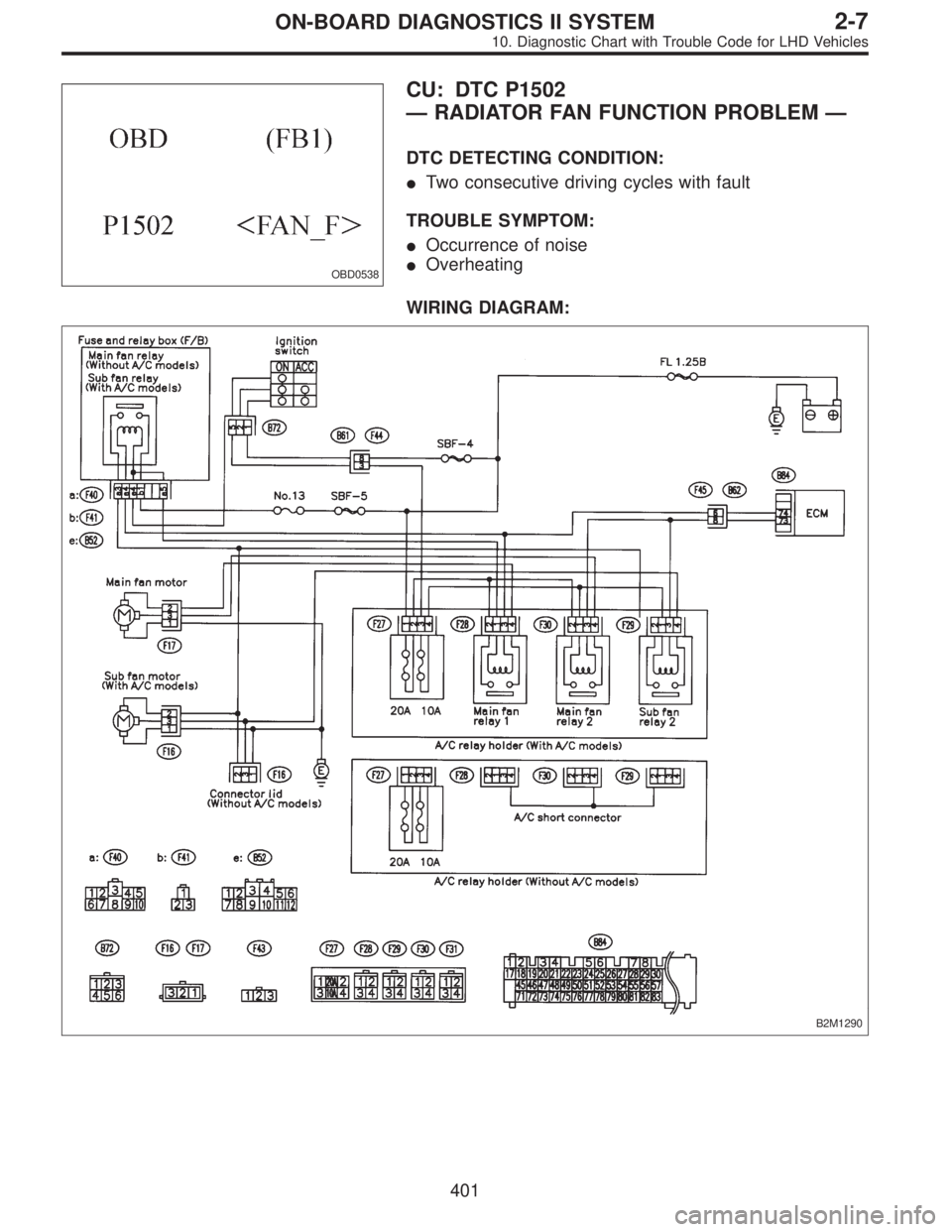

SUBARU LEGACY 1997 Service Repair Manual OBD0538 CU: DTC P1502 —RADIATOR FAN FUNCTION PROBLEM— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Occurrence of noise Overheating WIRING DIAGRAM: B2M1290

Page 2253 of 3342

SUBARU LEGACY 1997 Service Repair Manual CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES. <Ref. to 2-7 [T3D0] and [T3E0].> NOTE: If the vehicle, with the engine idling, is placed very close to

Page 2254 of 3342

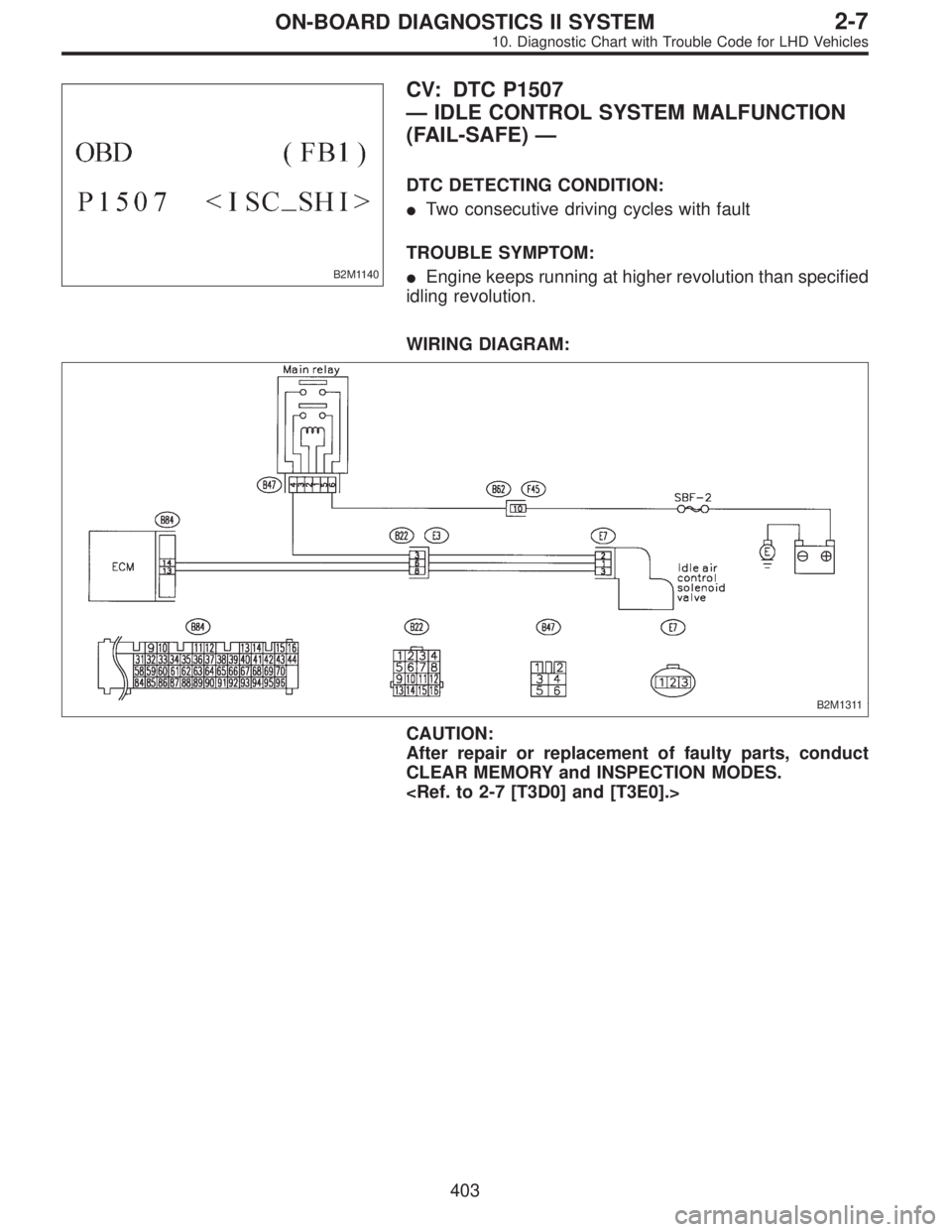

SUBARU LEGACY 1997 Service Repair Manual B2M1140 CV: DTC P1507 —IDLE CONTROL SYSTEM MALFUNCTION (FAIL-SAFE)— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Engine keeps running at higher revolution

Page 2255 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10CV1 CHECK DTC P0505 ON DISPLAY. : Does the Subaru select monitor or OBD-II general scan tool indicate DTC P0505? : Inspect DTC P0505 using“10. Diagnostics Chart with Trouble Code”. <Ref. to 2-7

Page 2256 of 3342

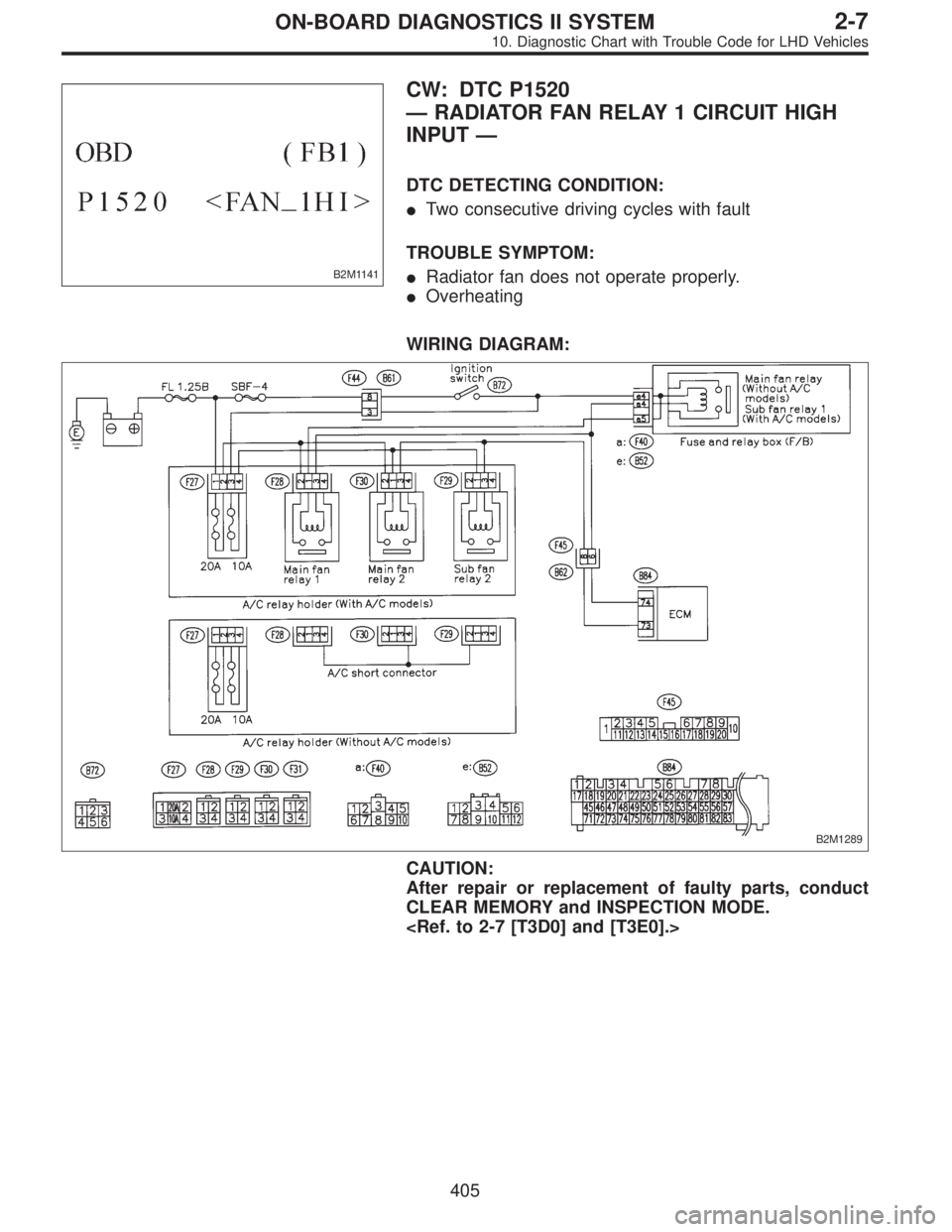

SUBARU LEGACY 1997 Service Repair Manual B2M1141 CW: DTC P1520 —RADIATOR FAN RELAY 1 CIRCUIT HIGH INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Radiator fan does not operate properly. Overh
