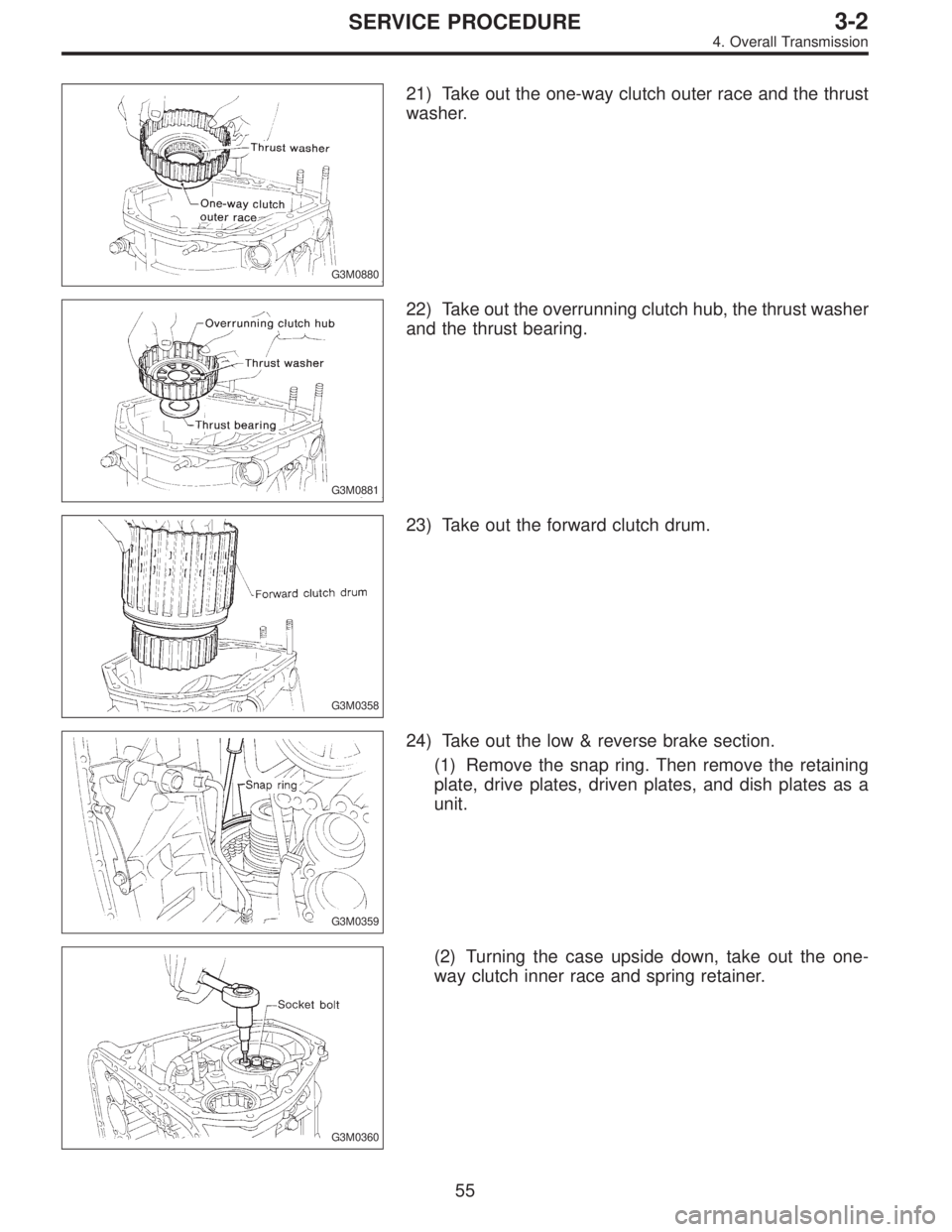

SUBARU LEGACY 1997 Service Repair Manual G3M0880 21) Take out the one-way clutch outer race and the thrust washer. G3M0881 22) Take out the overrunning clutch hub, the thrust washer and the thrust bearing. G3M0358 23) Take out the forward cl

Page 762 of 3342

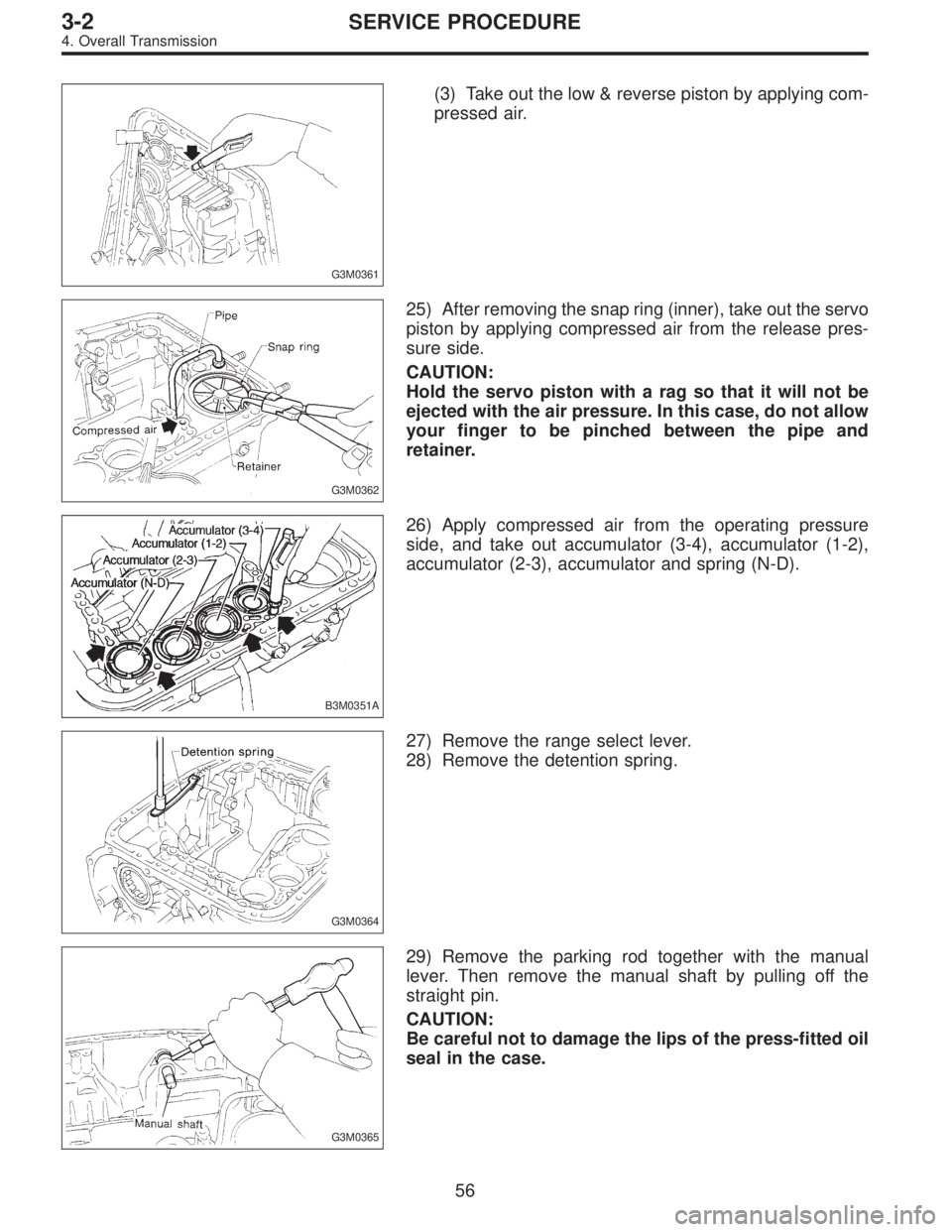

SUBARU LEGACY 1997 Service Repair Manual G3M0361 (3) Take out the low & reverse piston by applying com- pressed air. G3M0362 25) After removing the snap ring (inner), take out the servo piston by applying compressed air from the release pres

Page 763 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0366 30) Remove the inhibitor switch. G3M0367 31) Remove the transmission harness. CAUTION: Be careful not to damage the cord insulation. G3M0368 4. TORQUE CONVERTER CLUTCH CASE SECTION 1) Wrap the

Page 764 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0371 5) Remove the snap ring. Then remove the speedometer driven gear. G3M0372 6) Remove vehicle speed sensor 2. 7) Tap out the speedometer shaft to the outside of the case, and remove the oil seal

Page 765 of 3342

SUBARU LEGACY 1997 Service Repair Manual B: ASSEMBLY OF OVERALL TRANSMISSION 1. TORQUE CONVERTER CLUTCH CASE SECTION 1) Check the appearance of each component and clean. CAUTION: Make sure each part is free of harmful cuts, damage and other

Page 766 of 3342

SUBARU LEGACY 1997 Service Repair Manual 7) Install the circlip to the axle shaft, insert the shaft into the differential assembly, and tap it into position with a plastic hammer. Thrust play: Approx. 0.3—0.5 mm (0.012—0.020 in) CAUTION:

Page 767 of 3342

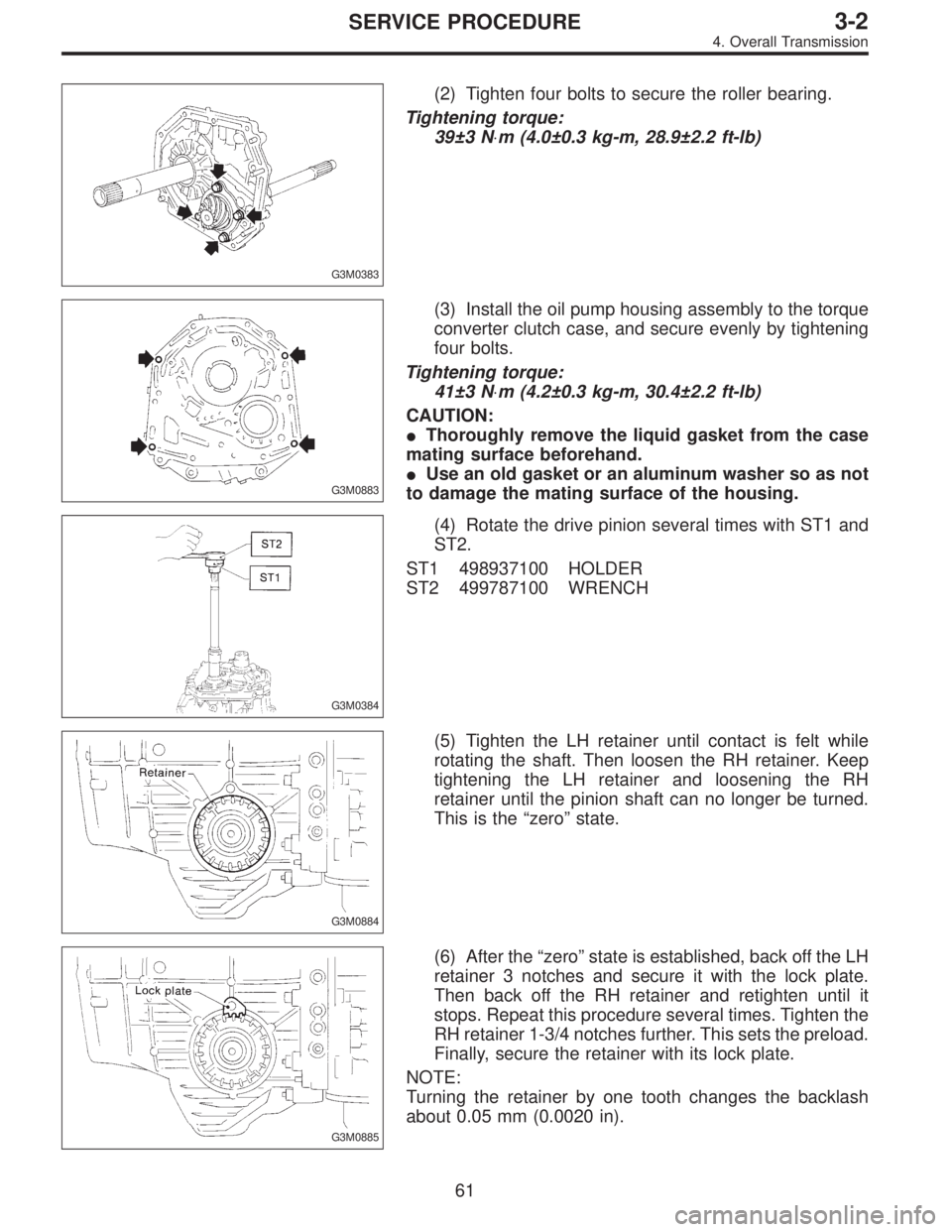

SUBARU LEGACY 1997 Service Repair Manual G3M0383 (2) Tighten four bolts to secure the roller bearing. Tightening torque: 39±3 N⋅m (4.0±0.3 kg-m, 28.9±2.2 ft-lb) G3M0883 (3) Install the oil pump housing assembly to the torque converter c

Page 768 of 3342

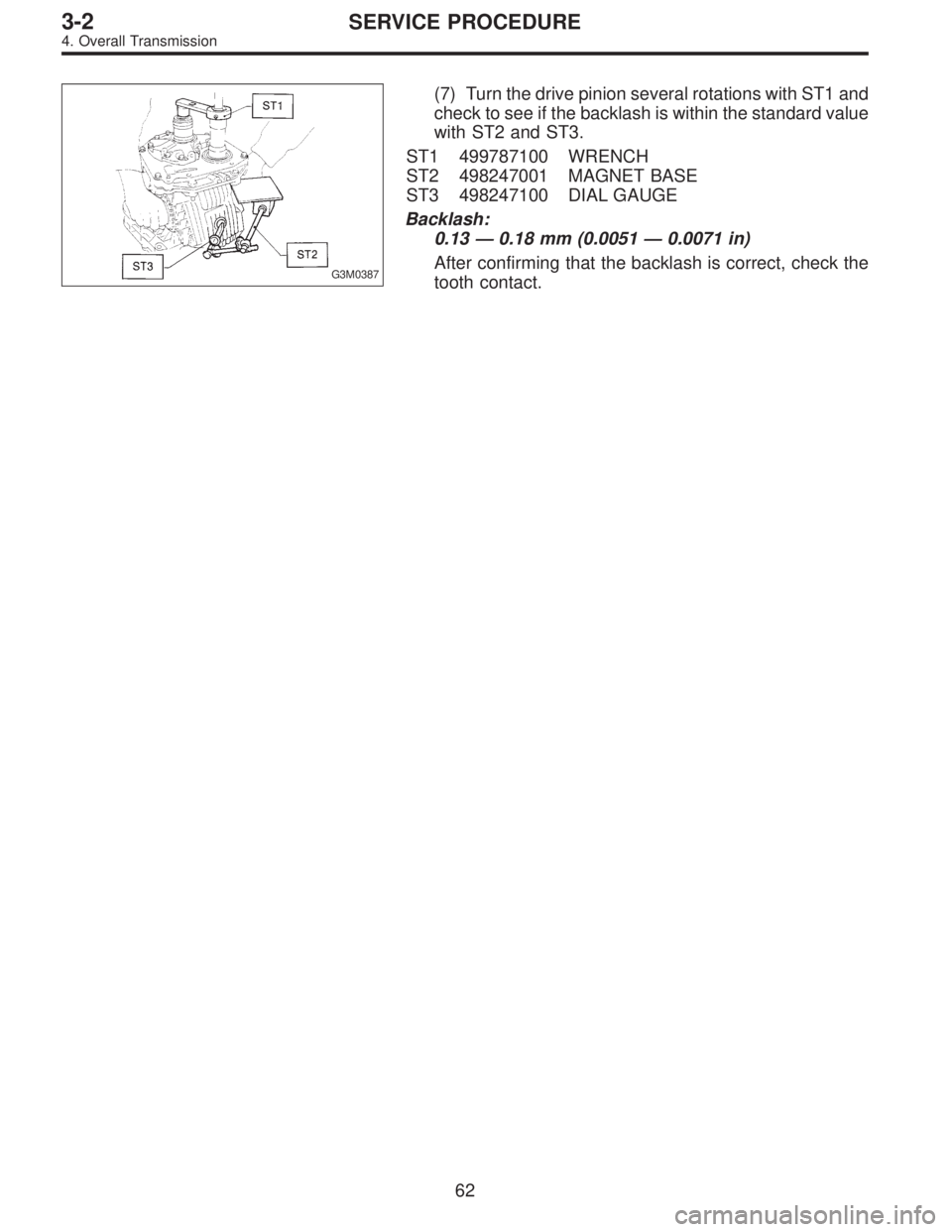

SUBARU LEGACY 1997 Service Repair Manual G3M0387 (7) Turn the drive pinion several rotations with ST1 and check to see if the backlash is within the standard value with ST2 and ST3. ST1 499787100 WRENCH ST2 498247001 MAGNET BASE ST3 49824710
