Page 2721 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0924
E: MODE F03 AND F07
—REAR RIGHT WHEEL SPEED SIGNAL
(RR)—
Compare speedometer with monitor indications.
F03: RR wheel speed is indicated in mile per hour (mile/
h).
F07: RR wheel speed i

Page 2722 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0927
H: MODE F10
—G SENSOR OUTPUT VOLTAGE (G-SENS)
—
Refers to vehicle acceleration detecting by the analog G
sensor. It appears on the select monitor display in volts.
NOTE:
Only AWD model
LE

Page 2723 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0930
J: MODE FC0
—HISTORY OF TROUBLE CODES IS
ERASED (D⋅CLR)—
Deletes the recorded trouble codes in ABS control mod-
ule.
B4M0931
1) Use function keys to put inFCOENT.
B4M0930
2) System indi

Page 2724 of 3342

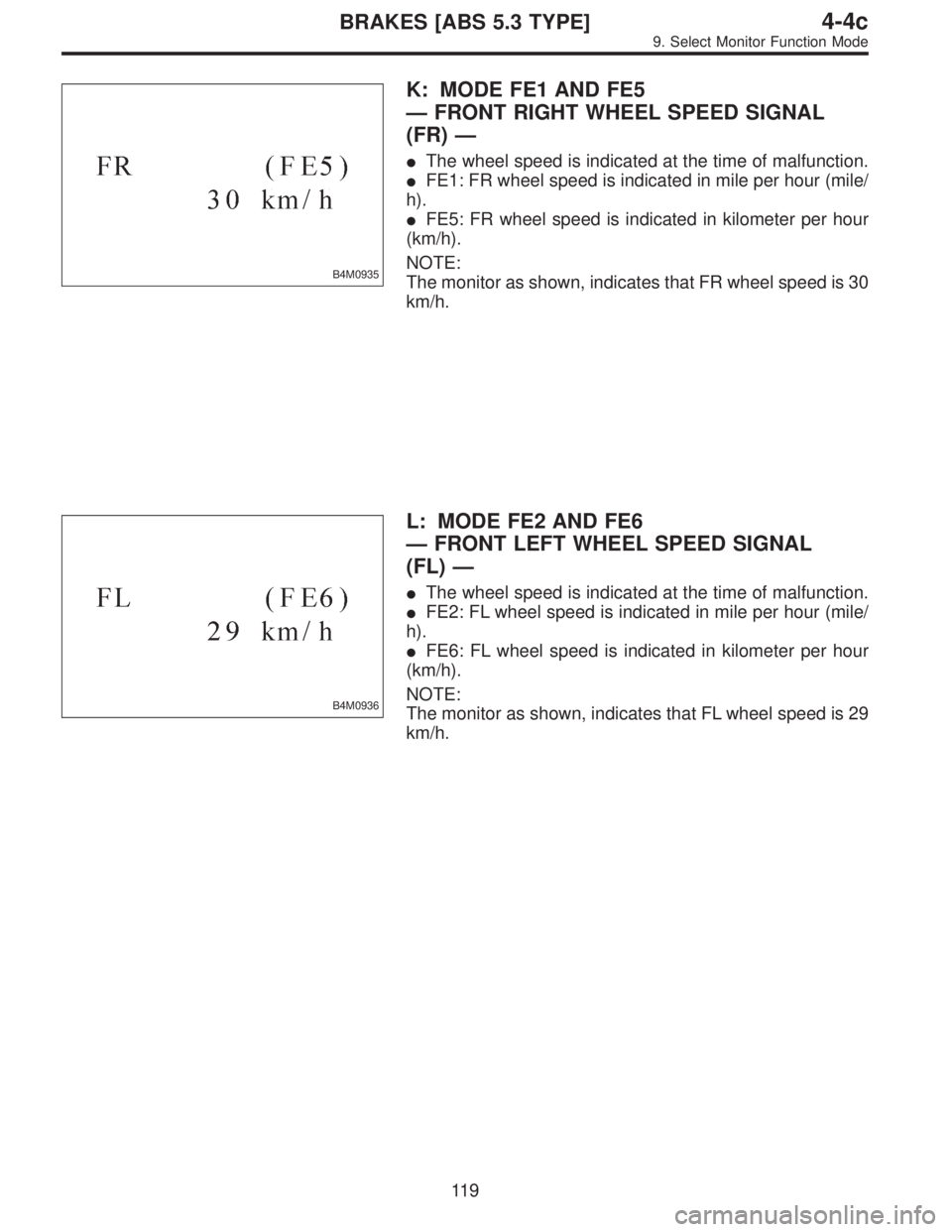

SUBARU LEGACY 1997 Service Repair Manual B4M0935
K: MODE FE1 AND FE5
—FRONT RIGHT WHEEL SPEED SIGNAL
(FR)—
The wheel speed is indicated at the time of malfunction.
FE1: FR wheel speed is indicated in mile per hour (mile/
h).
FE5: FR w

Page 2725 of 3342

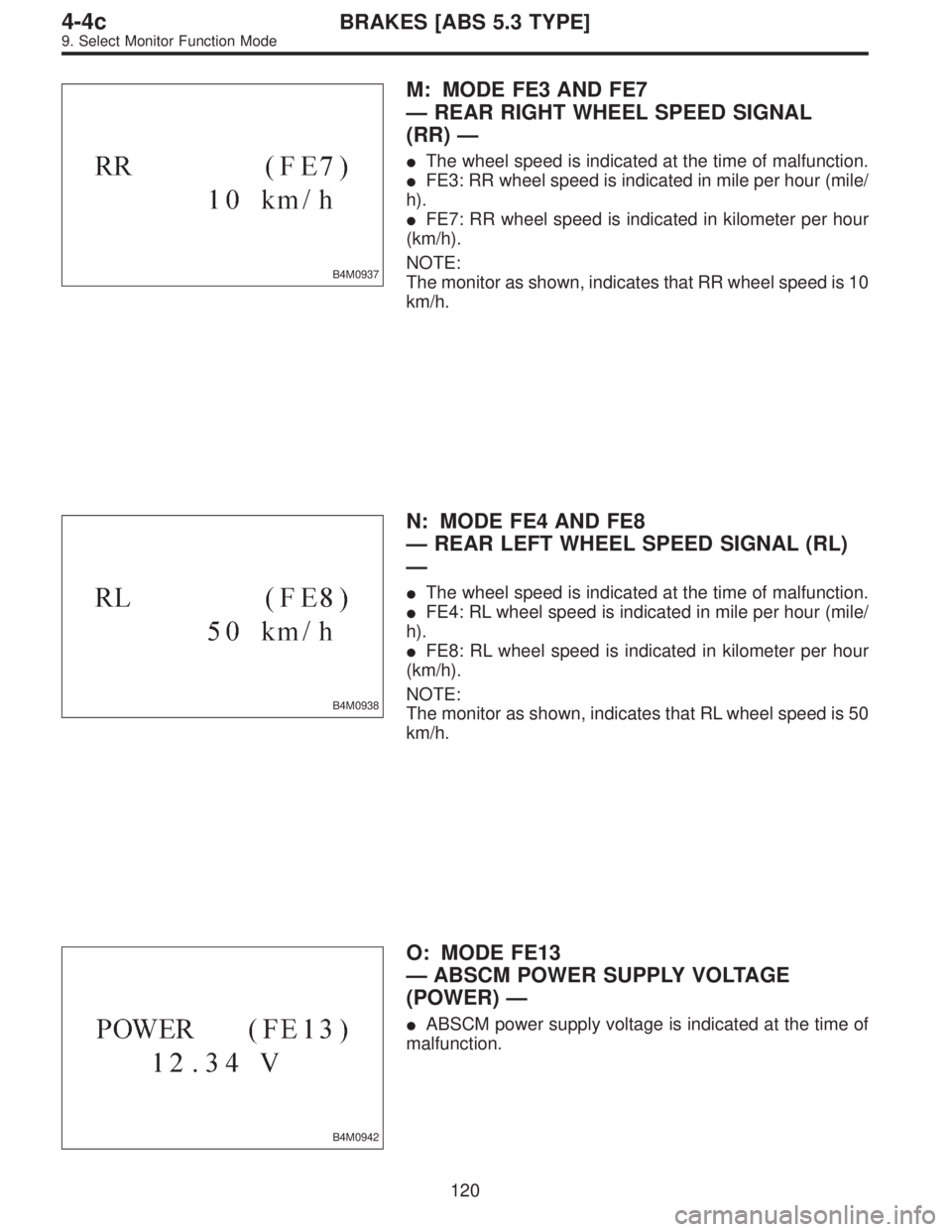

SUBARU LEGACY 1997 Service Repair Manual B4M0937
M: MODE FE3 AND FE7
—REAR RIGHT WHEEL SPEED SIGNAL
(RR)—
The wheel speed is indicated at the time of malfunction.
FE3: RR wheel speed is indicated in mile per hour (mile/
h).
FE7: RR wh

Page 2726 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0939
P: MODE FE14
—G SENSOR OUTPUT VOLTAGE (G-SENS)
—
Refers to vehicle acceleration detected by the analog G
sensor at the time of malfunction. It appears on the select
monitor display in vol

Page 2727 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10. Diagnostics Chart with Select
Monitor
A: BASIC DIAGNOSTIC CHART
TROUBLE OCCURS.
Is Select Monitor available?
Ye s
No
Diagnostics Chart for On-board
Diagnosis System
<Ref. to 4-4c [T6A0].>
Ask the

Page 2728 of 3342

SUBARU LEGACY 1997 Service Repair Manual B: LIST OF TROUBLE CODE
Code Display screen (FB1) Contents of diagnosis Ref. to
—ERROR 3 (1) Select monitor communication failure 4-4c [T10C0]
11 NO TROUBLEAlthough no trouble appears on the select

B: LIST OF TROUBLE CODE
Code Display screen (FB1) Contents of diagnosis Ref. to
—ERROR 3 (1) Select monitor communication failure 4-4c [T10C0]
11 NO TROUBLEAlthough no trouble appears on the select monitor display, the ABS
warning light remains on.4-4c [T10D0]
21 FR. SS HARD Open circuit or input voltage too high of FR sensor 4-4c [T10E0]
22 FR. SS SOFT Abnormal ABS sensor signal of FR sensor 4-4c [T10I0]
23 FL. SS HARD Open circuit or input voltage too high of FL sensor 4-4c [T10F0]
24 FL. SS SOFT Abnormal ABS sensor signal of FL sensor 4-4c [T10J0]
25 RR. SS HARD Open circuit or input voltage too high of RR sensor 4-4c [T10G0]
26 RR. SS SOFT Abnormal ABS sensor signal of RR sensor 4-4c [T10K0]
27 RL. SS HARD Open circuit or input voltage too high of RL sensor 4-4c [T10H0]
28 RL. SS SOFT Abnormal ABS sensor signal of RL sensor 4-4c [T10L0]
29 EITHER. SS SOFT Abnormal ABS sensor signal (any one of four) 4-4c [T10M0]
31 FR. EV VALVE Abnormal FR inlet valve 4-4c [T10N0]
32 FR. AV VALVE Abnormal FR outlet valve 4-4c [T10R0]
33 FL. EV VALVE Abnormal FL inlet valve 4-4c [T10O0]
34 FL. AV VALVE Abnormal FL outlet valve 4-4c [T10S0]
35 RR. EV VALVE Abnormal RR inlet valve 4-4c [T10P0]
36 RR. AV VALVE Abnormal RR outlet valve 4-4c [T10T0]
37 RL. EV VALVE Abnormal RL inlet valve 4-4c [T10Q0]
38 RL. AV VALVE Abnormal RL outlet valve 4-4c [T10U0]
41 ECU Abnormal ABSCM 4-4c [T10V0]
42 LOW VOLTAGE Source voltage is low. 4-4c [T10W0]
44CCM LINE A combination of AT control abnormals (ABS not in control) 4-4c [T10X0]
CCM OPEN A combination of AT control abnormals (ABS in control) 4-4c [T10Y0]
46GS POWER OVER G sensor line voltage too high 4-4c [T10Z0]
GS POWER LOW G sensor line voltage too low 4-4c [T10AA0]
51V. RELAY Abnormal valve relay 4-4c [T10AB0]
V. RELAY ON Valve relay ON failure 4-4c [T10AC0]
52M. RELAY OPEN Open circuit of motor relay 4-4c [T10AD0]
M. RELAY ON Motor relay ON failure 4-4c [T10AE0]
MOTOR Abnormal motor 4-4c [T10AF0]
54 BLS Abnormal stop light switch 4-4c [T10AG0]
56G SENSOR LINE Open or short circuit of G sensor 4-4c [T10AH0]
G SENSOR +B Battery short of G sensor 4-4c [T10AI0]
G SENSOR Hµ Abnormal G sensor high µ output 4-4c [T10AJ0]
G SENSOR STICK G sensor output is stuck. 4-4c [T10AK0]
NOTE:
High µ means high friction coefficient against road sur-
face.
123
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
