Page 1385 of 3342

SUBARU LEGACY 1997 Service Repair Manual G4M0436 16) Check the pedal stroke. While the engine is idling, depress the brake pedal with a 490 N (50 kg, 110 lb) load and measure the distance between the brake pedal and steering wheel. With the

Page 1386 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. CONDITIONS FOR COMPLETION OF AIR BLEEDING CONTROL When any of the following conditions occurs, ABS and TCS warning lights illuminate. Air bleeding control stops, while the ABS and TCS function will

Page 1387 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0622A D: AIR BLEEDING CONTROL WITH SELECT MONITOR 1) Connect select monitor to data link connector beside driver’s seat instrument panel lower.  1Data link connector (for Subaru select monitor a

Page 1388 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0626 7) Select monitor indicates that air bleeding control is now operating. B4M0627 8) When air bleeding control cannot be started (by system malfunction, etc.), the message shown in the figure wi

Page 1389 of 3342

SUBARU LEGACY 1997 Service Repair Manual 20. Hydraulic Unit for ABS/TCS System B4M0707A 1ABS/TCS hydraulic control unit  2Rear-RH outlet  3Front-LH outlet  4Front-RH outlet  5Rear-LH outlet  6Secondary inlet  7Primary inlet 8Secondar

Page 1390 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0628 5) Remove bolts which secure hydraulic unit bracket, and remove hydraulic unit from engine compartment. CAUTION: Hydraulic unit cannot be disassembled. Do not attempt to loosen bolts and nuts

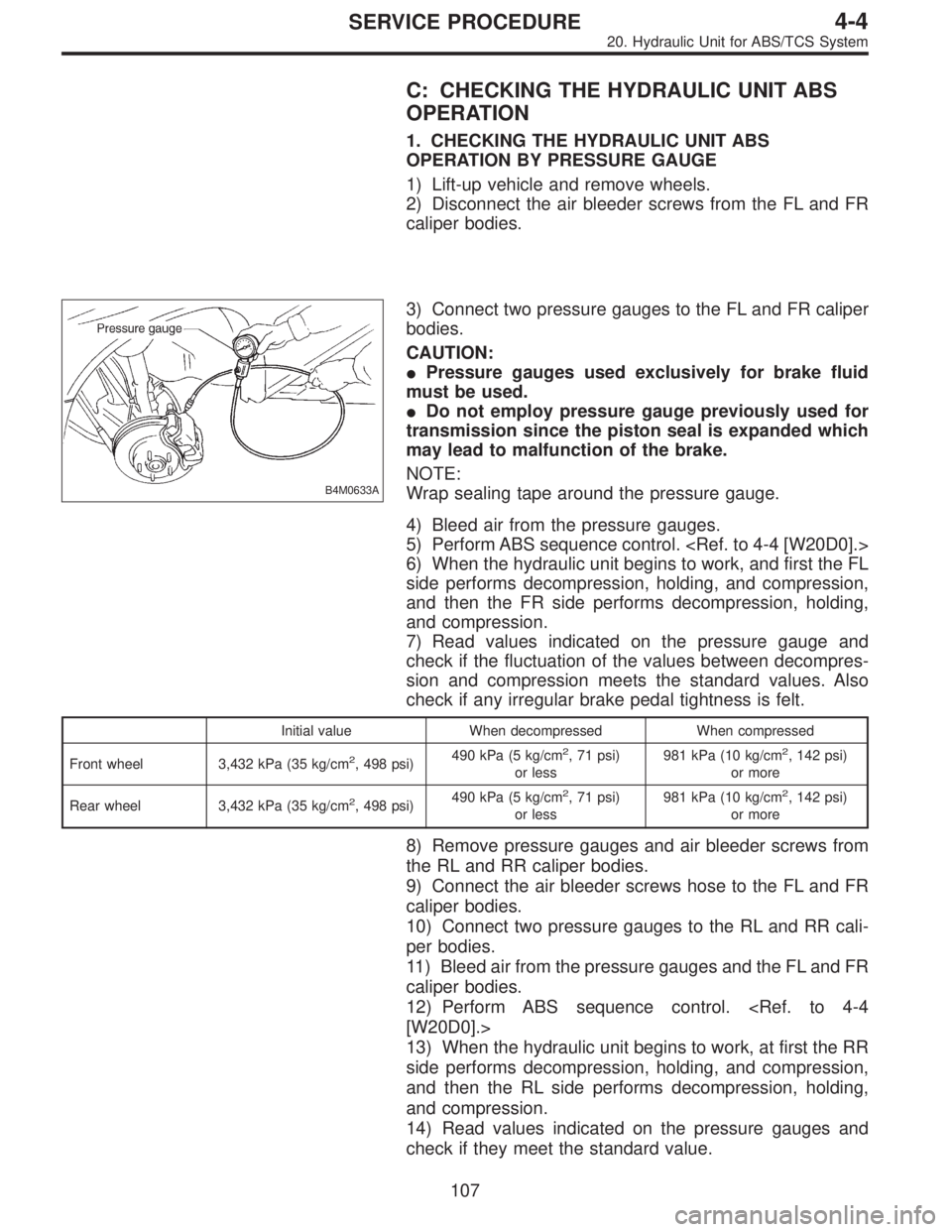

Page 1391 of 3342

SUBARU LEGACY 1997 Service Repair Manual C: CHECKING THE HYDRAULIC UNIT ABS OPERATION 1. CHECKING THE HYDRAULIC UNIT ABS OPERATION BY PRESSURE GAUGE 1) Lift-up vehicle and remove wheels. 2) Disconnect the air bleeder screws from the FL and F

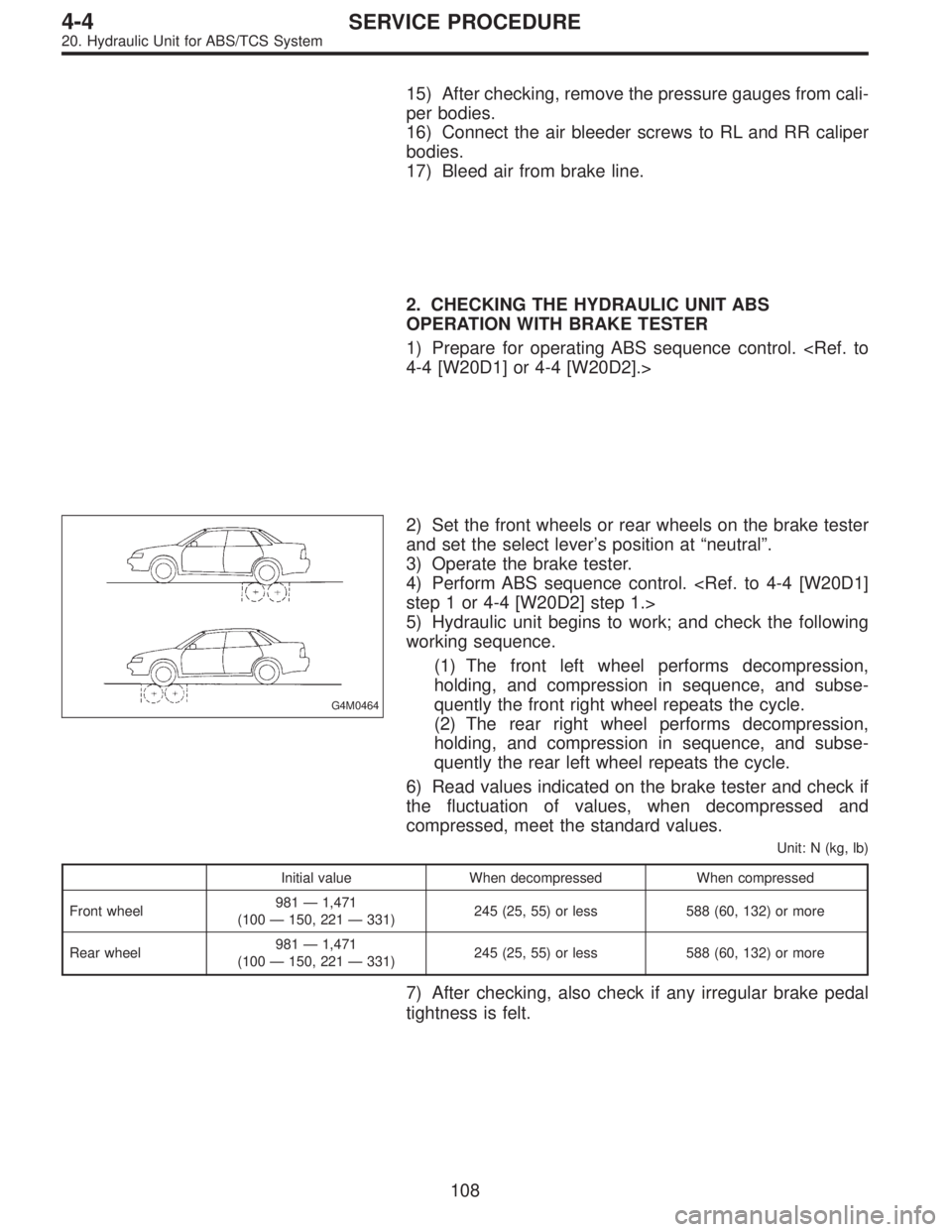

Page 1392 of 3342

SUBARU LEGACY 1997 Service Repair Manual 15) After checking, remove the pressure gauges from cali- per bodies. 16) Connect the air bleeder screws to RL and RR caliper bodies. 17) Bleed air from brake line. 2. CHECKING THE HYDRAULIC UNIT ABS
