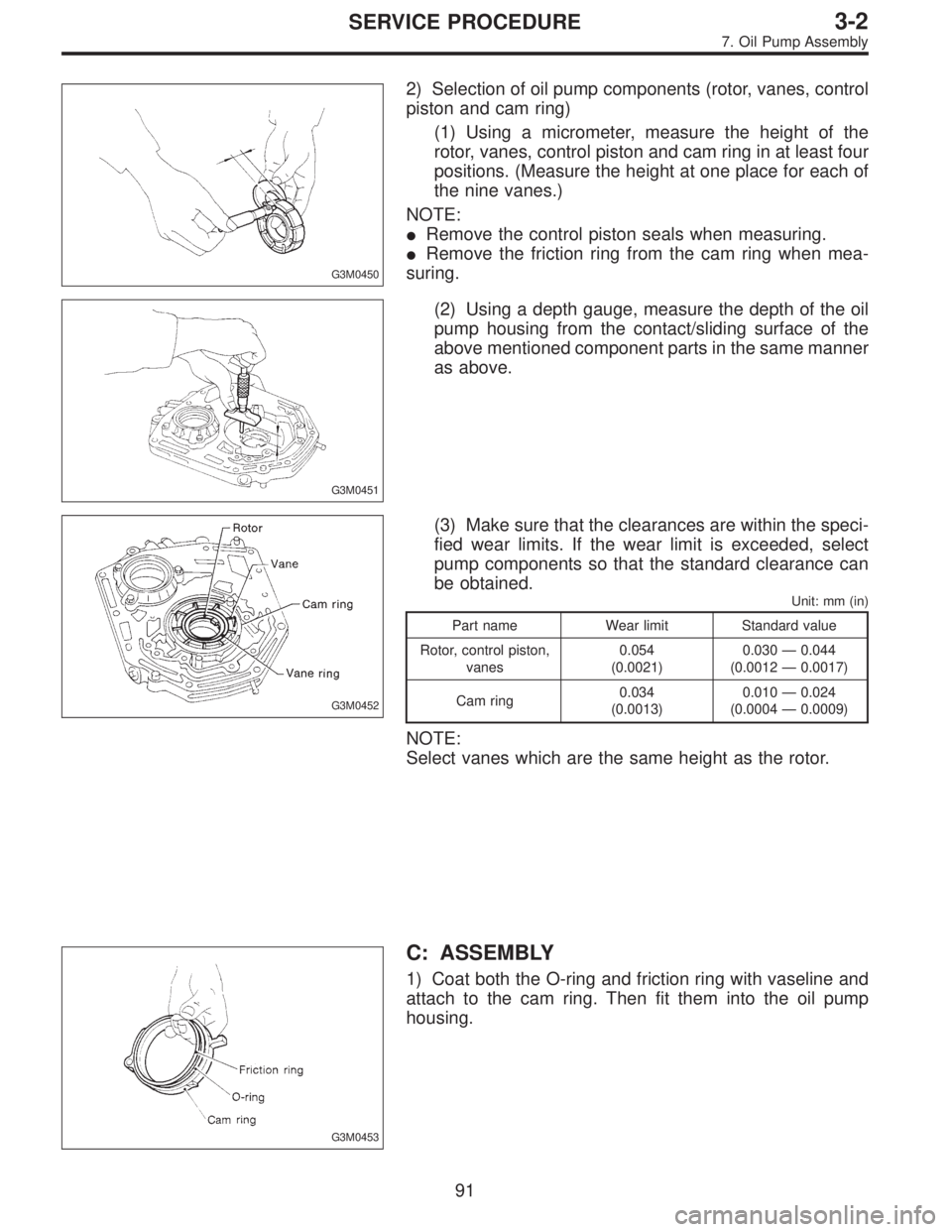

SUBARU LEGACY 1997 Service Repair Manual G3M0450 2) Selection of oil pump components (rotor, vanes, control piston and cam ring) (1) Using a micrometer, measure the height of the rotor, vanes, control piston and cam ring in at least four pos

Page 898 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0454 2) Install the vane ring, rotor and vanes into the housing in this sequence. G3M0455 3) Install the return spring and retainer between the hous- ing and cam ring. G3M0456 4) Install the contro

Page 899 of 3342

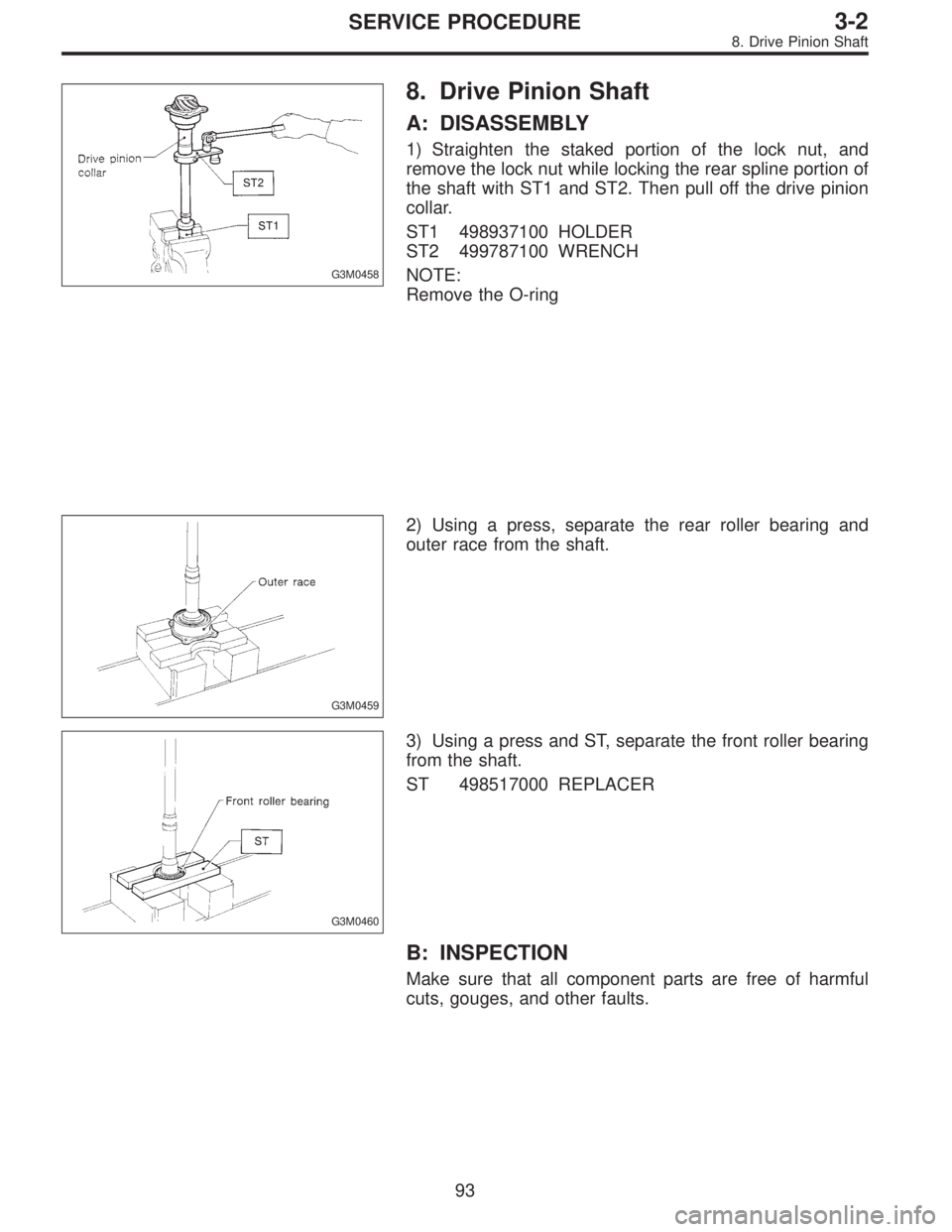

SUBARU LEGACY 1997 Service Repair Manual G3M0458 8. Drive Pinion Shaft A: DISASSEMBLY 1) Straighten the staked portion of the lock nut, and remove the lock nut while locking the rear spline portion of the shaft with ST1 and ST2. Then pull of

Page 900 of 3342

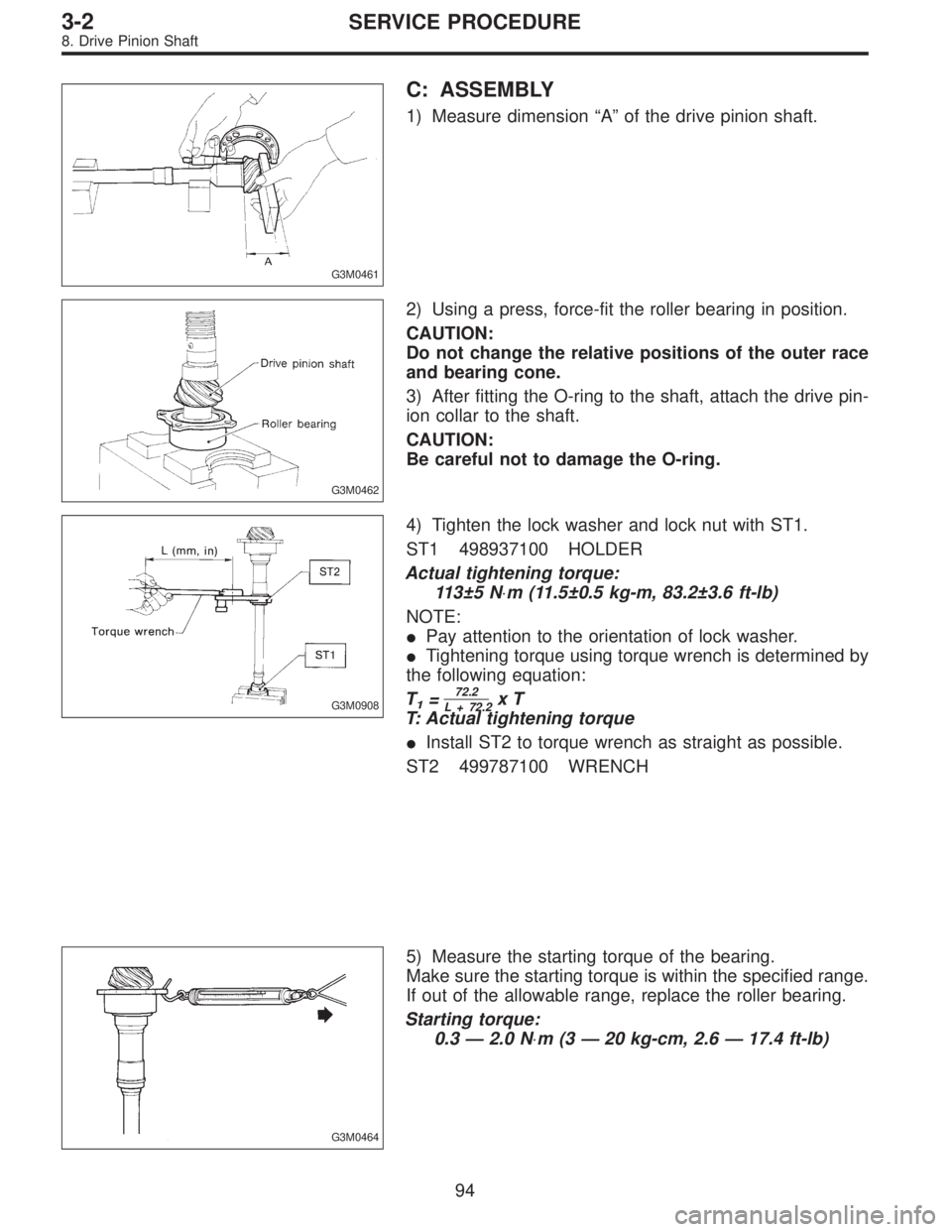

SUBARU LEGACY 1997 Service Repair Manual G3M0461 C: ASSEMBLY 1) Measure dimension“A”of the drive pinion shaft. G3M0462 2) Using a press, force-fit the roller bearing in position. CAUTION: Do not change the relative positions of the outer

Page 901 of 3342

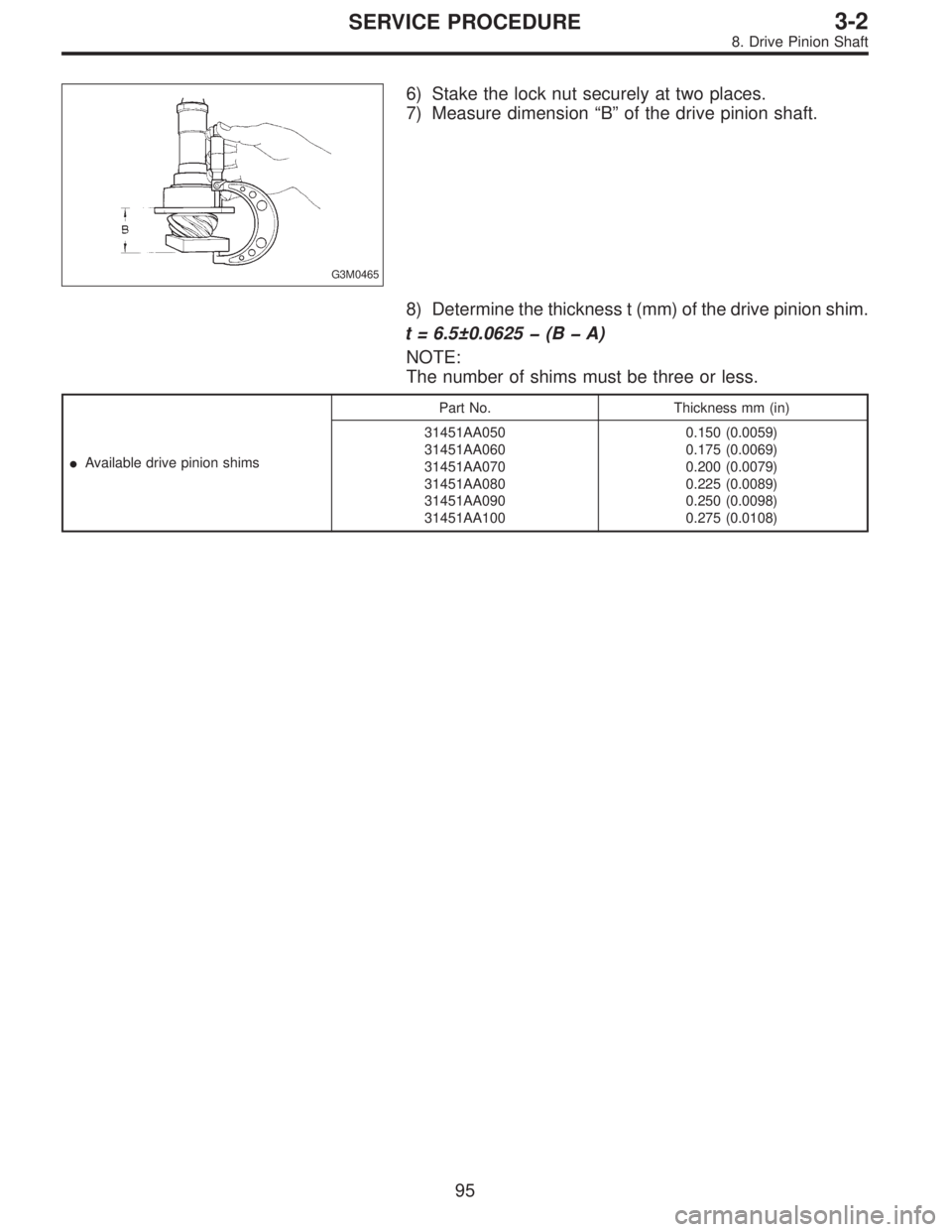

SUBARU LEGACY 1997 Service Repair Manual G3M0465 6) Stake the lock nut securely at two places. 7) Measure dimension“B”of the drive pinion shaft. 8) Determine the thickness t (mm) of the drive pinion shim. t = 6.5±0.0625 � (B � A) NOTE:

Page 902 of 3342

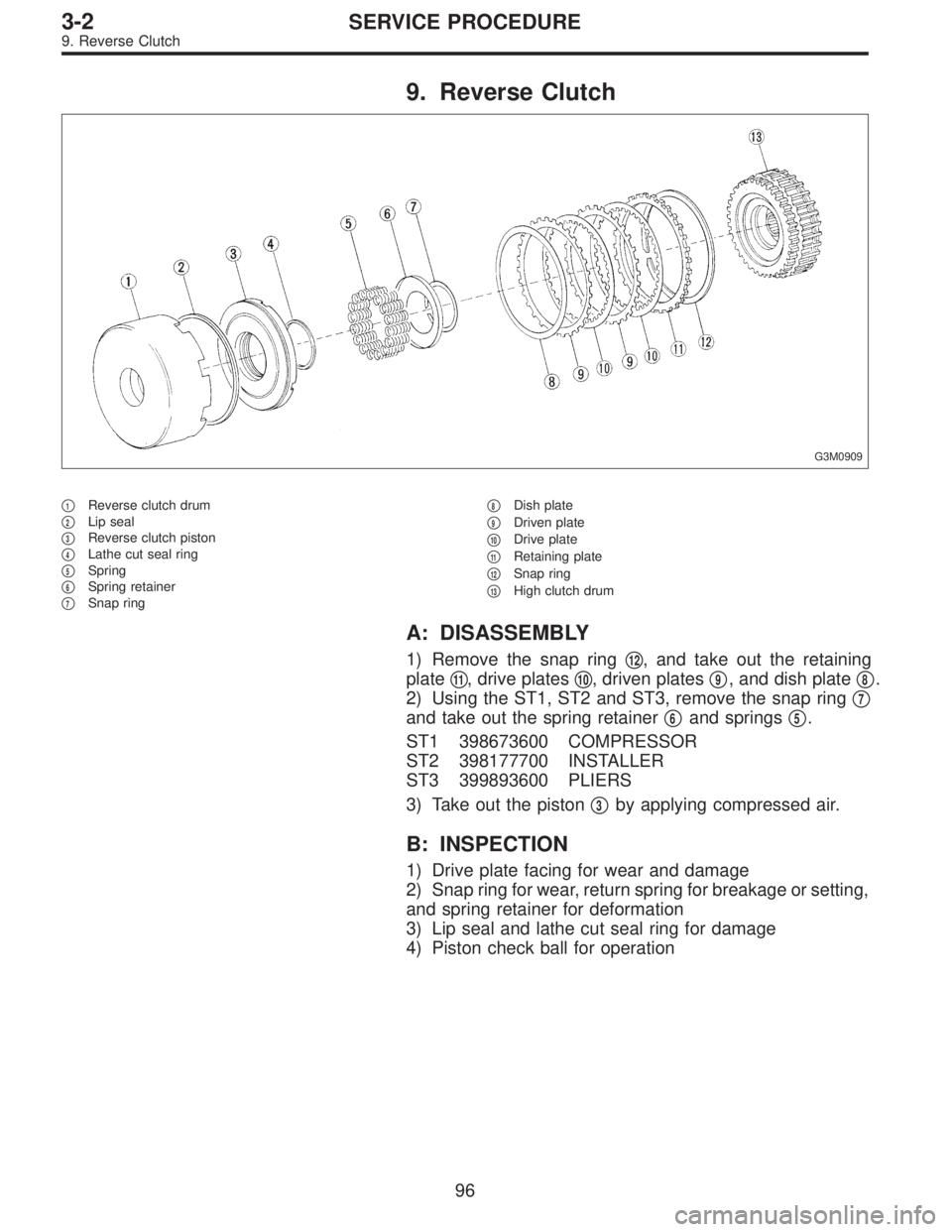

SUBARU LEGACY 1997 Service Repair Manual 9. Reverse Clutch G3M0909 1Reverse clutch drum  2Lip seal  3Reverse clutch piston  4Lathe cut seal ring  5Spring  6Spring retainer  7Snap ring 8Dish plate  9Driven plate  10Drive plate  11R

Page 903 of 3342

SUBARU LEGACY 1997 Service Repair Manual C: ASSEMBLY G3M0909 1Reverse clutch drum  2Lip seal  3Reverse clutch piston  4Lathe cut seal ring 5Spring  6Spring retainer  7Snap ring 8Dish plate  9Driven plate  10Drive plate 11Retaining

Page 904 of 3342

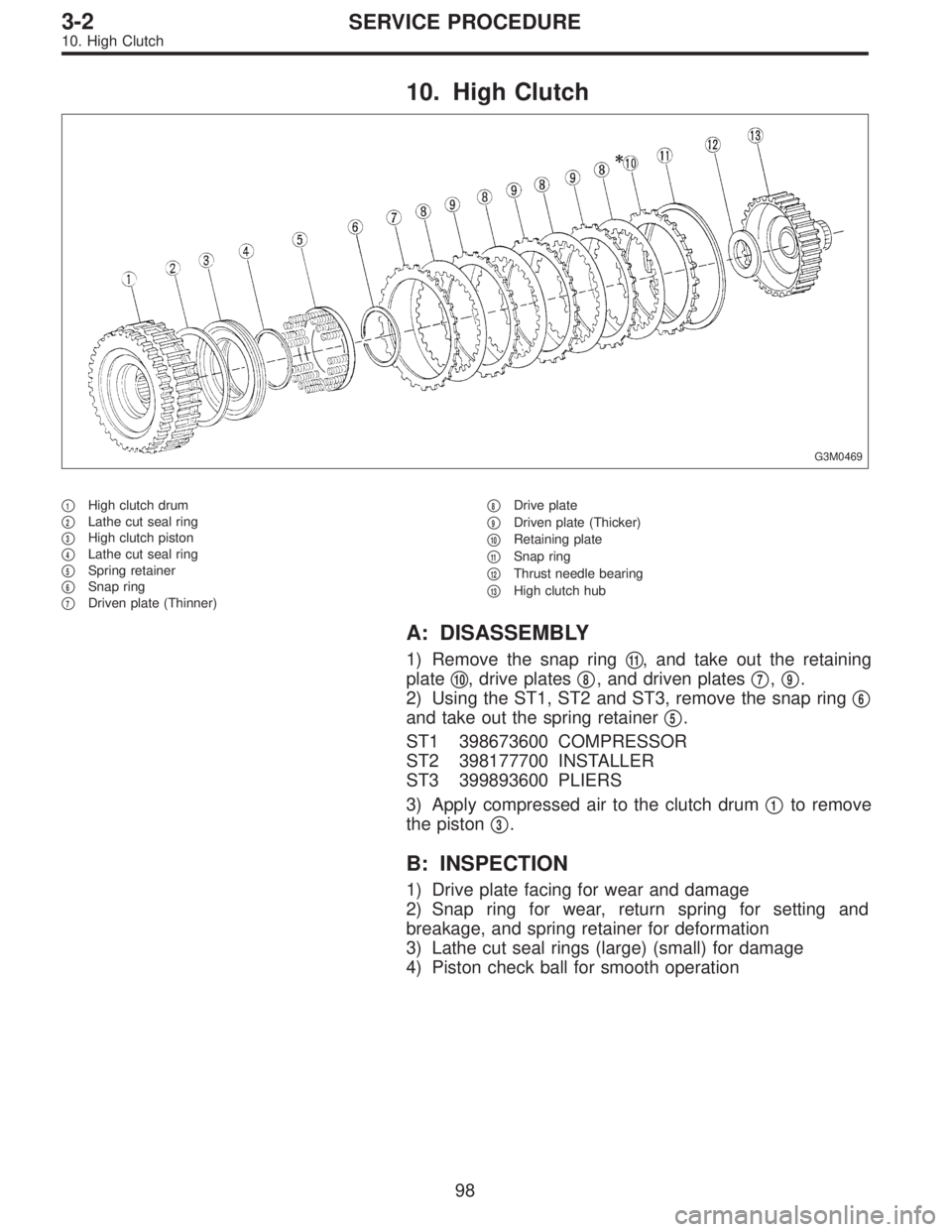

SUBARU LEGACY 1997 Service Repair Manual 10. High Clutch G3M0469 1High clutch drum  2Lathe cut seal ring  3High clutch piston  4Lathe cut seal ring  5Spring retainer  6Snap ring  7Driven plate (Thinner) 8Drive plate  9Driven plate (
