8) Do not allow water or oil to come in contact with the
connector terminals. Do not touch the connector terminals.
9) When connecting or disconnecting airbag connector,
make sure ignition switch is OFF.
2. Inspection and Replacement
Standards
1. VEHICLES WHICH BECOME INVOLVED IN A
COLLISION
If the vehicle equipped with an SRS airbag system is
damaged in a collision, the airbag system parts must
be checked and replaced in accordance with the fol-
lowing standards:
After faulty parts are replaced, the warning light opera-
tion must be checked.
When the ignition switch is turned ON, it lights up
for 8 seconds and then it goes out for at least 30 sec-
onds.
The trouble code stored in memory must be erased
after the check.
2. AIRBAG MODULE (DRIVER AND PASSENGER)
Inspection standard:
The vehicle damaged in a collision (regardless of
whether or not airbag is deployed).
The designated trouble code is output during self-diag-
nosis. (Refer to“Diagnostics”Section.)
Replacement standard:
Airbag is deployed.
The pad surface is scratched or cracked.
Harness and/or connector is deformed or cracked, their
circuits are broken, lead wire is exposed, etc.
Mounting bracket is cracked or deformed.
The module surface is fouled with foreign matter.
(grease, oil, water, cleaning solvent, etc.)
Airbag module dropped to the floor/ground.
Airbag module determined as faulty during self-diagno-
sis.
6
5-5SERVICE PROCEDURE
1. Precaution - 2. Inspection and Replacement Standards
Page 1658 of 3342

G5M0311
3. FRONT SENSOR
Inspection standard:
Check the front section (Refer to shaded area of vehicle
in figure) for damage, regardless of whether or not airbag
is deployed.
Check whether or not the designated trouble code is
output during self-diagnosis. (Refer to“Diagnostics”Sec-
tion.)
Replacement standard:
Bracket is deformed.
Housing is cracked or deformed.
The label (that identifies the manufacturing number) is
peeled or deteriorated.
Harness circuit is broken, lead wire is exposed, corru-
gated tube is cracked, etc.
Front sensor determined as faulty as a result of Diag-
nostics.
Airbag is deployed.
Front sensor dropped to the floor/ground.
4. MAIN HARNESS
Inspection standard:
A vehicle damaged in a collision (regardless of whether
or not airbag is deployed).
The designated trouble code is output during self-diag-
nosis. (Refer to“Diagnostics”Section.)
Replacement standard:
Harness circuit is broken, lead wire is exposed, corru-
gated tube is cracked, etc.
Connector is scratched or cracked.
The designated trouble code is output during self-diag-
nosis.
5. AIRBAG CONTROL MODULE
Inspection standard:
A vehicle damaged in a collision (regardless of whether
or not airbag is deployed).
The designated trouble code is output during self-diag-
nosis. (Refer to“Diagnostics”Section.)
Replacement standard:
Control module is cracked or deformed.
Mounting bracket is cracked or deformed.
Connector is scratched or cracked.
Control module dropped to the floor/ground.
Control module determined as faulty during diagnostics.
Airbag is deployed.
7
5-5SERVICE PROCEDURE
2. Inspection and Replacement Standards
Page 1659 of 3342

6. COMBINATION SWITCH
Inspection standard:
A vehicle damaged in a collision (regardless of whether
or not airbag is deployed).
The designated trouble code is output during self-diag-
nosis. (Refer to“Diagnostics”Section.)
Replacement standard:
Combination switch or steering roll connector is
deformed or cracked.
B5M0095
7. STEERING WHEEL
Inspection standard:
A vehicle damaged in a collision (regardless of whether
or not airbag is deployed).
Replacement standard:
Check steering wheel insert for cracks or deformities.
Check to ensure that new airbag module is properly
installed in steering wheel.
After installing airbag module, check to ensure that it is
free of interference with steering wheel and that clearance
between the two is equal at all points.
B5M0096A
8. STEERING COLUMN ASSEMBLY
Inspection standard:
A vehicle damaged in a collision (regardless of whether
or not airbag is deployed).
Replacement standard:
Check steering wheel free play in axial and radial direc-
tions.
Specifications:
Axial free play A
Less than ±6 mm (0.24 in)
Radial free play L
Less than ±7 mm (0.28 in)
8
5-5SERVICE PROCEDURE
2. Inspection and Replacement Standards
Page 1660 of 3342
B5M0097A
Check to ensure that clearance between capsule1(at
steering column) and cutout portion of column bracket
2
on steering column upper side is within specifications.
Clearance between capsule and cutout portion of col-
umn bracket: L
Less than 0.5 mm (0.020 in)
9
5-5SERVICE PROCEDURE
2. Inspection and Replacement Standards
Page 1661 of 3342

G5M0299
3. Airbag Module
CAUTION:
The airbag module (driver side and passenger side)
must not be disassembled. The airbag module cannot
be used again once inflated.
G5M0300
When removing and installing the airbag module
(driver side and passenger side), the operator should
stand, as much as possible, on the side of the airbag
module.
G5M0301
After removal, the airbag module (driver side and
passenger side) should be kept away from heat and
light sources, and stored on a clean, flat surface to
prevent from any damage to its lower structure.
G5M0302
Do not check airbag module (driver side and pas-
senger side) continuity with airbag removed from the
vehicle body.
Replace airbag module (driver side and passenger
side) with a new one, should any of the following con-
ditions develop.
(1) Pad surface is scratched or cracked.
(2) Connector harness is damaged.
(3) Inflator side structure of module is cracked or
deformed.
(4) Module is excessively stained with water, oil, etc.
(5) Module was accidentally dropped.
10
5-5SERVICE PROCEDURE
3. Airbag Module
Page 1662 of 3342

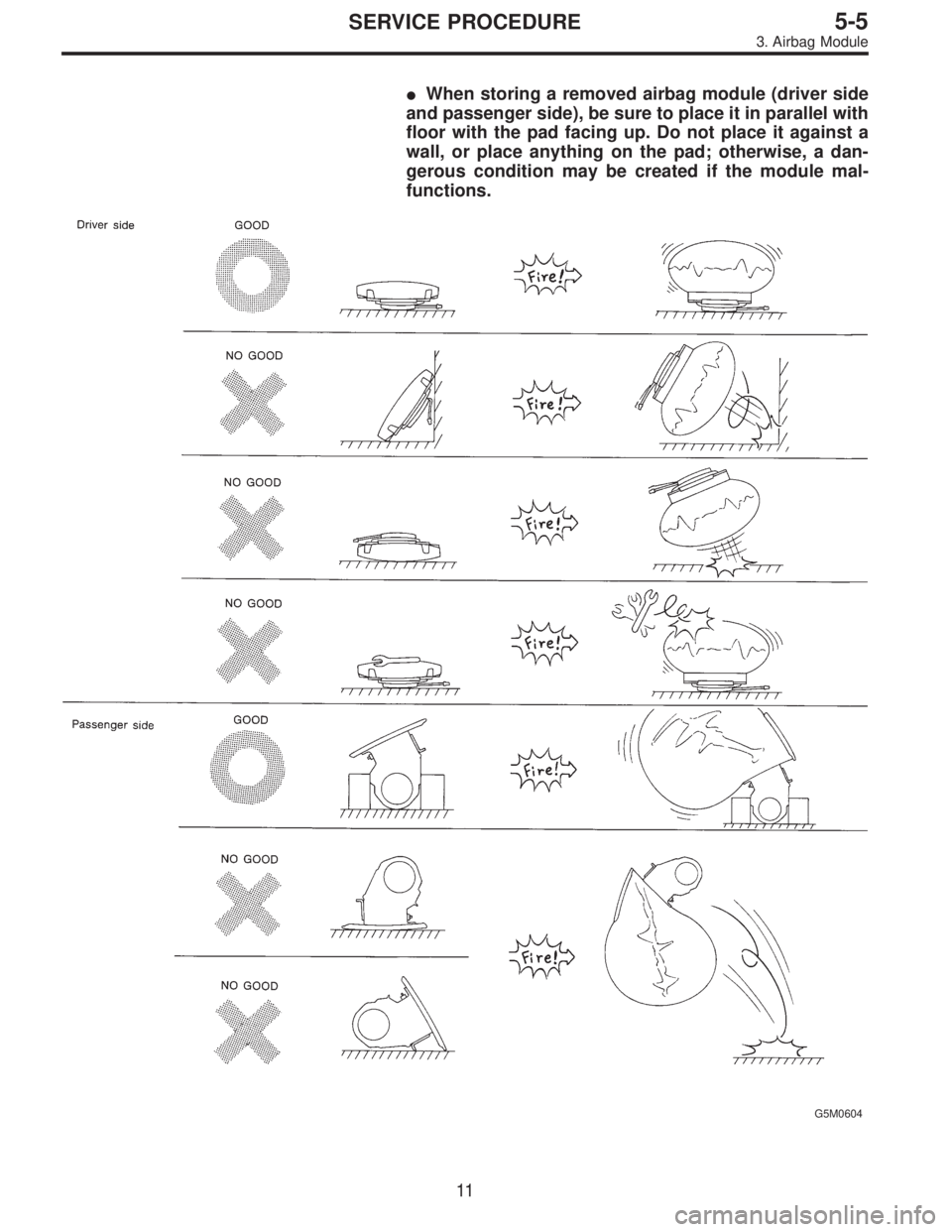

When storing a removed airbag module (driver side
and passenger side), be sure to place it in parallel with
floor with the pad facing up. Do not place it against a
wall, or place anything on the pad; otherwise, a dan-
gerous condition may be created if the module mal-
functions.
G5M0604
11
5-5SERVICE PROCEDURE
3. Airbag Module
Page 1663 of 3342

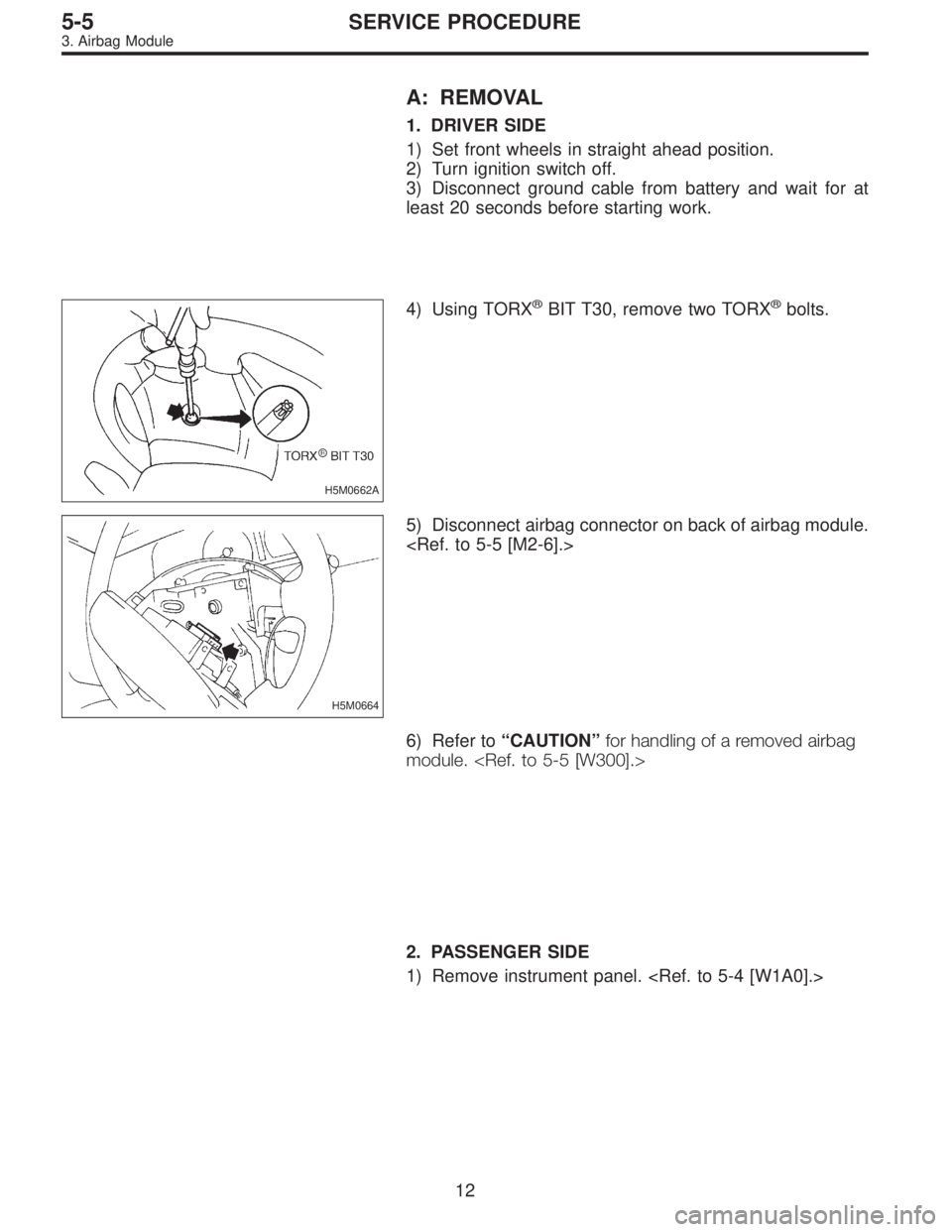

A: REMOVAL
1. DRIVER SIDE
1) Set front wheels in straight ahead position.
2) Turn ignition switch off.
3) Disconnect ground cable from battery and wait for at
least 20 seconds before starting work.
H5M0662A
4) Using TORX®BIT T30, remove two TORX®bolts.
H5M0664
5) Disconnect airbag connector on back of airbag module.
6) Refer to“CAUTION”for handling of a removed airbag
module.
2. PASSENGER SIDE
1) Remove instrument panel.
12
5-5SERVICE PROCEDURE
3. Airbag Module
Page 1664 of 3342

B5M0098
2) Remove four bolts and then carefully remove airbag
module.
3) Refer to“CAUTION”for handling of a removed airbag
module.
B: INSTALLATION
Installation is in reverse order of removal procedures.
Observe the following: Make sure that ignition switch is off.
CAUTION:
Do not allow harness and connectors to interfere or
get caught with other parts.
G5M0291
4. Front Sensor
CAUTION:
If the front end of the vehicle body is damaged by a
collision, be sure to check the left and right front
sensors, even if the airbag was not inflated. If any dam-
age to the sensor or any deformation of the sensor
mount is found, replace with a new genuine part.
G5M0310
When painting or performing sheet metal work on
the front part of vehicle body, including the front wheel
apron, front fender and front side frame, take utmost
care not to apply dryer heat, painting mist, or the flame
of the welding burner directly to the front sensors and
wire harness of the airbag system.
A: REMOVAL
1) Turn ignition switch off.
2) Disconnect ground cable from battery and wait for at
least 20 seconds before starting work.
13
5-5SERVICE PROCEDURE
3. Airbag Module - 4. Front Sensor
