Page 1545 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0147 4. TRUNK LID OPENER 1) Remove rear seats, center pillar lower cover, floor mat, rear arch cover and side sill cover (on the driver’s side). 2) Remove all clips which hold cable. 3) Disconnec

Page 1546 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0373 3. Fuel Flap A: REMOVAL 1. FUEL FLAP Remove bolts which hold hinge to fuel flap, and detach fuel flap. B5M0374A 2. FUEL FLAP OPENER 1) Remove rear seats, center pillar lower cover, floor mat,

Page 1547 of 3342

SUBARU LEGACY 1997 Service Repair Manual 4. Front Bumper A: REMOVAL SUPPLEMENTAL RESTRAINT SYSTEM“AIRBAG” Airbag system wiring harness is routed near the front bumper assembly. CAUTION: All Airbag system wiring harness and connectors ar

Page 1548 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0275 9) Remove bolts (engine compartment side) from bumper stays. B5M0276 10) Remove front bumper assembly. NOTE: Front bumper surface is accessible for removal after removing the following parts:

Page 1549 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0376 8) Remove fog lamps. 9) Remove clips from both sides of front bumper. NOTE: When removing, push the pin at the center of clip with a thin screwdriver. B5M0275 10) Remove bolts (engine compartm

Page 1550 of 3342

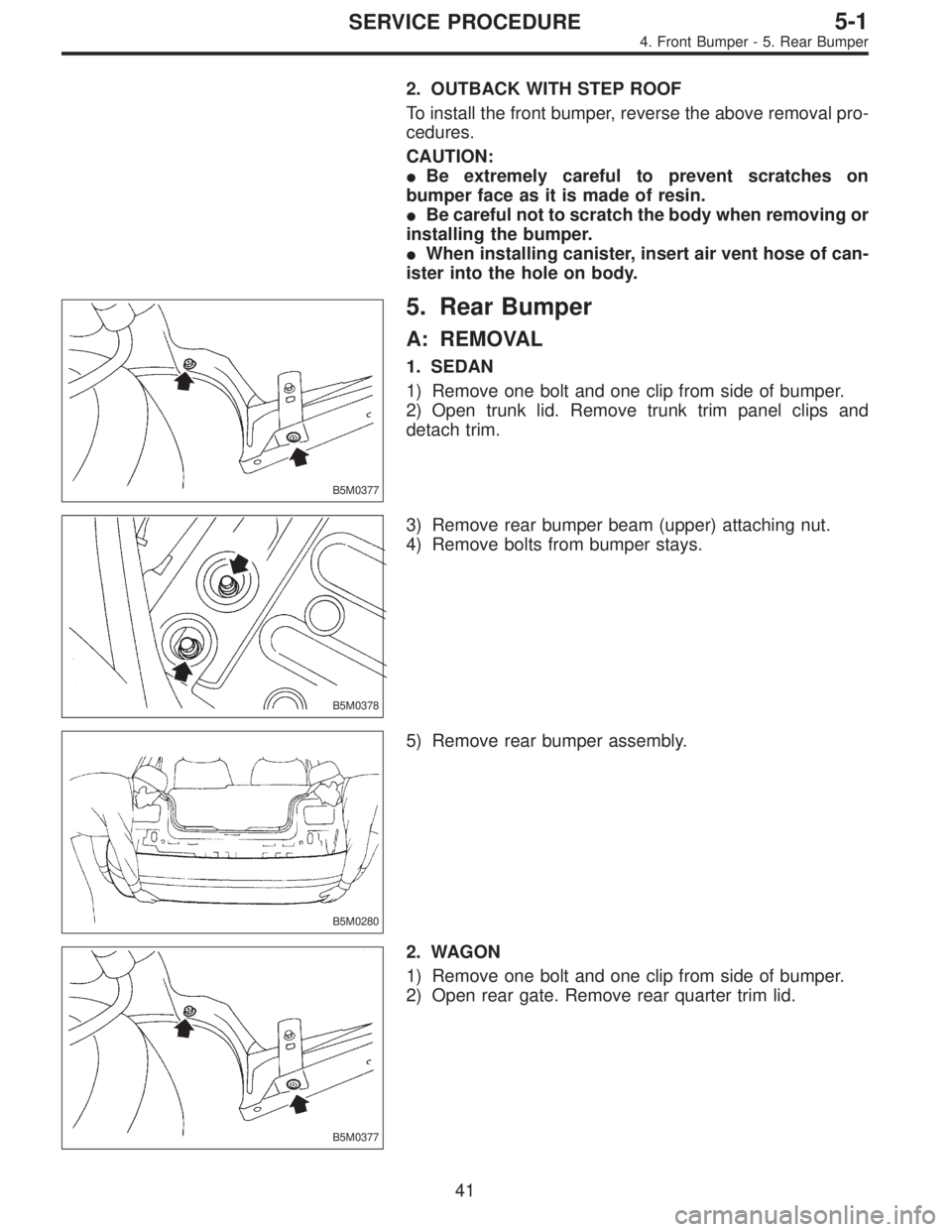

SUBARU LEGACY 1997 Service Repair Manual 2. OUTBACK WITH STEP ROOF To install the front bumper, reverse the above removal pro- cedures. CAUTION: Be extremely careful to prevent scratches on bumper face as it is made of resin. Be careful no

Page 1551 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. OUTBACK WITH STEP ROOF To install the front bumper, reverse the above removal pro- cedures. CAUTION: Be extremely careful to prevent scratches on bumper face as it is made of resin. Be careful no

Page 1552 of 3342

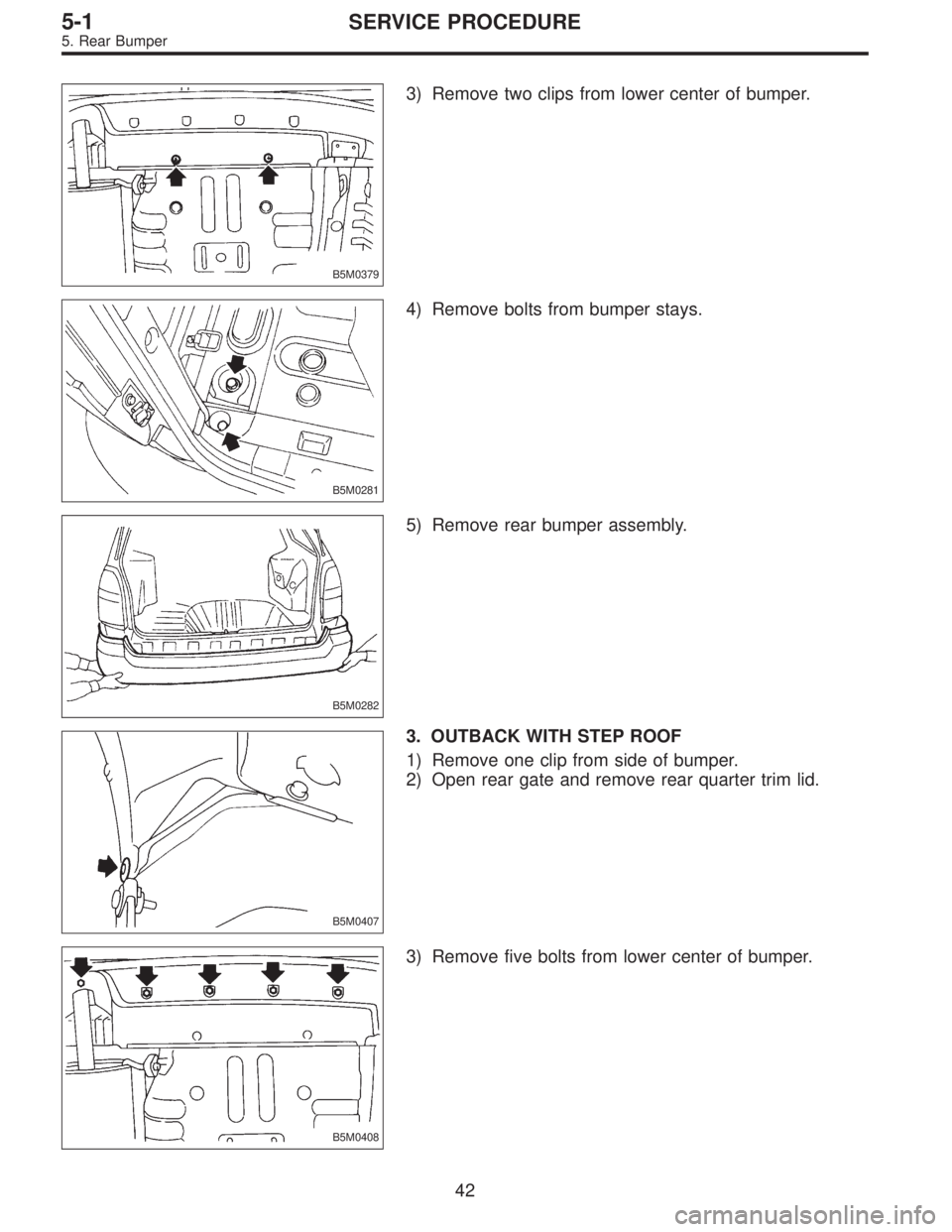

SUBARU LEGACY 1997 Service Repair Manual B5M0379 3) Remove two clips from lower center of bumper. B5M0281 4) Remove bolts from bumper stays. B5M0282 5) Remove rear bumper assembly. B5M0407 3. OUTBACK WITH STEP ROOF 1) Remove one clip from si
