Page 2777 of 3342

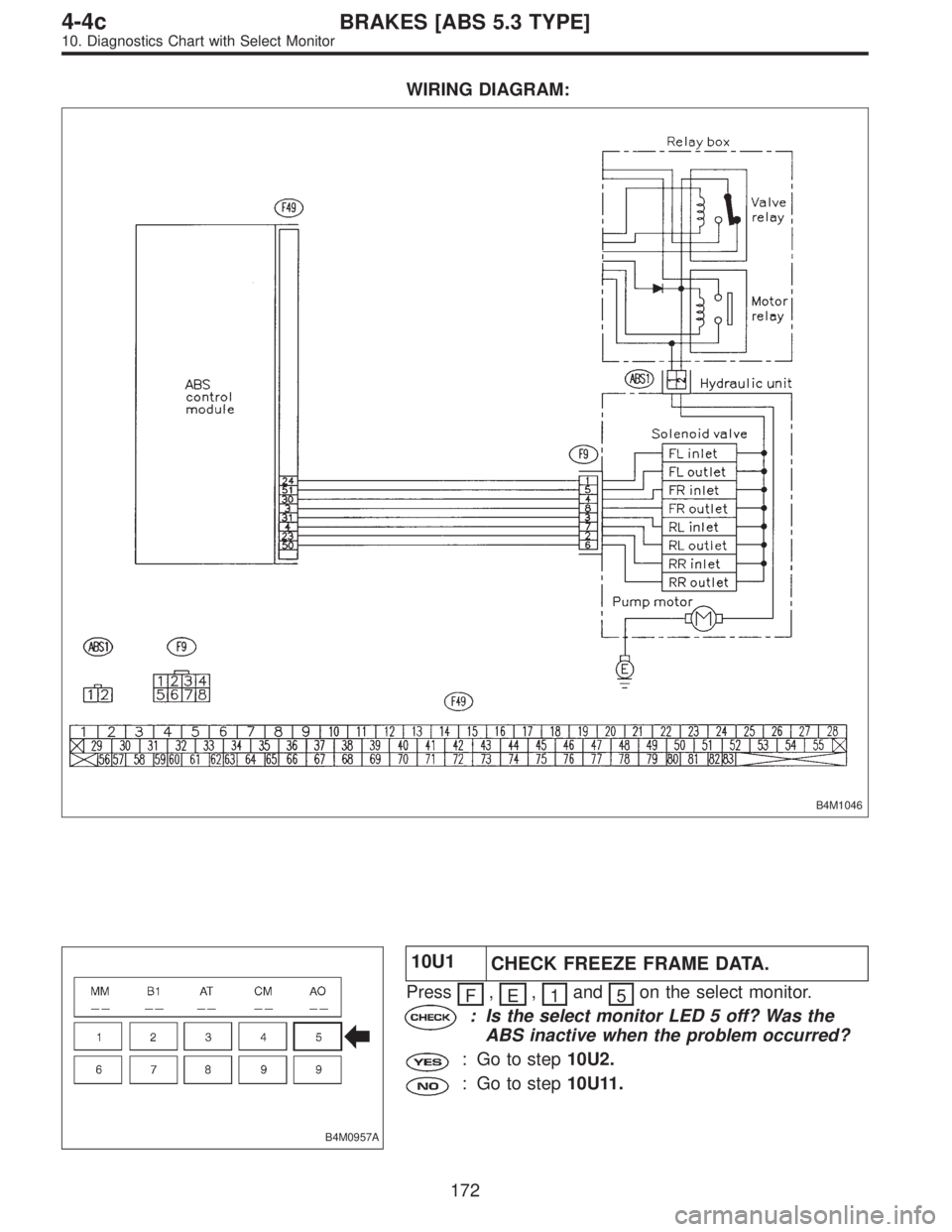

SUBARU LEGACY 1997 Service Repair Manual WIRING DIAGRAM: B4M1046 B4M0957A 10U1 CHECK FREEZE FRAME DATA. Press F, E, 1and 5on the select monitor. : Is the select monitor LED 5 off? Was the ABS inactive when the problem occurred? : Go to step1

Page 2778 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10U2CHECK THE CONDITION WHEN THE TROUBLE OCCURRED. Ask the vehicle owner about driving conditions when the trouble occurred. Attempt to duplicate the conditions. : Is the trouble immediately apparent?

Page 2779 of 3342

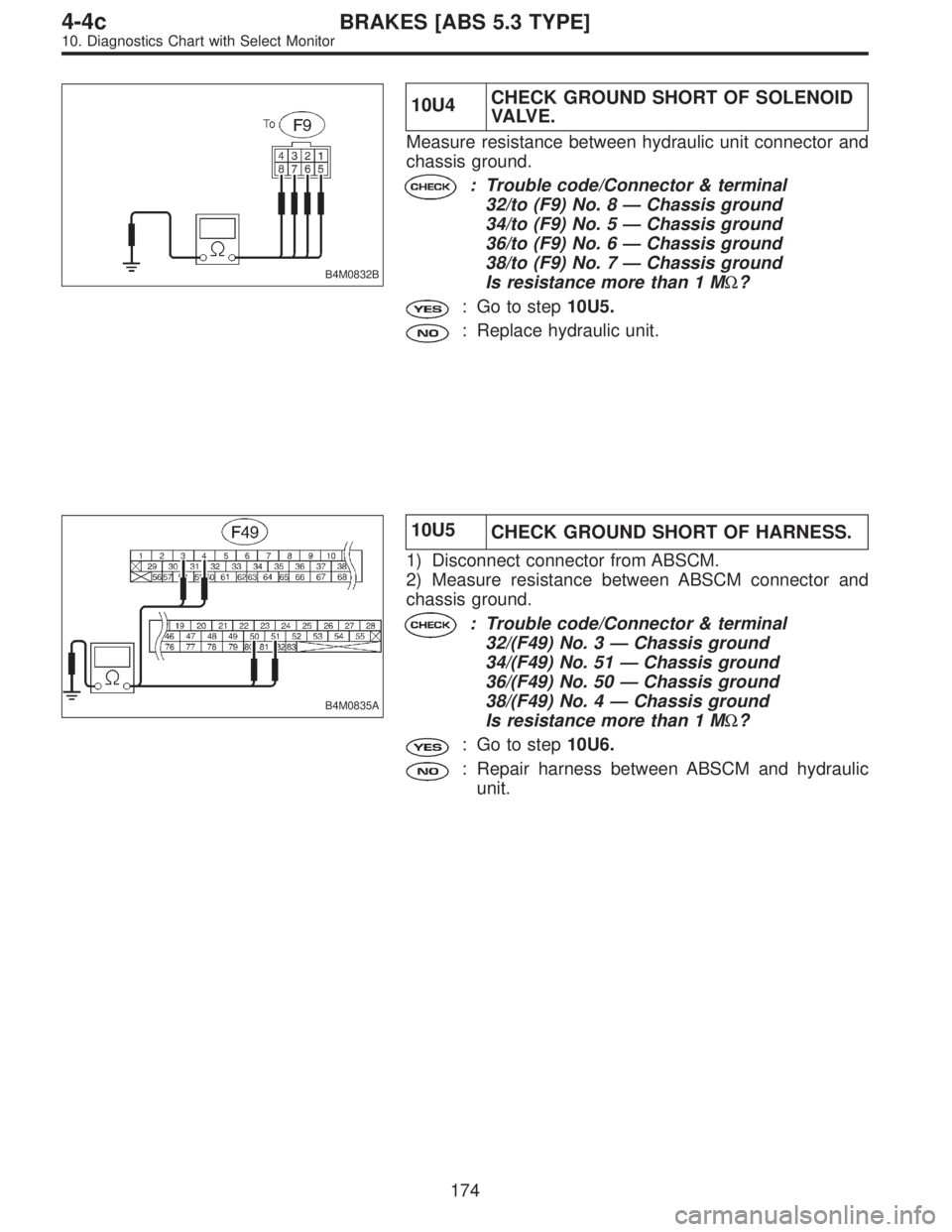

SUBARU LEGACY 1997 Service Repair Manual B4M0832B 10U4CHECK GROUND SHORT OF SOLENOID VA LV E . Measure resistance between hydraulic unit connector and chassis ground. : Trouble code/Connector & terminal 32/to (F9) No. 8—Chassis ground 34/t

Page 2780 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0836A 10U6CHECK HARNESS CONNECTOR BETWEEN ABSCM AND HYDRAULIC UNIT. 1) Connect connector to hydraulic unit. 2) Measure resistance between ABSCM connector termi- nals. : Trouble code/Connector & ter

Page 2781 of 3342

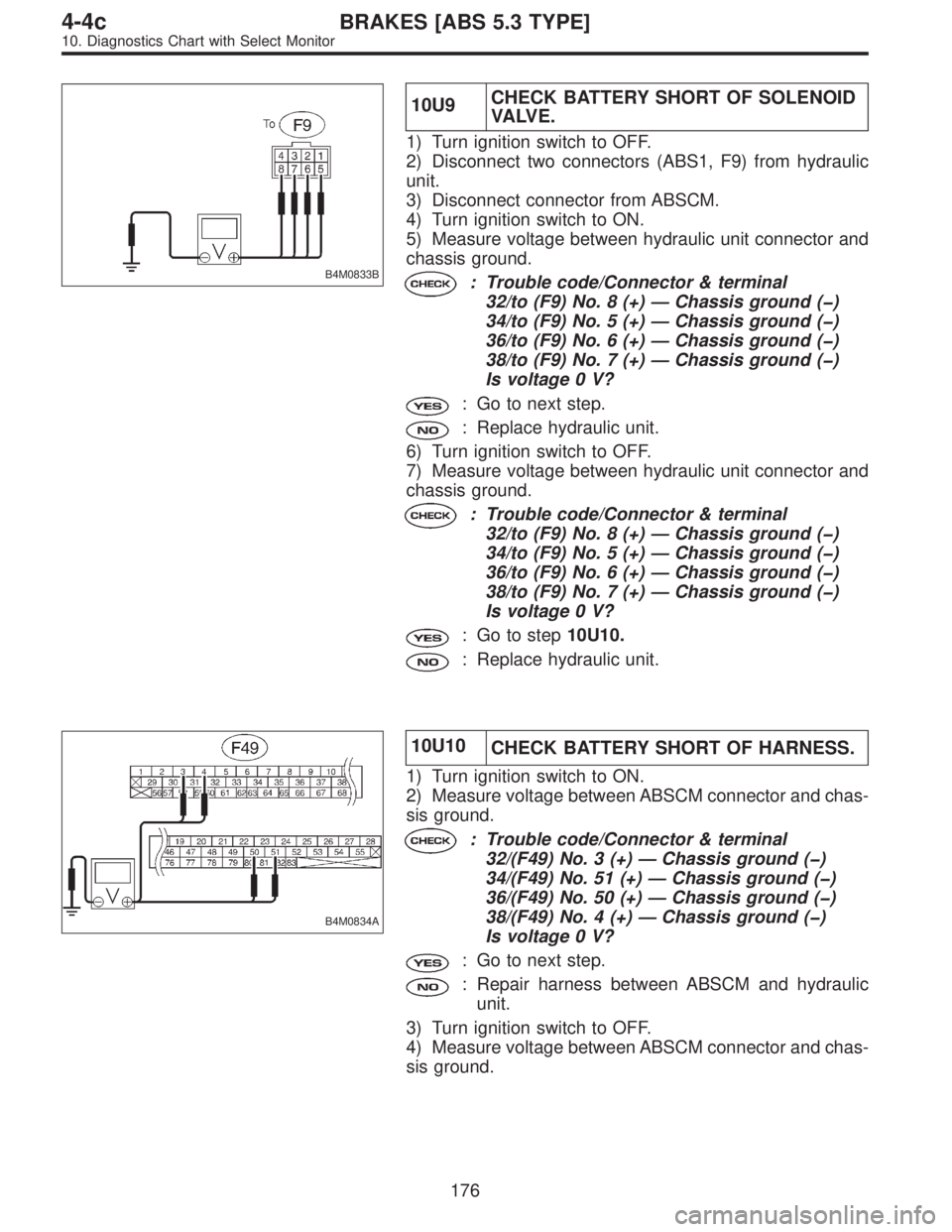

SUBARU LEGACY 1997 Service Repair Manual B4M0833B 10U9CHECK BATTERY SHORT OF SOLENOID VA LV E . 1) Turn ignition switch to OFF. 2) Disconnect two connectors (ABS1, F9) from hydraulic unit. 3) Disconnect connector from ABSCM. 4) Turn ignition

Page 2782 of 3342

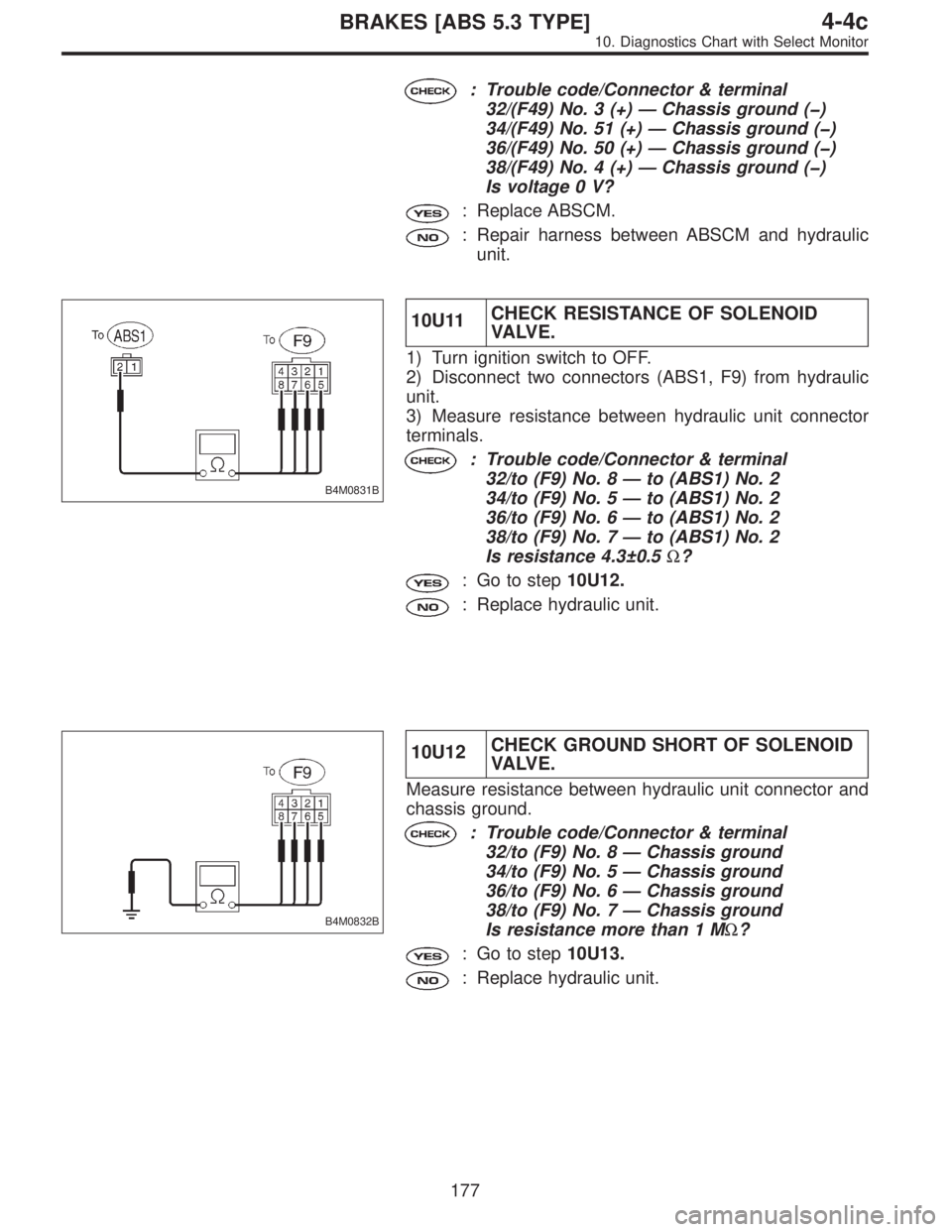

SUBARU LEGACY 1997 Service Repair Manual : Trouble code/Connector & terminal 32/(F49) No. 3 (+)—Chassis ground (�) 34/(F49) No. 51 (+)—Chassis ground (�) 36/(F49) No. 50 (+)—Chassis ground (�) 38/(F49) No. 4 (+)—Chassis ground (�) Is

Page 2783 of 3342

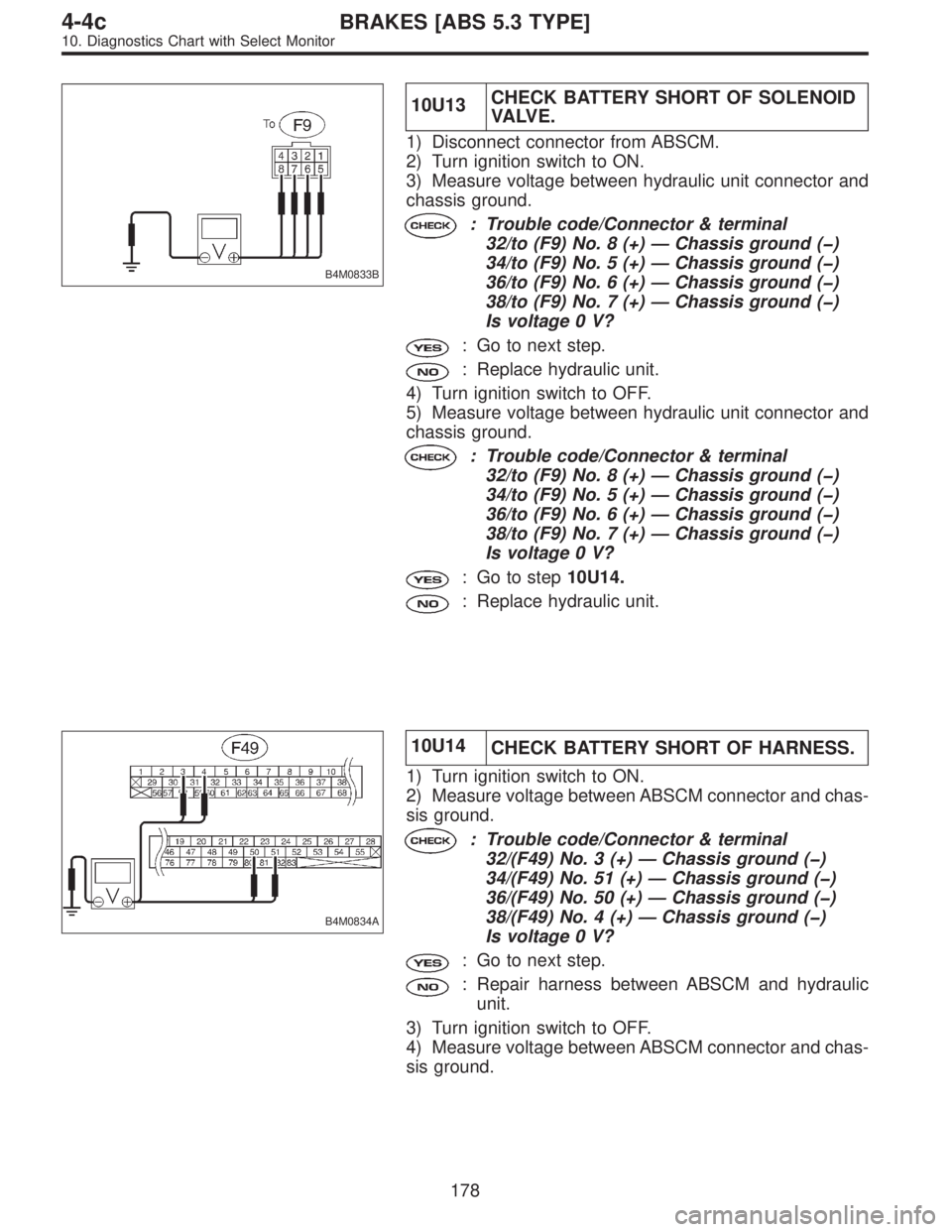

SUBARU LEGACY 1997 Service Repair Manual B4M0833B 10U13CHECK BATTERY SHORT OF SOLENOID VA LV E . 1) Disconnect connector from ABSCM. 2) Turn ignition switch to ON. 3) Measure voltage between hydraulic unit connector and chassis ground. : Tro

Page 2784 of 3342

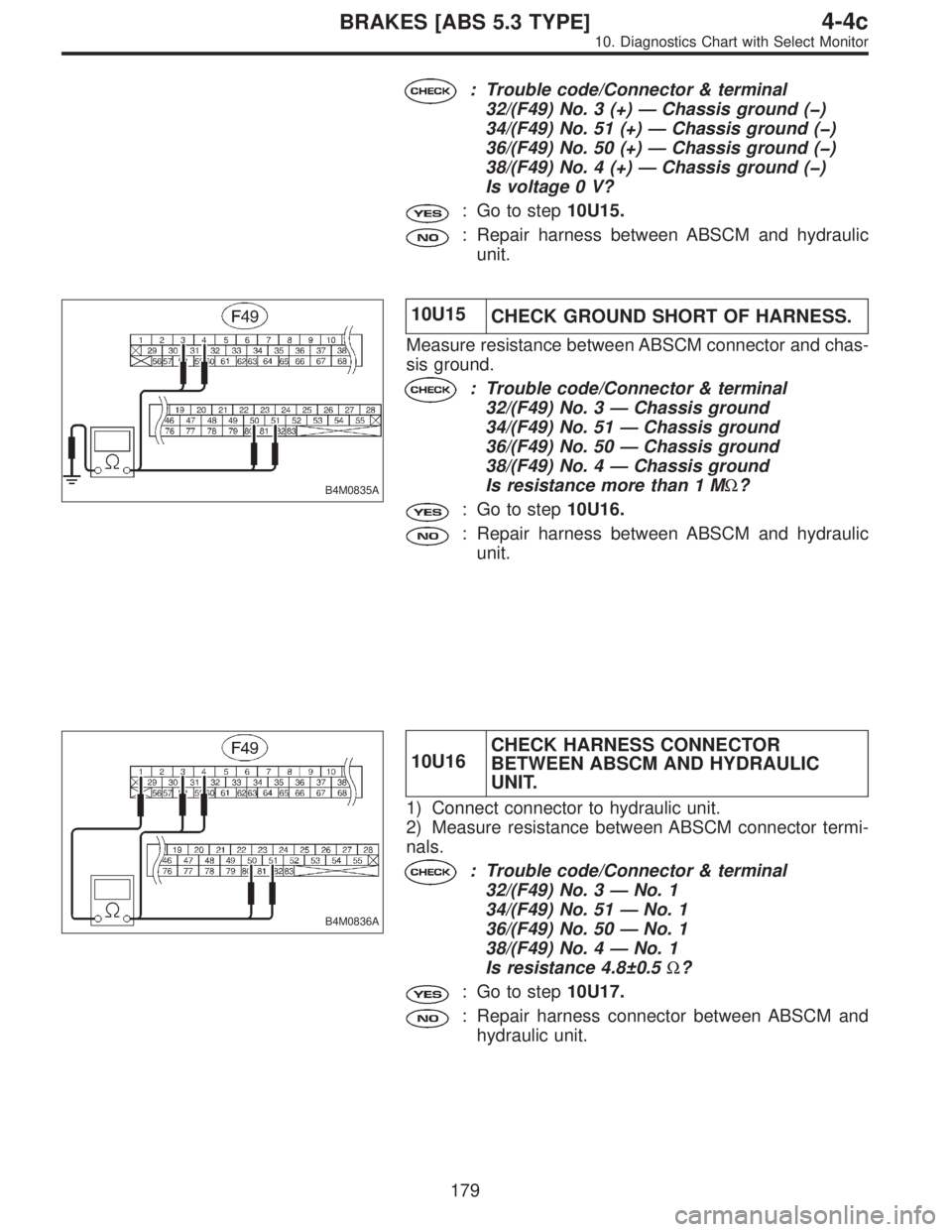

SUBARU LEGACY 1997 Service Repair Manual : Trouble code/Connector & terminal 32/(F49) No. 3 (+)—Chassis ground (�) 34/(F49) No. 51 (+)—Chassis ground (�) 36/(F49) No. 50 (+)—Chassis ground (�) 38/(F49) No. 4 (+)—Chassis ground (�) Is
