SUBARU LEGACY 1997 Service Repair Manual 2. RHD MODEL B4M0683A 1Receiver drier  2Pipe (Receiver drier—Evaporator module)  3Evaporator unit  4Hose (Low-pressure)  5A/C relay  6Fuse  7Hose (High-pressure)  8Compressor  9Condenser

Page 1458 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. Evaporator Unit 1. LHD MODEL B4M0086A 1Thermo control amplifier  2Case upper  3Cooling unit  4Pipe  5Seat  6Expansion valve  7Drain hose  8Case lower  9Resistor  10Resistor bracket Tighte

Page 1459 of 3342

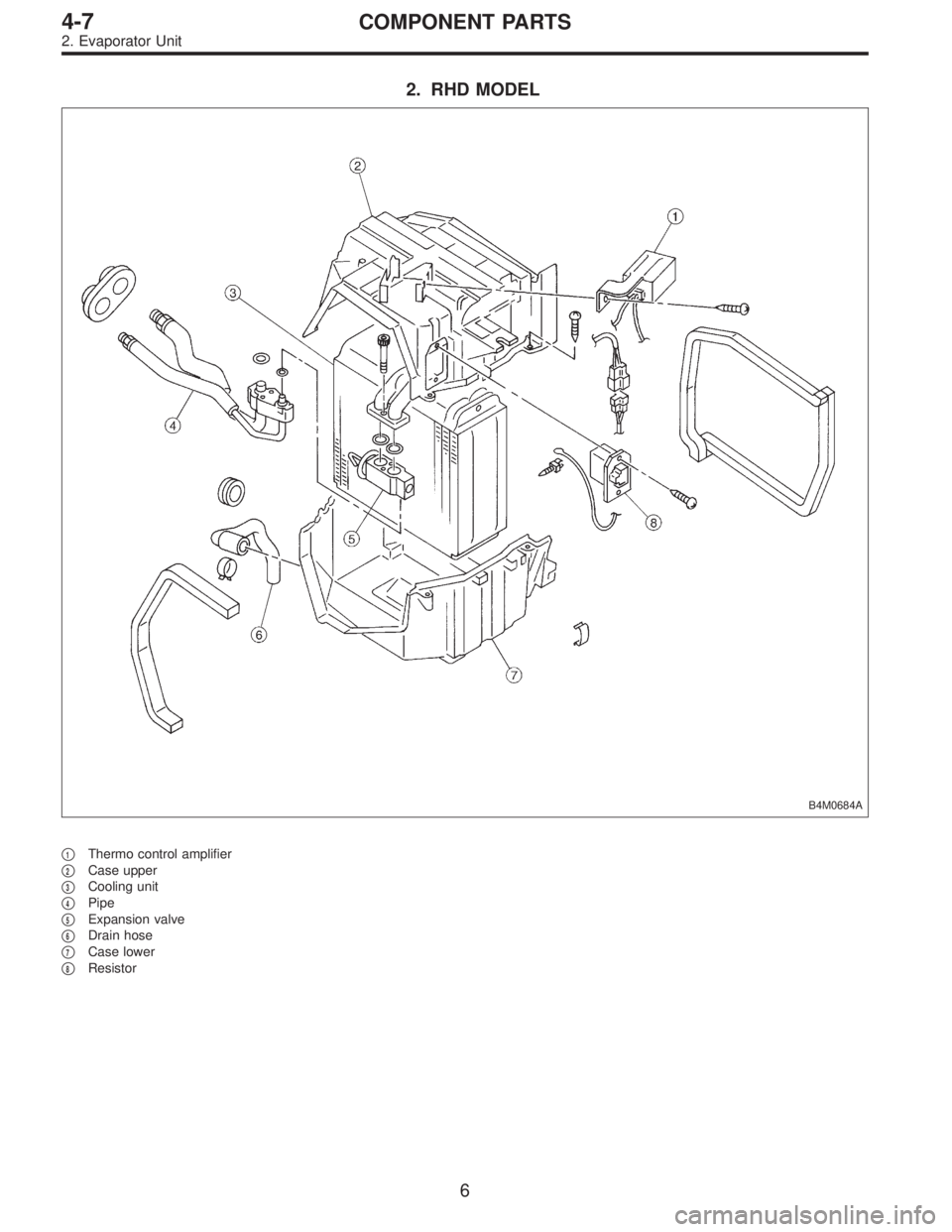

SUBARU LEGACY 1997 Service Repair Manual 2. RHD MODEL B4M0684A 1Thermo control amplifier  2Case upper  3Cooling unit  4Pipe  5Expansion valve  6Drain hose  7Case lower  8Resistor 6 4-7COMPONENT PARTS 2. Evaporator Unit

Page 1460 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. Compressor 1. LHD MODEL B4M0758A 1Alternator bracket  2Alternator  3Alternator bracket nut  4Bracket  5Compressor bracket lower  6Compressor  7Idler pulley ASSY  8Compressor bracket upper T

Page 1461 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. RHD MODEL B4M0685A 1Alternator bracket  2Alternator  3Alternator bracket nut  4Bracket  5Compressor bracket lower  6Compressor  7Idler pulley ASSY  8Compressor bracket upper Tightening torq

Page 1462 of 3342

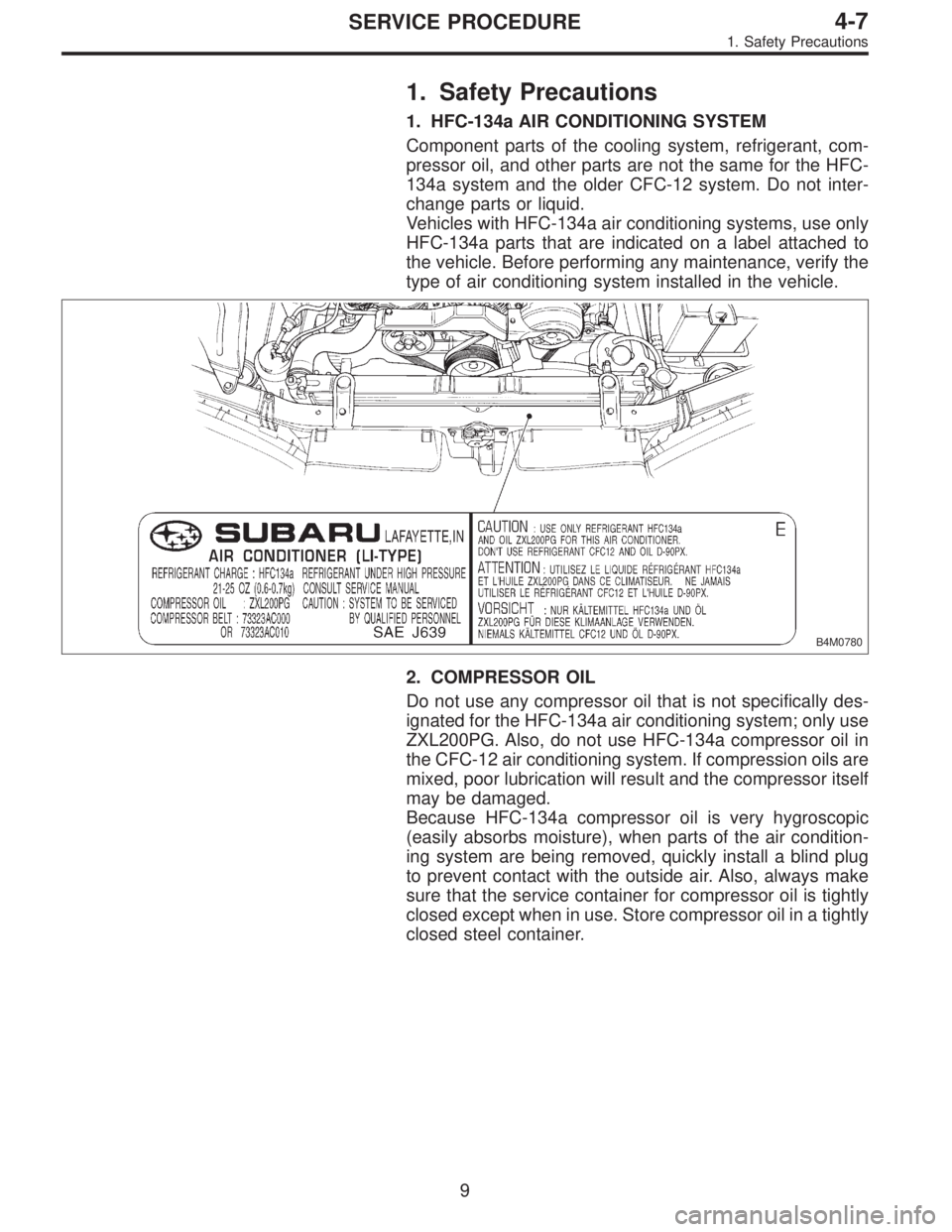

SUBARU LEGACY 1997 Service Repair Manual 1. Safety Precautions 1. HFC-134a AIR CONDITIONING SYSTEM Component parts of the cooling system, refrigerant, com- pressor oil, and other parts are not the same for the HFC- 134a system and the older

Page 1463 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. REFRIGERANT Do not put CFC-12 refrigerant into a HFC-134a air condi- tioning system. Also, do not put HFC-134a refrigerant into a CFC-12 air conditioning system. If the wrong refrigerant is used, p

Page 1464 of 3342

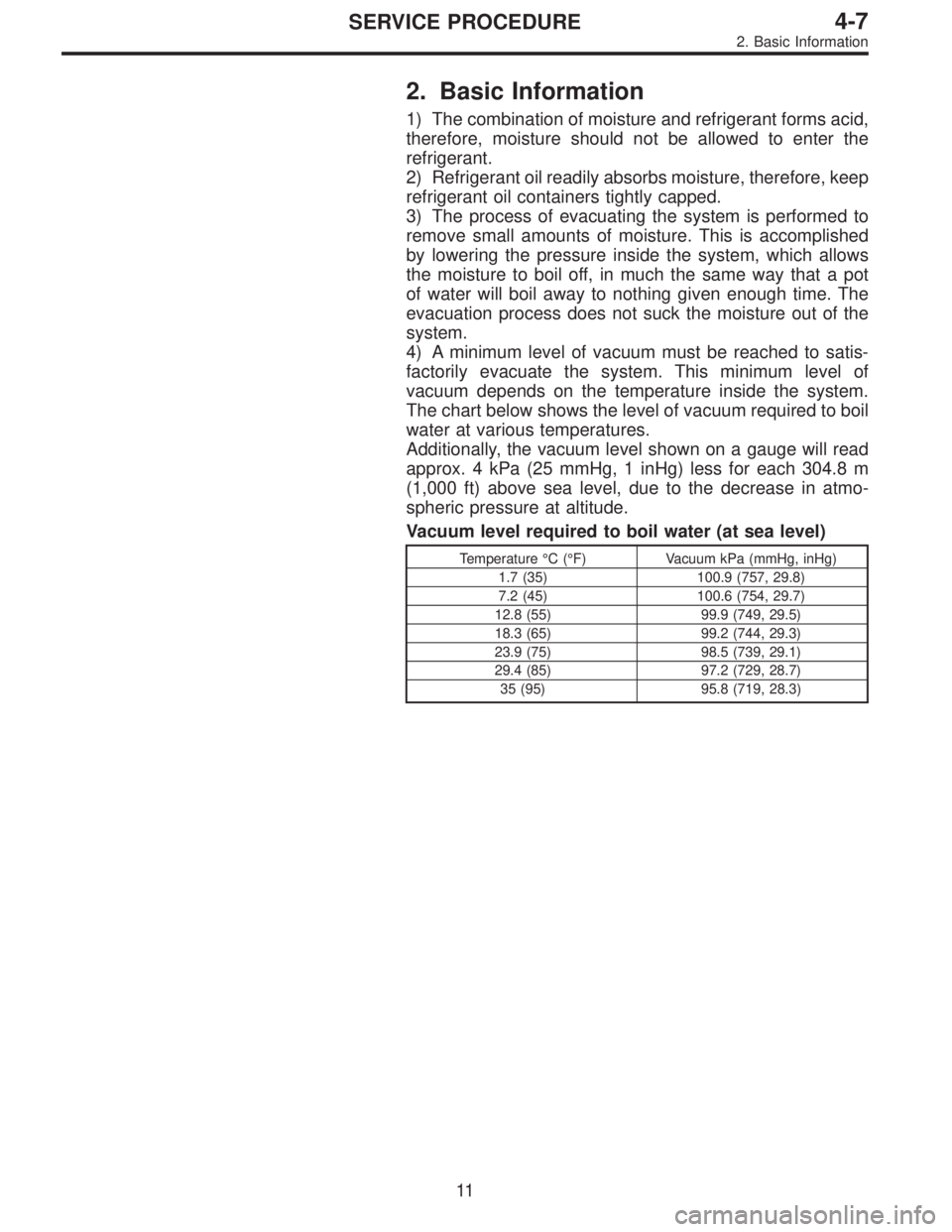

SUBARU LEGACY 1997 Service Repair Manual 2. Basic Information 1) The combination of moisture and refrigerant forms acid, therefore, moisture should not be allowed to enter the refrigerant. 2) Refrigerant oil readily absorbs moisture, therefo
