Page 2265 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10DA1 CHECK TRANSMISSION TYPE. : Is transmission type AT? : Go to step10DA2. : Check AT/MT identification circuit. <Ref. to 2-7 [T10DD0].> B2M0615A 10DA2CHECK HARNESS BETWEEN ECM AND TCM CONNECTOR. 1)

Page 2266 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0615A 10DA4 CHECK ECM. 1) Connect connector to ECM. 2) Turn ignition switch to ON. 3) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 80 (+)—Chassis ground (�): I

Page 2267 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1144 DB: DTC P1722 —AUTOMATIC TRANSMISSION DIAGNOSIS INPUT SIGNAL CIRCUIT HIGH INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault WIRING DIAGRAM: B2M0614 CAUTION: After

Page 2268 of 3342

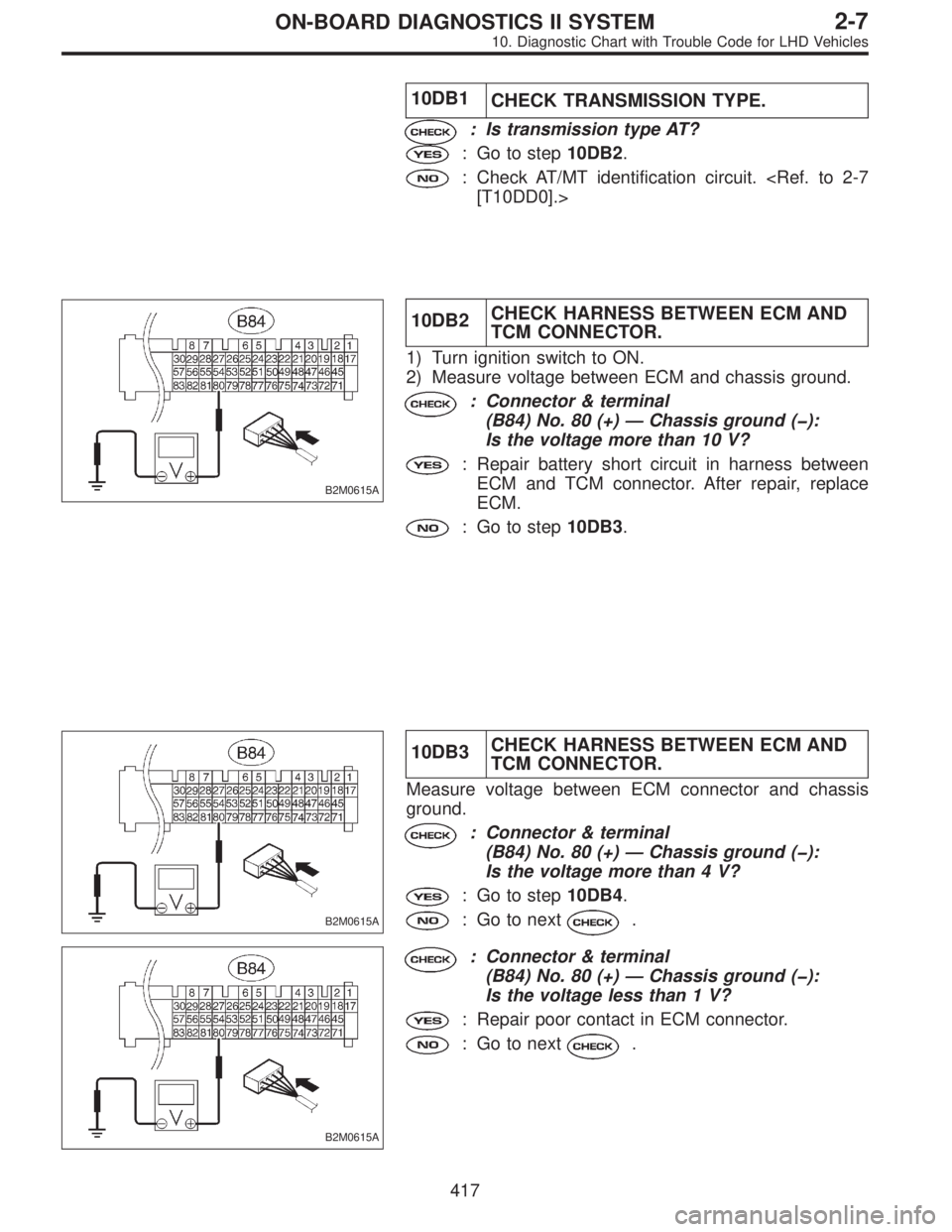

SUBARU LEGACY 1997 Service Repair Manual 10DB1 CHECK TRANSMISSION TYPE. : Is transmission type AT? : Go to step10DB2. : Check AT/MT identification circuit. <Ref. to 2-7 [T10DD0].> B2M0615A 10DB2CHECK HARNESS BETWEEN ECM AND TCM CONNECTOR. 1)

Page 2269 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0615A : Connector & terminal (B84) No. 80 (+)—Chassis ground (�): Does the voltage change from1Vto4V while monitoring the value with voltage meter? : Even if MIL lights up, the circuit has return

Page 2270 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1147 DC: DTC P1742 —AUTOMATIC TRANSMISSION DIAGNOSIS INPUT SIGNAL CIRCUIT MALFUNCTION— DTC DETECTING CONDITION: Two consecutive driving cycles with fault WIRING DIAGRAM: B2M0614 CAUTION: After

Page 2271 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10DC1 CHECK TRANSMISSION TYPE. : Is transmission type AT? : Go to step10DC2. : Check AT/MT identification circuit. <Ref. to 2-7 [T10DD0].> 10DC2 CHECK DRIVING CONDITION. 1) Start and warm-up the engin

Page 2272 of 3342

SUBARU LEGACY 1997 Service Repair Manual DD:—AT/MT IDENTIFICATION CIRCUIT MALFUNCTION [MT VEHICLES]— WIRING DIAGRAM: B2M0617 CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES. <Ref. to 2-7 [T
