Page 1649 of 3342

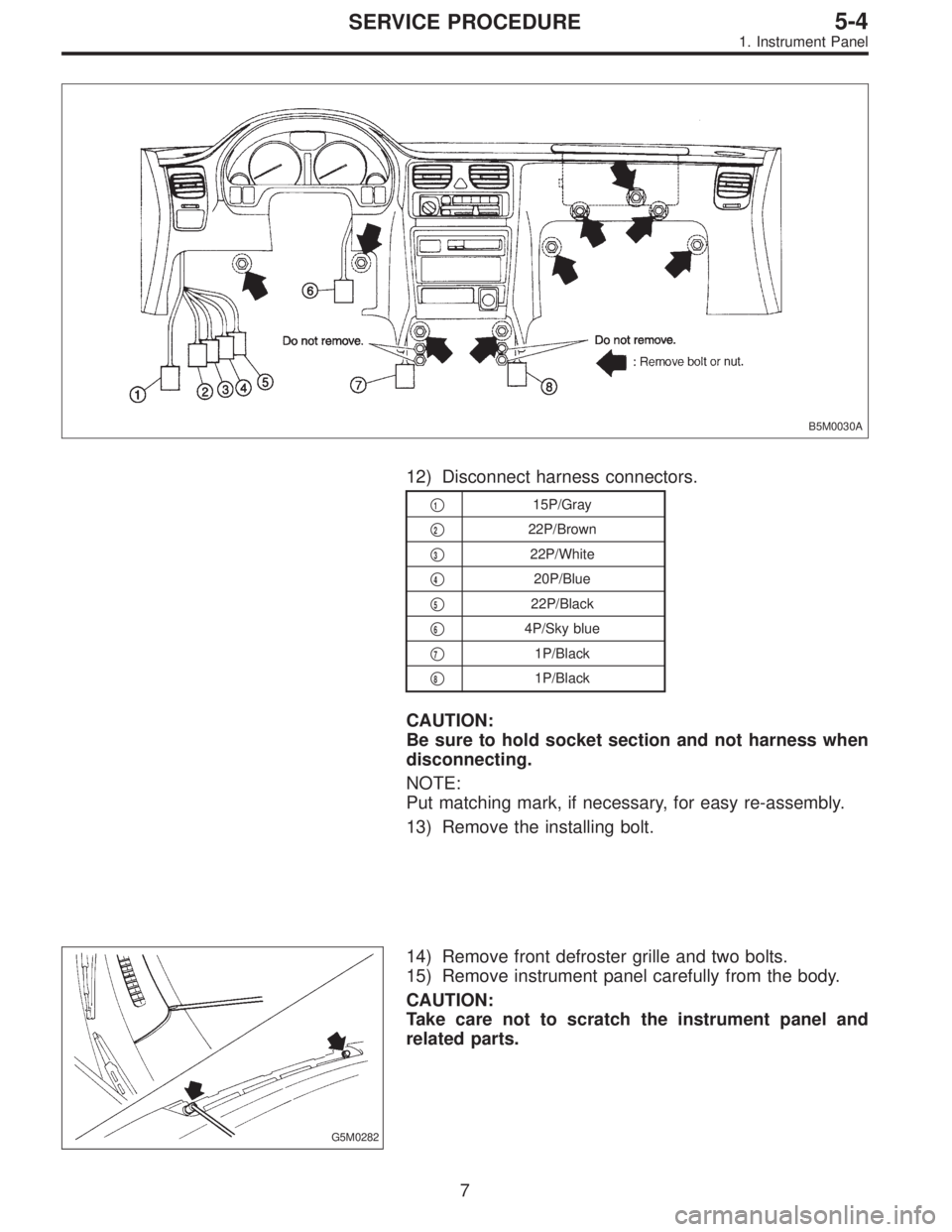

SUBARU LEGACY 1997 Service Repair Manual B5M0026 7) Remove cover back panel. G5M0278 8) Remove two bolts and lower steering column. B5M0027 9) Set temperature control lever to Max. COLD position, and then disconnect temperature control cable

Page 1650 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0030A 12) Disconnect harness connectors. 115P/Gray  222P/Brown  322P/White  420P/Blue  522P/Black  64P/Sky blue  71P/Black  81P/Black CAUTION: Be sure to hold socket section and not harness

Page 1651 of 3342

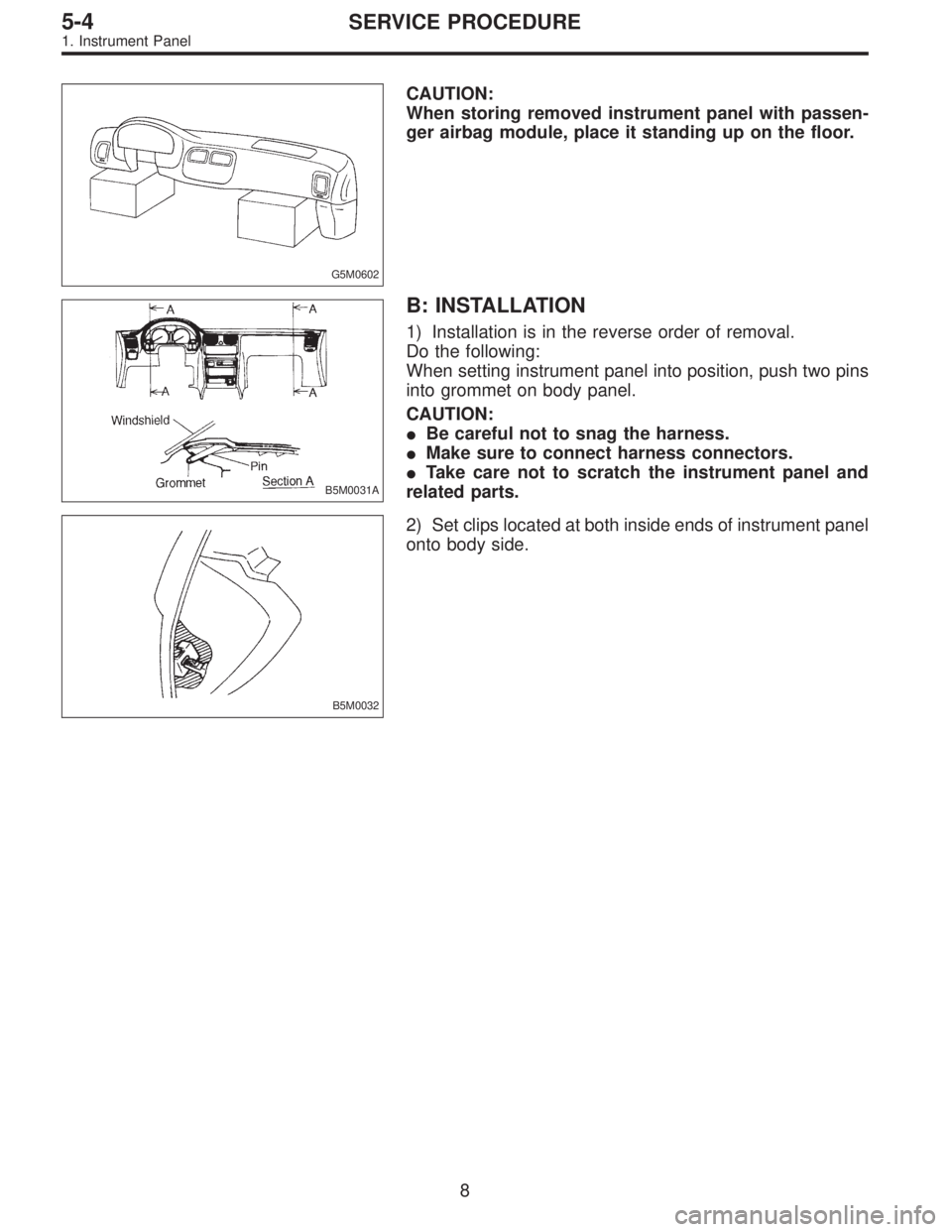

SUBARU LEGACY 1997 Service Repair Manual G5M0602 CAUTION: When storing removed instrument panel with passen- ger airbag module, place it standing up on the floor. B5M0031A B: INSTALLATION 1) Installation is in the reverse order of removal. D

Page 1652 of 3342

SUBARU LEGACY 1997 Service Repair Manual 1. SRS Airbag 1. LHD MODEL B5M0401A 1Combination switch ASSY with roll connector  2TORX®bolt  3Airbag module ASSY (Driver)  4Airbag module ASSY (Passenger)  5BRKT B  6BRKT P AB  7BRKT SD A  8

Page 1653 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. RHD MODEL B5M0389A 1Combination switch ASSY with roll connector  2Cover  3TORX®bolt  4Airbag module ASSY (Driver)  5Airbag module ASSY (Passenger)  6BRKT B  7BRKT P AB  8BRKT SD A  9Front

Page 1654 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0291 1. Precaution 1) If any of the airbag system parts such as sensors, air- bag module, airbag control module and harness are dam- aged or deformed, replace with new genuine parts. G5M0292 2) Whe

Page 1655 of 3342

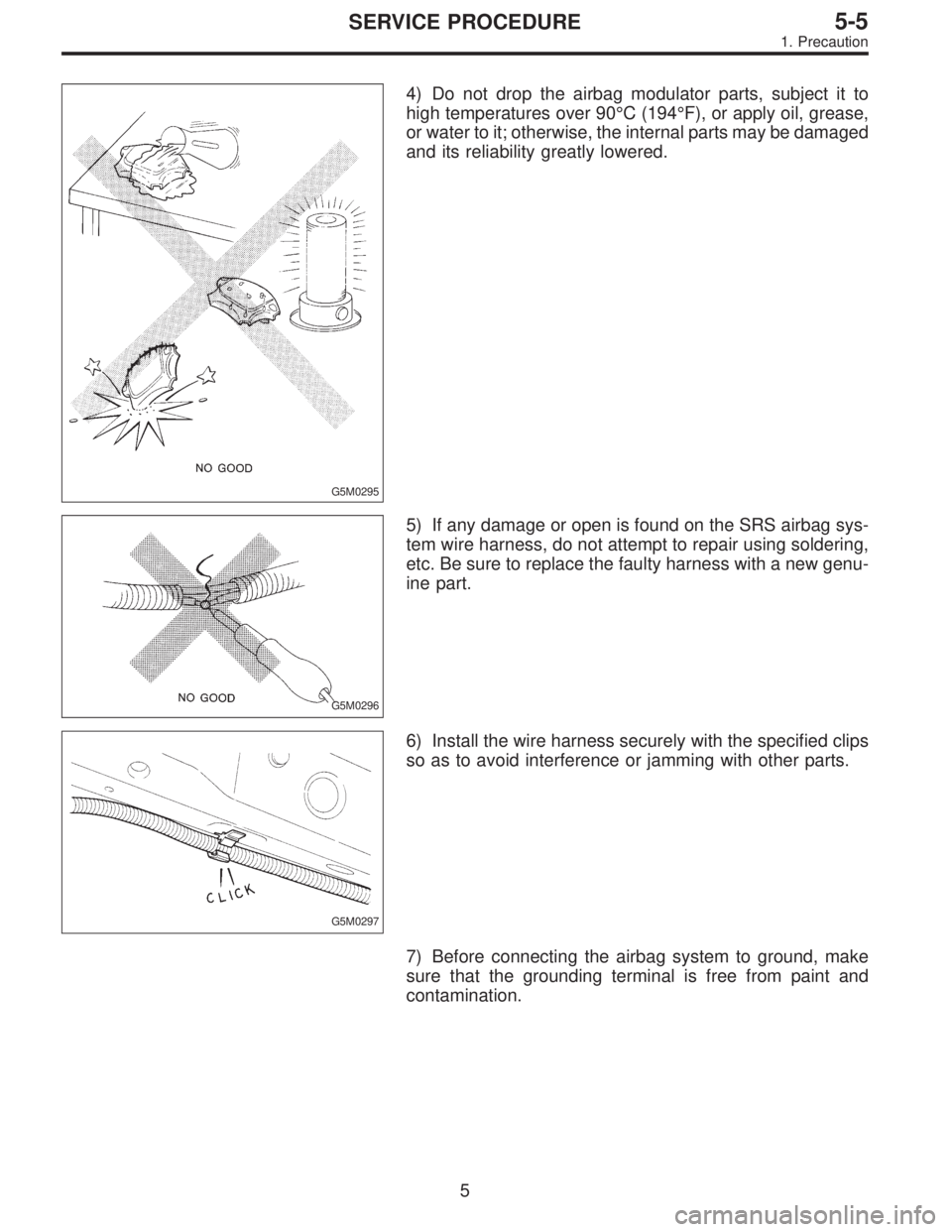

SUBARU LEGACY 1997 Service Repair Manual G5M0295 4) Do not drop the airbag modulator parts, subject it to high temperatures over 90°C (194°F), or apply oil, grease, or water to it; otherwise, the internal parts may be damaged and its relia

Page 1656 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0298 8) Do not allow water or oil to come in contact with the connector terminals. Do not touch the connector terminals. 9) When connecting or disconnecting airbag connector, make sure ignition swi
