SUBARU LEGACY 1997 Service Repair Manual Unit: mm (in) No. Part Name Part Number Inside diameter Outside diameter Dimension Application AThrust needle bearing806530020 30 (1.18) 47 (1.85) 3.3 (0.130)A place of high clutch BThrust needle bear

Page 714 of 3342

SUBARU LEGACY 1997 Service Repair Manual D: FLUID PASSAGES G3M0776 8 3-2SPECIFICATIONS AND SERVICE DATA 1. Automatic Transmission and Differential

Page 715 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0777 9 3-2SPECIFICATIONS AND SERVICE DATA 1. Automatic Transmission and Differential

Page 716 of 3342

SUBARU LEGACY 1997 Service Repair Manual 1. Torque Converter Clutch and Case B3M0626A 1Pitching stopper bracket  2O-ring  3Oil level gauge  4Stay  5Seal pipe  6Seal ring  7Oil pump shaft  8Clip  9Speedometer driven gear  10Snap rin

Page 717 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. Differential Case G3M0846 1Crown gear  2Straight pin  3Pinion shaft  4Differential case (RH)  5Differential case (LH)  6Taper roller bearing  7Oil seal (LH)  8O-ring  9Differential side re

Page 718 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. Oil Pump B3M0354A 1Retainer  2Return spring  3Pin  4Friction ring  5O-ring  6Cam ring  7Vane ring  8Vane  9Rotor  10Oil pump cover  11Thrust washer  12Seal ring (R)  13Seal ring (H)

Page 719 of 3342

SUBARU LEGACY 1997 Service Repair Manual 4. Control Valve and Harness Routing B3M0106A 1Stay  2Oil strainer  3Transmission harness  4O-ring  5Duty sol. A (Line pressure)  6Sol. ASSY  7Upper valve body  8Ball  9Upper separator gasket

Page 720 of 3342

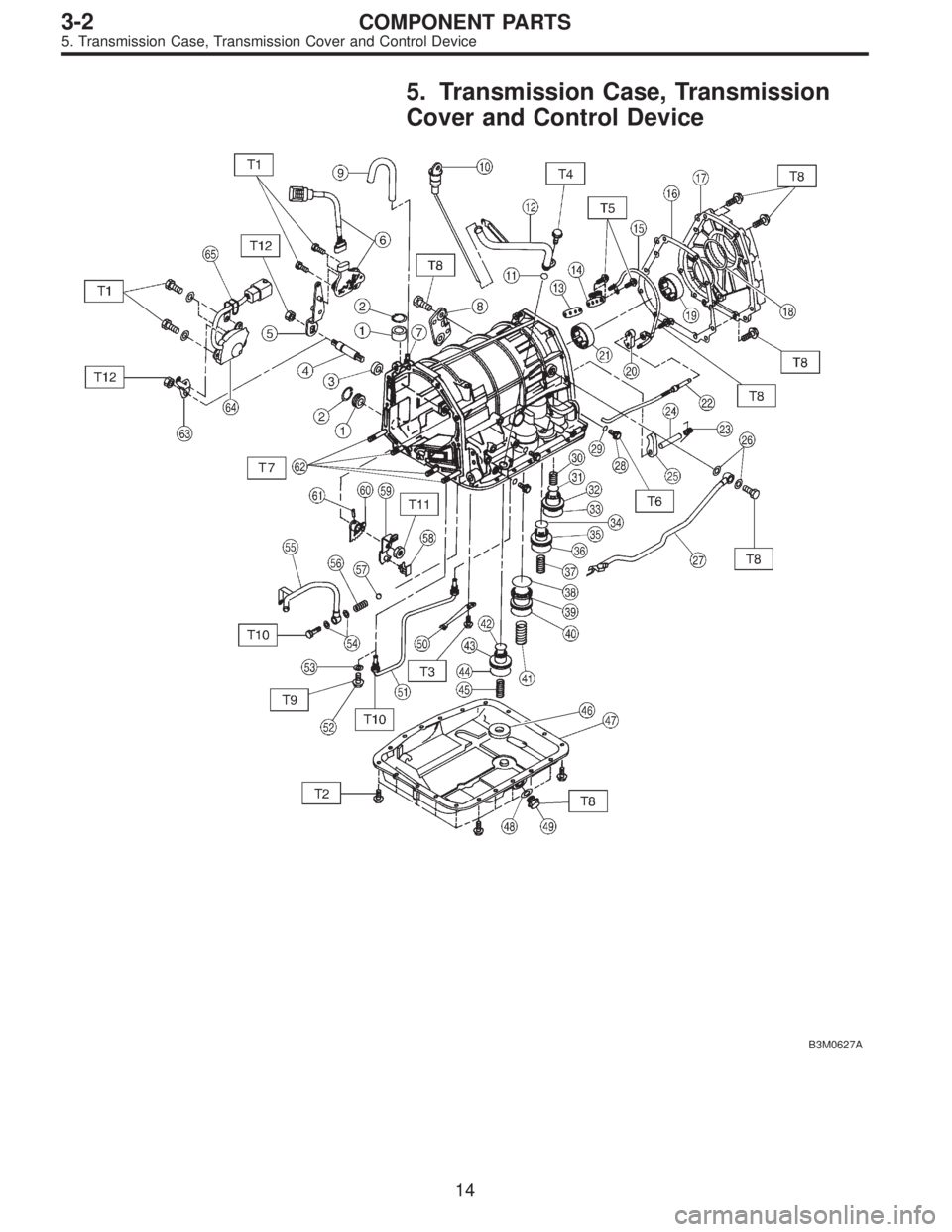

SUBARU LEGACY 1997 Service Repair Manual 5. Transmission Case, Transmission Cover and Control Device B3M0627A 14 3-2COMPONENT PARTS 5. Transmission Case, Transmission Cover and Control Device
