Page 1009 of 3342

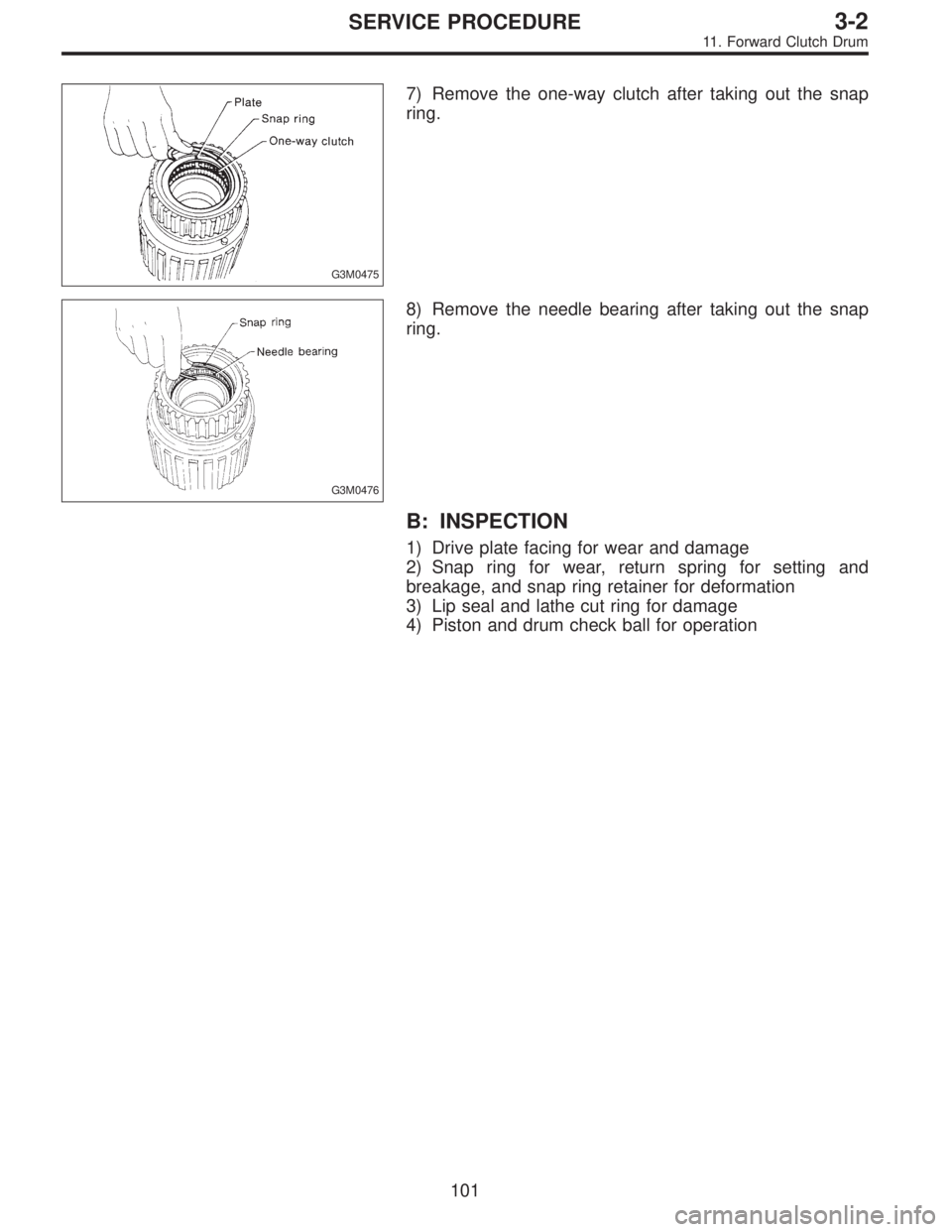

SUBARU LEGACY 1997 Service Repair Manual G3M0475 7) Remove the one-way clutch after taking out the snap ring. G3M0476 8) Remove the needle bearing after taking out the snap ring. B: INSPECTION 1) Drive plate facing for wear and damage 2) Sna

Page 1010 of 3342

SUBARU LEGACY 1997 Service Repair Manual C: ASSEMBLY B3H0014 1Snap ring  2Retainer  3Lathe cut seal ring  4Dish plate  5Snap ring  6Snap ring  7Retaining plate  8Dish plate  9Snap ring  10Retaining plate 11Forward clutch piston

Page 1011 of 3342

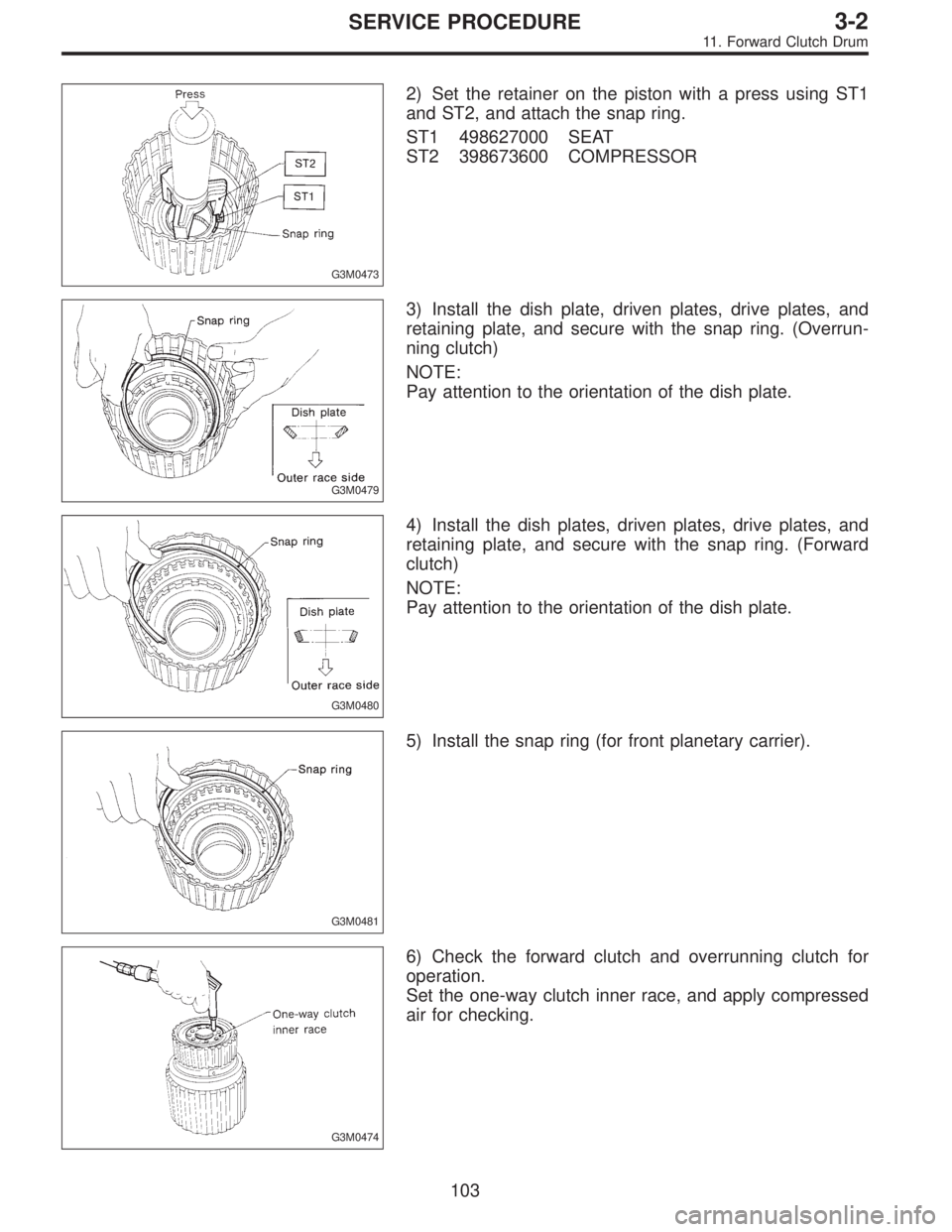

SUBARU LEGACY 1997 Service Repair Manual G3M0473 2) Set the retainer on the piston with a press using ST1 and ST2, and attach the snap ring. ST1 498627000 SEAT ST2 398673600 COMPRESSOR G3M0479 3) Install the dish plate, driven plates, drive

Page 1012 of 3342

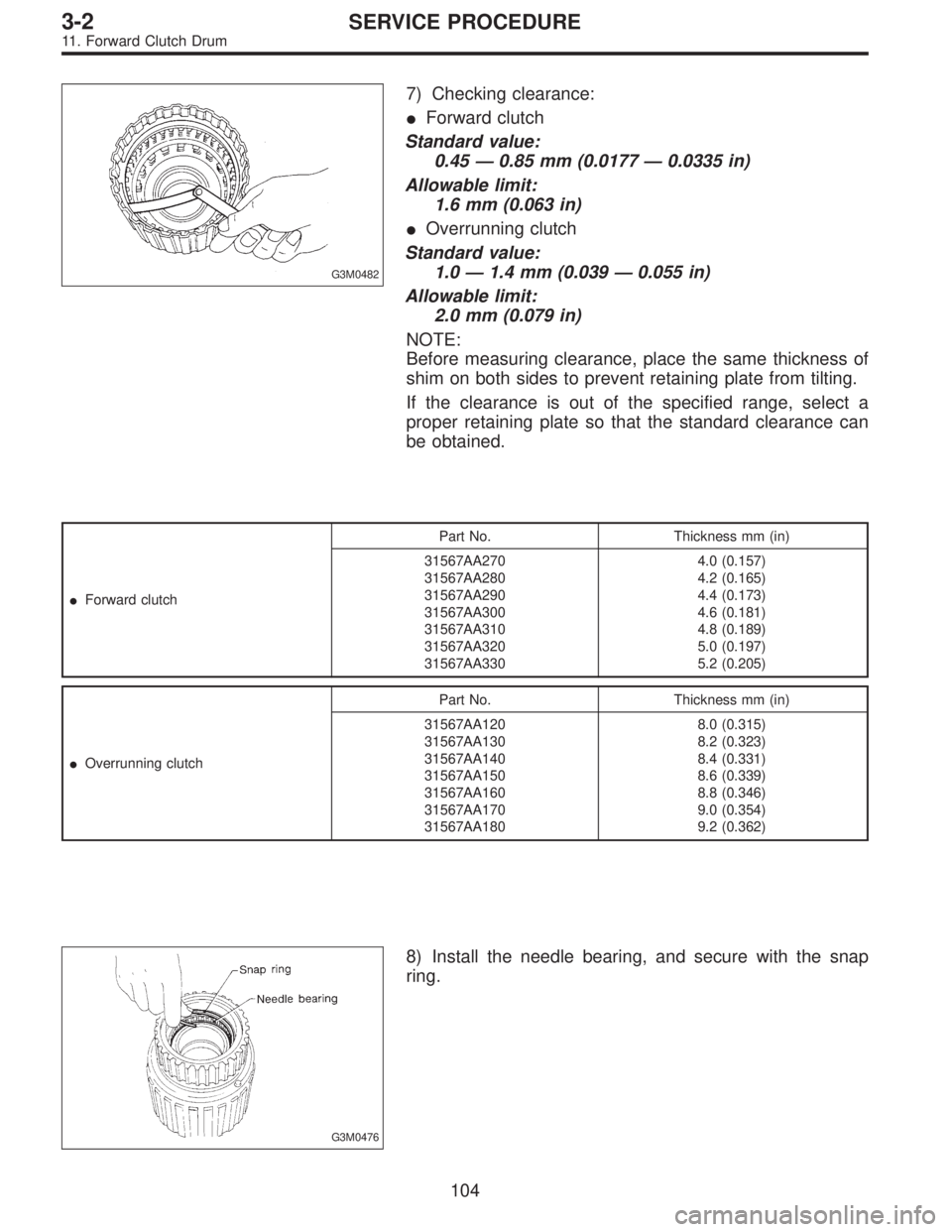

SUBARU LEGACY 1997 Service Repair Manual G3M0482 7) Checking clearance: Forward clutch Standard value: 0.45—0.85 mm (0.0177—0.0335 in) Allowable limit: 1.6 mm (0.063 in) Overrunning clutch Standard value: 1.0—1.4 mm (0.039—0.055 in

Page 1013 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0484 9) Install the one-way clutch (1-2) and plate, and secure with the snap ring. NOTE: Set the inner race. Make sure that the forward clutch is free in the clockwise direction and locked in the c

Page 1014 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0484 9) Install the one-way clutch (1-2) and plate, and secure with the snap ring. NOTE: Set the inner race. Make sure that the forward clutch is free in the clockwise direction and locked in the c

Page 1015 of 3342

SUBARU LEGACY 1997 Service Repair Manual B3M0407A 13. Servo Piston 1Band servo piston stem  2Spring  3Lathe cut seal ring  4Band servo piston (1-2)  5Lathe cut seal ring  6O-ring  7Band servo retainer  8O-ring  9Spring  10Retainer

Page 1016 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0488 14. Differential Case Assembly A: DISASSEMBLY 1) Using a press and ST, remove the taper roller bearing. ST 498077000 REMOVER CAUTION: Be careful not to damage the speedometer drive gear. G3M04
