Page 1681 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0298 8) Do not allow water or oil to come in contact with the connector terminals. Do not touch the connector terminals. 9) When connecting or disconnecting airbag connector, make sure ignition swi

Page 1682 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0311 3. FRONT SENSOR Inspection standard: Check the front section (Refer to shaded area of vehicle in figure) for damage, regardless of whether or not airbag is deployed. Check whether or not the

Page 1683 of 3342

SUBARU LEGACY 1997 Service Repair Manual 6. COMBINATION SWITCH Inspection standard: A vehicle damaged in a collision (regardless of whether or not airbag is deployed). The designated trouble code is output during self-diag- nosis. (Refer t

Page 1684 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0097A Check to ensure that clearance between capsule1(at steering column) and cutout portion of column bracket 2 on steering column upper side is within specifications. Clearance between capsule

Page 1685 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0299 3. Airbag Module CAUTION: The airbag module (driver side and passenger side) must not be disassembled. The airbag module cannot be used again once inflated. G5M0300 When removing and install

Page 1686 of 3342

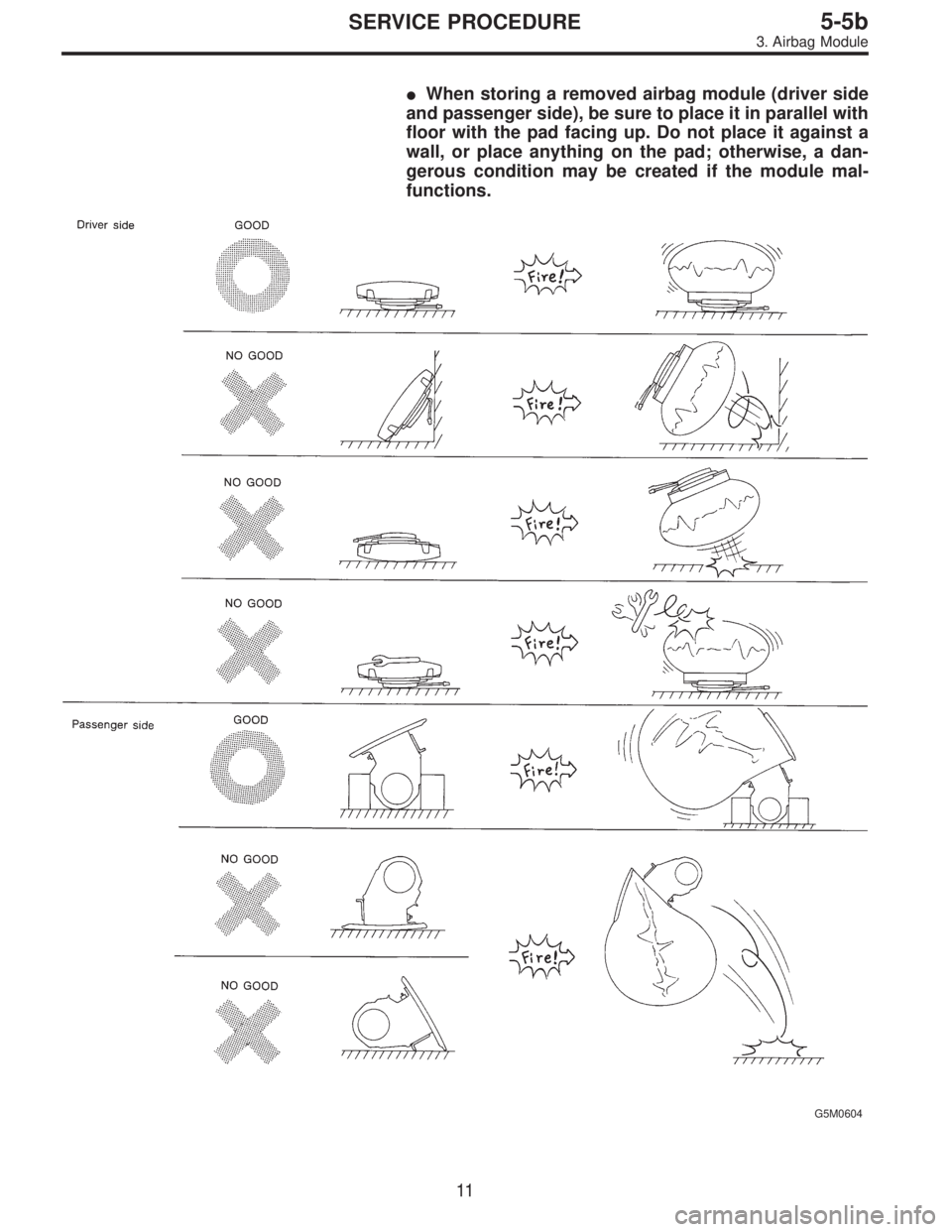

SUBARU LEGACY 1997 Service Repair Manual When storing a removed airbag module (driver side and passenger side), be sure to place it in parallel with floor with the pad facing up. Do not place it against a wall, or place anything on the pad;

Page 1687 of 3342

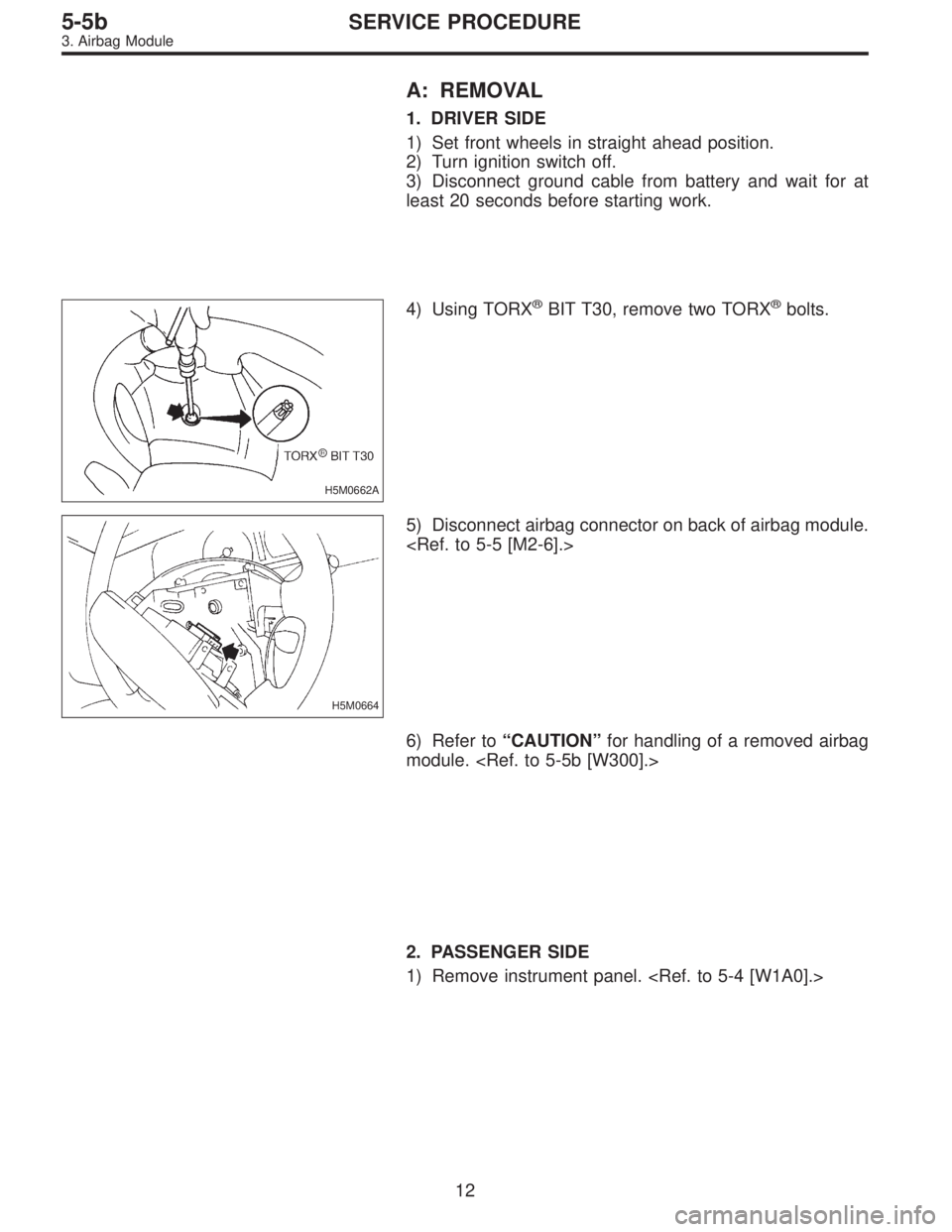

SUBARU LEGACY 1997 Service Repair Manual A: REMOVAL 1. DRIVER SIDE 1) Set front wheels in straight ahead position. 2) Turn ignition switch off. 3) Disconnect ground cable from battery and wait for at least 20 seconds before starting work. H5

Page 1688 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0098 2) Remove four bolts and then carefully remove airbag module. 3) Refer to“CAUTION”for handling of a removed airbag module. B: INSTALLATION Installation is in reverse order of removal proce
