SUBARU LEGACY 1997 Service Repair Manual B5M0467A 11. REAR DOOR CATCHER 1) Open the rear door. 2) Using TORX ®BIT (Tamper resistant type), remove rear door catcher. 3) Installation is in the reverse order of removal. Tightening torque: 37±

Page 1602 of 3342

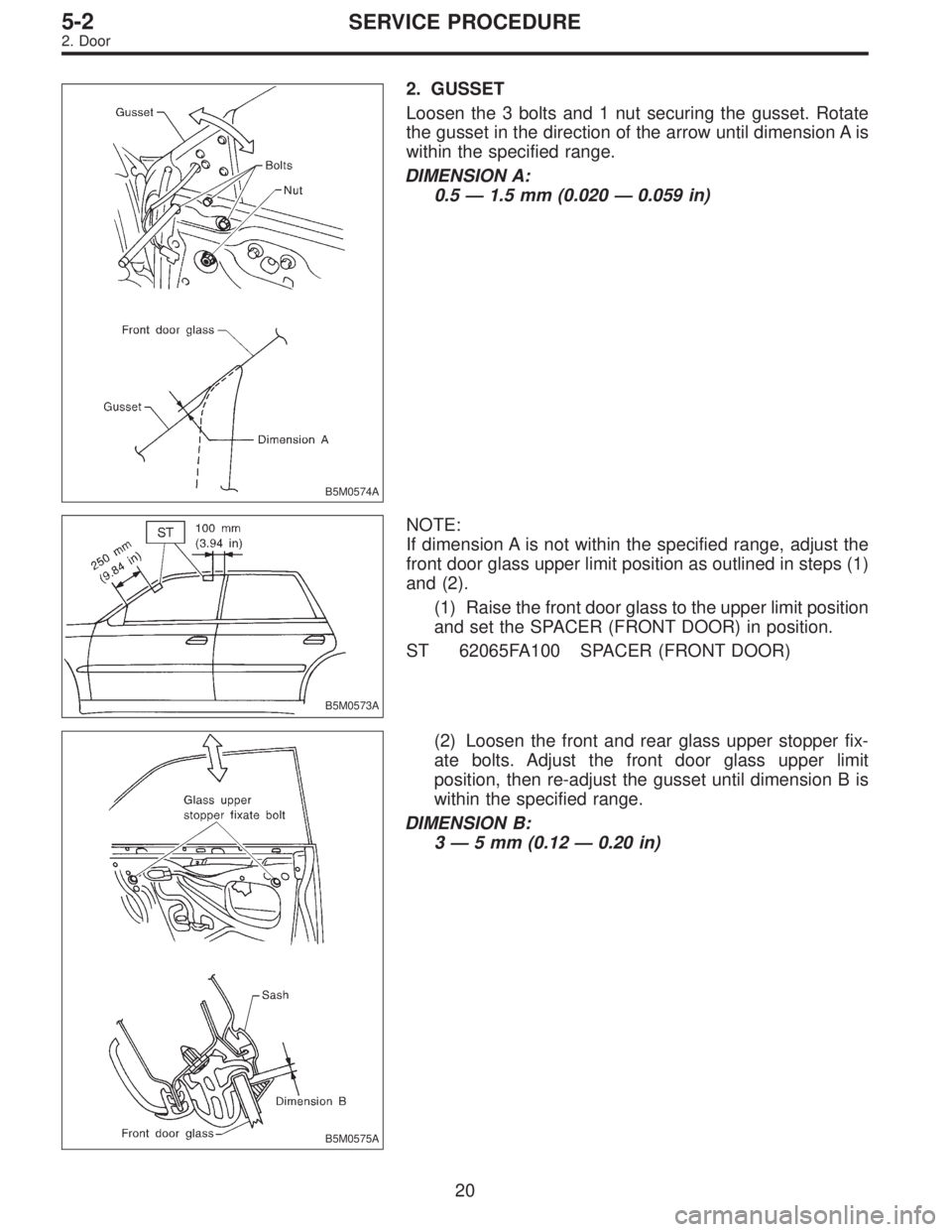

SUBARU LEGACY 1997 Service Repair Manual B5M0574A 2. GUSSET Loosen the 3 bolts and 1 nut securing the gusset. Rotate the gusset in the direction of the arrow until dimension A is within the specified range. DIMENSION A: 0.5 — 1.5 mm (0.020

Page 1603 of 3342

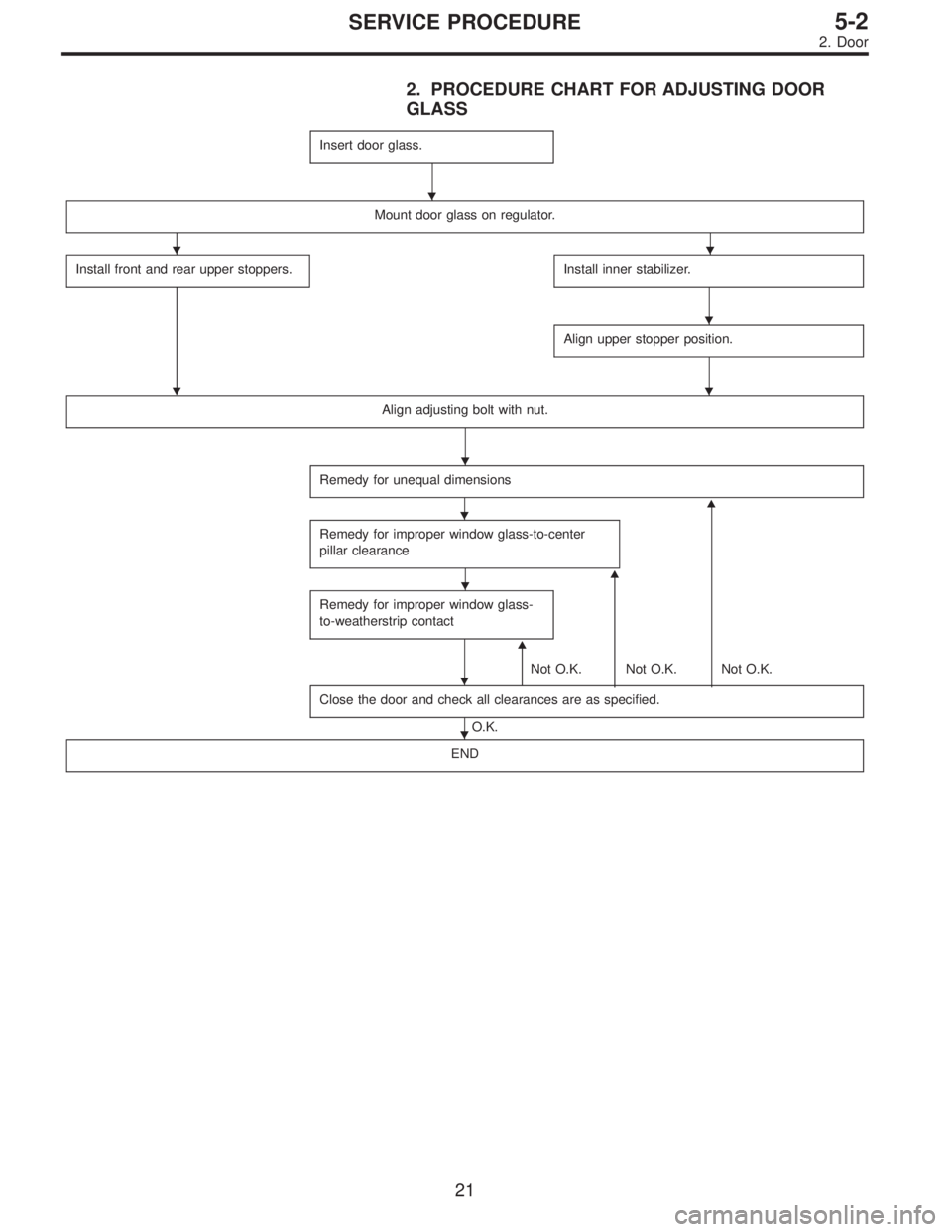

SUBARU LEGACY 1997 Service Repair Manual 2. PROCEDURE CHART FOR ADJUSTING DOOR GLASS Insert door glass. Mount door glass on regulator. Install front and rear upper stoppers.  Install inner stabilizer. Align upper stopper position. Align adj

Page 1604 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. FRONT DOOR GLASS B5M0072A G5M0421 Door glass fit adjustment Before adjusting door glass alignment, ensure adjusting bolts for stabilizers, upper stoppers and sashes are loose and glass is raised s

Page 1605 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3) Lower door glass 10 to 15 mm (0.39 to 0.59 in) from fully closed position. While applying outward pressure (load) to upper edge of glass above midpoint of two outer stabilizers, press inner stabili

Page 1606 of 3342

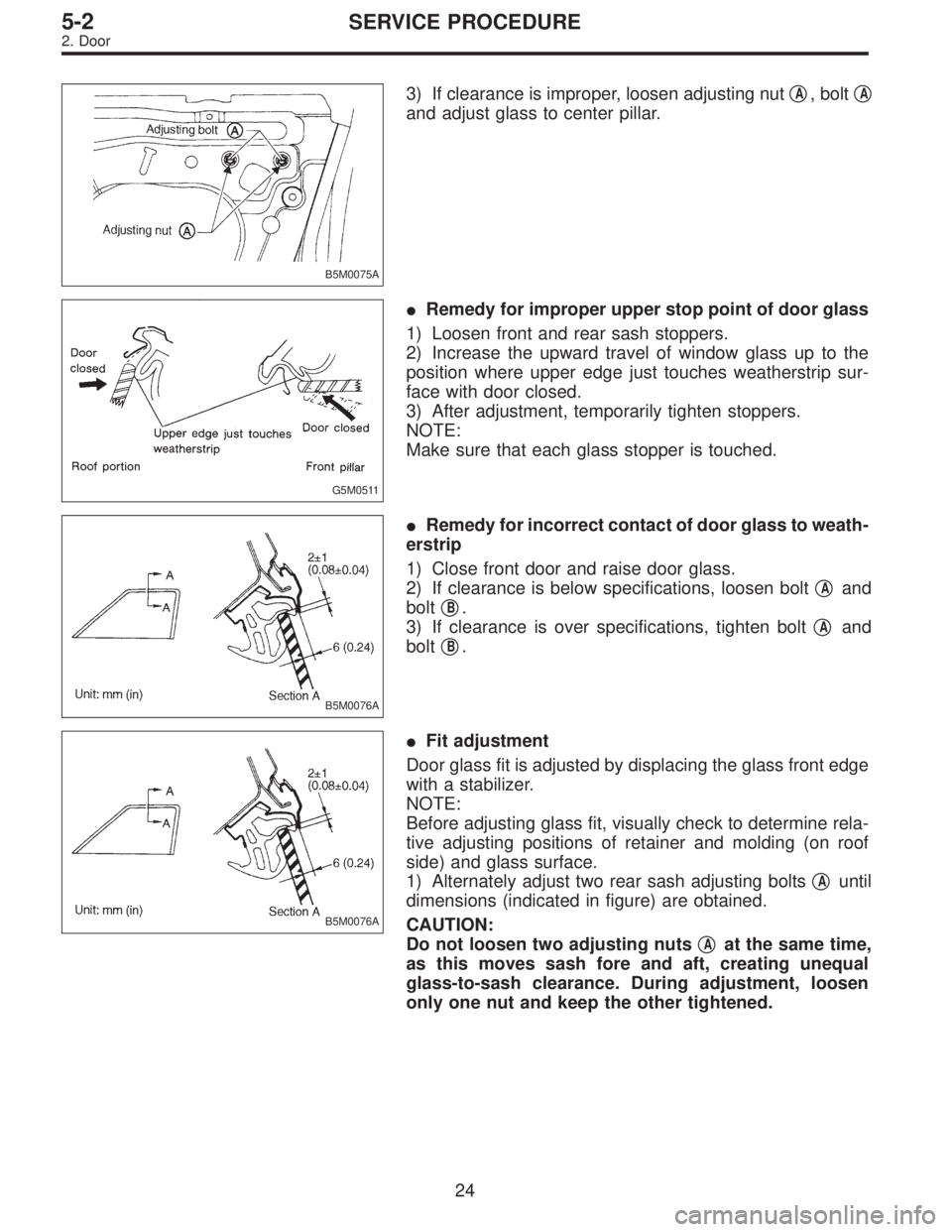

SUBARU LEGACY 1997 Service Repair Manual B5M0075A 3) If clearance is improper, loosen adjusting nutA, boltA and adjust glass to center pillar. G5M0511 Remedy for improper upper stop point of door glass 1) Loosen front and rear sash stoppe

Page 1607 of 3342

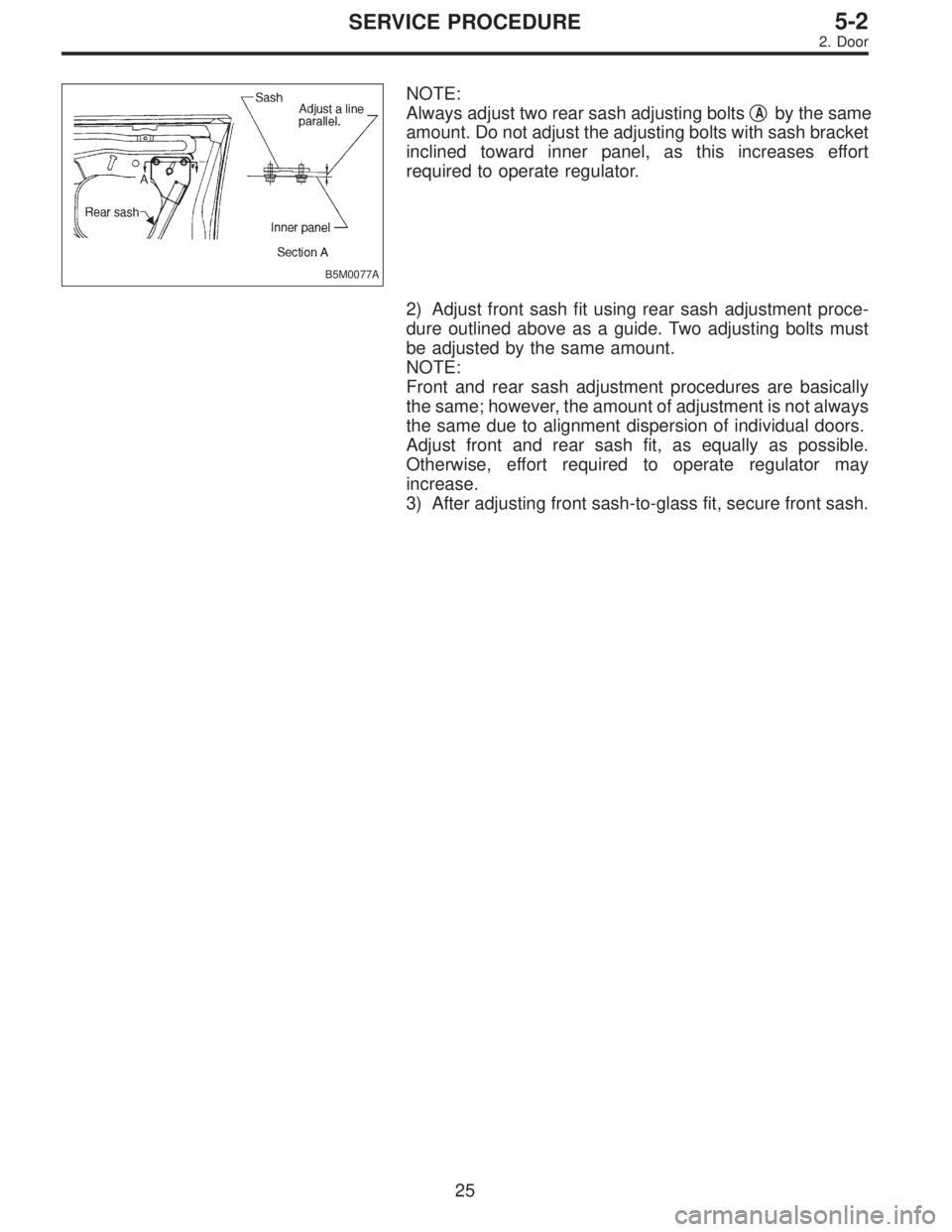

SUBARU LEGACY 1997 Service Repair Manual B5M0077A NOTE: Always adjust two rear sash adjusting bolts Aby the same amount. Do not adjust the adjusting bolts with sash bracket inclined toward inner panel, as this increases effort required to o

Page 1608 of 3342

SUBARU LEGACY 1997 Service Repair Manual 4. REAR DOOR GLASS Alignment of rear door glass is basically the same as for the front door glass. Due to slight difference in adjustment dimensions for fore-aft, up-down, and in-out alignments, key p
