Page 1537 of 3342

SUBARU LEGACY 1997 Service Repair Manual 6. Sunroof B5M0370A 1Glass lid ASSY  2Deflector and guide rail ASSY  3Guide rail cover  4Frame ASSY  5Motor ASSY  6Drain ASSY  7Sun shade  8Drain tube  9Garnish  10Set bracket Tightening tor

Page 1538 of 3342

SUBARU LEGACY 1997 Service Repair Manual 7. Steering Support Beam B5M0264A 1Bracket  2Steering beamTightening torque: N⋅m (kg-m, ft-lb) T: 32±10 (3.3±1.0, 23.9±7) 29 5-1COMPONENT PARTS 7. Steering Support Beam

Page 1539 of 3342

SUBARU LEGACY 1997 Service Repair Manual 8. Guard Pipe B5M0371A 1Guard pipe  2Rear floor panelTightening torque: N⋅m (kg-m, ft-lb) T: 32±10 (3.3±1.0, 23.9±7) 30 5-1COMPONENT PARTS 8. Guard Pipe

Page 1540 of 3342

SUBARU LEGACY 1997 Service Repair Manual 9. Front Bumper (Outback with step roof) B5M0404A 1Bumper face  2Front bumper beam  3Bracket  4Stay  5Back beam (Front)  6E-A foam (Front)  7Holder  8Back beam bracket Tightening torque: N⋅m

Page 1541 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10. Rear Bumper (Outback with step roof) B5M0405A 1Bumper beam  2Bracket (Side)  3Bumper surface  4E-A foam (Rear)  5Lower bracket (Side) Tightening torque: N⋅m (kg-m, ft-lb) T: 93±25 (9.5±2.

Page 1542 of 3342

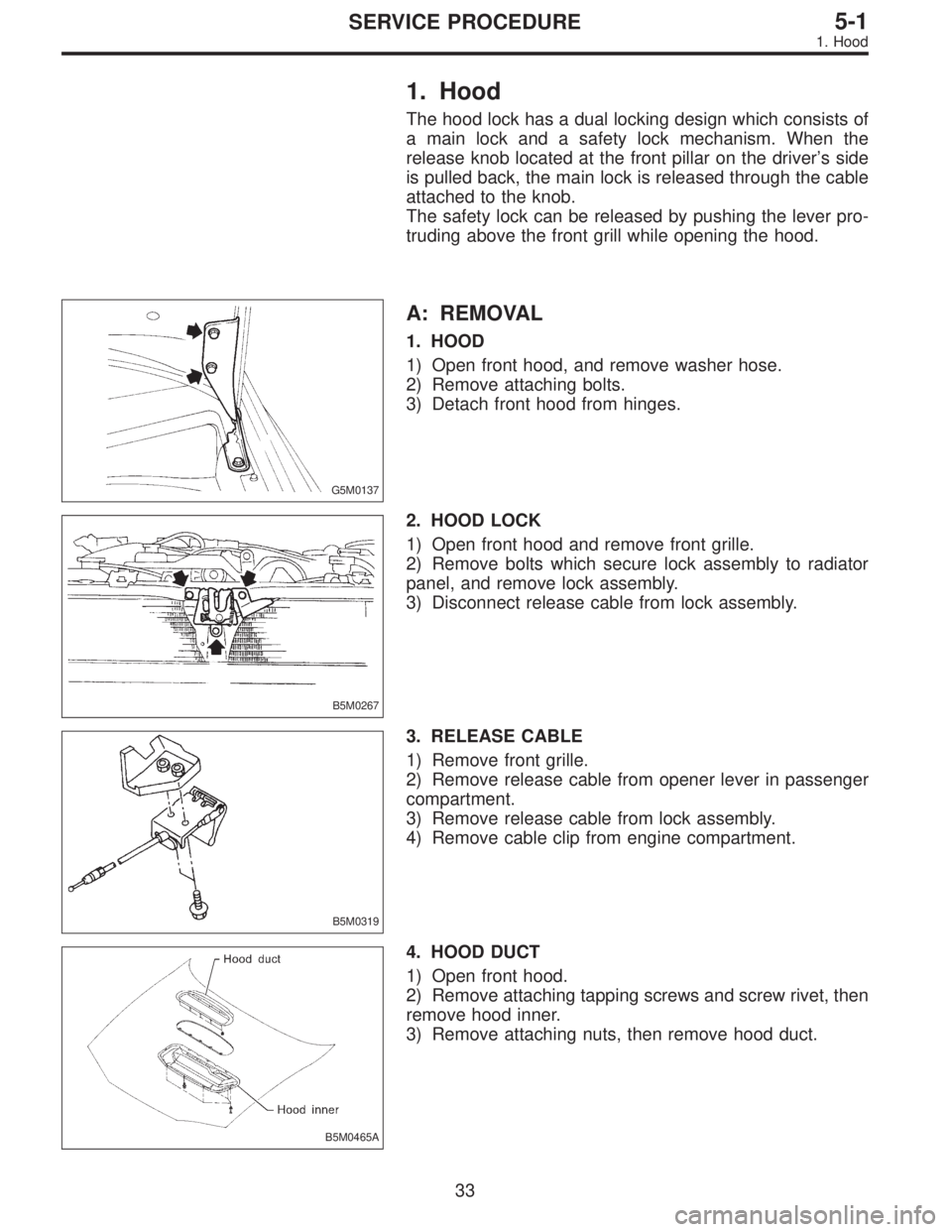

SUBARU LEGACY 1997 Service Repair Manual 1. Hood The hood lock has a dual locking design which consists of a main lock and a safety lock mechanism. When the release knob located at the front pillar on the driver’s side is pulled back, the

Page 1543 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0140 B: POINTS TO CHECK 1) Check striker for bending or abnormal wear. 2) Check safety lever for improper movement. 3) Check other levers and spring for rust formation and unsmooth movement. G5M014

Page 1544 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0144 2. Trunk Lid A: REMOVAL 1. TRUNK LID 1) Open trunk lid. 2) Remove trunk lid mounting bolts and detach trunk lid from hinges. G5M0145 2. TORSION BAR 1) Open trunk lid. Remove torsion bars from
