4. REAR DRIVE SHAFT ASSEMBLY (AWD MODEL)
Type of drive shaft assemblySHAFT
No. of identification paddings on shaft
79AC-RH 1 (One)
79AC-LH 1 (One)
B4M0547A
5. APPLICATION TABLE
Model Power unitFront drive shaft
Rear drive shaft
5MT 4AT
FWD 2200 cc UFJ95+DOJ95 BJ87L+DOJ82RPC-F—
AWD 2200 cc BJ87L+DOJ82RPC-F BJ87L+DOJ82RPC-F 79AC-RH, 79AC-LH
AWD 2500 cc BJ87L+DOJ82RPC-F BJ87L+FTJ87 79AC-RH, 79AC-LH
B: SERVICE DATA
Use specified grease.
Front:
UFJ, BJ — NTG2218 (Part No. 28093AA020)
DOJ (except 2200 cc FWD MT model)
— VU-3A702 (Yellow) (Part No. 23223GA050)
DOJ (2200 cc FWD MT model)
— Molylex No. 2 (Part No. 723223010)
or Sunlight TB2-A
FTJ — SSG 6003 (Part No. 28093TA010)
Rear:
BJ — Molylex No. 2 (Part No. 723223010)
or Sunlight TB2-A
DOJ — VU-3A702 (Yellow) (Part No. 23223GA050)
4
4-2SPECIFICATIONS AND SERVICE DATA
1. Wheels and Axles
Page 1130 of 3342
1. Front Axle
1. 2200 cc
H4M0999A
1Spring pin
2Baffle plate (DOJ)
3Outer race (DOJ)
4Snap ring
5Inner race (DOJ)
6Ball
7Cage
8Circlip
9Boot band
10Boot (DOJ)
11Boot (UFJ)
12UFJ ASSY
13Baffle plate
14Oil seal (IN)
15Snap ring
16Bearing
17Housing
18Oil seal (OUT)
19Tone wheel
20Hub bolt
21Hub
22Axle nut
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 13±3 (1.3±0.3, 9.4±2.2)
T2: 186±20 (19±2, 137±14)
5
4-2COMPONENT PARTS
1. Front Axle
Page 1131 of 3342
2. 2500 cc
B4M0773A
1O-ring
2Baffle plate (FTJ)
3Spring pin
4Outer race (FTJ)
5Snap ring
6Trunnion
7Free ring
8Circlip
9Boot band
10Boot (FTJ)
11Boot (BJ)
12BJ ASSY
13Baffle plate
14Oil seal (IN)
15Snap ring
16Bearing
17Housing
18Oil seal (OUT)
19Tone wheel
20Hub bolt
21Hub
22Axle nut
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 13±3 (1.3±0.3, 9.4±2.2)
T2: 186±20 (19±2, 137±14)
6
4-2COMPONENT PARTS
1. Front Axle
Page 1132 of 3342
2. Rear Axle
1. AWD MODEL
B4M0704A
1Baffle plate (DOJ)
2Outer race (DOJ)
3Snap ring
4Inner race
5Ball
6Cage
7Circlip
8Boot band
9Boot (DOJ)
10Boot (BJ)
11BJ ASSY
12Oil seal (IN. No. 2)
13Oil seal (IN. No. 3)
14Housing
15Bearing
16Snap ring
17Oil seal (OUT)
18Tone wheel
19Hub bolt
20Hub
21Axle nut
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 13±3 (1.3±0.3, 9.4±2.2)
T2: 186±20 (19±2, 137±14)
7
4-2COMPONENT PARTS
2. Rear Axle
Page 1133 of 3342

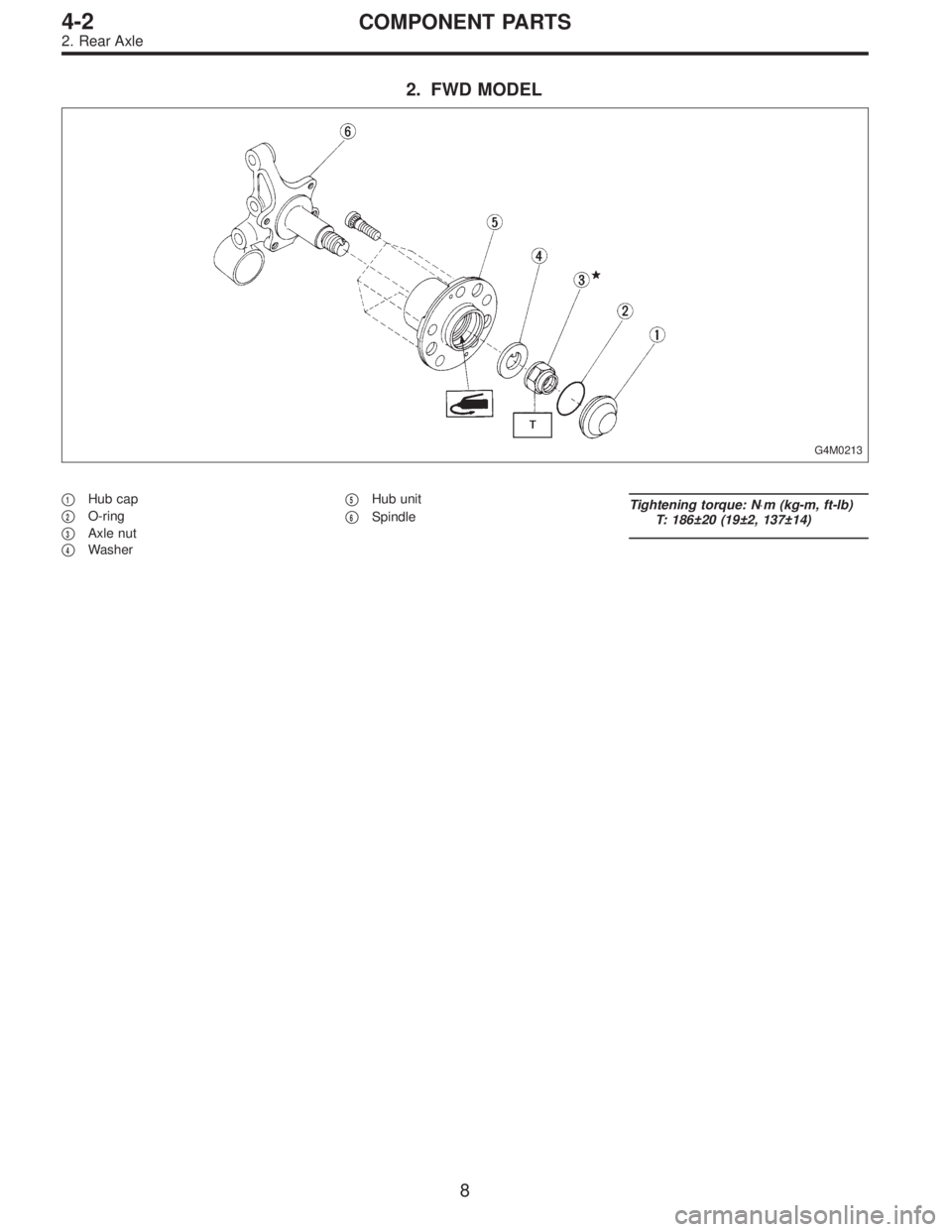

2. FWD MODEL
G4M0213
1Hub cap
2O-ring
3Axle nut
4Washer
5Hub unit
6SpindleTightening torque: N⋅m (kg-m, ft-lb)
T: 186±20 (19±2, 137±14)
8
4-2COMPONENT PARTS
2. Rear Axle
Page 1134 of 3342
1. Front Axle
A: REMOVAL
1) Disconnect ground cable from battery.
2) Jack-up vehicle, support it with safety stands, and
remove front wheels.
G4M0214
3) Unlock axle nut.
4) Remove axle nut using a socket wrench.
CAUTION:
Be sure to loose and retighten axle nut after removing
wheel from vehicle. Failure to follow this rule may dam-
age wheel bearings.
G4M0215
5) Remove stabilizer link.
G4M0216
6) Remove DOJ from transmission spindle.
7) Remove front drive shaft assembly from hub. If it is hard
to remove, use STs.
ST1 926470000 AXLE SHAFT PULLER
ST2 927140000 PLATE
CAUTION:
Be careful not to damage oil seal lip when removing
front drive shaft.
When replacing front drive shaft, also replace inner
oil seal.
8) Remove disc brake caliper from housing, and suspend
it from strut using a wire.
9
4-2SERVICE PROCEDURE
1. Front Axle
Page 1135 of 3342
G4M0217
9) Remove disc rotor from hub.
If disc rotor seizes up within hub, drive disc rotor out by
installing an 8-mm bolt in screw hole on the rotor.
G4M0218
10) Remove cotter pin and castle nut which secure tie-rod
end to housing knuckle arm.
G4M0219
11) Using a puller, remove tie-rod ball joint from knuckle
arm.
G4M0220
12) On A.B.S. equipped models, remove A.B.S. sensor
assembly and harness in advance.
CAUTION:
Be sure to use soft jaws (such as aluminum plates)
when placing the mating surfaces of housing and strut
in a vise.
G4M0221
13) Remove transverse link ball joint from housing.
10
4-2SERVICE PROCEDURE
1. Front Axle
Page 1136 of 3342
G4M0222
14) After scribing an alignment mark on camber adjusting
bolt head, remove bolts which connect housing and strut,
and disconnect housing from strut.
G4M0223

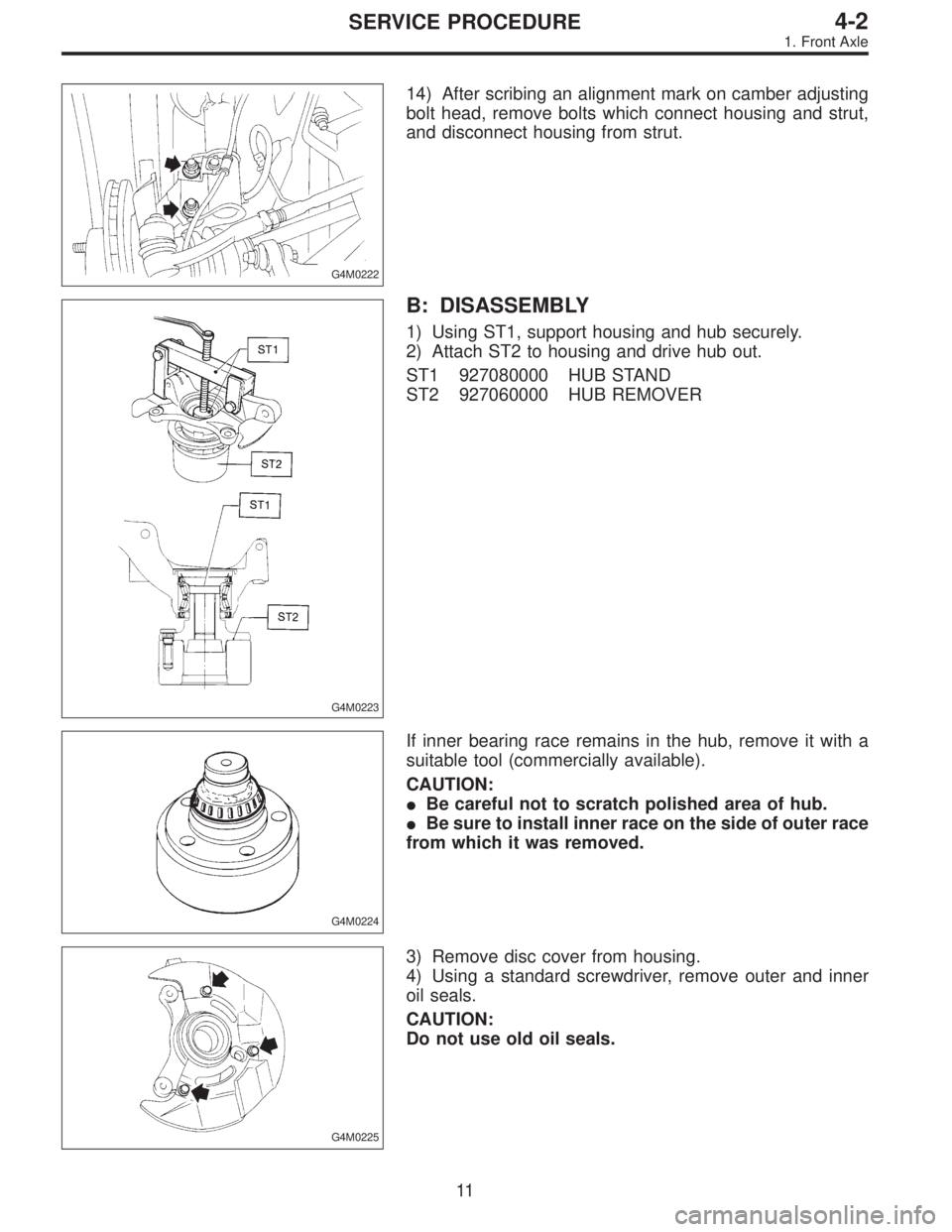

B: DISASSEMBLY
1) Using ST1, support housing and hub securely.
2) Attach ST2 to housing and drive hub out.
ST1 927080000 HUB STAND
ST2 927060000 HUB REMOVER
G4M0224
If inner bearing race remains in the hub, remove it with a
suitable tool (commercially available).
CAUTION:
Be careful not to scratch polished area of hub.
Be sure to install inner race on the side of outer race
from which it was removed.
G4M0225
3) Remove disc cover from housing.
4) Using a standard screwdriver, remove outer and inner
oil seals.
CAUTION:
Do not use old oil seals.
11
4-2SERVICE PROCEDURE
1. Front Axle
