SUBARU LEGACY 1997 Service Repair Manual B4M0838A 8G1 CHECK GROUND CIRCUIT OF ABSCM. 1) Turn ignition switch to OFF. 2) Disconnect connector from ABSCM. 3) Measure resistance between ABSCM and chassis ground. : Connector & terminal (F49) No.

Page 2666 of 3342

SUBARU LEGACY 1997 Service Repair Manual 8G4 CHECK ABSCM. 1) Connect all connectors. 2) Erase the memory. 3) Perform inspection mode. 4) Read out the trouble code. : Is the same trouble code as in the current diagnosis still being output? :

Page 2667 of 3342

SUBARU LEGACY 1997 Service Repair Manual H: TROUBLE CODE 42 —SOURCE VOLTAGE IS LOW.— DIAGNOSIS: Power source voltage of the ABSCM is low. TROUBLE SYMPTOM: ABS does not operate. 8H1.Check generator. 8H2.Check battery terminal. 8H3.Check

Page 2668 of 3342

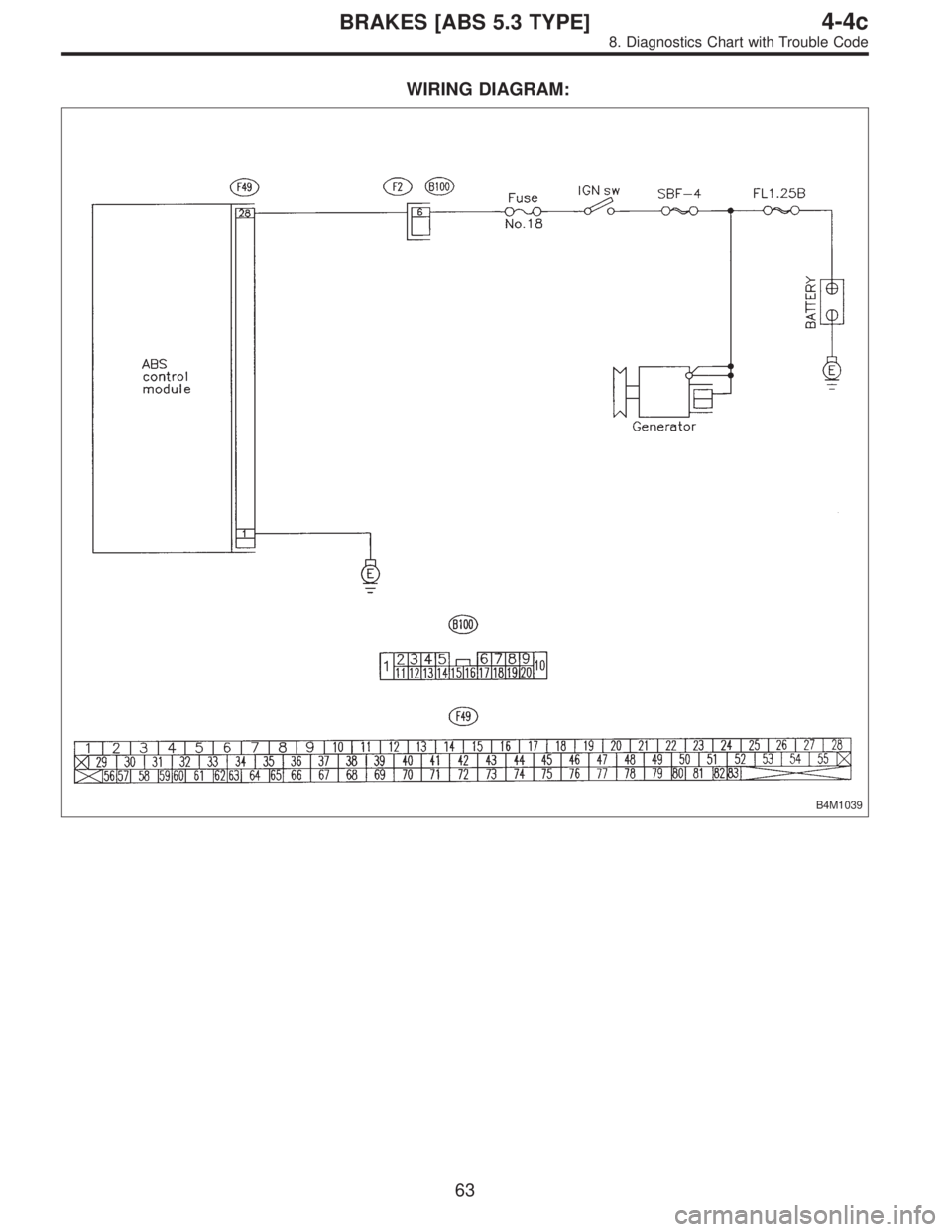

SUBARU LEGACY 1997 Service Repair Manual WIRING DIAGRAM: B4M1039 63 4-4cBRAKES [ABS 5.3 TYPE] 8. Diagnostics Chart with Trouble Code

Page 2669 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0430 8H1 CHECK GENERATOR. 1) Start engine. 2) Idling after warm-up. 3) Measure voltage between generator B terminal and chassis ground. : Terminal Generator B terminal—Chassis ground Is voltage 1

Page 2670 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0843A 8H4 CHECK GROUND CIRCUIT OF ABSCM. 1) Turn ignition switch to OFF. 2) Measure resistance between ABSCM connector and chassis ground. : Connector & terminal (F49) No. 1—Chassis ground Is res

Page 2671 of 3342

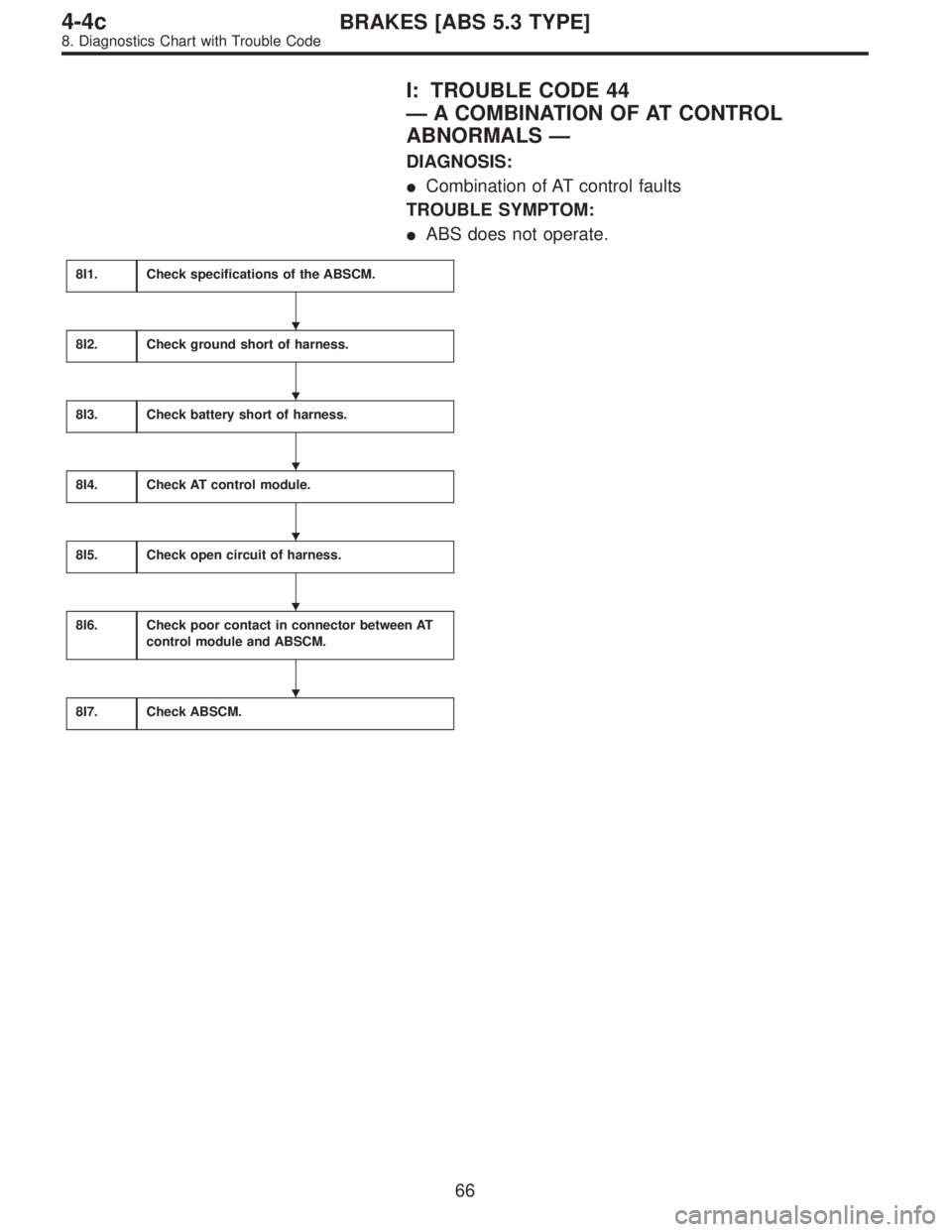

SUBARU LEGACY 1997 Service Repair Manual I: TROUBLE CODE 44 —A COMBINATION OF AT CONTROL ABNORMALS— DIAGNOSIS: Combination of AT control faults TROUBLE SYMPTOM: ABS does not operate. 8I1.Check specifications of the ABSCM. 8I2.Check gro

Page 2672 of 3342

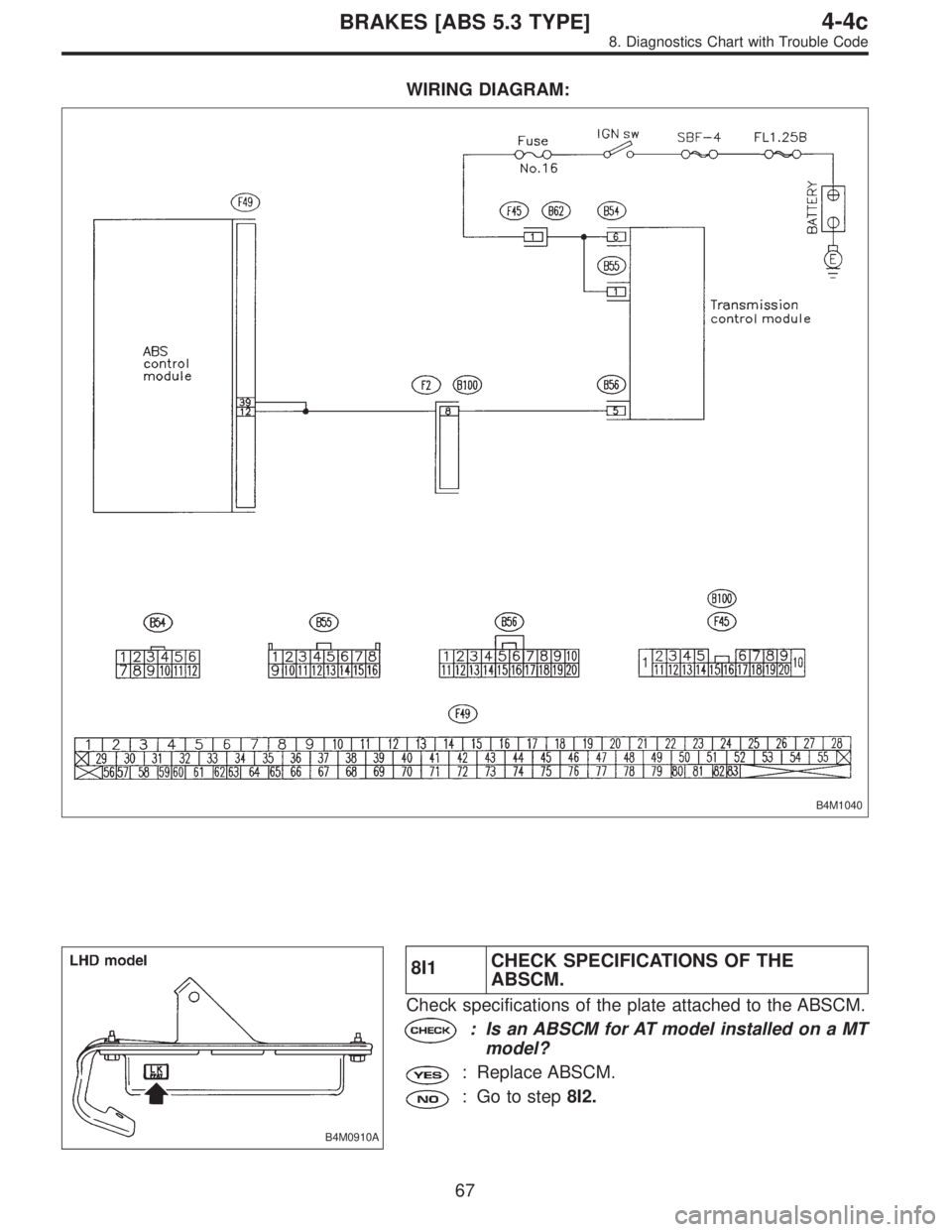

SUBARU LEGACY 1997 Service Repair Manual WIRING DIAGRAM: B4M1040 B4M0910A 8I1CHECK SPECIFICATIONS OF THE ABSCM. Check specifications of the plate attached to the ABSCM. : Is an ABSCM for AT model installed on a MT model? : Replace ABSCM. : G
