Page 2201 of 3342

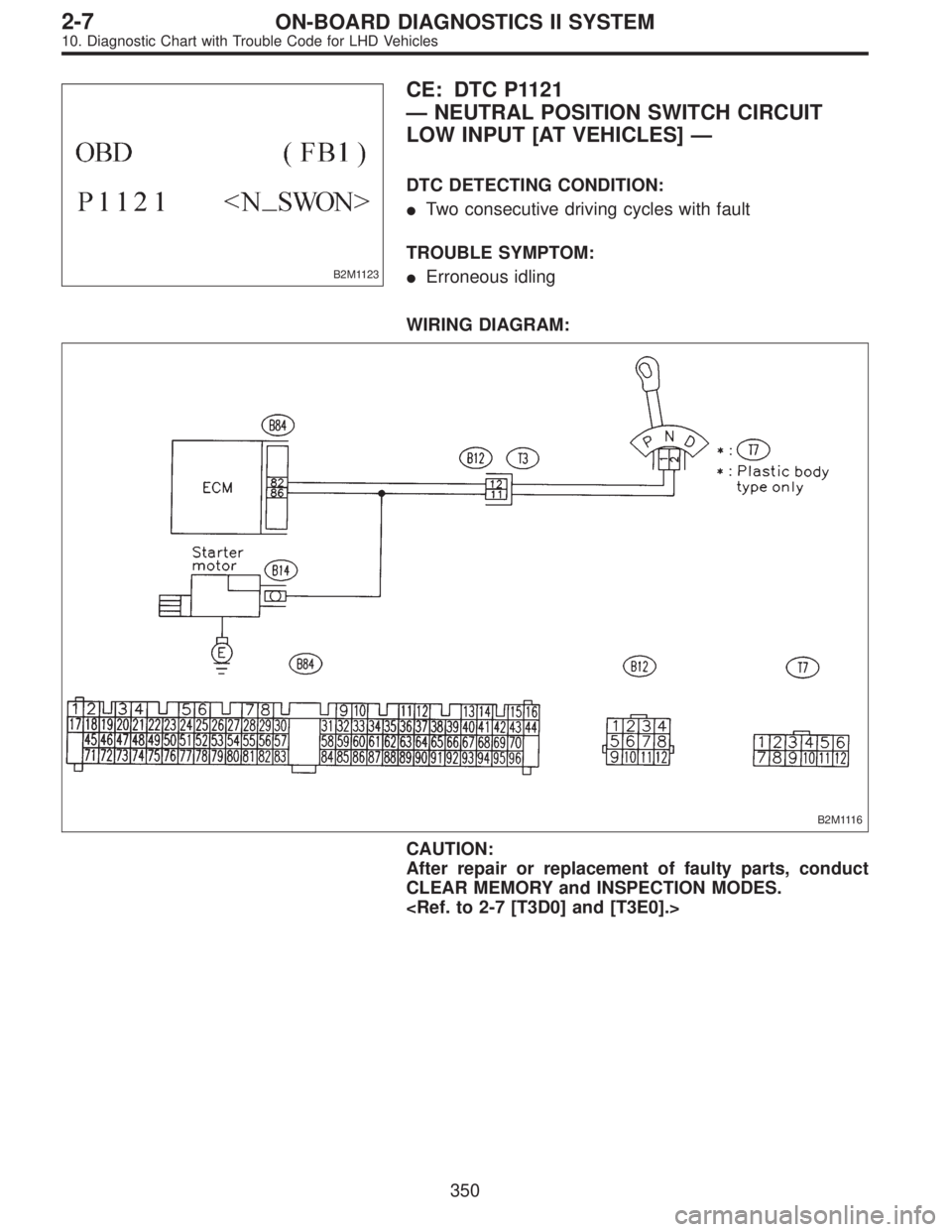

SUBARU LEGACY 1997 Service Repair Manual B2M1123 CE: DTC P1121 —NEUTRAL POSITION SWITCH CIRCUIT LOW INPUT [AT VEHICLES]— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Erroneous idling WIRING DIAGRA

Page 2202 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10CE1 CHECK DTC P0705 ON DISPLAY. : Does the Subaru select monitor or OBD-II general scan tool indicate DTC P0705? : Inspect DTC P0705 using“10. Diagnostics Chart with Trouble Code”. <Ref. to 2-7

Page 2203 of 3342

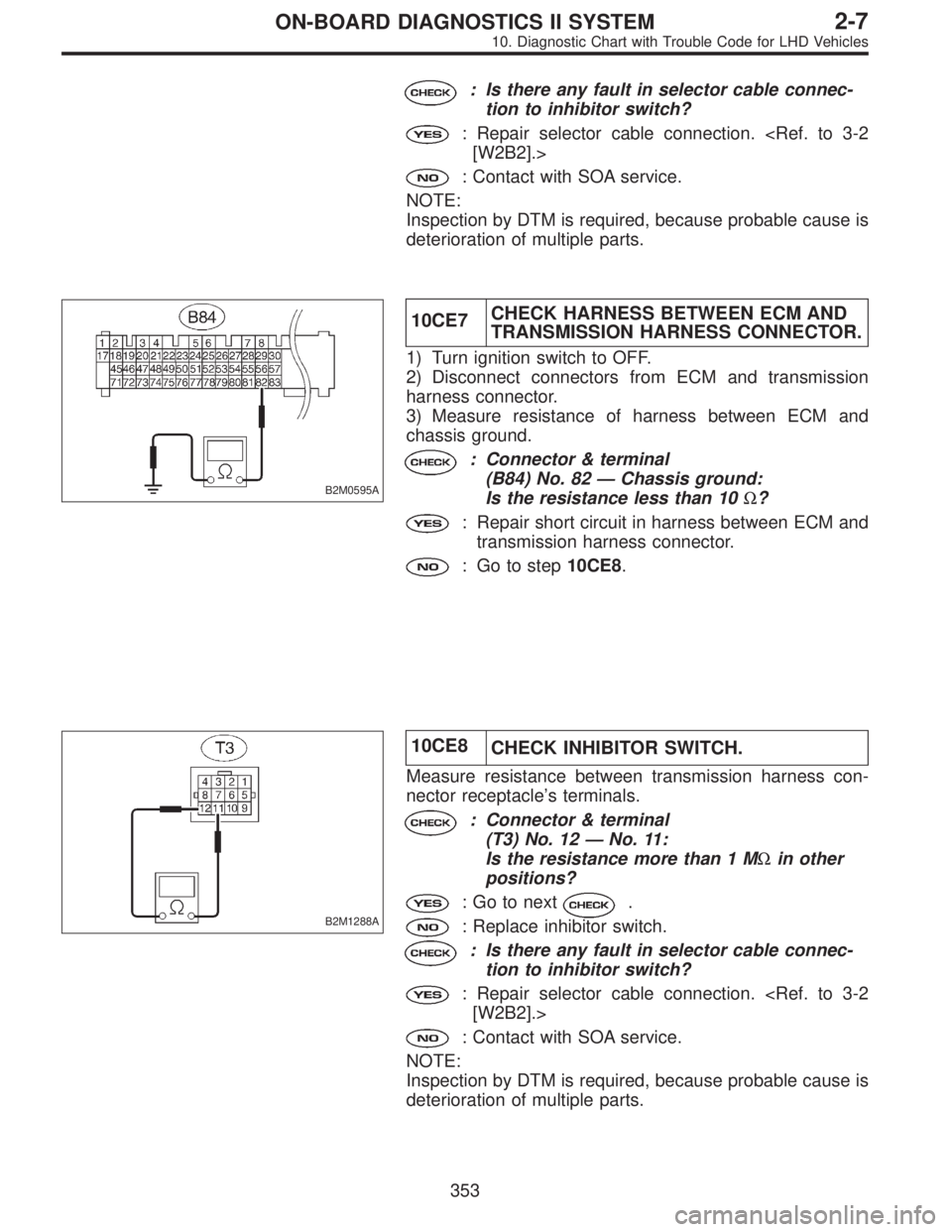

SUBARU LEGACY 1997 Service Repair Manual B2M0595A 10CE4CHECK HARNESS BETWEEN ECM AND TRANSMISSION HARNESS CONNECTOR. 1) Turn ignition switch to OFF. 2) Disconnect connectors from ECM and transmission harness connector. 3) Measure resistance

Page 2204 of 3342

SUBARU LEGACY 1997 Service Repair Manual : Is there any fault in selector cable connec- tion to inhibitor switch? : Repair selector cable connection. <Ref. to 3-2 [W2B2].> : Contact with SOA service. NOTE: Inspection by DTM is required, beca

Page 2205 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1124 CF: DTC P1122 —PRESSURE SOURCES SWITCHING SOLENOID VALVE CIRCUIT HIGH INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Erroneous idling Failure

Page 2206 of 3342

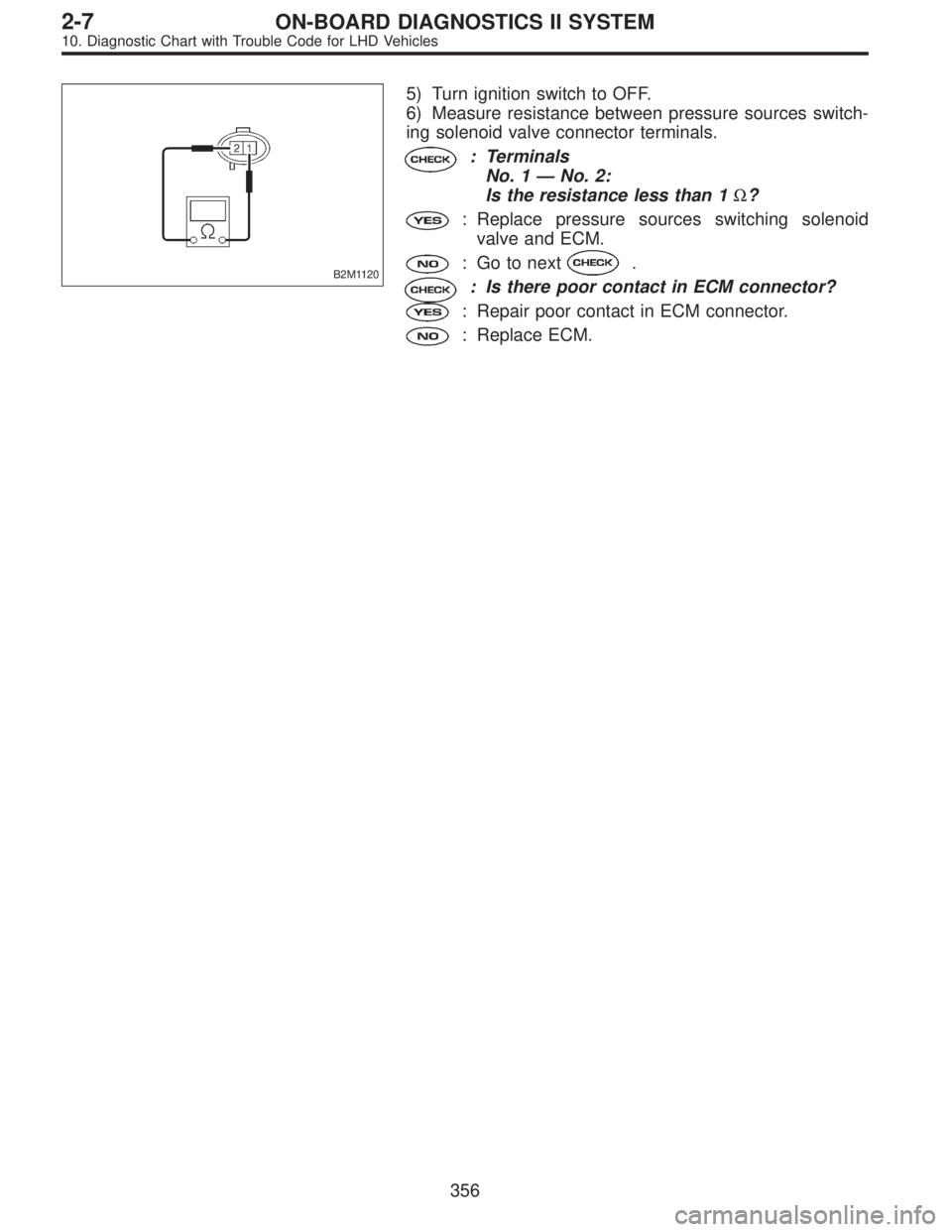

SUBARU LEGACY 1997 Service Repair Manual B2M0596A 10CF1 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 15 (+)—Chassis ground (�): Is the volt

Page 2207 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1120 5) Turn ignition switch to OFF. 6) Measure resistance between pressure sources switch- ing solenoid valve connector terminals. : Terminals No. 1—No. 2: Is the resistance less than 1Ω? : Re

Page 2208 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1125 CG: DTC P1124 —TCS SIGNAL CIRCUIT HIGH INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: No operation TCS TCS warning light remains illuminated.
