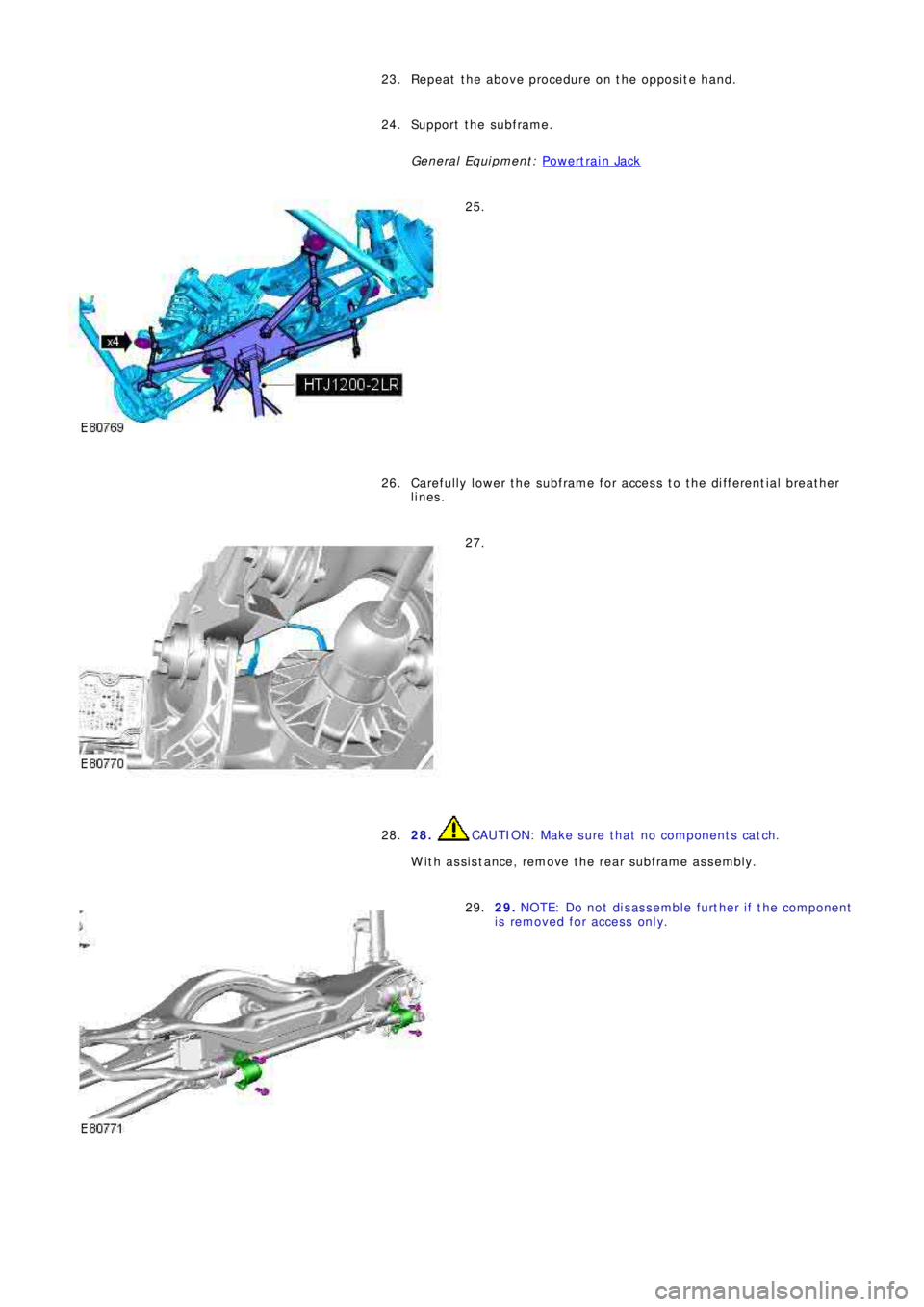

LAND ROVER FRELANDER 2 2006 Repair Manual Repeat the above procedure on the opposite hand. 23. Support the subframe. General Equi pment : P o w e rt ra i n Ja ck 24. 25. Ca re f ul l y l o w e r t he s ub f ra me f o r a cce s s t o t he

Page 2714 of 3229

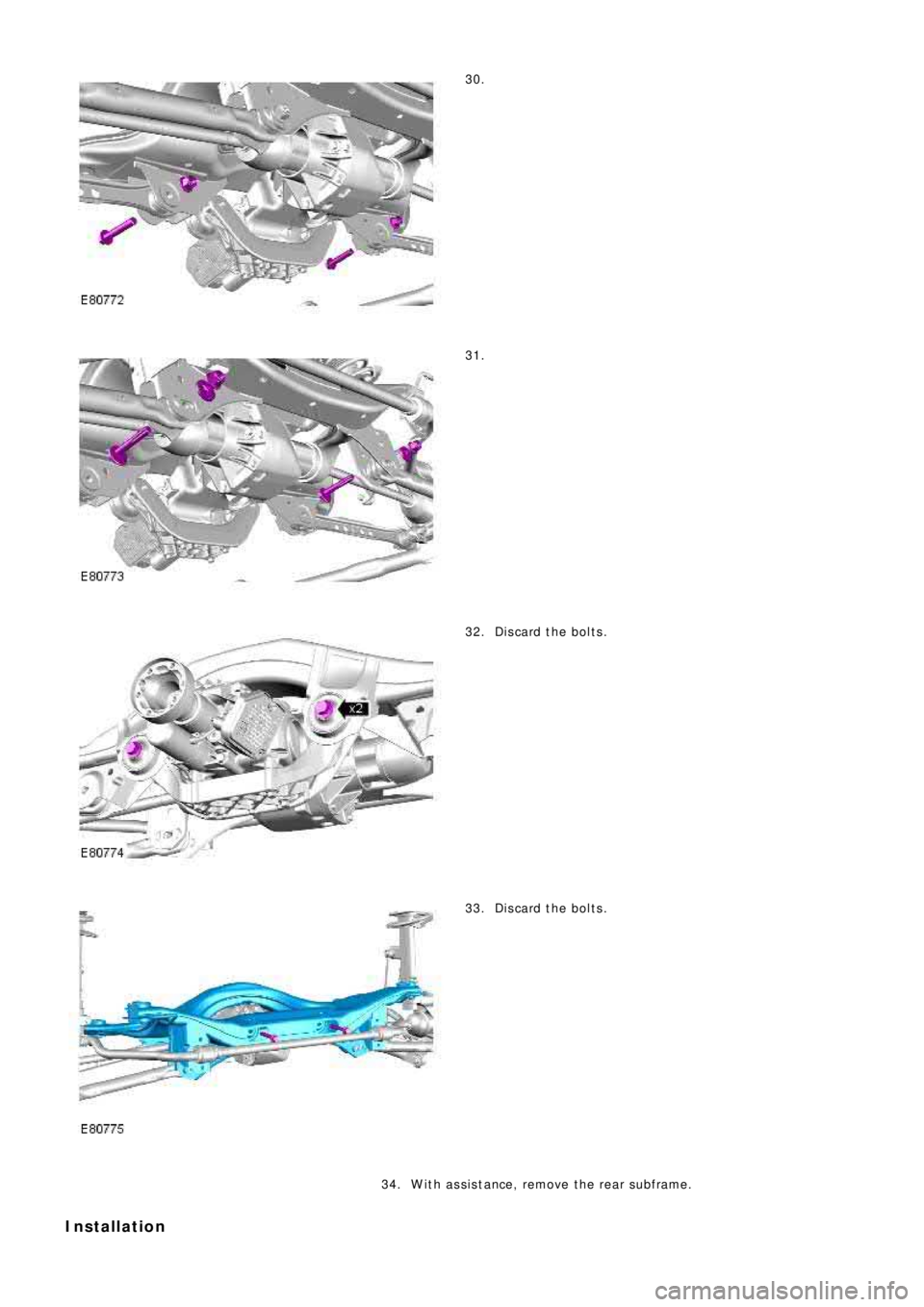

LAND ROVER FRELANDER 2 2006 Repair Manual 30. 31. Discard the bolts. 32. Discard the bolts. 33. With assistance, remove the rear subframe. 34. Installation

Page 2715 of 3229

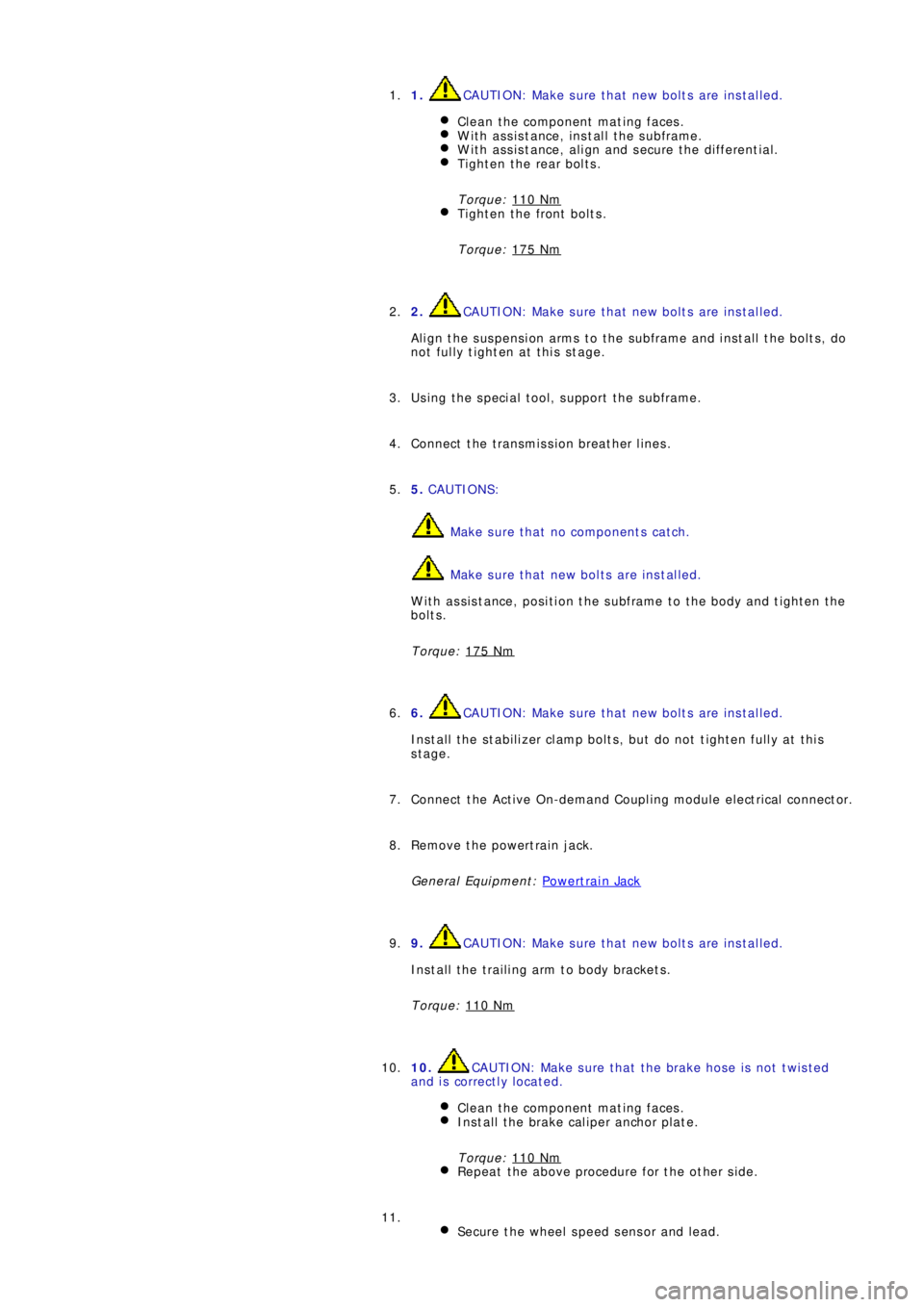

LAND ROVER FRELANDER 2 2006 Repair Manual 1. CAUTION: Make sure that new bolts are installed. Clean the component mating faces. With assistance, install the subframe.With assistance, align and secure the differential.Tighten the rear bolts. T

Page 2716 of 3229

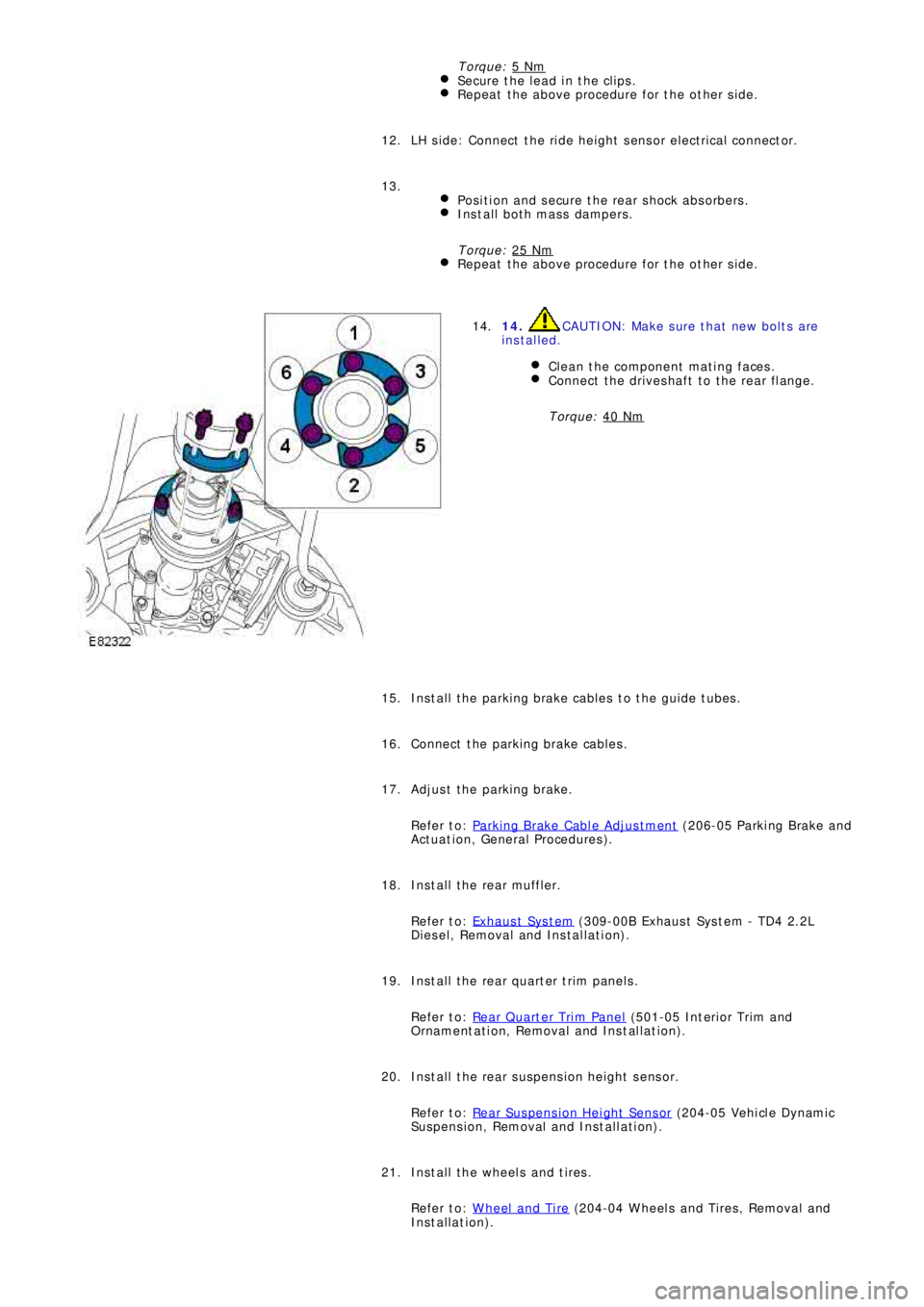

LAND ROVER FRELANDER 2 2006 Repair Manual Torque: 5 NmSecure the lead in the clips.Repeat the above procedure for the other side. LH side: Connect the ride height sensor electrical connector. 12. Position and secure the rear shock absorbers

Page 2717 of 3229

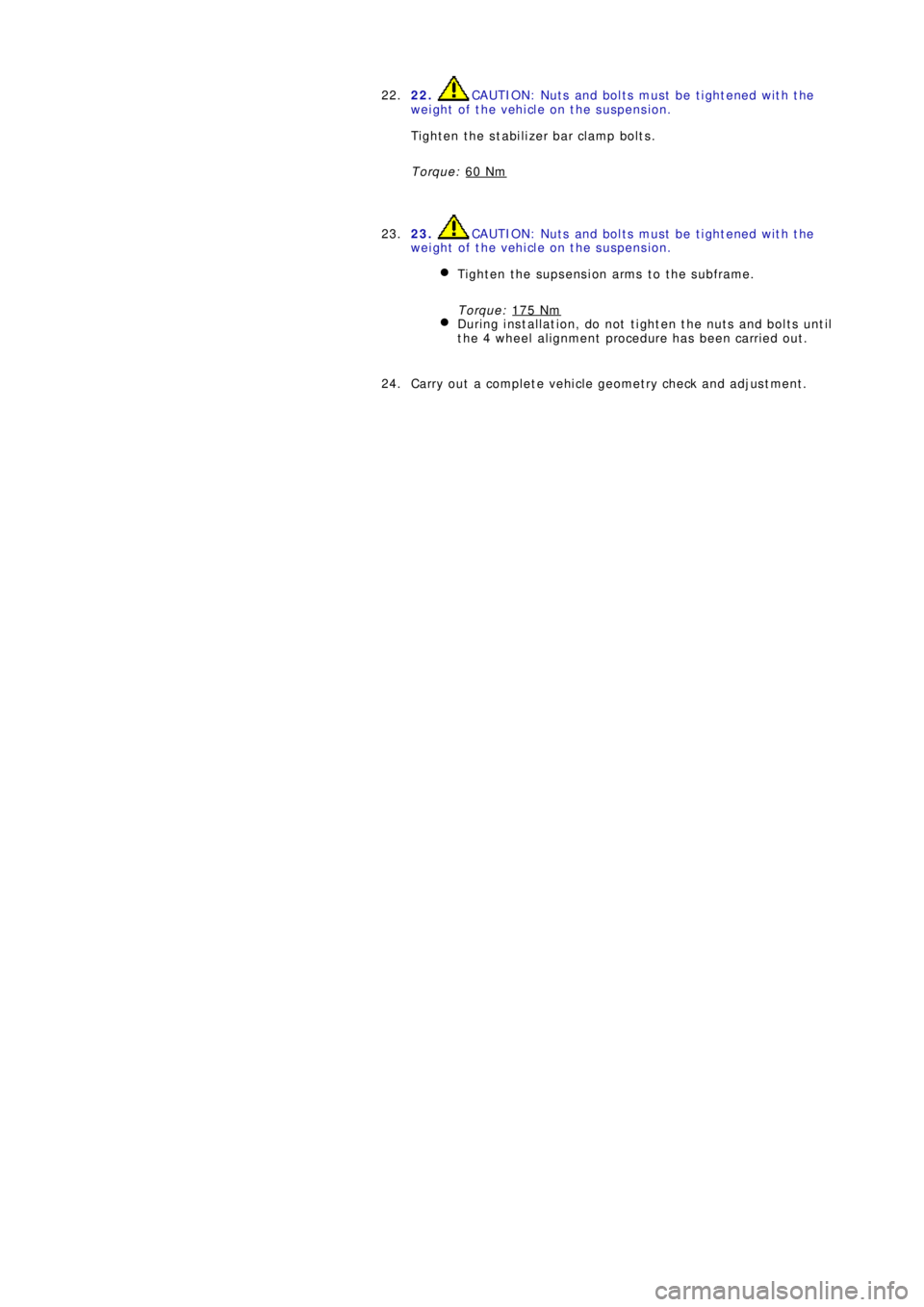

LAND ROVER FRELANDER 2 2006 Repair Manual 22. CAUTION: Nuts and bolts must be tightened with the weight of the vehicle on the suspension. Tighten the stabilizer bar clamp bolts. Torque: 60 Nm22. 23. CAUTION: Nuts and bolts must be tightened

Page 2718 of 3229

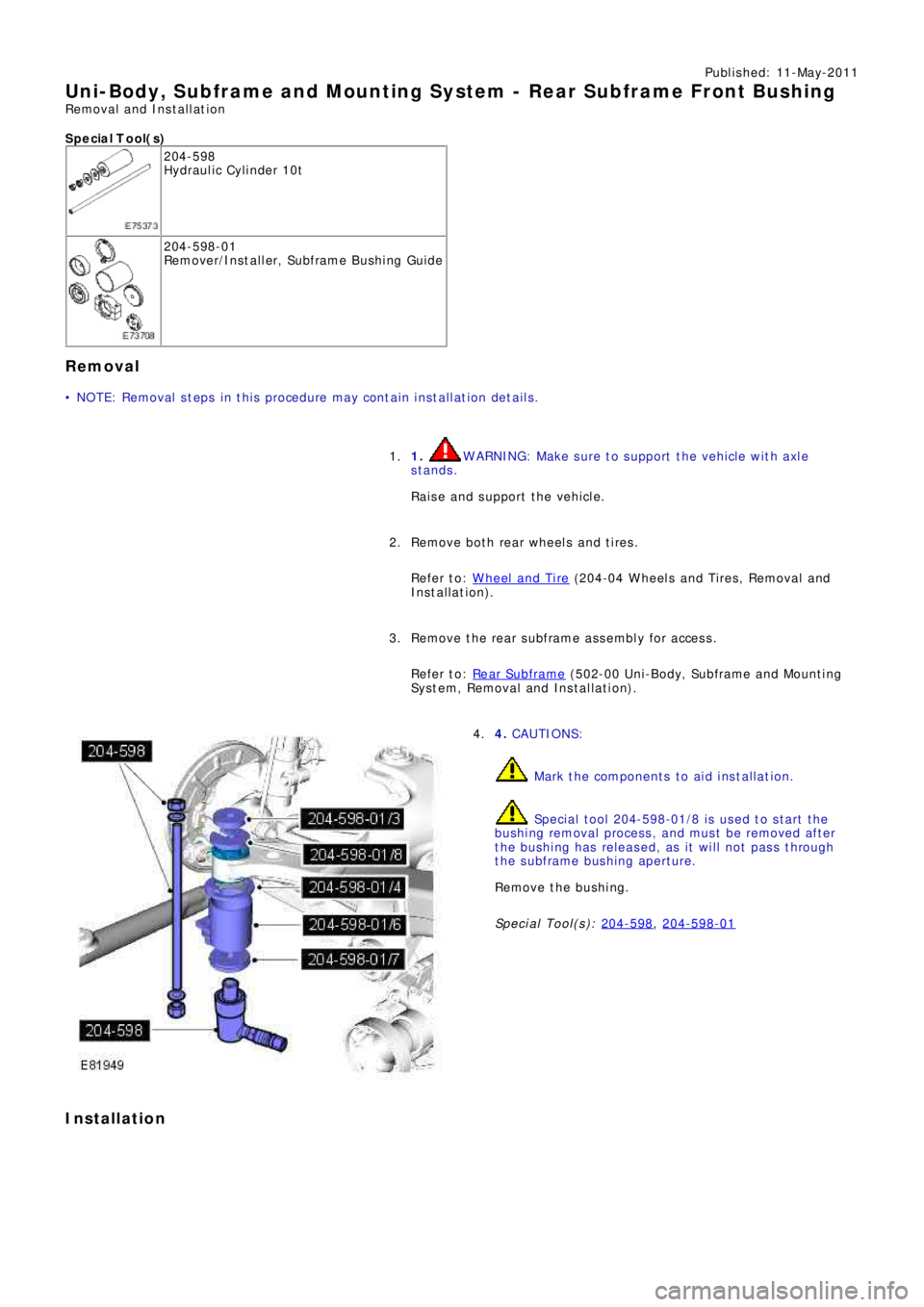

LAND ROVER FRELANDER 2 2006 Repair Manual Publ is hed: 11-May-2011 Uni-Body, Subframe and Mounting Syst em - Rear Subframe Front Bushing Removal and Installation S p e c ia l T o o l( s ) 204-598 Hydraulic Cylinder 10t 204-598-01 Re mo ve r

Page 2719 of 3229

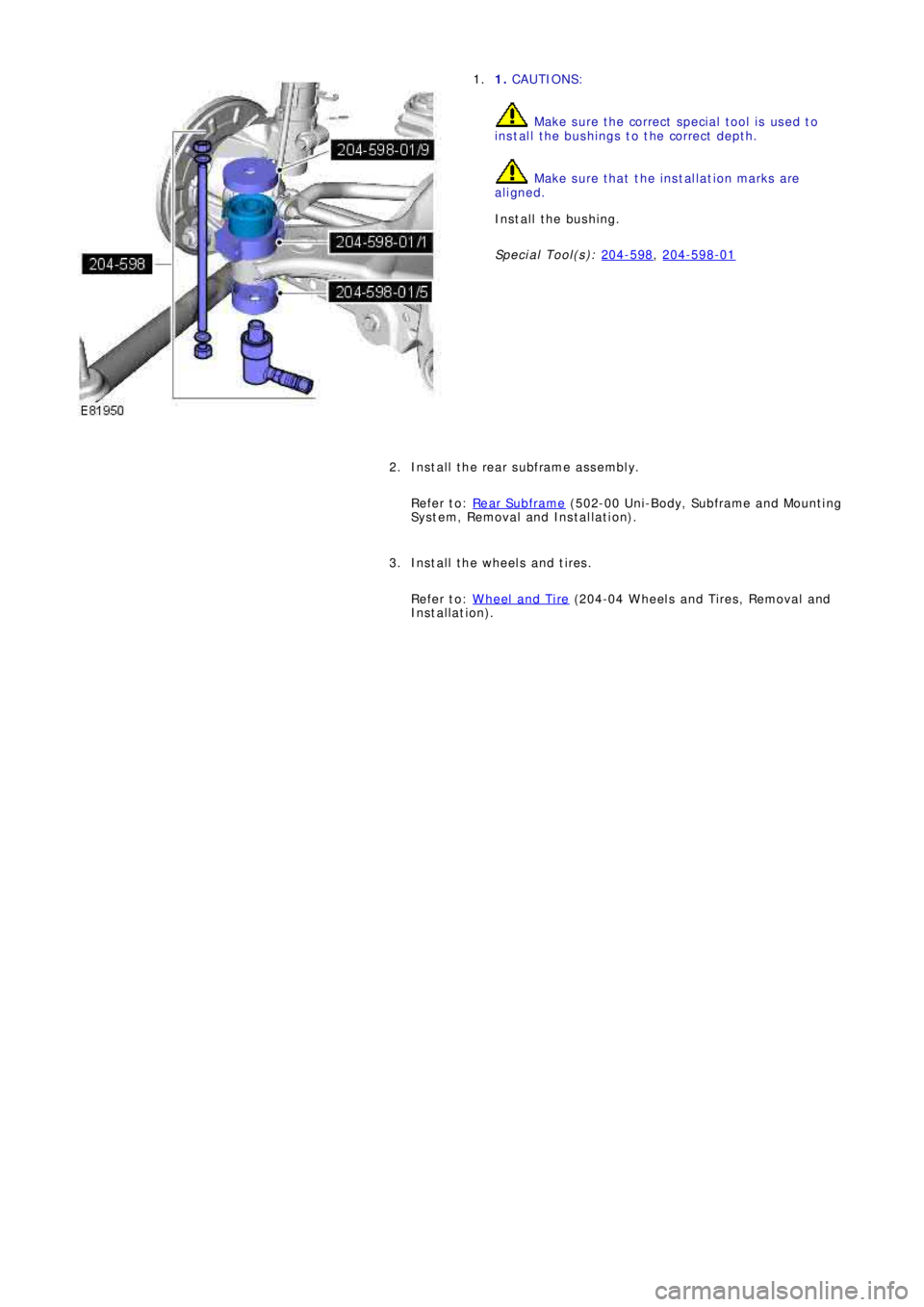

LAND ROVER FRELANDER 2 2006 Repair Manual 1. CAUTIONS: Make sure the correct special tool is used to install the bushings to the correct depth. Make sure that the installation marks are aligned. Install the bushing. Special Tool(s): 2

Page 2720 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publ is hed: 11-May-2011 Uni-Body, Subframe and Mounting Syst em - Rear Subframe Rear Bushing Removal and Installation S p e c ia l T o o l( s ) 204-598 Hydraulic Cylinder 10t 204-598-01 Re mo ve r/
