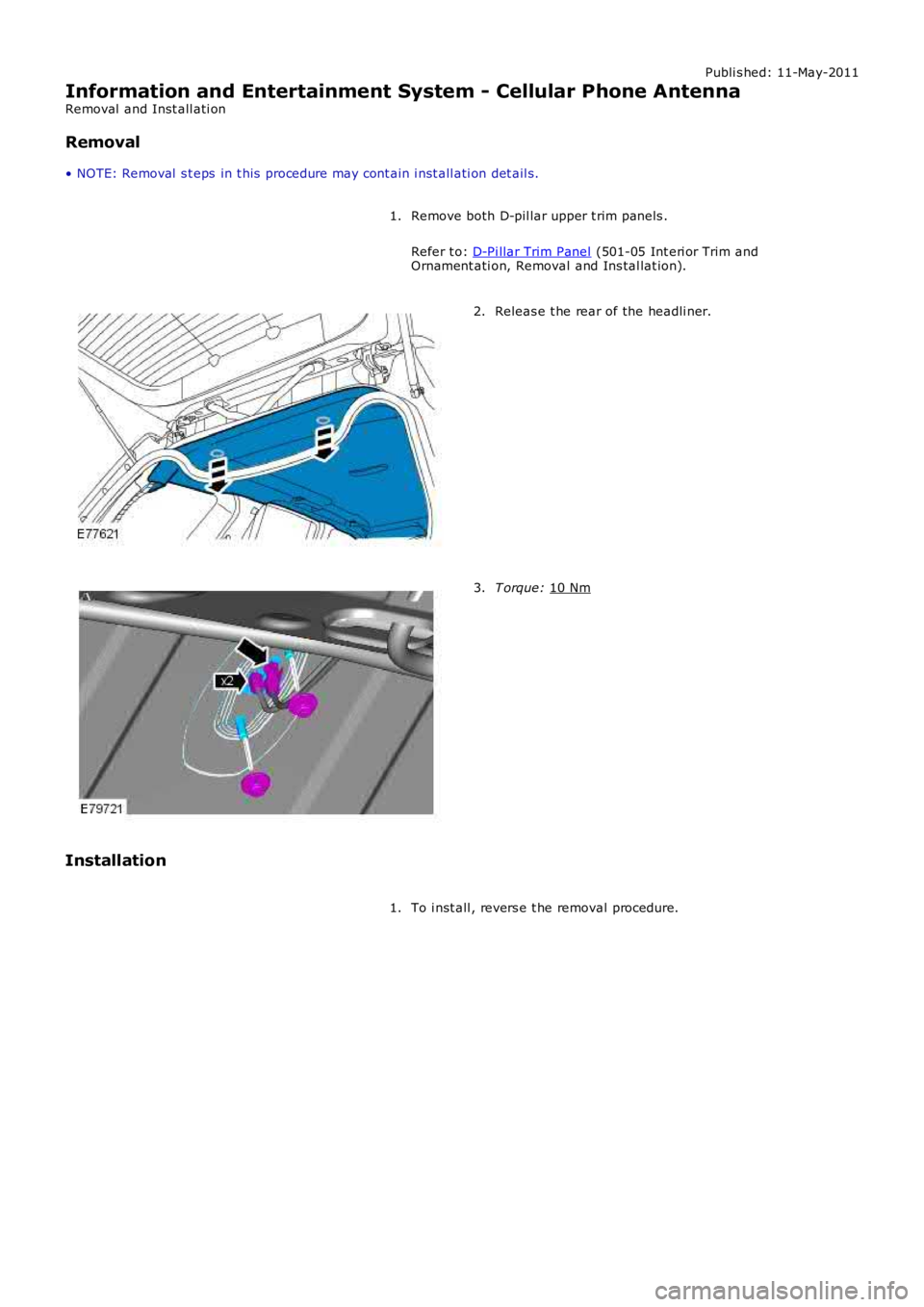

Page 1905 of 3229
Publi s hed: 11-May-2011
Information and Entertainment System - Cellular Phone Antenna
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Remove both D-pil lar upper t rim panels .
Refer t o: D-Pi llar Trim Panel (501-05 Int eri or Trim and
Ornament ati on, Removal and Ins tal lat ion).
1. Releas e t he rear of the headli ner.
2. T orque:
10 Nm 3.
Installation To i nst all , revers e t he removal procedure.
1.

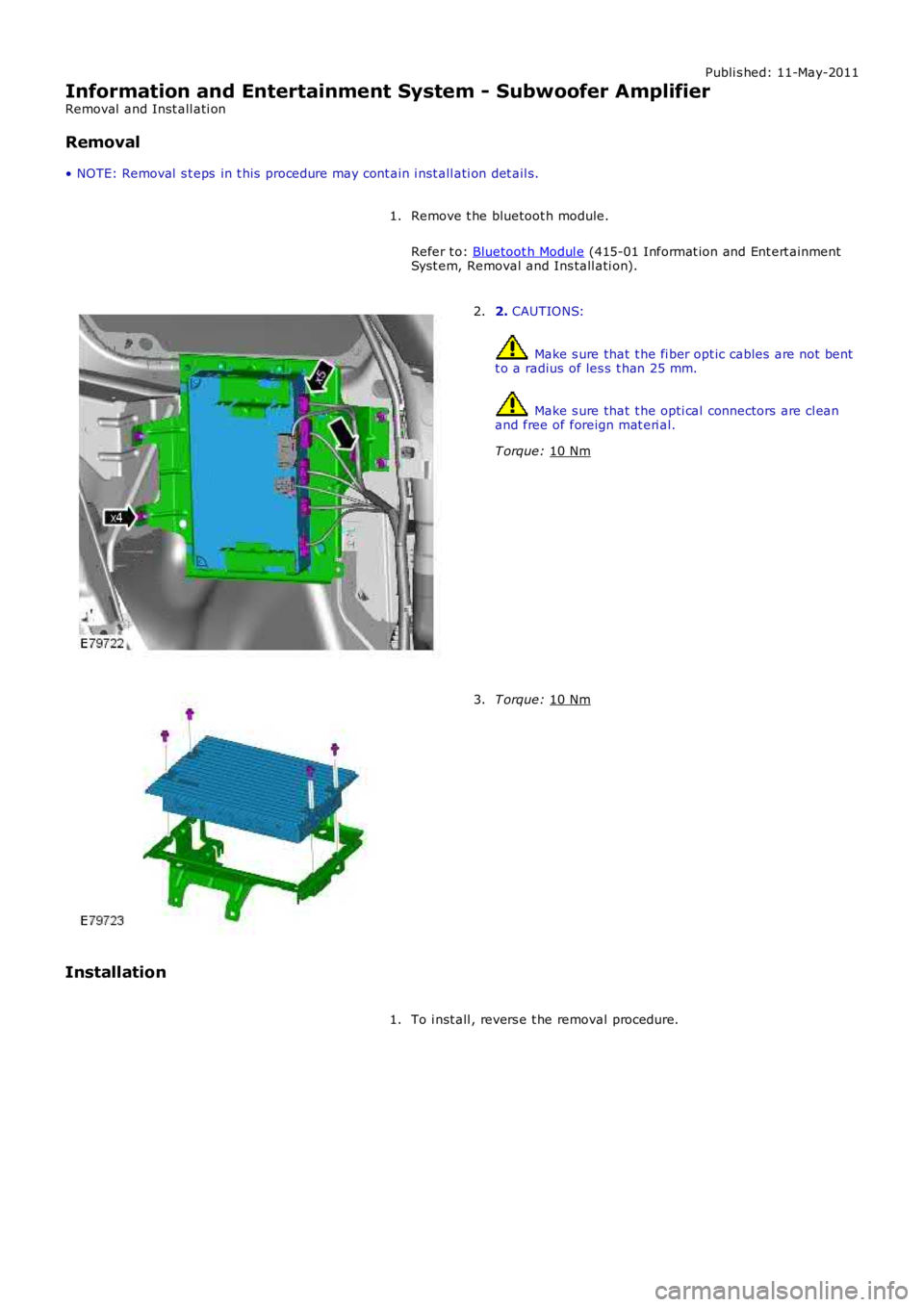

Page 1906 of 3229
Publi s hed: 11-May-2011
Information and Entertainment System - Subwoofer Amplifier
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Remove t he bluetoot h module.
Refer t o: Bluetoot h Modul e (415-01 Informat ion and Ent ert ainment
Syst em, Removal and Ins tall ati on).
1. 2.
CAUTIONS: Make s ure that t he fi ber opt ic cables are not bent
t o a radius of les s t han 25 mm. Make s ure that t he opti cal connectors are cl ean
and free of foreign mat eri al.
T orque: 10 Nm 2.
T orque:
10 Nm 3.
Installation To i nst all , revers e t he removal procedure.
1.

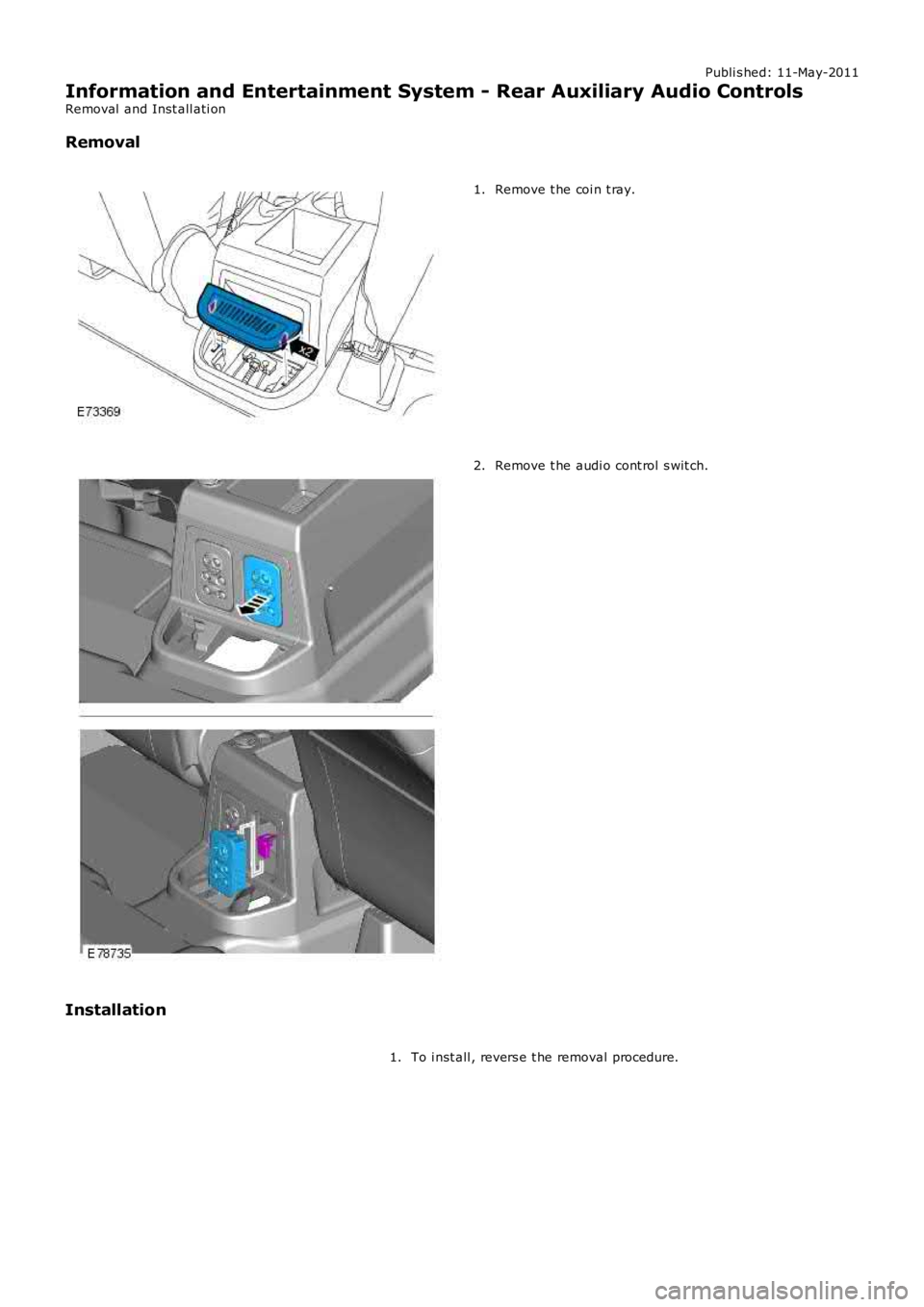

Page 1907 of 3229
Publi s hed: 11-May-2011
Information and Entertainment System - Rear Auxiliary Audio Controls
Removal and Inst all ati on
Removal
Remove t he coi n t ray.1.
Remove t he audi o cont rol s wit ch.2.
Installation
To i nst all , revers e t he removal procedure.1.

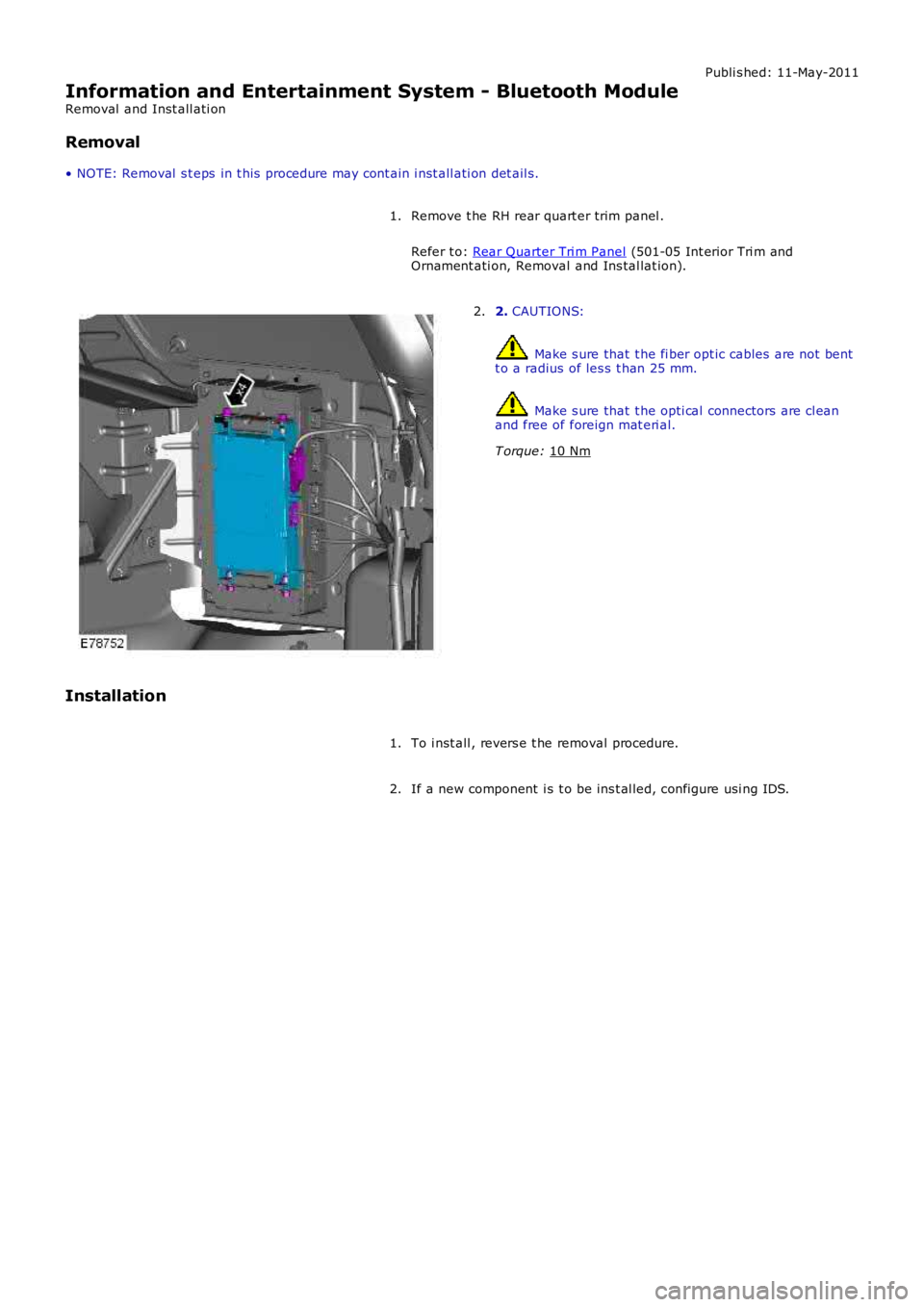

Page 1908 of 3229
Publi s hed: 11-May-2011
Information and Entertainment System - Bluetooth Module
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Remove t he RH rear quart er trim panel .
Refer t o: Rear Quarter Tri m Panel (501-05 Int erior Tri m and
Ornament ati on, Removal and Ins tal lat ion).
1. 2.
CAUTIONS: Make s ure that t he fi ber opt ic cables are not bent
t o a radius of les s t han 25 mm. Make s ure that t he opti cal connectors are cl ean
and free of foreign mat eri al.
T orque: 10 Nm 2.
Installation To i nst all , revers e t he removal procedure.
1.
If a new component i s t o be ins t al led, configure usi ng IDS.
2.
Page 1909 of 3229
Publi s hed: 11-May-2011
Information and Entertainment System - Navigation System Digital
Versatile Disc (DVD) Unit
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s. T orque:
6 Nm 1.
2.
CAUTIONS: Make s ure that t he fi ber opt ic cables are not bent
t o a radius of les s t han 25 mm. Make s ure that t he opti cal connectors are cl ean
and free of foreign mat eri al.
2.
Installation To i nst all , revers e t he removal procedure.
1.
If a new component i s t o be ins t al led, configure usi ng Land Rover
approved diagnos t ic equipment .
2.

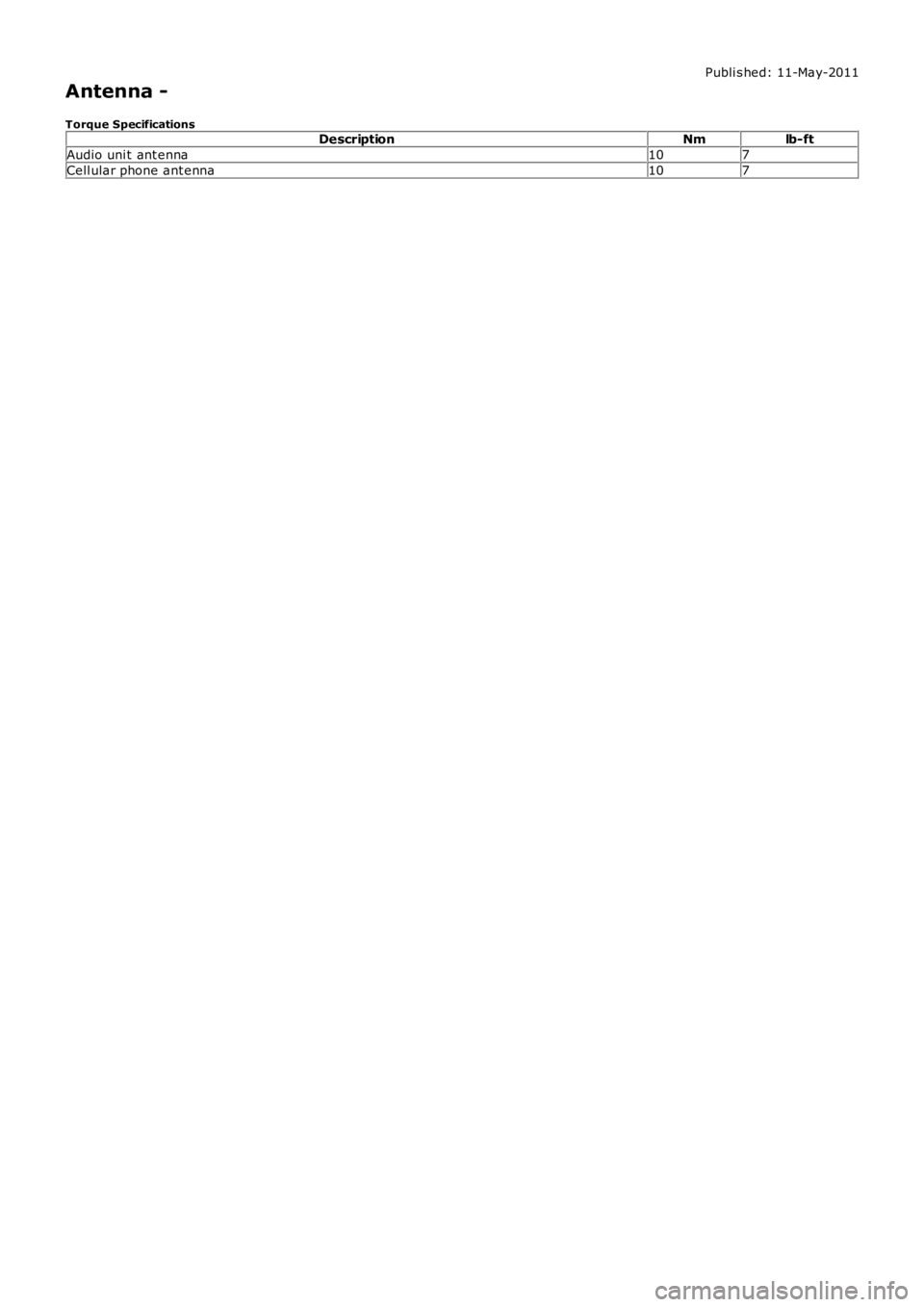

Page 1910 of 3229
Publi s hed: 11-May-2011
Antenna -
Torque SpecificationsDescriptionNmlb-ft
Audio uni t ant enna107
Cell ular phone ant enna107

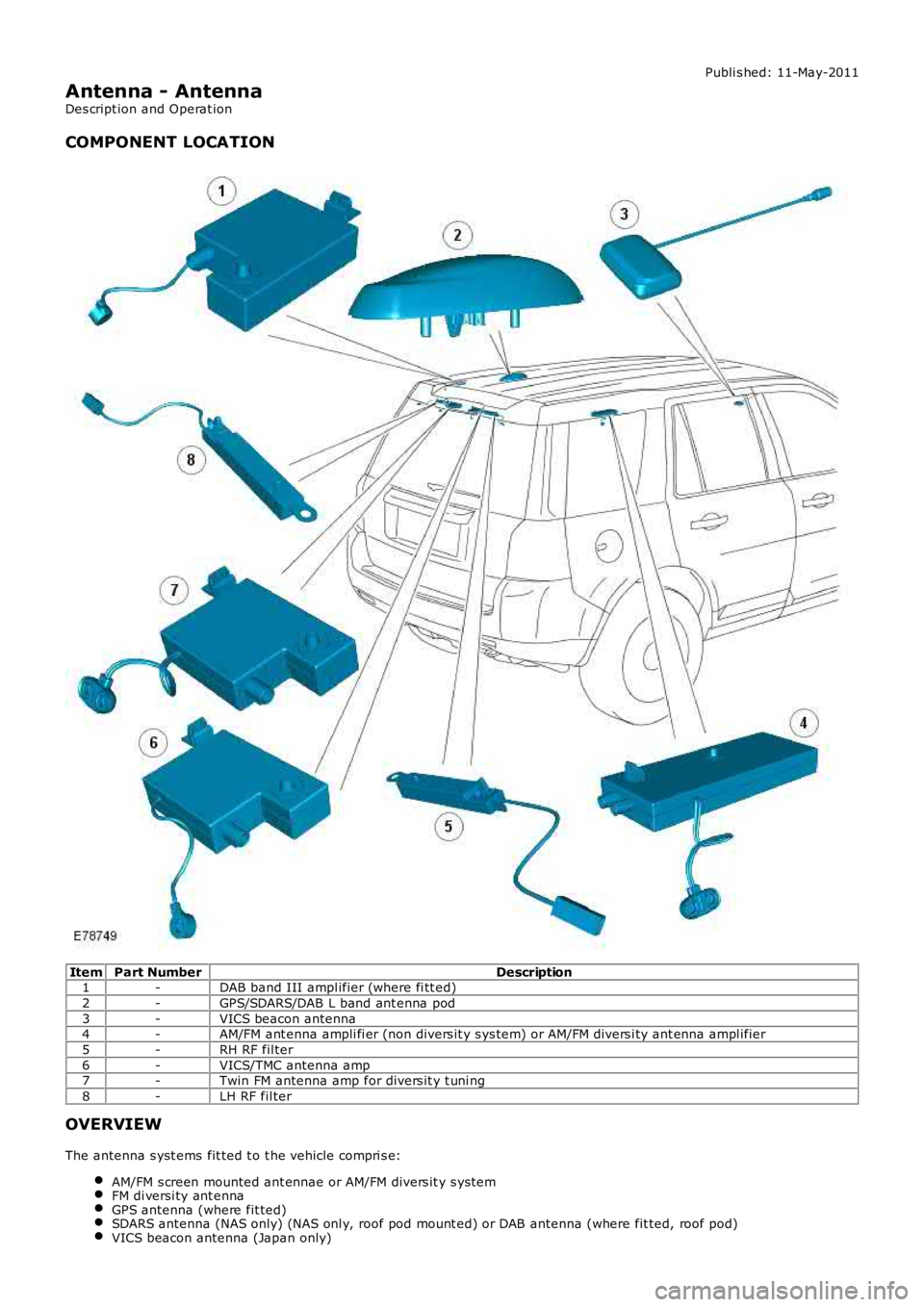

Page 1911 of 3229
Publi s hed: 11-May-2011
Antenna - Antenna
Des cript ion and Operat ion
COMPONENT LOCATION
ItemPart NumberDescription1-DAB band III ampl ifier (where fi tt ed)
2-GPS/SDARS/DAB L band ant enna pod
3-VICS beacon antenna4-AM/FM ant enna ampli fi er (non divers it y s ys tem) or AM/FM divers i ty ant enna ampl ifier
5-RH RF fil ter
6-VICS/TMC antenna amp7-Twin FM antenna amp for divers it y t uni ng
8-LH RF fil ter
OVERVIEW
The antenna s yst ems fit ted t o t he vehicle compri s e:
AM/FM s creen mounted ant ennae or AM/FM divers it y s ys temFM di versi ty ant ennaGPS antenna (where fit ted)SDARS antenna (NAS only) (NAS onl y, roof pod mount ed) or DAB antenna (where fit ted, roof pod)VICS beacon antenna (Japan only)

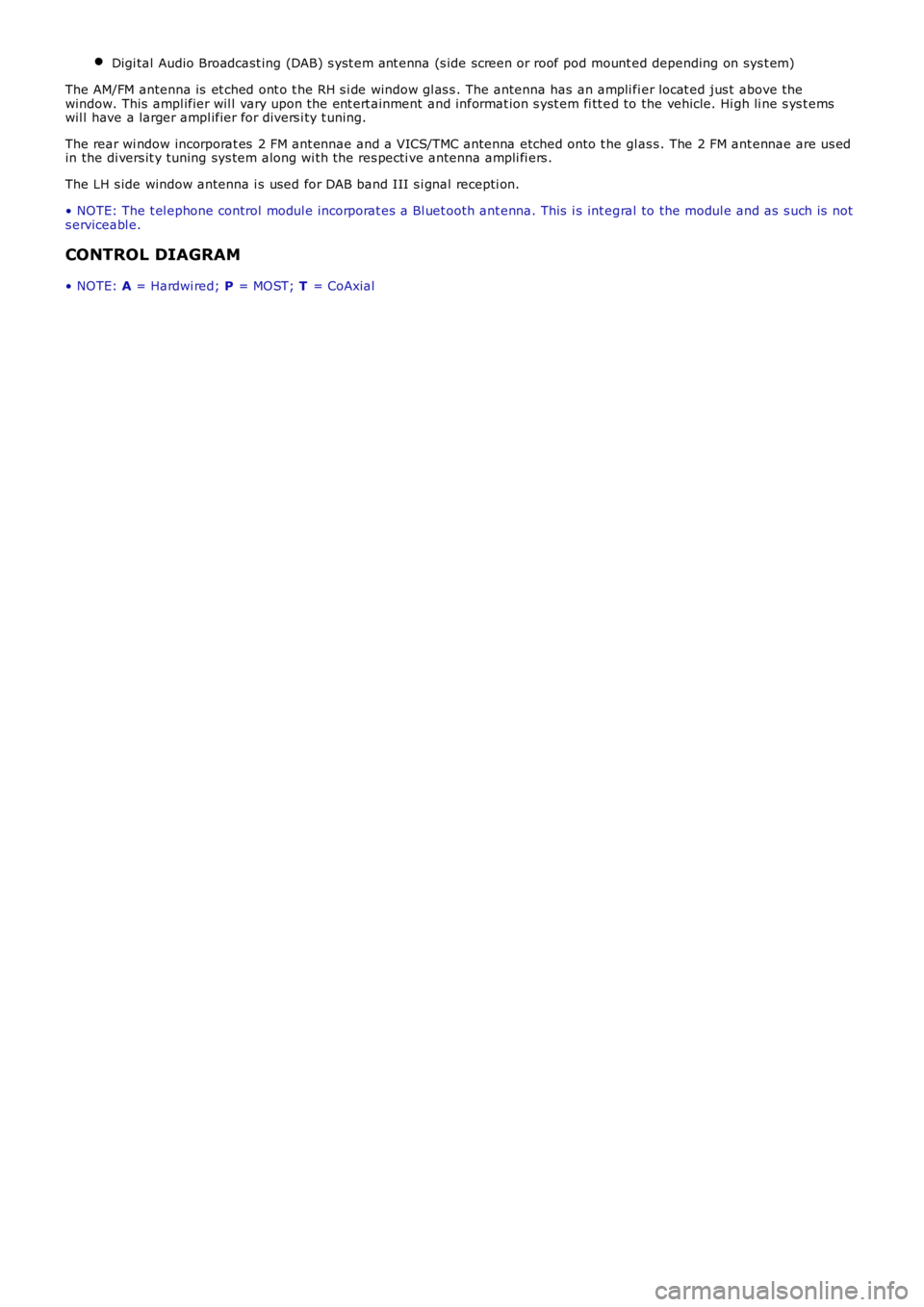

Page 1912 of 3229
Digi tal Audio Broadcast ing (DAB) s yst em ant enna (s ide screen or roof pod mount ed depending on sys t em)
The AM/FM antenna is et ched ont o t he RH s i de window gl as s . The antenna has an ampli fi er locat ed jus t above thewindow. This ampl ifier wil l vary upon the ent ert ainment and informat ion s yst em fi tt ed to the vehicle. Hi gh li ne s ys t emswil l have a larger ampl ifier for divers i ty t uning.
The rear wi ndow incorporat es 2 FM ant ennae and a VICS/TMC ant enna etched onto t he glas s . The 2 FM ant ennae are us edin the di vers it y tuning sys tem along wi th the res pecti ve antenna ampli fi ers .
The LH s ide window antenna i s used for DAB band III s i gnal recepti on.
• NOTE: The t el ephone control modul e incorporat es a Bl uet ooth ant enna. This i s int egral to the modul e and as s uch is nots erviceabl e.
CONTROL DIAGRAM
• NOTE: A = Hardwi red; P = MOST; T = CoAxial
