Page 2281 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 8. Di sconnect t he keyl es s s t art module el ect ri calconnector.9. Di sconnect t he in-vehicl e temperature s ens or.10. Remove both upper t rim panels .11.

Page 2282 of 3229

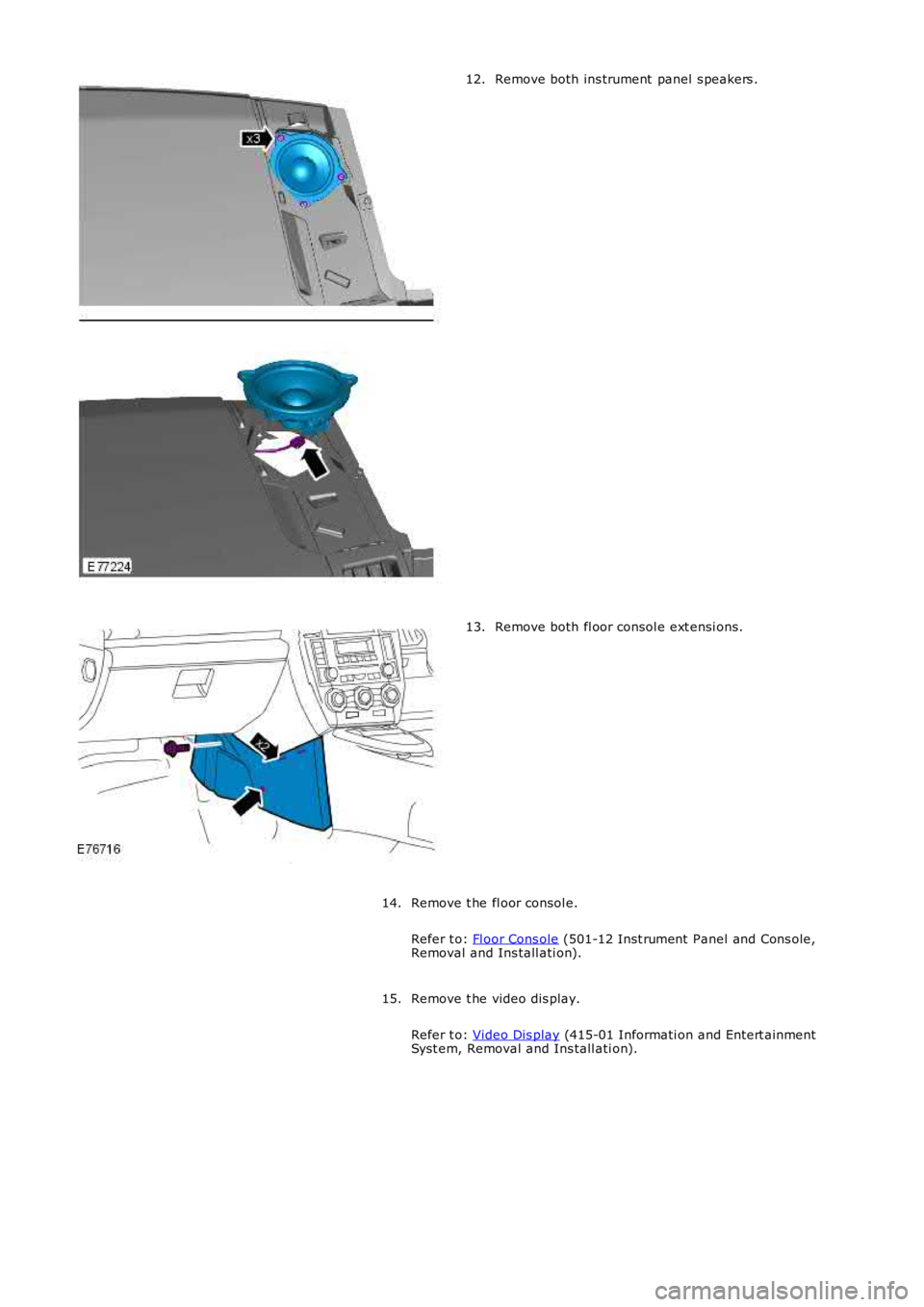

LAND ROVER FRELANDER 2 2006 Repair Manual Remove both ins trument panel s peakers .12. Remove both fl oor consol e ext ensi ons.13. Remove t he fl oor consol e. Refer t o: Fl oor Cons ole (501-12 Inst rument Panel and Cons ole,Removal and I

Page 2283 of 3229

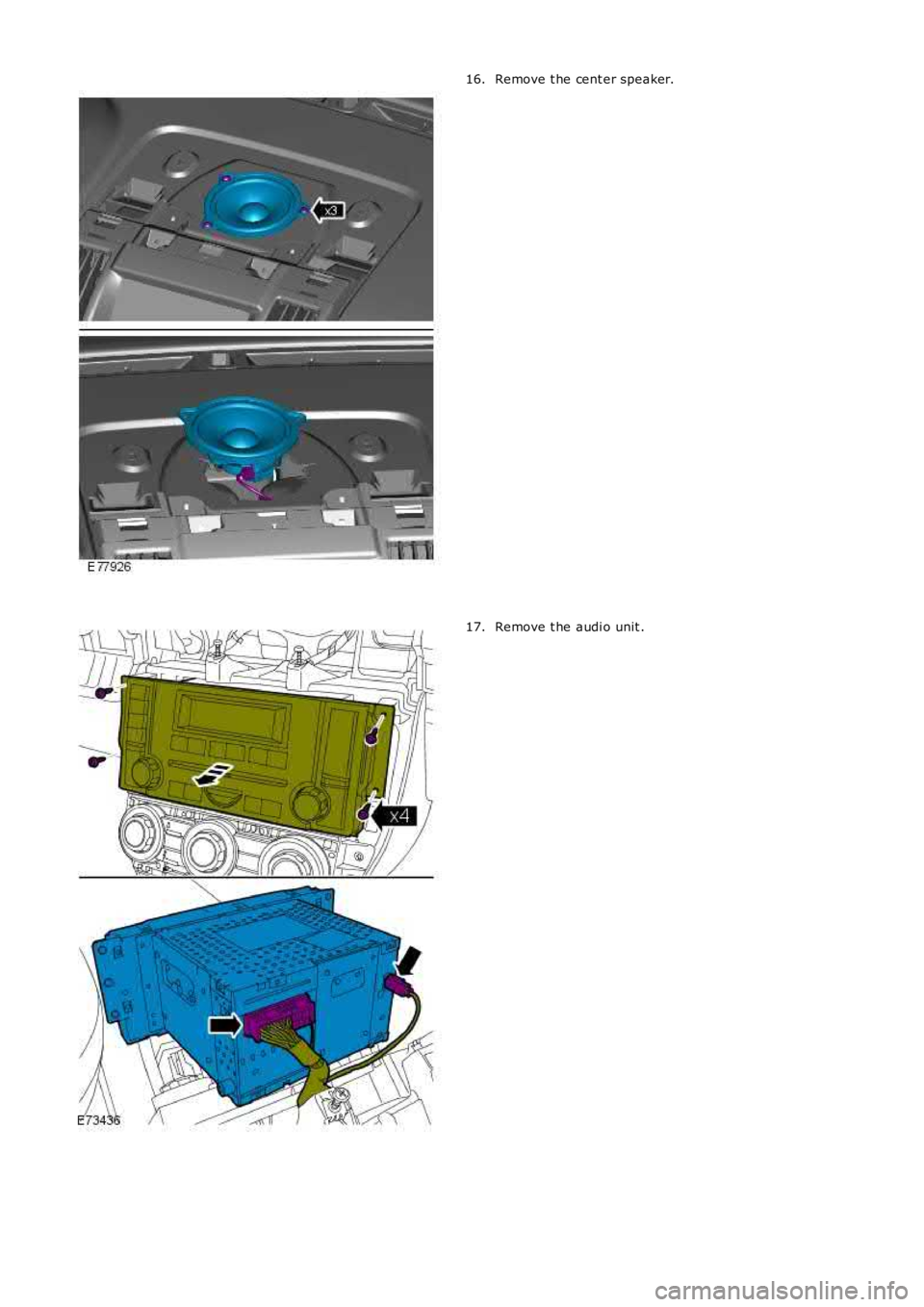

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he cent er speaker.16. Remove t he audi o unit .17.

Page 2284 of 3229

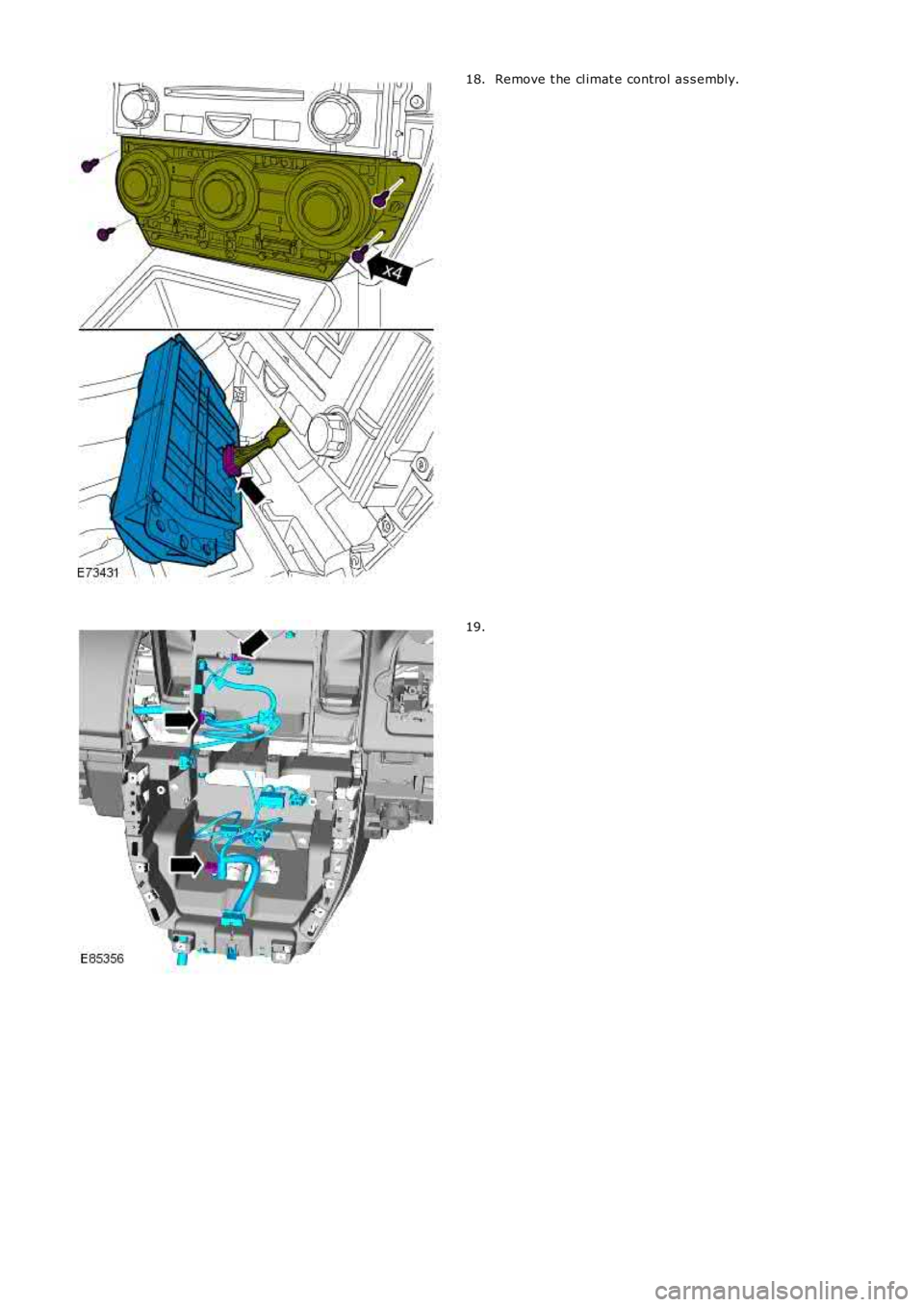

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he cl imat e control as s embly.18. 19.

Page 2285 of 3229

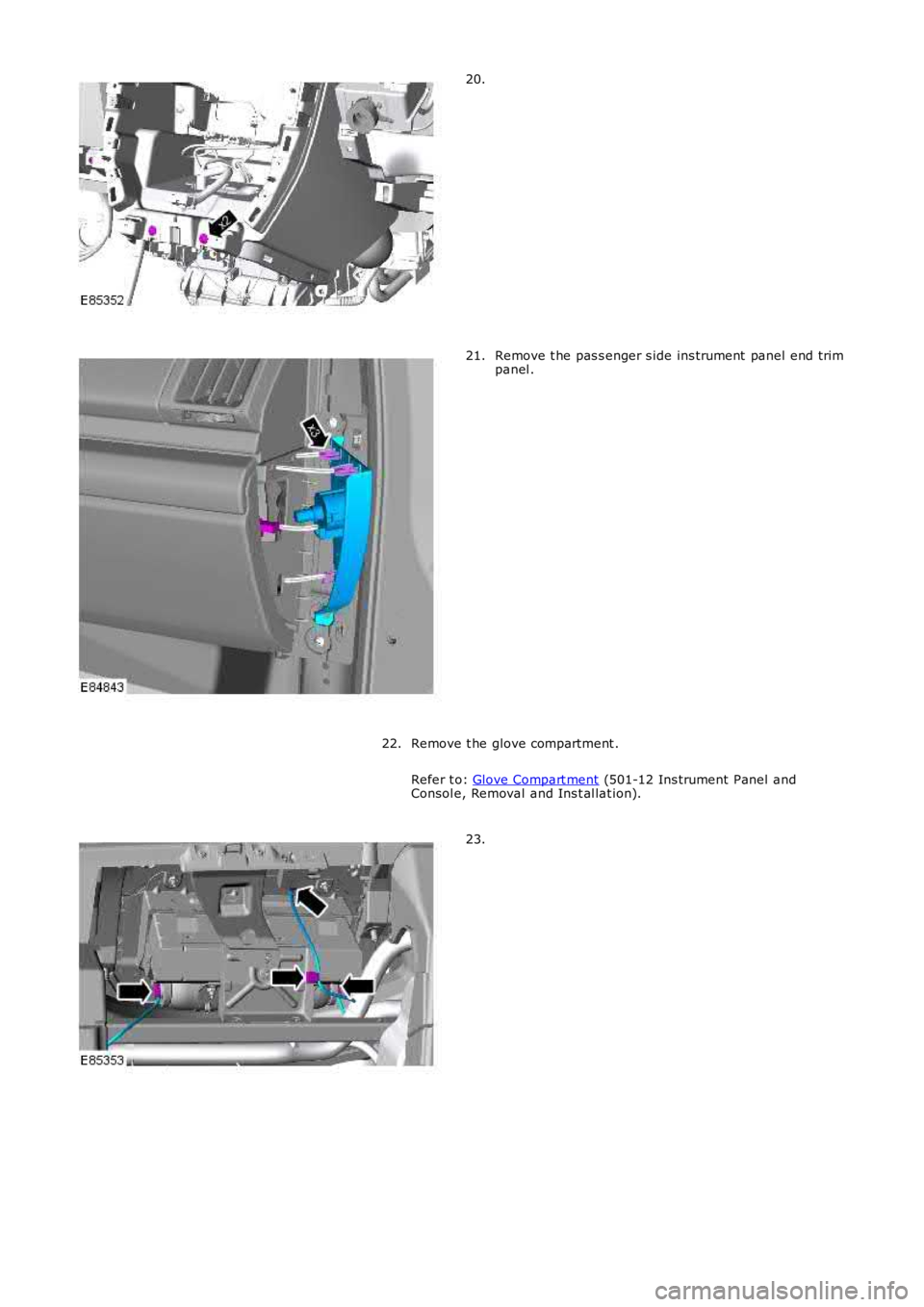

LAND ROVER FRELANDER 2 2006 Repair Manual 20. Remove t he pas s enger s ide ins trument panel end trimpanel .21. Remove t he glove compartment . Refer t o: Glove Compart ment (501-12 Ins trument Panel andConsol e, Removal and Ins t al lat io

Page 2286 of 3229

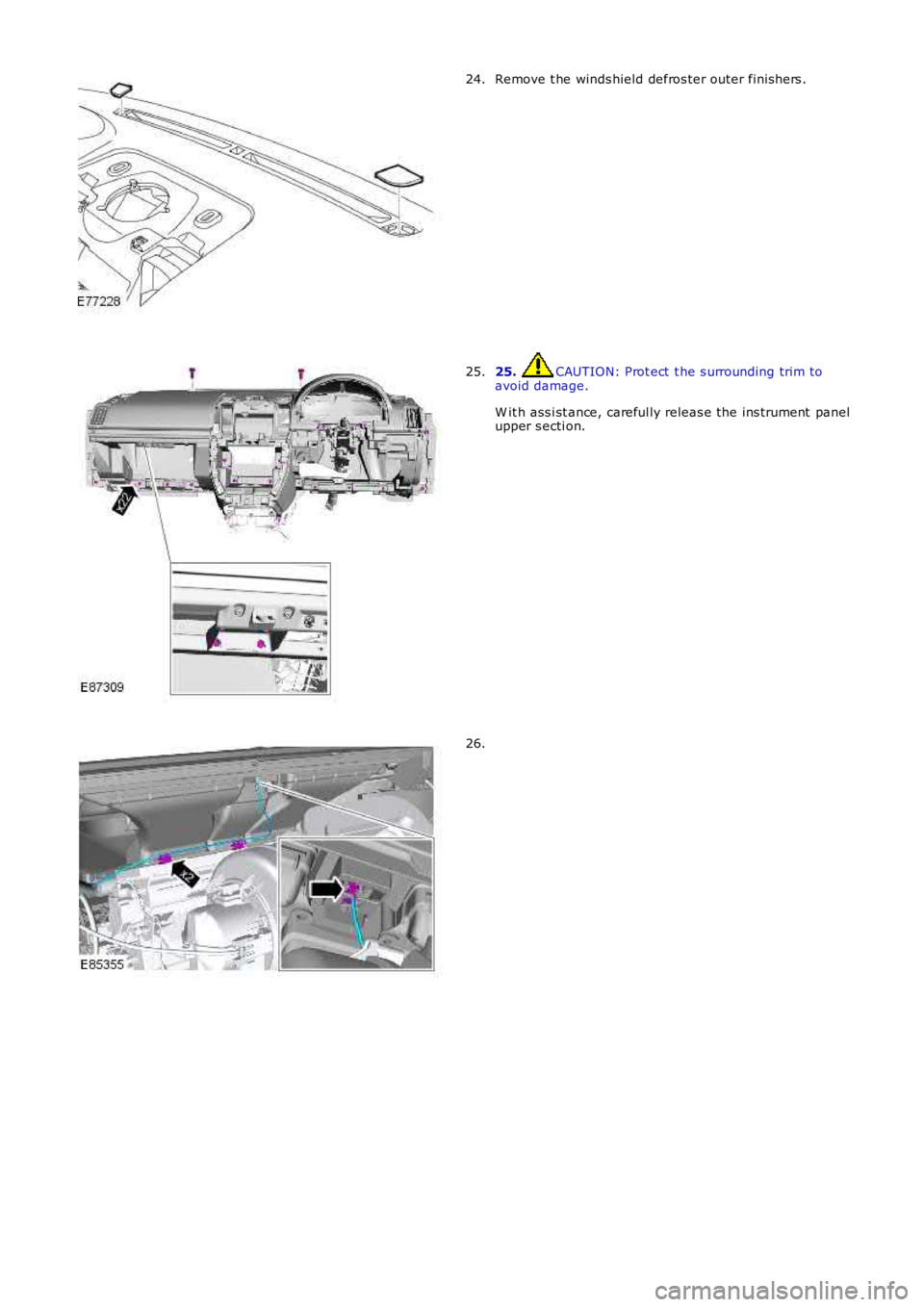

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he winds hield defros ter outer finis hers .24. 25. CAUTION: Prot ect t he s urrounding trim toavoid damage. W it h ass i st ance, careful ly releas e the ins trument panelupper s ecti on.

Page 2287 of 3229

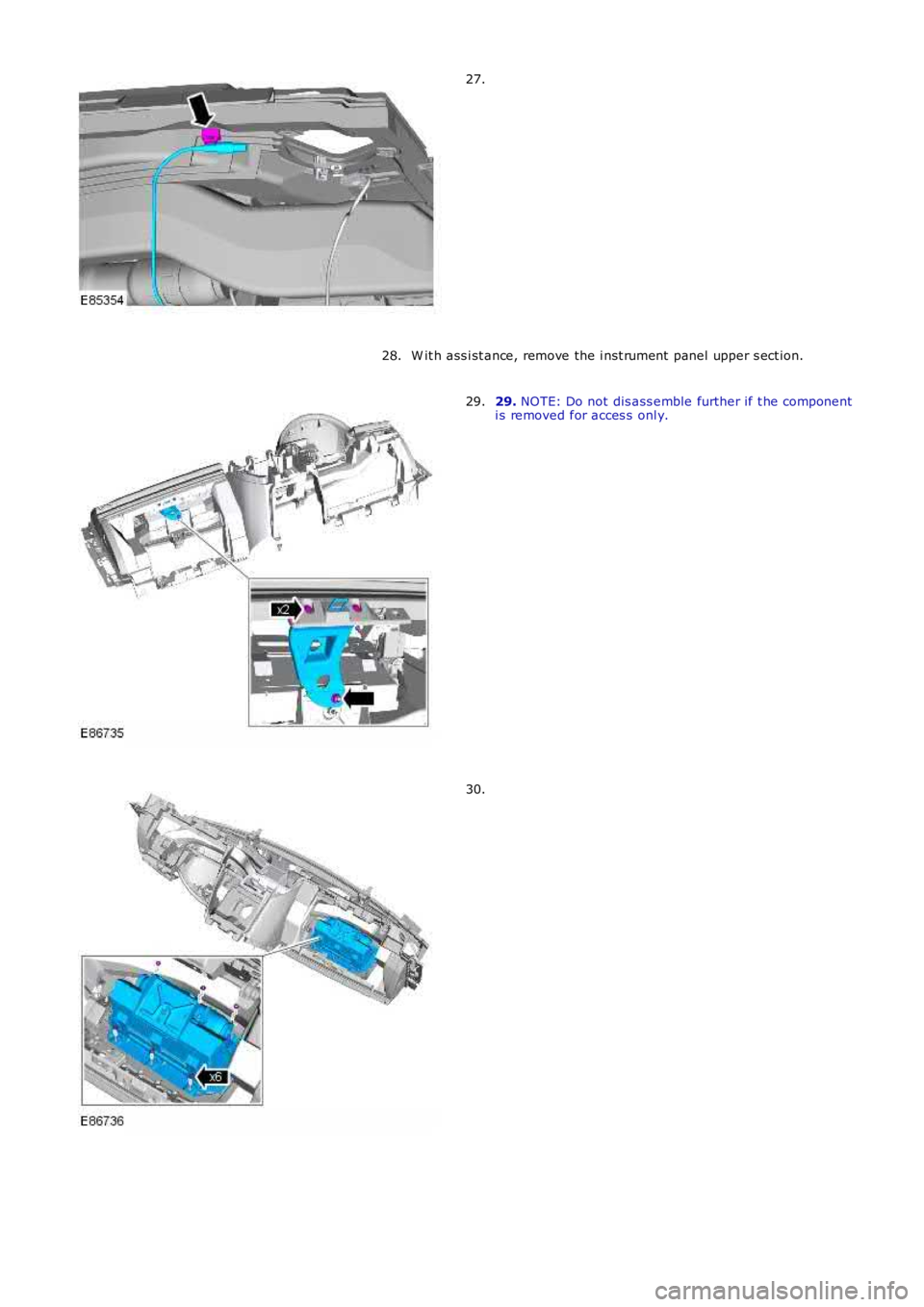

LAND ROVER FRELANDER 2 2006 Repair Manual 27. W it h ass i st ance, remove the i nst rument panel upper s ect ion.28. 29. NOTE: Do not dis ass emble further if t he componenti s removed for acces s onl y.29. 30.

Page 2288 of 3229

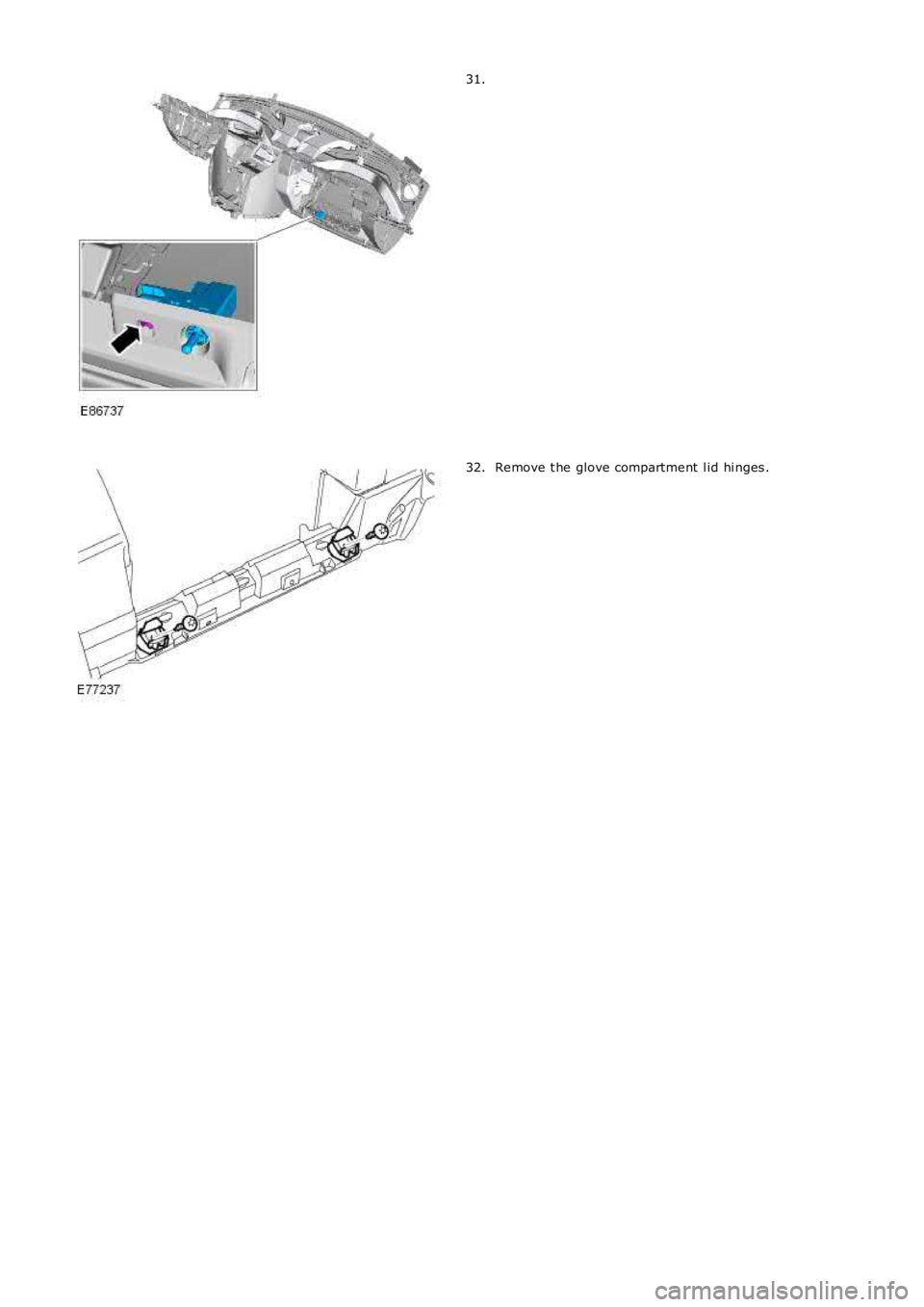

LAND ROVER FRELANDER 2 2006 Repair Manual 31. Remove t he glove compartment l id hi nges .32.
