1
2
3
1
Dis connect el ect ri cal connect or from lat ch
Clos e all vehicle doors apart from door bei ng inves ti gat ed,please not e whi ch door, left s i de or ri ght s ide is underinvest igat ion
Moni tor t he circui t for moment ary power when locki ng t hevehi cl e via t he key-fob or smart key between t ermi nal s 1and 10 left side or 8 and 10 right side
Is t here moment ary power (for approx 8 seconds ) betweenterminals 1 and 10 left side or 8 and 10 right side whenlocki ng the vehicle via t he key-fob or s mart keyYesThe vehi cl e electrical sys tem is locki ng correct ly, providingthe s i gnal t o t he lat ch. GO to E2.NoRefer to the el ect ri cal circui t diagrams and i nves t igate whyvehi cl e electrical sys tem is not provi ding s ignals to t helat ch. Us ing t he manufacturer approved di agnos ti c s ys t emcheck for l ogged DTCs t o l ocali ze t he faultE2: T EST 6 UNLO CK COMMAND
Moni tor t he circui t for moment ary power when unl ocki ng thevehi cl e via t he key-fob or smart key between t ermi nal s 1and 9 left side or 8 and 9 right side
Is t here moment ary power (for approx 8 seconds ) betweenterminals 1 and 9 left side and 8 and 9 right side whenunl ocking t he vehicle vi a t he key-fob or s mart keyYesThe vehi cl e electrical sys tem is unl ocking correctl y,providing t he s ignal to the l atch. Plug elect rical connectorback i n t o lat ch. Rebuil d vehi cl e and check for correctoperati onNoRefer to the el ect ri cal circui t diagrams and i nves t igate whyvehi cl e electrical sys tem is not provi ding s ignals to t helat ch. Us ing t he manufacturer approved di agnos ti c s ys t emcheck for l ogged DTCs t o l ocali ze t he fault
Page 2330 of 3229
Publi s hed: 11-May-2011

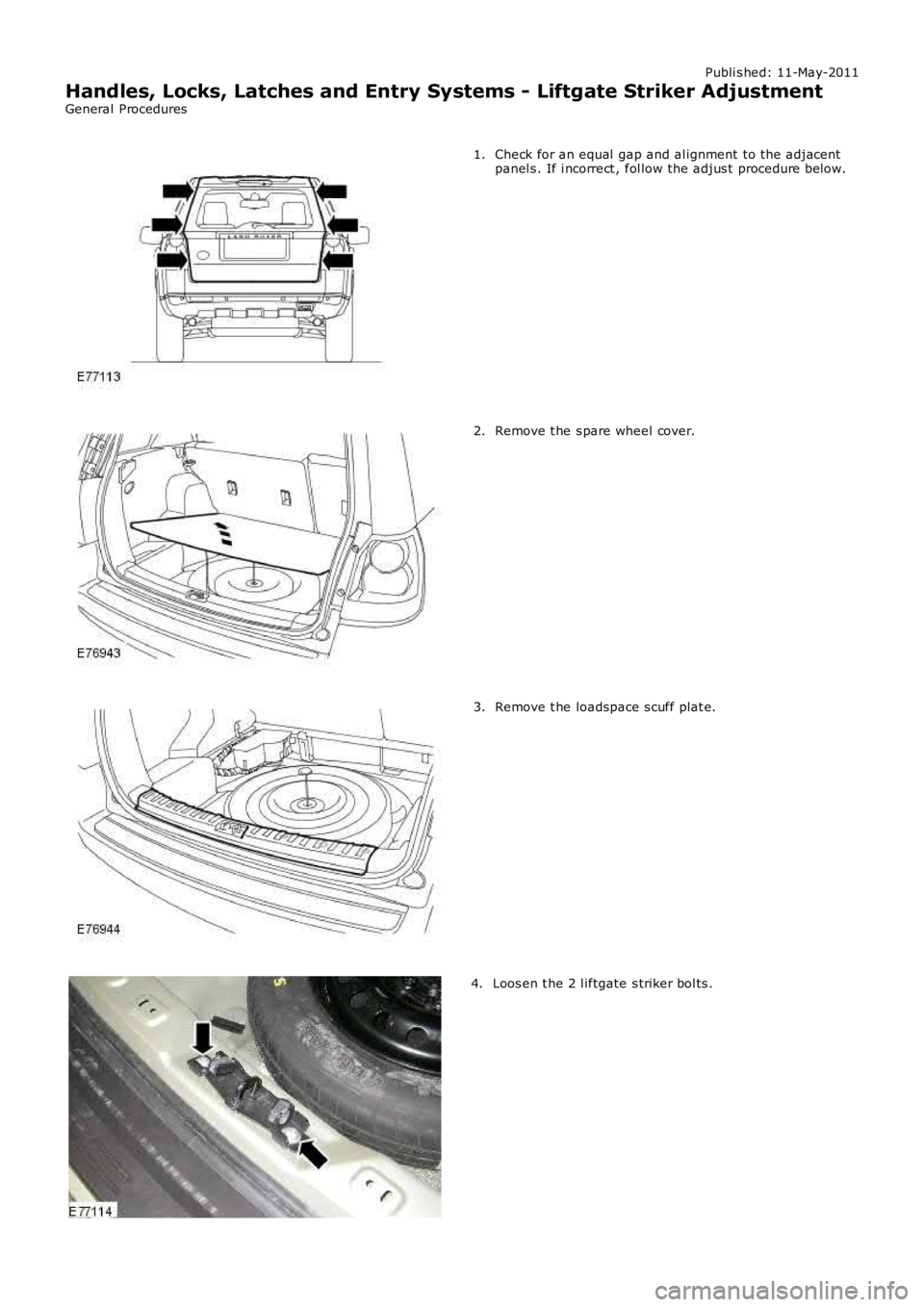

Handles, Locks, Latches and Entry Systems - Liftgate Striker Adjustment
General Procedures
Check for an equal gap and al ignment to the adjacentpanel s . If i ncorrect , fol low the adjus t procedure below.1.
Remove t he s pare wheel cover.2.
Remove t he loadspace s cuff plat e.3.
Loos en t he 2 l iftgate s triker bol ts .4.
Page 2331 of 3229

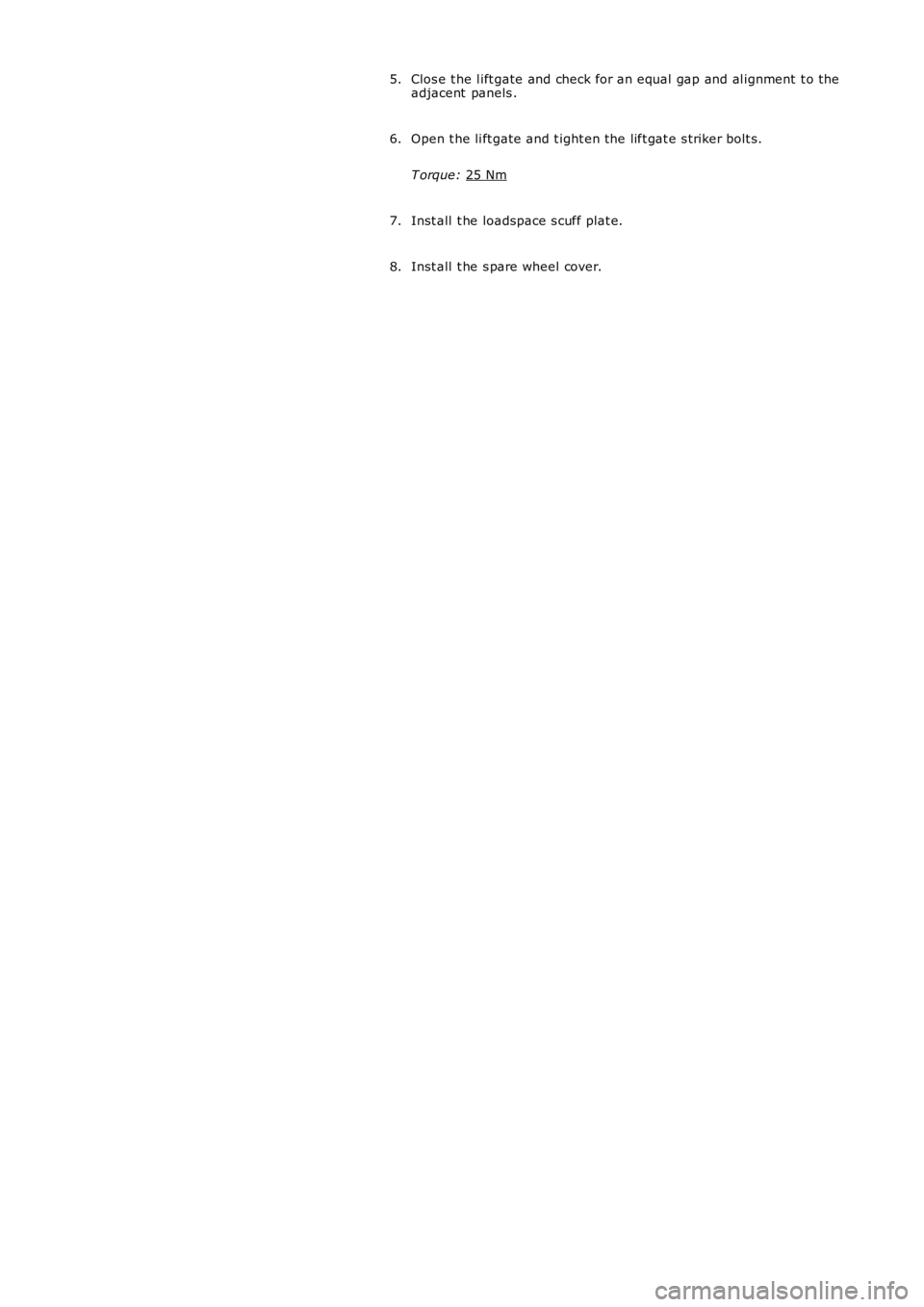

Clos e t he l ift gate and check for an equal gap and al ignment t o the
adjacent panels .
5.
Open t he li ft gate and t ight en the lift gat e s triker bolt s.
T orque: 25 Nm 6.
Inst all t he loadspace s cuff plat e.
7.
Inst all t he s pare wheel cover.
8.
Page 2332 of 3229
Publi s hed: 11-May-2011
Handles, Locks, Latches and Entry Systems - Front Door Latch
Removal and Inst all ati on
Removal
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Remove t he window mot or and regulat or as s embly.
Refer t o: Front Door W indow Regulat or and Mot or (501-11 Glas s,Frames and Mechanis ms , Removal and Inst all at ion).
2.
3. CAUTION: Releas e t he ext eri or door handl e and s crew covercli ps from i nsi de the door.
Remove t he front door exterior handl e.
Refer t o: Ext eri or Front Door Handle (501-14 Handles , Locks, Lat chesand Entry Syst ems , Removal and Inst all at ion).
3.
Releas e t he remot e cont rol cable.4.
Releas e t he door exterior handl e mechani s m.5.
Remove t he front door lat ch ass embl y.6.
Page 2333 of 3229
7. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y.
Remove t he door l atch remote control cable.
7.
Releas e t he ext eri or door handl e mechani s m cable fromt he door l atch.8.
LH s i de: Releas e t he door l ock cyli nder cable from t hedoor latch.9.
Installation
LH s i de: Connect t he door lock cyl inder cable to t he door lat ch.1.
Connect t he door ext erior handl e mechani s m cable t o t he door latch.2.
Inst all t he remot e cont rol cable t o t he door latch.3.
Page 2334 of 3229
Set the ext eri or handle mechanis m. Rotat e t he lever.
Engage the retai ni ng t ang.4.
Inst all t he door l atch and t ighten the s crews .
T orque: 10 Nm 5.
Inst all t he door exterior handl e mechani s m.
6.
Pos it ion t he remot e control cable t o t he door.
7.
Inst all t he front door exterior handl e.
Refer t o: Ext eri or Front Door Handle (501-14 Handles , Locks, Lat ches
and Entry Syst ems , Removal and Inst all at ion).
8.
Inst all t he window mot or and regulat or as s embly.
Refer t o: Front Door W indow Regulat or and Mot or (501-11 Glas s,
Frames and Mechanis ms , Removal and Inst all at ion).
9.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
10.
Page 2335 of 3229
Publi s hed: 11-May-2011
Handles, Locks, Latches and Entry Systems - Rear Door Latch
Removal and Inst all ati on
Removal
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
1.
Remove t he window mot or and regulat or as s embly.
Refer t o: Rear Door W i ndow Regul ator and Motor (501-11 Gl as s ,
Frames and Mechanis ms , Removal and Inst all at ion).
2.
3. CAUTION: Releas e t he ext eri or door handl e and s crew cover
cli ps from i nsi de the door.
Remove t he rear door ext erior handle.
Refer t o: Ext eri or Rear Door Handl e (501-14 Handl es, Locks , Latches
and Entry Syst ems , Removal and Inst all at ion).
3.
Releas e t he remot e cont rol cable.
4.
Releas e t he door exterior handl e mechani s m.
5. Remove t he rear door l atch as s embly.
6.
Page 2336 of 3229
7.
NOTE: Do not dis ass embl e further if t he component
i s removed for acces s onl y.
Remove t he door l atch remote control cable.
7. Releas e t he ext eri or door handl e mechani s m cable from
t he door l atch.
8.
Installation Connect t he door ext erior handl e mechani s m cable t o t he door latch.
1.
Inst all t he remot e cont rol cable t o t he door latch.
2.
Set the ext eri or handle mechanis m. Rotat e t he lever.
Engage the retai ni ng t ang.3.
Inst all t he door l atch and t ighten the s crews .
T orque: 10 Nm 4.
Inst all t he door exterior handl e mechani s m.
5.
Pos it ion t he remot e control cable t o t he door.
6.
Inst all t he rear door ext erior handle.
7.
