Page 681 of 3229

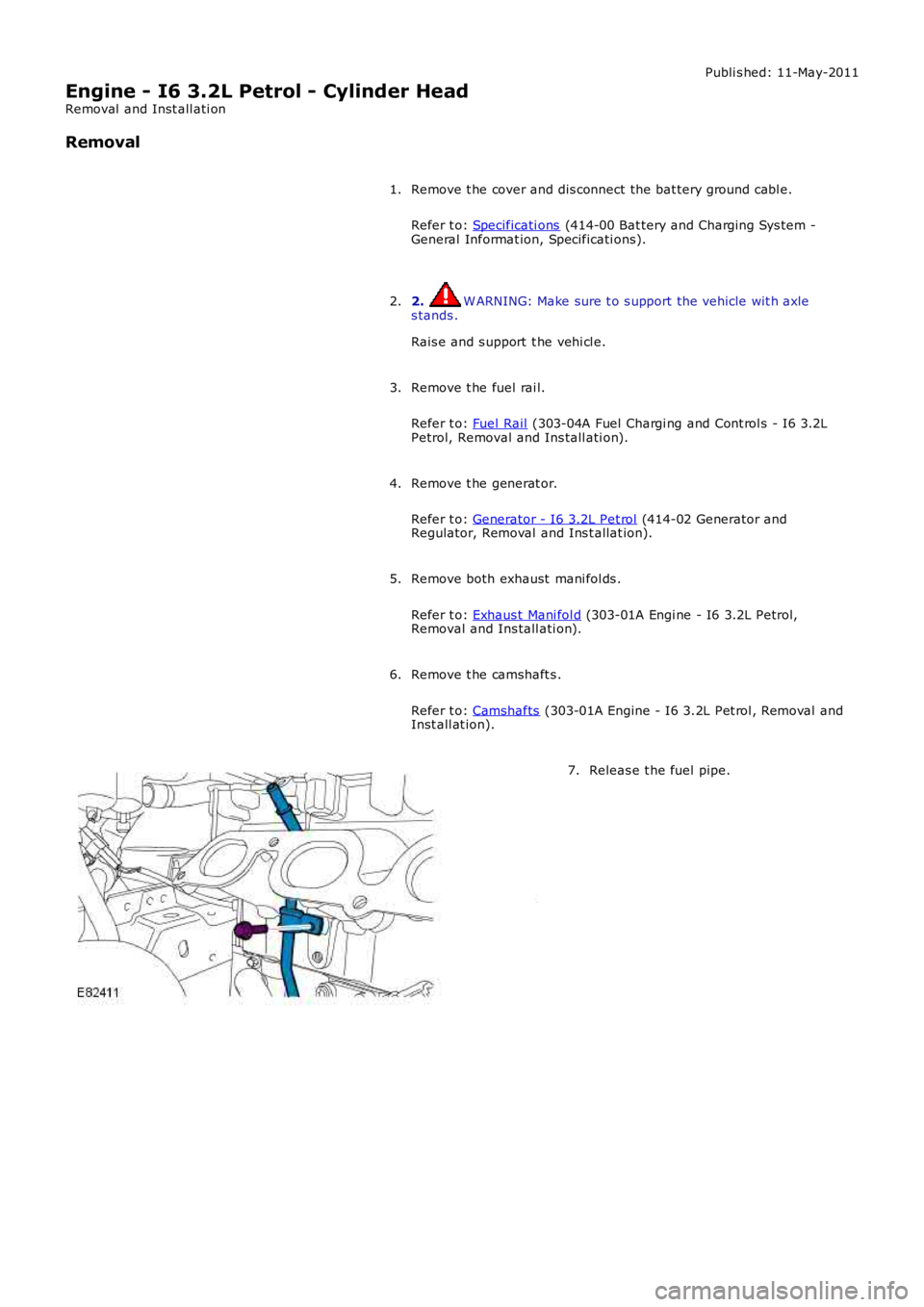

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Engine - I6 3.2L Petrol - Cylinder Head Removal and Inst all ati on Removal Remove t he cover and dis connect the bat tery ground cabl e. Refer t o: Specificati ons (414-00 B

Page 682 of 3229

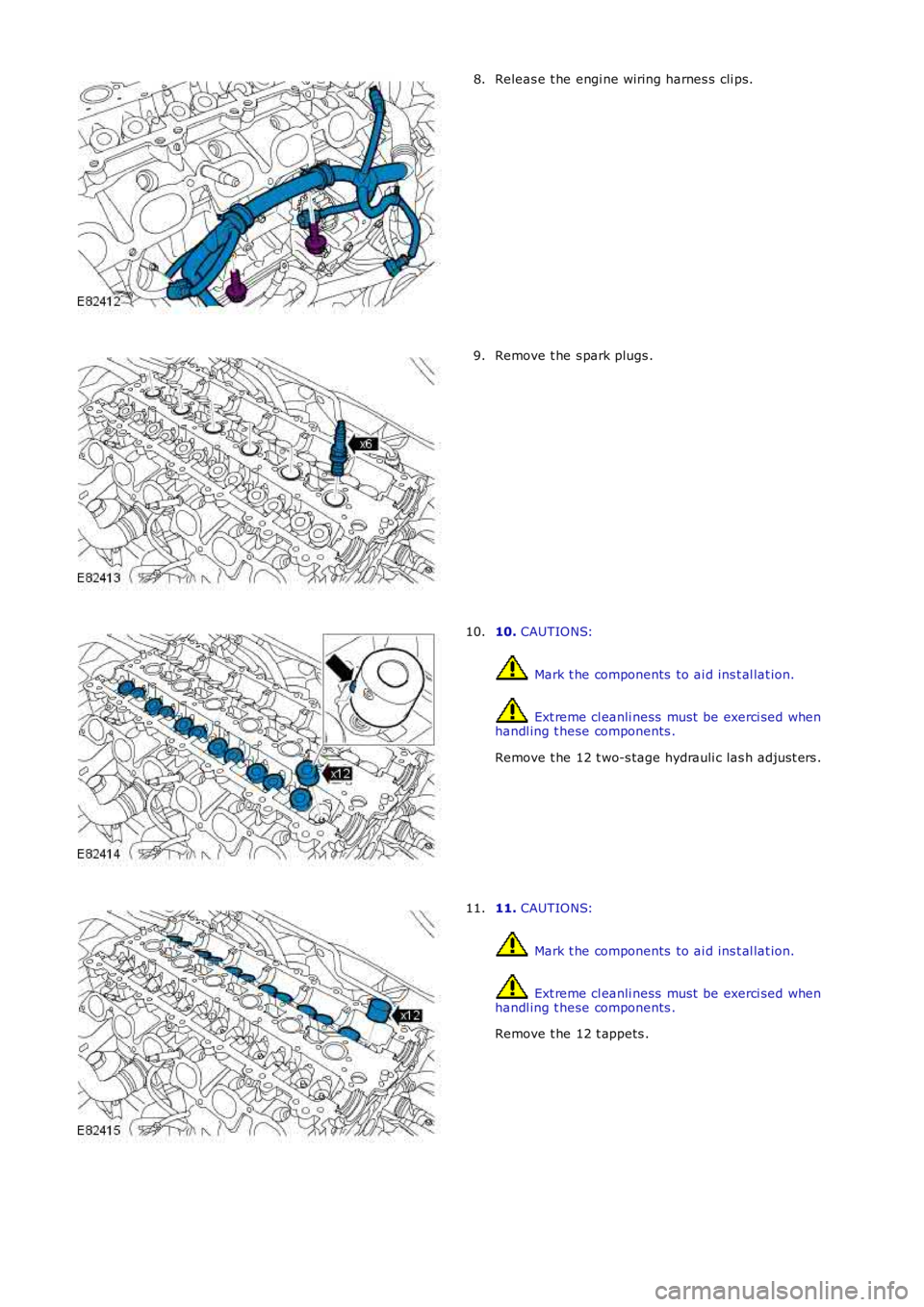

LAND ROVER FRELANDER 2 2006 Repair Manual Releas e t he engi ne wiring harnes s cli ps.8. Remove t he s park plugs .9. 10. CAUTIONS: Mark t he components to ai d ins t al lat ion. Ext reme cl eanli ness must be exerci sed whenhandl ing

Page 683 of 3229

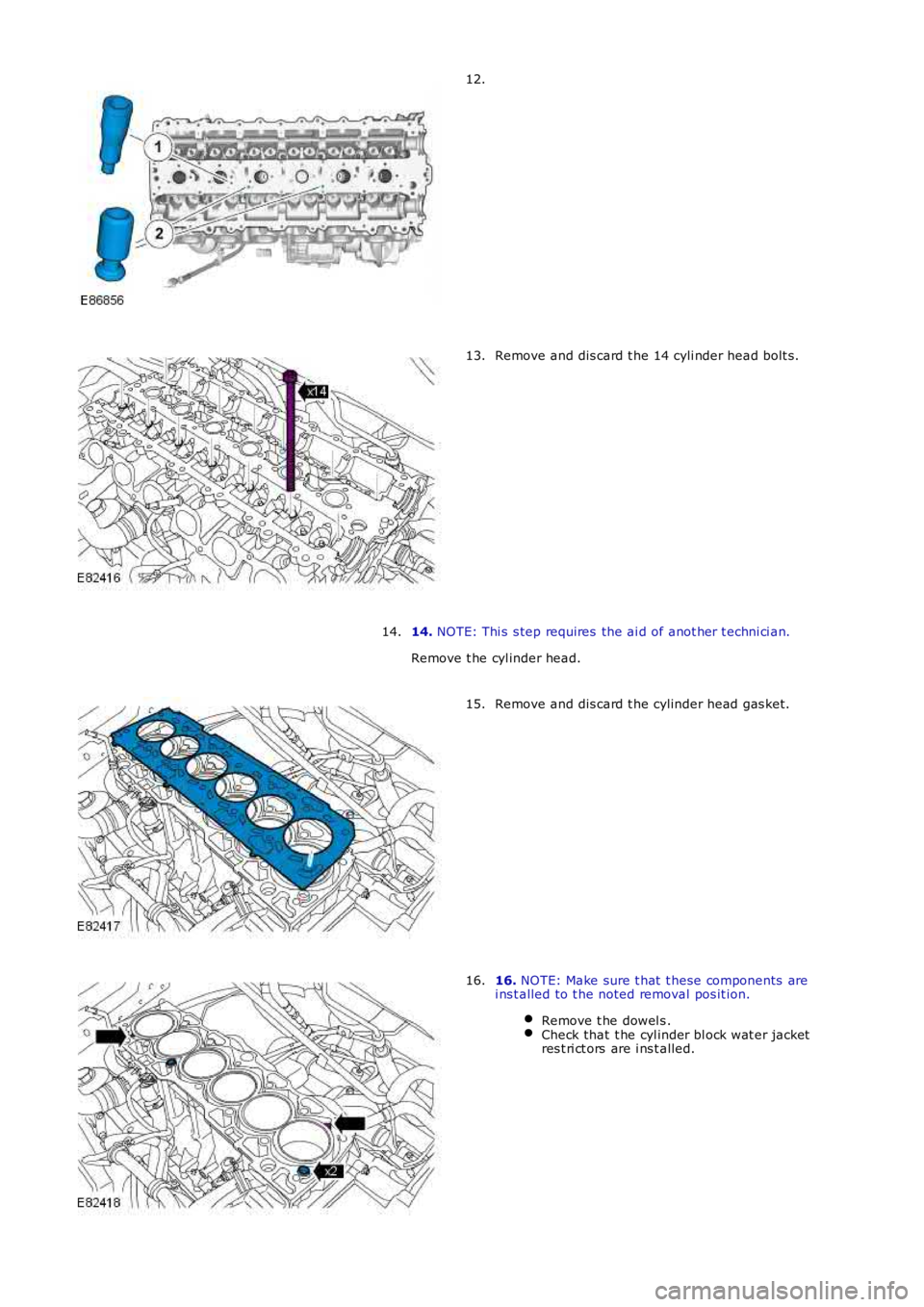

LAND ROVER FRELANDER 2 2006 Repair Manual 12. Remove and dis card t he 14 cyli nder head bolt s.13. 14. NOTE: Thi s s tep requires the ai d of anot her t echni ci an. Remove t he cyl inder head. 14. Remove and dis card t he cylinder head ga

Page 684 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Installation Inst all t he dowel s . 1. Clean and i nspect the cyli nder head and cylinder block. 2. Check cyli nder head face for dis torti on, acros s t he cent er and from corner t o corner. Refe

Page 685 of 3229

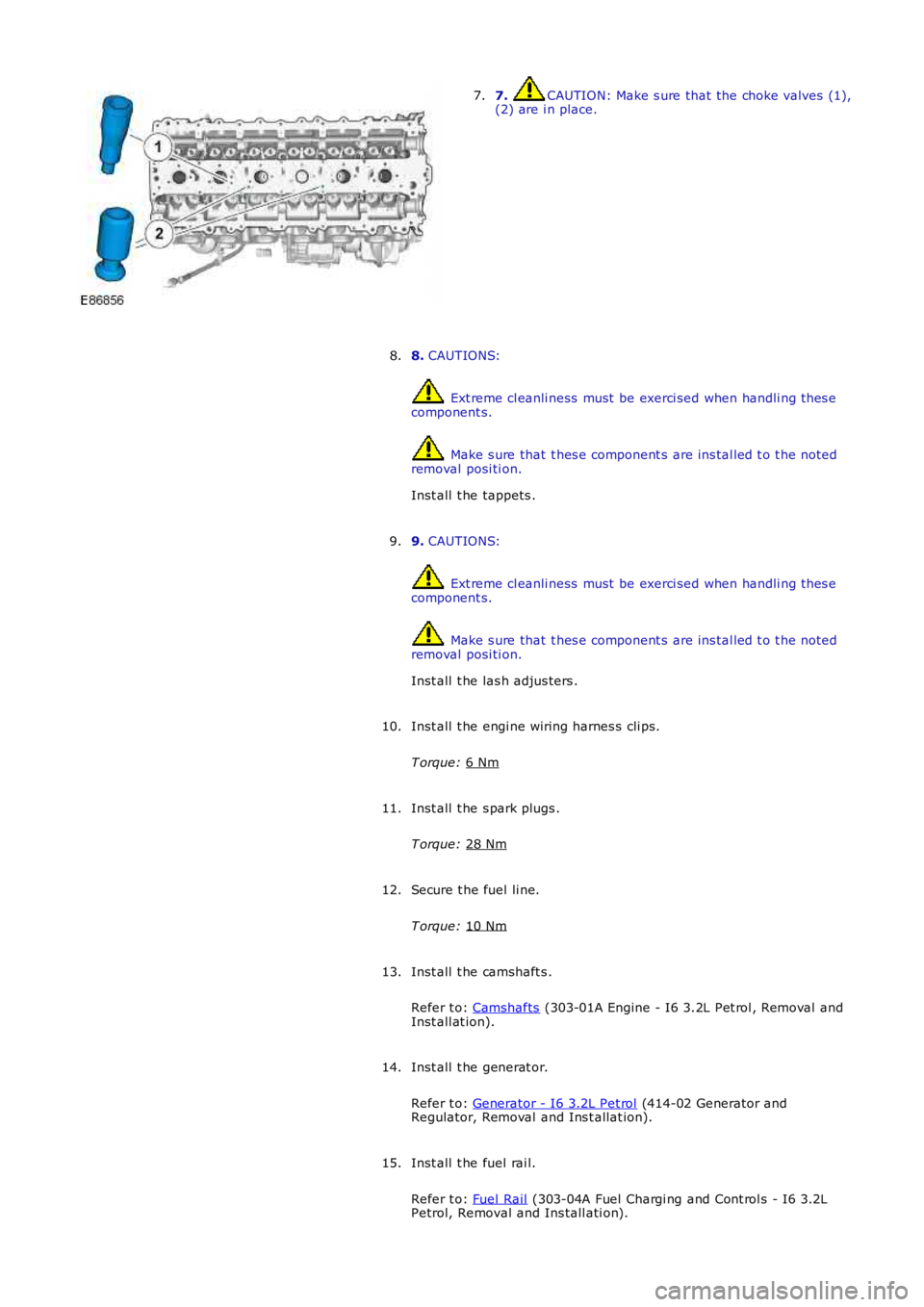

LAND ROVER FRELANDER 2 2006 Repair Manual 7. CAUTION: Make s ure that the choke valves (1), (2) are i n place. 7. 8. CAUTIONS: Ext reme cl eanli ness must be exerci sed when handli ng t hes e component s. Make s ure that t hes e compon

Page 686 of 3229

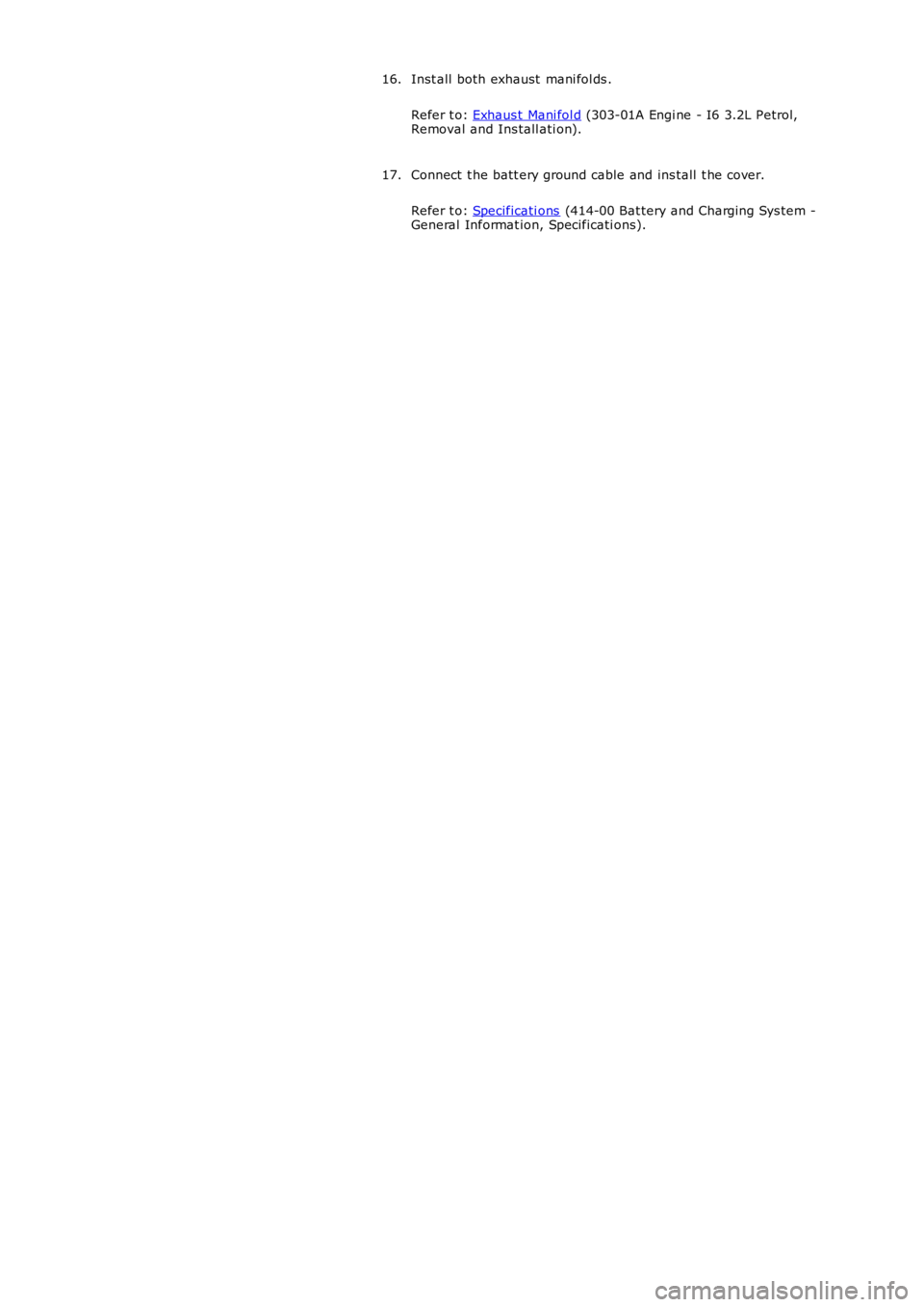

LAND ROVER FRELANDER 2 2006 Repair Manual Inst all both exhaust mani fol ds . Refer t o: Exhaus t Mani fol d (303-01A Engi ne - I6 3.2L Petrol,Removal and Ins tall ati on). 16. Connect t he batt ery ground cable and ins tall t he cover. R

Page 687 of 3229

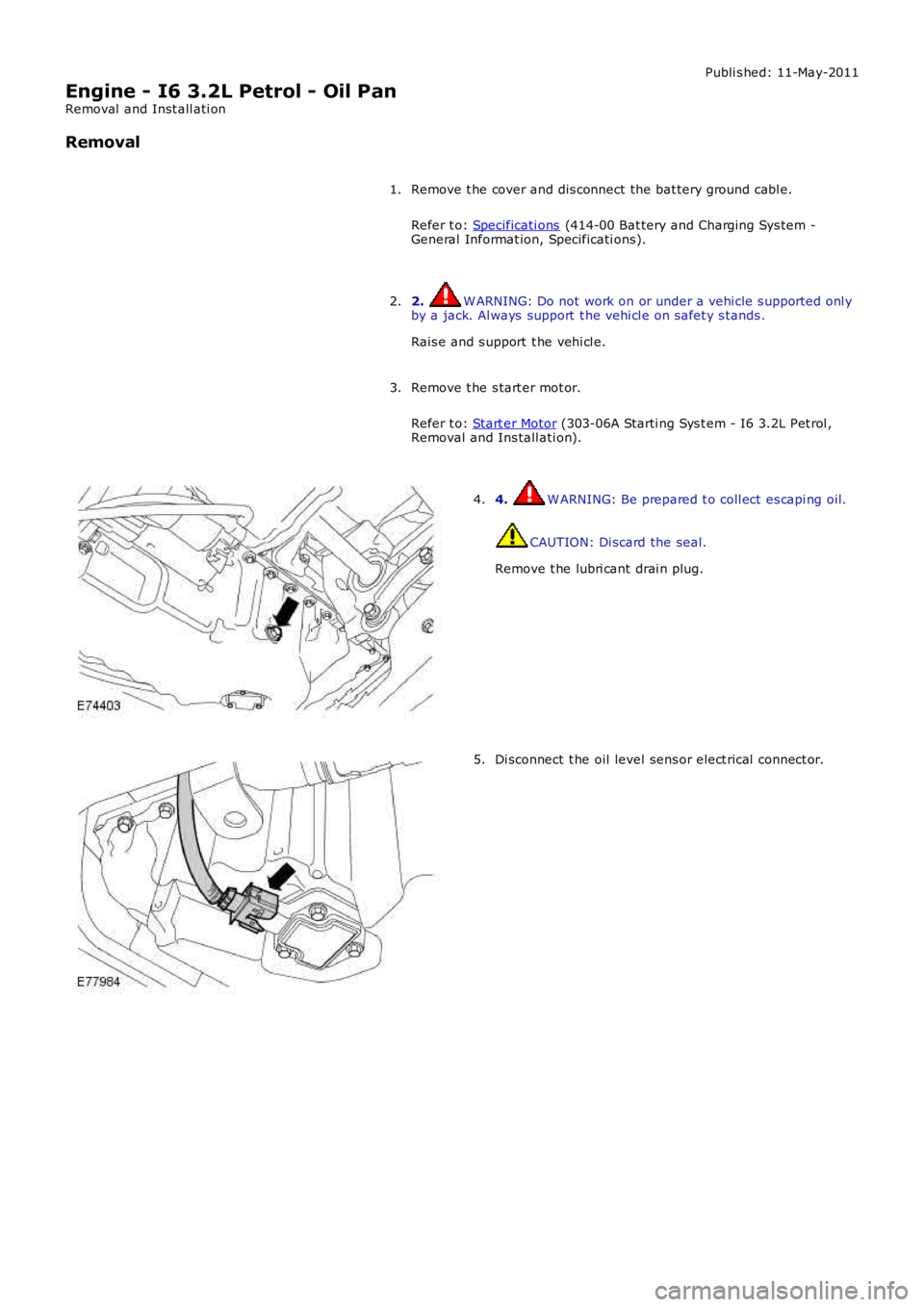

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Engine - I6 3.2L Petrol - Oil Pan Removal and Inst all ati on Removal Remove t he cover and dis connect the bat tery ground cabl e. Refer t o: Specificati ons (414-00 Bat ter

Page 688 of 3229

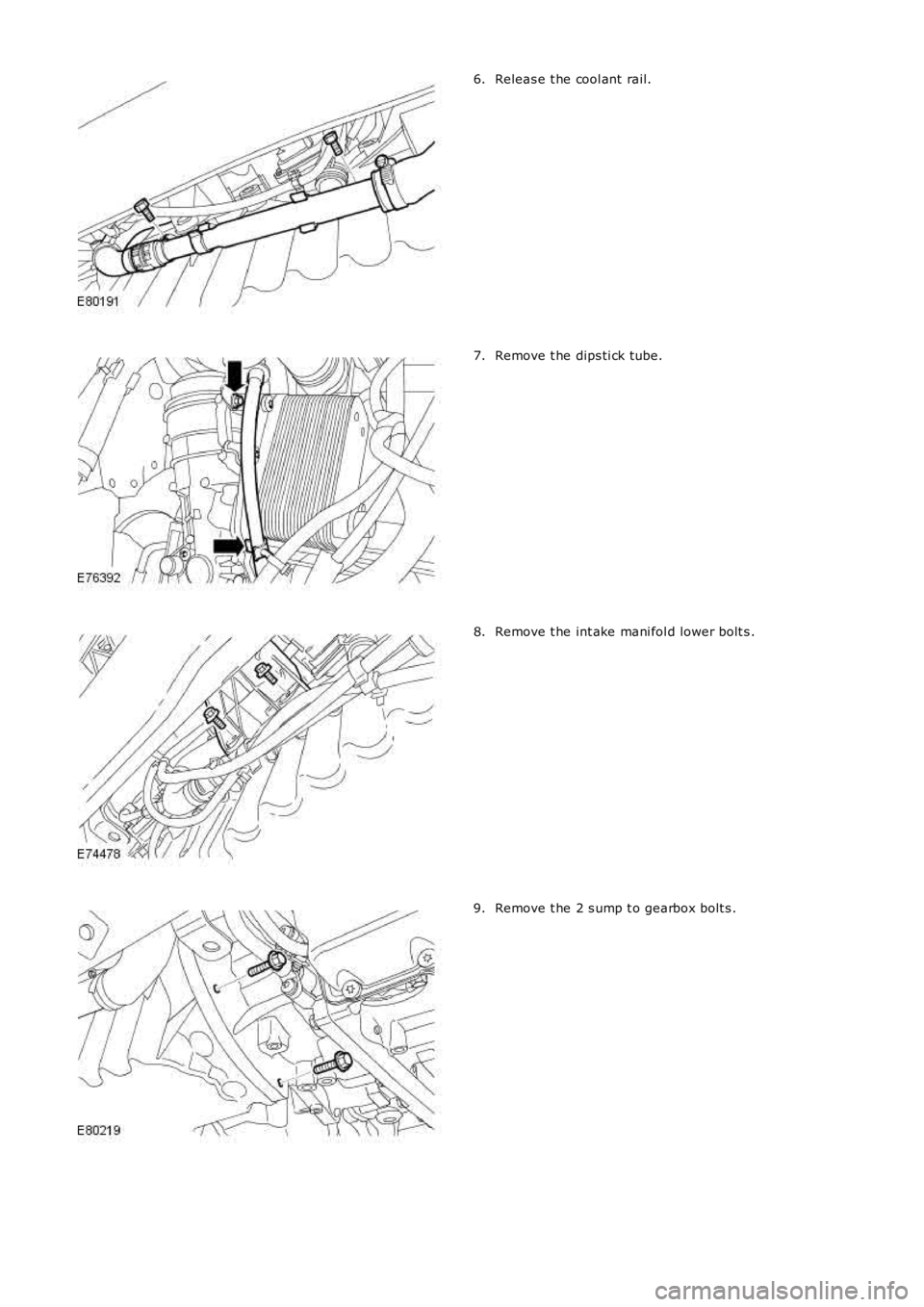

LAND ROVER FRELANDER 2 2006 Repair Manual Releas e t he cool ant rail.6. Remove t he dips ti ck tube.7. Remove t he int ake mani fol d lower bolt s .8. Remove t he 2 s ump t o gearbox bolt s .9.
