Page 417 of 3229

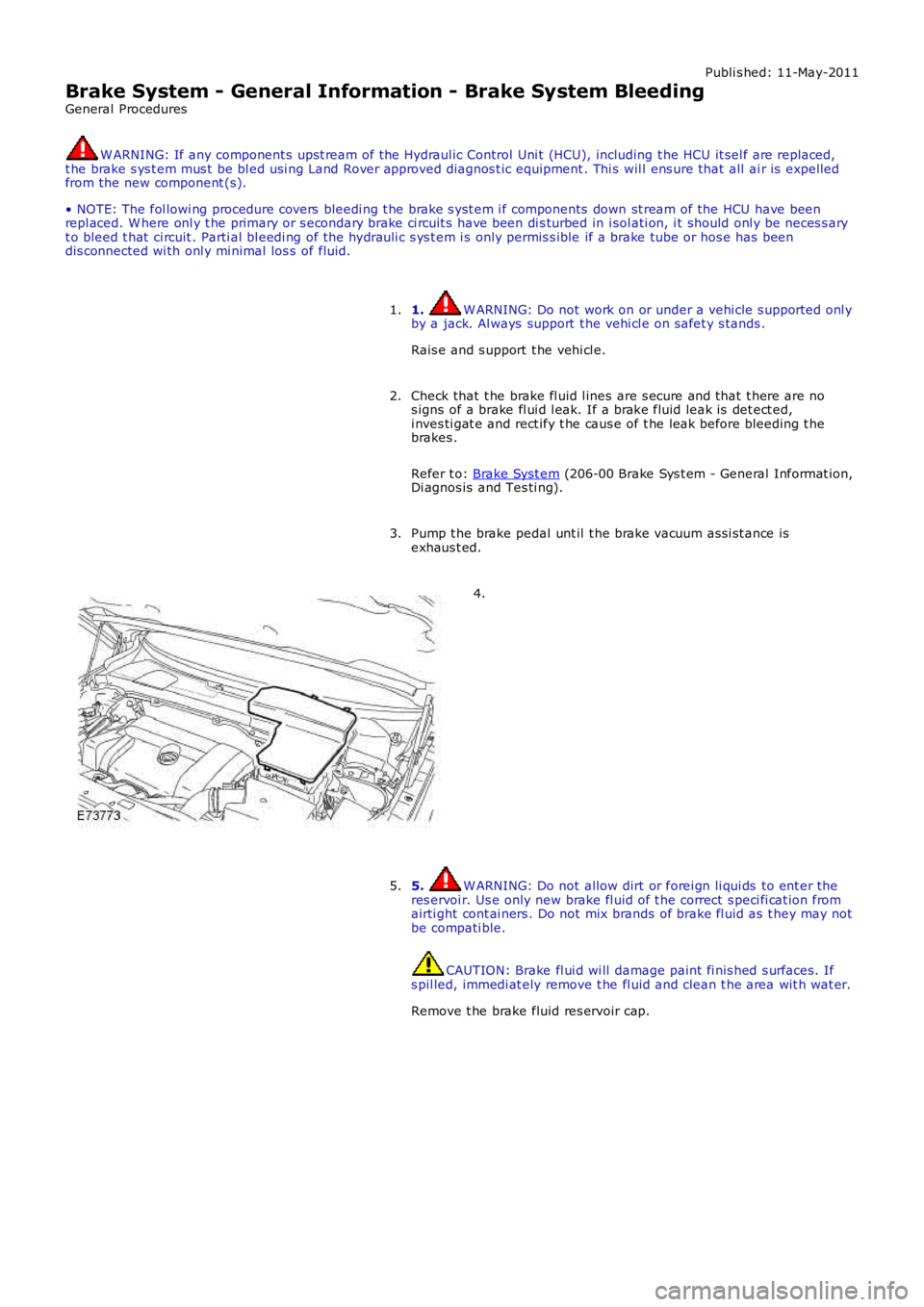

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Brake System - General Information - Brake System Bleeding
General Procedures
W ARNING: If any component s upst ream of the Hydraul ic Control Uni t (HCU), including the HCU i

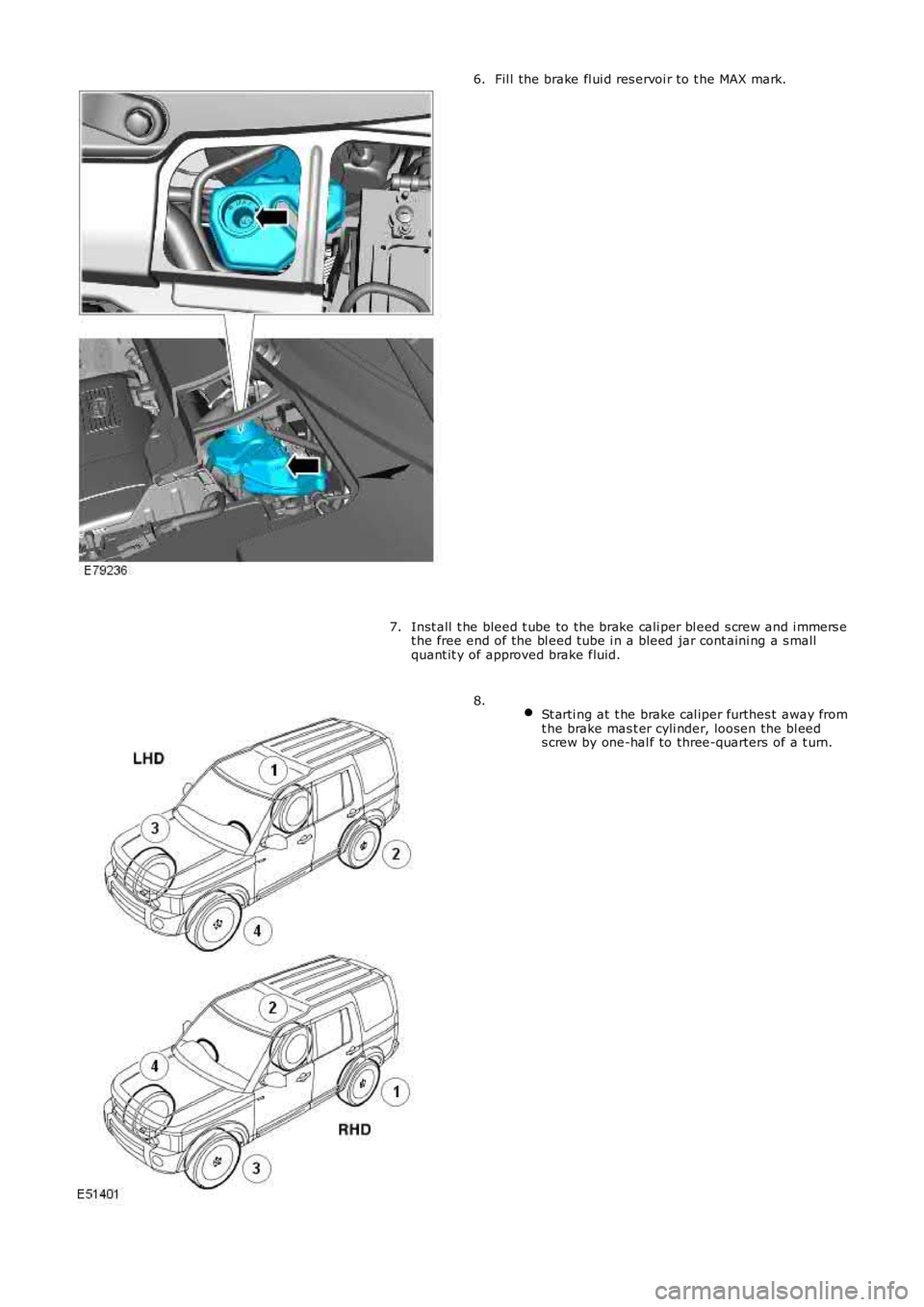

Page 418 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Fil l the brake fl ui d res ervoi r to t he MAX mark.6.
Inst all t he bleed t ube to the brake cali per bl eed s crew and i mmers et he free end of the bl eed tube i n a bl eed jar cont aini ng a s m

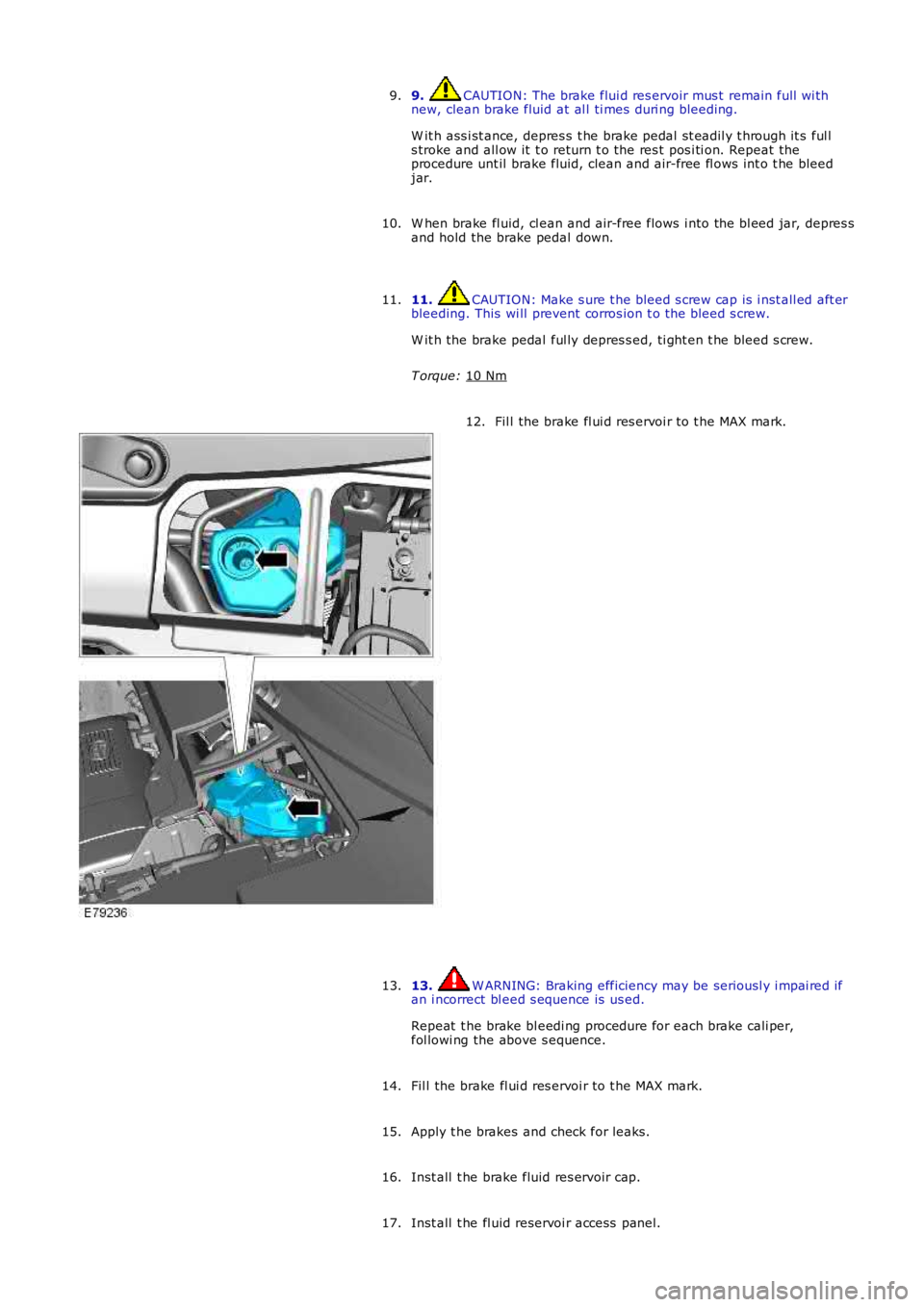

Page 419 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 9. CAUTION: The brake flui d res ervoir mus t remain full wi th
new, clean brake fluid at al l ti mes duri ng bleeding.
W it h ass i st ance, depres s t he brake pedal s t eadil y t hrough it s

Page 420 of 3229

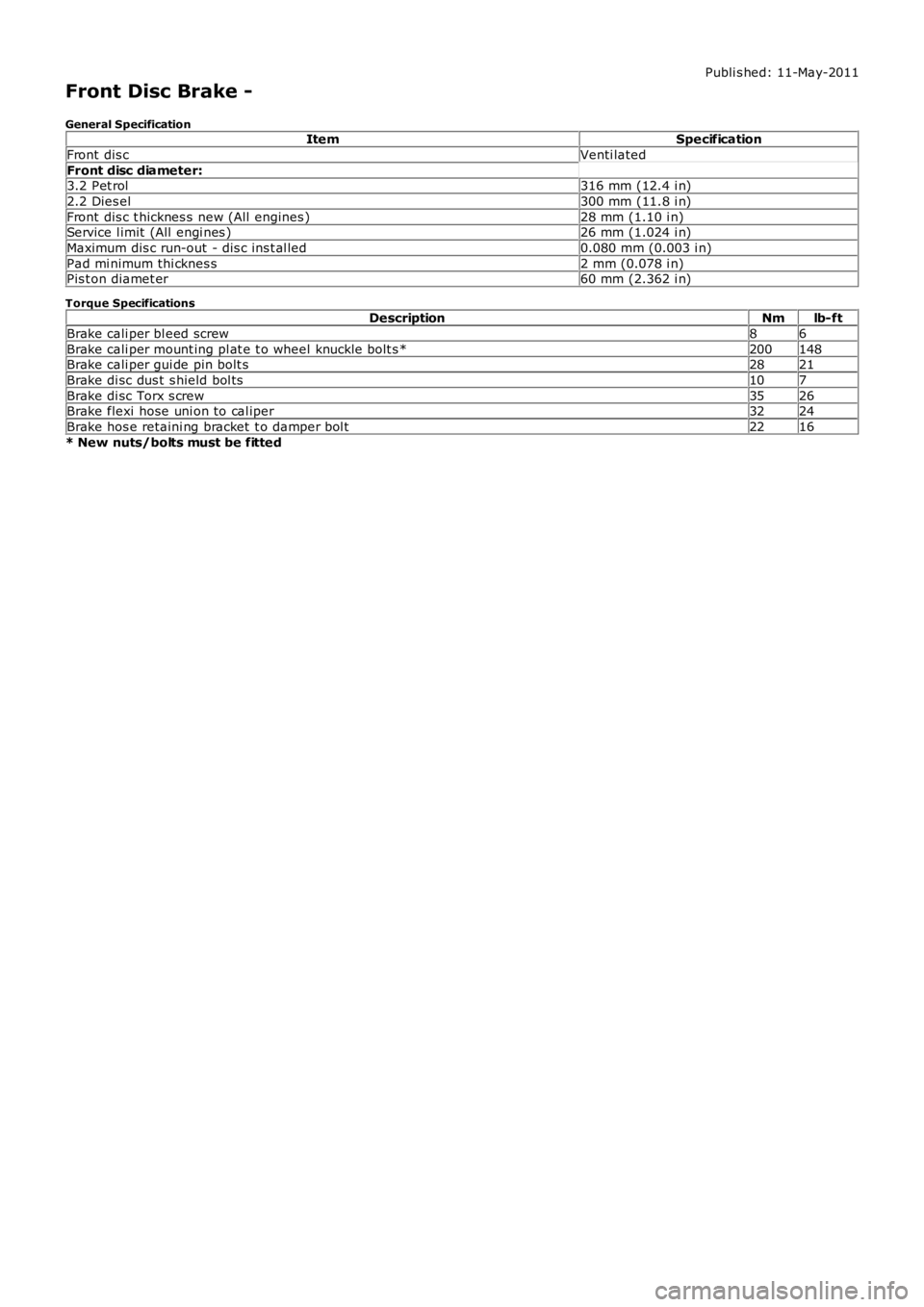

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Front Disc Brake -
General SpecificationItemSpecification
Front dis cVenti lated
Front disc diameter:3.2 Pet rol316 mm (12.4 i n)
2.2 Dies el300 mm (11.8 i n)
Front dis c t

Page 421 of 3229

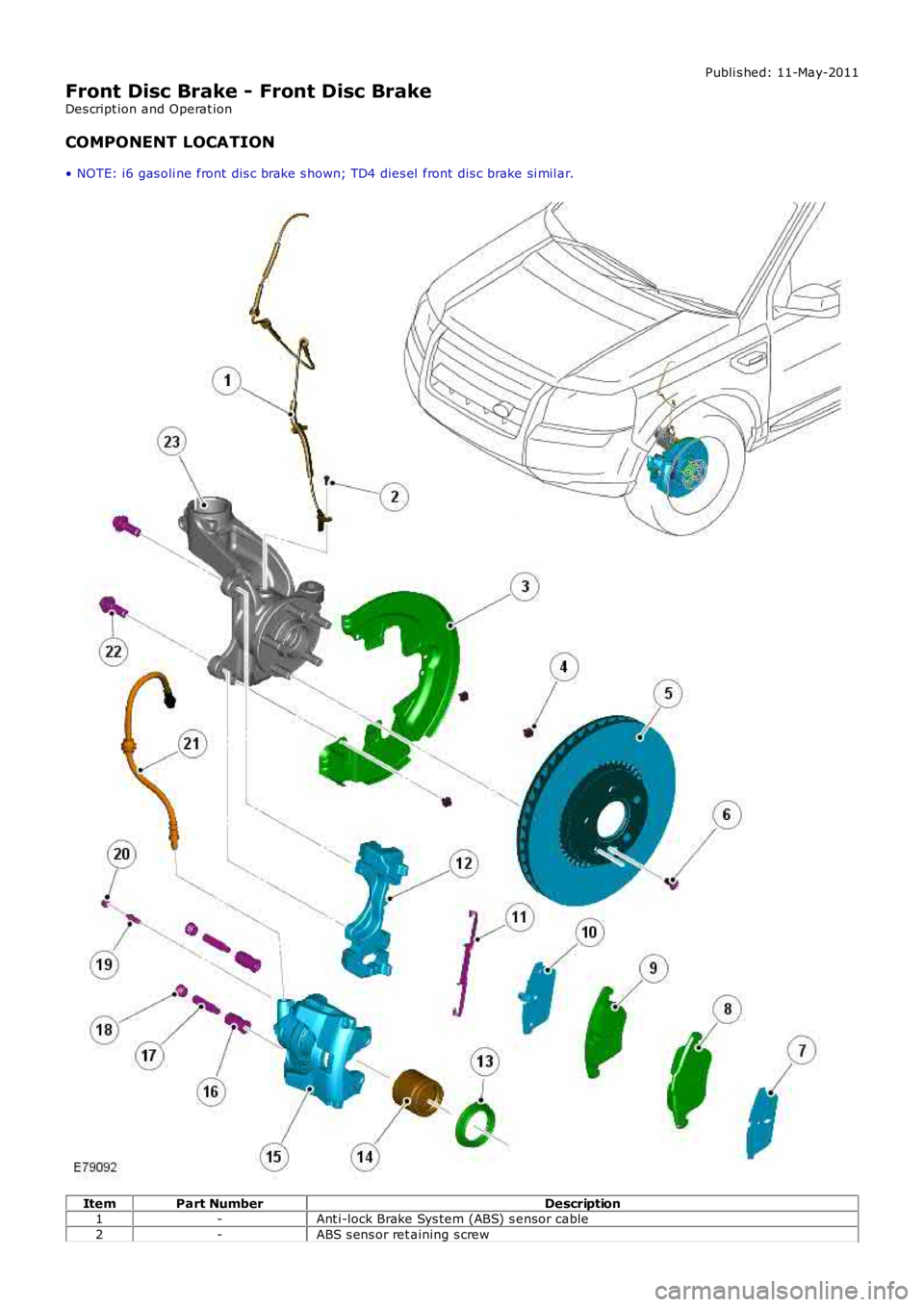

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Front Disc Brake - Front Disc Brake
Des cript ion and Operat ion
COMPONENT LOCATION
• NOTE: i6 gas oli ne front dis c brake s hown; TD4 dies el front dis c brake si mil ar

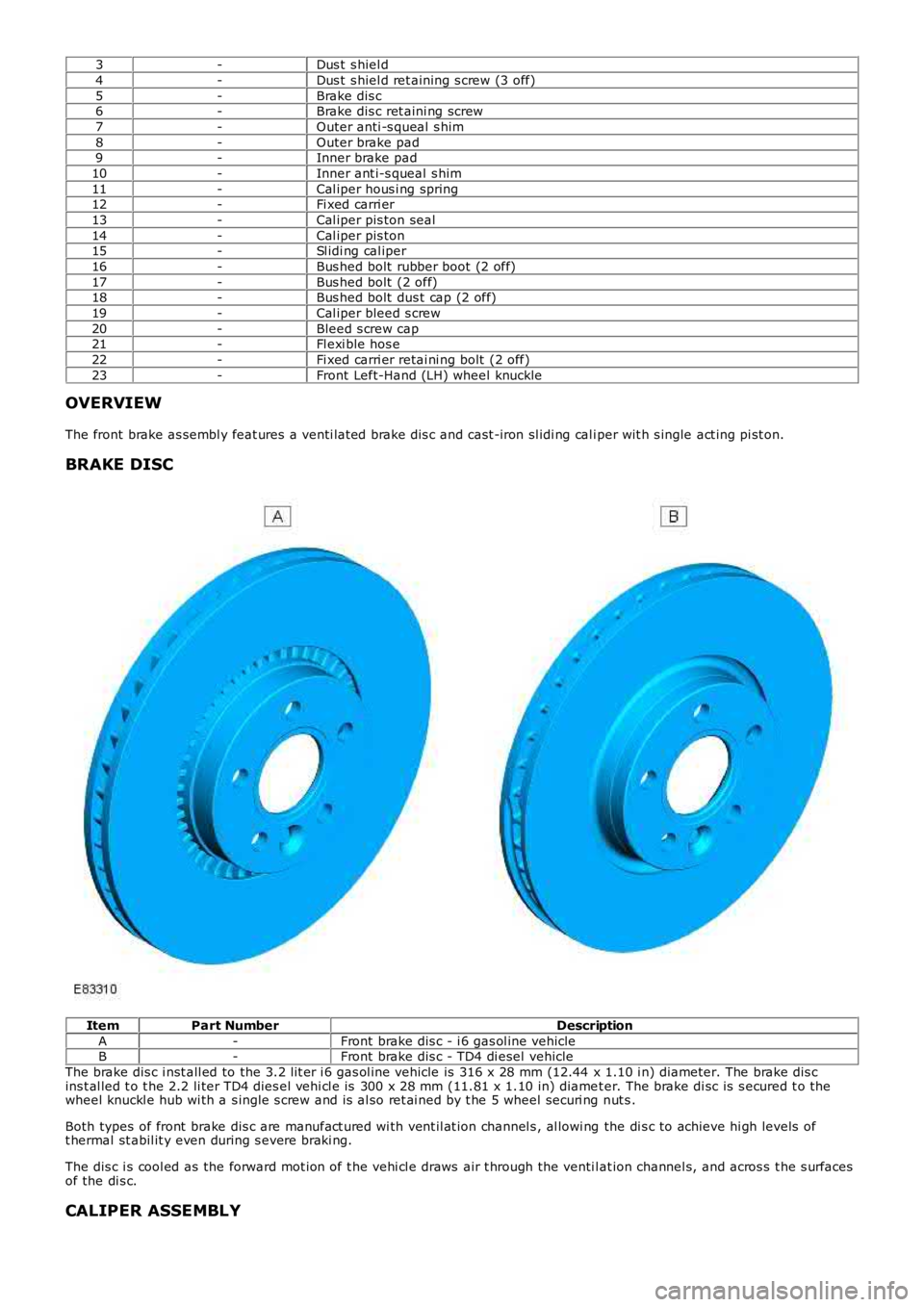

Page 422 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 3-Dus t s hiel d
4-Dus t s hiel d ret aining s crew (3 off)
5-Brake dis c6-Brake dis c ret aini ng screw
7-Outer anti -s queal s him
8-Outer brake pad9-Inner brake pad
10-Inner ant i-s queal s him

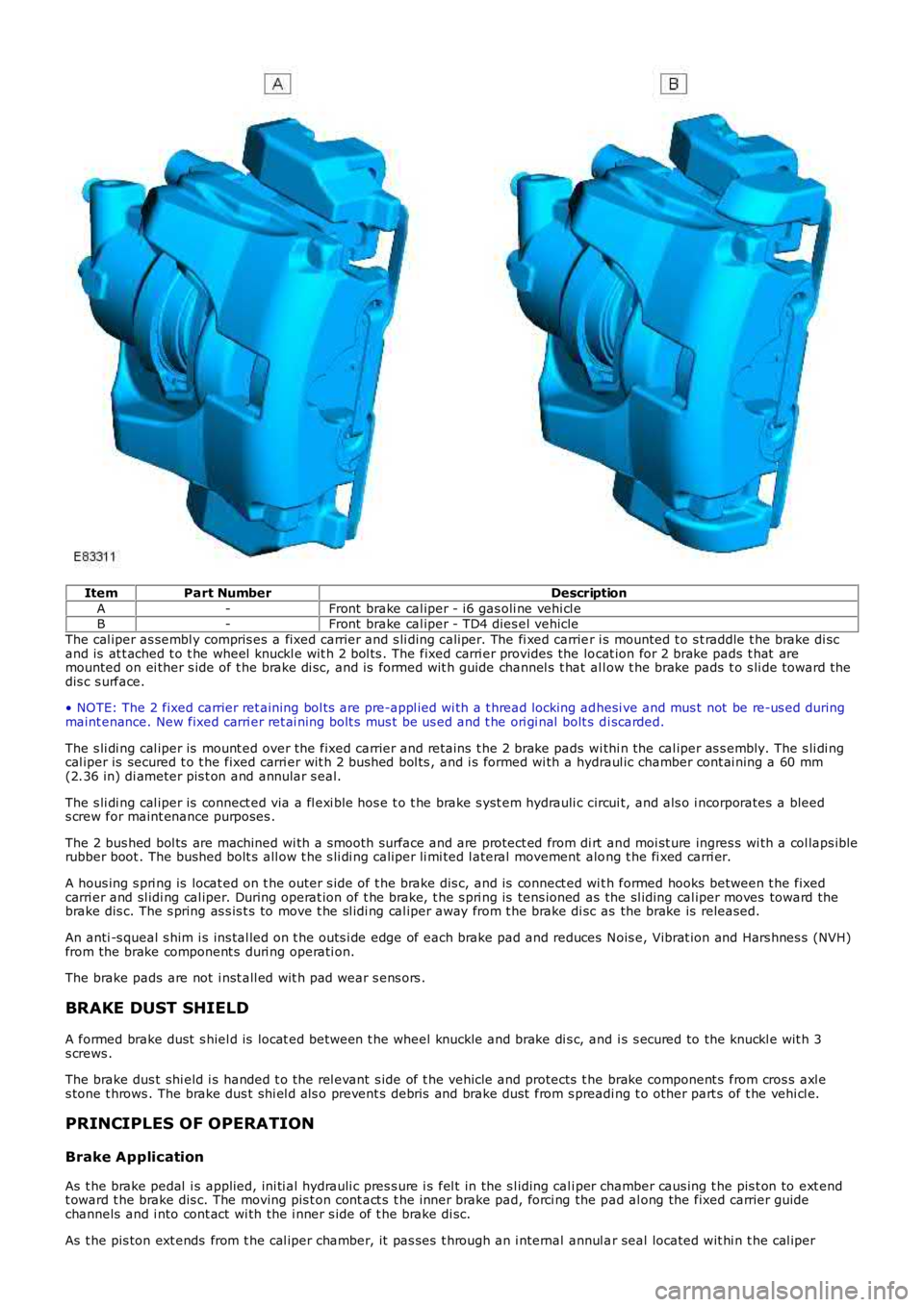

Page 423 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual ItemPart NumberDescription
A-Front brake cal iper - i6 gas oli ne vehi cl eB-Front brake cal iper - TD4 dies el vehicle
The cal iper as sembl y compris es a fixed carrier and s li ding caliper. The

ItemPart NumberDescription
A-Front brake cal iper - i6 gas oli ne vehi cl eB-Front brake cal iper - TD4 dies el vehicle
The cal iper as sembl y compris es a fixed carrier and s li ding caliper. The fi xed carrier i s mounted t o s t raddle t he brake di scand is at t ached t o t he wheel knuckl e wit h 2 bol ts . The fixed carri er provides the locat ion for 2 brake pads t hat aremounted on ei ther s ide of t he brake di sc, and is formed wit h guide channel s t hat al low t he brake pads t o s li de toward t hedis c s urface.
• NOTE: The 2 fixed carrier ret aining bol ts are pre-appl ied wi th a t hread locking adhesi ve and mus t not be re-us ed duringmaint enance. New fixed carri er ret ai ning bolt s mus t be us ed and t he ori gi nal bolt s di scarded.
The s li di ng cal iper is mount ed over the fixed carrier and ret ains t he 2 brake pads wi thi n the cal iper as s embly. The s li di ngcal iper is secured t o t he fixed carri er wit h 2 bus hed bol ts , and i s formed wi th a hydraul ic chamber cont ai ning a 60 mm(2.36 in) di ameter pis t on and annular s eal.
The s li di ng cal iper is connect ed via a fl exi ble hos e t o t he brake s yst em hydrauli c circui t, and als o i ncorporates a bleeds crew for maint enance purposes .
The 2 bus hed bol ts are machined wi th a s mooth surface and are protect ed from di rt and moi st ure ingres s wi th a col laps iblerubber boot . The bushed bolt s all ow t he s li di ng caliper li mi ted l ateral movement along t he fi xed carri er.
A hous ing s pri ng is locat ed on t he outer s ide of t he brake dis c, and is connect ed wit h formed hooks between t he fixedcarri er and sl idi ng cal iper. During operat ion of t he brake, t he s pri ng is tens ioned as the sl iding cal iper moves toward thebrake dis c. The s pring as s is t s to move t he sl idi ng cal iper away from t he brake di sc as the brake is released.
An anti -s queal s him i s ins tal led on t he outs i de edge of each brake pad and reduces Nois e, Vibrat ion and Hars hnes s (NVH)from the brake component s duri ng operati on.
The brake pads are not i nst all ed wit h pad wear s ens ors .
BRAKE DUST SHIELD
A formed brake dust s hiel d is locat ed between t he wheel knuckle and brake di s c, and i s s ecured to the knuckl e wit h 3s crews .
The brake dus t shi eld i s handed t o t he rel evant s ide of t he vehicle and protects t he brake component s from cros s axl es tone t hrows . The brake dus t shi el d als o prevent s debris and brake dust from s preading t o other part s of t he vehi cl e.
PRINCIPLES OF OPERATION
Brake Application
As t he brake pedal i s applied, ini ti al hydrauli c pres s ure i s fel t in the s l iding cali per chamber caus ing t he pis t on to ext endt oward t he brake dis c. The moving pis t on cont act s t he inner brake pad, forci ng the pad al ong the fixed carrier guidechannels and i nto cont act wi th the i nner s ide of t he brake di sc.
As t he pis ton ext ends from t he cal iper chamber, it pas ses t hrough an i nternal annul ar seal located wit hi n t he cal iper

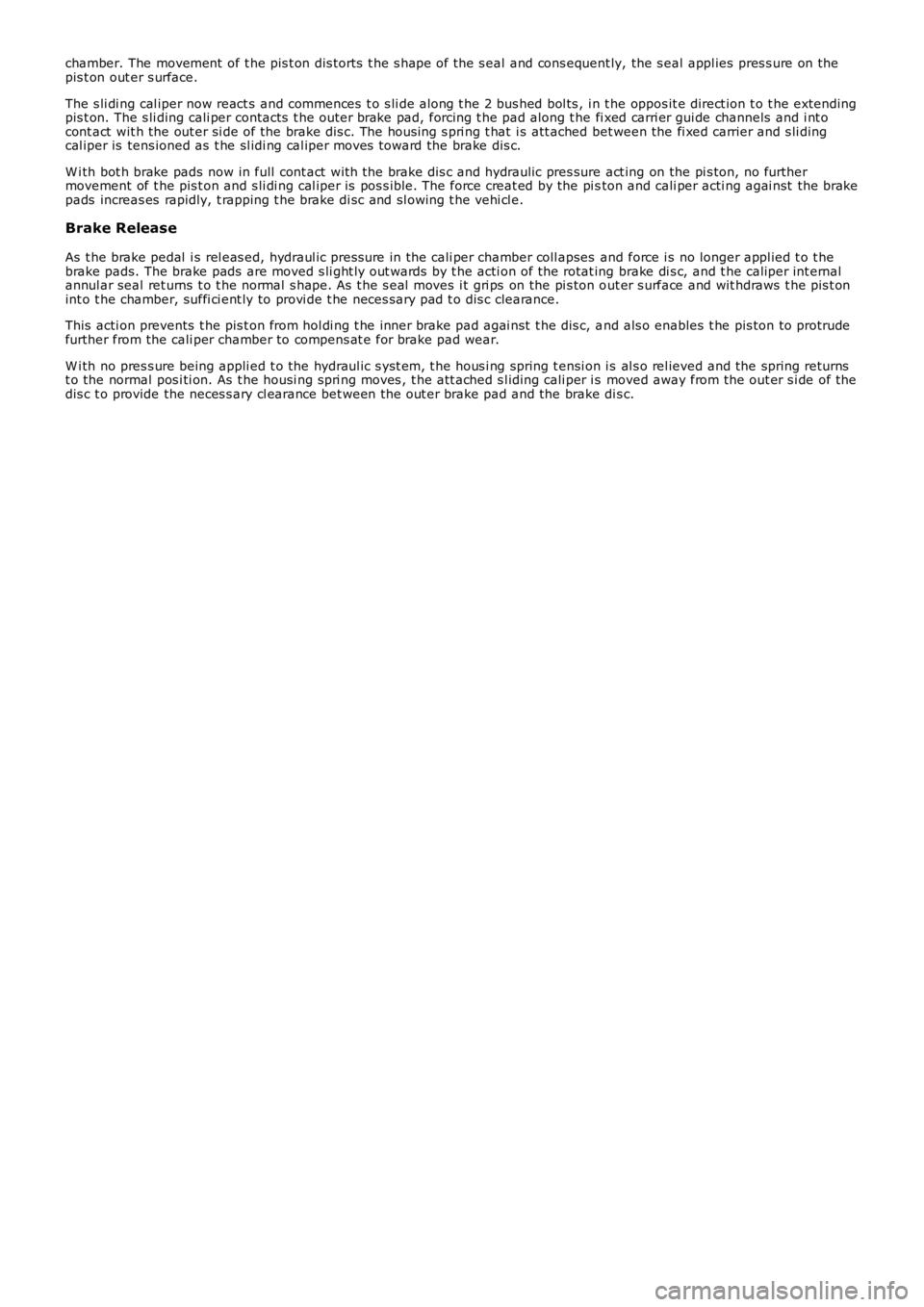

Page 424 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual chamber. The movement of t he pis t on dis torts t he s hape of the s eal and cons equent ly, the s eal appl ies pres s ure on thepis t on out er s urface.
The s li di ng cal iper now react s and c

chamber. The movement of t he pis t on dis torts t he s hape of the s eal and cons equent ly, the s eal appl ies pres s ure on thepis t on out er s urface.
The s li di ng cal iper now react s and commences t o s li de along t he 2 bus hed bol ts , i n the oppos it e direct ion t o t he extendingpis t on. The s li ding cali per contacts t he outer brake pad, forcing t he pad along t he fi xed carri er gui de channels and i nt ocont act wit h the out er si de of the brake dis c. The hous ing s pri ng t hat i s att ached bet ween the fi xed carrier and s li dingcal iper is tens ioned as t he sl idi ng cal iper moves toward the brake dis c.
W i th bot h brake pads now in full cont act wit h the brake dis c and hydraulic pres sure act ing on the pi s ton, no furthermovement of t he pis t on and s li di ng cal iper is pos s ible. The force creat ed by the pi ston and cali per acti ng agai nst the brakepads increas es rapidly, t rapping t he brake di sc and sl owing t he vehi cl e.
Brake Release
As t he brake pedal i s rel eas ed, hydraul ic press ure in the cali per chamber coll apses and force i s no longer appl ied t o t hebrake pads. The brake pads are moved s li ght ly out wards by t he acti on of the rotat ing brake di s c, and t he caliper int ernalannul ar seal ret urns t o t he normal s hape. As t he s eal moves i t gri ps on the pi s ton out er s urface and wit hdraws t he pis t onint o t he chamber, suffi ci ent ly to provi de t he neces sary pad t o dis c clearance.
This acti on prevents t he pis t on from hol di ng t he inner brake pad agai nst t he dis c, and als o enables t he pis ton to protrudefurther from the cali per chamber to compens at e for brake pad wear.
W i th no pres s ure being appli ed t o the hydraul ic s yst em, t he hous i ng spring t ensi on is al s o rel ieved and the spring returnst o the normal pos i ti on. As t he housi ng s pri ng moves , t he att ached s l iding cali per i s moved away from the out er s i de of thedis c t o provide the neces s ary cl earance bet ween the out er brake pad and the brake dis c.
