Page 2361 of 3229
Publi s hed: 11-May-2011
Wipers and Washers - Windshield Washer Reservoir
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
1. W ARNING: Do not work on or under a vehi cle s upported onl y
by a jack. Al ways support t he vehi cl e on s afet y s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he RH fender s plas h s hield.
Refer t o: Fender Spl ash Shi eld (501-02 Front End Body Panel s ,
Removal and Ins tall ati on).
2.
Drai n t he was her reservoi r fl ui d.
3. Remove t he winds hield was her res ervoir.
T orque: 6 Nm 4.
5.
NOTE: Do not dis ass embl e further if t he component
i s removed for acces s onl y.
Remove t he winds hield was her pump.
5.
Page 2362 of 3229

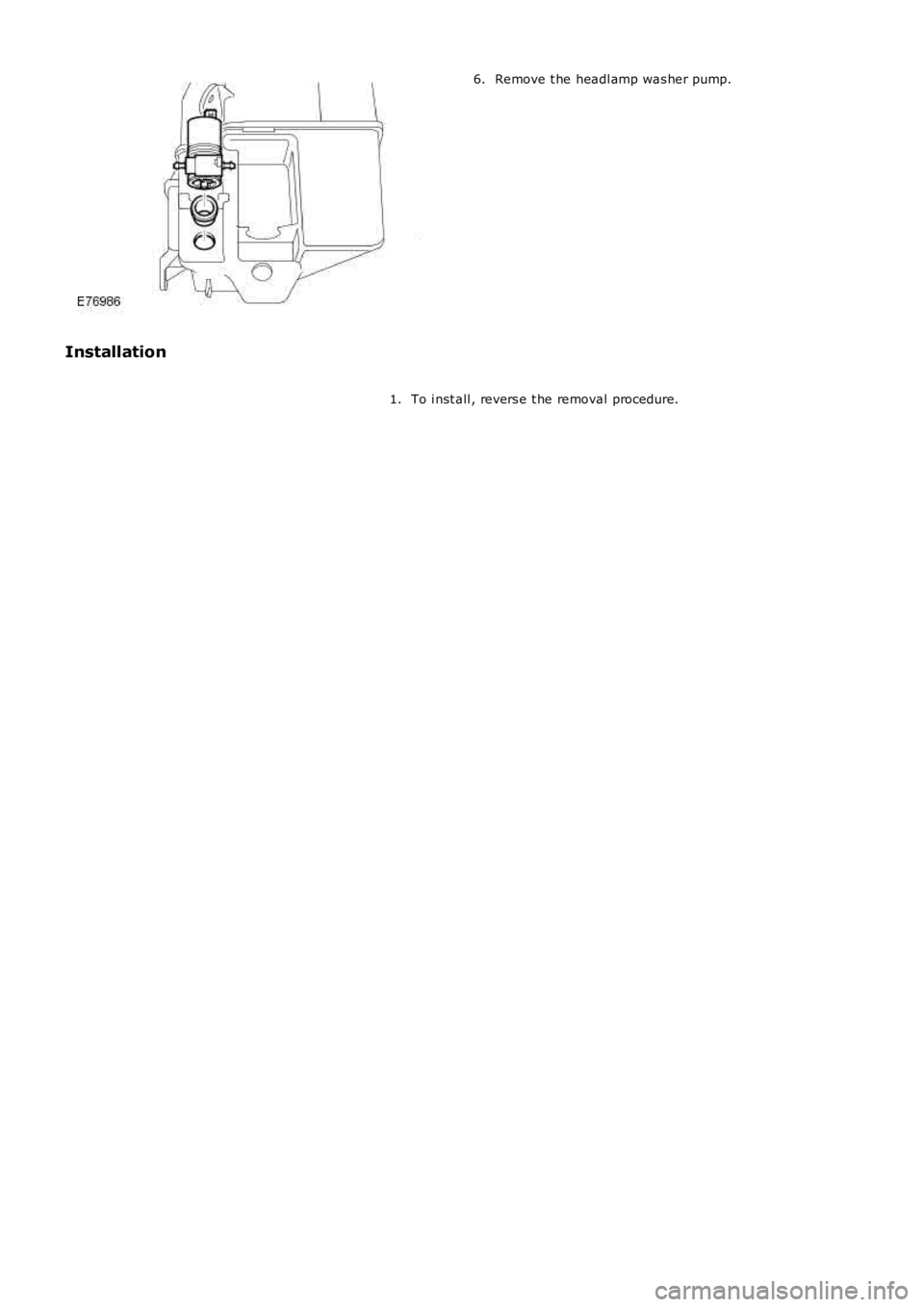

Remove t he headl amp was her pump.6.
Installation
To i nst all , revers e t he removal procedure.1.
Page 2363 of 3229
Publi s hed: 11-May-2011
Wipers and Washers - Headlamp Washer Pump
Removal and Inst all ati on
Removal
1. W ARNING: Do not work on or under a vehi cle s upported onl y
by a jack. Al ways support t he vehi cl e on s afet y s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he RH fender s plas h s hield.
Refer t o: Fender Spl ash Shi eld (501-02 Front End Body Panel s ,
Removal and Ins tall ati on).
2.
Drai n t he was her reservoi r fl ui d.
3. 4.
NOTE: Do not dis ass embl e further if t he component
i s removed for acces s onl y.
Remove t he headl amp was her pump.
4.
Installation To i nst all , revers e t he removal procedure.
1.
Page 2364 of 3229
Publi s hed: 11-May-2011
Wipers and Washers - Rear Window Wiper Pivot Arm
Removal and Inst all ati on
Special T ool(s) 303-D121
Pull er, General Purpose
Removal

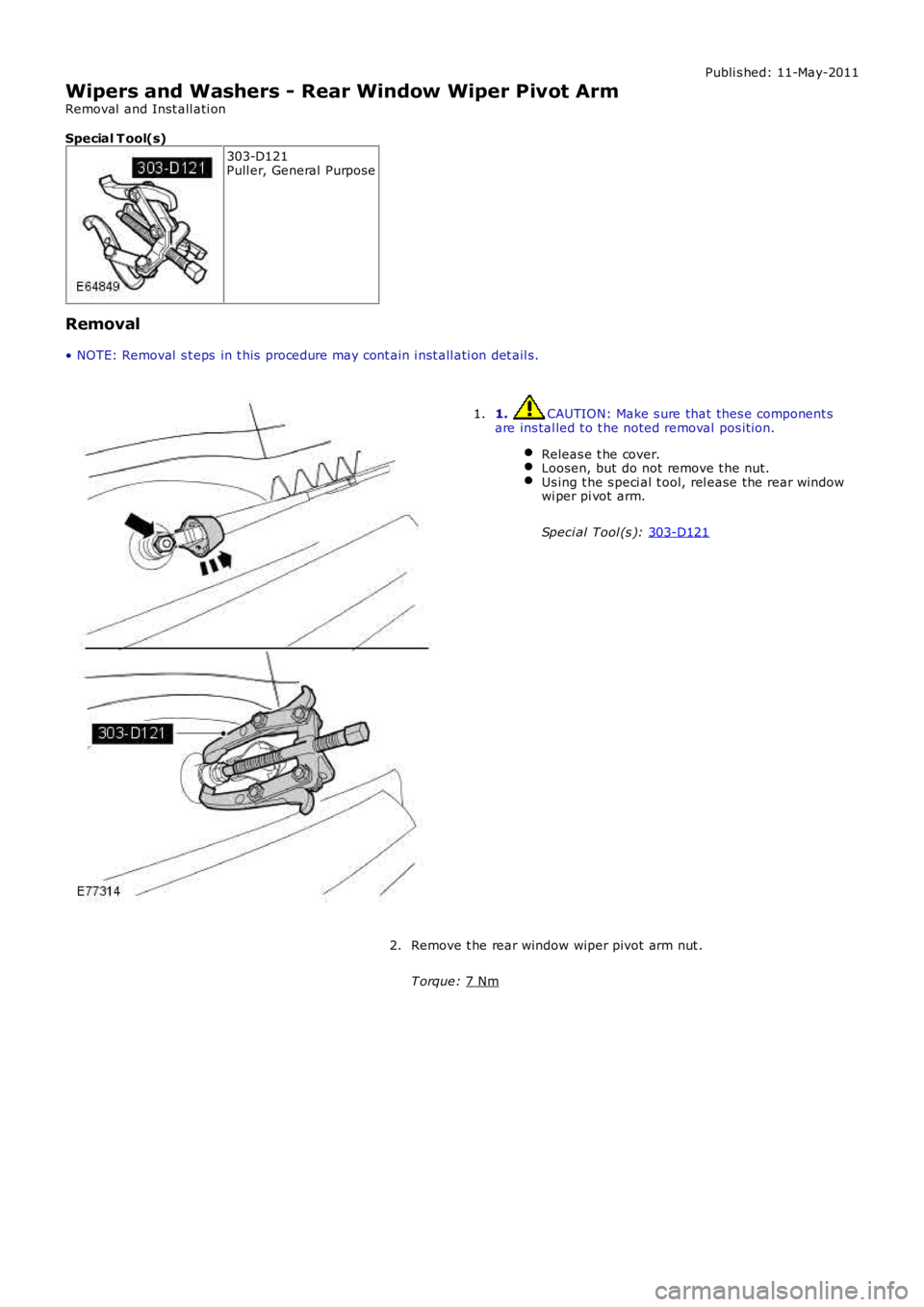

• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s. 1. CAUTION: Make s ure that thes e component s
are ins tal led t o t he noted removal pos it ion.
Releas e t he cover. Loosen, but do not remove t he nut.
Us ing t he s peci al t ool, rel ease the rear window
wi per pi vot arm.
Speci al Tool (s ): 303-D121 1.
Remove t he rear window wiper pivot arm nut .
T orque: 7 Nm 2.
Page 2365 of 3229

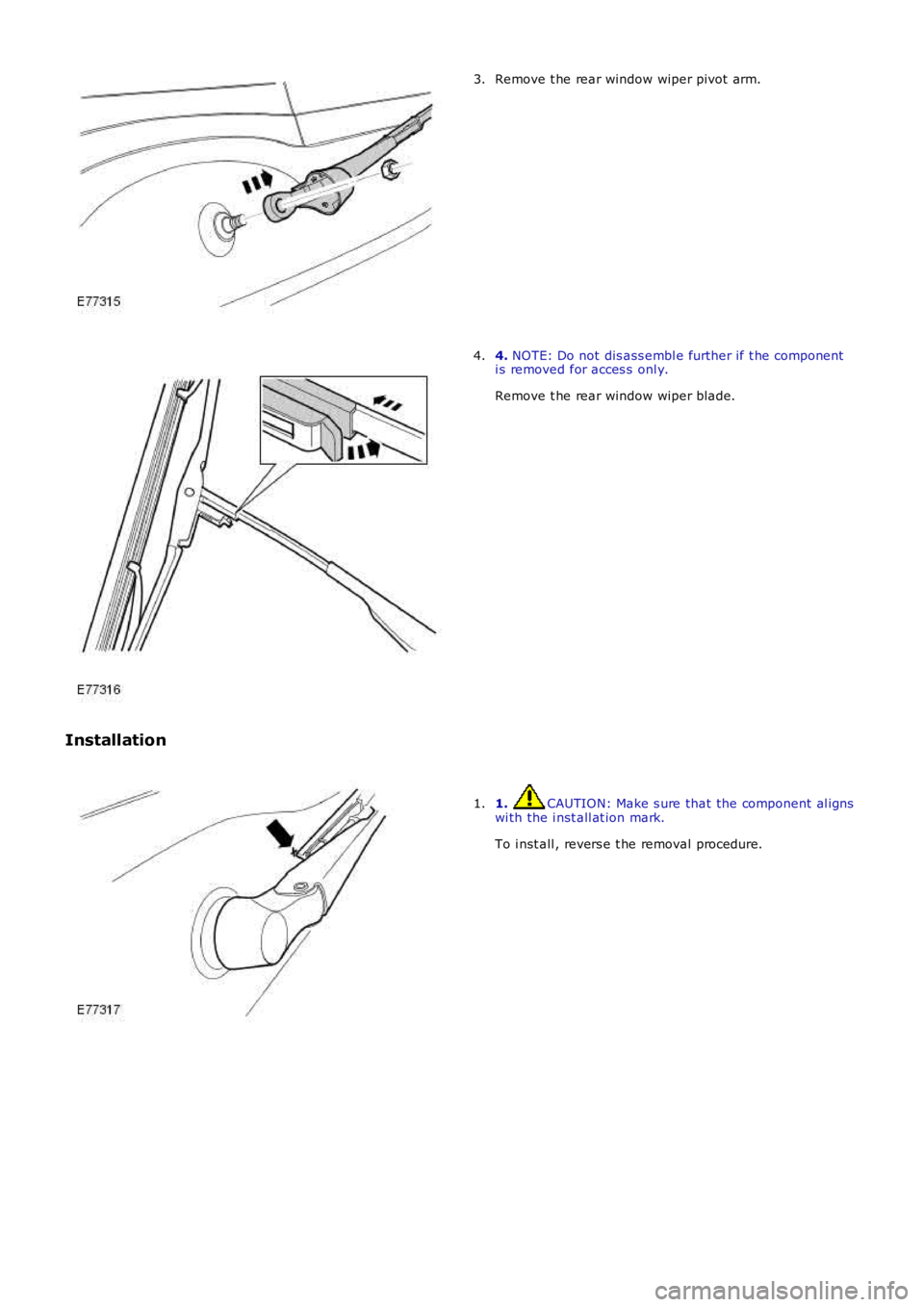

Remove t he rear window wiper pivot arm.3.
4. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y.
Remove t he rear window wiper blade.
4.
Installation
1. CAUTION: Make s ure that the component al ignswi th the i nst all at ion mark.
To i nst all , revers e t he removal procedure.
1.
Page 2366 of 3229
Publi s hed: 11-May-2011
Roof Opening Panel -

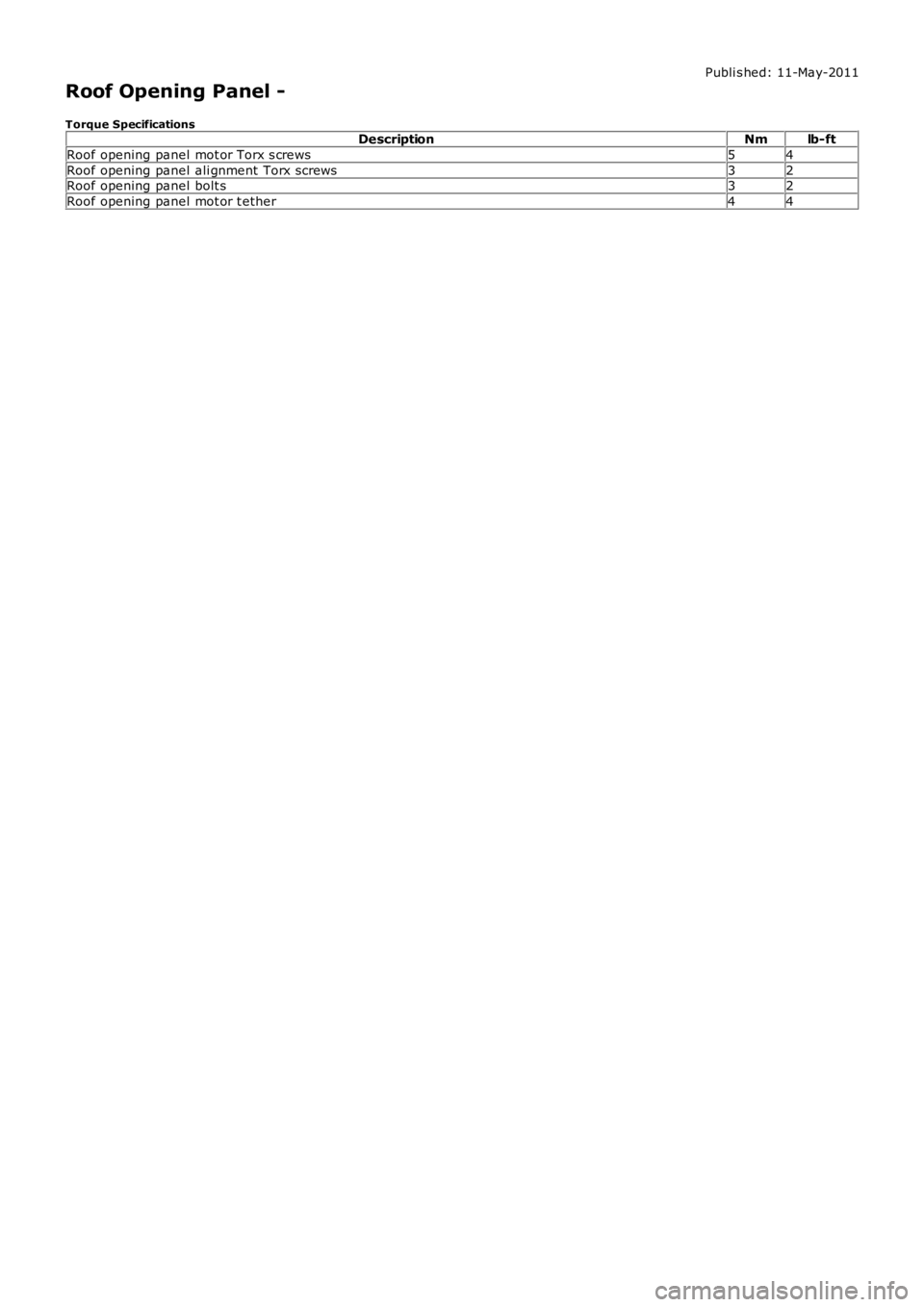

Torque SpecificationsDescriptionNmlb-ft
Roof opening panel mot or Torx s crews54
Roof opening panel ali gnment Torx screws32Roof opening panel bolt s32
Roof opening panel mot or t ether44
Page 2367 of 3229

Publi s hed: 11-May-2011
Roof Opening Panel - Roof Opening Panel
Des cript ion and Operat ion

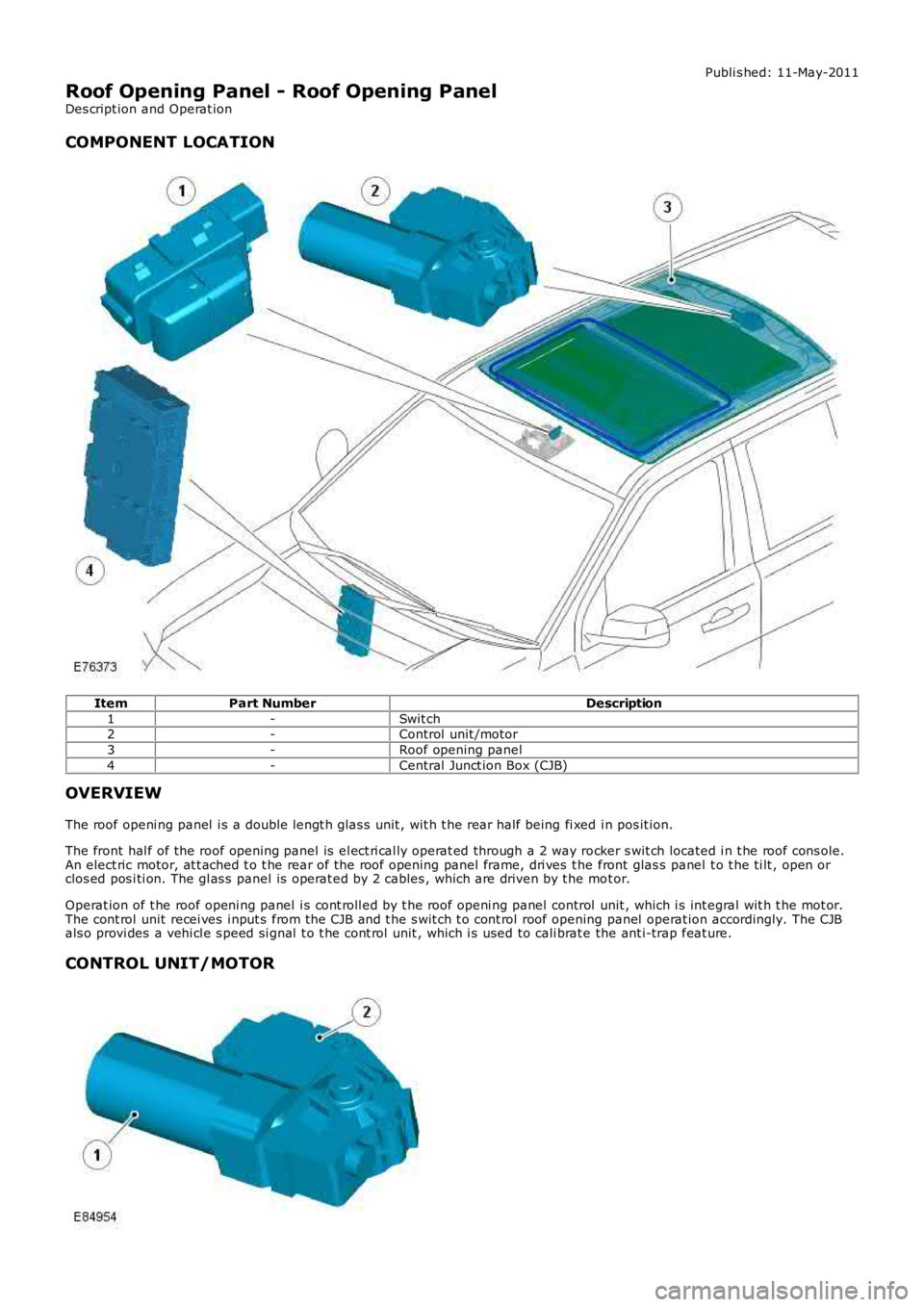

COMPONENT LOCATION
ItemPart NumberDescription
1-Swit ch2-Control unit /motor
3-Roof opening panel
4-Central Junct ion Box (CJB)
OVERVIEW
The roof openi ng panel i s a double l engt h glas s unit , wit h t he rear half being fi xed i n pos it ion.
The front hal f of the roof opening panel is el ect ri cal ly operat ed through a 2 way rocker s wit ch located i n t he roof cons ole.An elect ric motor, at t ached t o t he rear of the roof opening panel frame, dri ves t he front glas s panel t o t he ti lt , open orclos ed pos i ti on. The gl as s panel is operat ed by 2 cables , which are driven by t he mot or.
Operat ion of t he roof openi ng panel i s cont roll ed by t he roof openi ng panel control unit , which i s int egral wit h t he mot or.The cont rol unit recei ves i nput s from the CJB and t he s wit ch t o cont rol roof opening panel operat ion accordingly. The CJBals o provi des a vehi cl e s peed si gnal t o t he cont rol unit , which i s used to cali brat e the ant i-trap feat ure.
CONTROL UNIT/MOTOR
Page 2368 of 3229

ItemPart NumberDescription
1-Motor
2-Cont rol unitThe combined cont rol unit and mot or ass embly is mount ed behi nd t he headli ning, to the rear of t he roof opening panel.The cont rol unit us es inputs from t he CJB and t he roof openi ng panel s wit ch to cont rol operati on of the motor.
The end of the motor armat ure is formed as a worm drive, whi ch dri ves a gear at tached to the end of t he mot or as s embly.The gear engages wit h heli xed cables i n t he roof openi ng panel frame to form a rack and pinion drive.
The cont rol unit i ncorporates a Hal l effect s ensor which i s us ed to count t he revolut ions made by t he mot or armature. Bycount ing t he revolut ions t he cont rol unit can accurat ely det ermi ne when t he glas s panel has reached it s ful ly open, cl osedor ti lt pos it ion by compari ng the armat ure rotat ion value agains t values s tored in its memory. The values are st ored in t hecont rol unit 's memory when t he i ni ti alizat ion rout ine has been carried out .
The cont rol unit al so monit ors t he temperature of the mot or and wil l sus pend operation if an overheat s it uat ion is l ikely t ooccur. The t hermal prot ect ion funct ion has 2 levels of operat ion.
Level 1 - The control uni t wil l onl y all ow t he roof openi ng panel t o be clos edLevel 2 - Al l operati on is s us pended except 'Ant i-Trap'.

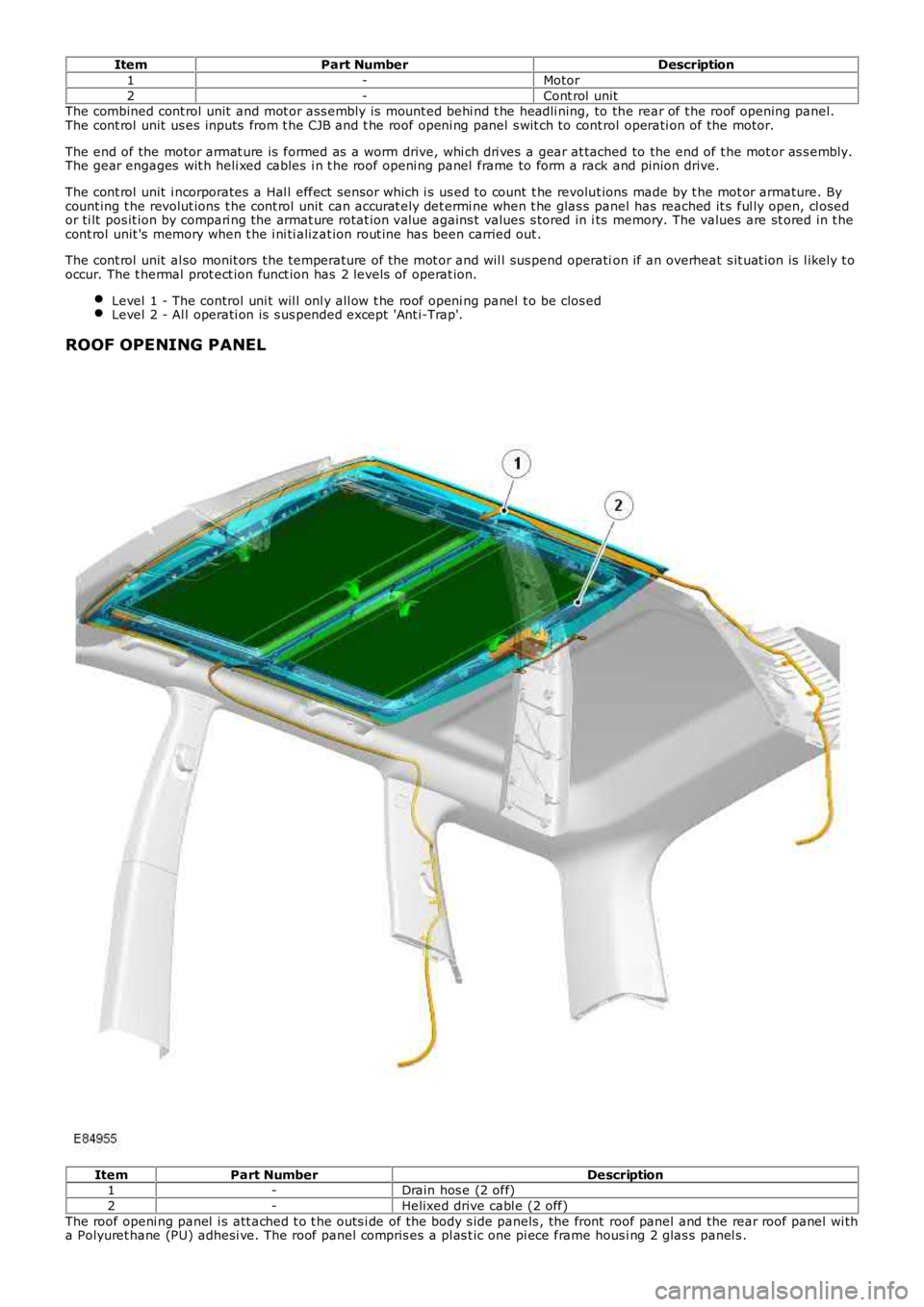

ROOF OPENING PANEL
ItemPart NumberDescription1-Drain hos e (2 off)
2-Helixed drive cabl e (2 off)
The roof openi ng panel i s att ached t o t he outs i de of the body s ide panels , the front roof panel and the rear roof panel wi tha Polyuret hane (PU) adhesi ve. The roof panel compris es a pl as t ic one pi ece frame hous i ng 2 glas s panel s .
