Page 2689 of 3229

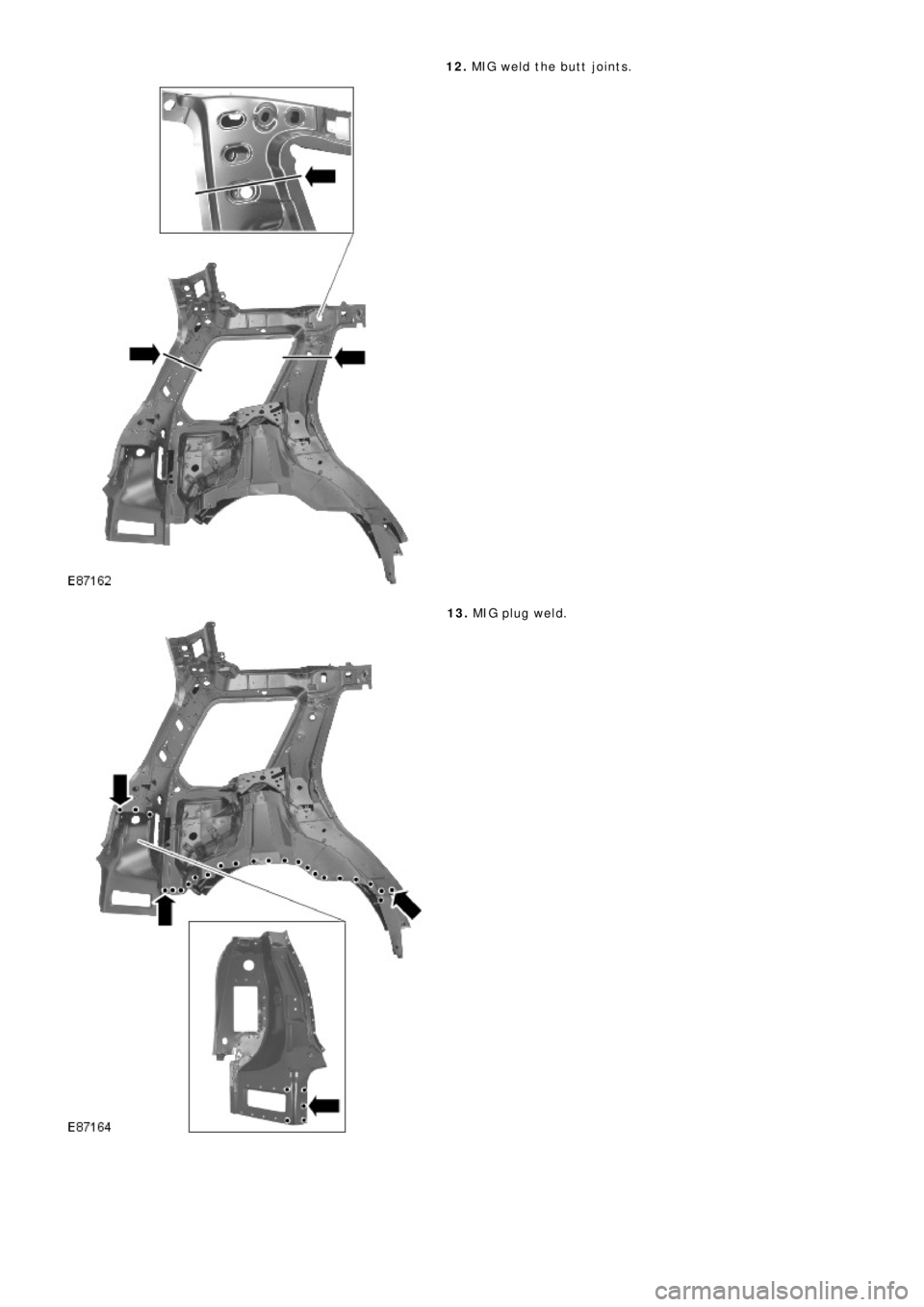

LAND ROVER FRELANDER 2 2006 Repair Manual 12. MIG weld the butt joints. 13. MI G pl ug we l d.

Page 2690 of 3229

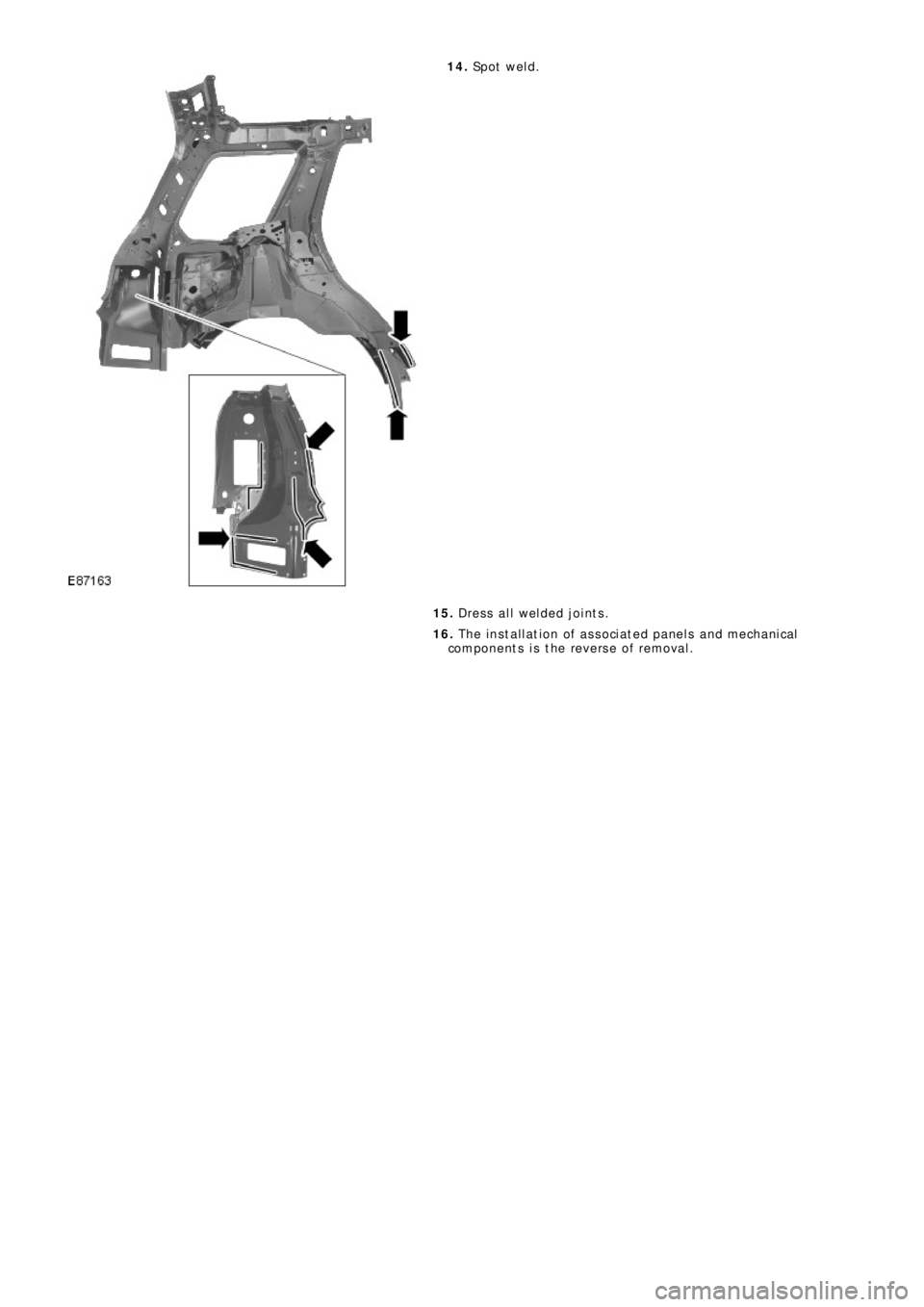

LAND ROVER FRELANDER 2 2006 Repair Manual 14. Sp o t w e l d . 15. Dress all welded joints. 16. The installation of associated panels and mechanical components is the reverse of removal.

Page 2691 of 3229

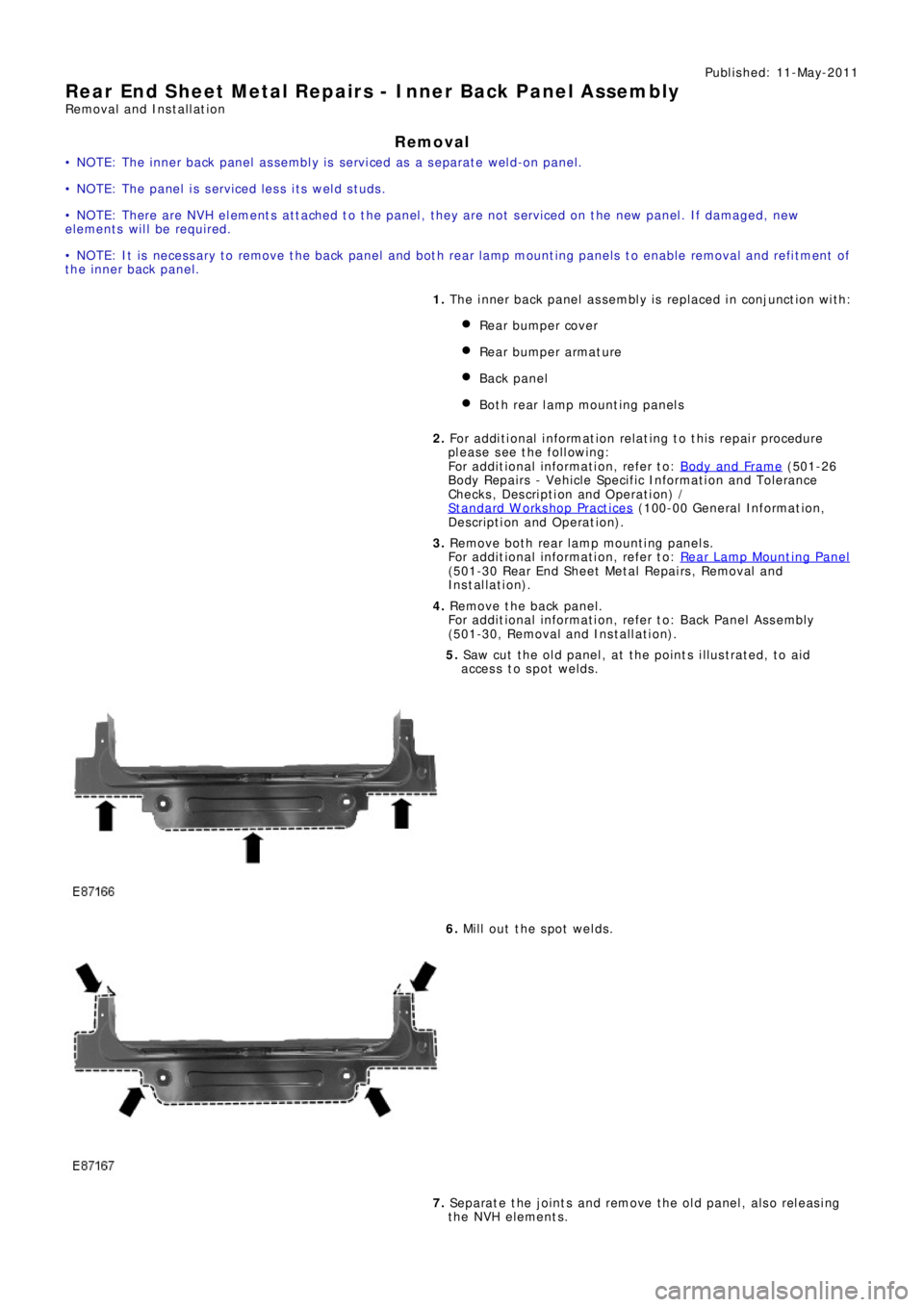

LAND ROVER FRELANDER 2 2006 Repair Manual Publ is hed: 11-May-2011 Rear End Sheet Metal Repairs - Inner Back Panel Assembly Removal and Installation Removal • NOTE: The inner back panel assembly is serviced as a separate weld-on panel. •

Page 2692 of 3229

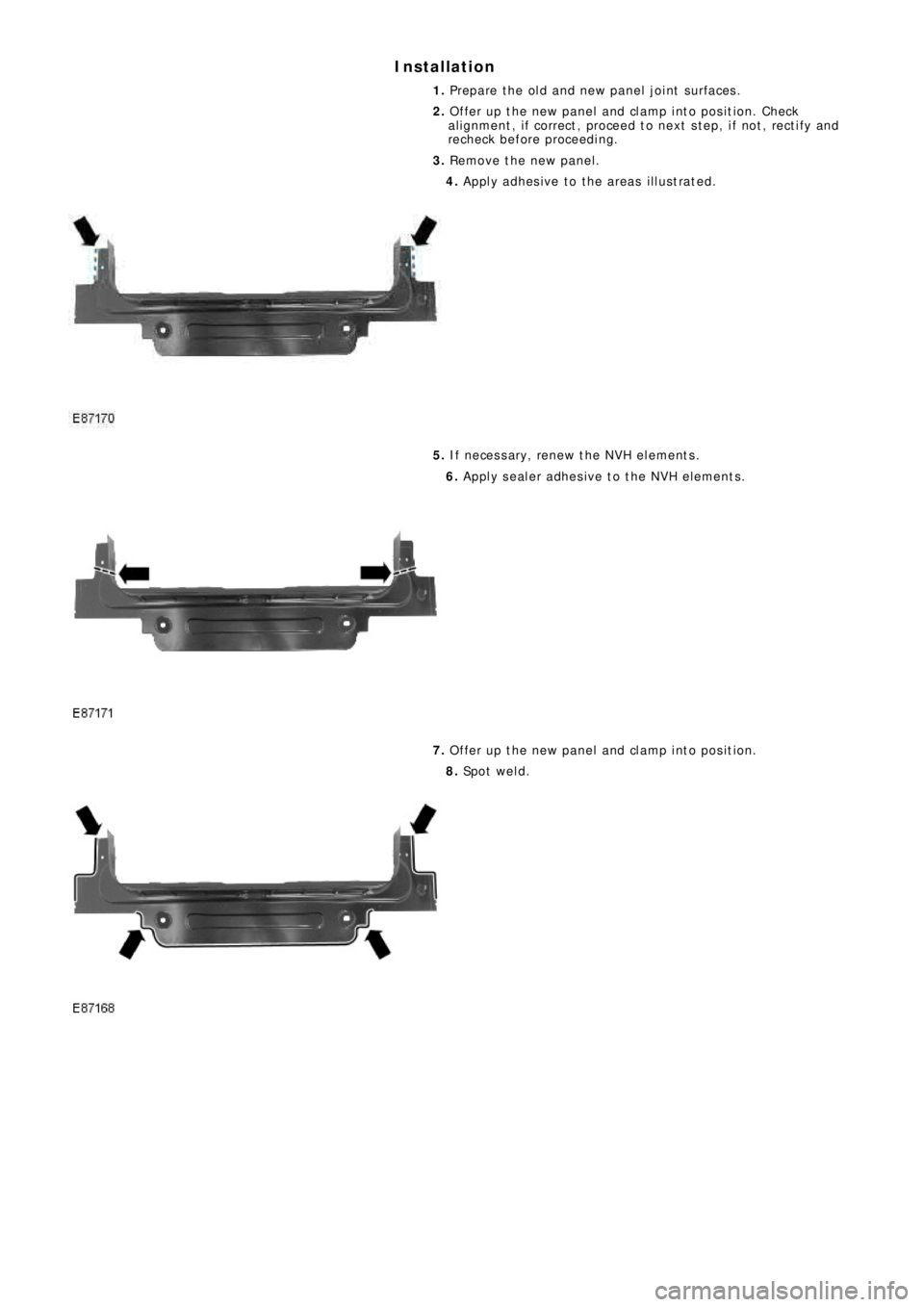

LAND ROVER FRELANDER 2 2006 Repair Manual Installation 1. Prepare the old and new panel joint surfaces. 2. Offer up the new panel and clamp into position. Check al ignment , i f correct , proceed t o next s t ep, i f not , rect i fy and rech

Page 2693 of 3229

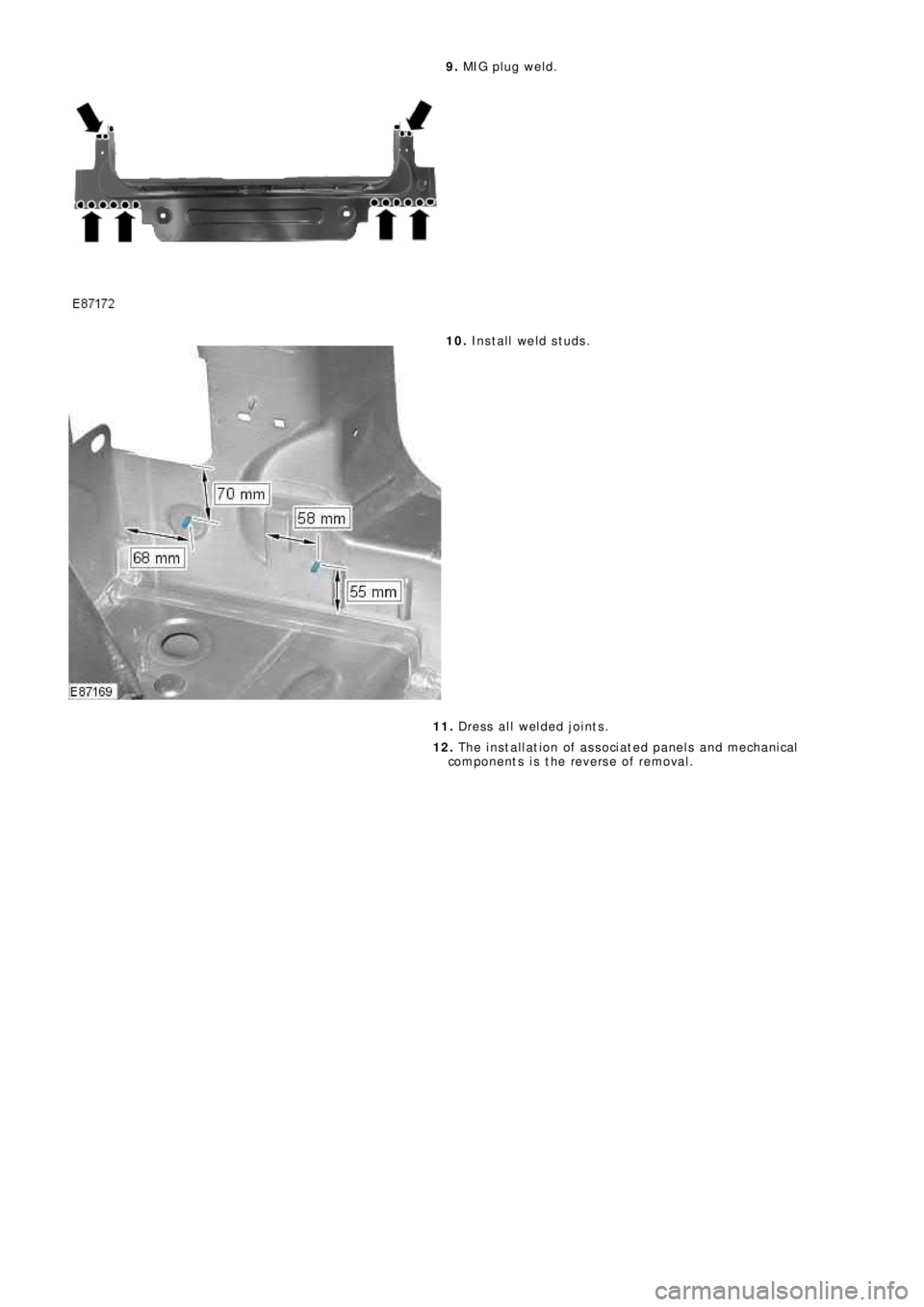

LAND ROVER FRELANDER 2 2006 Repair Manual 9. MIG pl ug we l d. 10. Install weld studs. 11. Dress all welded joints. 12. The installation of associated panels and mechanical components is the reverse of removal.

Page 2694 of 3229

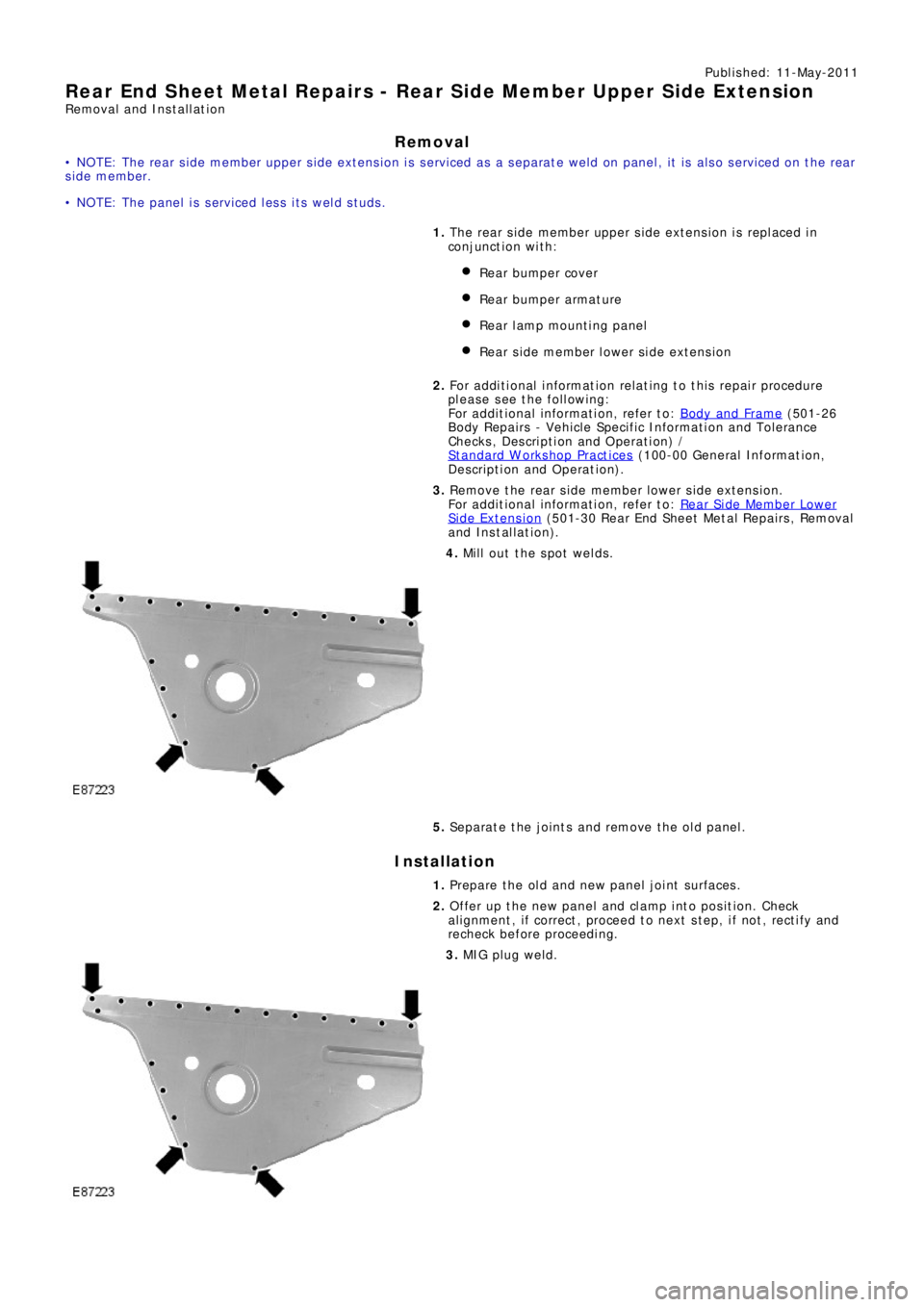

LAND ROVER FRELANDER 2 2006 Repair Manual Publ is hed: 11-May-2011 Rear End Sheet Metal Repairs - Rear Side Member Upper Side Extension Removal and Installation Removal • NOTE: The rear side member upper side extension is serviced as a sepa

Page 2695 of 3229

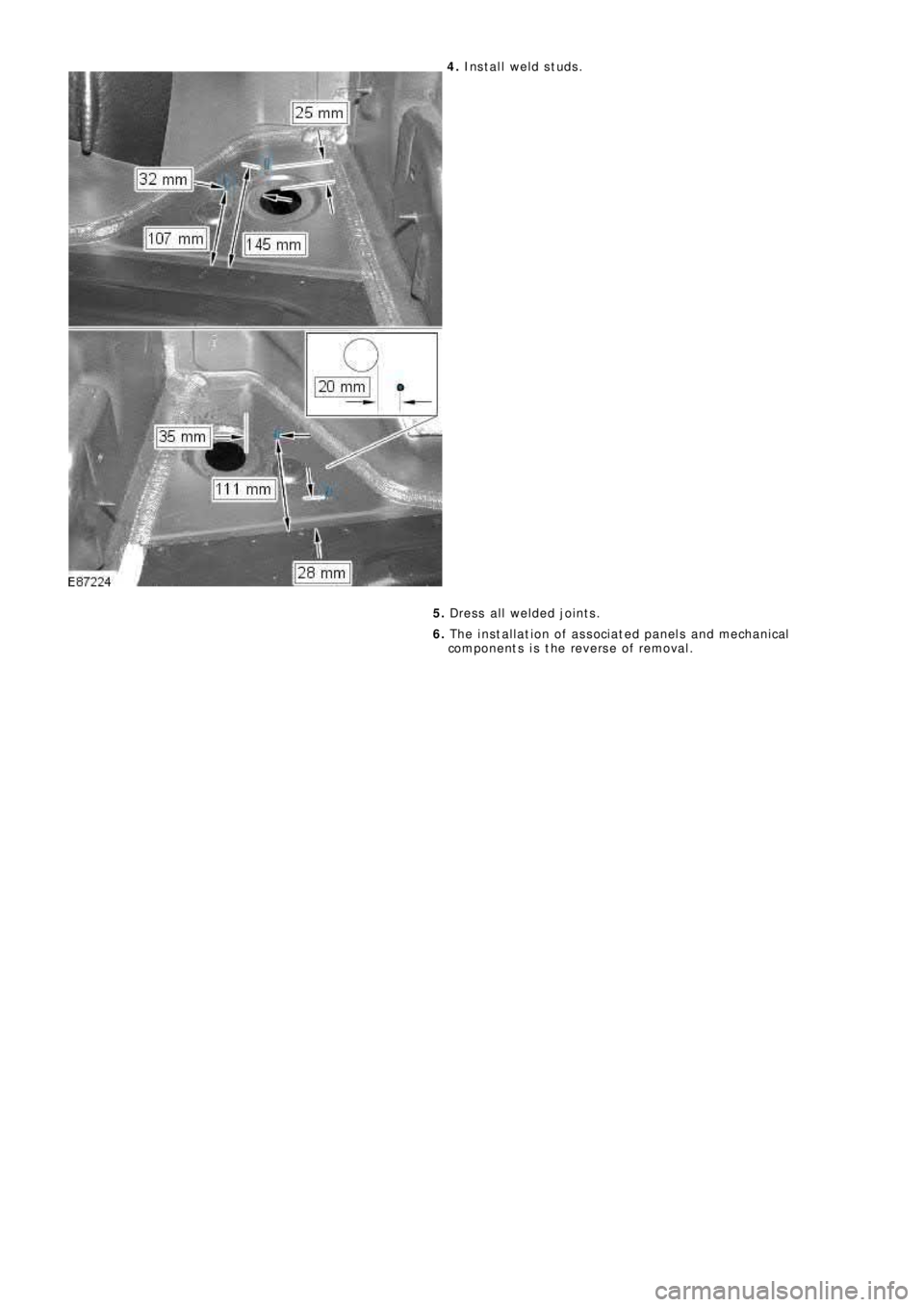

LAND ROVER FRELANDER 2 2006 Repair Manual 4. Install weld studs. 5. Dress all welded joints. 6. The installation of associated panels and mechanical components is the reverse of removal.

Page 2696 of 3229

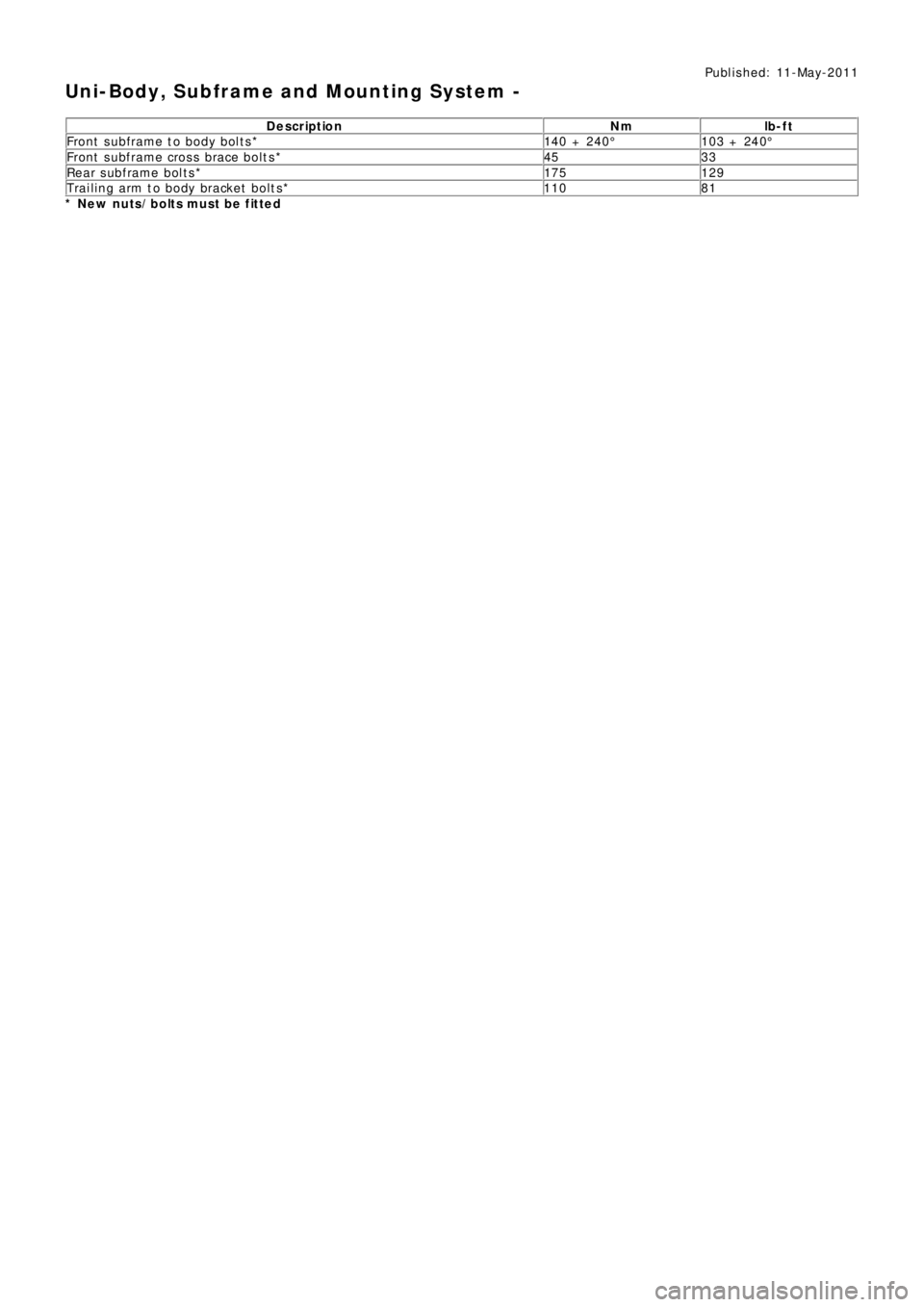

LAND ROVER FRELANDER 2 2006 Repair Manual Publ is hed: 11-May-2011 Uni-Body, Subframe and Mounting System - Description Nm lb-ft Front s ubframe t o body bol t s * 140 + 240° 103 + 240° Front subframe cross brace bolts* 45 33 Rear s ubfram
