Page 1345 of 3229

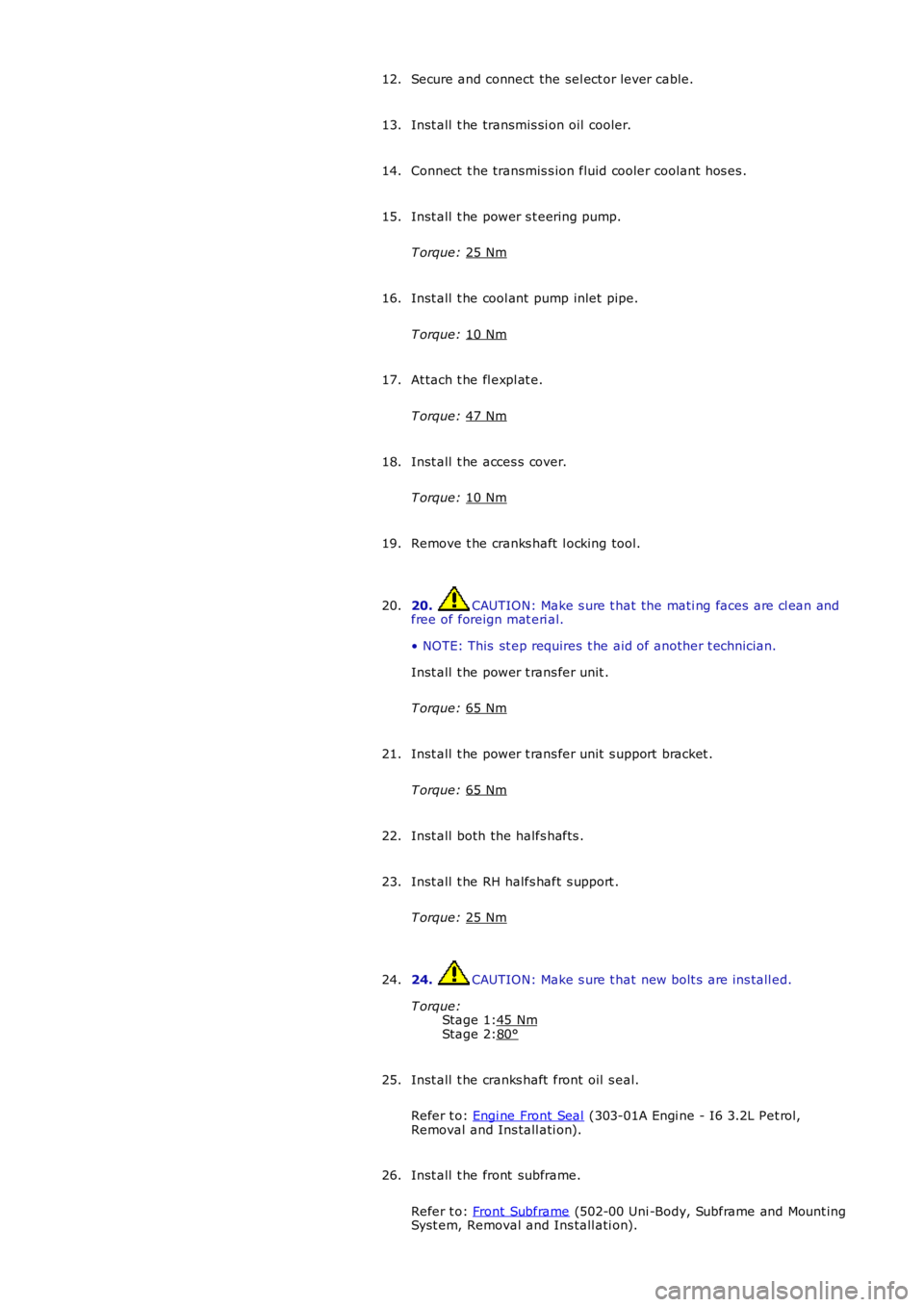

LAND ROVER FRELANDER 2 2006 Repair Manual Stage 1: Stage 2: Secure and connect the sel ect or lever cable. 12. Inst all t he transmis si on oil cooler. 13. Connect t he transmis s ion fluid cooler coolant hos es . 14. Inst all t he power

Page 1346 of 3229

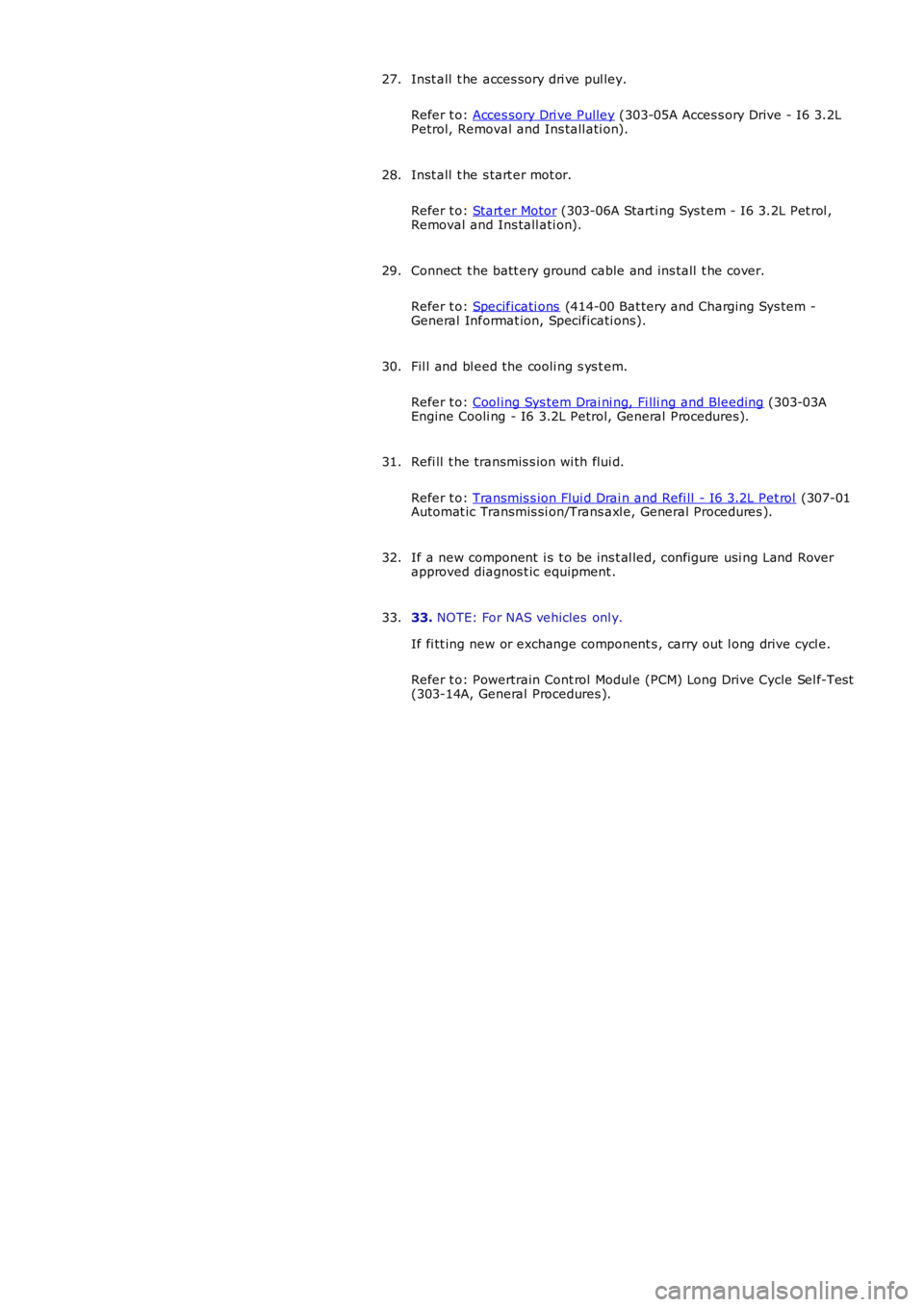

LAND ROVER FRELANDER 2 2006 Repair Manual Inst all t he acces sory dri ve pul ley. Refer t o: Acces sory Dri ve Pulley (303-05A Acces s ory Drive - I6 3.2LPetrol, Removal and Ins tall ati on). 27. Inst all t he s tart er mot or. Refer t o:

Page 1347 of 3229

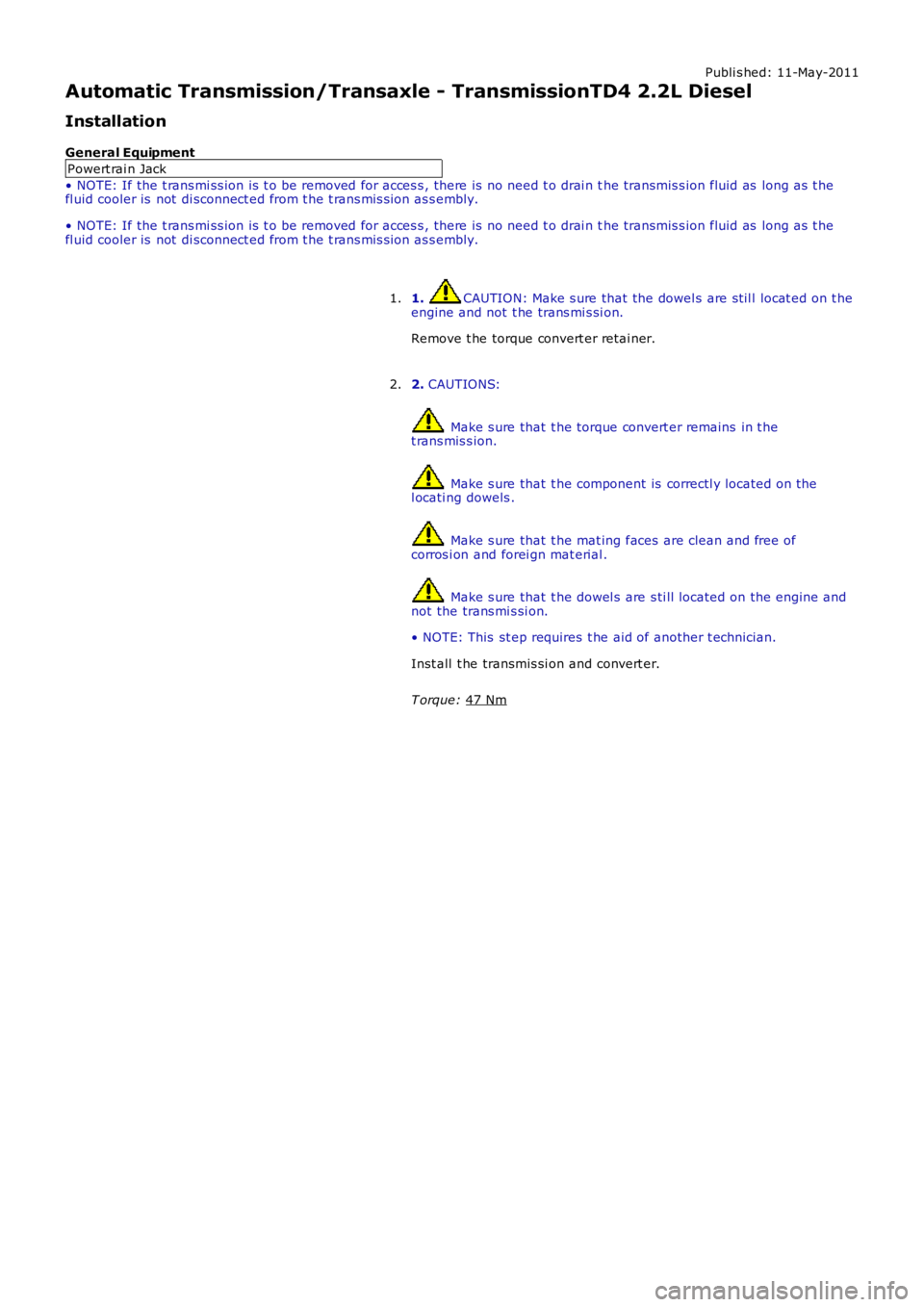

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Automatic Transmission/Transaxle - TransmissionTD4 2.2L Diesel Installation General Equipment Powert rai n Jack • NOTE: If the t rans mi ss ion is t o be removed for acces

Page 1348 of 3229

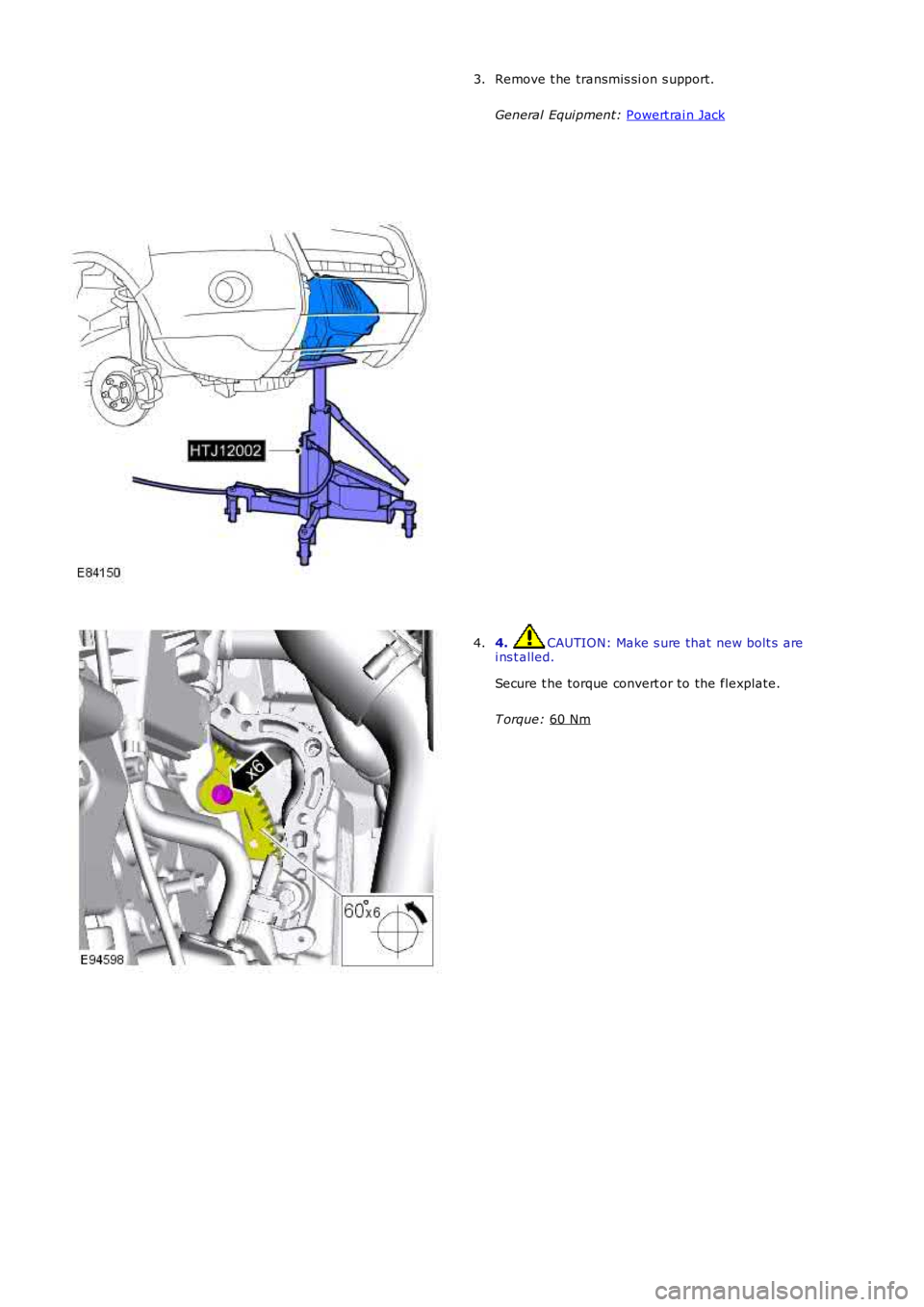

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he transmis si on s upport. General Equi pment: Powert rai n Jack 3. 4. CAUTION: Make s ure that new bolt s are i ns t alled. Secure t he torque convert or to the flexplate. T orque: 60 N

Page 1349 of 3229

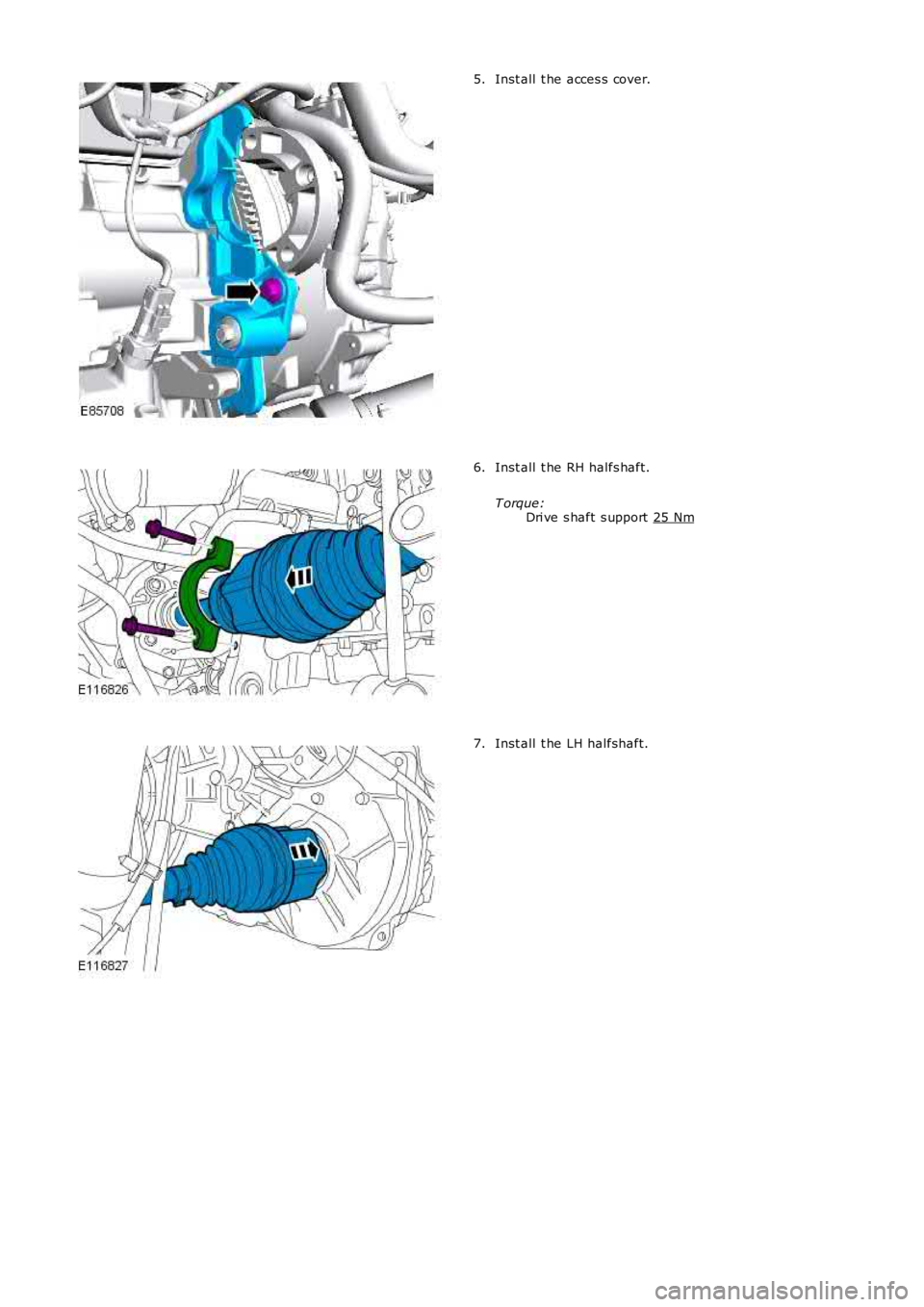

LAND ROVER FRELANDER 2 2006 Repair Manual Inst all t he acces s cover. 5. Inst all t he RH halfs haft. T orque: Dri ve s haft s upport 25 Nm 6. Inst all t he LH halfshaft. 7.

Page 1350 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual 8. CAUTIONS: Make s ure that t he area around the component i s clean and free of foreign materi al. Ins tall new o-ri ng s eal s Connect t he transmis s ion fluid cooler l ines. T orque: 10 N

Page 1351 of 3229

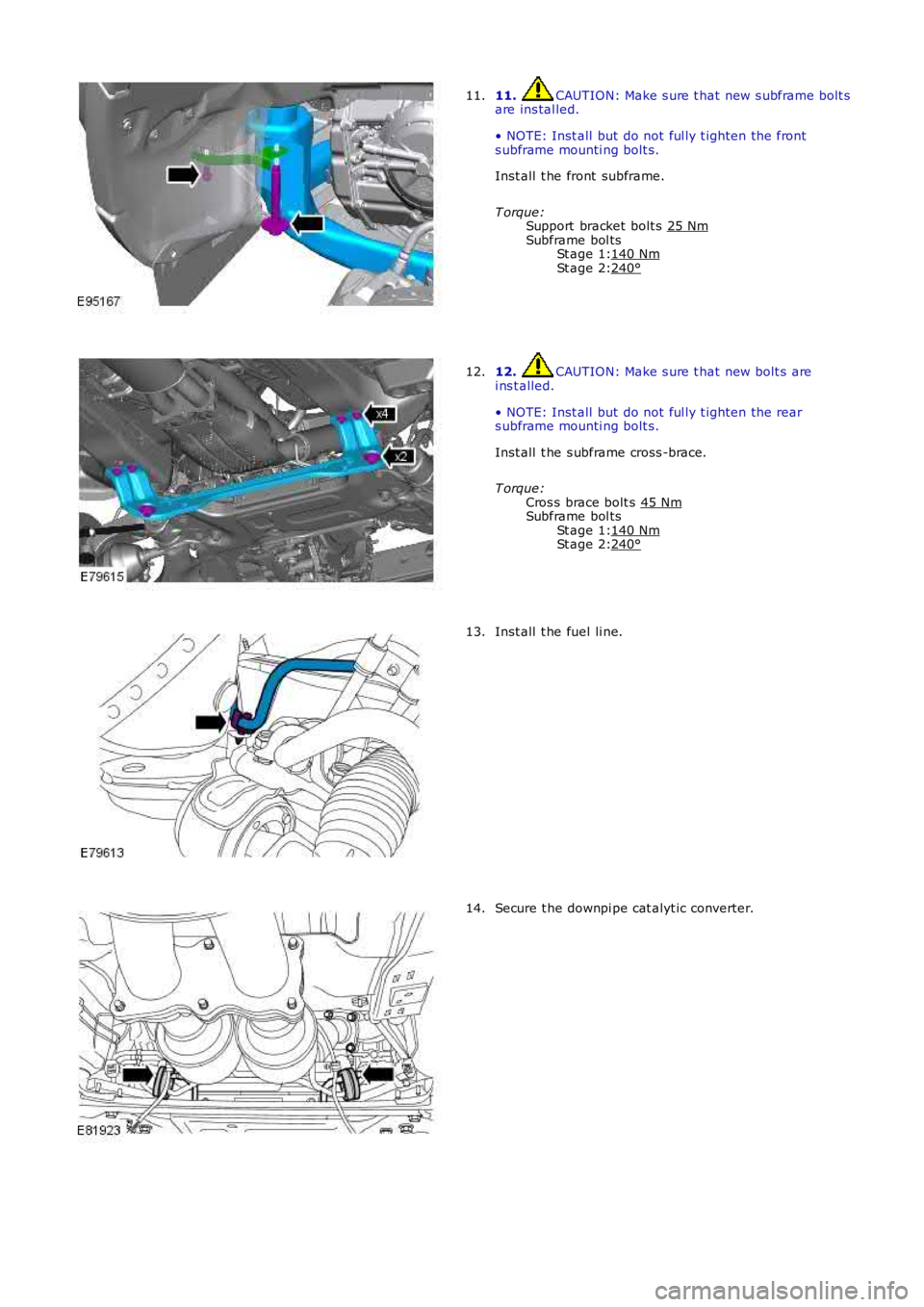

LAND ROVER FRELANDER 2 2006 Repair Manual St age 1: St age 2: St age 1: St age 2: 11. CAUTION: Make s ure t hat new s ubframe bolt s are ins tal led. • NOTE: Inst all but do not ful ly t ighten the front s ubframe mounti ng bolt s. Inst a

Page 1352 of 3229

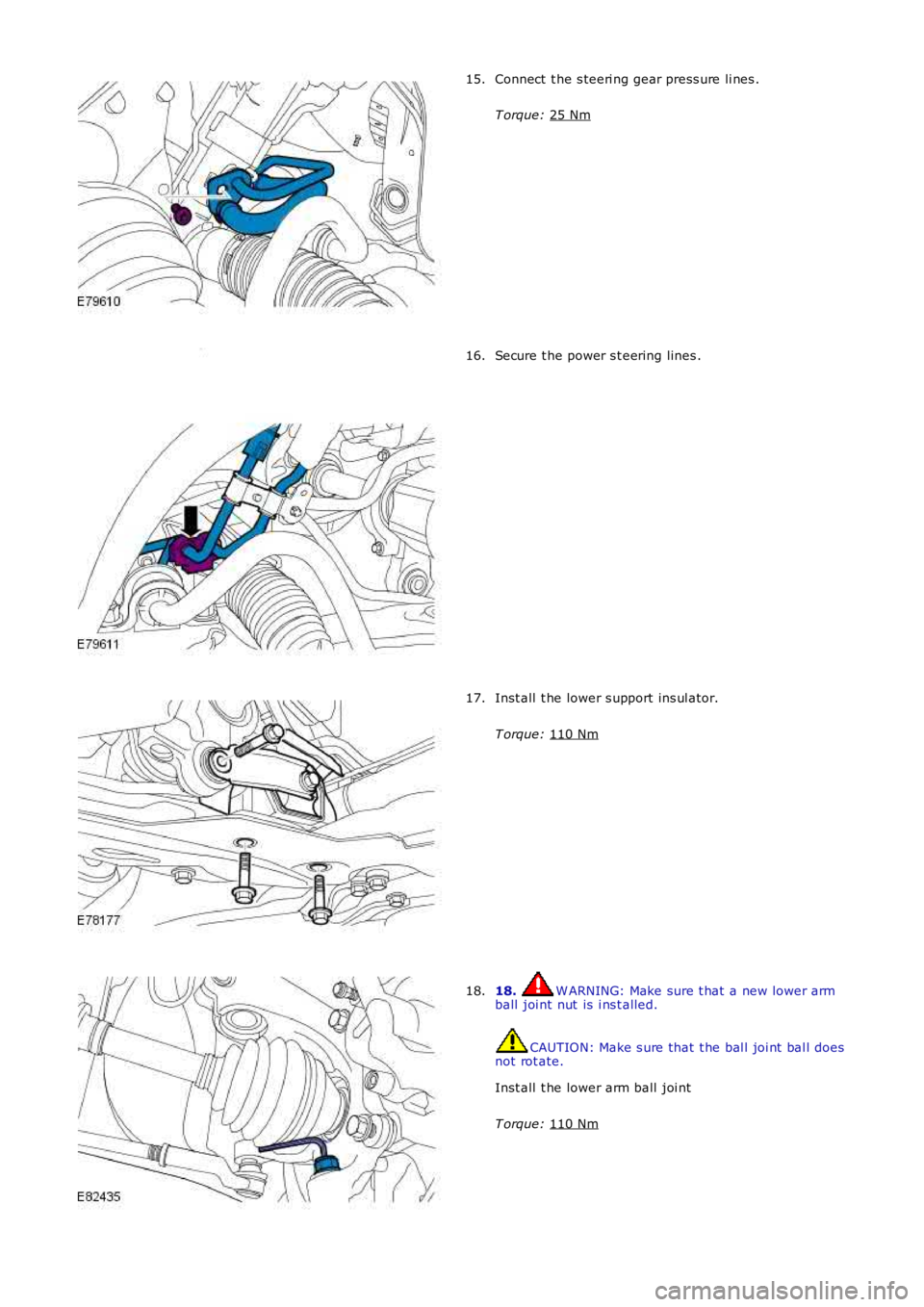

LAND ROVER FRELANDER 2 2006 Repair Manual Connect t he s teeri ng gear press ure li nes . T orque: 25 Nm 15. Secure t he power s t eering lines . 16. Inst all t he lower s upport ins ul ator. T orque: 110 Nm 17. 18. W ARNING: Make sure t
