2006 LAND ROVER FRELANDER 2 traction control

Inexperi enced off-road dri vers may benefi t from t he automat ic as s is tance of t he Terrai n Respons e s yst em and t he driverinformat ion. Experienced off-road drivers can s elect the specific programs for ext reme condit ions t o acces s cont rol over t hevehi cl e s yst ems (for example; accel erator pedal maps , t rans mis s ion s hift maps , traction s ett ings ) which are not access i bl eon vehicles wi thout Terrai n Res pons e.
Stop/St art Vehicl es - From 2010 MY
Acti vat ion of t he Terrai n Res pons e s peci al programs wi ll deact ivate the St op/St art syst em.
However, if Terrain Res pons e is acti vat ed when t he engi ne is shut down in a Stop/St art cycl e t he engi ne wil l aut omat ical lyres t art . If duri ng thi s event t he Stop/Start sys tem cannot detect the driver's occupancy, for example ei ther t he dri ver’ss afety bel t or door i s unlatched, the engine wi ll not res t art . The St op/St art s yst em will reques t t he driver t o depres s theclutch t o rest art t he engine. The dri ver wi ll be i nformed of t his by ‘RESTART REQUIRED PRESS CLUTCH’ being di spl ayed i nt he mes sage center.For addit ional informat ion, refer t o: Starti ng Sys t em (303-06C Starti ng Syst em - TD4 2.2L Di es el, Vehicles Bui lt From:01-03-2009, Descripti on and Operat ion).
TERRAIN RESPONSE ROTARY CONTROL AND MODULE
ItemPart NumberDescription1-Hil l Des cent Cont rol (HDC) s wi tch
2-Special programs off
3-Gras s /Gravel/Snow program4-Rot ary cont rol
5-Mud/rut s program
6-Sand program7-Dynami c Stabil it y Control (DSC) s wit ch
Each program is denoted by a s ymbol whi ch repres ent s t he t errai n encountered. The rotary cont rol wi ll only s elect the las tprogram in it s direct ion of rotat ion. Further rot ati on of the control in ei ther direct ion, once the l ast program has beens elect ed, wil l have no effect, for exampl e; once 'Sand' has been s elect ed, furt her rotat ion i n a clockwis e direct ion wil lret ain 'Sand'.
The cont rol module and rot ary cont rol i s connected vi a a harnes s connector which al so cont ains t he wiring for the HDC andDSC s wit ches and the i ll uminati on circuit s . The cont rol module and rotary cont rol uses 4 of t hes e wi res for 12V bat t erys uppl y (i gnit ion - only when the i gni ti on is on) a ground and high s peed CAN bus (pos i ti ve and negat ive).
PRINCIPLES OF OPERATION
The fol lowing vehicl e s ub-s ys t em control modul es are us ed for t he Terrain Res pons e sys tem:
Engi ne management - Engine Cont rol Module (ECM)Trans mis s ion control - Transmis s ion Control Modul e (TCM) (automat ic t rans mi ss ion only)Acti ve on-demand coupli ng cont rol moduleBrake s ys tem - Anti -l ock Brake Sys t em (ABS)/Dynami c Stabil it y Control (DSC)/Electroni c Tracti on Control (ETC)/ Hi llDes cent Control (HDC) - ABS module

Publi s hed: 11-May-2011
Anti-Lock Control - Traction Control - Anti-Lock Control - Traction Control
Des cript ion and Operat ion
OVERVIEW
The anti -l ock control - tract ion control secti on is incorporated wit hin t he anti -l oc k control - st abil it y ass i st s ecti on of the
works hop manual .
For addit ional informat ion, refer t o: Anti -Lock Cont rol - St abi li ty As s is t (206-09C Anti -Lock Cont rol - St abi lit y As s is t,
Des cript ion and Operat ion).

12-LH front wheel s peed s ens or
13-RH rear wheel s peed sens or
14-Act ive On-Demand Coupling modul e15-ECM
16-Diagnost ic socket
17-Sens or clus ter18-Terrai n Res pons e™ control modul e
19-Trans mis s ion Cont rol Modul e (TCM) - aut omati c t rans mis s ion models onl y
20-CJB
PRINCIPLES OF OPERATION
Anti-Lock Brake System
ABS cont rol s t he s peed of all road wheel s t o ensure opti mum wheel s li p when braking at the adhesi on li mit . The wheelsare prevent ed from locki ng to ret ai n effecti ve st eeri ng cont rol of the vehicle.
The front brake pres s ures are modul ated s eparat el y for each wheel. The rear brake press ures are modulat ed by s elect low.Select low appli es the same pres sure t o both rear brakes, wi th the press ure level bei ng det ermined by t he wheel on thelower fri ct ion s urface. This maint ai ns rear s tabil it y on s pli t fricti on s urfaces .
Corner Brake Control
CBC i nfluences the brake pres sures , below and wit hin ABS thres holds , to counteract the yawing moment produced whenbraking i n a corner. CBC produces a correcti on t orque by li mi ti ng the brake pres sure on one s ide of t he vehicle.
Dynamic Stability Control
DSC us es brakes and powert rain torque control to as s is t i n maint aining the l ateral st abi lit y of t he vehi cl e. W hil e t heignit ion is energi zed t he DSC funct ion i s permanentl y enabl ed, unl es s s elect ed off us ing t he DSC s wit ch. Even i f DSC isdesel ect ed, driving maneuvers wi th ext reme yaw or lat eral accelerat ion may trigger RSC acti vi ty to as s is t t he vehi cl es tabil it y.
DSC enhances dri ving s afet y in abrupt maneuvers and in under-st eer or over-s teer s ituat ions t hat may occur in a bend. TheABS module monit ors t he yaw rat e and l ateral accel erati on of the vehicle, s t eering input , and then s elect ively appli esindivi dual brakes and s ignals for powertrain t orque adjus t ments t o reduce under-s teer or over-s teer.
In general:
In an under-s t eer s i tuati on; the i nner wheels are braked t o count eract the yaw movement t owards t he outer edgeof the bend.In an over-st eer si tuat ion; the out er wheel s are braked to prevent t he rear end of the vehicl e from pus hing t owardst he out er edge of t he bend.
The ABS module monit ors t he tracki ng s tabil it y of the vehicle usi ng inputs from t he wheel s peed s ens ors, t he s teeringangl e s ensor, and the yaw rat e and lat eral accelerat ion sens or. The t racki ng s tabil it y is compared wit h s t ored t arget dat a.W henever t he t racki ng s tabil it y devi ates from t he target dat a, t he ABS modul e int ervenes by appl yi ng the appropriat ebrakes.
The fol lowing interact ions occur i n an i nt erventi on s it uat ion:
High speed CAN s i gnal t o t he ECM, to reduce engine torque.High speed CAN s i gnal t o t he Act ive On-demand Coupl ing module, t o open t he locki ng torque of the centercoupl ing.Applicati on of braking t o t he appropri at e corner of the vehicl e.
Electronic Brake Force Distribution
EBD l imi ts the brake press ure appl ied t o t he rear wheels . W hen t he brakes are appl ied, the wei ght of t he vehicle t rans fersforwards , reduci ng t he abi li ty of t he rear wheels to t rans fer braki ng effort t o t he road s urface. This may caus e t he rearwheels t o s li p and make t he vehi cl e uns table.
EBD us es the ant i-lock braking hardware t o automat icall y opti mize t he pres s ure of t he rear brakes , bel ow t he point whereABS i s normall y i nvoked.
• NOTE: Only the rear brakes are control led by the EBD funct ion.
Electronic Traction Control
ETC att empt s to opt imize forward tract ion by reduci ng engi ne torque, or by applying t he brake of a spi nni ng wheel unt ilt racti on is regai ned.
ETC is act ivated if an i ndi vi dual wheel speed i s above that of the vehicle reference speed (pos i ti ve sl ip) and t he brakepedal i s not pres sed. The brake i s appl ied t o t he s pinning wheel, al lowing t he excess t orque t o be t rans mit t ed to thenon-s pinning wheels through t he dri ve li ne. If neces s ary, the ABS modul e als o s ends a hi gh speed CAN bus mess age t ot he ECM t o reques t a reducti on in engine torque.
W hen t he DSC funct ion i s s elected off us i ng the DSC s wit ch, t he engi ne t orque reducti on feature i s dis abl ed.
Emergency Brake Assist
EBA as si s ts t he driver in emergency braking si tuat ions by automat icall y maximi zi ng the appl ied braki ng effort . There aret wo s it uat ions when t he ABS module wil l invoke EBA:

Message Center Message
Warning Indicator Color
Automatic T ransmission RelatedWarningActive On-demand Coupling RelatedWarningTRANSMISSION FAULTAmberRed
TRANSMISSION FAULT AND OVERHEATRedn/a
TRANSMISSION FAULT LIMITED GEARSAVAILABLERedn/a
TRANSMISSION FAULT TRACTION REDUCEDn/aRedTRANSMISSION OVERHEAT SLOW DOW NAmberRed
Hill Descent Control Fault Warning Ind icator
The amber Hil l Des cent Cont rol (HDC) warning i ndi cat or is i ll uminated on receipt of medium speed CAN bus s i gnal s fromt he CJB . The si gnal s ori ginate in t he ABS module and are t rans mi tt ed to the CJB over the hi gh s peed CAN bus.
W hen t he vehicle ent ers power mode 6, the HDC warni ng indicator i s s ubject t o a 3 s econd bulb check. If duri ng HDCoperati on t he HDC warni ng indicat or i ll uminates i t s ignifies t hat the 'fade out' s t rategy has been i nvoked due tocomponent fai lure.
If the HDC warning indicator fl ashes i t s ignifies t hat t he 'fade out' s trategy has been invoked due to brake s ys t emoverheat . In thi s ins t ance, the firs t fl as h is accompanied by a chi me from t he ins trument cl ust er and the green HDC acti veindicat or wi ll be ext ingui s hed.For addit ional informat ion, refer t o: Anti -Lock Cont rol - St abi li ty As s is t (206-09C Anti -Lock Cont rol - St abi lit y As s is t,Des cript ion and Operat ion).
Door Open Indicator
The door open i ndi cat or is i ll uminated on receipt of medium speed CAN bus s i gnal s from t he CJB. The si gnal s ori gi nate i nt he door modules , which are hardwired t o t he CJB. The door open indicator wil l il lumi nat e i n a red col or if a door opens ignal is received by t he CJB from any door module while the vehicle is i n power mode 6.
Engine Management System Warning Indicator
The engi ne management s ys tem warni ng indicator i s il lumi nat ed on receipt of medium speed CAN bus s ignals from theCJB. The s i gnals origi nat e i n t he ECM and are transmit ted t o t he CJB over t he high speed CAN bus .
The amber engi ne management s yst em warning i ndicat or is ill uminat ed for a 3 second bulb check when the vehicle ent erspower mode 6. If t he indicat or s ubs equentl y il lumi nat es a DTC wil l be logged in t he ECM whi ch s houl d be int errogat edus ing t he Land Rover approved diagnos t ic s yst em.
Side Lamp Indicator
The green s ide light i ndi cat or is i ll uminated on recei pt of a medium s peed CAN bus si gnal from the CJB. The s ignalori ginates i n t he li ght s wi tch module and is t rans mi tt ed to the CJB over the Local Int erconnect Network (LIN) bus . Theins t rument clus ter wil l onl y i llumi nate t he s ide lamp i ndi cat or when the vehicl e is in power mode 6.
Dynamic Stability Control Indicator
The Dynamic St abi li ty Cont rol (DSC) i ndi cat or is i ll uminated by the i nst rument clus ter on recei pt of medi um s peed CAN buss ignals from the CJB. The s ignal origi nat es in the ABS modul e. The indicator is il luminat ed in an amber color for 3 s econdsfor a bul b check when t he vehicle ent ers power mode 6. If no fault s exis t, t he i ndi cat or is exti ngui shed after t he bulb checkperi od.
W hen DSC is acti ve, t he i ndi cat or flas hes t o inform the driver that t he s ys t em i s regulat ing engine out put and braki ngforces . If the i ndi cat or remai ns il luminat ed aft er the bulb check peri od or ill uminat es when dri vi ng, t he DSC s ys tem has afaul t or DSC has been des elected by t he driver us i ng the DSC swit ch on the floor cons ole.
Hill Descent Control Active Indicator
The HDC acti ve indicat or i s il lumi nat ed by t he ins t rument clus ter on receipt of medium s peed CAN bus s ignals from theCJB. The s i gnal ori ginates i n t he ABS module. The indicat or i s il lumi nat ed i n a green col or when HDC is act ive and t hevehi cl e s peed is bel ow a predet ermi ned thres hold. If the vehicle speed i s fas t er t han t he threshold li mit , the HDC indicat orwil l fl ash unt il t he vehi cl e s peed is reduced. On high line ins trument cl us t ers a support ing mess age wi ll als o be di spl ayedin the mess age cent er. For addi ti onal i nformat ion, refer to:
Ant i-Lock Cont rol - Stabi lit y As s is t (206-09C Ant i-Lock Cont rol - Stabil it y As s is t, Des cript ion and O perati on),Informat ion and Mes s age Cent er (413-08 Informati on and Mes sage Cent er, Descripti on and Operat ion).
If the us e of HDC caus es the brake di s cs to exceed their pre-determined t emperat ure, the HDC s ys t em i nit iates a 'fadeout'. The HDC indicat or flas hes during 'fade out ' and on hi gh li ne ins t rument clus ters a s upporti ng mes sage i s dis played i nt he mes sage center. W hen t he brake dis cs have cooled suffi ci ent ly, HDC i s react ivated and t he HDC i ndicat or ispermanentl y il lumi nat ed.
Anti-theft Alarm Indicator
The anti -t heft alarm i ndi cat or is controll ed direct ly from the CJB vi a a hardwi red connect ion. There i s no s oft warefuncti onal it y wit hin the i nst rument clus t er t o control operat ion of t he anti -t heft alarm i ndicat or.For addit ional informat ion, refer t o: Anti -Theft - Act ive (419-01A Anti -Theft - Acti ve, Des cri pt ion and Operati on).
Glow Plug Indicator
The glow pl ug indi cat or i s i llumi nated on recei pt of a medium speed CAN bus si gnal from the CJB. The s ignal originat es int he dies el ECM and indicates t he glow plugs are operat ional. The i ndi cat or wil l ill uminat e in an amber color when t hevehi cl e enters power mode 6 and a gl ow plugs acti ve s ignal is received from t he ECM. W hen t he combus ti on pre-heatprocedure has been carri ed out, t he ECM i nforms the ins trument cl us t er to ext inguis h t he glow pl ug indicat or.

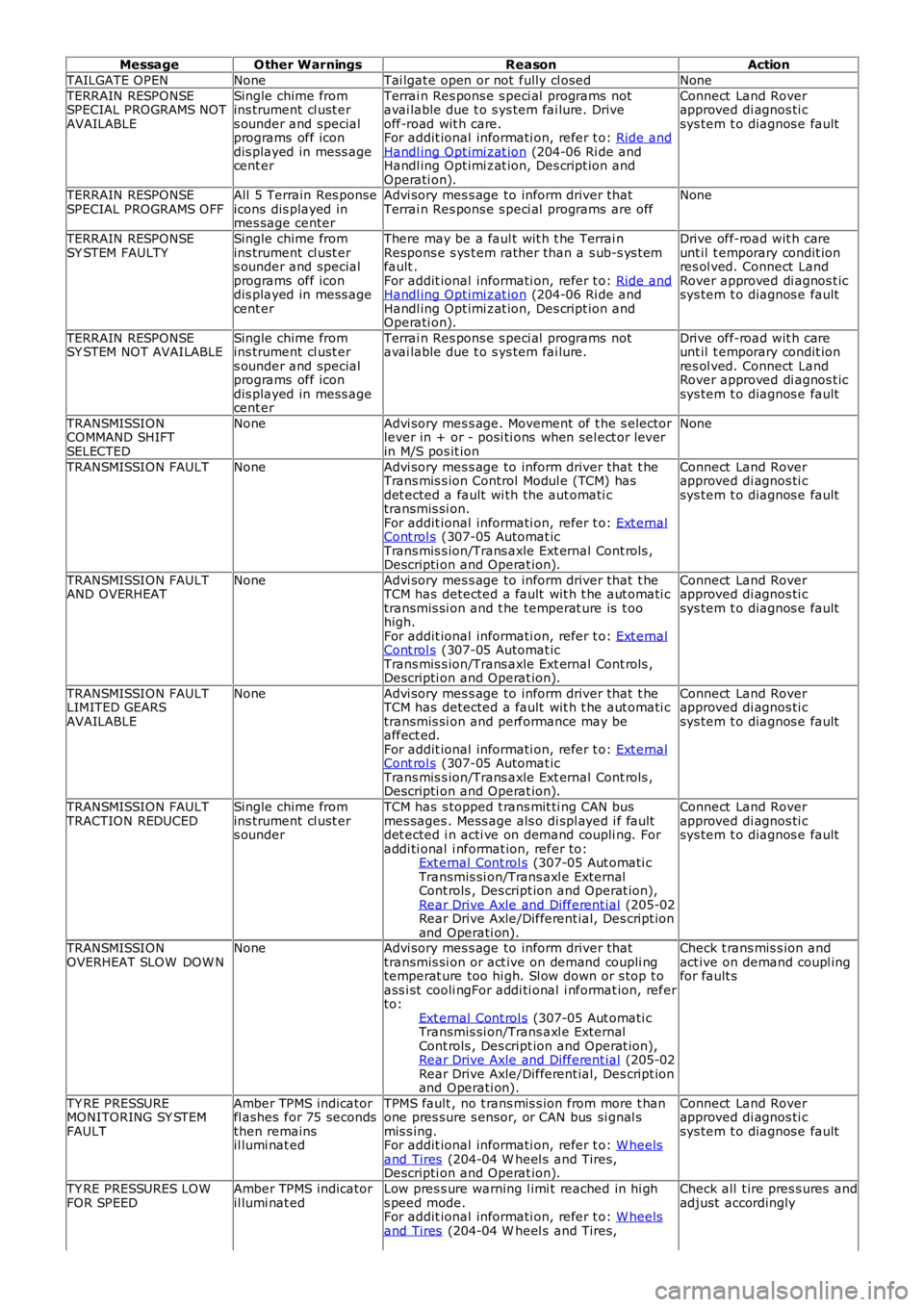

MessageO ther WarningsReasonAction
TAILGATE OPENNoneTai lgat e open or not fully cl osedNone
TERRAIN RESPONSESPECIAL PROGRAMS NOTAVAILABLE
Single chime fromins trument cl ust ers ounder and specialprograms off icondis played in mess agecent er
Terrai n Res pons e s peci al programs notavai lable due t o s ys tem fai lure. Driveoff-road wit h care.For addit ional informati on, refer t o: Ride andHandl ing Opt imi zat ion (204-06 Ri de andHandl ing Opt imi zat ion, Des cript ion andOperati on).
Connect Land Roverapproved di agnos ti csys tem t o diagnos e fault
TERRAIN RESPONSESPECIAL PROGRAMS OFFAll 5 Terrain Res ponseicons dis played inmes sage center
Advi sory mes s age to inform driver thatTerrai n Res pons e s peci al programs are offNone
TERRAIN RESPONSESY STEM FAULTYSingle chime fromins trument cl ust ers ounder and specialprograms off icondis played in mess agecent er
There may be a faul t wit h t he Terrai nRespons e s ys t em rather than a s ub-s ys t emfault .For addit ional informati on, refer t o: Ride andHandl ing Opt imi zat ion (204-06 Ri de andHandl ing Opt imi zat ion, Des cript ion andOperati on).
Drive off-road wit h careunt il t emporary condit ionres ol ved. Connect LandRover approved di agnos t icsys tem t o diagnos e fault
TERRAIN RESPONSESY STEM NOT AVAILABLESingle chime fromins trument cl ust ers ounder and specialprograms off icondis played in mess agecent er
Terrai n Res pons e s peci al programs notavai lable due t o s ys tem fai lure.Drive off-road wit h careunt il t emporary condit ionres ol ved. Connect LandRover approved di agnos t icsys tem t o diagnos e fault
TRANSMISSIONCOMMAND SHIFTSELECTED
NoneAdvi sory mes s age. Movement of t he s electorlever in + or - posi ti ons when sel ect or leverin M/S pos it ion
None
TRANSMISSION FAULTNoneAdvi sory mes s age to inform driver that t heTrans mis s ion Control Modul e (TCM) hasdet ected a fault wi th the aut omati ctransmis si on.For addit ional informati on, refer t o: Ext ernalCont rol s (307-05 Automat icTrans mis s ion/Trans axle Ext ernal Cont rols ,Descripti on and Operat ion).
Connect Land Roverapproved di agnos ti csys tem t o diagnos e fault
TRANSMISSION FAULTAND OVERHEATNoneAdvi sory mes s age to inform driver that t heTCM has detected a fault wit h t he aut omati ctransmis si on and t he temperat ure is t oohigh.For addit ional informati on, refer t o: Ext ernalCont rol s (307-05 Automat icTrans mis s ion/Trans axle Ext ernal Cont rols ,Descripti on and Operat ion).
Connect Land Roverapproved di agnos ti csys tem t o diagnos e fault
TRANSMISSION FAULTLIMITED GEARSAVAILABLE
NoneAdvi sory mes s age to inform driver that t heTCM has detected a fault wit h t he aut omati ctransmis si on and performance may beaffect ed.For addit ional informati on, refer t o: Ext ernalCont rol s (307-05 Automat icTrans mis s ion/Trans axle Ext ernal Cont rols ,Descripti on and Operat ion).
Connect Land Roverapproved di agnos ti csys tem t o diagnos e fault
TRANSMISSION FAULTTRACTION REDUCEDSingle chime fromins trument cl ust ers ounder
TCM has s topped t rans mit ti ng CAN busmes sages . Mess age als o di spl ayed i f faultdet ected i n acti ve on demand coupli ng. Foraddi ti onal i nformat ion, refer to:Ext ernal Cont rol s (307-05 Aut omati cTransmis si on/Trans axl e ExternalCont rols , Des cript ion and Operat ion),Rear Drive Axle and Different ial (205-02Rear Drive Axle/Different ial, Des cript ionand Operati on).
Connect Land Roverapproved di agnos ti csys tem t o diagnos e fault
TRANSMISSIONOVERHEAT SLOW DOW NNoneAdvi sory mes s age to inform driver thattransmis si on or act ive on demand coupli ngtemperat ure too hi gh. Sl ow down or s top t oass i st cooli ngFor addi ti onal i nformat ion, referto:Ext ernal Cont rol s (307-05 Aut omati cTransmis si on/Trans axl e ExternalCont rols , Des cript ion and Operat ion),Rear Drive Axle and Different ial (205-02Rear Drive Axle/Different ial, Des cript ionand Operati on).
Check t rans mis s ion andact ive on demand coupl ingfor fault s
TY RE PRESSUREMONITORING SY STEMFAULT
Amber TPMS indicatorfl ashes for 75 secondsthen remainsil lumi nat ed
TPMS fault , no t rans mis s ion from more t hanone pres sure s ensor, or CAN bus si gnal smis s ing.For addit ional informati on, refer t o: W heelsand Tires (204-04 W heel s and Tires,Descripti on and Operat ion).
Connect Land Roverapproved di agnos ti csys tem t o diagnos e fault
TY RE PRESSURES LOWFOR SPEEDAmber TPMS indicatoril lumi nat edLow pres s ure warning l imi t reached in hi ghs peed mode.For addit ional informati on, refer t o: W heelsand Tires (204-04 W heel s and Tires,
Check all t ire pres s ures andadjust accordingly

Contents
4
L
Climate control
AIR VENTS ................................................... 101
MANUAL CLIMATE CONTROL ...................... 102
AUTOMATIC CLIMATE CONTROL ................. 103
HEATED WINDOWS AND MIRRORS ............ 104
AUXILIARY HEATER ..................................... 104
ELECTRIC SUNROOF .................................... 105
Convenience features
SUN VISORS ................................................ 107
CLOCK .......................................................... 107
CIGAR LIGHTER ........................................... 109
ASHTRAY ..................................................... 109
AUXILIARY POWER SOCKETS ..................... 110
CUP HOLDERS ............................................. 111
STORAGE COMPARTMENTS ........................ 112
Starting the engine
GENERAL INFORMATION ............................. 113
STARTING A PETROL ENGINE ..................... 114
STARTING A DIESEL ENGINE ....................... 115
DIESEL PARTICULATE FILTER (DPF) ........... 116
Transmission
MANUAL TRANSMISSION ............................ 118
AUTOMATIC TRANSMISSION ...................... 118
TECHNICAL SPECIFICATIONS ...................... 122
Brakes
PRINCIPLE OF OPERATION .......................... 123
HINTS ON DRIVING WITH ABS .................... 123
PARKING BRAKE .......................................... 124
Parking aid
PRINCIPLE OF OPERATION .......................... 126
USING THE PARKING AID ............................ 127
Driving hints
GENERAL DRIVING POINTS ......................... 128
REDUCED ENGINE PERFORMANCE ............. 128
RUNNING-IN ................................................ 128
ECONOMICAL DRIVING ................................ 129
Cruise control
PRINCIPLE OF OPERATION .......................... 130
USING CRUISE CONTROL ............................ 130
Terrain response
PRINCIPLE OF OPERATION .......................... 132
USING TERRAIN RESPONSE ........................ 132
Hill descent control (HDC)
PRINCIPLE OF OPERATION .......................... 136
USING HDC ................................................... 137
Traction control
USING TRACTION CONTROL ........................ 139
Stability control
PRINCIPLE OF OPERATION .......................... 140
USING STABILITY CONTROL ........................ 141
Fuel and refuelling
SAFETY PRECAUTIONS................................. 142
FUEL QUALITY .............................................. 142
RUNNING OUT OF FUEL................................ 144
FUEL CUT-OFF............................................... 144
FUEL FILLER FLAP ........................................ 144
REFUELLING ................................................. 145
TECHNICAL SPECIFICATIONS ....................... 146
Load carrying
GENERAL INFORMATION.............................. 147
LUGGAGE ANCHOR POINTS ......................... 148
LUGGAGE COVERS ....................................... 149
Towing
TOWING A TRAILER...................................... 150
LEVELLING.................................................... 151
ESSENTIAL TOWING CHECKS ...................... 151
RECOMMENDED TOWING WEIGHTS ............ 152
TOW BAR ...................................................... 153
Vehicle care
CLEANING THE ALLOY WHEELS................... 154
CLEANING THE EXTERIOR ............................ 154
CLEANING THE INTERIOR ............................ 155
REPAIRING MINOR PAINT DAMAGE ............ 156
Maintenance
GENERAL INFORMATION.............................. 157
OPENING AND CLOSING THE BONNET......... 160
ENGINE COMPARTMENT OVERVIEW ........... 161
ENGINE OIL CHECK....................................... 162

Terrain response
132
L
Terrain responsePRINCIPLE OF OPERATION
The Terrain Response System provides an
opportunity for the driver to feed back terrain
information to the vehicle by choosing a
general setting or on e of three special
programs. It then uses that information to
optimise the vehicle's systems for improved
traction and driveability. It does this by
bringing together vehicle drive control systems
which usually opera te individually.
The drive systems optimised by the Terrain
Response Syst em are :-
• Engine management.
• Gearbox management.
• Intelligent coupling control.
• Dynamic stability, trac tion and Hill Descent
controls.
The system will provide a variable accelerator
pedal response, ranging fr om very cautious for
slippery conditions (w here a large pedal
movement has only a small effect on engine
power) to very respon sive (where engine
power is allowed to rise more quickly).
Note: Changing from one special program to
another will introduce noticeably different
responses. For example, the engine revs
produced by the current accelerator pedal
position, may increase or decrease in the new
program.
To familiarise y ourself and get the best from
the system you should try out the programs in
circumstances which are safe for you and other
road users.
Terrain response has been designed to benefit
the driver no matter what their level of off-road
driving experience. The system will aid those
with less experience, a nd enhance the skills of
those with more experience.
USING TERRAIN RESPONSE
Note: The Terrain Response System is
designed to be engaged before crossing
difficult terrain. Do not wait until control has
been lost before usi ng the special programs.
When the vehicle is started, the Terrain
Response System will be in its General
program. The General program will allow the
vehicle to operate capa bly in most conditions,
as some of the sub-systems will react to the
conditions where appropriate. When
conditions change, and more difficult
conditions are encountered, the appropriate
special program should be selected.
Before driving off-road
Before venturing off-road it is absolutely
essential that inexperi enced drivers become
fully familiar with the vehicle's controls. In
particular, CommandShift , Hill Descent Control
(HDC), and the Terra in Response system.
Basic information and off-road driving
techniques can be found in the off-road driving
handbook available on-line at
http://www.ownerinfo.landrover.com
Off-road driver traini ng should be undertaken
by anyone intending to drive off-road. Training
is available at your nearest Land Rover
Experience centre. More details can be found at
http://www.landroverexperience.com
Driver override options
All systems will be se t to their optimum
parameters for the condi tions reflected in the
choice of special program. However, if
required, Hill Descent c ontrol can be operated
independently. See USING HDC (page 137). If
it has not been automatically selected by the
special program, it may be engaged as
required. Converse ly, if it has been selected,
but is not required, it may be turned off.

133
Terrain response
R
The HDC status will be displayed on the
message centre whether it is engaged or
disengaged by the system, or the driver. Use of
HDC in special programs may prompt
additional driving advice , and warnings to be
displayed on the message centre.
Although Dynamic Stab ility Control is
automatically engaged when a special program
is selected, it can be tu rned off if required See
USING TRACTION CONTROL (page 139).
Automatic gear selection can be overridden by
using the CommandS hift function.
Terrain Response operation

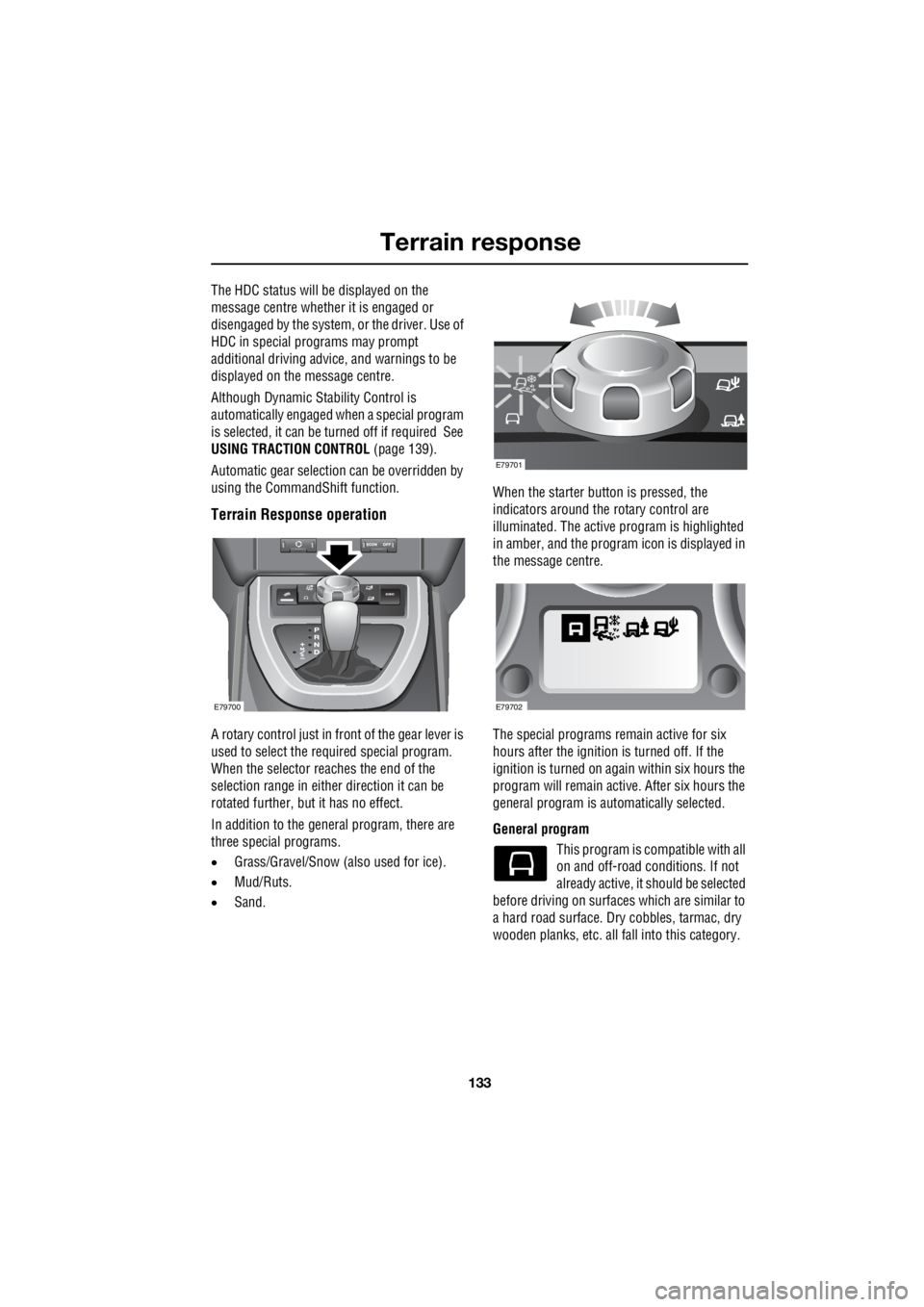

A rotary control just in fr ont of the gear lever is
used to select the required special program.
When the selector reaches the end of the
selection range in either direction it can be
rotated further, but it has no effect.
In addition to the general program, there are
three special programs.
• Grass/Gravel/Snow (also used for ice).
• Mud/Ruts.
• Sand. When the starter button is pressed, the
indicators around the rotary control are
illuminated. The active program is highlighted
in amber, and the program icon is displayed in
the message centre.
The special programs remain active for six
hours after the ignition is turned off. If the
ignition is turned on again within six hours the
program will remain ac tive. After six hours the
general program is automatically selected.
General program This program is co mpatible with all
on and off-road conditions. If not
already active, it should be selected
before driving on surfaces which are similar to
a hard road surface. Dry cobbles, tarmac, dry
wooden planks, etc. all fa ll into this category.
E79700
E79701
E79702
