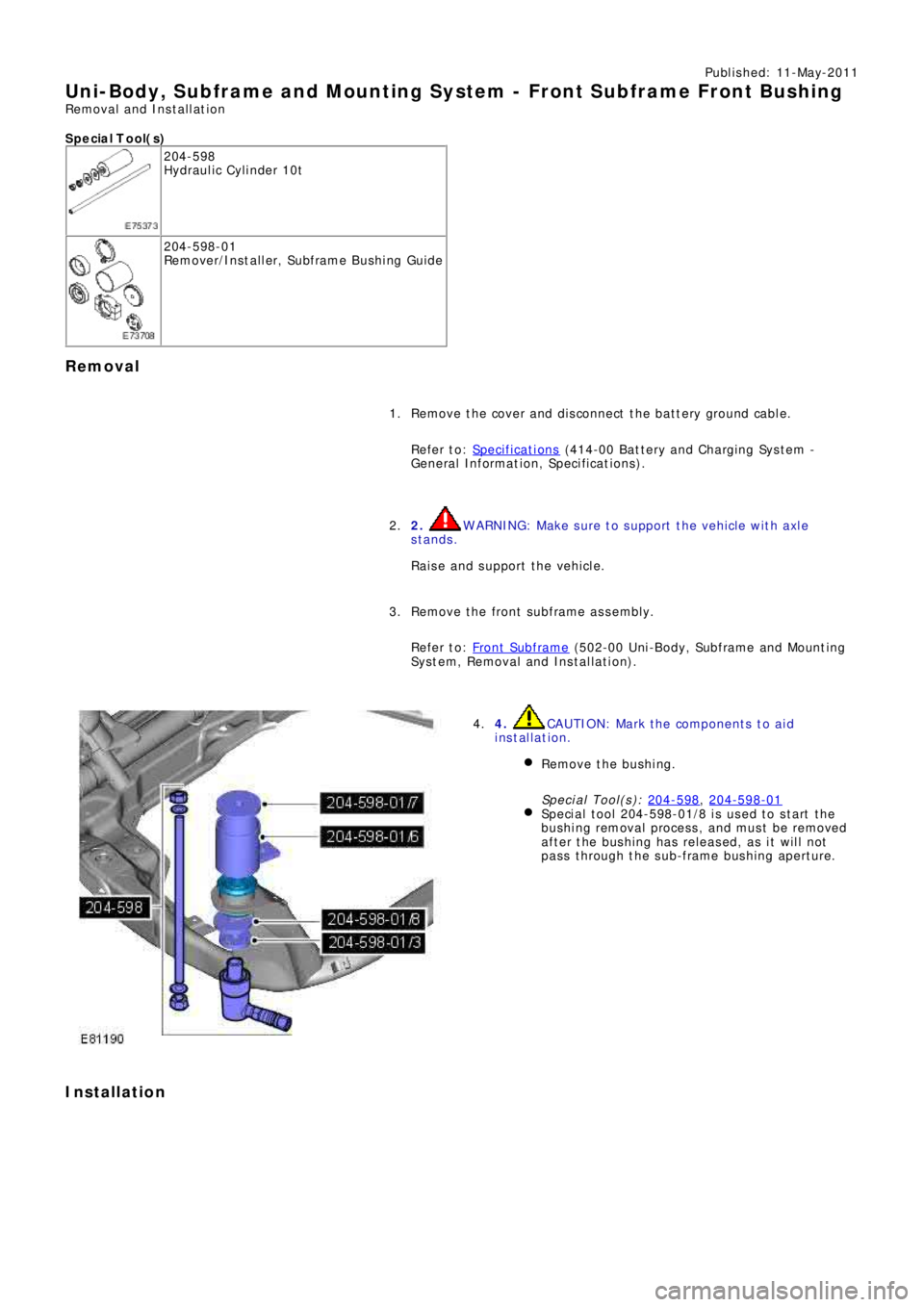

Uni-Body, Subframe and Mounting System - Front Subframe Front Bushing
Removal and Installation
S p e c ia l T o o l( s )
204-598
Hydraulic Cylinder 10t
204-598-01
Re mo ve r/I ns t a l l e r, Sub f ra me B us hi ng Gui d e
Removal
Remove the cover and disconnect the battery ground cable.
Refer to: Specifications
(414-00 Battery and Charging System -
General Information, Specifications). 1.
2.
WARNING: Make sure to support the vehicle with axle
stands.
Raise and support the vehicle. 2.
Re mo ve t he f ront s ubf ra me a s s e mbl y.
Refer to: Front Subframe
(502-00 Uni-Body, Subframe and Mounting
System, Removal and Installation). 3.
4. CAUTION: Mark the components to aid
installation.
Remove the bushing.
Special Tool(s): 204-598
, 204-598-01Speci al t ool 204-598-01/8 i s us ed t o s t art t he
bushing removal process, and must be removed
after the bushing has released, as it will not
pass through the sub-frame bushing aperture.
4.
Installation
Page 2706 of 3229

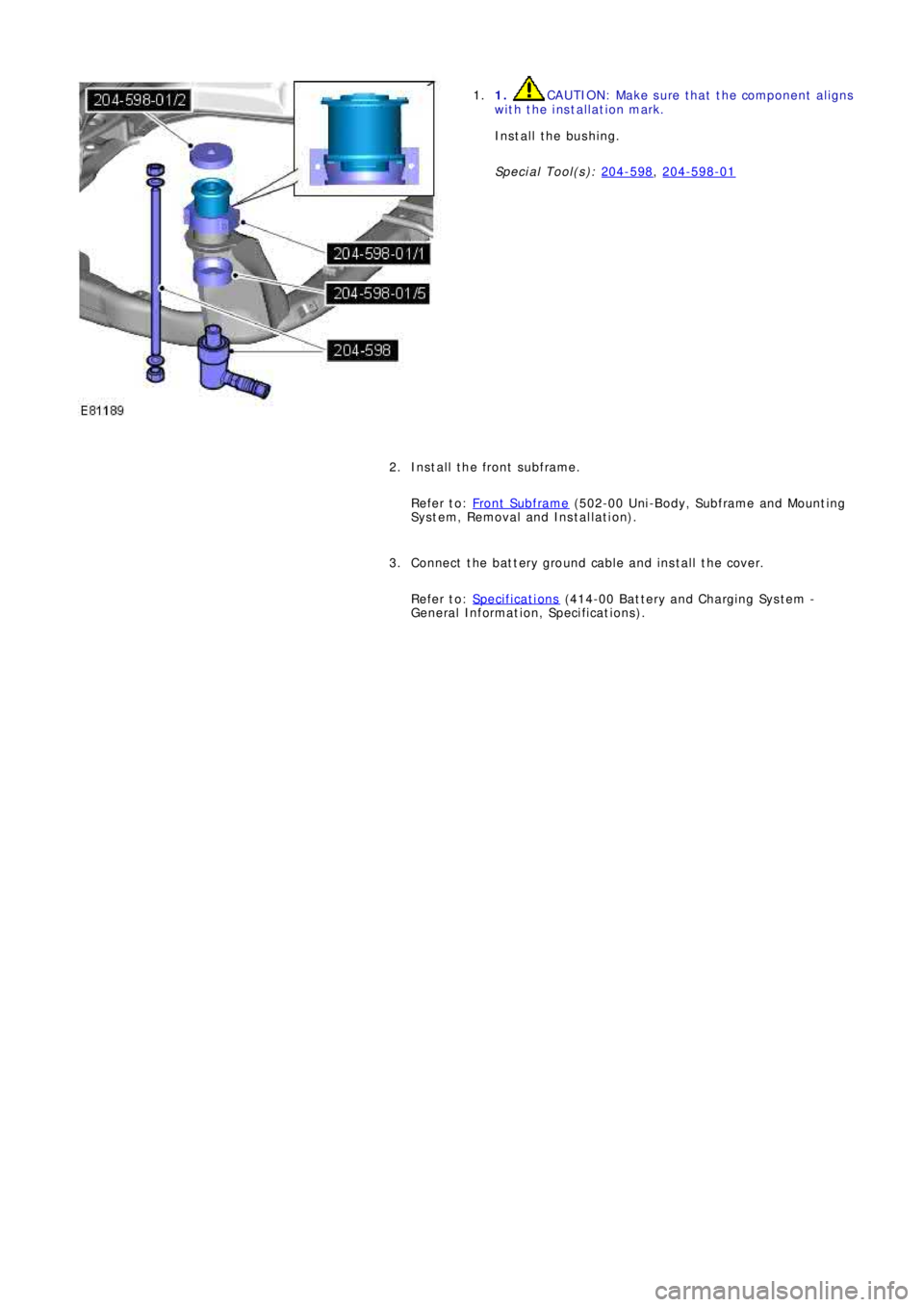

1. CAUTION: Make sure that the component aligns
with the installation mark.
Install the bushing.
Special Tool(s): 204-598
, 204-598-01
1.
Install the front subframe.
Refer to: Front Subframe
(502-00 Uni-Body, Subframe and Mounting
System, Removal and Installation). 2.
Connect the battery ground cable and install the cover.
Refer to: Specifications
(414-00 Battery and Charging System -
General Information, Specifications). 3.
Page 2707 of 3229

Publ is hed: 11-May-2011

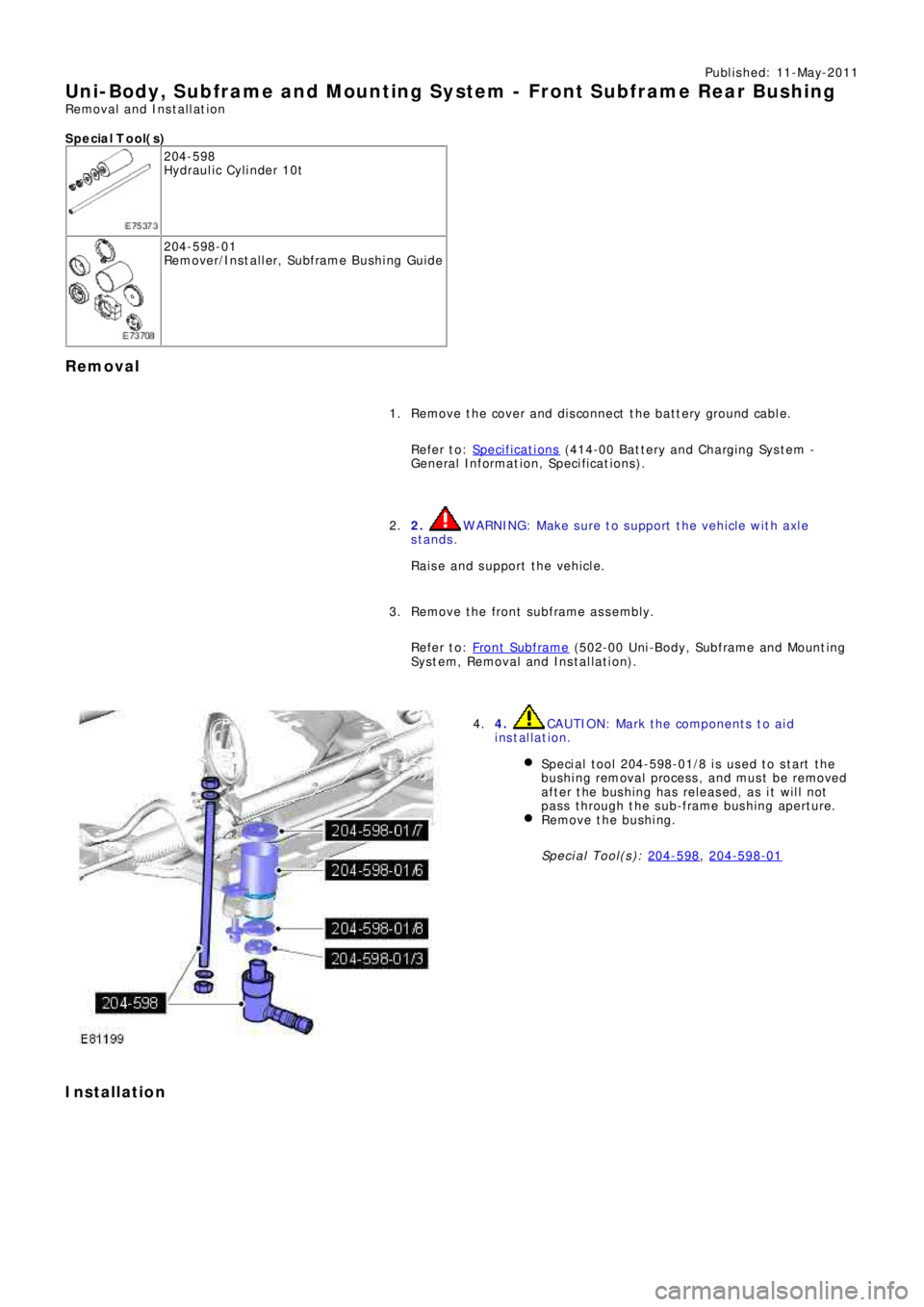

Uni-Body, Subframe and Mounting Syst em - Front Subframe Rear Bushing
Removal and Installation
S p e c ia l T o o l( s )
204-598
Hydraulic Cylinder 10t
204-598-01
Re mo ve r/I ns t a l l e r, Sub f ra me B us hi ng Gui d e
Removal
Remove the cover and disconnect the battery ground cable.
Refer to: Specifications
(414-00 Battery and Charging System -
General Information, Specifications).
1.
2.
WARNING: Make sure to support the vehicle with axle
stands.
Raise and support the vehicle.
2.
Re mo ve t he f ront s ubf ra me a s s e mbl y.
Refer to: Front Subframe
(502-00 Uni-Body, Subframe and Mounting
System, Removal and Installation).
3.
4. CAUTION: Mark the components to aid
installation.
Speci al t ool 204-598-01/8 i s us ed t o s t art t he
bushing removal process, and must be removed
after the bushing has released, as it will not
pass through the sub-frame bushing aperture.
Remove the bushing.
Special Tool(s): 204-598
, 204-598-01
4.
Installation
Page 2708 of 3229

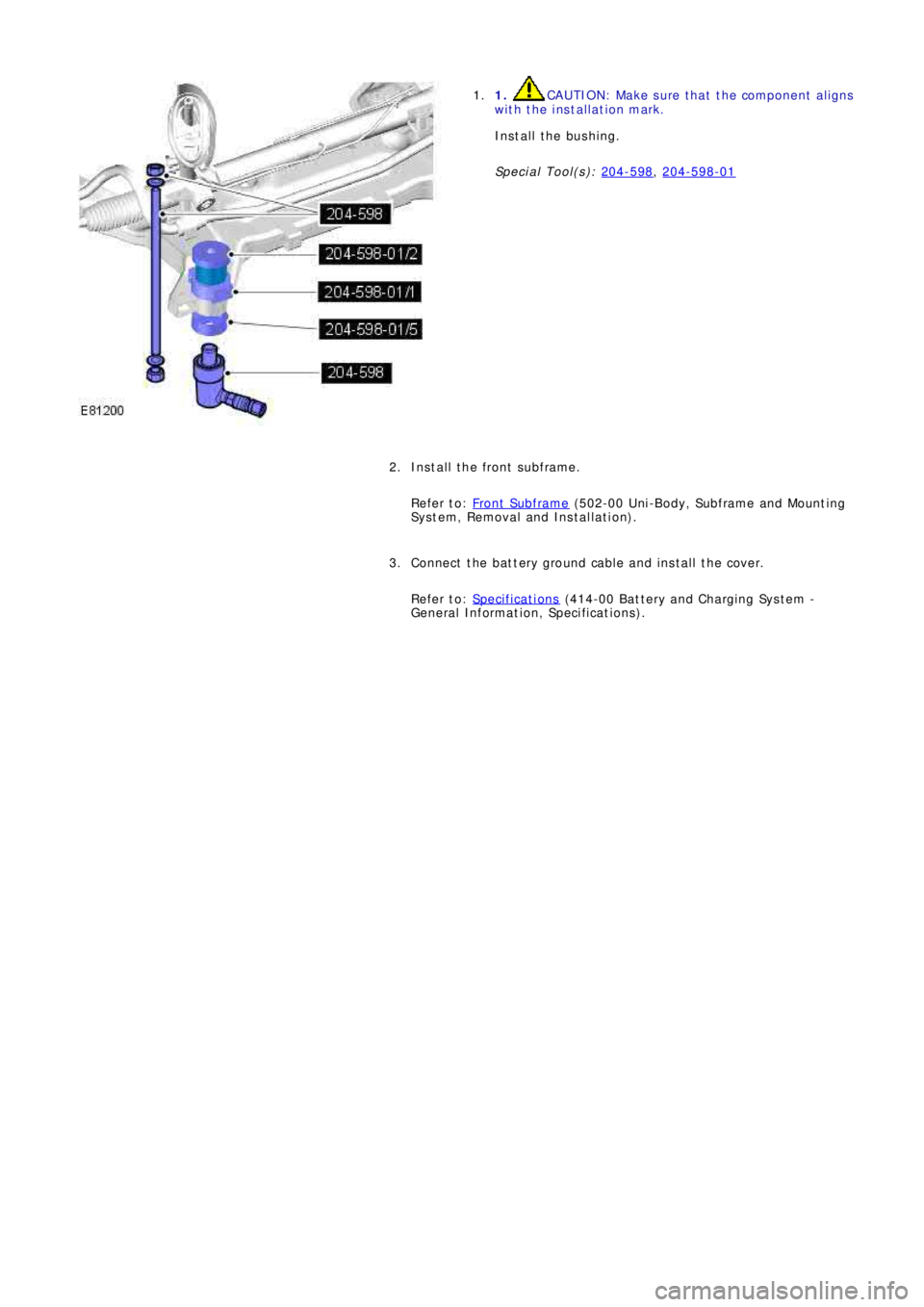

1. CAUTION: Make sure that the component aligns
with the installation mark.
Install the bushing.
Special Tool(s): 204-598
, 204-598-01
1.
Install the front subframe.
Refer to: Front Subframe
(502-00 Uni-Body, Subframe and Mounting
System, Removal and Installation).
2.
Connect the battery ground cable and install the cover.
Refer to: Specifications
(414-00 Battery and Charging System -
General Information, Specifications).
3.
Page 2709 of 3229
Publ is hed: 11-May-2011

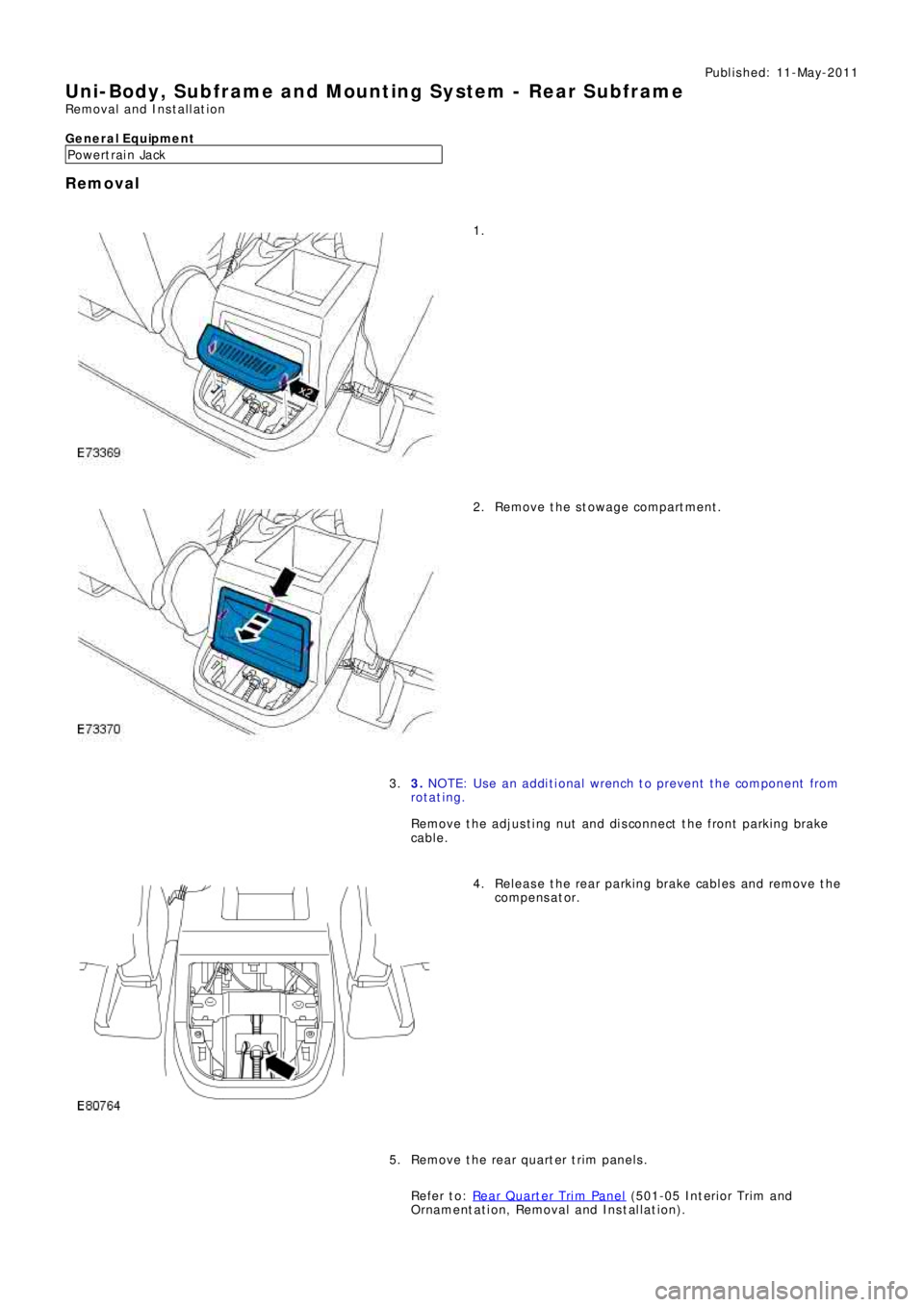

Uni-Body, Subframe and Mounting System - Rear Subframe
Removal and Installation
General Equipment
P o we rt ra i n Ja ck
Removal
1.
Remove the stowage compartment. 2.
3. NOTE: Use an additional wrench to prevent the component from
ro t a t i ng .
Remove t he adjus t i ng nut and di s connect t he front parki ng brake
cabl e . 3.
Release the rear parking brake cables and remove the
compens at or. 4.
Remove the rear quarter trim panels.
Refer to: Rear Quarter Trim Panel
(501-05 Int eri or Tri m and
Ornament at i on, Removal and Ins t al lat i on). 5.
Page 2710 of 3229
6.
Repeat the above procedure on the opposite hand. 7.
8.
Repeat the above procedure on the opposite hand. 9.
10.
WARNING: Make sure to support the vehicle with axle
stands.
Raise and support the vehicle. 10.
Remove both rear wheels and tires.
Refer to: Wheel and Tire
(204-04 Wheels and Tires, Removal and
Installation). 11.
If installed, remove the rear suspension height sensor.
Refer to: Rear Suspension Height Sensor
(204-05 Vehi cl e Dynami c
Suspension, Removal and Installation). 12.
Remove the rear muffler.
Refer to: Exhaus t Sys t em
(309-00B Exhaus t Sys t em - TD4 2.2L
Diesel, Removal and Installation). 13.
Page 2711 of 3229

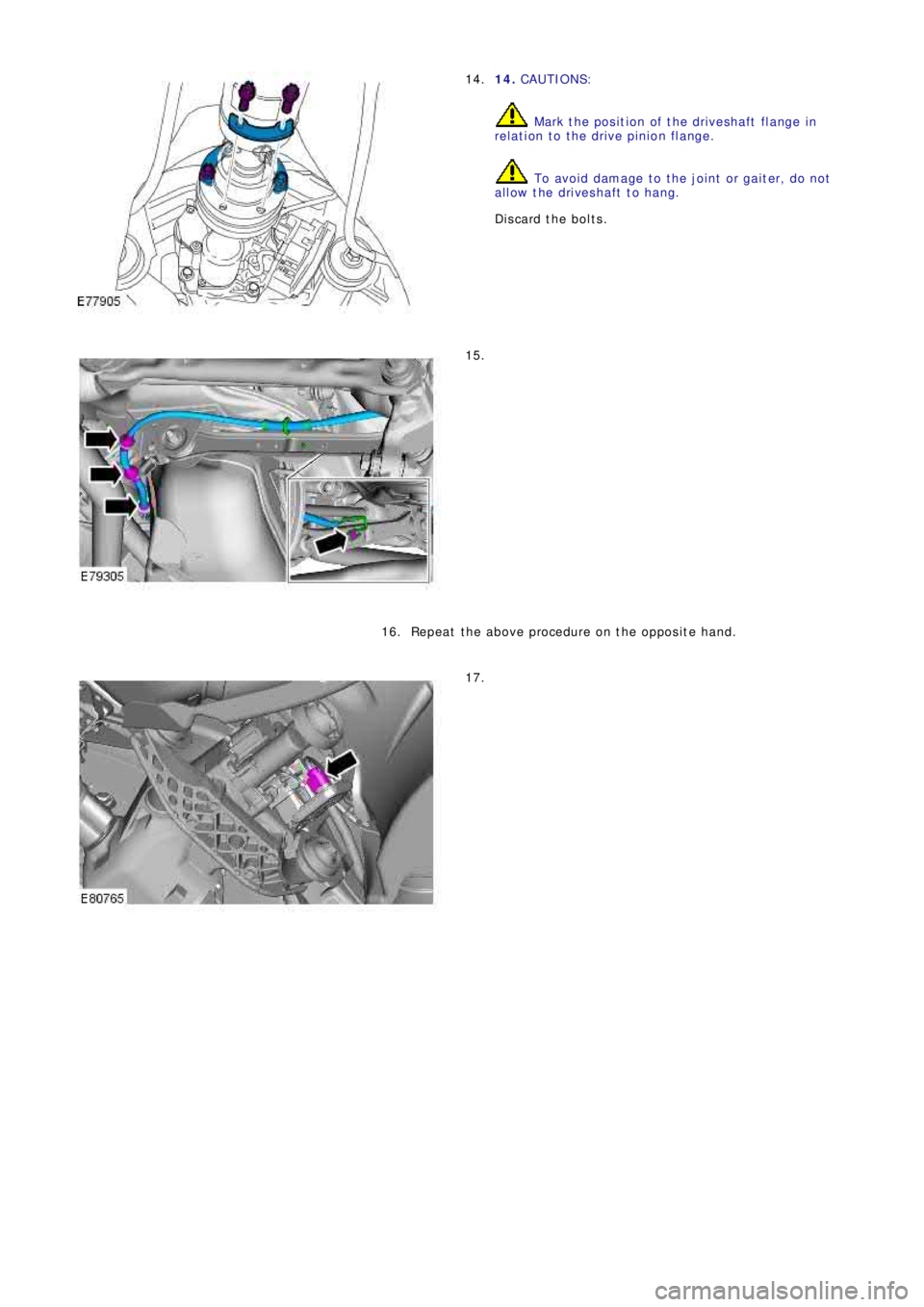

14. CAUTIONS:
Mark the position of the driveshaft flange in
relation to the drive pinion flange.
To avoid damage to the joint or gaiter, do not
allow the driveshaft to hang.
Discard the bolts. 14.
15.
Repeat the above procedure on the opposite hand. 16.
17.
Page 2712 of 3229
18.
Repeat the above procedure on the opposite hand. 19.

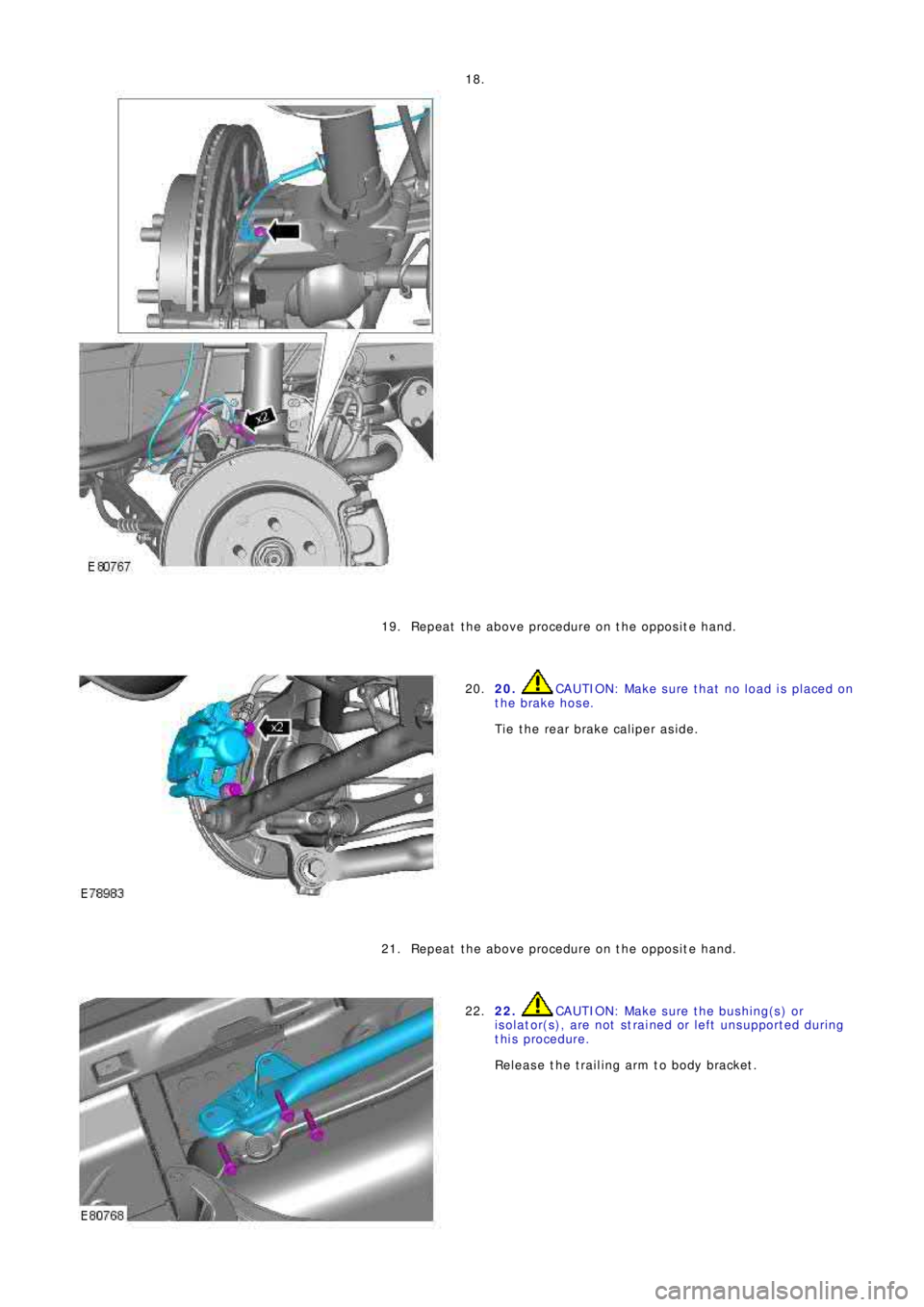

20. CAUTION: Make sure that no load is placed on
the brake hose.
Tie the rear brake caliper aside. 20.
Repeat the above procedure on the opposite hand. 21.
22. CAUTION: Make sure the bushing(s) or
isolator(s), are not strained or left unsupported during
this procedure.
Release the trailing arm to body bracket. 22.
