LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Wipers and Washers - Wipers and Washers
Diagnosi s and Tes ti ng
Principles of Operation
For a detail ed descripti on of the wiper and washer s yst ems , refer t o t he rel e

Publi s hed: 11-May-2011
Wipers and Washers - Wipers and Washers
Diagnosi s and Tes ti ng
Principles of Operation
For a detail ed descripti on of the wiper and washer s yst ems , refer t o t he rel evant De s cript ion and Operat ion secti on in the
works hop manual .
REFER to: W ipers and W ashers (501-16 W i pers and W as hers , Descripti on and Operat ion).
Inspection and Verification CAUTION: Di agnos is by s ubs ti tut ion from a donor vehicle is
NO T acceptabl e. Subs ti tut ion of cont rol modules does
not guarant ee confirmat ion of a faul t, and may als o caus e addit ional fault s i n t he v ehi cl e being t est ed and/or t he donor
vehi cl e.
1. Verify t he cus t omer concern.
1.
2. Vis ually ins pect for obvious s igns of mechani cal or electrical damage.
2.
Visual Inspection Mechanical Electrical
W iper bl ades W iper pi vot arm shaft
W as her res ervoir
Hos e(s )
W as her jet (s ) Fus es /rel ays (refer t o electrical gui de)
W iring harnes s
Correct engagement of electrical connect ors
Loos e or corroded connect ions
3.
If an obvious cause for an obs erved or report ed concern is found, correct t he caus e (if pos s ible) before
proceeding t o t he next s t ep.
3.
4. If t he caus e is not vis ually evi dent , check for Di agnos ti c Trouble Codes (DTCs) and refer t o t he DTC Index.
4.
DTC Index
• NOTE: If the control modul e or a component i s s us pect and the vehicle remains unde r manufacturer warrant y, refer t o the
W arranty Pol icy and Procedures manual (s ect ion B1.2), or determine i f any pri or appr oval programme is in operat ion, pri or
t o the ins tall ati on of a new module/component.
• NOTE: Generic scan t ool s may not read the codes li st ed, or may read only fi ve digi t codes . Mat ch the five di git s from t he
s can tool to the firs t fi ve di git s of the seven digi t code l is ted to ident ify t he fa ul t (t he las t t wo digi ts gi ve ext ra
informat ion read by the manufact urer-approved diagnost ic s ys tem).
• NOTE: W hen performing volt age or res is t ance t est s , always use a digi tal mult imeter (DMM) accurat e t o t hree deci mal
places and wit h a current cal ibrat ion cert ificate. W hen tes ti ng res i st ance, always t ake the res is tance of the DMM l eads i nto
account.
• NOTE: Check and recti fy bas ic faul ts before beginni ng diagnos t ic rout ines i nvol vi n g pinpoint t es t s.
• NOTE: If DTCs are recorded and, aft er performi ng the pi npoi nt tes ts , a fault is no t present , an int ermi tt ent concern may
be t he caus e. Always check for loose connect ions and corroded terminals .
DT C Description Possible Cause Action
B109512 W iper On/O ff Relay - circui t
s hort t o power W i per On/Off relay ci rcuit -
s hort t o power Refer to el ect ri cal circui t diagrams and
check wiper On/O ff rel ay circuit for s hort to
power
B109514 W iper On/O ff Relay - circui t
s hort t o ground or open W i per On/Off relay ci rcuit -
s hort t o ground, open ci rcuit Refer to el ect ri cal circui t diagrams and
check wiper On/O ff rel ay circuit for s hort to
ground, open circui t
B109612 W iper High/Low Relay - circui t
s hort t o power W i per High/Low relay circui t -
s hort t o power Refer to el ect ri cal circui t diagrams and
check wiper High/Low rel ay ci rcuit for short
to power
B109614 W iper High/Low Relay - circui t
s hort t o ground or open W i per High/Low relay circui t -
s hort t o ground, open ci rcuit Refer to el ect ri cal circui t diagrams and
check wiper High/Low rel ay ci rcuit for short
to ground, open circuit
B10AD04 Rai n Sens or - Syst em Int ernal
Fail ure Int ernal s ens or fai lure Ins tal l a new rai n s ensor.
REFER t o: Rain Sens or (501-16 W ipers and
W as hers, Removal and Ins t al lat ion).
B10AD09 Rai n Sens or - Component
Fail ures Rain sens or incorrectl y
ins t al led Rain sens or internal failure Check for correct i nst all ati on of rain
sens or. Ins t all a new sens or as required.
REFER t o: Rain Sens or (501-16 W ipers and
W as hers, Removal and Ins t al lat ion).
B113188 W iper Motor Module - Bus off Lost communi cat ions wit h
wi per mot or modul e Carry out di agnos ti c s trat egy as sociat ed
wit h t hi s DTC us ing manufact urer approved
di agnos ti c s yst em
B1C8212 Headlamp W as her Rel ay Coi l
Ci rcuit - circui t s hort t o power Headlamp was her relay control
circui t - short to power Refer to el ect ri cal circui t diagrams and
check headl amp was her relay cont rol circui t
for s hort to power

Page 2354 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual DT C
Description Possible Cause Action
B1C8214 Headlamp W as her Rel ay Coi l
Ci rcuit - circui t s hort t o ground
or open Headlamp was her relay control
circui t - short to ground, open
circui t Re

Page 2355 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Wipers and Washers - Windshield Wiper Motor
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Remov

Page 2356 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011

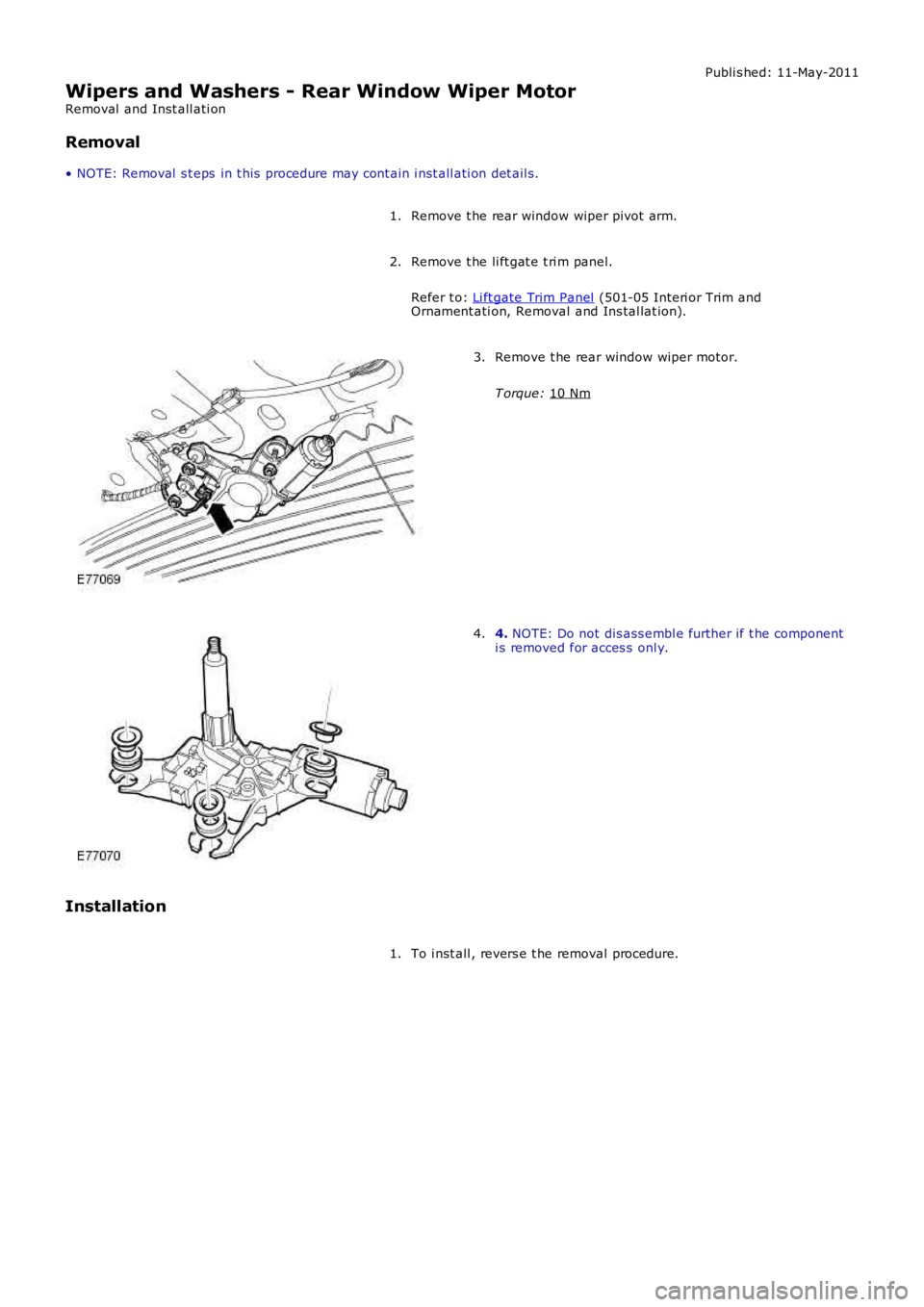

Wipers and Washers - Rear Window Wiper Motor
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Remo

Page 2357 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Wipers and Washers - Rain Sensor
Removal and Inst all ati on
Removal
Remove t he int erior mi rror.
Refer t o: Int erior Rear View Mirror (501-09 Rear Vi ew Mi rrors ,Removal

Page 2358 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Wipers and Washers - Headlamp Washer Jet
Removal and Inst all ati on
Removal
1. W ARNING: Do not work on or under a vehi cle s upported onl y
by a jack. Al ways support t

Page 2359 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011

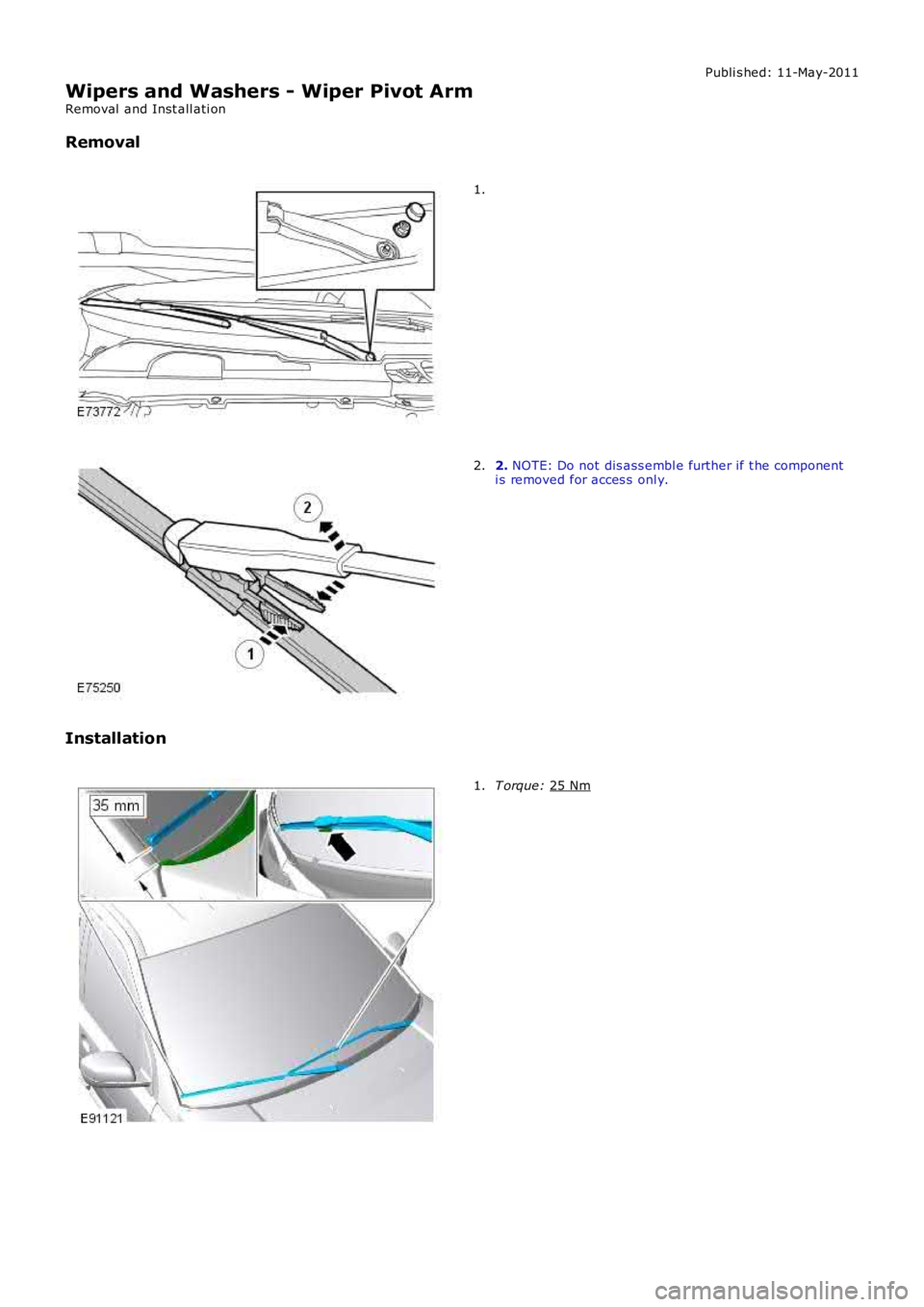

Wipers and Washers - Wiper Pivot Arm
Removal and Inst all ati on
Removal 1.
2.
NOTE: Do not dis ass embl e further if t he component
i s removed for acces s onl y.
2.
Insta

Page 2360 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Wipers and Washers - Windshield Washer Pump
Removal and Inst all ati on
Removal
1. W ARNING: Do not work on or under a vehi cle s upported onl yby a jack. Al ways support t
