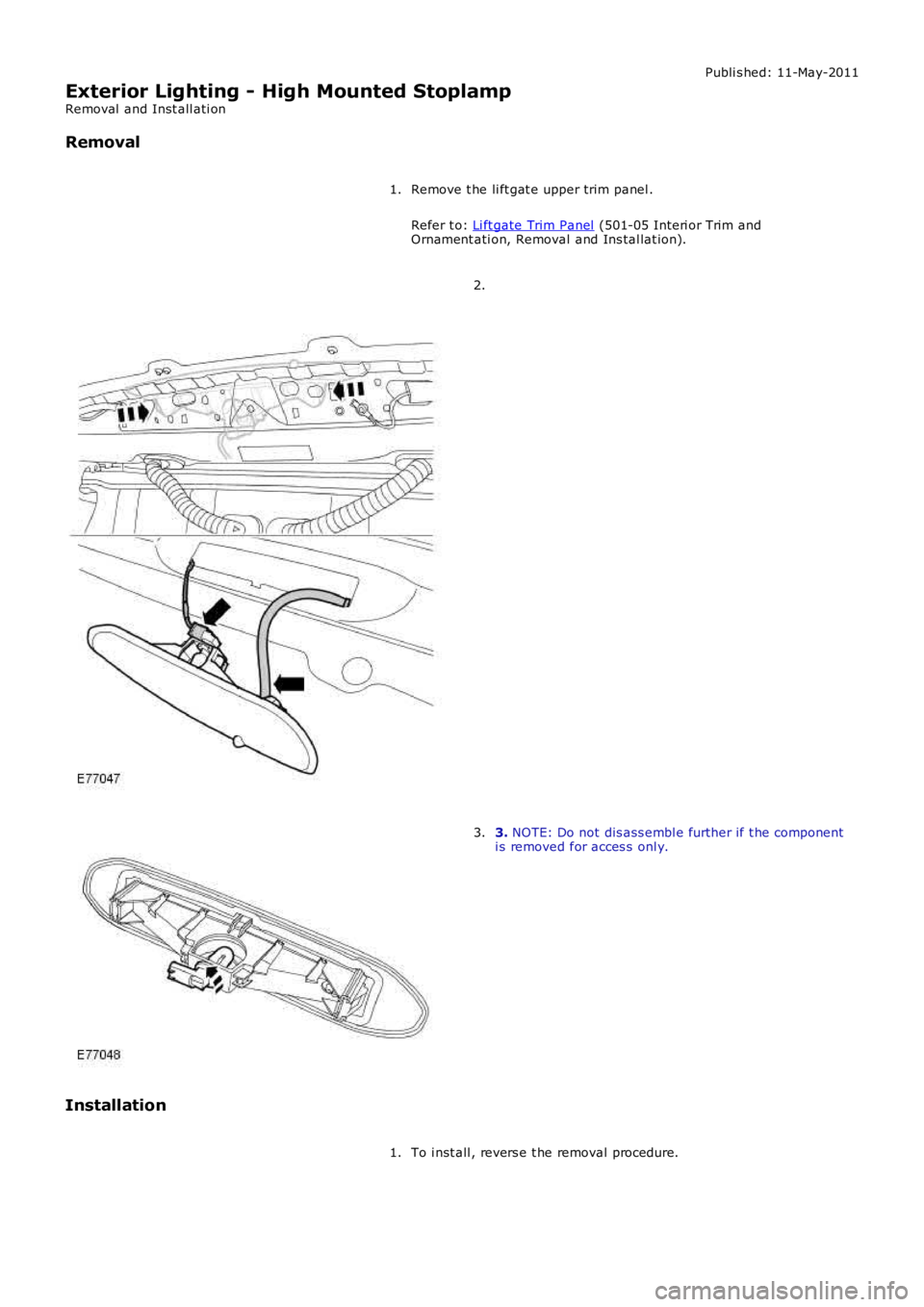

Exterior Lighting - High Mounted Stoplamp
Removal and Inst all ati on
Removal
Remove t he li ft gat e upper trim panel .
Refer t o: Li ft gate Trim Panel (501-05 Interi or Trim andOrnament ati on, Removal and Ins tal lat ion).
1.
2.
3. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y.3.
Installation
To i nst all , revers e t he removal procedure.1.
Page 1946 of 3229
Publi s hed: 11-May-2011
Exterior Lighting - Headlamp Switch
Removal and Inst all ati on
Removal
1. CAUTION: Prot ect t he s urroundi ng trim t o avoi ddamage.1.
Installation
To i nst all , revers e t he removal procedure.1.
Page 1947 of 3229
Publi s hed: 11-May-2011

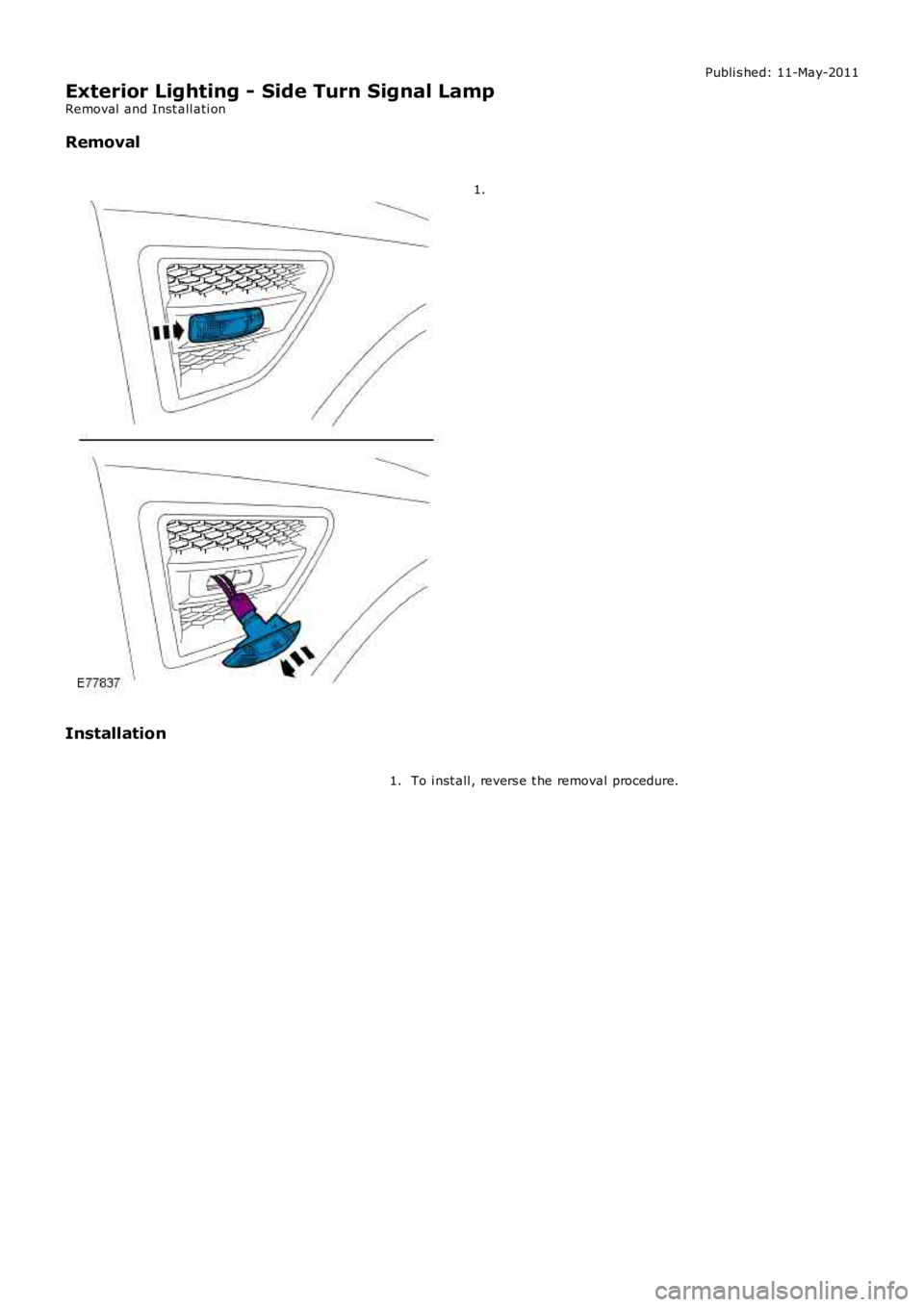

Exterior Lighting - Side Turn Signal Lamp
Removal and Inst all ati on
Removal 1.
Installation To i nst all , revers e t he removal procedure.
1.
Page 1948 of 3229
Publi s hed: 11-May-2011
Exterior Lighting - Headlamp Leveling Module
Removal and Inst all ati on
Removal
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Remove t he glove compartment .
Refer t o: Glove Compart ment (501-12 Ins trument Panel and
Consol e, Removal and Ins t al lat ion).
1. T orque:
7 Nm 2.
Installation To i nst all , revers e t he removal procedure.
1.
Us ing t he Land Rover approved diagnost ic sys tem, cali brat e a new
module.
2.
Page 1949 of 3229
Publi s hed: 11-May-2011

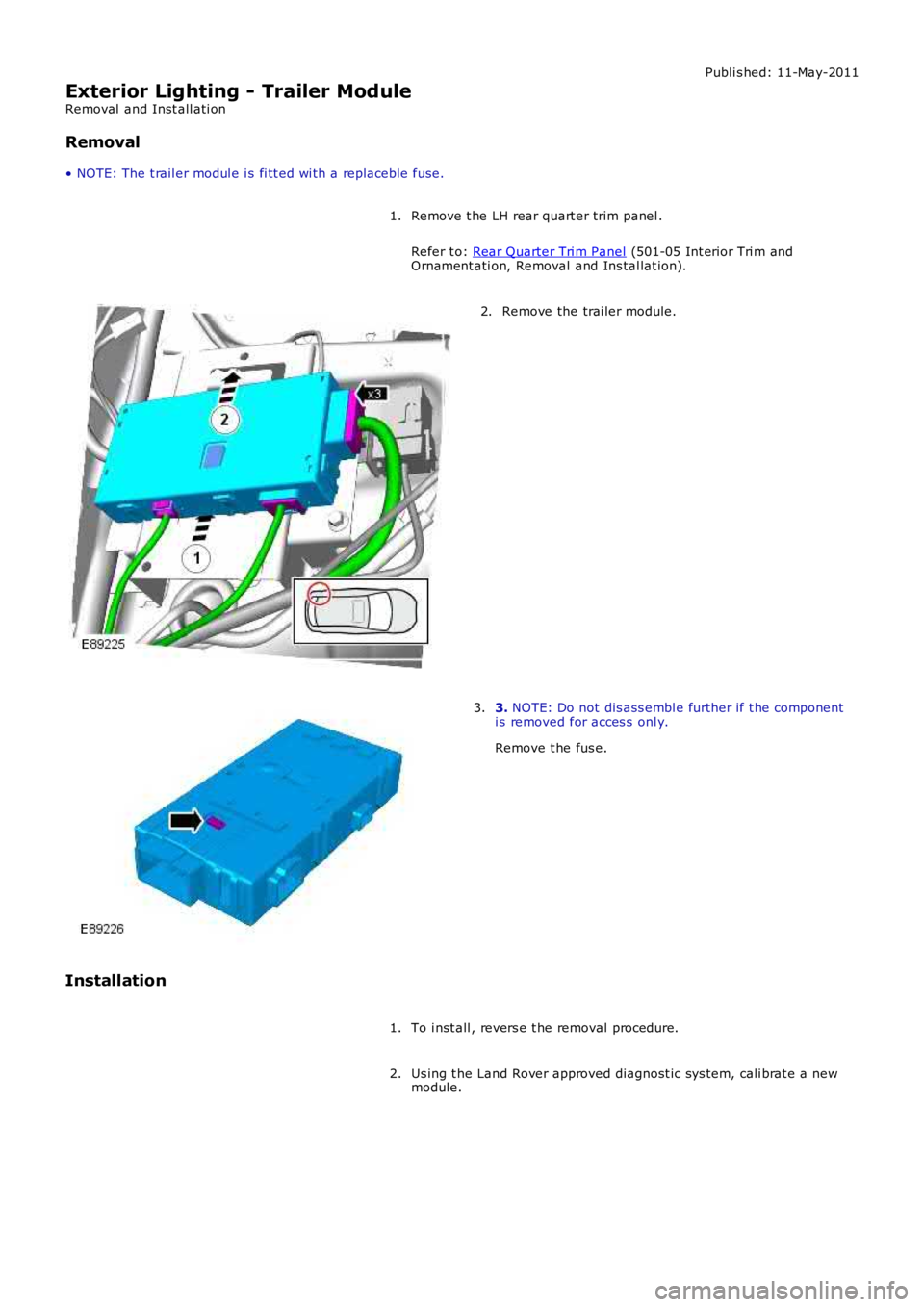

Exterior Lighting - Trailer Module
Removal and Inst all ati on
Removal
• NOTE: The t rail er modul e i s fi tt ed wi th a replaceble fuse.
Remove t he LH rear quart er trim panel .
Refer t o: Rear Quarter Tri m Panel (501-05 Int erior Tri m andOrnament ati on, Removal and Ins tal lat ion).
1.
Remove the trai ler module.2.
3. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y.
Remove t he fus e.
3.
Installation
To i nst all , revers e t he removal procedure.1.
Us ing t he Land Rover approved diagnost ic sys tem, cali brat e a newmodule.2.
Page 1950 of 3229
Publi s hed: 11-May-2011

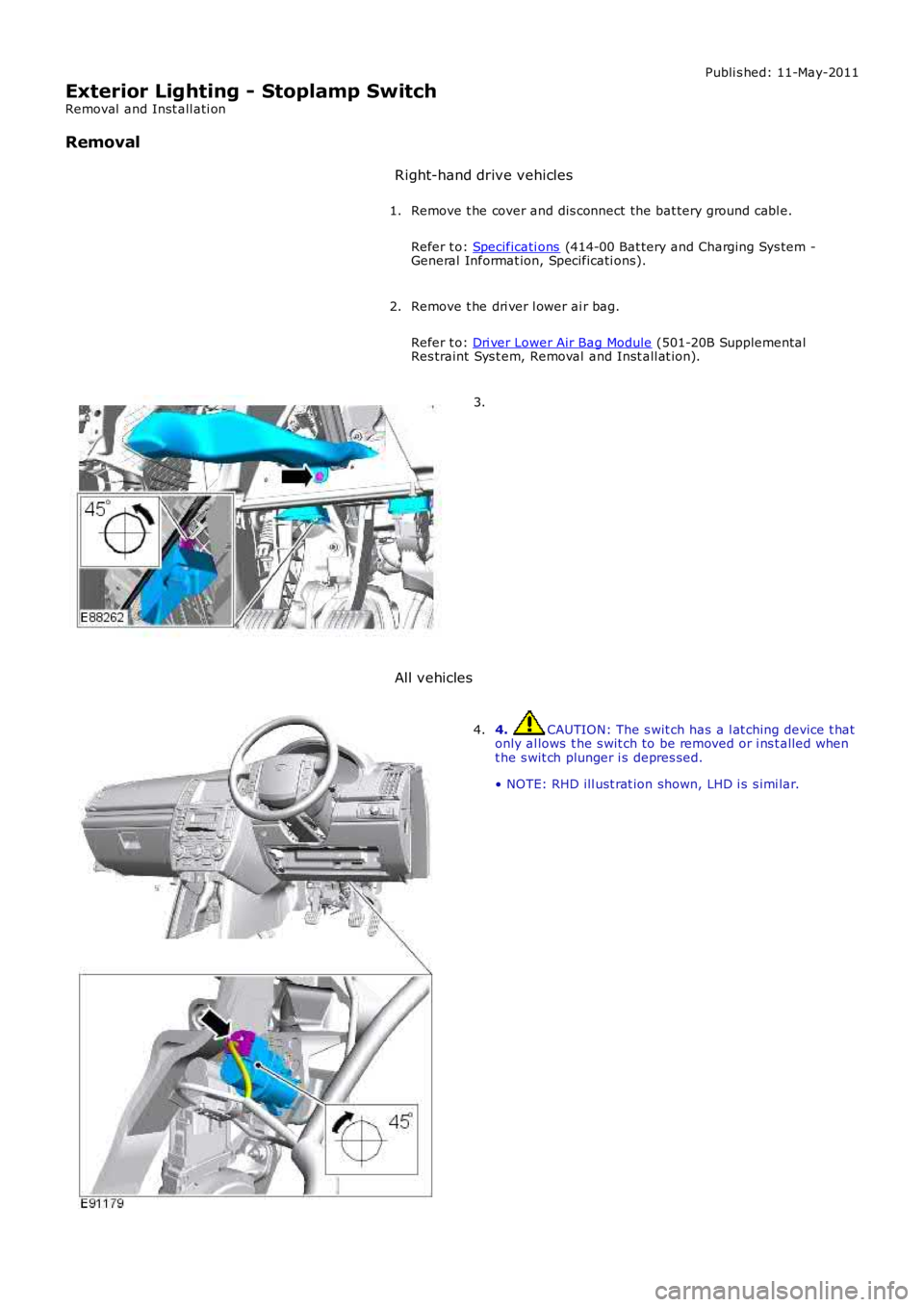

Exterior Lighting - Stoplamp Switch
Removal and Inst all ati on
Removal
Right-hand drive vehicles
Remove t he cover and dis connect the bat tery ground cabl e.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Remove t he dri ver l ower ai r bag.
Refer t o: Dri ver Lower Air Bag Module (501-20B SupplementalRes traint Sys t em, Removal and Inst all at ion).
2.
3.
All vehicles
4. CAUTION: The s wit ch has a l at ching device t hatonly al lows t he s wit ch to be removed or i ns t alled whent he s wit ch plunger i s depres sed.
• NOTE: RHD ill ust rat ion shown, LHD i s s imi lar.
4.
Page 1951 of 3229
Publi s hed: 11-May-2011

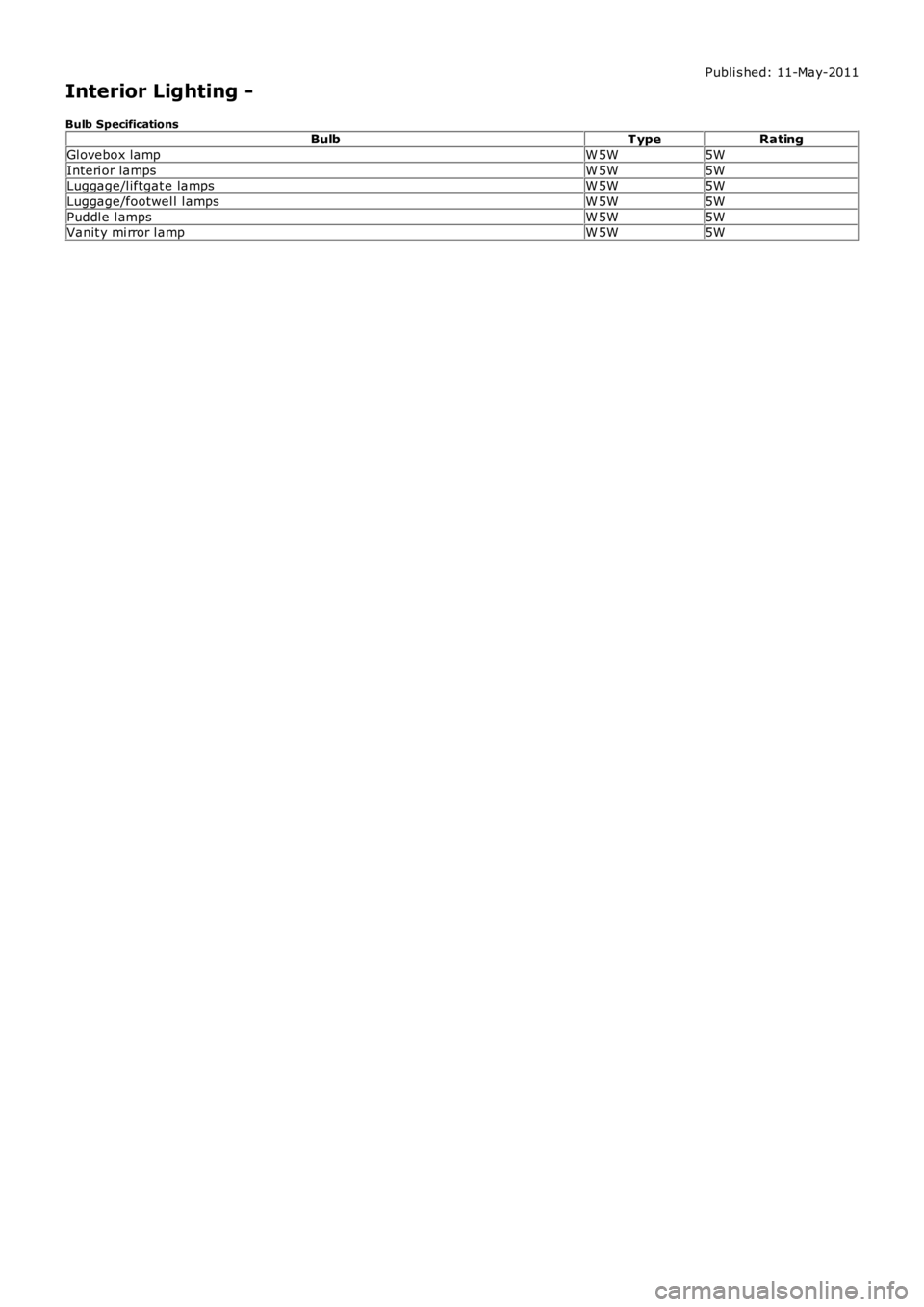

Interior Lighting -
Bulb SpecificationsBulbT ypeRating
Gl ovebox lampW 5W5W
Interi or lampsW 5W5WLuggage/l iftgat e lampsW 5W5W
Luggage/footwel l l ampsW 5W5W
Puddl e l ampsW 5W5WVanit y mi rror l ampW 5W5W
Page 1952 of 3229
Publi s hed: 11-May-2011
Interior Lighting - Interior Lighting
Des cript ion and Operat ion

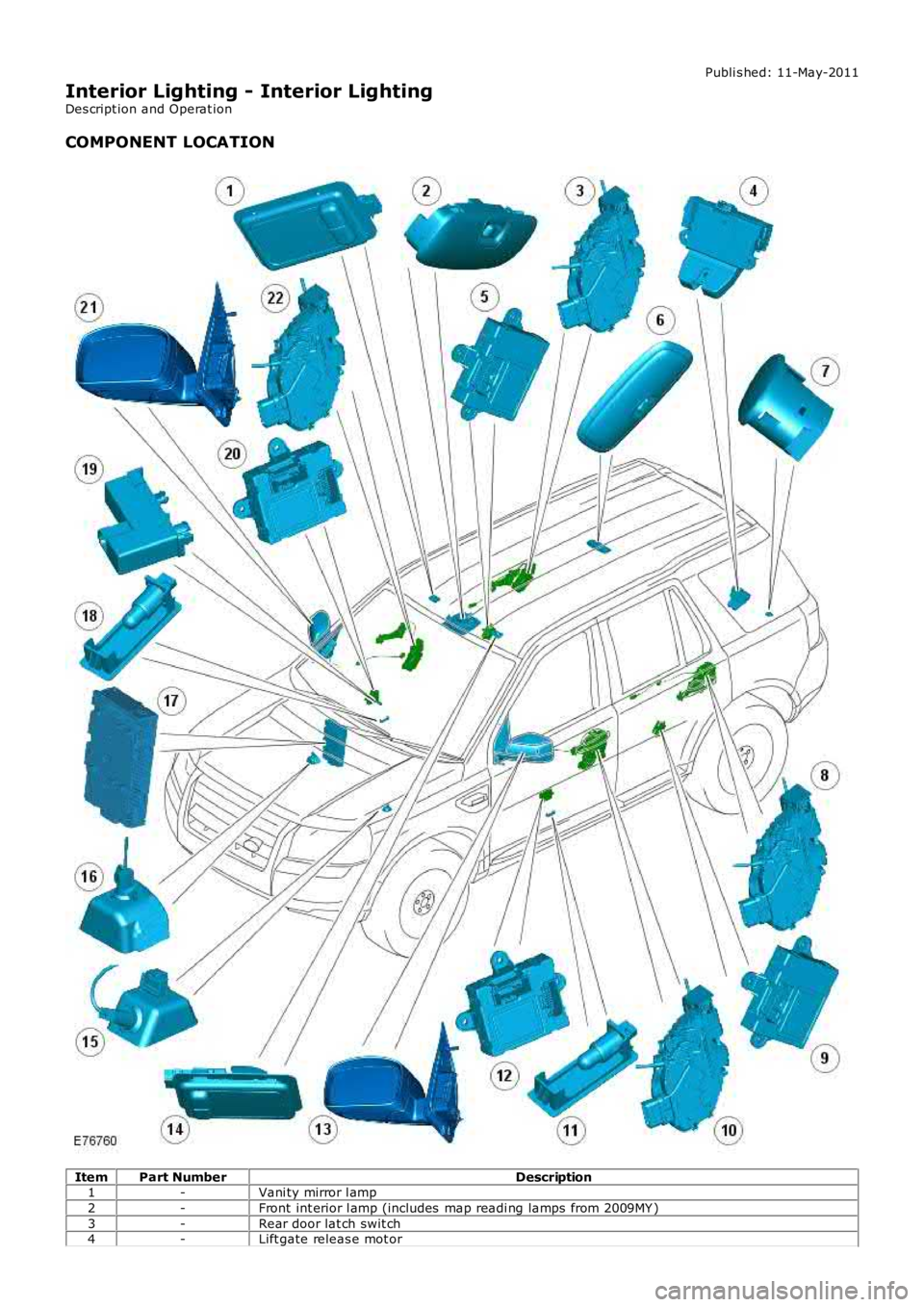

COMPONENT LOCATION
ItemPart NumberDescription1-Vani ty mirror l amp
2-Front int erior l amp (includes map readi ng lamps from 2009MY )
3-Rear door lat ch swit ch4-Lift gate releas e mot or
