Page 689 of 3229

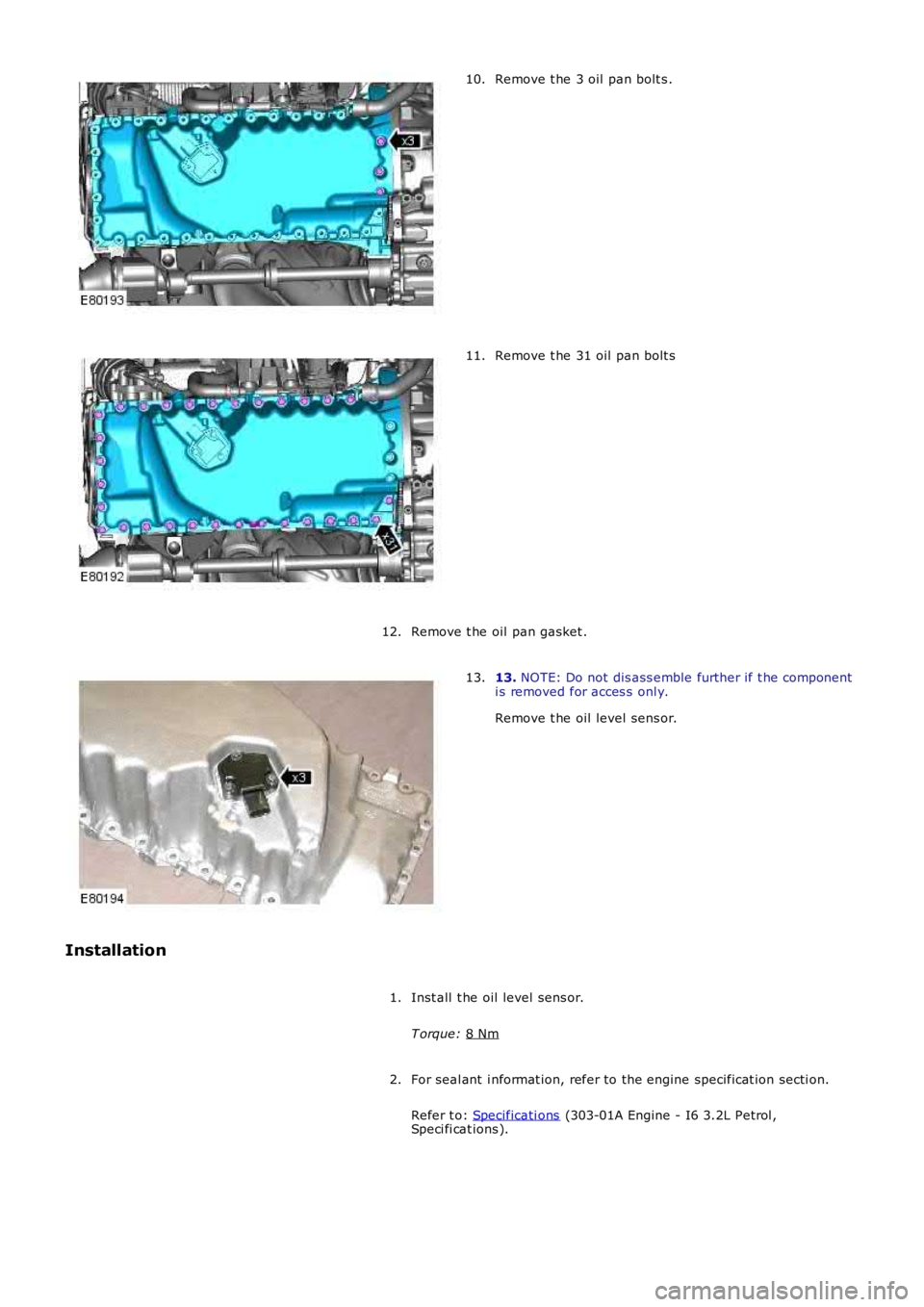

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he 3 oil pan bolt s . 10. Remove t he 31 oil pan bolt s 11. Remove t he oil pan gasket . 12. 13. NOTE: Do not dis ass emble further if t he component i s removed for acces s onl y. Remove

Page 690 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Apply a bead of s ealant, 2.5 mm diamet er, t o t he area i ndi cat ed. 3. Inst all t he oil pan. T orque: M7 17 Nm M10 45 Nm 4. Secure t he cool ant rail . T orque: 10 Nm 5. Inst all t he int ak

Page 691 of 3229

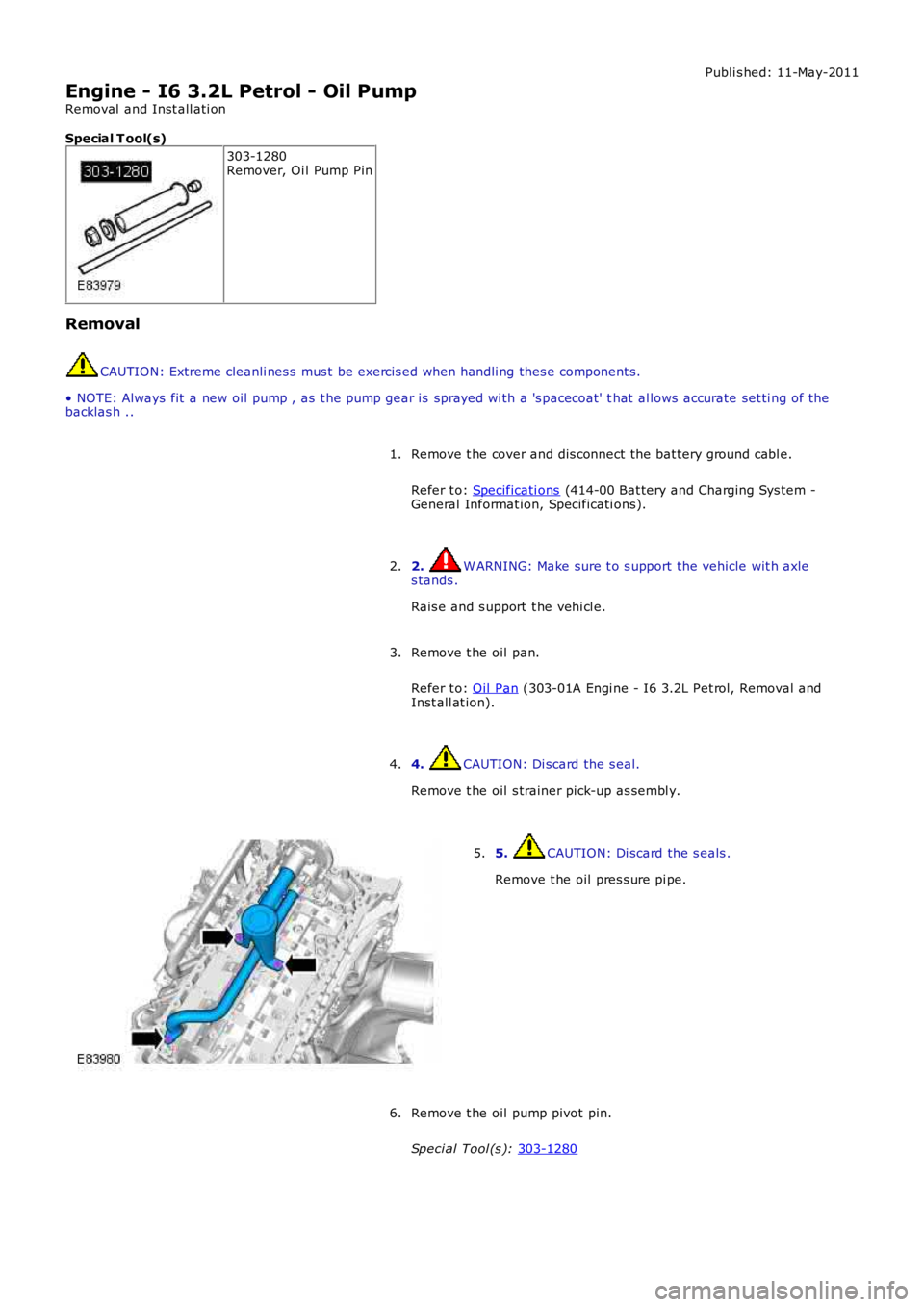

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Engine - I6 3.2L Petrol - Oil Pump Removal and Inst all ati on Special T ool(s) 303-1280 Remover, Oi l Pump Pin Removal CAUTION: Extreme cleanli nes s mus t be exercis ed w

Page 692 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he oil pump. 7. Installation The oil pump drive has a coat ing i n one place t o s et the gear clearance. Plas t ic pin is us ed t o posi ton the gear for i ns t allat ion. Do Not remov

Page 693 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).

Page 694 of 3229

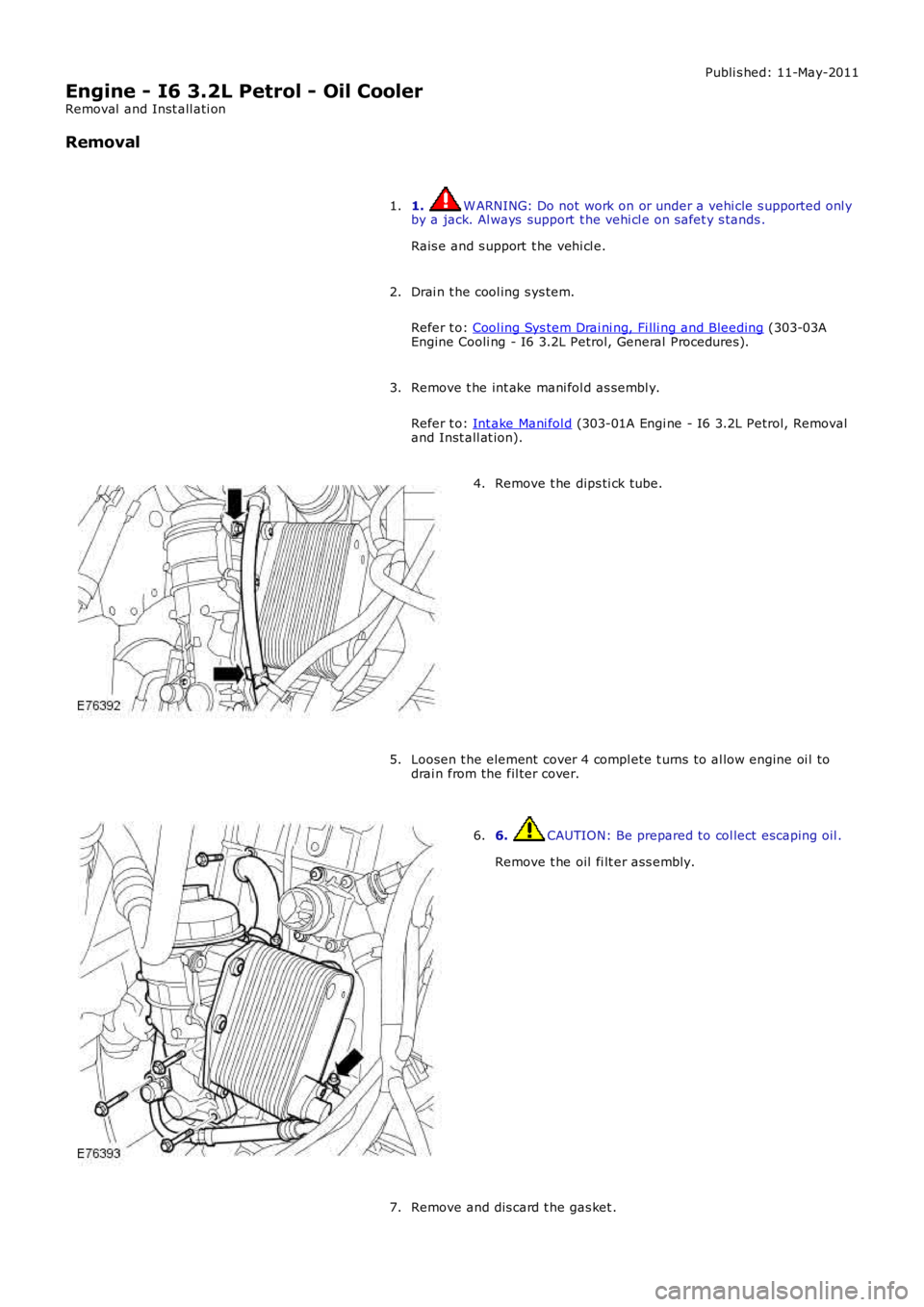

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Engine - I6 3.2L Petrol - Oil Cooler Removal and Inst all ati on Removal 1. W ARNING: Do not work on or under a vehi cle s upported onl yby a jack. Al ways support t he veh

Page 695 of 3229

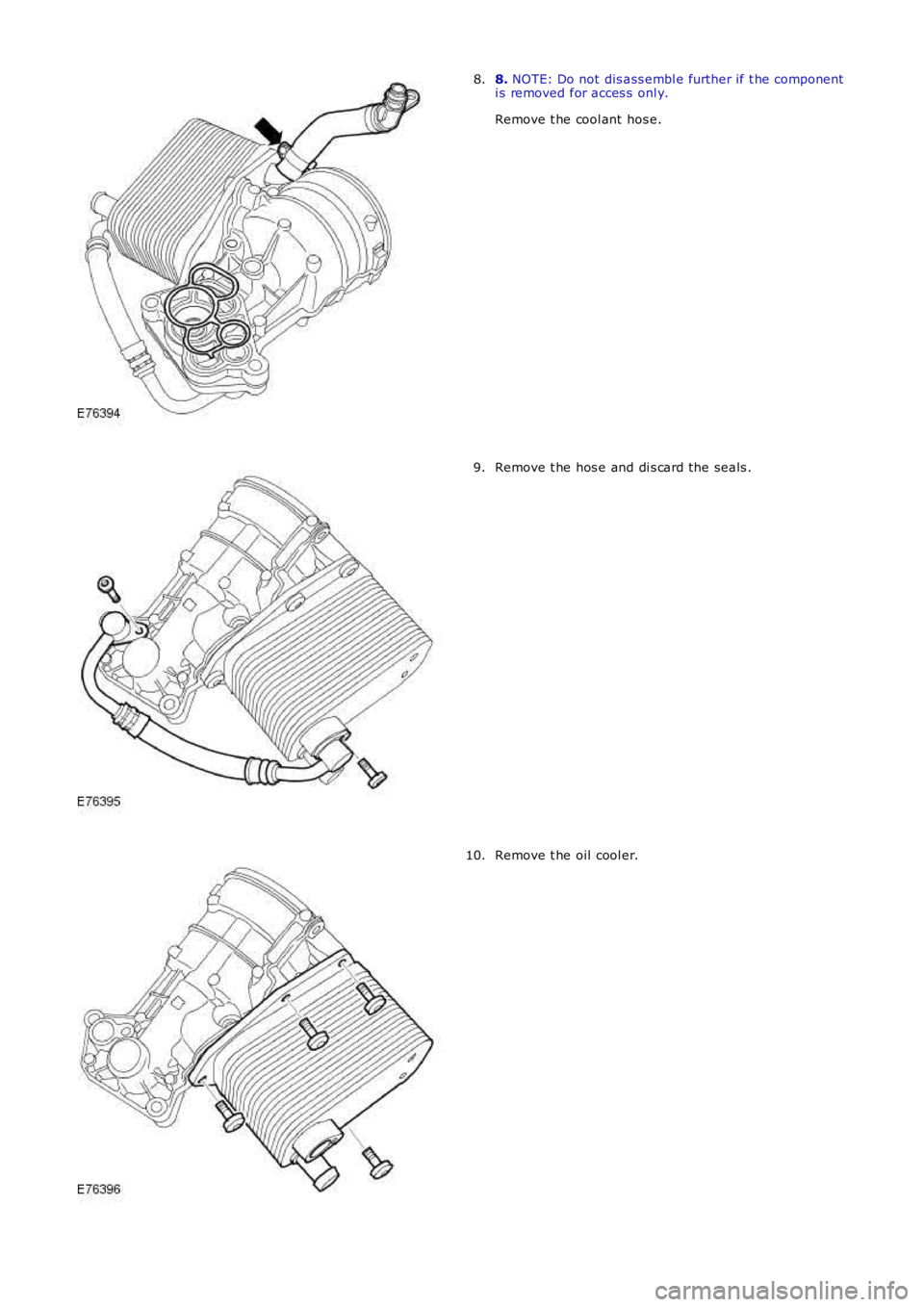

LAND ROVER FRELANDER 2 2006 Repair Manual 8. NOTE: Do not dis ass embl e further if t he componenti s removed for acces s onl y. Remove t he cool ant hos e. 8. Remove t he hos e and di s card the seals .9. Remove t he oil cool er.10.

Page 696 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Remove and dis card t he 2 gas ket s . 11. Installation Inst all new gas ket s . 1. Inst all t he engi ne oil cool er. T orque: 10 Nm 2. Inst all t he hos e. T orque: 10 Nm 3. Inst all and t ig
