Page 1457 of 3229

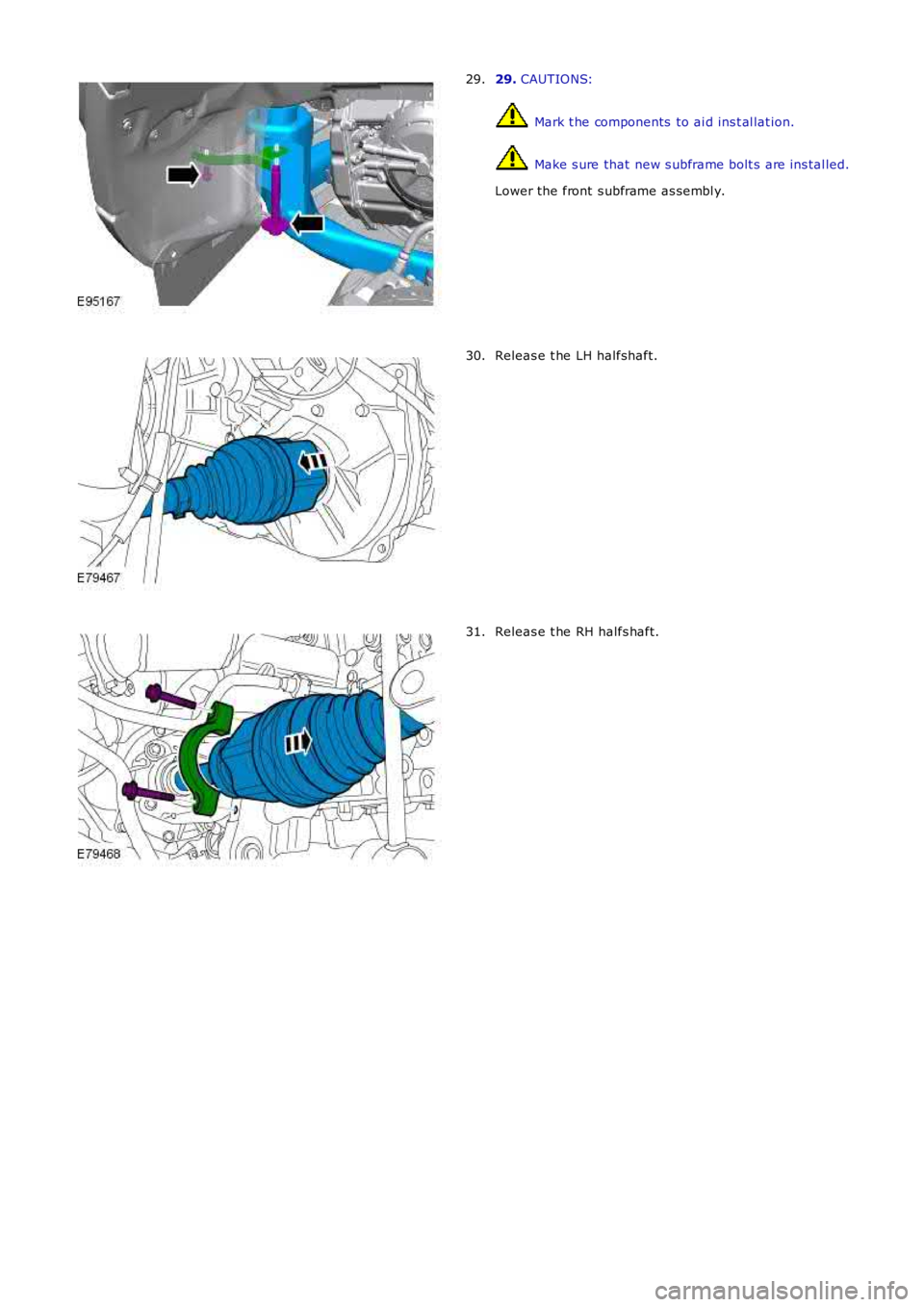

LAND ROVER FRELANDER 2 2006 Repair Manual 29. CAUTIONS: Mark t he components to ai d ins t al lat ion. Make s ure that new s ubframe bolt s are ins tal led. Lower the front s ubframe as sembl y. 29. Releas e t he LH halfshaft. 30. Rele

Page 1458 of 3229

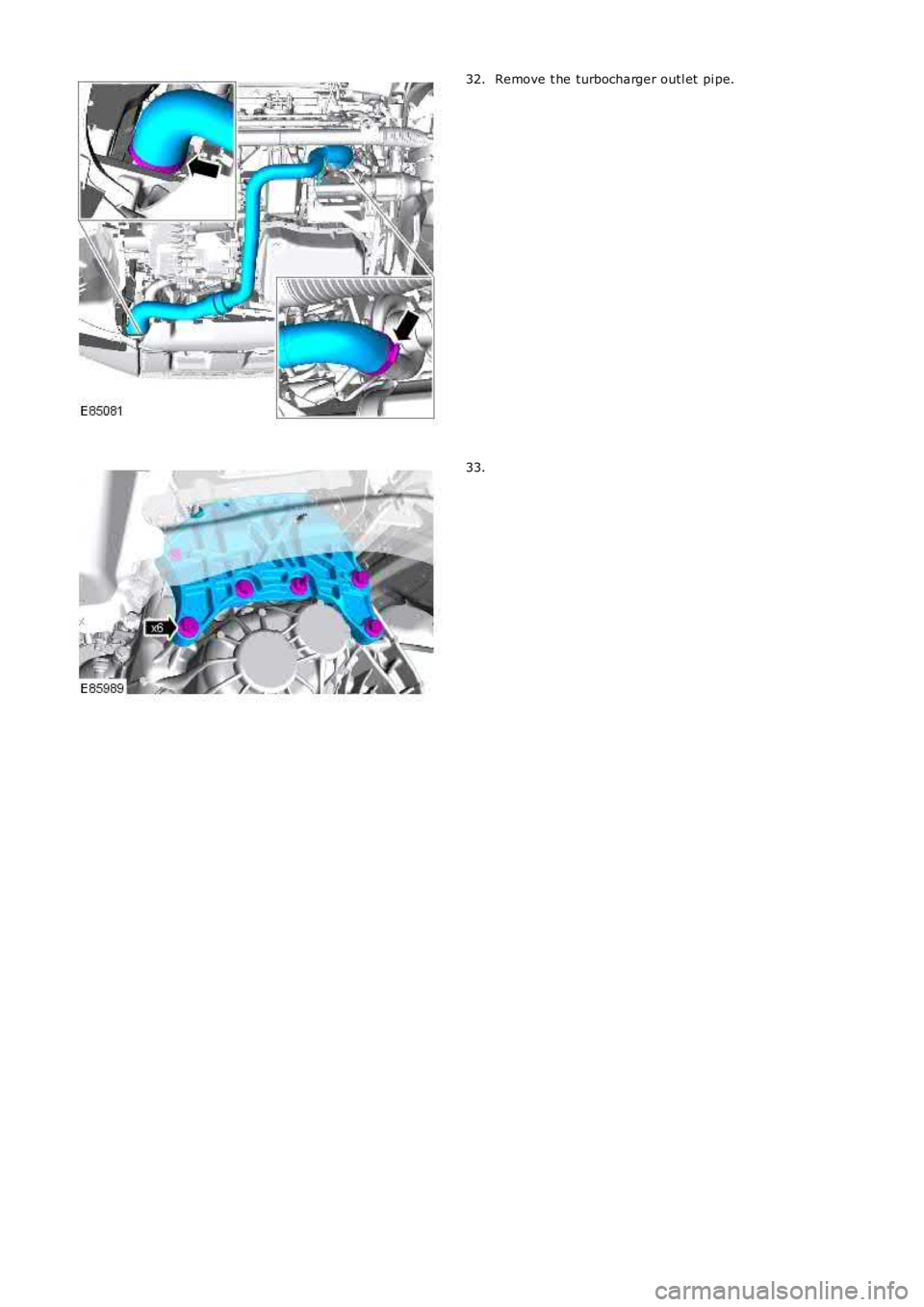

LAND ROVER FRELANDER 2 2006 Repair Manual Remove t he turbocharger outl et pi pe. 32. 33.

Page 1459 of 3229

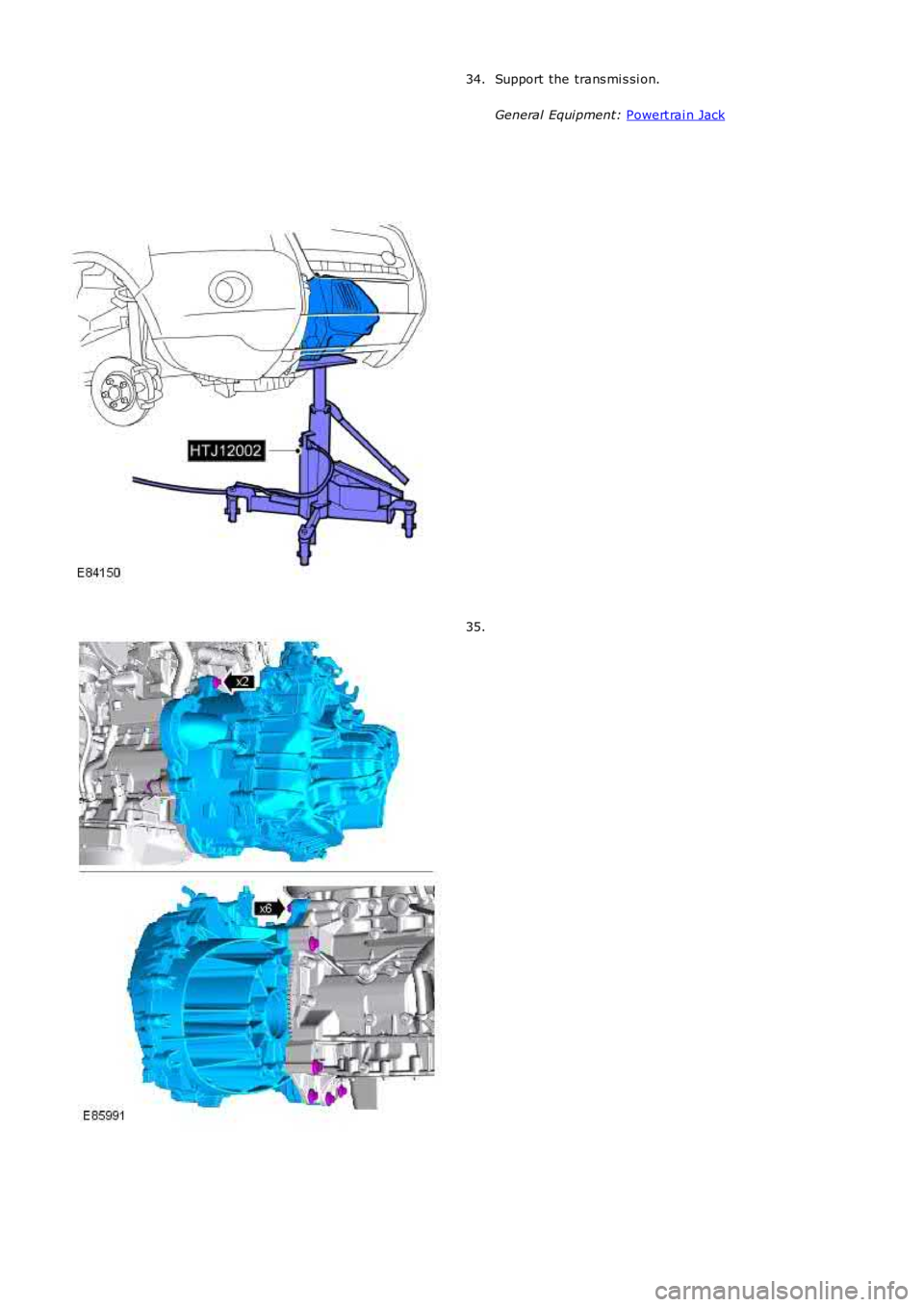

LAND ROVER FRELANDER 2 2006 Repair Manual Support the trans mi s si on. General Equi pment: Powert rai n Jack 34. 35.

Page 1460 of 3229

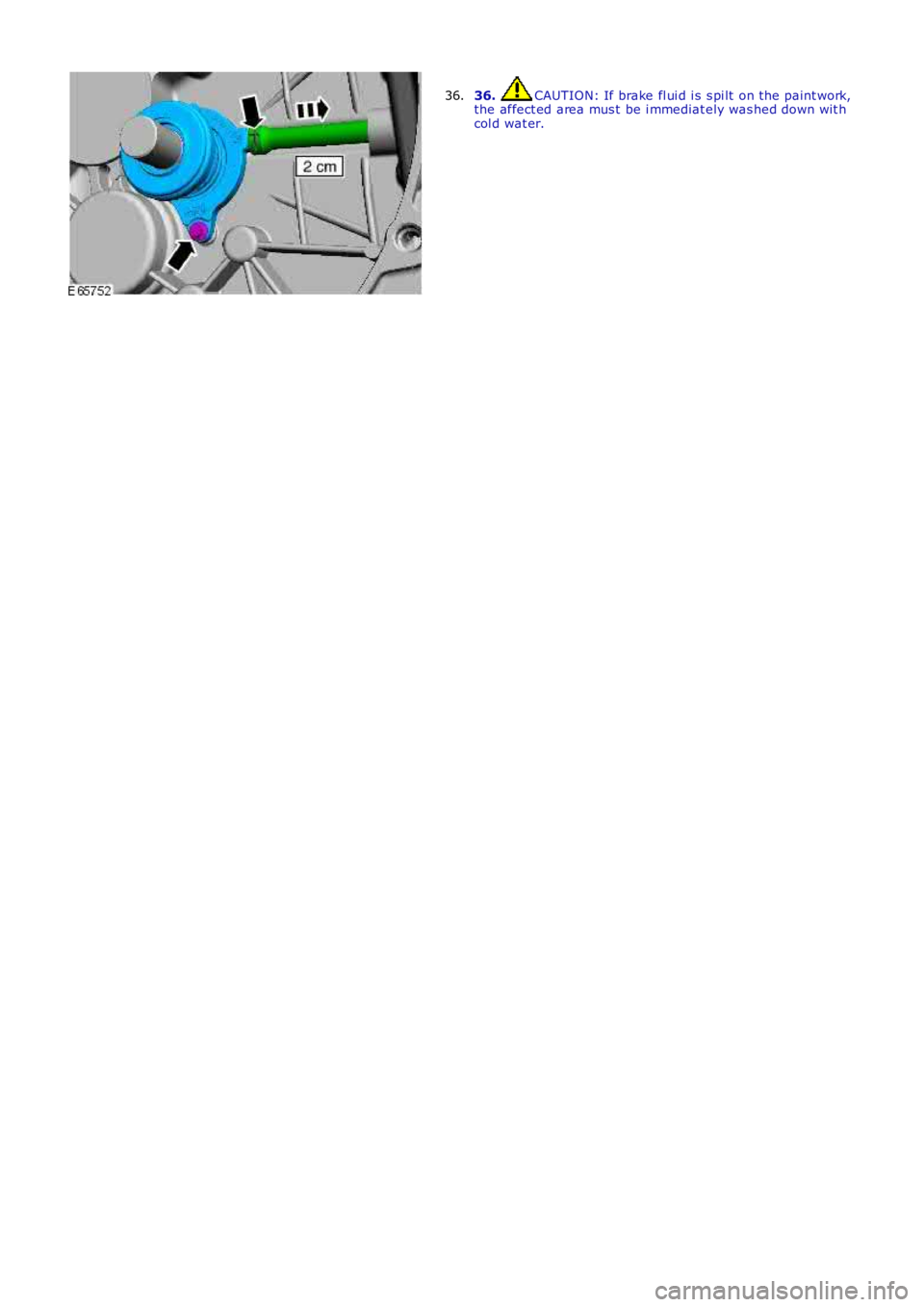

LAND ROVER FRELANDER 2 2006 Repair Manual 36. CAUTION: If brake fl ui d i s s pi lt on t he paint work, the affect ed area mus t be i mmediat ely was hed down wit h col d wat er. 36.

Page 1461 of 3229

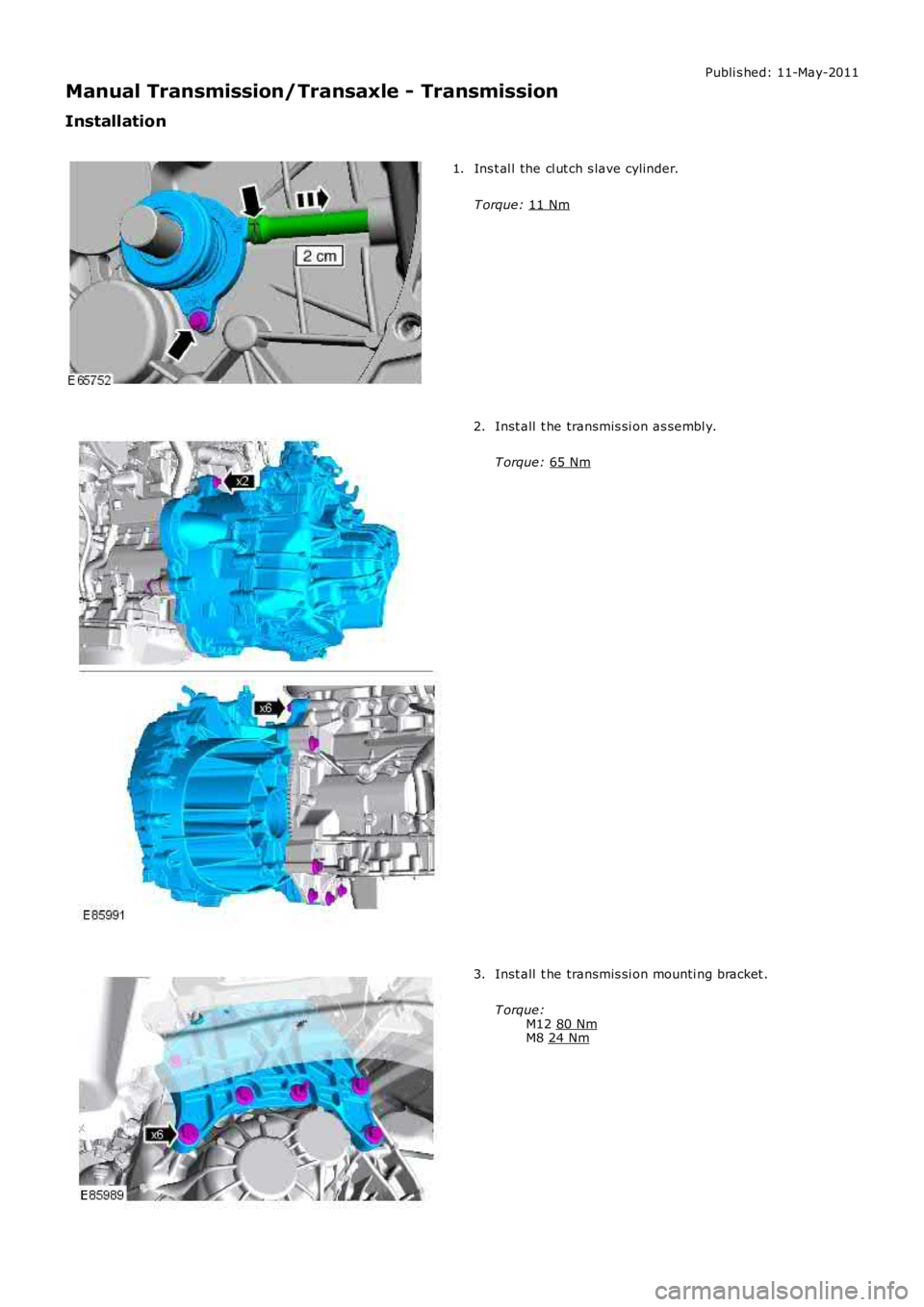

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011 Manual Transmission/Transaxle - Transmission Installation Ins t al l the cl ut ch s lave cylinder. T orque: 11 Nm 1. Inst all t he transmis si on as sembl y. T orque: 65 Nm

Page 1462 of 3229

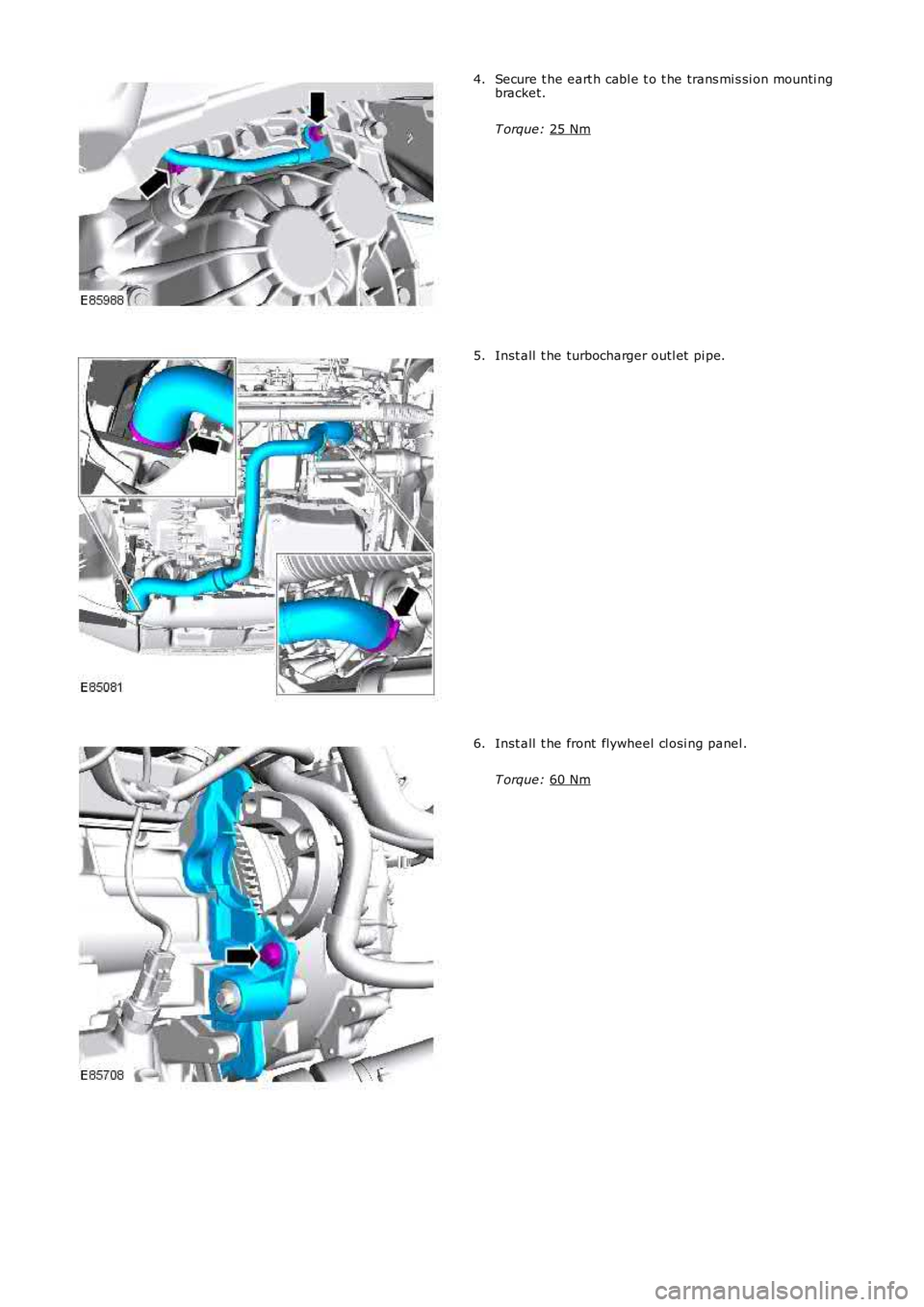

LAND ROVER FRELANDER 2 2006 Repair Manual Secure t he eart h cabl e t o t he trans mi s si on mounti ng bracket. T orque: 25 Nm 4. Inst all t he turbocharger outl et pi pe. 5. Inst all t he front flywheel cl osi ng panel . T orque: 60 N

Page 1463 of 3229

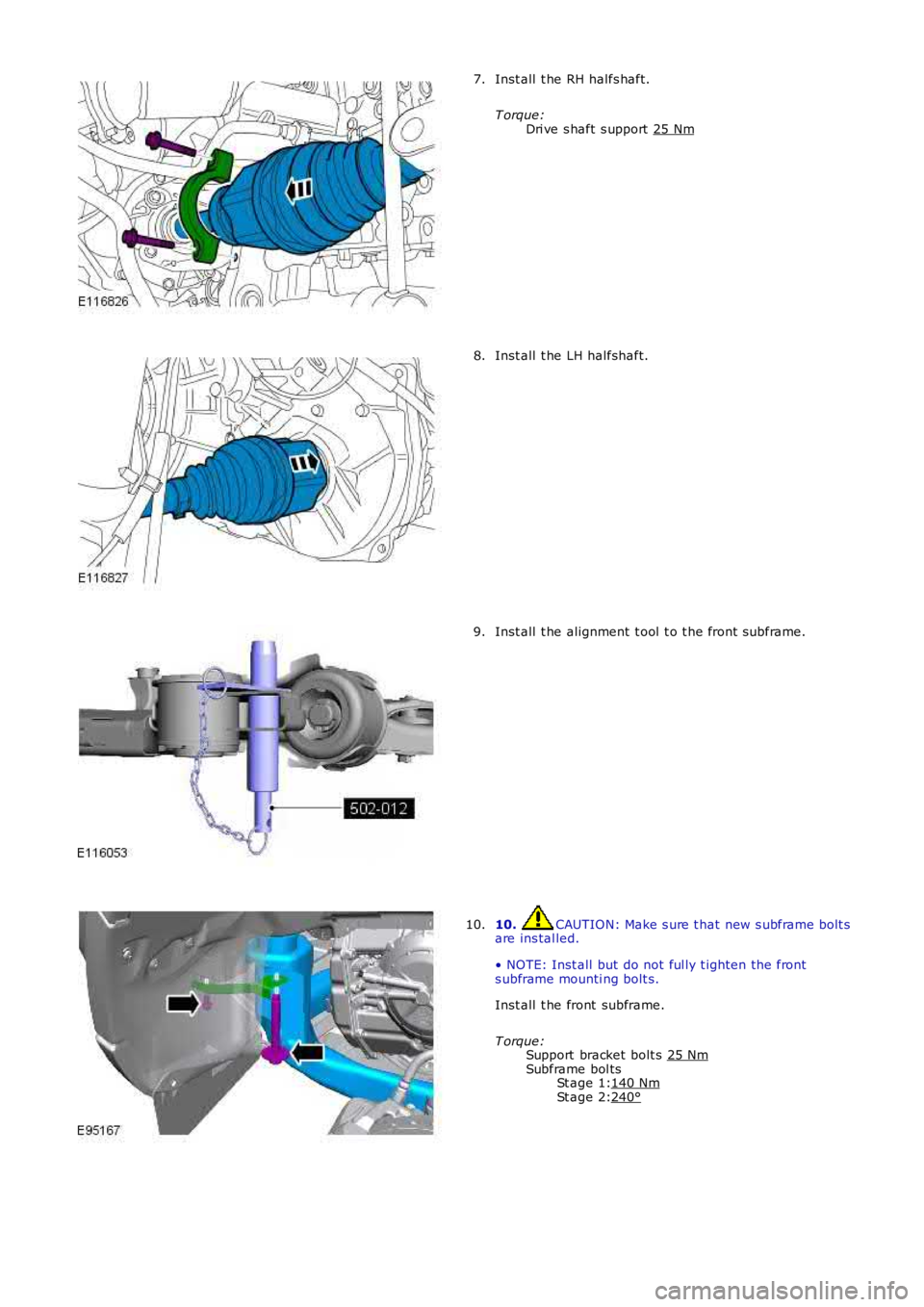

LAND ROVER FRELANDER 2 2006 Repair Manual St age 1: St age 2: Inst all t he RH halfs haft. T orque: Dri ve s haft s upport 25 Nm 7. Inst all t he LH halfshaft. 8. Inst all t he alignment t ool t o t he front subframe. 9. 10. CAUTION:

Page 1464 of 3229

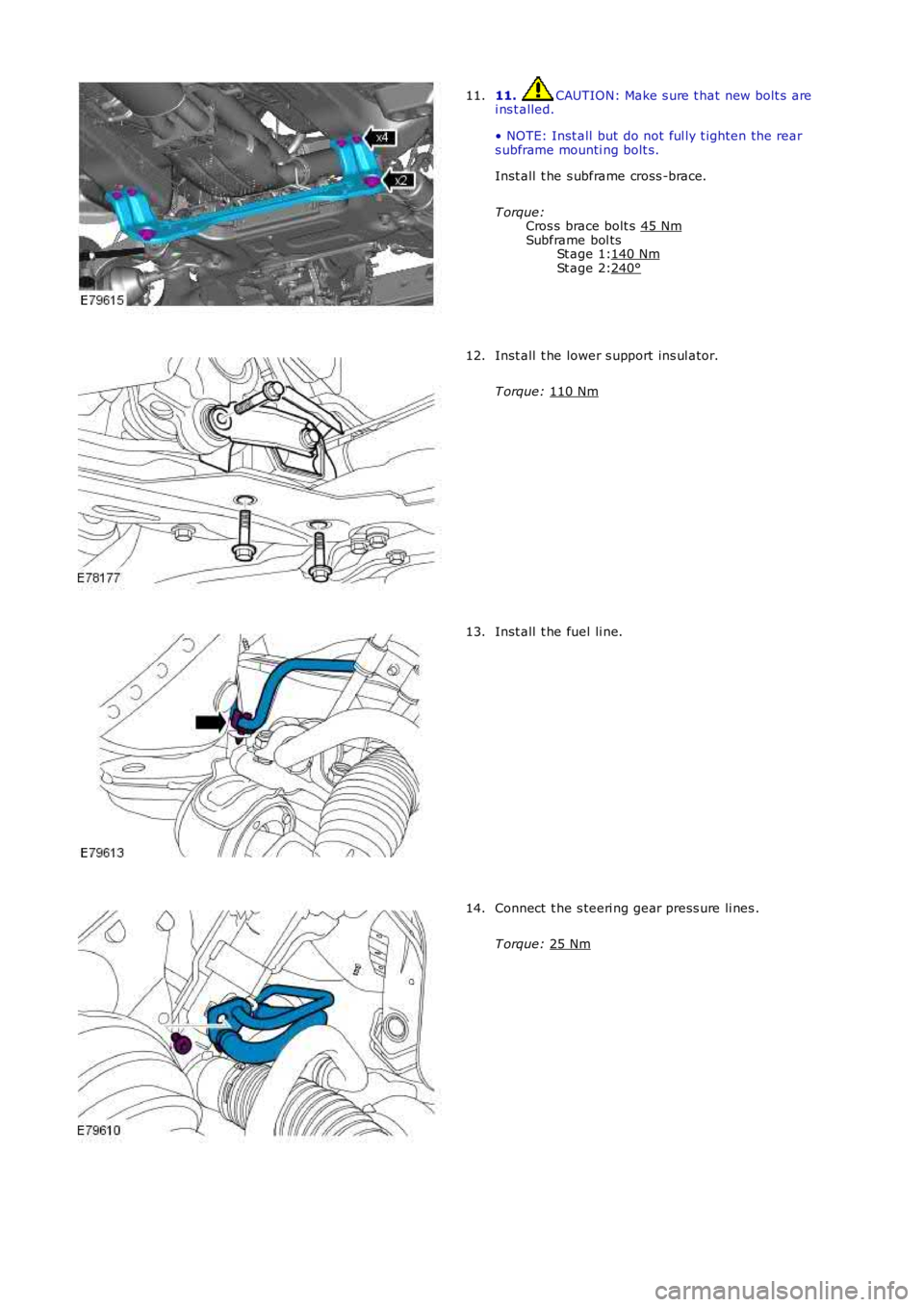

LAND ROVER FRELANDER 2 2006 Repair Manual St age 1: St age 2: 11. CAUTION: Make s ure t hat new bolt s are i ns t alled. • NOTE: Inst all but do not ful ly t ighten the rear s ubframe mounti ng bolt s. Inst all t he s ubframe cross -brac
