Page 1297 of 3229

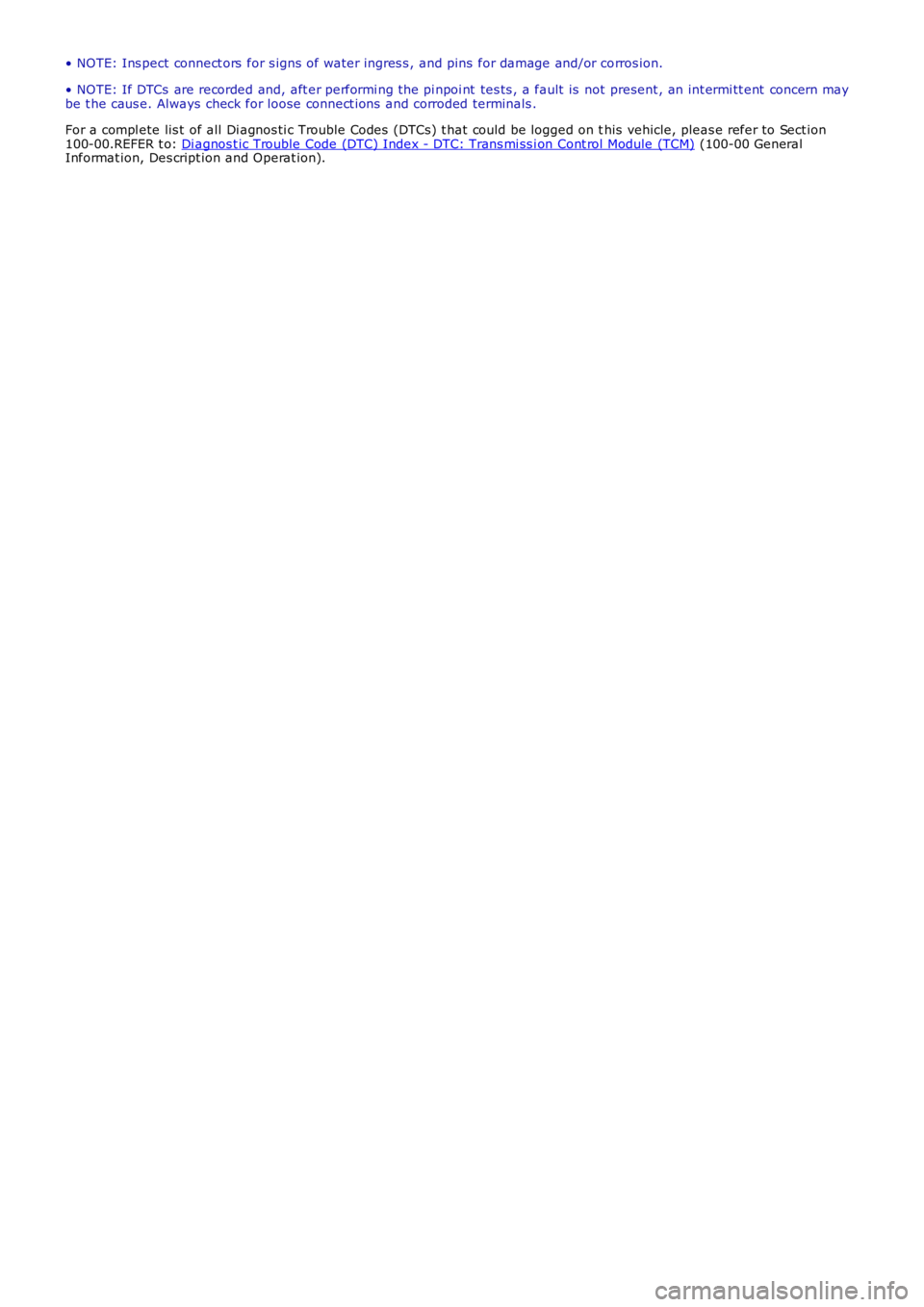

LAND ROVER FRELANDER 2 2006 Repair Manual • NOTE: Ins pect connect ors for s igns of water ingres s , and pins for damage and/or corros ion.
• NOTE: If DTCs are recorded and, aft er performi ng the pi npoi nt tes ts , a fault is not

Page 1298 of 3229

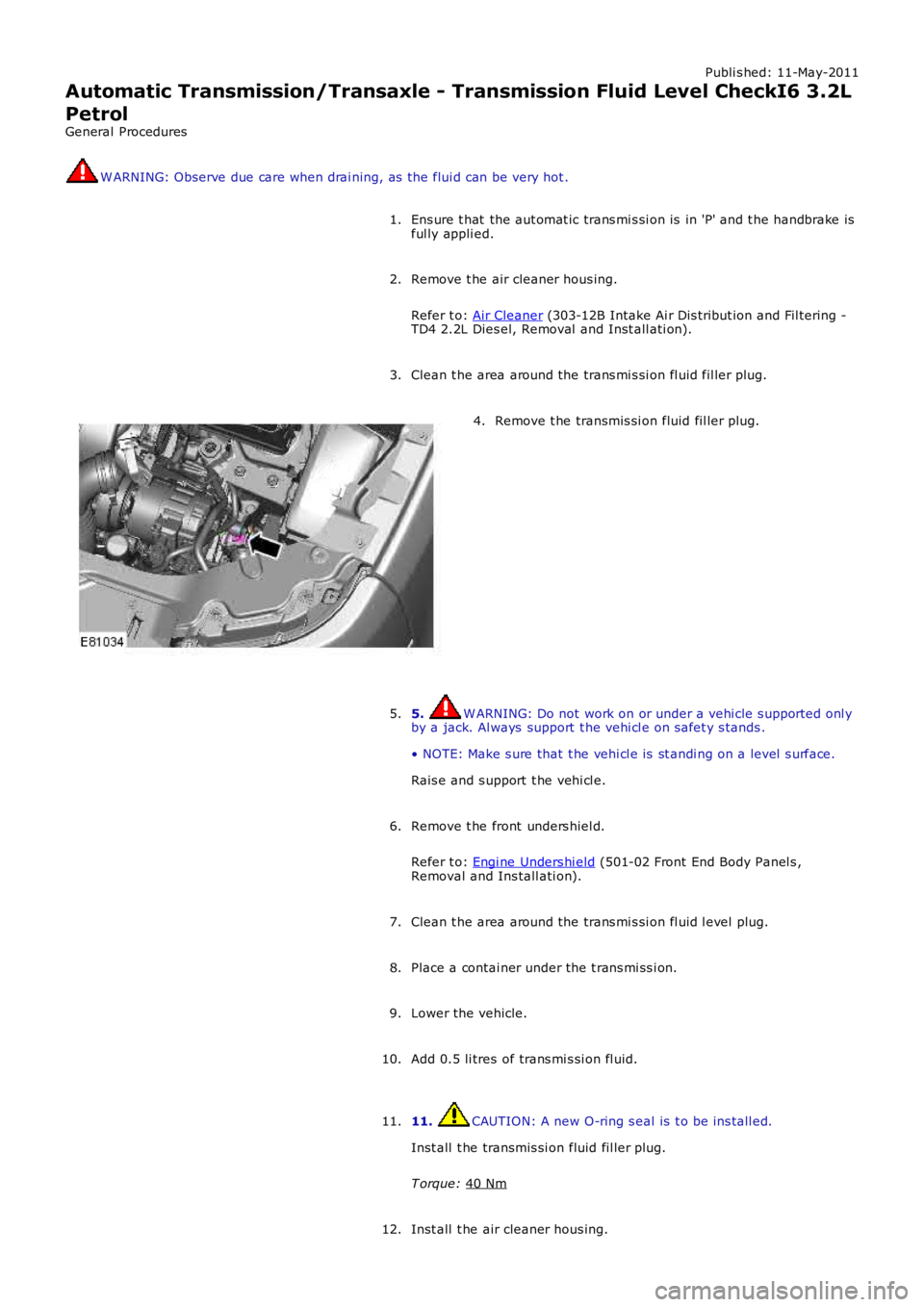

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Automatic Transmission/Transaxle - Transmission Fluid Level CheckI6 3.2L
Petrol
General Procedures W ARNING: Observe due care when drai ning, as the flui d can be very hot .

Page 1299 of 3229

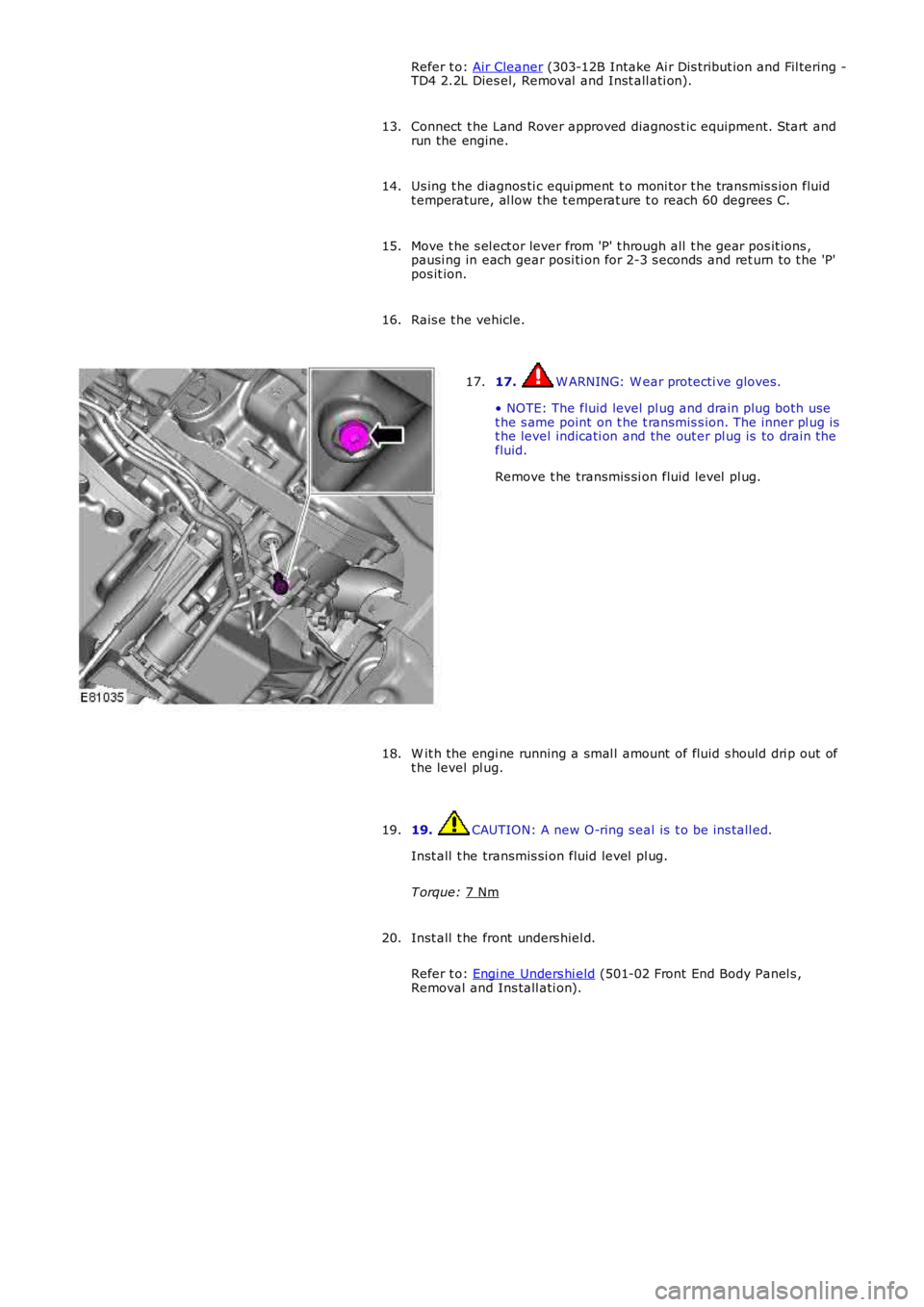

LAND ROVER FRELANDER 2 2006 Repair Manual Refer t o:
Air Cleaner (303-12B Intake Ai r Dis tribut ion and Fil tering -
TD4 2.2L Dies el, Removal and Inst all ati on).
Connect t he Land Rover approved diagnos t ic equipment. St art and
run

Page 1300 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Automatic Transmission/Transaxle - Transmission Fluid Drain and RefillI6
3.2L Petrol
General Procedures W ARNING: Observe due care when drai ning, as the flui d can be very h

Page 1301 of 3229

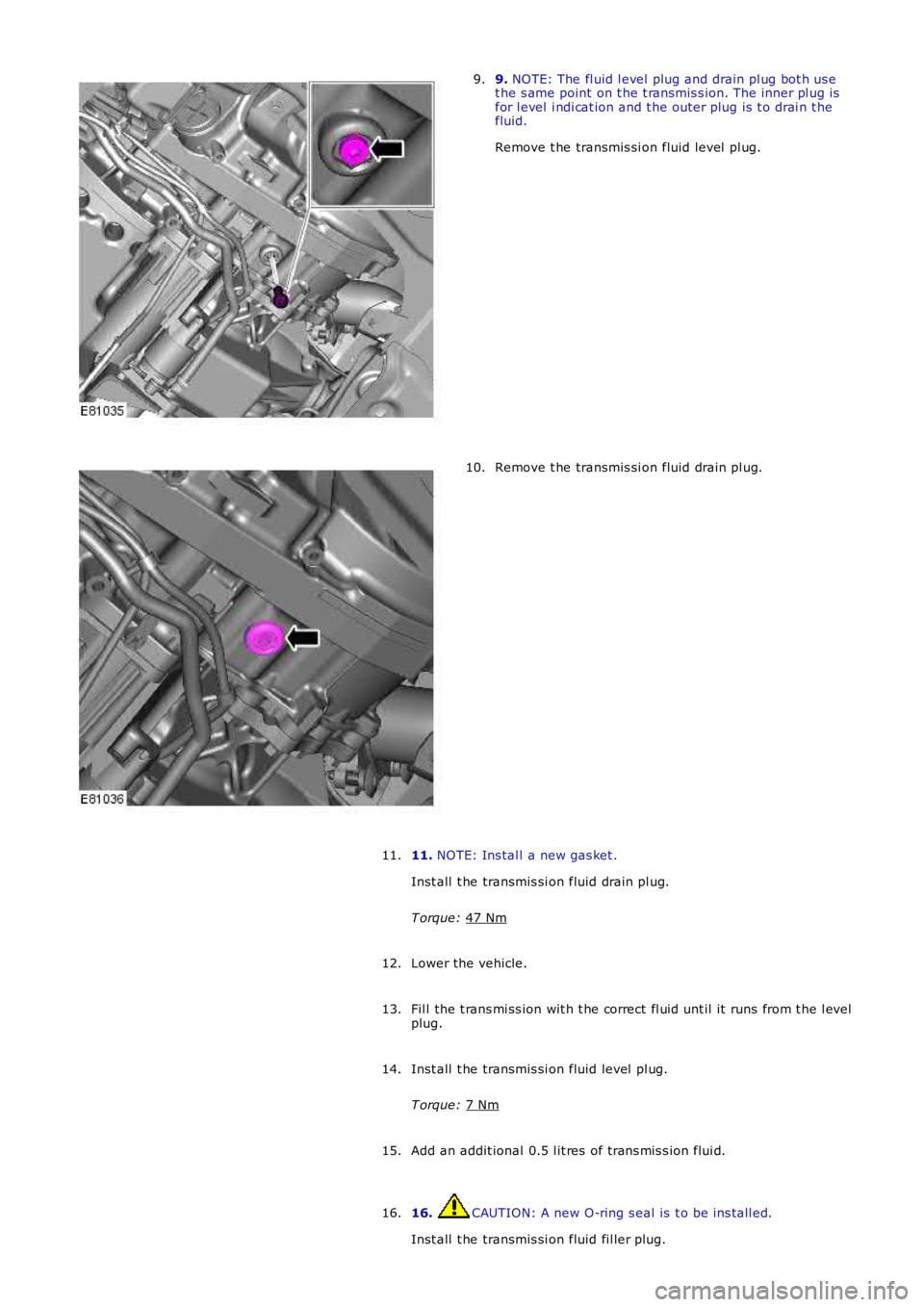

LAND ROVER FRELANDER 2 2006 Repair Manual 9.
NOTE: The fl uid l evel plug and drain pl ug bot h us e
t he s ame point on t he t ransmis s ion. The inner pl ug is
for l evel i ndi cat ion and t he outer plug is t o drai n t he
fluid.
Remo

Page 1302 of 3229

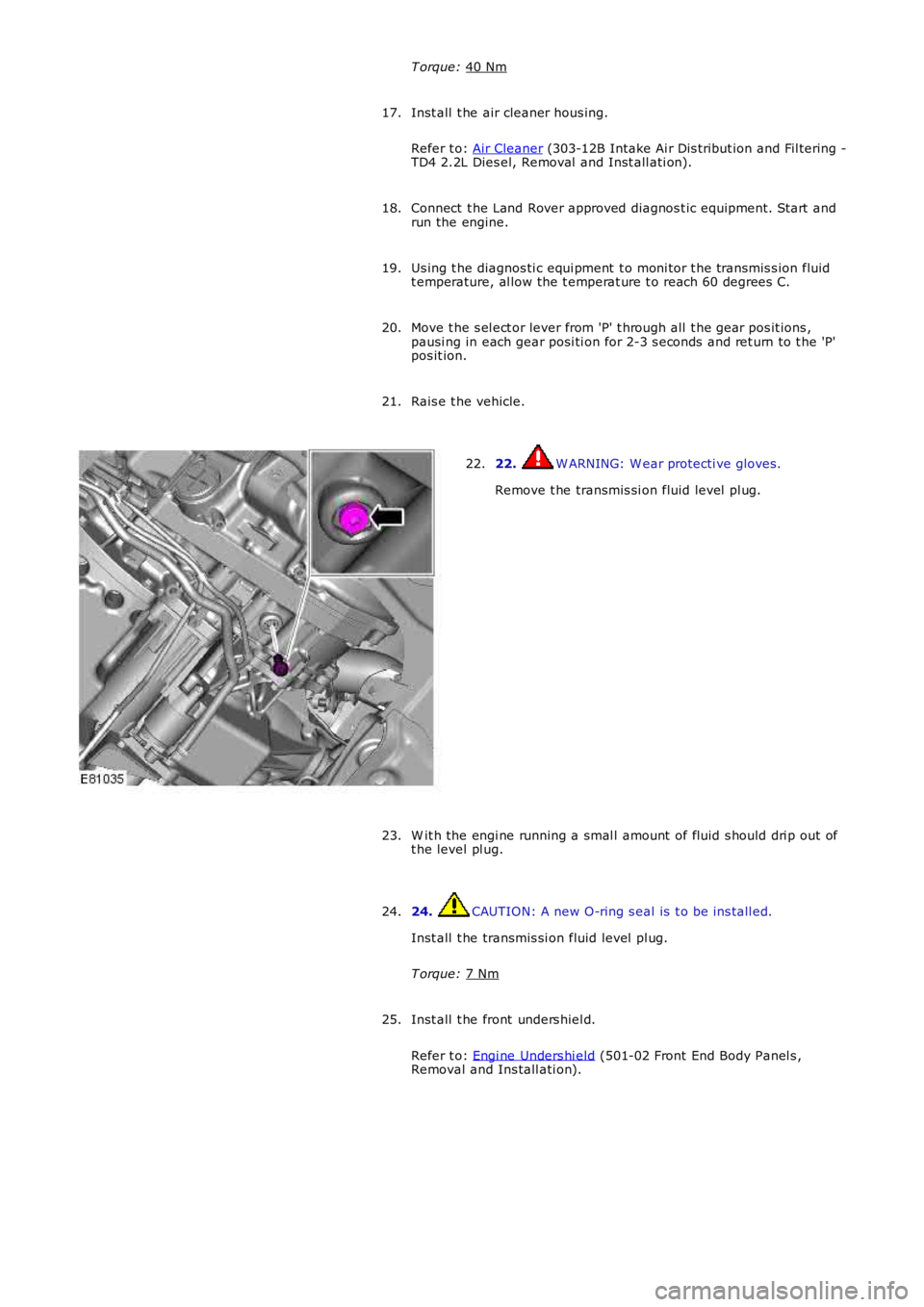

LAND ROVER FRELANDER 2 2006 Repair Manual T orque:
40 Nm Inst all t he air cleaner hous ing.
Refer t o: Air Cleaner (303-12B Intake Ai r Dis tribut ion and Fil tering -
TD4 2.2L Dies el, Removal and Inst all ati on).
17.
Connect t he La

Page 1303 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Publi s hed: 11-May-2011
Automatic Transmission/Transaxle - Transmission Fluid Level CheckTD4
2.2L Diesel
General Procedures W ARNING: Observe due care when drai ning, as the flui d can be very hot .

Page 1304 of 3229

LAND ROVER FRELANDER 2 2006 Repair Manual Move t he s el ect or lever from 'P' t hrough all t he gear pos it ions ,
pausi ng in each gear posi ti on for 2-3 s econds and ret urn to t he 'P'
pos it ion.
13.
Rais e t he vehicle
